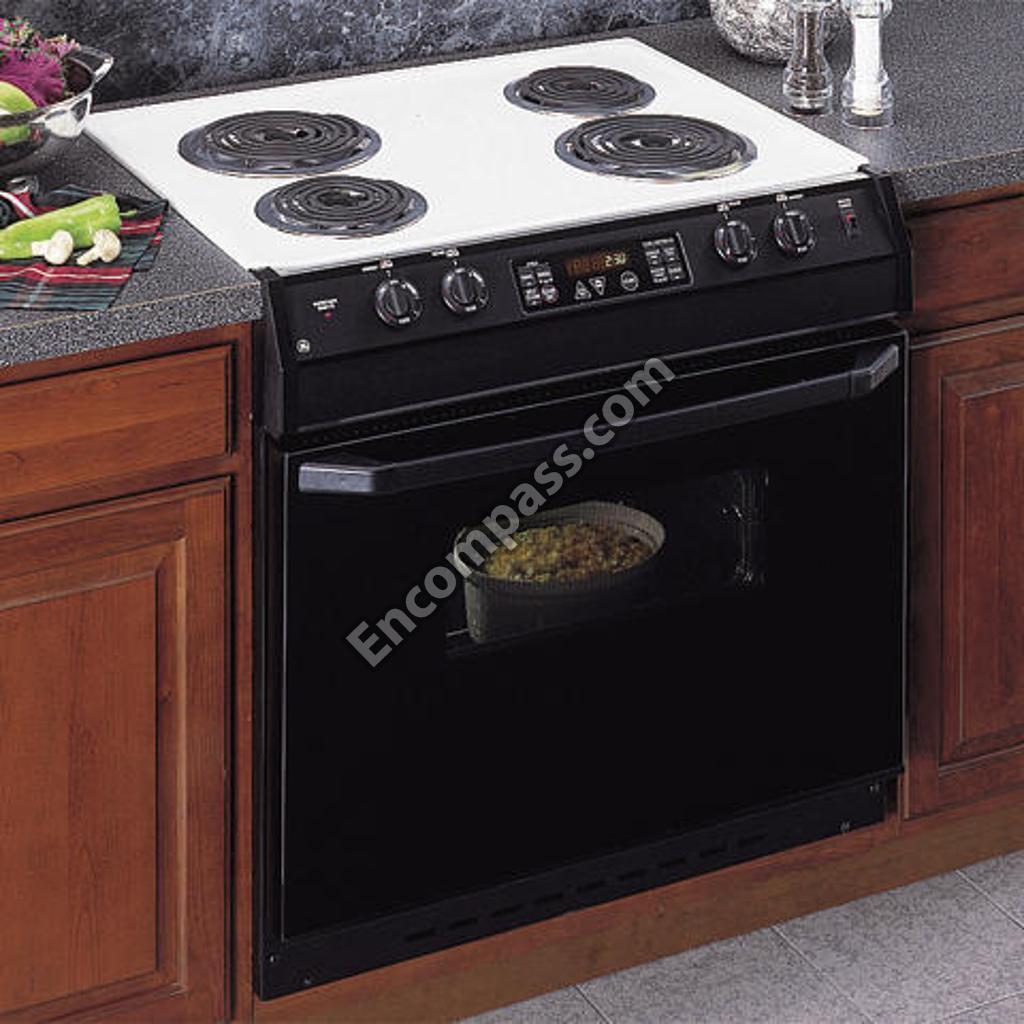

Model Image
Manufacturer

GE

Model Number

JDP36BW4WH

Description

Electric Range

Interactive Exploded View

Parts List

Part Number Description
WB32K5041 WB32K5041 GE 6 INCH BLACK BURNER BOWL - ELE
WB31M1 WB31M1 GE 6 INCH CHROME BURNER BOWL - EL
WB30K5034 WB30K5034 GE 6 SURFACE ELEMENT-1500W
WB31M0001 WB31M0001 GE 6"" BOWL BURNER
WB32K5042 WB32K5042 GE 8 INCH BLACK BURNER BOWL - ELE
WB32X106 WB32X106 GE 8 INCH CHROME BURNER BOWL - EL
WB30K5035 WB30K5035 GE 8 SURFACE ELEMENT-2400W
WB31M0002 WB31M0002 GE 8"" BOWL BURNER
WB2K5239 WB2K5239 GE AIR BAF BRKT
WB02K5239 WB02K5239 GE AIR BAFFLE BRACKET
WB63K5142 WB63K5142 GE BACK MAIN
WB44K5012 WB44K5012 GE BAKE ELEMENT
WB17K10001 WB17K10001 GE BLOCK TERMINAL
WB26K5070 WB26K5070 GE BLOWER ASSEMBLY W/HOSE
WB07K5293 WB07K5293 GE BOTTOM TRIM
WB7K5293 WB7K5293 GE BOTTOM TRIM
WB37K5018 WB37K5018 GE BRACKET CAP PNL MTG RT
WB02K5216 WB02K5216 GE BRACKET CONDUIT
WB2X9568 WB2X9568 GE BRACKET-HNGE
WB02M0086 WB02M0086 GE BRIDGE SPACER
WB2M86 WB2M86 GE BRIDGE SPACR
WB44M0005 WB44M0005 GE BROIL ELEMENT 3400W-240V
WB02X9719 WB02X9719 GE BROIL ELEMENT SUPPORT
WB44M5 WB44M5 GE BROIL ELEMNT
WB02X9888 WB02X9888 GE BURN BOX EXT INSULATION
WB64K5042 WB64K5042 GE BURNER BOX BOTTOM
WB63T10026 WB63T10026 GE BURNER BOX TOP
WB01K5043 WB01K5043 GE CABLE CLIP
WB56X1907 WB56X1907 GE CENTER GLASS
WB2K5102 WB2K5102 GE CLAMP HOSE
WB02X9894 WB02X9894 GE CLIP
WB2X9894 WB2X9894 GE CLIP
WB27K5337 WB27K5337 GE CLOCK PLATE-BLACK
WB27K5338 WB27K5338 GE CLOCK PLATE-WHITE
WB37K5019 WB37K5019 GE CNT PANEL MTG BRACKET-LT
WB2K5216 WB2K5216 GE COND MTG BKT
WB18K5368 WB18K5368 GE COND W HARN **NLA*
WB34K5152 WB34K5152 GE CONTROL COVER FILLER
WB27T10174 WB27T10174 GE CONTROL ERC3B-ET2
WB27X23660 WB27X23660 GE CONTROL OVEN
WB02X9152 WB02X9152 GE COVER
WB2X9152 WB2X9152 GE COVER
WB2X9563 WB2X9563 GE COVER-LEFT
WB36K5671 WB36K5671 GE DISCONTINUED
WB35K5103 WB35K5103 GE DOOR FRAME INSULATOR-
WB7X7183 WB7X7183 GE DOOR HANDLE END CAP
WB02K5312 WB02K5312 GE DOOR HANDLE SPACER-WHITE
WB34K5228 WB34K5228 GE DOOR LOCK PLAT
WB2K5312 WB2K5312 GE DR HNDL SPCR
WB23M24 WB23M24 GE EL CTL 1500W
WB01T10014 WB01T10014 GE ELEMENT CLIP
WB23M0024 WB23M0024 GE ELEMENT CONTROL 1400W
WB23K5027 WB23K5027 GE ELEMENT CONTROL 2350W
WB36K5420 WB36K5420 GE END CAP-LT-BLACK
WB36K5423 WB36K5423 GE END CAP-LT-WHITE
WB36K5421 WB36K5421 GE END CAP-RT-BLACK
WB36K5422 WB36K5422 GE END CAP-RT-WHITE
WB07K5181 WB07K5181 GE EXTENSION BURN BOX BTTM
WB63K5132 WB63K5132 GE EXTENSION UPPER SD
WB26K5038 WB26K5038 GE FAN DUCT
WB24M15 WB24M15 GE FAN LMT SWIT
WB26M17 WB26M17 GE FLEX HOSE
WB26M0017 WB26M0017 GE FLEXIBLE HOSE
WB55K5054 WB55K5054 GE FRM OVEN DR W/INSUL BLACK
WB63T10029 WB63T10029 GE FRONT FRAME
WB02X9178 WB02X9178 GE GLASS MTG PLATE
WB57K5102 WB57K5102 GE GLASS OV DR INNER
WB57T10110 WB57T10110 GE GLASS OVN DR OTR (BLK)
WB57T10111 WB57T10111 GE GLASS OVN DR OTR (WHT)
WB2M1 WB2M1 GE GLASS RETNR
WB01X1260 WB01X1260 GE GROUND WASHER
WB1X1260 WB1X1260 GE GRUND WASHER
WB15T10030 WB15T10030 GE HANDLE ASM (BLK)
WB15T10031 WB15T10031 GE HANDLE ASM (WHT)
WB18T10129 WB18T10129 GE HARNESS WIRE LCK MTR
WB18T10128 WB18T10128 GE HARNESS WIRE MAIN
WB32K5018 WB32K5018 GE HEAT SEAL
WB01X1259 WB01X1259 GE HEX NUT
WB1X1259 WB1X1259 GE HEX NUT
WB10K5018 WB10K5018 GE HINGE ASSEMBLY-LT
WB10K5017 WB10K5017 GE HINGE ASSEMBLY-RT
WB02X9568 WB02X9568 GE HINGE MTG BRACKET
WB14X0136 WB14X0136 GE HINGE-COOKTOP
WB14X136 WB14X136 GE HINGE-COOKTP
WB02K5102 WB02K5102 GE HOSE CLAMP
WB25X0093 WB25X0093 GE IND LHT OVN HOT SURFACE
WB25X0094 WB25X0094 GE INDICATOR LIGHT CAMERA LENS
WB3K5242 WB3K5242 GE INF KNOB-BLK
WB03K5242 WB03K5242 GE INFINTE KNOB-BLK
WB2K5195 WB2K5195 GE INS RET SD L
WB2K5196 WB2K5196 GE INS RET SD R
SR10183 SR10183 GE INSTALLATION INSTRUCTION
WB6X6 WB6X6 GE INSUL CTL CV
WB2K5122 WB2K5122 GE INSUL RET LO
WB06X0006 WB06X0006 GE INSULATION
WB2X9430 WB2X9430 GE INSULATION
WB2X9888 WB2X9888 GE INSULATION
WB02K5122 WB02K5122 GE INSULATION RETAINER-LO
WB35M0022 WB35M0022 GE INSULATION TOP &SIDES
WB02X9718 WB02X9718 GE INSULATION TOP SIDES
WB35K5113 WB35K5113 GE INSULATION-BACK & BTM
WB17X213 WB17X213 GE JUNCTION BLK
WB17X0215 WB17X0215 GE JUNCTION BLOCK
WB17T10006 WB17T10006 GE KIT SURF TERM BLOCK
40A15 40A15 GE LAMP APPLIANCE
WB25T10042 WB25T10042 GE LENS
WB25T10040 WB25T10040 GE LIGHT INDICATOR
WB24K5086 WB24K5086 GE LIMIT SWITCH
WB24K5098 WB24K5098 GE LIMIT SWITCH-BODY
WB55T10018 WB55T10018 GE LINING OVEN DR ASSEMBLY
WB15K5016 WB15K5016 GE LOCK LEVER ASM
WB49T10020 WB49T10020 GE LOCK MOTOR
WB35M0023 WB35M0023 GE LOCK MOTOR INSULATION
WB35M23 WB35M23 GE LOCK MTR INS
WB01X1299 WB01X1299 GE LOCK NUT
WB1X1299 WB1X1299 GE LOCK NUT **NLA*
WB63K5123 WB63K5123 GE MAIN BOTTOM
WB02M0049 WB02M0049 GE MAIN TOP SPACER
WB62K5051 WB62K5051 GE MAIN TOP WHITE
WB62K5052 WB62K5052 GE MAIN TOP-ALMOND
WB18K5378 WB18K5378 GE MAINTOP WIRE HARNESS
31-13757 31-13757 GE MANUAL MINI & WD ASM
49-8866 49-8866 GE MANUAL USE & CARE
WB02M0084 WB02M0084 GE MT SUPPORT ROD
WB2M49 WB2M49 GE MTOP SPACER
WB56K5138 WB56K5138 GE MULTIPLE SUPERCEDURES
WB56X1910 WB56X1910 GE OV DOOR INS RETAINER
WB02M0001 WB02M0001 GE OV DR GLASS RETAINER
WB35K5026 WB35K5026 GE OV DR INSULATION
WB09M0001 WB09M0001 GE OV DR SPRING
WB9M1 WB9M1 GE OV DR SPRING
WB63T10002 WB63T10002 GE OVEN BODY
WB25T10002 WB25T10002 GE OVEN BULB LENS
WB08T10002 WB08T10002 GE OVEN LAMP HOLDER ASM
WB48X0208 WB48X0208 GE OVEN RACK
WB48M4 WB48M4 GE OVEN RACK
WB02T10013 WB02T10013 GE OVN DR GASKET
WB2X9178 WB2X9178 GE PLATE
WB02X1125 WB02X1125 GE PLUG BUTTON CAP TUBE
WB2X1125D WB2X1125D GE PLUG-PKG 12
WB2X9570 WB2X9570 GE REAR SHIELD
WB01X0500 WB01X0500 GE SCR 8-18 B HXW 1/4 S
WB01X1116 WB01X1116 GE SCREW
WB01X1141 WB01X1141 GE SCREW
WZ04X0044 WZ04X0044 GE SCREW
WB01K5210 WB01K5210 GE SCREW
WB01X1253 WB01X1253 GE SCREW
WB01X1137 WB01X1137 GE SCREW
WB01X1127 WB01X1127 GE SCREW
WB01K5162 WB01K5162 GE SCREW
WB01X1178 WB01X1178 GE SCREW
WB01X1123 WB01X1123 GE SCREW
WB01X1258 WB01X1258 GE SCREW
WB01K5123 WB01K5123 GE SCREW
WB01M0001 WB01M0001 GE SCREW
WB1K5210 WB1K5210 GE SCREW
WB1X1178 WB1X1178 GE SCREW
WB1X1258 WB1X1258 GE SCREW
WB1X1116 WB1X1116 GE SCREW
WB1M1 WB1M1 GE SCREW
WB1X1261 WB1X1261 GE SCREW
WH2X930 WH2X930 GE SCREW 8-18 AB HXW 3/8
WB1K5191 WB1K5191 GE SCREW FL ZNC 10-32
WB01K5191 WB01K5191 GE SCREW FLAT ZINC 10-32
WB01X1261 WB01X1261 GE SCREW GROUND
WB01M0027 WB01M0027 GE SCREW ST 6-20X.437 TR
WB01K5150 WB01K5150 GE SCREW ST10-16 X 7/16""
WB01T10003 WB01T10003 GE SCREW TORQUE LIMITING
WB01X1424 WB01X1424 GE SCREW, TRANSFORMER
WB1X1123 WB1X1123 GE SCREW-10-32
WB1X1130 WB1X1130 GE SCREW-10-32
WB1X1137 WB1X1137 GE SCREW-10AB
WB1X1118 WB1X1118 GE SCREW-6-32T 6-20 X 3/8
WB1X1141 WB1X1141 GE SCREW-8-32
WB01K5160 WB01K5160 GE SCREW-BLACK
WB1K5160 WB1K5160 GE SCREW-BLACK
WB1K5165 WB1K5165 GE SCREW-BLACK
WB1K5162 WB1K5162 GE SCREW-BLACK
WB01K5165 WB01K5165 GE SCREW-BLK
WB1X1424D WB1X1424D GE SCREW-PKG 12
WB1X500D WB1X500D GE SCREW-PKG 12
WZ4X44D WZ4X44D GE SCREW-PKG 12
WB1K5123 WB1K5123 GE SCREWS, MOUNTING BRACKET
WB7K5292 WB7K5292 GE SD TRIM LT
WB7K5291 WB7K5291 GE SD TRIM RT
WB21X5301 WB21X5301 GE SENSOR ASSEMBLY
WB02X9570 WB02X9570 GE SHIELD REAR
WB02K5195 WB02K5195 GE SIDE INS RETAINER-LT
WB02K5196 WB02K5196 GE SIDE INS RETAINER-RT
WB35K5099 WB35K5099 GE SIDE TRIM INSULATOR-BLACK
WB35K5100 WB35K5100 GE SIDE TRIM INSULATOR-WHITE
WB07K5291 WB07K5291 GE SIDE TRIM-LT-BLACK
WB07K5292 WB07K5292 GE SIDE TRIM-RT-BLACK
WB02X9575 WB02X9575 GE SPACER
WB02X9896 WB02X9896 GE SPACER
WB2X9575 WB2X9575 GE SPACER
WB2X9896 WB2X9896 GE SPACER
WB01X1311 WB01X1311 GE SPEED NUT
WB1X1311 WB1X1311 GE SPEED NUT
WB2M87 WB2M87 GE SUP ROD CLMP
WB2X9719 WB2X9719 GE SUPP-BROIL
WB02M0087 WB02M0087 GE SUPPORT ROD CLAMP
WB24M0015 WB24M0015 GE SWITCH LIMIT
WB24T10147 WB24T10147 GE SWITCH SPDT HIGH AMP
WB24X415 WB24X415 GE SWITCH-LITE
WB24X0415 WB24X0415 GE SWITCH-OVEN LIGHT
WB1K5128 WB1K5128 GE TER BLCK CLP
WB17X210 WB17X210 GE TERM BLK
WB01K5128 WB01K5128 GE TERMINAL BLOCK CLIP
WB35M22 WB35M22 GE TOP&SD INSUL
WB48X10056 WB48X10056 GE TWO-PIECE PORCELAIN-COATED BROILER
WB02X9895 WB02X9895 GE VENT SEAL
WB38X124 WB38X124 GE VENT TUBE
WB38X0124 WB38X0124 GE VENT TUBE ASM
WB01X1159 WB01X1159 GE WASHER
WB01X1254 WB01X1254 GE WASHER
WB01K5174 WB01K5174 GE WASHER
WB1K5174 WB1K5174 GE WASHER
WB1X1159D WB1X1159D GE WASHR-PKG 12
WB1X119D WB1X119D GE WASHR-PKG 12
WB1X681 WB1X681 GE WB01X0681
WB4X122 WB4X122 GE WB4X122
WB2X9569 WB2X9569 GE WIRE COVER
WB34K5134 WB34K5134 GE WIRE COVER REAR
WB02X9569 WB02X9569 GE WIRE COVER UPPER
WB02X9563 WB02X9563 GE WIRE COVER-LT
