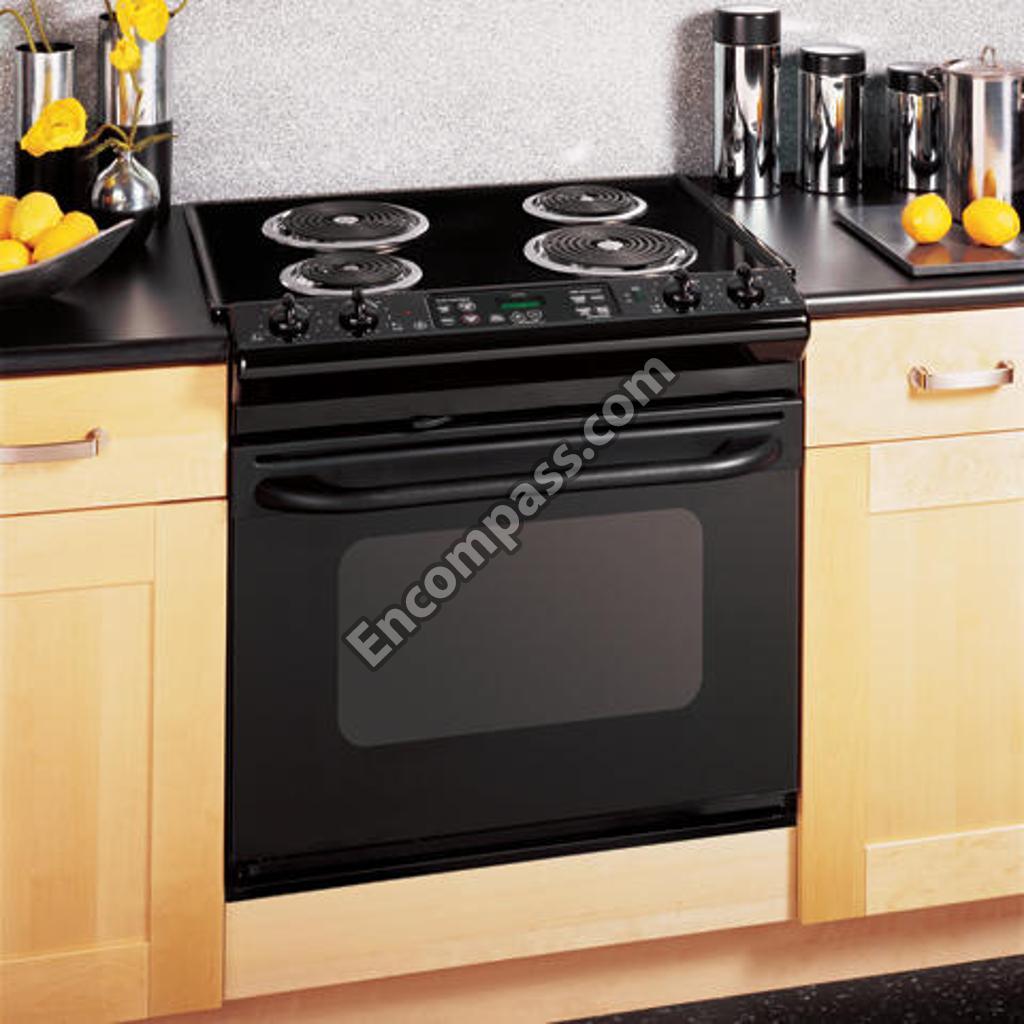

Model Image
Manufacturer

GE

Model Number

JDP39BK3BB

Description

Electric Range

Interactive Exploded View

Parts List

Part Number Description
WB1K5200 WB1K5200 GE 340531
40A15 40A15 GE 40WATT 15AMP INC AND ESCENT BULB
WB31T10010 WB31T10010 GE 6 INCH CHROME BURNER BOWL - ELEC
WB31T10011 WB31T10011 GE 8 INCH CHROME BURNER BOWL - EL
WB02K10048 WB02K10048 GE BASE RAIL
WB17K10001 WB17K10001 GE BLOCK TERMINAL
WB64T10053 WB64T10053 GE BOTTOM BURN BOX
WB02X10739 WB02X10739 GE BRACKET ANTI-TIP
WB02T10270 WB02T10270 GE BRACKET SWITCH
WB10X255 WB10X255 GE BRACKET-HNGE
WB02X9573 WB02X9573 GE CLIP
WB2X9573 WB2X9573 GE CLIP
WB2X8228 WB2X8228 GE CLIP RECEPT
WB02X8228 WB02X8228 GE CLIP RECEPTACLE
WB2K5126 WB2K5126 GE COND CLAMP
WB02K5126 WB02K5126 GE CONDUIT CLAMP
WB18K10012 WB18K10012 GE CONDUIT WIRE ASSEMBLY
WB24T10029 WB24T10029 GE CONTROL INFINITE SWITCH
WB02X9152 WB02X9152 GE COVER
WB02K5365 WB02K5365 GE COVER
WB2X9152 WB2X9152 GE COVER
WB2K5365 WB2K5365 GE COVER
WB34T10105 WB34T10105 GE COVER WIRE
WB34K10046 WB34K10046 GE COVER WIRE REAR
WB01T10022 WB01T10022 GE DOOR BUMPER
WB56T10166 WB56T10166 GE DOOR OTR ASM 30 (BK)
WB56T10167 WB56T10167 GE DOOR OTR ASM 30 (BQ)
WB56T10169 WB56T10169 GE DOOR OTR ASM 30 (WH)
WB44T10018 WB44T10018 GE ELEMENT BAKE (3400W)
WB07K10137 WB07K10137 GE EXTENSION REAR
WB07T10474 WB07T10474 GE EXTENSION SIDE LEFT
WB07T10473 WB07T10473 GE EXTENSION SIDE RT
WB27T10659 WB27T10659 GE FACEPLATE GRAPHICS ASM
WB27T10660 WB27T10660 GE FACEPLATE GRAPHICS ASM
WB27T10661 WB27T10661 GE FACEPLATE GRAPHICS ASM
WB26T10032 WB26T10032 GE FAN ASM
WB63T10083 WB63T10083 GE FRAME FRT LOWER
WB04T10050 WB04T10050 GE GASKET OVEN DOOR
WB04T10021 WB04T10021 GE GASKET OVEN LIGHT
WB15T10108 WB15T10108 GE HANDLE OVN DR (BLK)
WB15T10110 WB15T10110 GE HANDLE OVN DR (BQT)
WB15T10109 WB15T10109 GE HANDLE OVN DR (WHT)
WB01X1259 WB01X1259 GE HEX NUT
WB1X1259 WB1X1259 GE HEX NUT
WB10T10082 WB10T10082 GE HINGE DOOR LT
WB10T10081 WB10T10081 GE HINGE DOOR RT
WB14T10028 WB14T10028 GE HINGE MAINTOP LEFT
WB14T10027 WB14T10027 GE HINGE MAINTOP RT
WB24T10025 WB24T10025 GE INF SW CONTROL (2500W)
31-10595 31-10595 GE INSTRUCTION INSTALL
31-10514 31-10514 GE INSTRUCTION SHEET
31-10459 31-10459 GE INSTRUCTIONS INSTALL
WB35T10073 WB35T10073 GE INSULATION (INR) LWR
WB35T10074 WB35T10074 GE INSULATION (OUT) LWR
WB35K10024 WB35K10024 GE INSULATION BASE
WB35K10025 WB35K10025 GE INSULATION OVEN DR SDE
WB35X30052 WB35X30052 GE INSULATION OVN DR TOP
WB17T10006 WB17T10006 GE KIT SURF TERM BLOCK
WB03T10233 WB03T10233 GE KNOB GE SU (BK)
WB03T10234 WB03T10234 GE KNOB GE SU (BQ)
WB03T10235 WB03T10235 GE KNOB GE SU (WH)
WB14T10029 WB14T10029 GE LATCH ASM
WB14T10030 WB14T10030 GE LATCH ASM
WB14T10031 WB14T10031 GE LATCH ASM
WB25T10042 WB25T10042 GE LENS
WB25K10010 WB25K10010 GE LIGHT INDICATOR PILOT
WB55T10148 WB55T10148 GE LINER OVEN DR ASM
WB01K5046 WB01K5046 GE LOCKWASHER
WB02K5306 WB02K5306 GE LOWER OVN INSLN RETAINER
WB62T10427 WB62T10427 GE MAINTOP
WB62T10425 WB62T10425 GE MAINTOP
WB62T10426 WB62T10426 GE MAINTOP
31-14262 31-14262 GE MANUAL MINI & WD ASM
49-80353 49-80353 GE MANUAL USE & CARE
WB10X0255 WB10X0255 GE MT HINGE BRACKET
WB25T10002 WB25T10002 GE OVEN BULB LENS COVER-
WB27T11309 WB27T11309 GE OVEN CONTROL T0-9 ELECT
WB27X45466 WB27X45466 GE OVEN CONTROL T0-9 ELECT
WB08T10002 WB08T10002 GE OVEN LAMP HO
WB24T10043 WB24T10043 GE OVEN ROCKER SWITCH
WB24T10053 WB24T10053 GE OVEN ROCKER SWITCH
WB56T10105 WB56T10105 GE PACK WINDOW ASM
WB56X22160 WB56X22160 GE PACK WINDOW ASSEMBLY
WB36T10792 WB36T10792 GE PANEL CNTL BTM
WB36T10795 WB36T10795 GE PANEL CNTL BTM
WB36T10793 WB36T10793 GE PANEL CNTL BTM BQ
WB36T10791 WB36T10791 GE PANEL CNTL GRAPHICS ASM
WB36T10794 WB36T10794 GE PANEL CNTL GRAPHICS ASM
WB36T10796 WB36T10796 GE PANEL CNTL GRAPHICS ASM
WB02T10147 WB02T10147 GE PLATE REINFORCEMEMT
WB48T10095 WB48T10095 GE RACK OVEN
WB30X20478 WB30X20478 GE RANGE 6-INCH SURFACE ELEMENT - 4 TURNS
WB30X20481 WB30X20481 GE RANGE 8-INCH SURFACE ELEMENT - 5 TURNS
WB02T10267 WB02T10267 GE RANGE BRACKET
WB10T10083 WB10T10083 GE RECEIVER HINGE
WB56T10136 WB56T10136 GE RETAINER INSLN BACK
WB02T10143 WB02T10143 GE RETAINER INSLN BTM
WB02T10371 WB02T10371 GE RETAINER INSLN OVN DR
WB02T10269 WB02T10269 GE RETAINER INSLN TOP
WB24T10042 WB24T10042 GE ROCKER SWITCH OVEN
WB02T10268 WB02T10268 GE ROD MAINTOP SUPT
WB01T10095 WB01T10095 GE SCR 10-32 HWH I 13/16
WH02X0941 WH02X0941 GE SCR 8-15 A HXW 7/8 S
WB01X0500 WB01X0500 GE SCR 8-18 B HXW 1/4 S
WB01T10094 WB01T10094 GE SCR 8-32 PN 1/2
WB01K5029 WB01K5029 GE SCREW
WB01X1253 WB01X1253 GE SCREW
WB01X1137 WB01X1137 GE SCREW
WB01K5200 WB01K5200 GE SCREW
WB01X1127 WB01X1127 GE SCREW
WB01K5123 WB01K5123 GE SCREW
WB01M0001 WB01M0001 GE SCREW
WB1K5029 WB1K5029 GE SCREW
WB1X1317 WB1X1317 GE SCREW
WB1K5062 WB1K5062 GE SCREW
WB1X1293 WB1X1293 GE SCREW
WB1M1 WB1M1 GE SCREW
WH2X930 WH2X930 GE SCREW
WB01T10066 WB01T10066 GE SCREW 10-16 X 1.000 HWH
WB01T10008 WB01T10008 GE SCREW 10-32 TR T
WB1K5167 WB1K5167 GE SCREW 8-18 X 3/8
WB01K5167 WB01K5167 GE SCREW 8-18 X 3/8""
WB01T10039 WB01T10039 GE SCREW ST 6-20X 375 TR BISQUE
WB01K5150 WB01K5150 GE SCREW ST10-16 X 7/16""
WB01K5062 WB01K5062 GE SCREW ST8-18X.500TRBRNI
WB01X1293 WB01X1293 GE SCREW TC10-32X.250HEXNI
WB01X1424 WB01X1424 GE SCREW, TRANSFORMER
WB1X1130 WB1X1130 GE SCREW-10-32
WB1X1137 WB1X1137 GE SCREW-10AB
WB1X1118 WB1X1118 GE SCREW-6-32T 6-20 X 3/8
WB01X1317 WB01X1317 GE SCREW-BLACK
WB01X1118 WB01X1118 GE SCREW-NICKEL
WH2X941D WH2X941D GE SCREW-PKG 12
WB1X1424D WB1X1424D GE SCREW-PKG 12
WB1X500D WB1X500D GE SCREW-PKG 12
WB1K5123 WB1K5123 GE SCREWS, MOUNTING BRACKET
WB2K5306 WB2K5306 GE SD INSUL RET
WB23T10015 WB23T10015 GE SENSOR ASM
WB02T10034 WB02T10034 GE SIDE PANEL SUPPORT
WB2M87 WB2M87 GE SUP ROD CLMP
WB26T10015 WB26T10015 GE SUPPORT OVN CAV
WB02M0087 WB02M0087 GE SUPPORT ROD CLAMP
WB2K5238 WB2K5238 GE SW BRACKET
WB02K5238 WB02K5238 GE SWITCH BRACKET
WB24T10117 WB24T10117 GE SWITCH LIMIT
WB24T10118 WB24T10118 GE SWITCH LIMIT BIMETAL
WB07K10139 WB07K10139 GE TRIM LOWER
WB07K10143 WB07K10143 GE TRIM LOWER
WB07K10154 WB07K10154 GE TRIM LOWER
WB07T10475 WB07T10475 GE TRIM VENT INR (BLACK)
WB07T10408 WB07T10408 GE TRIM VERT SDE
WB07T10407 WB07T10407 GE TRIM VERT SDE
WB38T10027 WB38T10027 GE TUBE VENT ASM
WB38T10029 WB38T10029 GE TUBE VNT ASM
WB44T10043 WB44T10043 GE UNIT BROIL ASM (DLX)
WB48X10056 WB48X10056 GE UNIVERSAL RANGE BROILER PAN
WB01K5174 WB01K5174 GE WASHER
WB1K5174 WB1K5174 GE WASHER
WB1K5046 WB1K5046 GE WASHER
WB1X681 WB1X681 GE WB01X0681
WB35T10090 WB35T10090 GE WB35K5116
WB63T10085 WB63T10085 GE WRAPPER OVEN CAV
