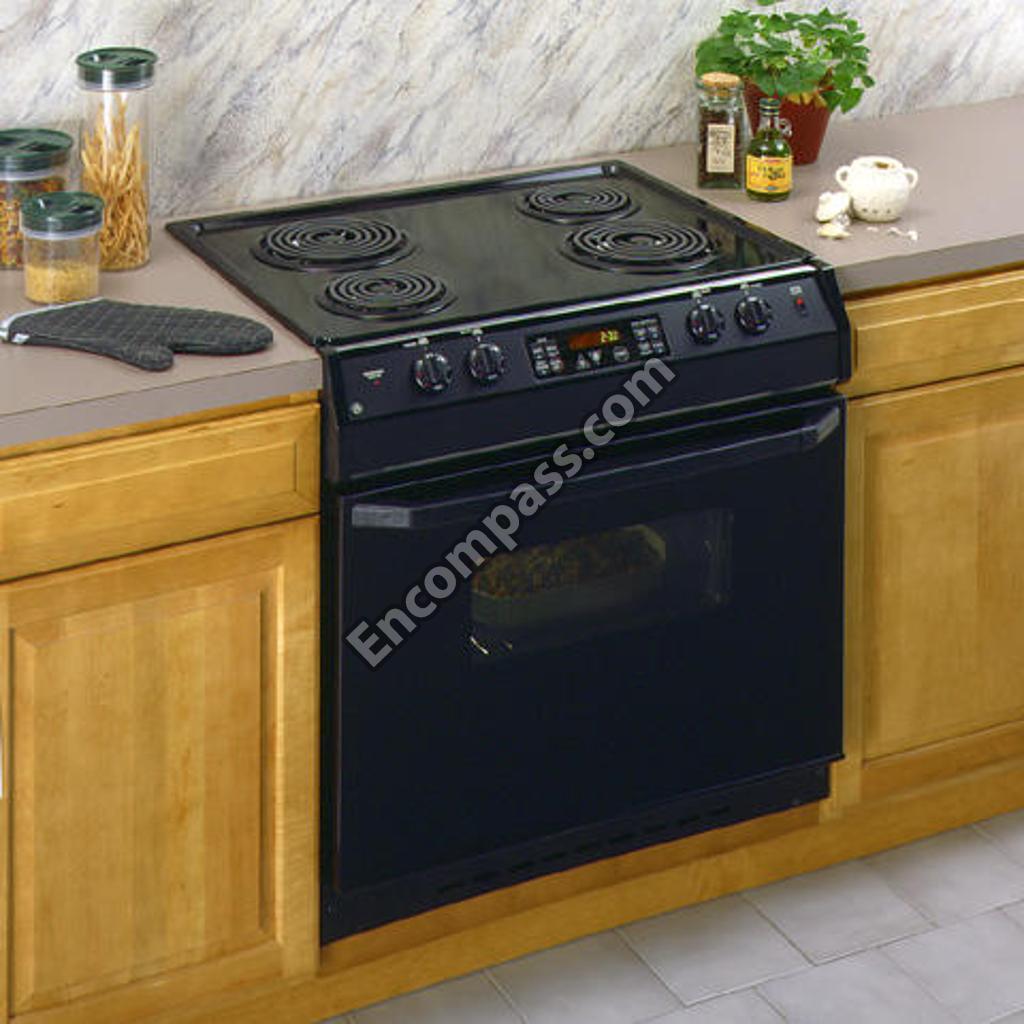

Model Image
Manufacturer

GE

Model Number

JDP39BW1BB

Description

Electric Range

Interactive Exploded View

Parts List

Part Number Description
WB32K5041 WB32K5041 6 INCH BLACK BURNER BOWL - ELE
WB30K5034 WB30K5034 6 SURFACE ELEMENT-1500W
WB32K5042 WB32K5042 8 INCH BLACK BURNER BOWL - ELE
WB30K5035 WB30K5035 8 SURFACE ELEMENT-2400W
WB30X0255 WB30X0255 8"" SURFACE ELEMENT
WB2K5239 WB2K5239 AIR BAF BRKT
WB02K5239 WB02K5239 AIR BAFFLE BRACKET
WB63K5142 WB63K5142 BACK MAIN
WB44K5012 WB44K5012 BAKE ELEMENT
WB26K5070 WB26K5070 BLOWER ASSEMBLY W/HOSE
WB07K5293 WB07K5293 BOTTOM TRIM
WB7K5293 WB7K5293 BOTTOM TRIM
WB37K5018 WB37K5018 BRACKET CAP PNL MTG RT
WB2X9568 WB2X9568 BRACKET-HNGE
WB02M0086 WB02M0086 BRIDGE SPACER
WB2M86 WB2M86 BRIDGE SPACR
WB44M0005 WB44M0005 BROIL ELEMENT 3400W-240V
WB02X9719 WB02X9719 BROIL ELEMENT SUPPORT
WB44M5 WB44M5 BROIL ELEMNT
WB48M0003 WB48M0003 BROILER PAN
WB02X9888 WB02X9888 BURN BOX EXT INSULATION
WB64K5042 WB64K5042 BURNER BOX BOTTOM
WB01K5043 WB01K5043 CABLE CLIP
WB56X1907 WB56X1907 CENTER GLASS
WB2K5102 WB2K5102 CLAMP HOSE
WB02X9894 WB02X9894 CLIP
WB2X9894 WB2X9894 CLIP
WB27K5337 WB27K5337 CLOCK PLATE-BLACK
WB27K5338 WB27K5338 CLOCK PLATE-WHITE
WB37K5019 WB37K5019 CNT PANEL MTG BRACKET-LT
WB18K5368 WB18K5368 COND W HARN **NLA*
WB34K5152 WB34K5152 CONTROL COVER FILLER
WB27X23660 WB27X23660 CONTROL OVEN
WB02X9152 WB02X9152 COVER
WB2X9152 WB2X9152 COVER
WB2X9563 WB2X9563 COVER-LEFT
WB36K5671 WB36K5671 DISCONTINUED
WB35K5103 WB35K5103 DOOR FRAME INSULATOR-
WB7X7183 WB7X7183 DOOR HANDLE END CAP
WB02K5312 WB02K5312 DOOR HANDLE SPACER-WHITE
WB34K5228 WB34K5228 DOOR LOCK PLAT
WB2K5312 WB2K5312 DR HNDL SPCR
WB23M24 WB23M24 EL CTL 1500W
WB23M0024 WB23M0024 ELEMENT CONTROL 1400W
WB23K5027 WB23K5027 ELEMENT CONTROL 2350W
WB36K5420 WB36K5420 END CAP-LT-BLACK
WB36K5423 WB36K5423 END CAP-LT-WHITE
WB36K5421 WB36K5421 END CAP-RT-BLACK
WB36K5422 WB36K5422 END CAP-RT-WHITE
WB07K5181 WB07K5181 EXTENSION BURN BOX BTTM
WB63K5132 WB63K5132 EXTENSION UPPER SD
WB26K5038 WB26K5038 FAN DUCT
WB24M15 WB24M15 FAN LMT SWIT
WB26M17 WB26M17 FLEX HOSE
WB26M0017 WB26M0017 FLEXIBLE HOSE
WB55K5054 WB55K5054 FRM OVEN DR W/INSUL BLACK
WB63K5121 WB63K5121 FRONT FRAME ASSEMBLY
WB02X9178 WB02X9178 GLASS MTG PLATE
WB57T10110 WB57T10110 GLASS OVEN DR OTR (BLACK)
WB2M1 WB2M1 GLASS RETNR
WB01X1260 WB01X1260 GROUND WASHER
WB1X1260 WB1X1260 GRUND WASHER
WB15T10030 WB15T10030 HANDLE ASM (BLK)
WB15T10031 WB15T10031 HANDLE ASM (WHT)
WB32K5018 WB32K5018 HEAT SEAL
WB01X1259 WB01X1259 HEX NUT
WB1X1259 WB1X1259 HEX NUT
WB10K5018 WB10K5018 HINGE ASSEMBLY-LT
WB10K5017 WB10K5017 HINGE ASSEMBLY-RT
WB02X9568 WB02X9568 HINGE MTG BRACKET
WB14X0136 WB14X0136 HINGE-COOKTOP
WB14X136 WB14X136 HINGE-COOKTP
WB02K5102 WB02K5102 HOSE CLAMP
WB25X0093 WB25X0093 IND LHT OVN HOT SURFACE
WB25X0094 WB25X0094 INDICATOR LIGHT CAMERA LENS
WB3K5242 WB3K5242 INF KNOB-BLK
WB03K5242 WB03K5242 INFINTE KNOB-BLK
WB2K5195 WB2K5195 INS RET SD L
WB2K5196 WB2K5196 INS RET SD R
SR10183 SR10183 INSTALLATION INSTRUCTION
WB6X6 WB6X6 INSUL CTL CV
WB2K5122 WB2K5122 INSUL RET LO
WB06X0006 WB06X0006 INSULATION
WB2X9888 WB2X9888 INSULATION
WB2X9430 WB2X9430 INSULATION
WB02K5122 WB02K5122 INSULATION RETAINER-LO
WB35M0022 WB35M0022 INSULATION TOP &SIDES
WB02X9718 WB02X9718 INSULATION TOP SIDES
WB35K5113 WB35K5113 INSULATION-BACK & BTM
WB17X213 WB17X213 JUNCTION BLK
WB17X0215 WB17X0215 JUNCTION BLOCK
WB25T10042 WB25T10042 LENS
WB25T10040 WB25T10040 LIGHT INDICATOR
WB24K5086 WB24K5086 LIMIT SWITCH
WB24K5098 WB24K5098 LIMIT SWITCH-BODY
WB15K5016 WB15K5016 LOCK LEVER ASM
WB49T10020 WB49T10020 LOCK MOTOR
WB35M0023 WB35M0023 LOCK MOTOR INSULATION
WB18K5369 WB18K5369 LOCK MOTOR WIRE HARNESS
WB35M23 WB35M23 LOCK MTR INS
WB63K5123 WB63K5123 MAIN BOTTOM
WB62K5112 WB62K5112 MAIN TOP ASSEMBLY
WB02M0049 WB02M0049 MAIN TOP SPACER
WB62K5052 WB62K5052 MAIN TOP-ALMOND
WB18K5625 WB18K5625 MAIN WIRE HARNESS
WB18K5378 WB18K5378 MAINTOP WIRE HARNESS
49-8745 49-8745 MANUAL USE & CARE
WB32X0105 WB32X0105 MEDALLION
31-13302 31-13302 MINI MANUAL W/WIRE DIAG.
WB02M0084 WB02M0084 MT SUPPORT ROD
WB2M49 WB2M49 MTOP SPACER
WB56K5138 WB56K5138 MULTIPLE SUPERCEDURES
WB56X1910 WB56X1910 OV DOOR INS RETAINER
WB02M0001 WB02M0001 OV DR GLASS RETAINER
WB35K5026 WB35K5026 OV DR INSULATION
WB57K5141 WB57K5141 OV DR INTERMED GLASS
WB09M0001 WB09M0001 OV DR SPRING
WB9M1 WB9M1 OV DR SPRING
WB25M0010 WB25M0010 OV LAMP CAMERA LENS
WB25M10 WB25M10 OV LAMP LENS
WB2K5319 WB2K5319 OVDR GASKET
WB02K5319 WB02K5319 OVEN DOOR GASKET
WB55T10134 WB55T10134 OVEN DOOR PLUG
WB08K5042 WB08K5042 OVEN LAMP HOLDER
WB48X0208 WB48X0208 OVEN RACK
WB48M4 WB48M4 OVEN RACK
WB8K5042 WB8K5042 OVLAMP HLDR
WB2X9178 WB2X9178 PLATE
WB02X1125 WB02X1125 PLUG BUTTON CAP TUBE
WB2X1125D WB2X1125D PLUG-PKG 12
WB2X9570 WB2X9570 REAR SHIELD
WZ04X0044 WZ04X0044 SCREW
WB01X1116 WB01X1116 SCREW
WB01X1253 WB01X1253 SCREW
WB01X1137 WB01X1137 SCREW
WB01K5162 WB01K5162 SCREW
WB01X1178 WB01X1178 SCREW
WB01X1123 WB01X1123 SCREW
WB01X1258 WB01X1258 SCREW
WB01K5123 WB01K5123 SCREW
WB01M0001 WB01M0001 SCREW
WB01K5116 WB01K5116 SCREW
WB01K5072 WB01K5072 SCREW
WB1X1178 WB1X1178 SCREW
WB1K5072 WB1K5072 SCREW
WB1X1258 WB1X1258 SCREW
WB1K5116 WB1K5116 SCREW
WB1X1116 WB1X1116 SCREW
WB1M1 WB1M1 SCREW
WB1X1261 WB1X1261 SCREW
WH2X930 WH2X930 SCREW 8-18 AB HXW 3/8
WB01X1261 WB01X1261 SCREW GROUND
WB01K5150 WB01K5150 SCREW ST10-16 X 7/16""
WB01X1424 WB01X1424 SCREW, TRANSFORMER
WB1X1123 WB1X1123 SCREW-10-32
WB1X1130 WB1X1130 SCREW-10-32
WB1X1137 WB1X1137 SCREW-10AB
WB1X1118 WB1X1118 SCREW-6-32T 6-20 X 3/8
WB01K5160 WB01K5160 SCREW-BLACK
WB1K5165 WB1K5165 SCREW-BLACK
WB1K5162 WB1K5162 SCREW-BLACK
WB1K5160 WB1K5160 SCREW-BLACK
WB01K5165 WB01K5165 SCREW-BLK
WB01X1158 WB01X1158 SCREW-NICKEL
WB1X1424D WB1X1424D SCREW-PKG 12
WZ4X44D WZ4X44D SCREW-PKG 12
WB1K5123 WB1K5123 SCREWS, MOUNTING BRACKET
WB7K5292 WB7K5292 SD TRIM LT
WB7K5291 WB7K5291 SD TRIM RT
WB2X9168 WB2X9168 SEAL
WB02X9168 WB02X9168 SEAL GLASS OV DR INNER
WB21X5301 WB21X5301 SENSOR ASSEMBLY
WB02X9570 WB02X9570 SHIELD REAR
WB02K5195 WB02K5195 SIDE INS RETAINER-LT
WB02K5196 WB02K5196 SIDE INS RETAINER-RT
WB35K5099 WB35K5099 SIDE TRIM INSULATOR-BLACK
WB35K5100 WB35K5100 SIDE TRIM INSULATOR-WHITE
WB07K5291 WB07K5291 SIDE TRIM-LT-BLACK
WB07K5292 WB07K5292 SIDE TRIM-RT-BLACK
WB02X9575 WB02X9575 SPACER
WB2X9575 WB2X9575 SPACER
WB01X1311 WB01X1311 SPEED NUT
WB1X1311 WB1X1311 SPEED NUT
WB31X5021 WB31X5021 STAINLESS STEEL CENTER TRIM FO
WB2M87 WB2M87 SUP ROD CLMP
WB2X9719 WB2X9719 SUPP-BROIL
WB02M0087 WB02M0087 SUPPORT ROD CLAMP
WB30X256 WB30X256 SURF UNIT-6
WB30X255 WB30X255 SURF UNIT-8
WB30X0256 WB30X0256 SURFACE ELEMENT-6""
WB24M0015 WB24M0015 SWITCH LIMIT
WB24T10147 WB24T10147 SWITCH SPDT HIGH AMP
WB24X415 WB24X415 SWITCH-LITE
WB24X0415 WB24X0415 SWITCH-OVEN LIGHT
WB1K5128 WB1K5128 TER BLCK CLP
WB17X210 WB17X210 TERM BLK
WB01K5128 WB01K5128 TERMINAL BLOCK CLIP
WB35M22 WB35M22 TOP&SD INSUL
WB63X373 WB63X373 TOP-BB **NLA*
WB63X0421 WB63X0421 TOP-BURNER BOX
WB48X10056 WB48X10056 TWO-PIECE PORCELAIN-COATED BROILER
WB35K5104 WB35K5104 UNKNOWN
WB02X9895 WB02X9895 VENT SEAL
WB38X124 WB38X124 VENT TUBE
WB38X0124 WB38X0124 VENT TUBE ASM
WB01X1254 WB01X1254 WASHER
WB01K5174 WB01K5174 WASHER
WB01K5054 WB01K5054 WASHER
WB1K5174 WB1K5174 WASHER
WB1K5054 WB1K5054 WASHER
WB1X119D WB1X119D WASHR-PKG 12
WB27K5306 WB27K5306 WB27T10190
WB2X9569 WB2X9569 WIRE COVER
WB34K5134 WB34K5134 WIRE COVER REAR
WB02X9569 WB02X9569 WIRE COVER UPPER
WB02X9563 WB02X9563 WIRE COVER-LT
WB63K5109 WB63K5109 WRAPPER OV CAV ASSEMBLY
