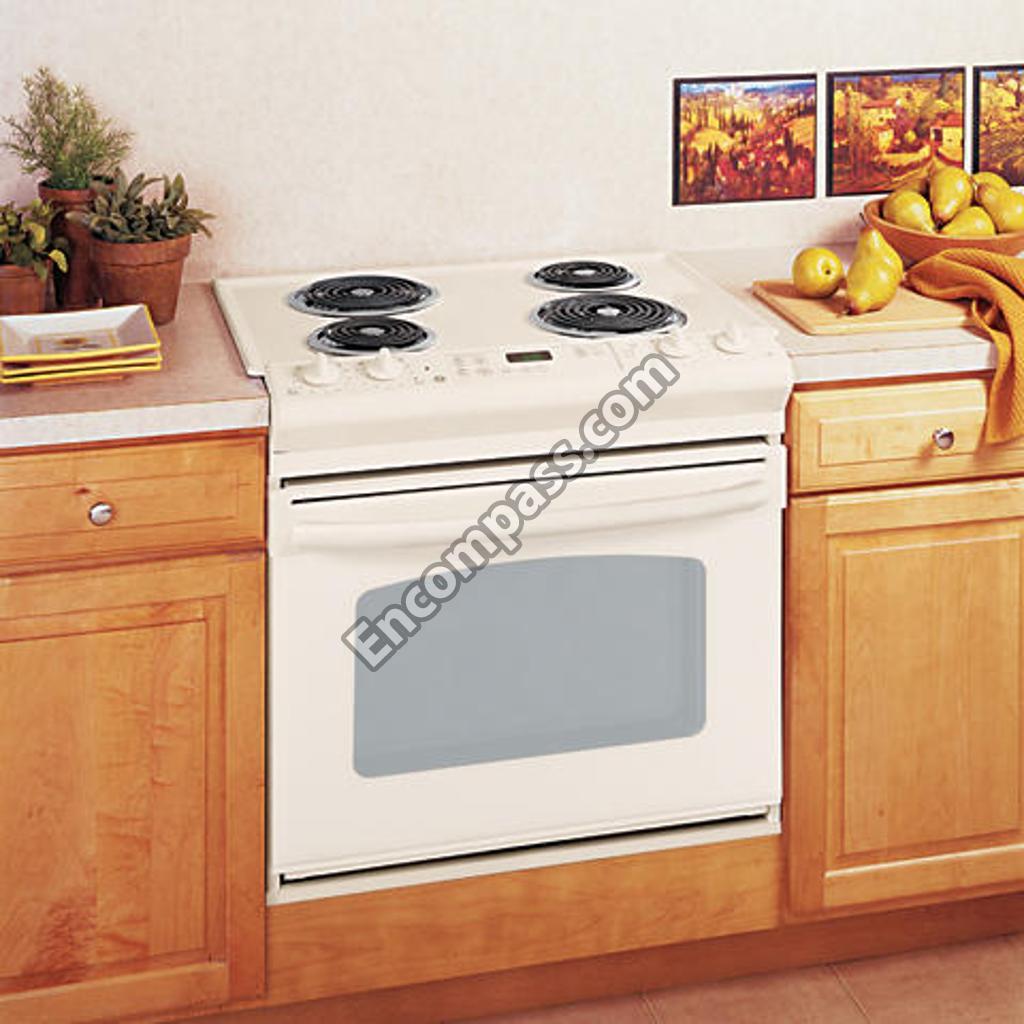

Model Image
Manufacturer

GE

Model Number

JDP39DN4CC

Description

Electric Range

Interactive Exploded View

Parts List

Part Number Description
WB1K5200 WB1K5200 340531
40A15 40A15 40WATT 15AMP INC AND ESCENT BULB
WB31T10010 WB31T10010 6 INCH CHROME BURNER BOWL - ELEC
WB31T10011 WB31T10011 8 INCH CHROME BURNER BOWL - EL
WB44T10065 WB44T10065 BAKE ELEMENT
WB02K10048 WB02K10048 BASE RAIL
WB17K10001 WB17K10001 BLOCK TERMINAL
WB64T10053 WB64T10053 BOTTOM BURN BOX
WB02X10739 WB02X10739 BRACKET ANTI-TIP
WB02T10270 WB02T10270 BRACKET SWITCH
WB10X255 WB10X255 BRACKET-HNGE
WB44T10071 WB44T10071 BROIL ELEMENT
WB02X9573 WB02X9573 CLIP
WB2X9573 WB2X9573 CLIP
WB2X8228 WB2X8228 CLIP RECEPT
WB02X8228 WB02X8228 CLIP RECEPTACLE
WB2K5126 WB2K5126 COND CLAMP
WB02K5126 WB02K5126 CONDUIT CLAMP
WB18K10012 WB18K10012 CONDUIT WIRE ASSEMBLY
WB24T10029 WB24T10029 CONTROL INFINITE SWITCH
WB02X9152 WB02X9152 COVER
WB02K5365 WB02K5365 COVER
WB2X9152 WB2X9152 COVER
WB2K5365 WB2K5365 COVER
WB34T10105 WB34T10105 COVER WIRE
WB34K10046 WB34K10046 COVER WIRE REAR
WB01T10022 WB01T10022 DOOR BUMPER
WB57T10346 WB57T10346 DOOR OTR ASM 30 (BK)
WB57T10345 WB57T10345 DOOR OTR ASM 30 (BQ)
WB57T10344 WB57T10344 DOOR OTR ASM 30 (WH)
WB07K10137 WB07K10137 EXTENSION REAR
WB07T10474 WB07T10474 EXTENSION SIDE LEFT
WB07T10473 WB07T10473 EXTENSION SIDE RT
WB27T11080 WB27T11080 FACEPLATE GRAPHICS ASM
WB27T11095 WB27T11095 FACEPLATE GRAPHICS ASM
WB27T11096 WB27T11096 FACEPLATE GRAPHICS ASM
WB26T10032 WB26T10032 FAN ASM
WB63T10083 WB63T10083 FRAME FRT LOWER
WB04T10050 WB04T10050 GASKET OVEN DOOR
WB15T10187 WB15T10187 HANDLE (BK)
WB15T10186 WB15T10186 HANDLE (BQ)
WB15T10188 WB15T10188 HANDLE (WH)
WB01X1259 WB01X1259 HEX NUT
WB1X1259 WB1X1259 HEX NUT
WB10T10075 WB10T10075 HINGE DOOR LT
WB10T10074 WB10T10074 HINGE DOOR RT
WB14T10028 WB14T10028 HINGE MAINTOP LEFT
WB14T10027 WB14T10027 HINGE MAINTOP RT
WB24T10025 WB24T10025 INF SW CONTROL (2500W)
31-10651 31-10651 INSTRUCTIONS INSTALL
WB35T10074 WB35T10074 INSULATION (OUT) LWR
WB35T10090 WB35T10090 INSULATION BACK & BTM
WB35K10024 WB35K10024 INSULATION BASE
WB35K10025 WB35K10025 INSULATION OVEN DR SDE
WB35T10226 WB35T10226 INSULATION OVN DR SDE
WB35T10126 WB35T10126 INSULATION TOP
WB07T10681 WB07T10681 KIT BACKSPALSH (WH)
WB07T10682 WB07T10682 KIT BACKSPLASH (BQ)
WB17T10006 WB17T10006 KIT SURF TERM BLOCK
WB03X26320 WB03X26320 KNOB INFINITE (BK)
WB03T10285 WB03T10285 KNOB INFINITE (BQ)
WB03T10282 WB03T10282 KNOB INFINITE (WH)
WB14T10078 WB14T10078 LATCH ASM
WB14T10076 WB14T10076 LATCH ASM
WB14T10077 WB14T10077 LATCH ASM
WB14T10066 WB14T10066 LATCH BOX
WB25T10042 WB25T10042 LENS
WB25K10010 WB25K10010 LIGHT INDICATOR PILOT
WB55T10179 WB55T10179 LINING OVN DR ASM
WB01K5046 WB01K5046 LOCKWASHER
WB62T10425 WB62T10425 MAINTOP
WB62T10426 WB62T10426 MAINTOP
WB62T10427 WB62T10427 MAINTOP
31-14262 31-14262 MANUAL MINI & WD ASM
49-80591 49-80591 MANUAL USE & CARE
WB10X0255 WB10X0255 MT HINGE BRACKET
WB25T10002 WB25T10002 OVEN BULB LENS COVER-
WB27X45466 WB27X45466 OVEN CONTROL T09 (ELEC)
WB27T11309 WB27T11309 OVEN CONTROL T09 GREEN LED
WB08T10002 WB08T10002 OVEN LAMP HO
WB24T10043 WB24T10043 OVEN ROCKER SWITCH
WB24T10053 WB24T10053 OVEN ROCKER SWITCH
WB56X22160 WB56X22160 PACK WINDOW ASSEMBLY
WB36T10792 WB36T10792 PANEL CNTL BTM
WB36T10795 WB36T10795 PANEL CNTL BTM
WB36T10793 WB36T10793 PANEL CNTL BTM BQ
WB36T11193 WB36T11193 PANEL CNTL GRAPHICS ASM
WB36T11196 WB36T11196 PANEL CNTL GRAPHICS ASM
WB36T11195 WB36T11195 PANEL CNTL GRAPHICS ASM
WB2X9587 WB2X9587 PLUG
WB02X9587 WB02X9587 PLUG BUTTON-ROUND
49-80632 49-80632 PM OWNERS MANUAL
WB48T10095 WB48T10095 RACK OVEN
WB30X20478 WB30X20478 RANGE 6-INCH SURFACE ELEMENT - 4 TURNS
WB30X20481 WB30X20481 RANGE 8-INCH SURFACE ELEMENT - 5 TURNS
WB02T10267 WB02T10267 RANGE BRACKET
WB10T10083 WB10T10083 RECEIVER HINGE
WB02X20948 WB02X20948 RETAINER INSLN BACK
WB02T10372 WB02T10372 RETAINER INSLN BTM
WB02T10371 WB02T10371 RETAINER INSLN OVN DR
WB02T10284 WB02T10284 RETAINER INSLN SDE
WB02T10414 WB02T10414 RETAINER INSLN TOP
WB24T10042 WB24T10042 ROCKER SWITCH OVEN
WB02T10268 WB02T10268 ROD MAINTOP SUPT
WB01T10095 WB01T10095 SCR 10-32 HWH I 13/16
WH02X1186 WH02X1186 SCR 8-18 AB IHW 5/8 S
WB01X0500 WB01X0500 SCR 8-18 B HXW 1/4 S
WB01T10094 WB01T10094 SCR 8-32 PN 1/2
WB01K5029 WB01K5029 SCREW
WB01X1137 WB01X1137 SCREW
WB01K5200 WB01K5200 SCREW
WB01X1127 WB01X1127 SCREW
WB01K5123 WB01K5123 SCREW
WB01M0001 WB01M0001 SCREW
WB1X1293 WB1X1293 SCREW
WB1K5029 WB1K5029 SCREW
WH2X1186 WH2X1186 SCREW
WB1M1 WB1M1 SCREW
WH2X930 WH2X930 SCREW
WB01T10008 WB01T10008 SCREW 10-32 TR T
WB1K5167 WB1K5167 SCREW 8-18 X 3/8
WB01K5167 WB01K5167 SCREW 8-18 X 3/8""
WB01K5150 WB01K5150 SCREW ST10-16 X 7/16""
WB01X1293 WB01X1293 SCREW TC10-32X.250HEXNI
WB01X1424 WB01X1424 SCREW, TRANSFORMER
WB1X1137 WB1X1137 SCREW-10AB
WB1X1118 WB1X1118 SCREW-6-32T 6-20 X 3/8
WB01X1118 WB01X1118 SCREW-NICKEL
WB1X1424D WB1X1424D SCREW-PKG 12
WB1X500D WB1X500D SCREW-PKG 12
WB1K5123 WB1K5123 SCREWS, MOUNTING BRACKET
WB23T10015 WB23T10015 SENSOR ASM
WB02T10452 WB02T10452 SPACER REINFORCEMENT
WB02T10453 WB02T10453 STUD COMPOSITE
WB2M87 WB2M87 SUP ROD CLMP
WB26T10015 WB26T10015 SUPPORT OVN CAV
WB02M0087 WB02M0087 SUPPORT ROD CLAMP
WB02T10411 WB02T10411 SUPPORT SIDE PANEL
WB2K5238 WB2K5238 SW BRACKET
WB02K5238 WB02K5238 SWITCH BRACKET
WB24T10117 WB24T10117 SWITCH LIMIT

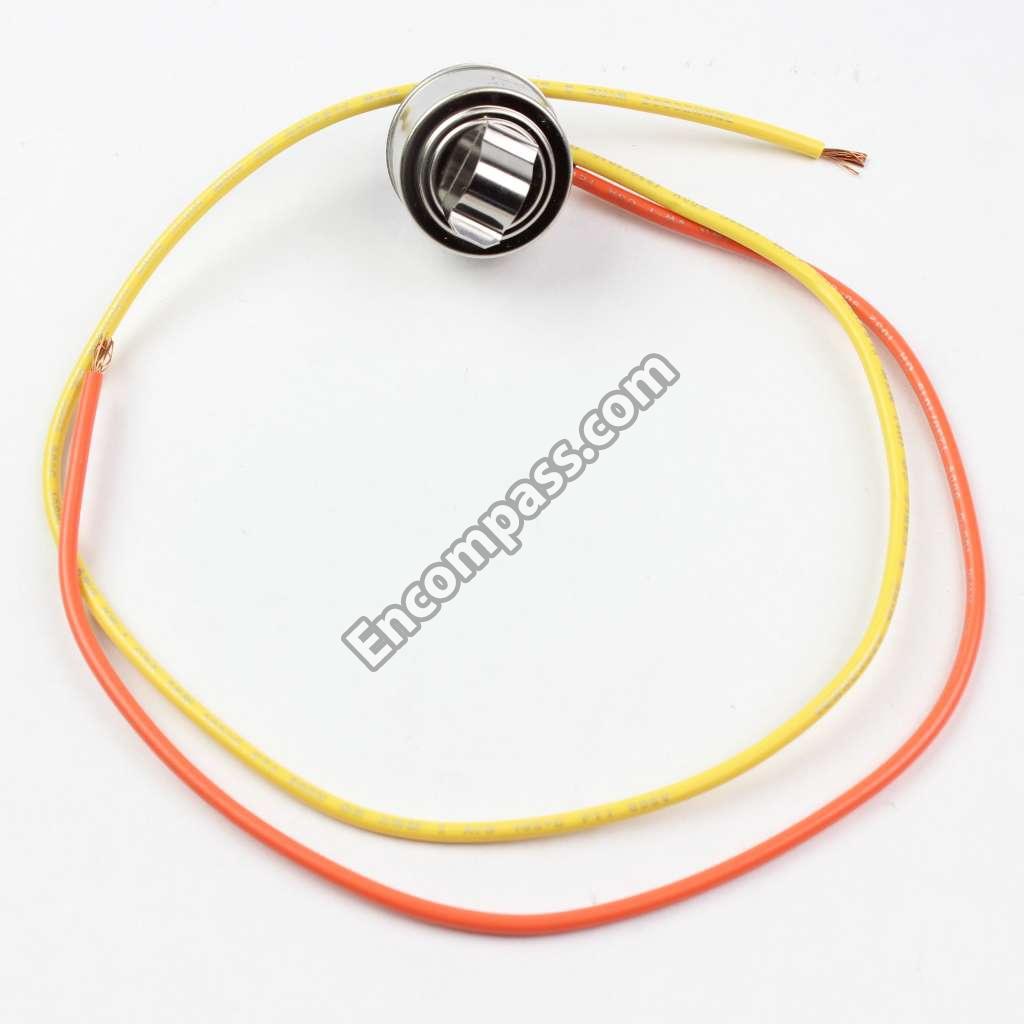

WB24T10118 WB24T10118 SWITCH LIMIT BIMETAL

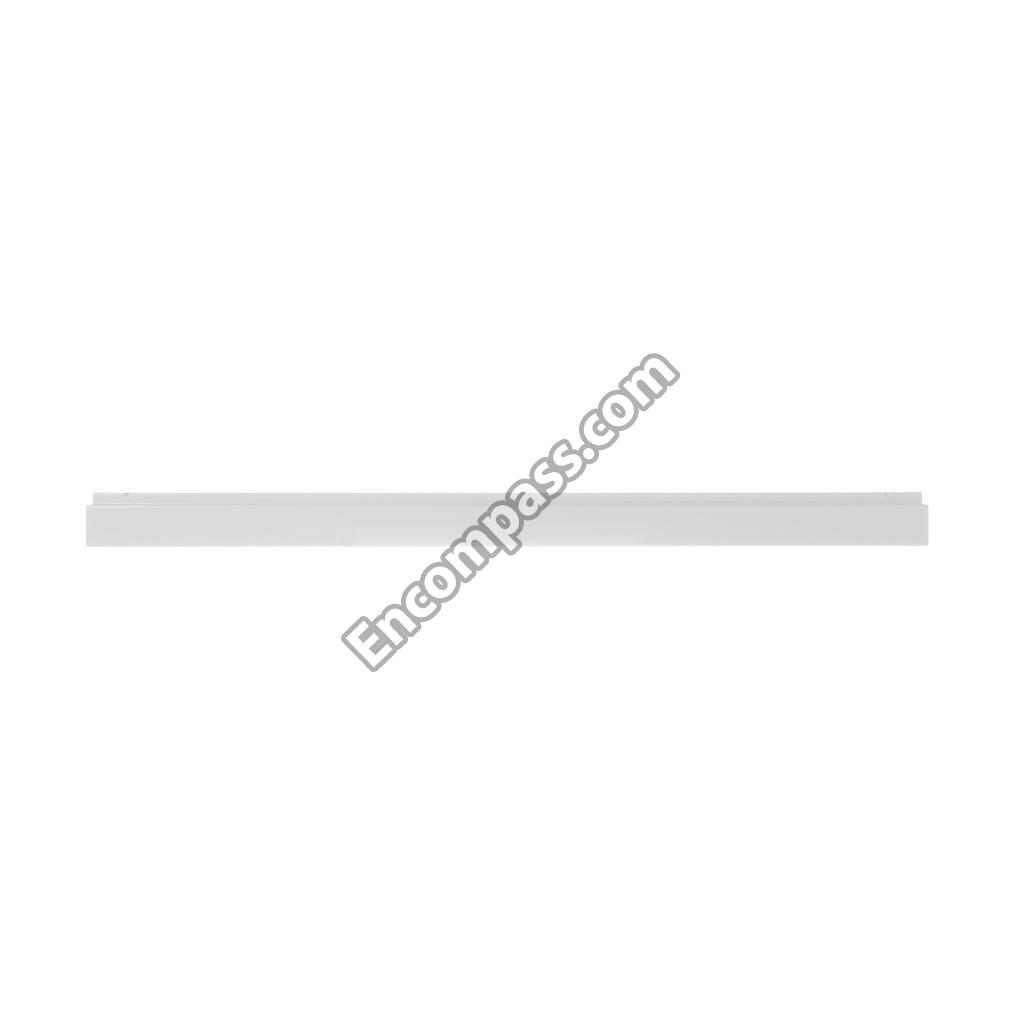

WB07T10691 WB07T10691 TRIM LOWER
WB07T10692 WB07T10692 TRIM LOWER BQ
WB07T10693 WB07T10693 TRIM LOWER WH
WB07T10475 WB07T10475 TRIM VENT INR (BLACK)
WB07T10525 WB07T10525 TRIM VERT SDE LEFT (BQ)
WB07T10521 WB07T10521 TRIM VERT SDE LT (BK)
WB07T10520 WB07T10520 TRIM VERT SDE RT (BK)
WB07T10524 WB07T10524 TRIM VERT SDE RT (BQ)
WB07T10522 WB07T10522 TRIM VERT SDE RT (WH)
WB38T10027 WB38T10027 TUBE VENT ASM
WB38T10029 WB38T10029 TUBE VNT ASM
WB01K5174 WB01K5174 WASHER
WB1K5174 WB1K5174 WASHER
WB1K5046 WB1K5046 WASHER
WB1X681 WB1X681 WB01X0681
WB63T10085 WB63T10085 WRAPPER OVEN CAV
