Model Image
Manufacturer

GE

Model Number

JDS26BW5WH

Description

Electric Range

Interactive Exploded View

Parts List

Part Number Description
WB31M1 WB31M1 6 INCH CHROME BURNER BOWL - EL
WB31M0001 WB31M0001 6"" BOWL BURNER
WB32X106 WB32X106 8 INCH CHROME BURNER BOWL - EL
WB31M0002 WB31M0002 8"" BOWL BURNER
WB1M24 WB1M24 ACCORD RIVET
WB63K5142 WB63K5142 BACK MAIN
WB44K5012 WB44K5012 BAKE ELEMENT
WB35K5079 WB35K5079 BARRIER INSULATOR
WB17K10001 WB17K10001 BLOCK TERMINAL
WB07K5293 WB07K5293 BOTTOM TRIM
WB7K5293 WB7K5293 BOTTOM TRIM
WB37K5018 WB37K5018 BRACKET CAP PNL MTG RT
WB02K5216 WB02K5216 BRACKET CONDUIT
WB2X9568 WB2X9568 BRACKET-HNGE
WB02M0086 WB02M0086 BRIDGE SPACER
WB2M86 WB2M86 BRIDGE SPACR
WB44M0005 WB44M0005 BROIL ELEMENT 3400W-240V
WB02X9719 WB02X9719 BROIL ELEMENT SUPPORT
WB44M5 WB44M5 BROIL ELEMNT
WB02X9888 WB02X9888 BURN BOX EXT INSULATION
WB02X9574 WB02X9574 BURNER BOX SCREEN
WB63T10026 WB63T10026 BURNER BOX TOP
WB27K5340 WB27K5340 CLOCK PLATE-BLACK
WB37K5019 WB37K5019 CNT PANEL MTG BRACKET-LT
WB2K5216 WB2K5216 COND MTG BKT
WB18K5368 WB18K5368 COND W HARN **NLA*
WB34K5152 WB34K5152 CONTROL COVER FILLER
WB27T10504 WB27T10504 CONTROL OVEN ERC3B
WB36K5671 WB36K5671 DISCONTINUED
WB7X7183 WB7X7183 DOOR HANDLE END CAP
WB02K5312 WB02K5312 DOOR HANDLE SPACER-WHITE
WB32K5051 WB32K5051 DOOR SEAL
WB2K5312 WB2K5312 DR HNDL SPCR
WB23M24 WB23M24 EL CTL 1500W
WB23M0024 WB23M0024 ELEMENT CONTROL 1400W
WB23K5027 WB23K5027 ELEMENT CONTROL 2350W

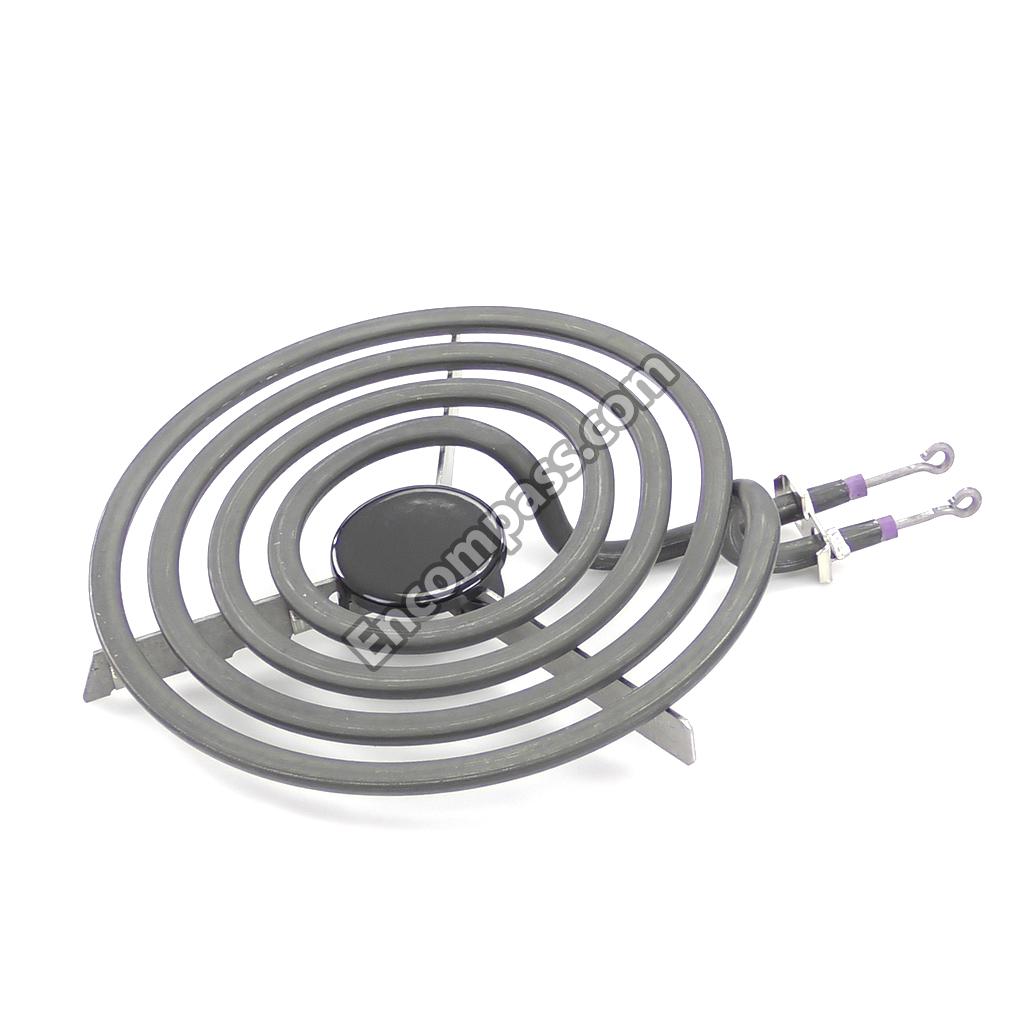

WB30T10089 WB30T10089 ELEMENT SURF 6 (1500W)

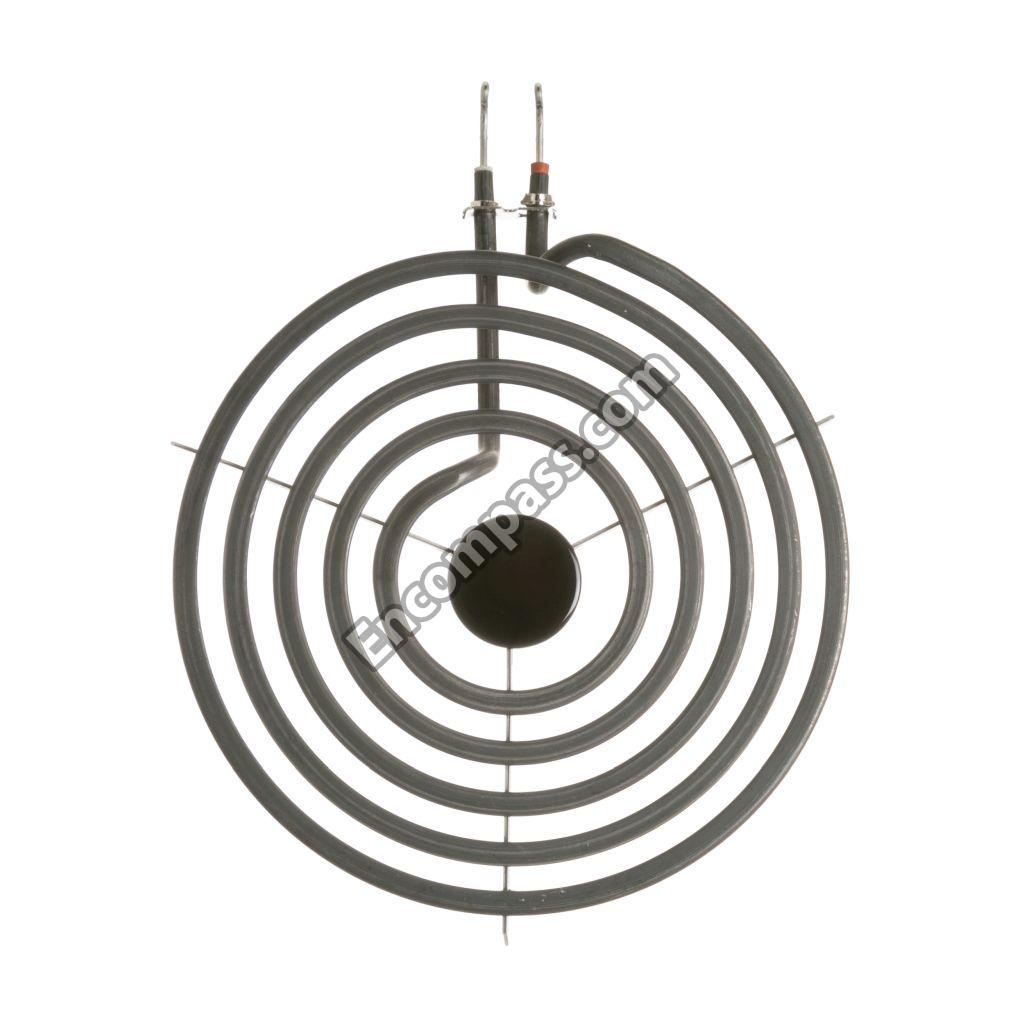

WB30T10090 WB30T10090 ELEMENT SURF 8 (2600W)
WB36K5420 WB36K5420 END CAP-LT-BLACK
WB36K5421 WB36K5421 END CAP-RT-BLACK
WB07K5181 WB07K5181 EXTENSION BURN BOX BTTM
WB63K5132 WB63K5132 EXTENSION UPPER SD
WB56K5144 WB56K5144 FRAME OVEN DR (BLACK)
WB63T10025 WB63T10025 FRONT FRAME
WB57T10110 WB57T10110 GLASS OVN DR OTR (BLK)
WB01X1260 WB01X1260 GROUND WASHER
WB1X1260 WB1X1260 GRUND WASHER
WB34K5168 WB34K5168 HEAT REFLECTOR
WB01X1259 WB01X1259 HEX NUT
WB1X1259 WB1X1259 HEX NUT
WB10K5018 WB10K5018 HINGE ASSEMBLY-LT
WB10K5017 WB10K5017 HINGE ASSEMBLY-RT
WB02X9568 WB02X9568 HINGE MTG BRACKET
WB14X0136 WB14X0136 HINGE-COOKTOP
WB14X136 WB14X136 HINGE-COOKTP
WB25X0093 WB25X0093 IND LHT OVN HOT SURFACE
WB25X0094 WB25X0094 INDICATOR LIGHT CAMERA LENS
WB3K5242 WB3K5242 INF KNOB-BLK
WB03K5242 WB03K5242 INFINTE KNOB-BLK
31-10418 31-10418 INSTRUCTION INSTALL
WB2K5122 WB2K5122 INSUL RET LO
WB2X9888 WB2X9888 INSULATION
WB2X9123 WB2X9123 INSULATION D
WB02K5122 WB02K5122 INSULATION RETAINER-LO
WB35M0022 WB35M0022 INSULATION TOP &SIDES
WB35K5113 WB35K5113 INSULATION-BACK & BTM
WB17T10006 WB17T10006 KIT SURF TERM BLOCK
40A15 40A15 LAMP APPLIANCE
WB25T10042 WB25T10042 LENS
WB25T10040 WB25T10040 LIGHT INDICATOR
WB55T10002 WB55T10002 LINING OVEN DR ASSEMBLY
WB01X1299 WB01X1299 LOCK NUT
WB1X1299 WB1X1299 LOCK NUT **NLA*
WB63K5123 WB63K5123 MAIN BOTTOM
WB62K5051 WB62K5051 MAIN TOP WHITE
WB62T10219 WB62T10219 MAINTOP ELEC ASM
31-14157 31-14157 MANUAL MINI & WD ASM
49-80120 49-80120 MANUAL USE & CARE
WB02M0084 WB02M0084 MT SUPPORT ROD
WB56X1910 WB56X1910 OV DOOR INS RETAINER
WB56X1901 WB56X1901 OV DR INNER GLASS
WB02X9123 WB02X9123 OV DR INSULATION
WB63T10002 WB63T10002 OVEN BODY
WB15K5076 WB15K5076 OVEN DOOR HANDLE-BLACK
WB08T10001 WB08T10001 OVEN LIGHT ASSEMBLY
WB48X0208 WB48X0208 OVEN RACK
WB48M4 WB48M4 OVEN RACK
WB02X1125 WB02X1125 PLUG BUTTON CAP TUBE
WB2X1125D WB2X1125D PLUG-PKG 12
WB2X9570 WB2X9570 REAR SHIELD
WB01M0024 WB01M0024 RIVET
WB01X0500 WB01X0500 SCR 8-18 B HXW 1/4 S
WB2X9574 WB2X9574 SCREEN-BB
WB01K5210 WB01K5210 SCREW
WB01X1253 WB01X1253 SCREW
WB01X1137 WB01X1137 SCREW
WB01X1127 WB01X1127 SCREW
WB01K5162 WB01K5162 SCREW
WB01X1178 WB01X1178 SCREW
WB01X1116 WB01X1116 SCREW
WB01K5123 WB01K5123 SCREW
WB01M0001 WB01M0001 SCREW
WB1X1178 WB1X1178 SCREW
WB1K5210 WB1K5210 SCREW
WB1X1116 WB1X1116 SCREW
WB1M1 WB1M1 SCREW
WB1X1261 WB1X1261 SCREW
WB1K5191 WB1K5191 SCREW FL ZNC 10-32
WB01K5191 WB01K5191 SCREW FLAT ZINC 10-32
WB01X1261 WB01X1261 SCREW GROUND
WB01M0027 WB01M0027 SCREW ST 6-20X.437 TR
WB01K5150 WB01K5150 SCREW ST10-16 X 7/16""
WB01X1424 WB01X1424 SCREW, TRANSFORMER
WB1X1130 WB1X1130 SCREW-10-32
WB1X1137 WB1X1137 SCREW-10AB
WB1X1118 WB1X1118 SCREW-6-32T 6-20 X 3/8
WB01K5160 WB01K5160 SCREW-BLACK
WB1K5162 WB1K5162 SCREW-BLACK
WB1K5160 WB1K5160 SCREW-BLACK
WB1K5165 WB1K5165 SCREW-BLACK
WB01K5165 WB01K5165 SCREW-BLK
WB1X1424D WB1X1424D SCREW-PKG 12
WB1X500D WB1X500D SCREW-PKG 12
WB1K5123 WB1K5123 SCREWS, MOUNTING BRACKET
WB7K5292 WB7K5292 SD TRIM LT
WB7K5291 WB7K5291 SD TRIM RT
WB21X5301 WB21X5301 SENSOR ASSEMBLY
WB02X9570 WB02X9570 SHIELD REAR
WB2K5198 WB2K5198 SIDE INS RET
WB02K5197 WB02K5197 SIDE INS RETAINER LT
WB02K5198 WB02K5198 SIDE INS RETAINER RT
WB07K5291 WB07K5291 SIDE TRIM-LT-BLACK
WB07K5292 WB07K5292 SIDE TRIM-RT-BLACK
WB01X1177 WB01X1177 SPACER
WB1X1177 WB1X1177 SPACER
WB01X1311 WB01X1311 SPEED NUT
WB1X1311 WB1X1311 SPEED NUT
WB9X277 WB9X277 SPRING-DOOR
WB09X0277 WB09X0277 SPRING-OVEN DOOR
WB2M87 WB2M87 SUP ROD CLMP
WB2X9719 WB2X9719 SUPP-BROIL
WB02M0087 WB02M0087 SUPPORT ROD CLAMP
WB24X415 WB24X415 SWITCH-LITE
WB24X0415 WB24X0415 SWITCH-OVEN LIGHT
WB01T10014 WB01T10014 TERMINAL BLOCK CLIP
WB35M22 WB35M22 TOP&SD INSUL
WB48X10056 WB48X10056 TWO-PIECE PORCELAIN-COATED BROILER
WB02X9895 WB02X9895 VENT SEAL
WB38M0006 WB38M0006 VENT TUBE ASM
WB38M6 WB38M6 VNT TUBE ASM
WB01K5174 WB01K5174 WASHER
WB01K5054 WB01K5054 WASHER
WB1K5174 WB1K5174 WASHER
WB1K5054 WB1K5054 WASHER
WB1X681 WB1X681 WB01X0681
WB18T10136 WB18T10136 WB18T10136
WB2X9569 WB2X9569 WIRE COVER
WB34K5134 WB34K5134 WIRE COVER REAR
WB02X9569 WB02X9569 WIRE COVER UPPER
