Model Image
Manufacturer

GE

Model Number

JDS28DF2WW

Description

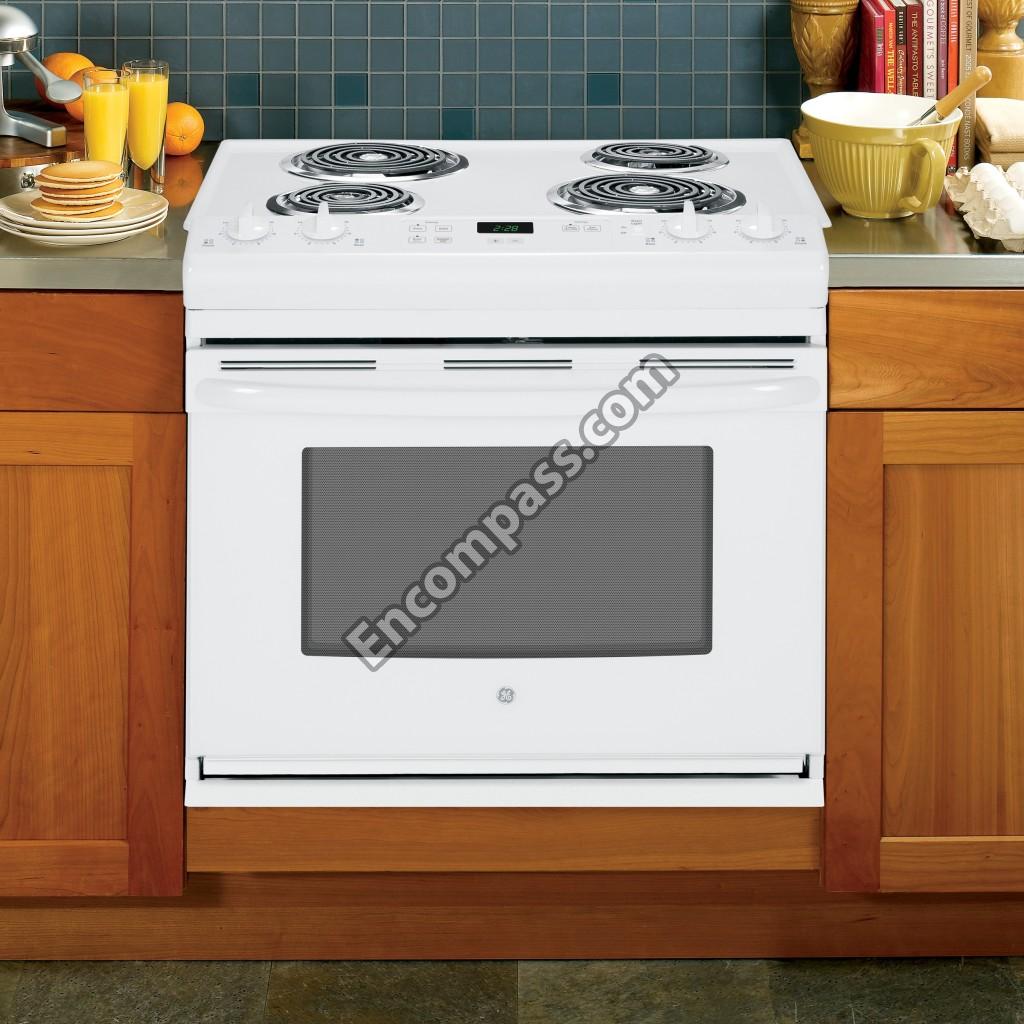

Electric Range

Interactive Exploded View
Exploded View

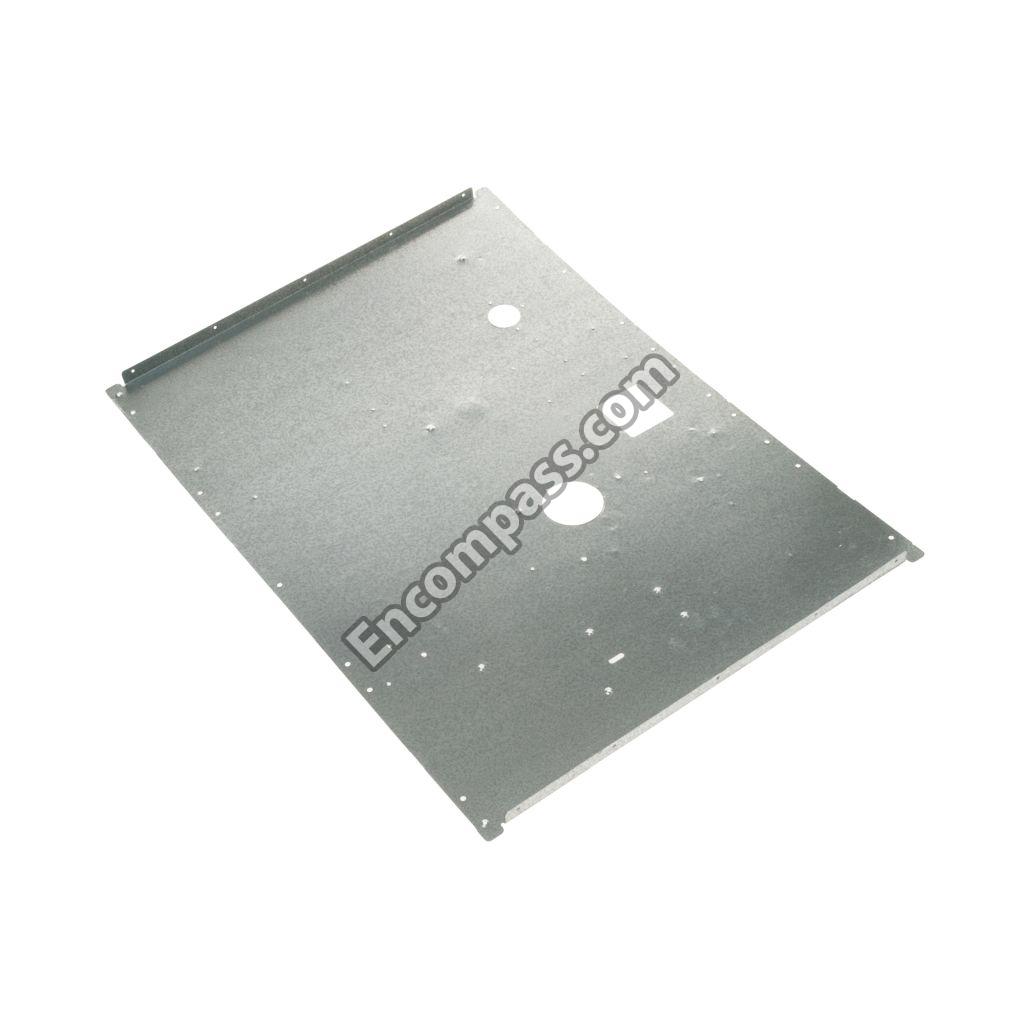

Parts List

Part Number Description
WB1K5200 WB1K5200 GE 340531
40A15 40A15 GE 40WATT 15AMP INC AND ESCENT BULB
WB24T10025 WB24T10025 GE 500W ELEC RNGE SRFCE BRNER CONTROL SWTCH2
WB31T10010 WB31T10010 GE 6 INCH CHROME BURNER BOWL - ELEC
WB31T10011 WB31T10011 GE 8 INCH CHROME BURNER BOWL - ELEC
WB44X48672 WB44X48672 GE BAKE ELEMENT
WB02K10048 WB02K10048 GE BASE RAIL
WB17K10001 WB17K10001 GE BLOCK TERMINAL
WB64T10052 WB64T10052 GE BOTTOM BURN BOX
WB10X255 WB10X255 GE BRACKET-HNGE
WB44X48673 WB44X48673 GE BROIL ELEMENT
WB02X9573 WB02X9573 GE CLIP
WB2X9573 WB2X9573 GE CLIP
WB2X8228 WB2X8228 GE CLIP RECEPT
WB02X8228 WB02X8228 GE CLIP RECEPTACLE
WB56X29252 WB56X29252 GE CONTROL PANEL ASSEMBLY WH
WB02X9152 WB02X9152 GE COVER
WB02K5365 WB02K5365 GE COVER
WB2K5365 WB2K5365 GE COVER
WB2X9152 WB2X9152 GE COVER
WB34T10105 WB34T10105 GE COVER WIRE
WB01T10022 WB01T10022 GE DOOR BUMPER
WB10X30501 WB10X30501 GE DOOR HINGE LT
WB17T10006 WB17T10006 GE ELEC RANGE SURFACE BURNER TERMINAL BLOCK
WB07T10474 WB07T10474 GE EXTENSION SIDE LEFT
WB07T10473 WB07T10473 GE EXTENSION SIDE RT
WB63T10083 WB63T10083 GE FRAME FRT LOWER
WB15T10188 WB15T10188 GE HANDLE (WHITE)
WB18X25158 WB18X25158 GE HARNESS WIRE COOKTOP LEFT
WB18X25157 WB18X25157 GE HARNESS WIRE COOKTOP RT
WB01X1259 WB01X1259 GE HEX NUT
WB1X1259 WB1X1259 GE HEX NUT
WB10X30500 WB10X30500 GE HINGE DOOR RT
WB14T10028 WB14T10028 GE HINGE MAINTOP LEFT
WB14T10027 WB14T10027 GE HINGE MAINTOP RT
31-10651 31-10651 GE INSTRUCTIONS INSTALL
WB35T10090 WB35T10090 GE INSULATION BACK AND BTM
WB35K10024 WB35K10024 GE INSULATION BASE
WB35K10025 WB35K10025 GE INSULATION OVEN DR SDE
WB35T10226 WB35T10226 GE INSULATION OVN DR SDE
WB35X21641 WB35X21641 GE INSULATION SIDE
WB35T10253 WB35T10253 GE INSULATION TOP
WB07T10681 WB07T10681 GE KIT BACKSPALSH (WHITE)
WB03T10344 WB03T10344 GE KNOB INFINITE
229C6381P001 229C6381P001 GE LABEL WIRE DIAGRAM
WB25K10010 WB25K10010 GE LIGHT INDICATOR PILOT
WB55T10179 WB55T10179 GE LINING OVN DR ASSEMBLY
WB01K5046 WB01K5046 GE LOCKWASHER
WB62T10427 WB62T10427 GE MAINTOP
49-80597 49-80597 GE MANUAL U&C TIP SHEET
WB10X0255 WB10X0255 GE MT HINGE BRACKET
WB25T10002 WB25T10002 GE OVEN BULB LENS COVER-GLASS
WB27X45466 WB27X45466 GE OVEN CONTROL T09 (ELEC)
WB27X29087 WB27X29087 GE OVEN CONTROL T09 WHITE LED
WB55X24938 WB55X24938 GE PACK WINDOW ASSEMBLY
WB56X43442 WB56X43442 GE PANEL ASM BONDED (SI-WH)
WB56X43746 WB56X43746 GE PANEL ASSEMBLY BONDED (SI-WH)
WB36T10795 WB36T10795 GE PANEL CONTROL BTM
WB2X9587 WB2X9587 GE PLUG
WB02X9587 WB02X9587 GE PLUG BUTTON-ROUND
31-11041 31-11041 GE PM INSTALL INSTRUCTIONS
31-17140 31-17140 GE PM MANUAL MINI & WD ASM
49-80755 49-80755 GE PM QUICK GUIDE
WB30X24401 WB30X24401 GE RANGE 6-INCH SURFACE ELEMENT
WB02X10739 WB02X10739 GE RANGE ANTI-TIP BRACKET
WB02X20948 WB02X20948 GE RANGE BACK INSULATION RETAINER
WB02T10267 WB02T10267 GE RANGE BRACKET

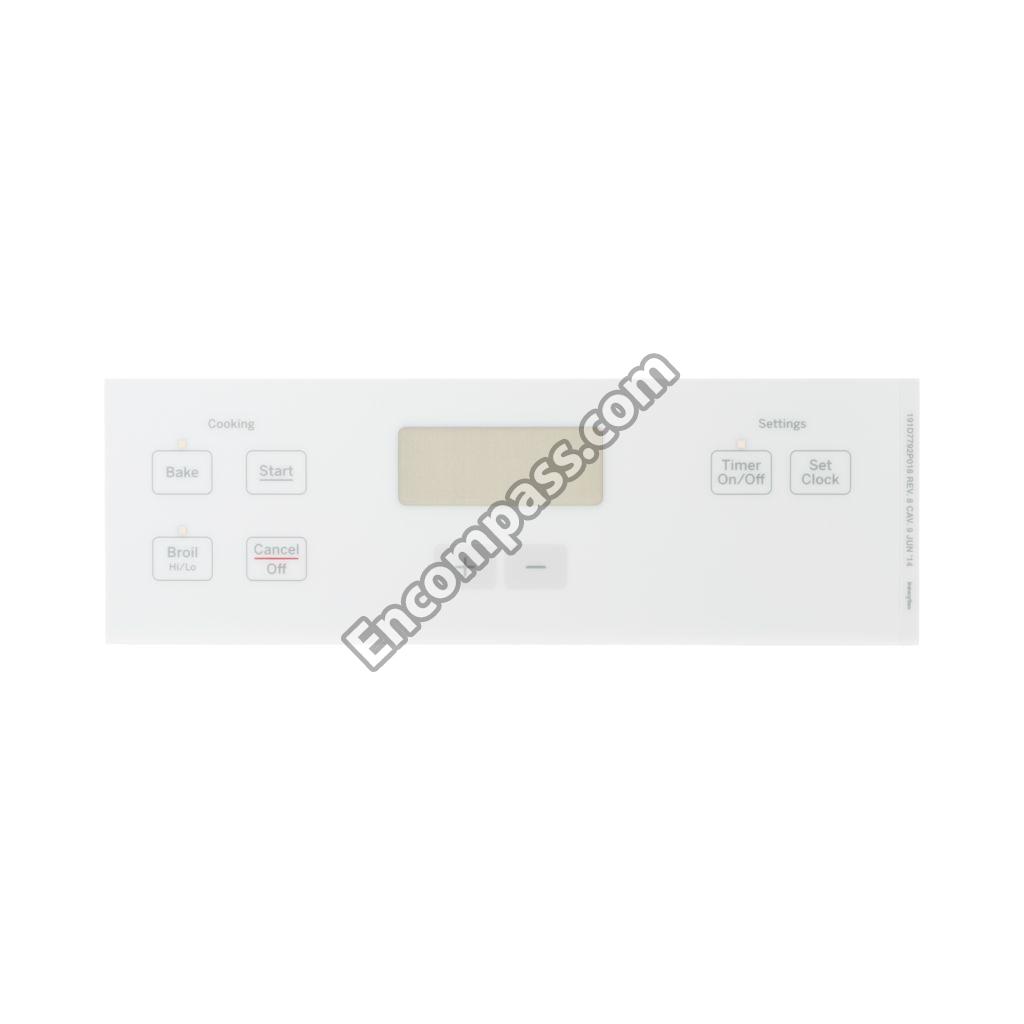

WB07X22525 WB07X22525 GE RANGE CONTROL PANEL - WHITE
WB02T10371 WB02T10371 GE RANGE INSULATION RETAINER
WB02T10268 WB02T10268 GE RANGE MAIN TOP SUPPORT ROD
WB04T10050 WB04T10050 GE RANGE OVEN GASKET
WB08T10002 WB08T10002 GE RANGE OVEN LAMP ASSEMBLY
WB48T10095 WB48T10095 GE RANGE OVEN RACK
WB23T10015 WB23T10015 GE RANGE OVEN SENSOR
WB25T10042 WB25T10042 GE RANGE RED LENS/JEWEL
WB02T10411 WB02T10411 GE RANGE SIDE PANEL SUPPORT
WB24T10029 WB24T10029 GE RANGE SURFACE BURNER CONTROL SWITCH
WB02T10270 WB02T10270 GE RANGE SWITCH BRACKET
WB10X30495 WB10X30495 GE RECEIVER HINGE
WB02T10372 WB02T10372 GE RETAINER INSLN BTM
WB02T10284 WB02T10284 GE RETAINER INSLN SDE
WB02T10581 WB02T10581 GE RETAINER INSLN TOP
WB02T10324 WB02T10324 GE SCR 6-20 GXB IHXW 3/8 NI.
WB01X0500 WB01X0500 GE SCR 8-18 B HXW 1/4 S
WB01X1137 WB01X1137 GE SCREW
WB01K5200 WB01K5200 GE SCREW
WB01X1127 WB01X1127 GE SCREW
WB01K5123 WB01K5123 GE SCREW
WB01M0001 WB01M0001 GE SCREW
WB01K5029 WB01K5029 GE SCREW
WH2X930 WH2X930 GE SCREW
WB1M1 WB1M1 GE SCREW
WB1K5029 WB1K5029 GE SCREW
WB1X1293 WB1X1293 GE SCREW
WB01T10095 WB01T10095 GE SCREW 10-32 HWH I 13/16
WB01T10008 WB01T10008 GE SCREW 10-32 TR T
WB1K5167 WB1K5167 GE SCREW 8-18 X 3/8
WB01K5167 WB01K5167 GE SCREW 8-18 X 3/8""
WB01T10094 WB01T10094 GE SCREW 8-32 PN 1/2
WB01K5150 WB01K5150 GE SCREW ST10-16 X 7/16""
WB01X1293 WB01X1293 GE SCREW TC10-32X.250HEXNI
WB01X1424 WB01X1424 GE SCREW, TRANSFORMER
WB1X1137 WB1X1137 GE SCREW-10AB
WB1X500D WB1X500D GE SCREW-PKG 12
WB1X1424D WB1X1424D GE SCREW-PKG 12
WB1K5123 WB1K5123 GE SCREWS, MOUNTING BRACKET
WB02T10452 WB02T10452 GE SPACER REINFORCEMENT
WB02T10453 WB02T10453 GE STUD COMPOSITE
WB2M87 WB2M87 GE SUP ROD CLMP
WB26T10015 WB26T10015 GE SUPPORT OVEN CAVITY
WB02M0087 WB02M0087 GE SUPPORT ROD CLAMP
WB30X24400 WB30X24400 GE SURFACE HEATING ELEMENT
WB24T10116 WB24T10116 GE SWITCH LIMIT
WB24X20459 WB24X20459 GE SWITCH ROCKER SEALED
WB07T10693 WB07T10693 GE TRIM LOWER (WHITE)
WB07T10472 WB07T10472 GE TRIM VENT INR (BLACK)
WB07T10523 WB07T10523 GE TRIM VERT SDE LEFT (WHITE)
WB07T10522 WB07T10522 GE TRIM VERT SDE RT (WHITE)
WB38T10027 WB38T10027 GE TUBE VENT ASSEMBLY
WB38T10028 WB38T10028 GE TUBE VNT ASSEMBLY
WB01K5174 WB01K5174 GE WASHER
WB1K5046 WB1K5046 GE WASHER
WB1K5174 WB1K5174 GE WASHER
WB1X681 WB1X681 GE WB01X0681
WB63T10085 WB63T10085 GE WRAPPER OVEN CAV LOWER
WZ4X416 WZ4X416 GE WZ04X0408
