Model Image
Manufacturer

GE

Model Number

JDS28WK1WW

Description

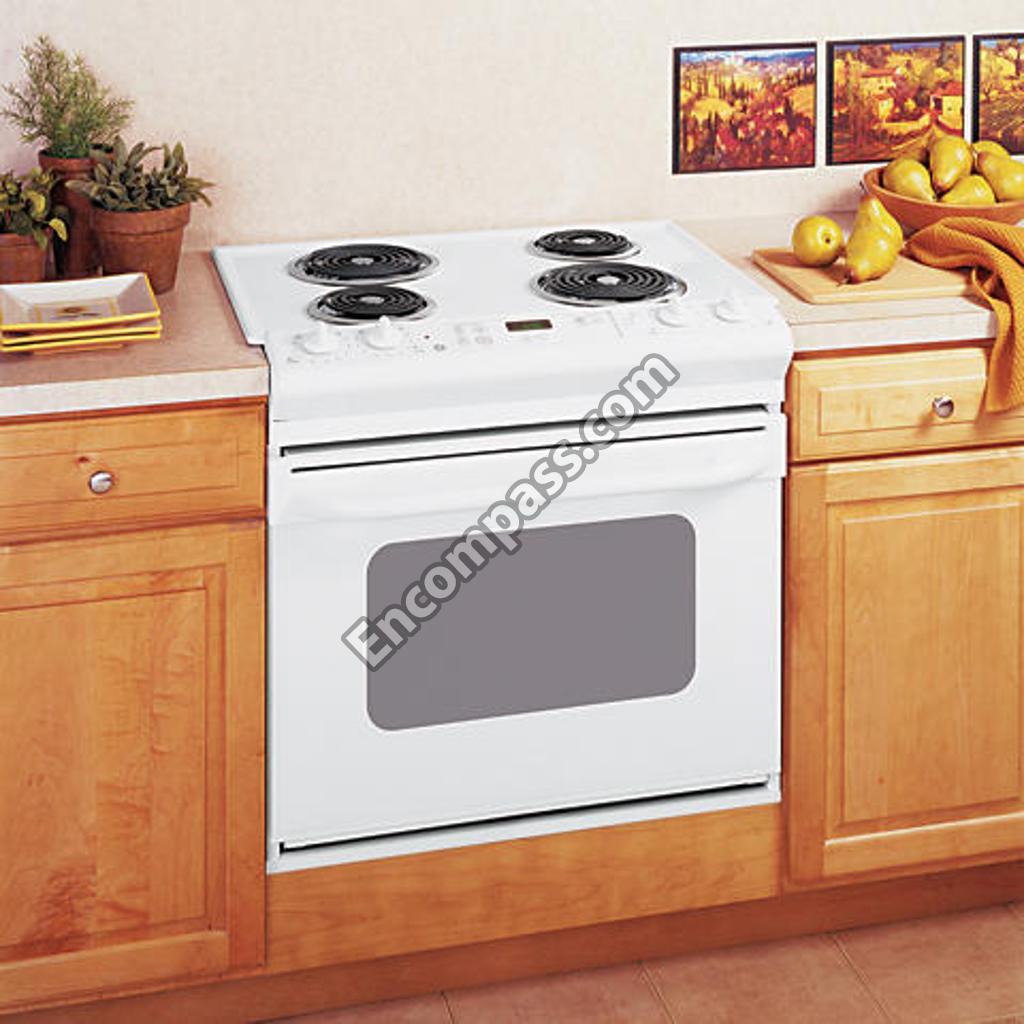

Electric Range

Interactive Exploded View

Parts List

Part Number Description
WB1K5200 WB1K5200 340531
40A15 40A15 40WATT 15AMP INC AND ESCENT BULB
WB31T10010 WB31T10010 6 INCH CHROME BURNER BOWL - ELEC
WB31T10011 WB31T10011 8 INCH CHROME BURNER BOWL - EL
WB02K10048 WB02K10048 BASE RAIL
WB01T10096 WB01T10096 BLOCK MAINTOP
WB17K10001 WB17K10001 BLOCK TERMINAL
WB64T10052 WB64T10052 BOTTOM BURN BOX
WB02X10739 WB02X10739 BRACKET ANTI-TIP
WB02T10270 WB02T10270 BRACKET SWITCH
WB10X255 WB10X255 BRACKET-HNGE
WB02X9573 WB02X9573 CLIP
WB2X9573 WB2X9573 CLIP
WB2X8228 WB2X8228 CLIP RECEPT
WB02X8228 WB02X8228 CLIP RECEPTACLE
WB2K5126 WB2K5126 COND CLAMP
WB02K5126 WB02K5126 CONDUIT CLAMP
WB18K10012 WB18K10012 CONDUIT WIRE ASSEMBLY
WB02X9152 WB02X9152 COVER
WB02K5365 WB02K5365 COVER
WB2K5365 WB2K5365 COVER
WB2X9152 WB2X9152 COVER ENAM WIPE
WB34T10105 WB34T10105 COVER WIRE

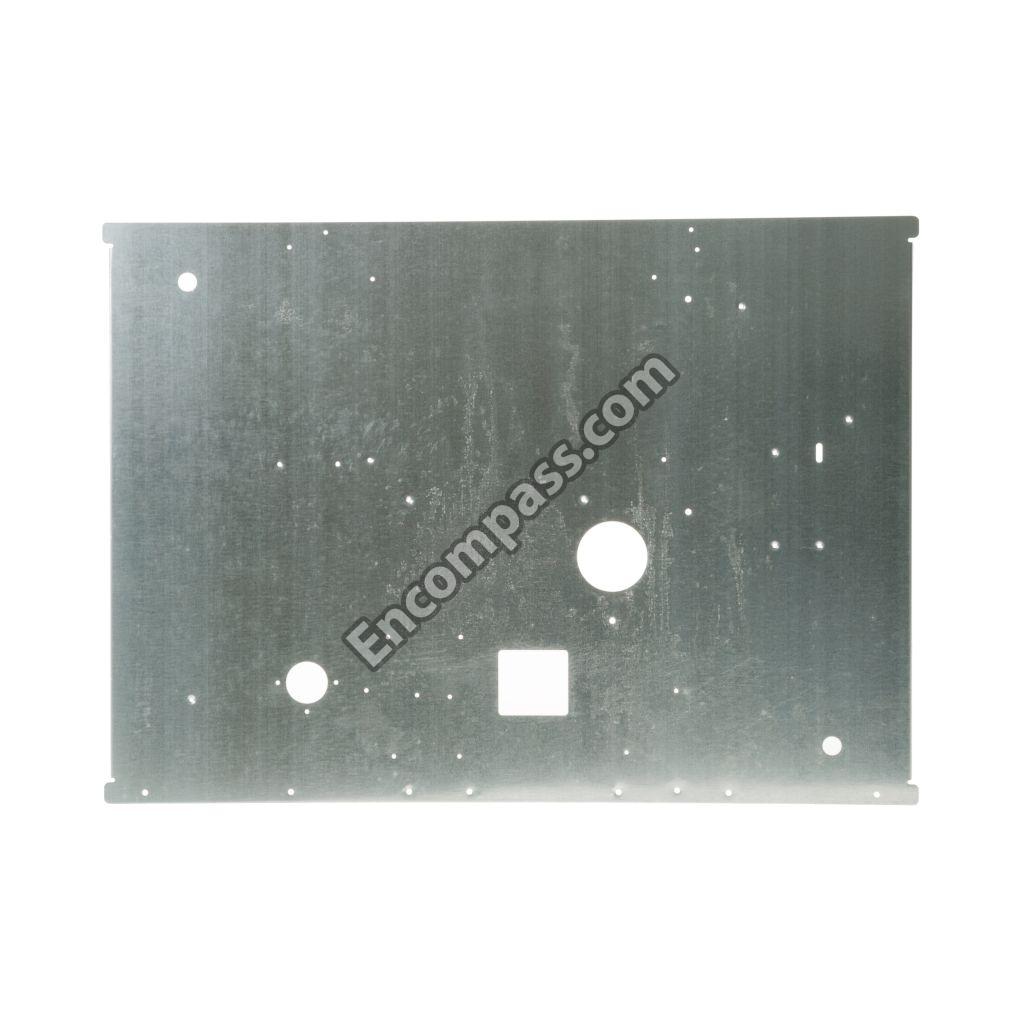

WB34K10046 WB34K10046 COVER WIRE REAR
WB01T10022 WB01T10022 DOOR BUMPER
WB03T10156 WB03T10156 DOOR BUMPER
WB56T10167 WB56T10167 DOOR OTR ASM 30 (BQ)
WB56T10169 WB56T10169 DOOR OTR ASM 30 (WH)
WB44T10018 WB44T10018 ELEMENT BAKE (3400W)
WB07K10137 WB07K10137 EXTENSION REAR
WB07T10474 WB07T10474 EXTENSION SIDE LEFT
WB07T10473 WB07T10473 EXTENSION SIDE RT
WB27T10657 WB27T10657 FACEPLATE GRAPHICS ASM
WB27T10658 WB27T10658 FACEPLATE GRAPHICS ASM
WB63T10083 WB63T10083 FRAME FRT LOWER
WB04T10050 WB04T10050 GASKET OVEN DOOR
WB04T10021 WB04T10021 GASKET OVEN LIGHT
WB15T10110 WB15T10110 HANDLE OVN DR (BQT)
WB15T10109 WB15T10109 HANDLE OVN DR (WHT)
WB01X1259 WB01X1259 HEX NUT
WB1X1259 WB1X1259 HEX NUT
WB14T10028 WB14T10028 HINGE MAINTOP LEFT
WB14T10027 WB14T10027 HINGE MAINTOP RT
WB50T10080 WB50T10080 HINGE/RECEIVER KIT LF AND RT
WB24T10029 WB24T10029 INF SW CNTL 1500W LF RR
WB24T10025 WB24T10025 INF SW CNTL 2600W RF LR
31-10595 31-10595 INSTRUCTION INSTALL
31-10514 31-10514 INSTRUCTION SHEET
31-10459 31-10459 INSTRUCTIONS INSTALL
WB35T10073 WB35T10073 INSULATION (INR) LWR
WB35T10074 WB35T10074 INSULATION (OUT) LWR
WB35K10024 WB35K10024 INSULATION BASE
WB35K10025 WB35K10025 INSULATION OVEN DR SDE
WB35X30052 WB35X30052 INSULATION OVN DR TOP
WB17T10006 WB17T10006 KIT SURF TERM BLOCK
WB03T10234 WB03T10234 KNOB GE SU (BQ)
WB03T10235 WB03T10235 KNOB GE SU (WH)
WB25T10042 WB25T10042 LENS
WB25T10043 WB25T10043 LENS
WB25T10039 WB25T10039 LIGHT INDICATOR
WB25K10010 WB25K10010 LIGHT INDICATOR PILOT
WB55T10148 WB55T10148 LINER OVEN DR ASM
WB01K5046 WB01K5046 LOCKWASHER
WB02K5306 WB02K5306 LOWER OVN INSLN RETAINER
WB62T10426 WB62T10426 MAINTOP
WB62T10427 WB62T10427 MAINTOP
31-14264 31-14264 MANUAL MINI & WD ASM
49-80254 49-80254 MANUAL USE & CARE
WB10X0255 WB10X0255 MT HINGE BRACKET
WB25T10002 WB25T10002 OVEN BULB LENS

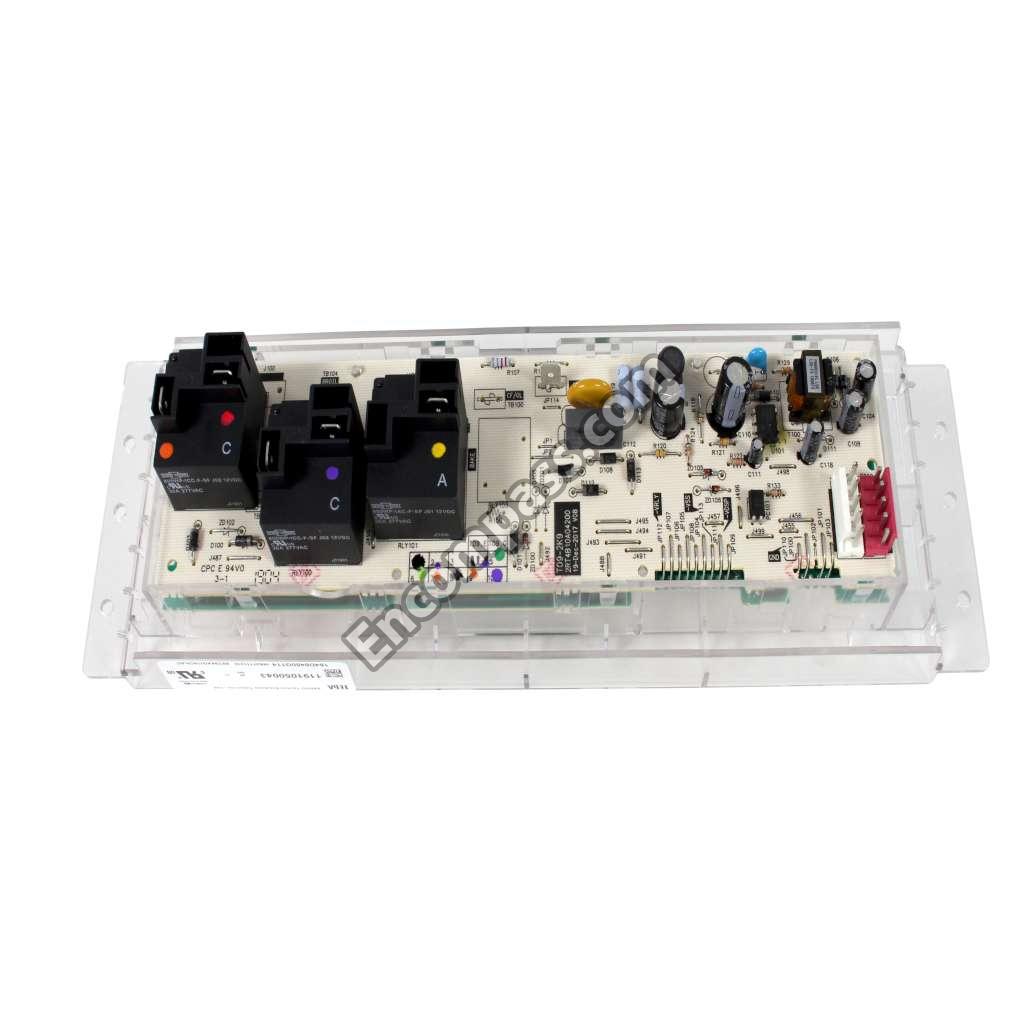

WB27T11310 WB27T11310 OVEN CONTROL T09 (ELEC)
WB08T10002 WB08T10002 OVEN LAMP HOLDER ASM
WB24T10043 WB24T10043 OVEN ROCKER SWITCH
WB24T10053 WB24T10053 OVEN ROCKER SWITCH
WB55T10149 WB55T10149 PACK WINDOW ASM
WB36T10795 WB36T10795 PANEL CNTL BTM
WB36T10793 WB36T10793 PANEL CNTL BTM BQ

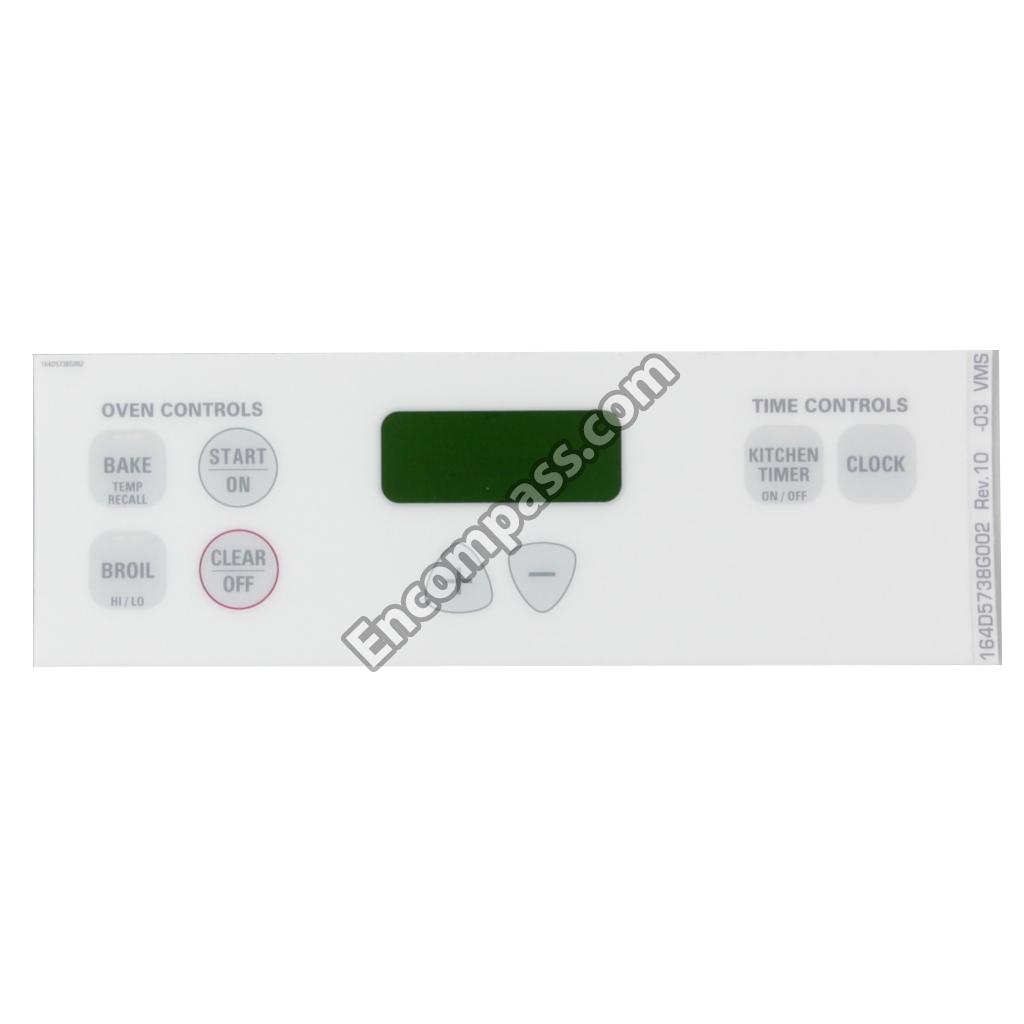

WB36T10794 WB36T10794 PANEL CNTL GRAPHICS ASM
WB36T10796 WB36T10796 PANEL CNTL GRAPHICS ASM
WB02T10147 WB02T10147 PLATE REINFORCEMEMT
WB48T10095 WB48T10095 RACK OVEN
WB02T10267 WB02T10267 RANGE BRACKET
WB10T10053 WB10T10053 RECEIVER HINGE
WB56T10136 WB56T10136 RETAINER INSLN BACK
WB02T10143 WB02T10143 RETAINER INSLN BTM
WB02T10371 WB02T10371 RETAINER INSLN OVN DR
WB56T10147 WB56T10147 RETAINER INSLN OVN DR
WB02T10269 WB02T10269 RETAINER INSLN TOP
WB02T10268 WB02T10268 ROD MAINTOP SUPT
WB01T10095 WB01T10095 SCR 10-32 HWH I 13/16
WH02X0941 WH02X0941 SCR 8-15 A HXW 7/8 S
WB01X0500 WB01X0500 SCR 8-18 B HXW 1/4 S
WB01T10094 WB01T10094 SCR 8-32 PN 1/2
WB01X1253 WB01X1253 SCREW
WB01X1137 WB01X1137 SCREW
WB01K5200 WB01K5200 SCREW
WB01X1127 WB01X1127 SCREW
WB01K5123 WB01K5123 SCREW
WB01M0001 WB01M0001 SCREW
WB1X1293 WB1X1293 SCREW
WB1M1 WB1M1 SCREW
WH2X930 WH2X930 SCREW
WB01X5364 WB01X5364 SCREW (CR)
WB01T10066 WB01T10066 SCREW 10-16 X 1.000 HWH
WB01T10008 WB01T10008 SCREW 10-32 TR T
WB1K5062 WB1K5062 SCREW 8-18 AB TRP 500 BQT
WB1K5167 WB1K5167 SCREW 8-18 X 3/8
WB01K5167 WB01K5167 SCREW 8-18 X 3/8""
WB1X5364 WB1X5364 SCREW MTG
WB01T10039 WB01T10039 SCREW ST 6-20X 375 TR BISQUE
WB01K5150 WB01K5150 SCREW ST10-16 X 7/16""
WB01K5062 WB01K5062 SCREW ST8-18X.500TRBRNI
WB01X1293 WB01X1293 SCREW TC10-32X.250HEXNI
WB01X1424 WB01X1424 SCREW, TRANSFORMER
WB1X1130 WB1X1130 SCREW-10-32
WB1X1137 WB1X1137 SCREW-10AB
WB1X1118 WB1X1118 SCREW-6-32T 6-20 X 3/8
WB01X1118 WB01X1118 SCREW-NICKEL
WH2X941D WH2X941D SCREW-PKG 12
WB1X1424D WB1X1424D SCREW-PKG 12
WB1X500D WB1X500D SCREW-PKG 12
WB01K5185 WB01K5185 SCREW-WHITE
WB01K5161 WB01K5161 SCREW-WHITE
WB1K5185 WB1K5185 SCREW-WHITE
WB1K5161 WB1K5161 SCREW-WHITE
WB1K5123 WB1K5123 SCREWS, MOUNTING BRACKET
WB2K5306 WB2K5306 SD INSUL RET
WB23T10015 WB23T10015 SENSOR ASM
WB02T10034 WB02T10034 SIDE PANEL SUPPORT
WB2M87 WB2M87 SUP ROD CLMP
WB26T10015 WB26T10015 SUPPORT OVN CAV
WB02M0087 WB02M0087 SUPPORT ROD CLAMP
WB30X24401 WB30X24401 SURFACE ELEMENT 6
WB30T10074 WB30T10074 SURFACE ELEMENT 8

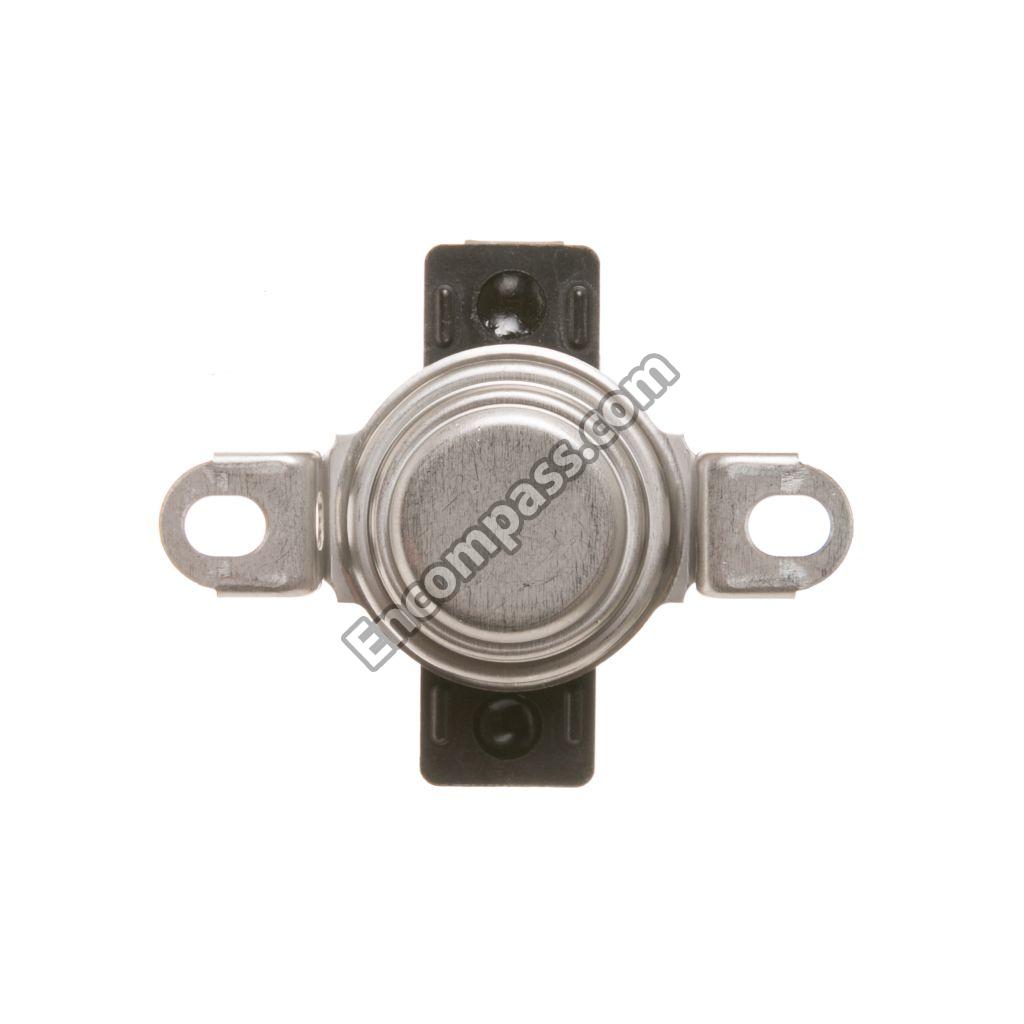

WB24T10116 WB24T10116 SWITCH LIMIT
WB01T10052 WB01T10052 TAPE FOAM
WB07K10143 WB07K10143 TRIM LOWER
WB07K10154 WB07K10154 TRIM LOWER
WB07T10472 WB07T10472 TRIM VENT INR (BK)
WB07T10412 WB07T10412 TRIM VERT SDE
WB07T10411 WB07T10411 TRIM VERT SDE
WB38T10027 WB38T10027 TUBE VENT ASM
WB38T10028 WB38T10028 TUBE VNT ASM
WB44T10043 WB44T10043 UNIT BROIL ASM (DLX)
WB48X10056 WB48X10056 UNIVERSAL RANGE BROILER PAN
WB01K5174 WB01K5174 WASHER
WB1K5174 WB1K5174 WASHER
WB1K5046 WB1K5046 WASHER
WB1X681 WB1X681 WB01X0681
WB35T10090 WB35T10090 WB35K5116
WB63T10085 WB63T10085 WRAPPER OVEN CAV
