Model Image
Manufacturer

GE

Model Number

JE1453WH02

Description

Microwave Or Advantium

Interactive Exploded View

Parts List

Part Number Description
WB56X2046 WB56X2046 BASE PLATE LH
WB56X2045 WB56X2045 BASE PLATE RH
WB2X7675 WB2X7675 BDY LATCH BM
WB2X7674 WB2X7674 BDY LATCH TP
WB02X9970 WB02X9970 BLADE STIRRER
WB02X7675 WB02X7675 BODY DOOR LATCH BOTTOM
WB02X7674 WB02X7674 BODY DOOR LATCH TOP
WB02X7684 WB02X7684 BRACKET
WB2X7669 WB2X7669 BRACKET
WB02X7669 WB02X7669 BRACKET CAPACITOR
WB02X7667 WB02X7667 BRACKET LAMP
WB02X7677 WB02X7677 BUSHING-POWER CORD
WB27X0588 WB27X0588 CAPACIT0R
WB27X588 WB27X588 CAPACITOR
WB02X7566 WB02X7566 CLIP
WB2X7672 WB2X7672 CLIP STOPPER **NLA*
WB02X7672 WB02X7672 CLIP-COOK TRAY STOP
39-4566 39-4566 COOKBOOK
WB18X5091 WB18X5091 CORD **NLA*
WB02X7665 WB02X7665 COVER BLOWER
WB02X7668 WB02X7668 COVER LAMP
WB02X9969 WB02X9969 COVER STIRRER
WB36X5572 WB36X5572 CRYSTAL
WB27X1160 WB27X1160 DIODE ASSEMBLY
WB15X0295 WB15X0295 DOOR HANDLE
WB15X295 WB15X295 DOOR HANDLE **NLA*
WB26X126 WB26X126 FAN MTR ASM
WB02X7680 WB02X7680 FILM
WB2X7680 WB2X7680 FILM* **NLA*
WB20X0141 WB20X0141 FLAME SENSOR
WB02X9561 WB02X9561 FOOT
WB2X9561 WB2X9561 FOOT
WB55X5306 WB55X5306 FRAME INNER
WB27X0007 WB27X0007 FUSE
WB27X7 WB27X7 FUSE
WB02X7685 WB02X7685 HEAT SINK
WB14X0160 WB14X0160 HINGE LOWER
WB14X0151 WB14X0151 HINGE UPPER
WB14X151 WB14X151 HINGE-UPPER **NLA*
WB49X5381 WB49X5381 HOLDER CORD
WB02X7678 WB02X7678 HOLDER FUSE
WB2X7375 WB2X7375 HOLDER FUSE
WB02X7686 WB02X7686 HOOK SPACER
WB2X4511 WB2X4511 IVORY HOLDER
WB27X0704 WB27X0704 KEY PANEL ASSEMBLY
WB27X704 WB27X704 KEY PNL ASM **NLA*
WB10X5181 WB10X5181 KEY UPPER
WB07X6961 WB07X6961 LABEL MENU CODE
WB02X4253 WB02X4253 LAMP OVEN 40W (SPECIAL)
WB36X10003 WB36X10003 LAMP-INCANDESCENT
WB55X5305 WB55X5305 LINER & CHOKE
WB27X10249 WB27X10249 MICROWAVE MAGNETRON
WB27X0586 WB27X0586 MICROWAVE SMART BOARD & DISPLAY
WB26X0126 WB26X0126 MOTOR & BLADE ASM
WB27X586 WB27X586 N.L.A. SMARTBOARD
WB8X5094 WB8X5094 N.L.A.SOCKET
WB48X5087 WB48X5087 N/L/A 10/28/02
WB55X761 WB55X761 NLA OUTER DR FRM
WB56X2078 WB56X2078 OUTER CASE
WB55X0761 WB55X0761 OUTER DOOR FRAME
WB2X7683 WB2X7683 PIN
WB02X3958 WB02X3958 PIN FOOT
WB02X7683 WB02X7683 PIN KEY DOOR
WB2X7566 WB2X7566 PIN-CLIP ASM
WB2X3958 WB2X3958 PIN-FOOT
WB20X0076 WB20X0076 PROBE
WB20X90 WB20X90 PROBE **NLA*
WB48X5086 WB48X5086 RACK **NLA*
WB20X0067 WB20X0067 RECEPTACLE PROBE
WB01X0651 WB01X0651 RETAINER
WB1X651 WB1X651 RTNR STIRRER
WB02X7682 WB02X7682 RUBBER FERRITE SIDES
WB02X7681 WB02X7681 RUBBER FERRITE TOP & BTM
WB27X10195 WB27X10195 S/W THERMO
WB2X4882 WB2X4882 SHAFT STIRER
WB02X4882 WB02X4882 SHAFT STIRRER
WB08X5094 WB08X5094 SOCKET LAMP
WB20X10008 WB20X10008 SOCKET-PROBE
WB2X9971 WB2X9971 SPACER **NLA*
WB2X7686 WB2X7686 SPACER **NLA*
WB02X9971 WB02X9971 SPACER-STIRRER

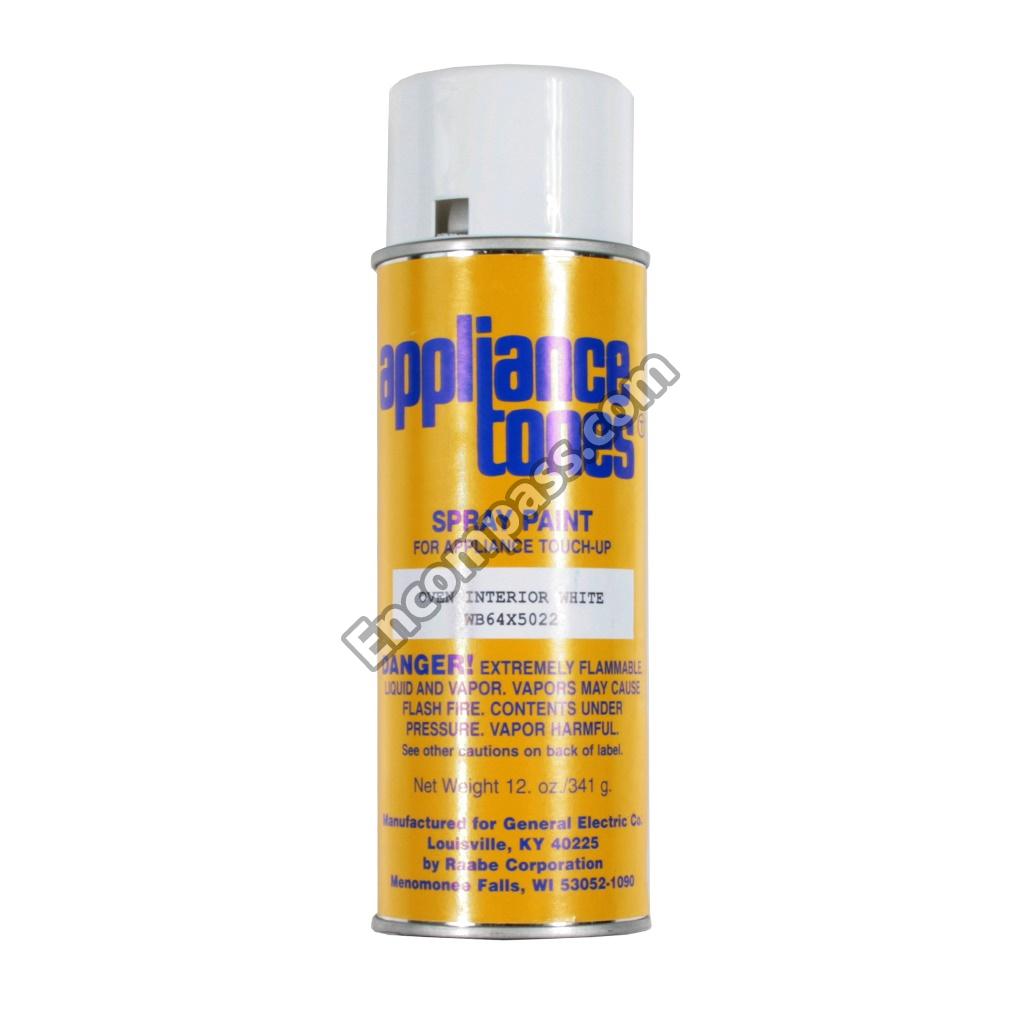

WB64X5022 WB64X5022 SPRAY-MEILMOD WHITE
WB9X5109 WB9X5109 SPRING **NLA*
WB09X5109 WB09X5109 SPRING DOOR KEY
WB2X9969 WB2X9969 STIRRER CVR
WB02X7671 WB02X7671 STOPPER TRAY
WB02X4511 WB02X4511 SUPPORT
WB2X7679 WB2X7679 SUPPORT **NLA*
WB02X7679 WB02X7679 SUPPORT COVER
WB24X829 WB24X829 SW-SECONDARY
WB24X410 WB24X410 SWITCH-THERM
WB24X0410 WB24X0410 THERMOSTAT
WB64X5023 WB64X5023 TOUCH UP CAVITY (BRUS
WB27X0589 WB27X0589 TRANSFORMER, HI-VOLTAGE
WB27X0468 WB27X0468 TRANSFORMER-LV
WB27X5391 WB27X5391 TRIAC **NLA*
WB07X1883 WB07X1883 TRIM CONTROL PANEL
WB7X1883 WB7X1883 TRIM CTR PNL
WB07X1884 WB07X1884 TRIM DOOR HANDLE
WB7X1884 WB7X1884 TRIM DR HNDL
WB49X5382 WB49X5382 UNKNOWN
49-4919 49-4919 USE AND CARE BOOK
WB36X0815 WB36X0815 WINDOW OUTER
WB18X0424 WB18X0424 WIRE HARNESS
WB2X9970 WB2X9970 {{NLA}} STRR BLD ASM
