Model Image
Manufacturer

GE

Model Number

JE1590WC01

Description

Microwave Or Advantium

Interactive Exploded View

Parts List

Part Number Description
WB02X10725 WB02X10725 AIR TUNNEL
WB56X10184 WB56X10184 BACK COVER
WB6X475 WB6X475 BLADE MTR CL
WB02X32720 WB02X32720 BOARD - LATCH
WB06X10214 WB06X10214 BRACKET - CAPACITOR
WB06X10260 WB06X10260 BRACKET - DAMPER
WB02X10723 WB02X10723 BRACKET - HTR CENTER
WB02X10542 WB02X10542 BRACKET - MTR CIRCU
WB02X10722 WB02X10722 BRACKET- HEATER LEFT
WB06X10570 WB06X10570 BRACKET- MAGNETRON
JX1527CWC JX1527CWC BUILT IN KIT/27-INCH
WB03X10118 WB03X10118 BUTTON - COOK
WB03X10115 WB03X10115 BUTTON - COOK
WB03X10111 WB03X10111 BUTTON - COOK
WB03X10109 WB03X10109 BUTTON - COOK
WB03X10117 WB03X10117 BUTTON - START
WB03X10114 WB03X10114 BUTTON - START
WB03X10112 WB03X10112 BUTTON - START
WB03X10110 WB03X10110 BUTTON - START
WB02X10611 WB02X10611 CAP - LEG
WB27X10233 WB27X10233 CAPACITOR HIGH VOLT
WB36X10131 WB36X10131 CAVITY LAMP
WB06X10262 WB06X10262 CHAMBER
WB06X10263 WB06X10263 CHAMBER WALL
WB55X10385 WB55X10385 CHOKE COVER
WB07X10403 WB07X10403 CONTROL PANEL - BLACK
WB07X10400 WB07X10400 CONTROL PANEL - WHITE
WB07X10402 WB07X10402 CONTROL PANEL-BISQUE
WB07X10404 WB07X10404 CONTROL PNL/CVR ASSEMBLY - SS
49-40132 49-40132 COOK BOOK
WB06X10258 WB06X10258 COVER - LAMP
WB27X10037 WB27X10037 DIODE-CABLE ASM
WB55X10390 WB55X10390 DOOR ASSEMBLY - BISQUE
WB55X10398 WB55X10398 DOOR ASSEMBLY - SS
WB55X10386 WB55X10386 DOOR ASSEMBLY - WHITE
WB55X10384 WB55X10384 DOOR FRAME ASSEMBLY
WB55X10393 WB55X10393 DOOR PANEL
WB55X10397 WB55X10397 DOOR PANEL
WB55X10388 WB55X10388 DOOR PANEL
WB55X10399 WB55X10399 DOOR/CVR ASSEMBLY - SS
WB26X32609 WB26X32609 FAN - STIRRER
WB06X0475 WB06X0475 FAN BLADE
WB38X10005 WB38X10005 FAN BLADE
WB27X10928 WB27X10928 FUSE
WB06X10205 WB06X10205 FUSE HOLDER
WB55X10396 WB55X10396 GLASS - FRONT
WB55X10389 WB55X10389 GLASS- FRONT
WB06X10261 WB06X10261 GUIDE - SUCTION
WB55X10391 WB55X10391 HANDLE - DOOR
WB55X10387 WB55X10387 HANDLE - DOOR
WB55X10395 WB55X10395 HANDLE - DOOR
WB06X10265 WB06X10265 HEATER - SHEATH
WB27X10398 WB27X10398 HIGH VOLTAGE TRANSFOR
WB06X10264 WB06X10264 HOLDER - HEATER
49-40130 49-40130 INSTALLATION BOOK
WB07X10401 WB07X10401 KEY PANEL
WB03X10119 WB03X10119 KNOB - DIAL
WB03X10113 WB03X10113 KNOB - DIAL
WB03X10108 WB03X10108 KNOB - DIAL
WB02X11096 WB02X11096 LATCH
WB18X10127 WB18X10127 LEAD WIRE ASSEMBLY
WB18X10125 WB18X10125 LEAD WIRE ASSEMBLY
WB06X10559 WB06X10559 LEVER SWITCH-LOWER
WB26X32629 WB26X32629 MAGNETRON
WB06X10257 WB06X10257 MICROWAVE AIR DUCT

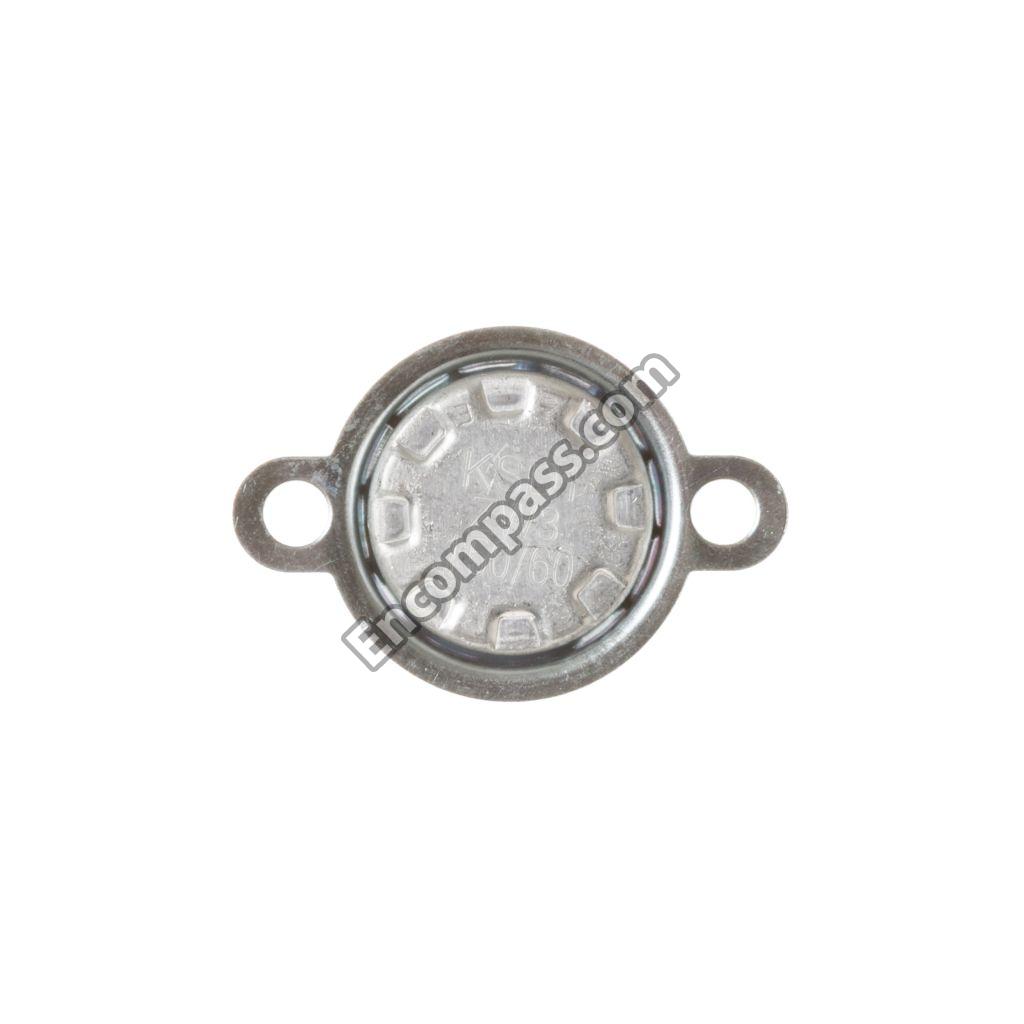

WB21X10148 WB21X10148 MICROWAVE THERMOSTAT
31-20947 31-20947 MINI-MANUAL
WB26X10248 WB26X10248 MOTOR
WB26X10084 WB26X10084 MOTOR - CIRCULATION
WB26X10082 WB26X10082 MOTOR - TURN TABLE
WB26X10085 WB26X10085 MOTOR FAN
JX1527CCC JX1527CCC MW OVEN ACCE
JX1530CCC JX1530CCC MW OVEN ACCE
WB01X1520 WB01X1520 NUT COMMON
WB1X1520 WB1X1520 NUT HEXAGON
WB56X10185 WB56X10185 OUTER CASE - BISQUE
WB56X10183 WB56X10183 OUTER CASE - WHITE
WB02X10730 WB02X10730 PAN HEAD TAPPING SCREW
WB18X10124 WB18X10124 POWER CORD ASSEMBLY
WB02X10718 WB02X10718 RANGE CHOKE CAP
WB02X10724 WB02X10724 RANGE HEATER LOWER BRACKET
WB1X1518 WB1X1518 RING SHAFT
WB02X10727 WB02X10727 SCREW
WB01X1517 WB01X1517 SCREW - BOARD DOOR LATCH
WB02X10728 WB02X10728 SCREW - HAND
WB01X1504 WB01X1504 SCREW - HEATER SHEATH
WB02X10726 WB02X10726 SCREW -LEAD WIRE ASSEMBLY
WB02X10729 WB02X10729 SCREW -PCB
WB01X1509 WB01X1509 SCREW -SWITCH MICRO
WB1X1509 WB1X1509 SCREW PAN HD
WB02X10720 WB02X10720 SCREW TAPPING TRUSS HEAD
WB1X1504 WB1X1504 SCREW TRUSS
WB1X1517 WB1X1517 SCREW-D SPEC
WB24X10044 WB24X10044 SENSOR ASM
WB48X10073 WB48X10073 SHELF - CONV RACK
WB27X10423 WB27X10423 SMART BOARD - MAIN
WB01X1518 WB01X1518 SPACER
WB09X10014 WB09X10014 SPRING
WB24X10047 WB24X10047 SW PRIM INTERLOCK & DOOR
WB24X0817 WB24X0817 SWITCH MICRO
WB24X25397 WB24X25397 SWITCH MONITOR INTERLOCK
WB20X0167 WB20X0167 TCO, MAG
49-40131 49-40131 TEMPLATE
WB18X10126 WB18X10126 THERMISTOR
WB49X10129 WB49X10129 TRAY - GLASS
WB20X167 WB20X167 TSTAT MAG.
WB02X10719 WB02X10719 TURN TABLE
WB06X10564 WB06X10564 TURN TABLE SHAFT
49-40128 49-40128 USE & CARE MANUAL
WB01X1522 WB01X1522 WASHER COMMON
WB1X1521 WB1X1521 WASHER PLAIN
WB1X1522 WB1X1522 WASHER SPLK
WB01X1521 WB01X1521 WASHER- PLAIN
WB06X10254 WB06X10254 WAVE GUIDE
WB27X10425 WB27X10425 WINDOW - DIGITRON
WB27X10424 WB27X10424 WINDOW - DIGITRON
