Model Image
Manufacturer

GE

Model Number

JE1860WH03

Description

Microwave Or Advantium

Interactive Exploded View

Parts List

Part Number Description
WB56X10577 WB56X10577 BASE PLATE LEFT
WB56X10578 WB56X10578 BASE PLATE RIGHT

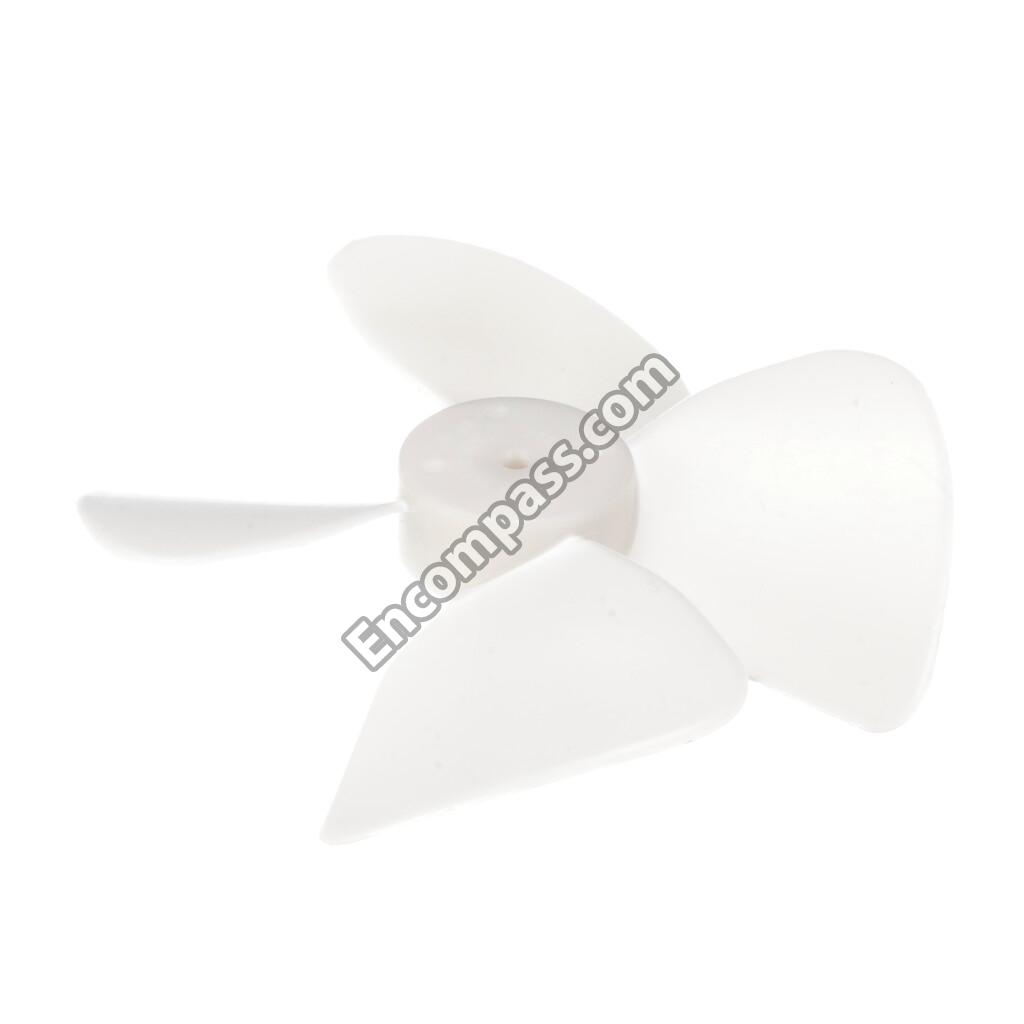

WB38X10051 WB38X10051 BLADE FAN
WB06X10210 WB06X10210 BLADE-STIRRER
WB06X10306 WB06X10306 BRACKET HVC
WB03X10246 WB03X10246 BUTTON
WB03X10244 WB03X10244 BUTTON
WB03X10243 WB03X10243 BUTTON
WB03X10245 WB03X10245 BUTTON ASM
WB09X10006 WB09X10006 BUTTON SPRING
WB09X10002 WB09X10002 BUTTON SPRING
WB55X10742 WB55X10742 CHOKE COVER
WB36X10277 WB36X10277 COVER DIGITRON
WB06X10567 WB06X10567 COVER,STIRRER FAN
WB27X10107 WB27X10107 DIODE
WB56X10584 WB56X10584 DOOR ASSEMBLY
WB56X10582 WB56X10582 DOOR ASSEMBLY
WB56X10581 WB56X10581 DOOR ASSEMBLY
WB56X10579 WB56X10579 DOOR ASSEMBLY BLK
WB55X10748 WB55X10748 DOOR FRAME ASSEMBLY
WB55X10744 WB55X10744 DOOR FRAME ASSEMBLY
WB55X10739 WB55X10739 DOOR FRAME ASSEMBLY
WB06X10543 WB06X10543 DUCT
WB06X10307 WB06X10307 FOOT
WB55X10746 WB55X10746 FRONT SCREEN
WB55X10740 WB55X10740 FRONT SCREEN
WB27X10928 WB27X10928 FUSE
WB06X10205 WB06X10205 FUSE HOLDER
WB06X10582 WB06X10582 GUIDE SENSOR
WB18X10256 WB18X10256 HARNESS
WB27X11033 WB27X11033 HIGH VOLTAGE CAPACITOR
WB02X11097 WB02X11097 HOLDER STIRRER FAN
WB02X10532 WB02X10532 HOLDER WIRE
49-40247 49-40247 INSTALLATION INSTRUCTION
WB06X10583 WB06X10583 INSULATOR

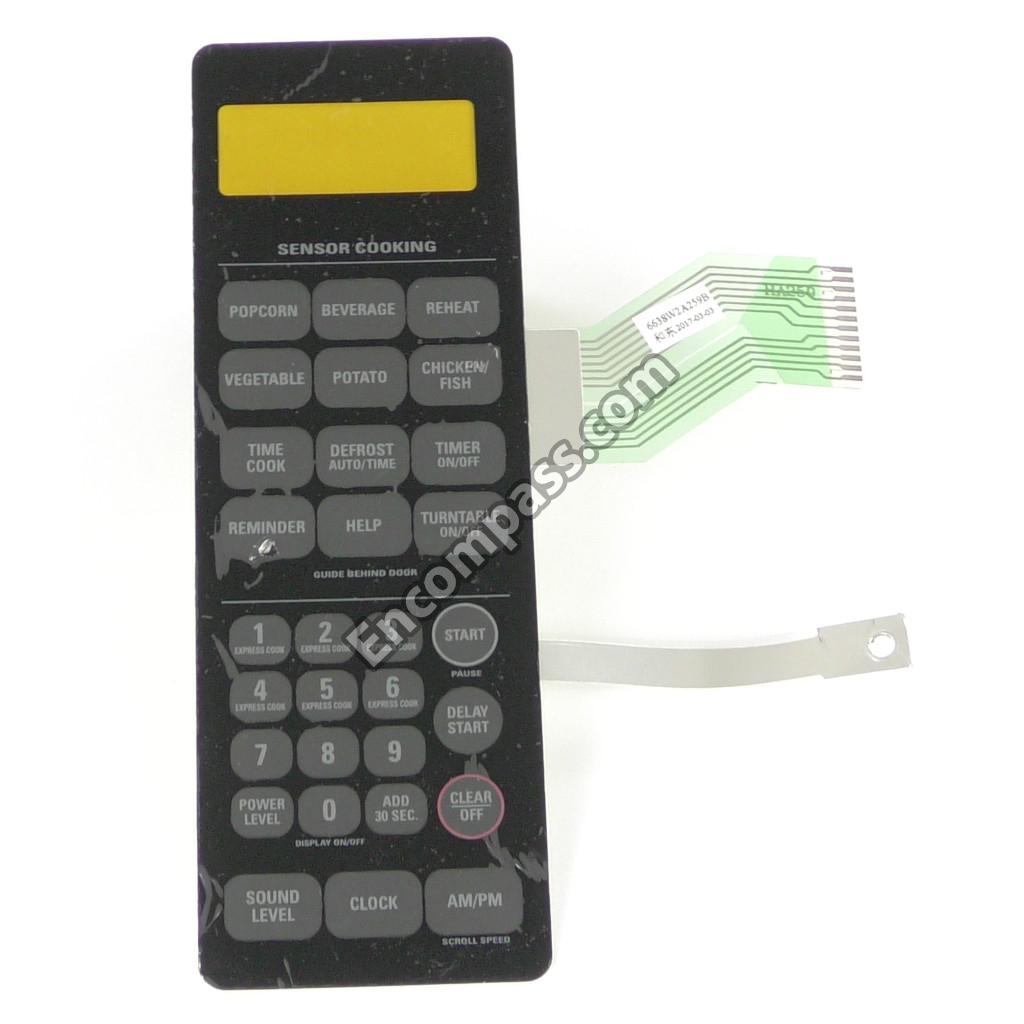

WB27X10753 WB27X10753 KEY PANEL BLK
WB27X10755 WB27X10755 KEY PANEL BQ
WB27X10756 WB27X10756 KEY PANEL SS
WB27X10757 WB27X10757 KEY PANEL WHT
49-40423 49-40423 LABEL,COOKING GUIDE

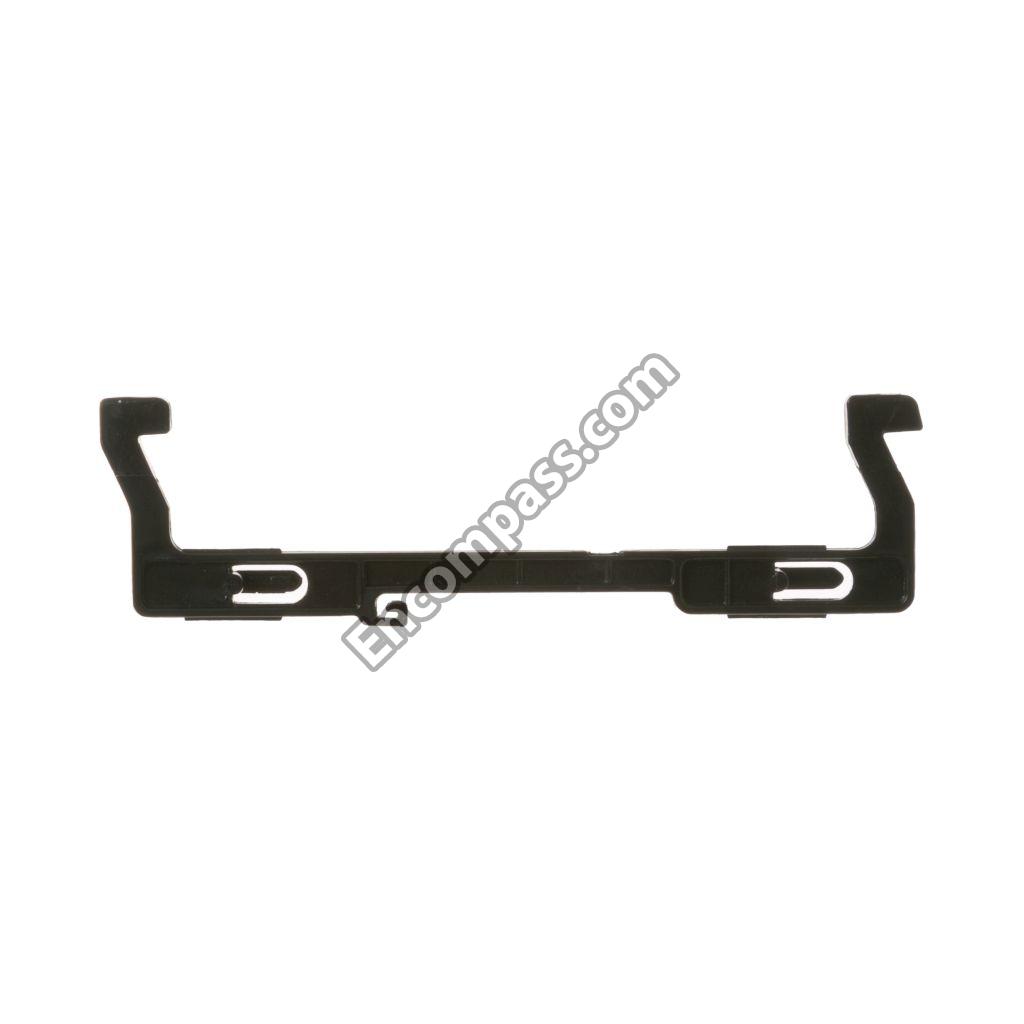

WB06X10093 WB06X10093 LATCH DOOR
WB06X10086 WB06X10086 LEVER RELEASE
WB26X32629 WB26X32629 MAGNETRON

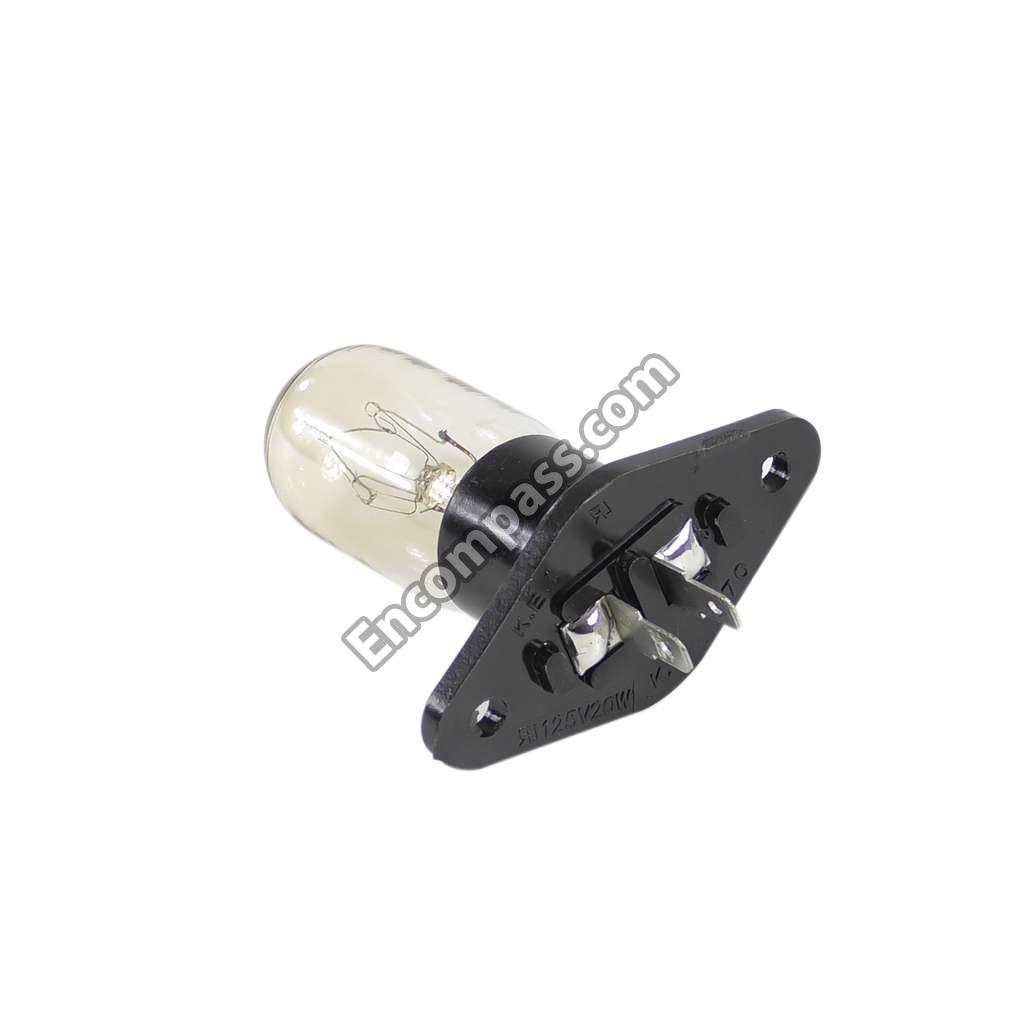

WB36X10063 WB36X10063 MICROWAVE BULB ASSEMBLY
WB01X10277 WB01X10277 MICROWAVE HARDWARE KIT
WB02X21662 WB02X21662 MICROWAVE LATCH BOARD
WB24X10047 WB24X10047 MICROWAVE SWITCH
31-20934 31-20934 MINI MANUAL
WB26X10057 WB26X10057 MOTOR
WB26X10096 WB26X10096 MOTOR FAN ASSEMBLY

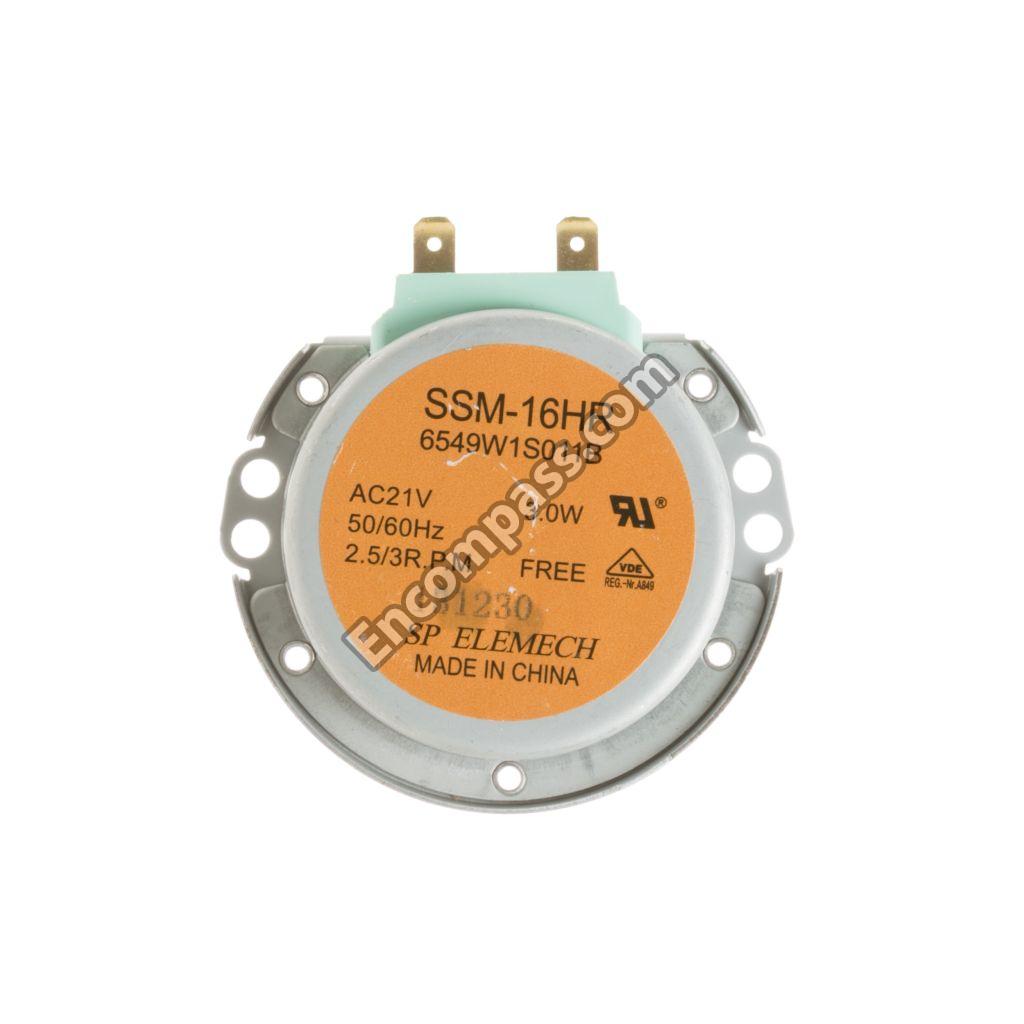

WB26X10143 WB26X10143 MOTOR(CIRC),SYNCHRONOUS
WB56X10580 WB56X10580 OUT CASE U-BENDING
WB56X10576 WB56X10576 OUT CASE U-BENDING
WB56X10583 WB56X10583 OUT CASE U-BENDING
WB07X10844 WB07X10844 PANEL CONTROL
WB07X10841 WB07X10841 PANEL CONTROL
WB55X10743 WB55X10743 PANEL DOOR
WB55X10749 WB55X10749 PANEL DOOR
WB55X10747 WB55X10747 PANEL DOOR
WB55X10745 WB55X10745 PANEL DOOR
WB18X10255 WB18X10255 POWER CORD ASM
49-40239-1 49-40239-1 REAR WALL TEMPLATE

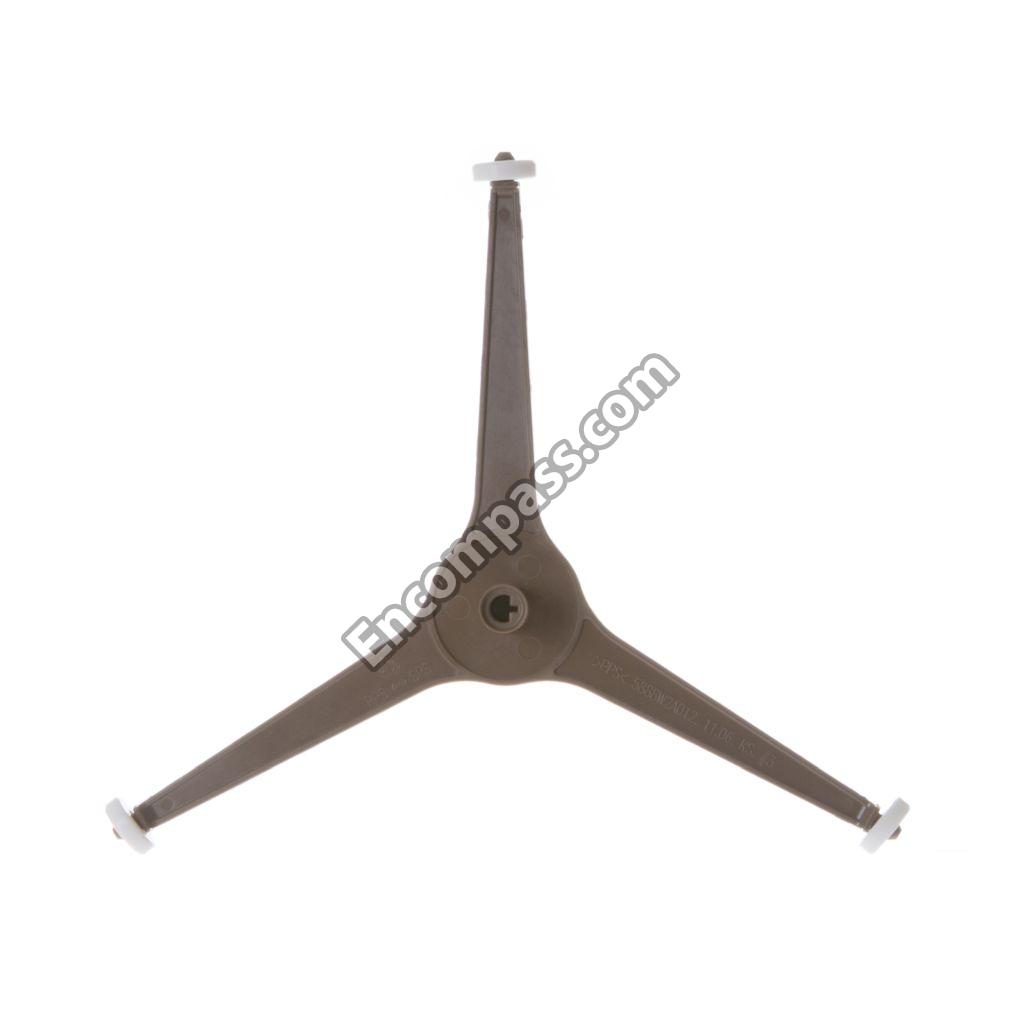

WB06X10584 WB06X10584 ROTATING RING ASSEMBLY
WB55X10741 WB55X10741 SEAL TAPE
WB24X10044 WB24X10044 SENSOR ASM

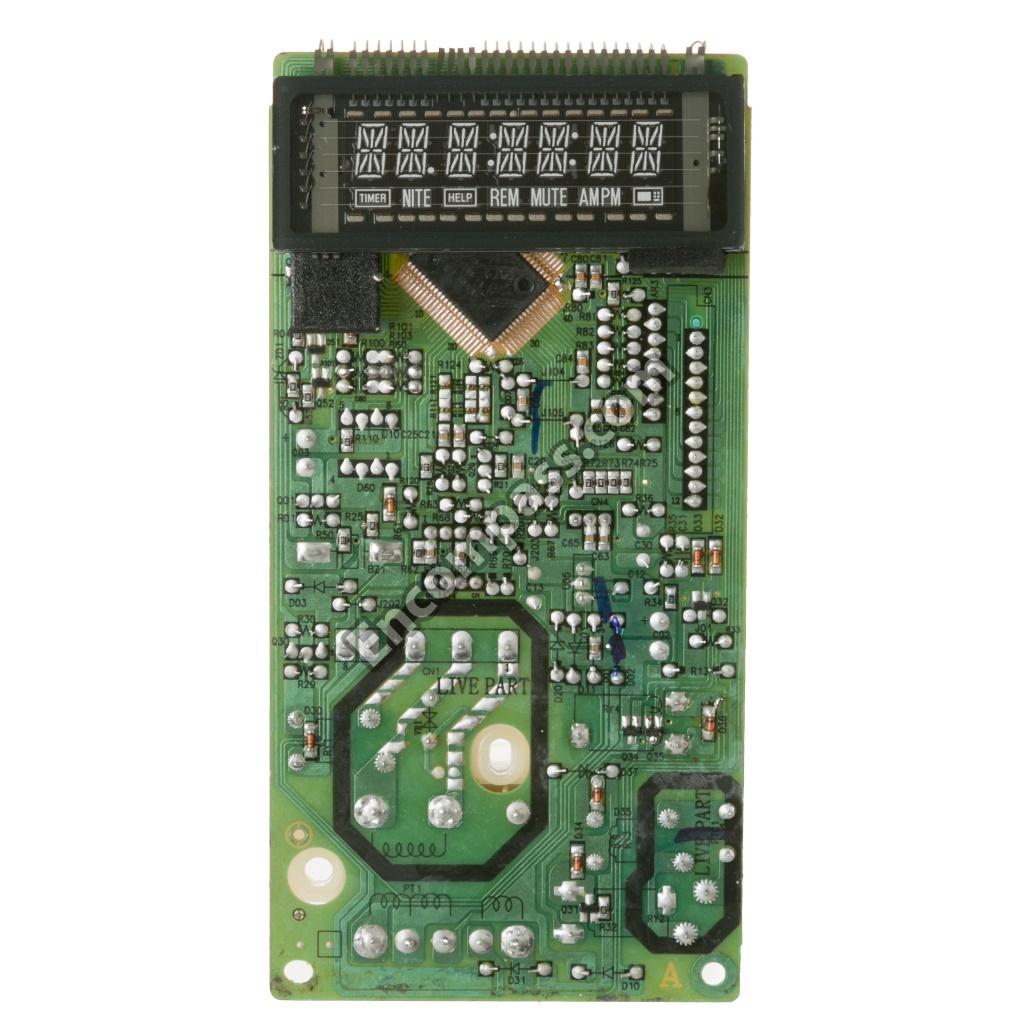

WB27X10969 WB27X10969 SMART BOARD.

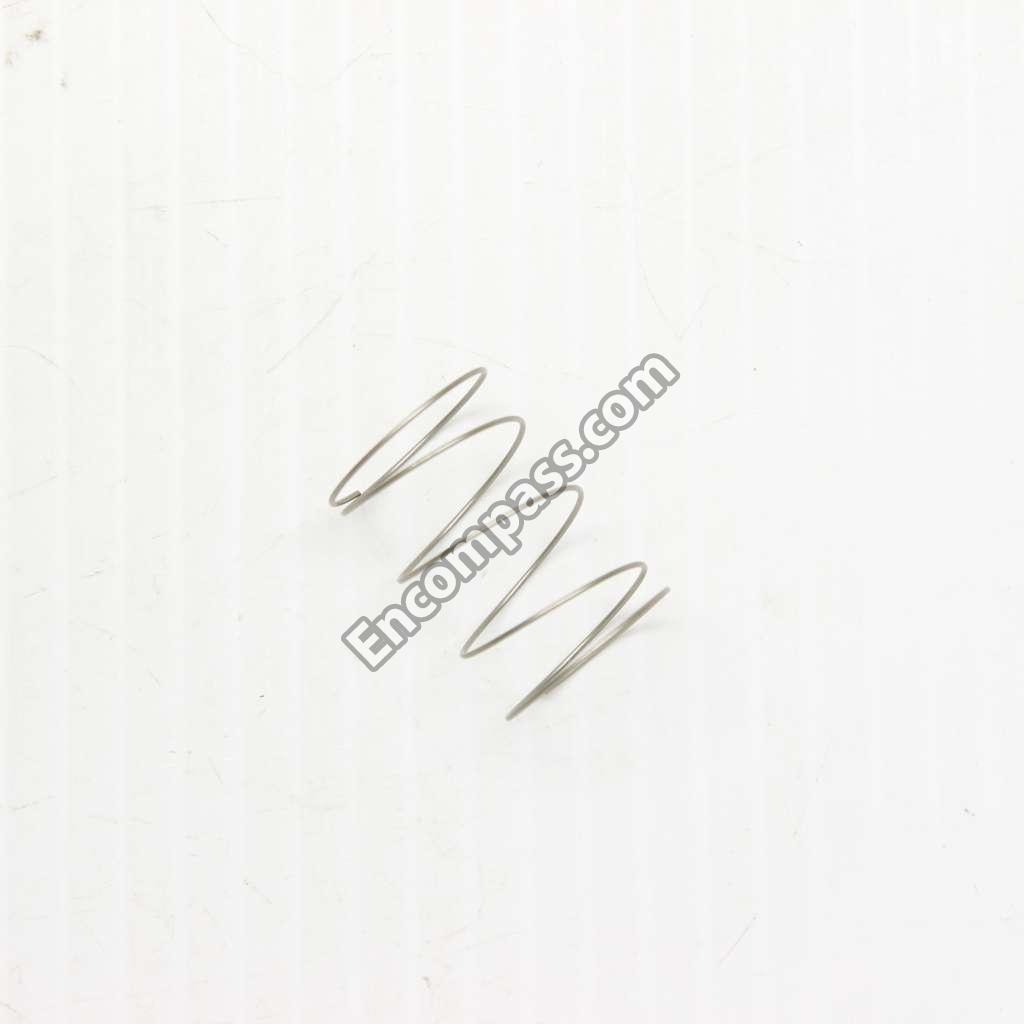

WB09X10015 WB09X10015 SPRING
WB38X10149 WB38X10149 SUCTION GUIDE

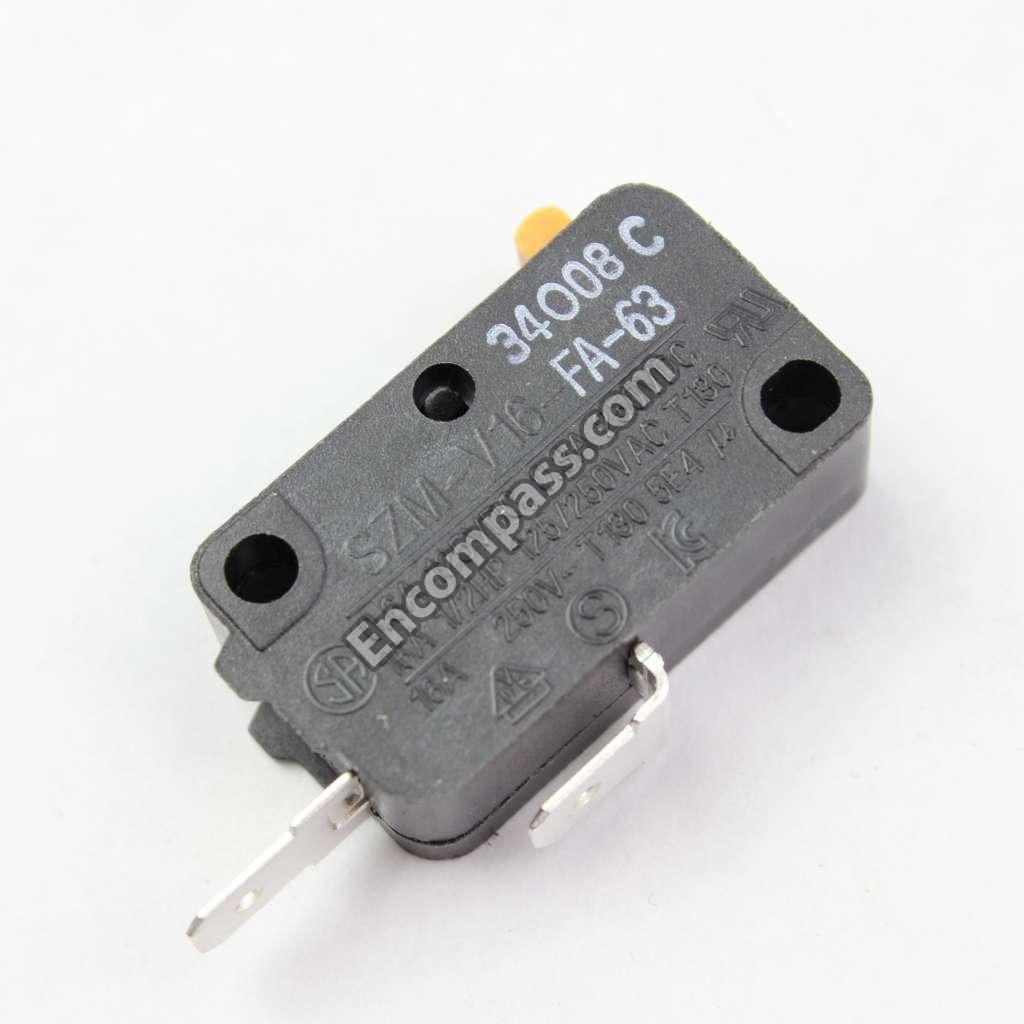

WB24X10029 WB24X10029 SWITCH MICRO
WB24X10071 WB24X10071 SWITCH MICRO
49-40137-1 49-40137-1 TEMPLATE TOP
WB24X10074 WB24X10074 THERMOSTAT(OVEN)
WB27X10806 WB27X10806 TRANSFORMER HIGH VOLTAGE
WB49X10135 WB49X10135 TRAY,GLASS
49-40395 49-40395 USE & CARE
WB06X10764 WB06X10764 WAVE GUIDE - MICA COVER
