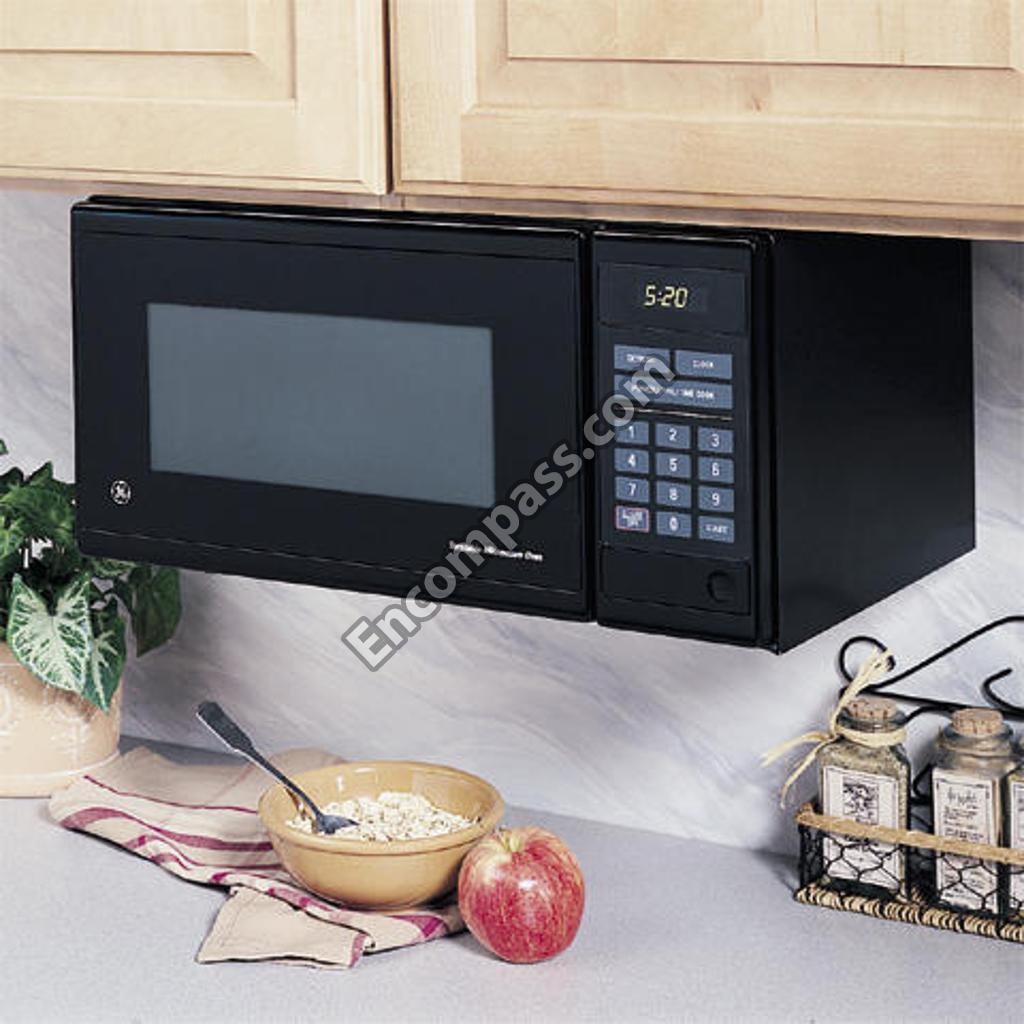

Model Image
Manufacturer

GE

Model Number

JE520BW01

Description

Microwave Or Advantium

Interactive Exploded View

Parts List

Part Number Description
WB06X0507 WB06X0507 BODY DOOR LATCH
WB01X10064 WB01X10064 BOLT-FLANGE
WB6X509 WB6X509 BRACKET ASM
WB06X0509 WB06X0509 BRACKET ASM, MOUTNING
WB03X0881 WB03X0881 BUTTON, START - BLK
WB03X10153 WB03X10153 BUTTON-PUSH
WB27X0524 WB27X0524 CAPACITOR-HV
WB27X524 WB27X524 CAPACITOR-HV
WB55X998 WB55X998 CHOKE ASM
WB55X0998 WB55X0998 CHOKE ASM, DOOR
WB06X0501 WB06X0501 CLIP,OUTER
WB07X2085 WB07X2085 CONTROL PANEL
WB7X2085 WB7X2085 CONTROL PNL
WB06X0503 WB06X0503 COVER,WAVE GUIDE
WB36X0946 WB36X0946 CRYSTAL
WB36X946 WB36X946 CRYSTAL
WB27X1160 WB27X1160 DIODE ASSEMBLY
WB6X504 WB6X504 DOOR FILM
WB6X505 WB6X505 DOOR KEY **NLA*
WB06X0505 WB06X0505 DOOR,KEY
WB26X184 WB26X184 FAN MOTOR
WB06X0504 WB06X0504 FILM-DOOR
WB20X0171 WB20X0171 FLAME SENSOR
WB01X1457 WB01X1457 FLANGE BOLT M5X12
WB06X0398 WB06X0398 FOOT
WB6X398 WB6X398 FOOT W/PIN
WB55X997 WB55X997 FRAME I DOOR
WB55X0997 WB55X0997 FRAME, INNER DOOR
WB27X0619 WB27X0619 FUSE
WB27X7 WB27X7 FUSE
WB14X205 WB14X205 HINGE LOWER
WB14X0205 WB14X0205 HINGE,LOWER
WB06X0234 WB06X0234 HOLDER FUSE .
WB06X10005 WB06X10005 HOLDER-FUSE
WB27X10010 WB27X10010 HV CAPACITOR
WB27X0944 WB27X0944 HV DIODE (RECTIFIER)
WB27X1130 WB27X1130 KEY PANEL - BLACK
WB36X0904 WB36X0904 LAMP (125V, 25W)
WB36X10194 WB36X10194 LAMP-INCANDESCENT
WB6X507 WB6X507 LATCH BODY
WB6X506 WB6X506 LEVER DOOR
WB6X140 WB6X140 LEVER SWITCH
WB06X0506 WB06X0506 LEVER, DOOR
WB06X0140 WB06X0140 LEVER, SWITCH
WB06X0508 WB06X0508 LEVER, SWITCH
WB1X1449 WB1X1449 LOCK BUTTON
WB01X1449 WB01X1449 LOCKING BUTTON
WB27X1132 WB27X1132 MAGNETRON
WB06X10248 WB06X10248 MICA COVER/WAVE GUIDE
31-20278 31-20278 MINI MANUAL
WB26X10010 WB26X10010 MOTOR FAN
WB26X0184 WB26X0184 MOTOR, FAN
WB56X2187 WB56X2187 PANEL-OUTER
WB2X9440 WB2X9440 PLUG BUTTON
WB18X471 WB18X471 POWER CORD ASM
WB18X10006 WB18X10006 POWER CORD ASSEMBLY
WB18X0471 WB18X0471 POWER CORD ASSM
WB6X502 WB6X502 ROLLER GUIDE
WB06X0502 WB06X0502 ROLLER GUIDE ASM
WB27X10195 WB27X10195 S/W THERMO
WB55X0999 WB55X0999 SCREEN-DOOR
WB1X866 WB1X866 SCREW
WB01X0866 WB01X0866 SCREW
WB01X10084 WB01X10084 SCREW WASHER
WB6X418 WB6X418 SLEEVE F MTR
WB06X0418 WB06X0418 SLEEVE FAN MOTOR
WB27X1133 WB27X1133 SMARTBOARD
WB9X304 WB9X304 SPRING KEY
WB09X0291 WB09X0291 SPRING-BUTTON
WB09X10009 WB09X10009 SPRING-BUTTON
WB09X0304 WB09X0304 SPRING-KEY
WB24X830 WB24X830 SW-MONITOR
WB24X829 WB24X829 SW-SECONDARY
WB24X0801 WB24X0801 SWITCH
WB24X0800 WB24X0800 SWITCH
WB6X508 WB6X508 SWITCH LEVER
WB24X410 WB24X410 SWITCH-THERM
WB26X0172 WB26X0172 T/T MOTOR
WB26X172 WB26X172 T/T MOTOR
WB24X0808 WB24X0808 THERMOSTAT SWITCH
WB27X1131 WB27X1131 TRANSFORMER HV

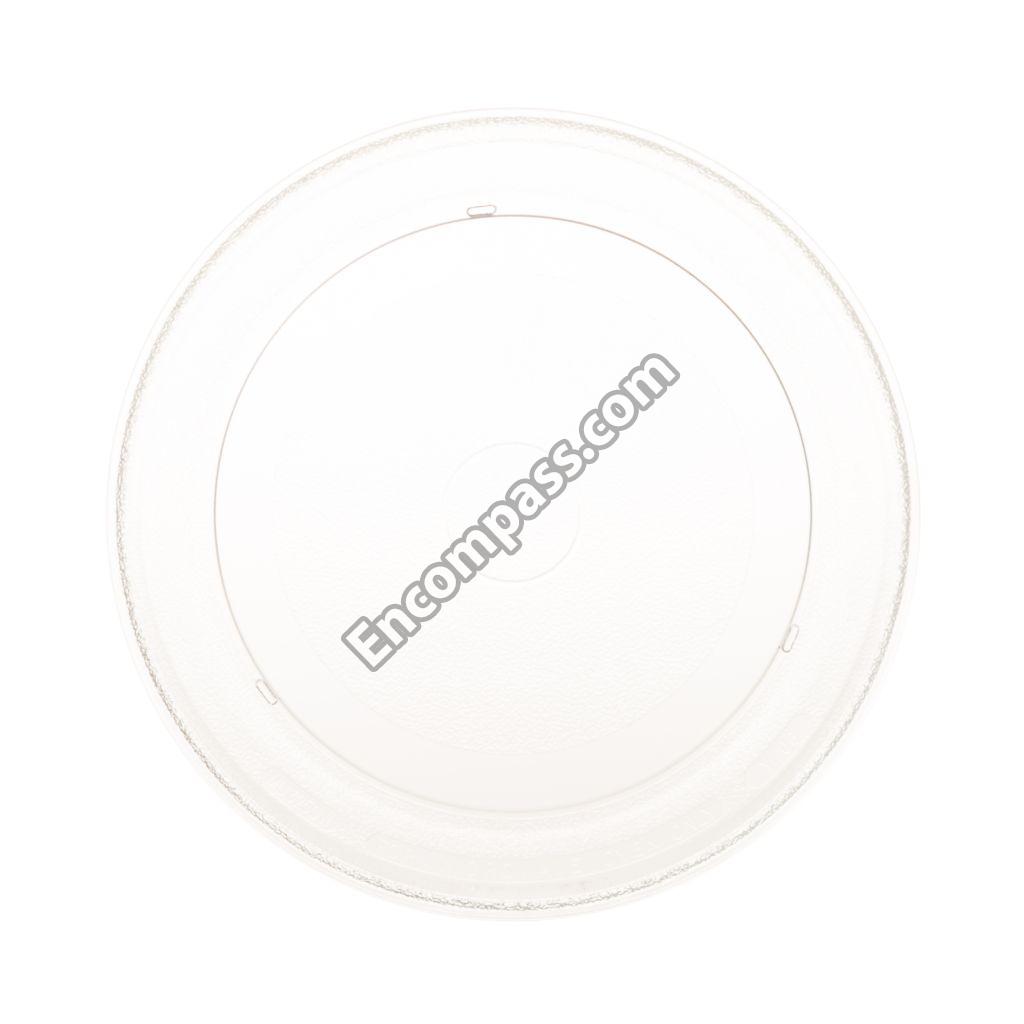

WB49X687 WB49X687 TRAY COOKIN
WB49X0687 WB49X0687 TRAY,COOKING
WB14X0188 WB14X0188 UPPER HINGE
WB14X188 WB14X188 UPPER HINGE
49-8739 49-8739 USE & CARE MANUAL
WB01X1436 WB01X1436 WASHER-SCREW
WB55X999 WB55X999 WINDOW O
WB18X0453 WB18X0453 WIRE LEAD A
WB18X453 WB18X453 WIRE LEAD A
