Model Image
Manufacturer

GE

Model Number

JES0736SM3SS

Description

Microwave Or Advantium

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WB38X10051 WB38X10051 BLADE FAN
WB06X10745 WB06X10745 BRACKET CAPACITOR
WB27X10983 WB27X10983 BUTTON
WB09X10006 WB09X10006 BUTTON SPRING

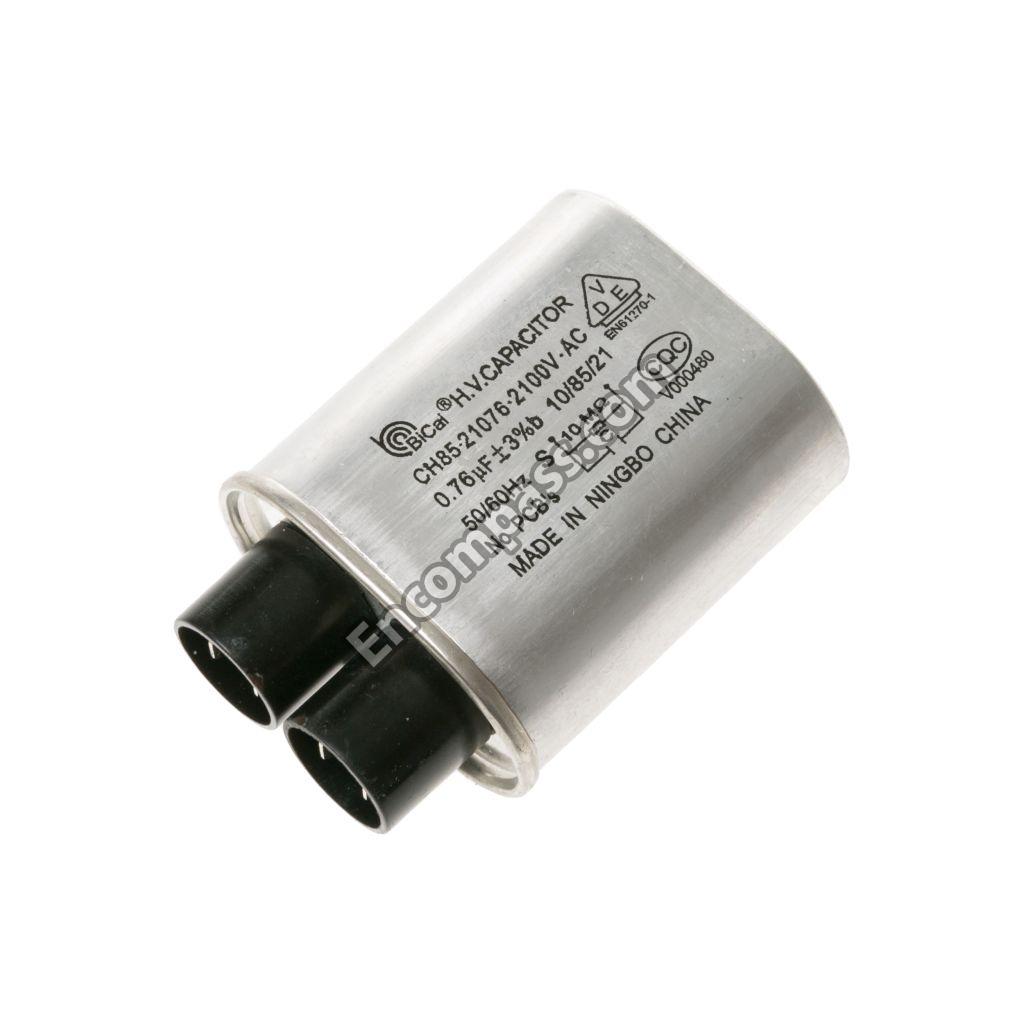

WB27X10496 WB27X10496 CAPACITOR HIGH VOLTAGE
WB56X10772 WB56X10772 CASE U BENDING
WB06X10742 WB06X10742 COVER RESIN
WB27X35382 WB27X35382 DIODE-CABLE ASM
WB56X10854 WB56X10854 DOOR ASM SS
WB06X10746 WB06X10746 DUCT
WB06X10307 WB06X10307 FOOT
WB27X10982 WB27X10982 FUSE TIME DELAY
WB39X10020 WB39X10020 GUIDE AIR
WB39X10019 WB39X10019 GUIDE SUCTION

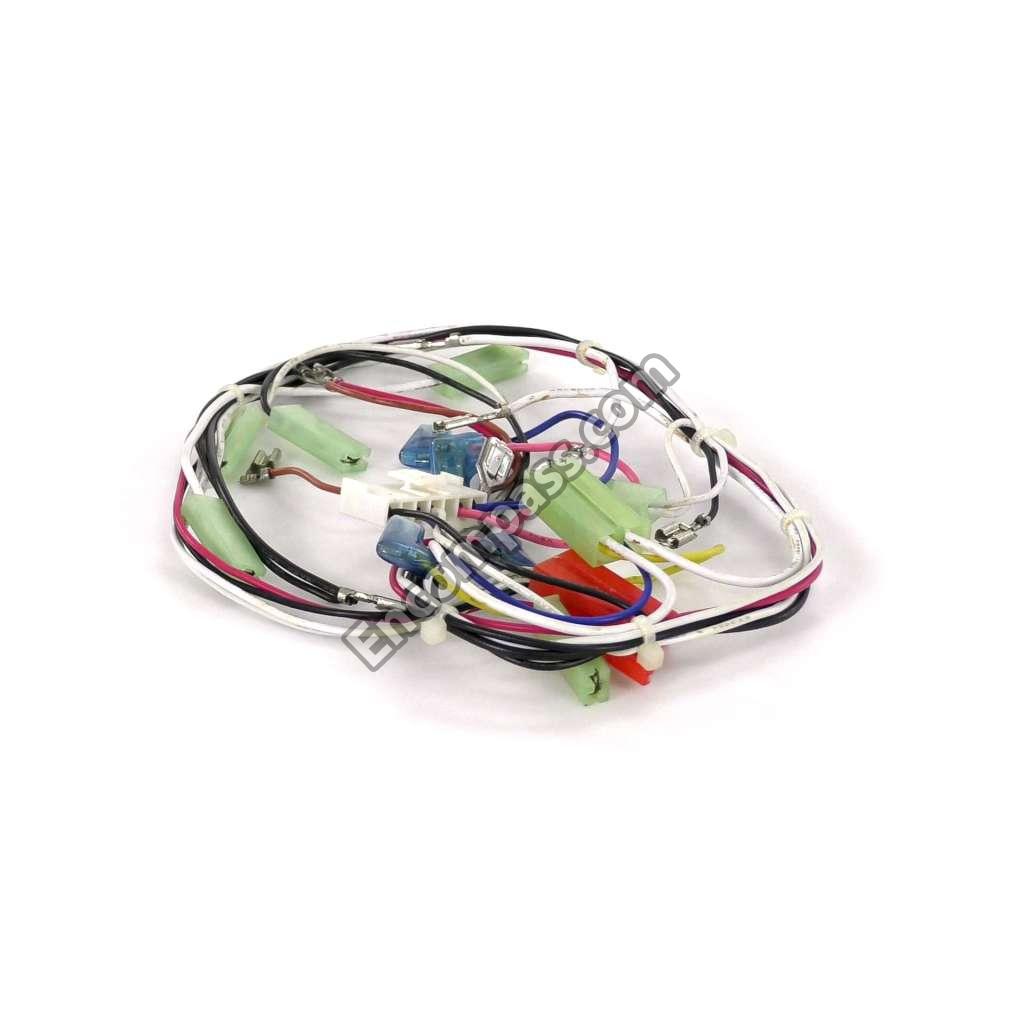

WB24X10164 WB24X10164 HARNESS SINGLE

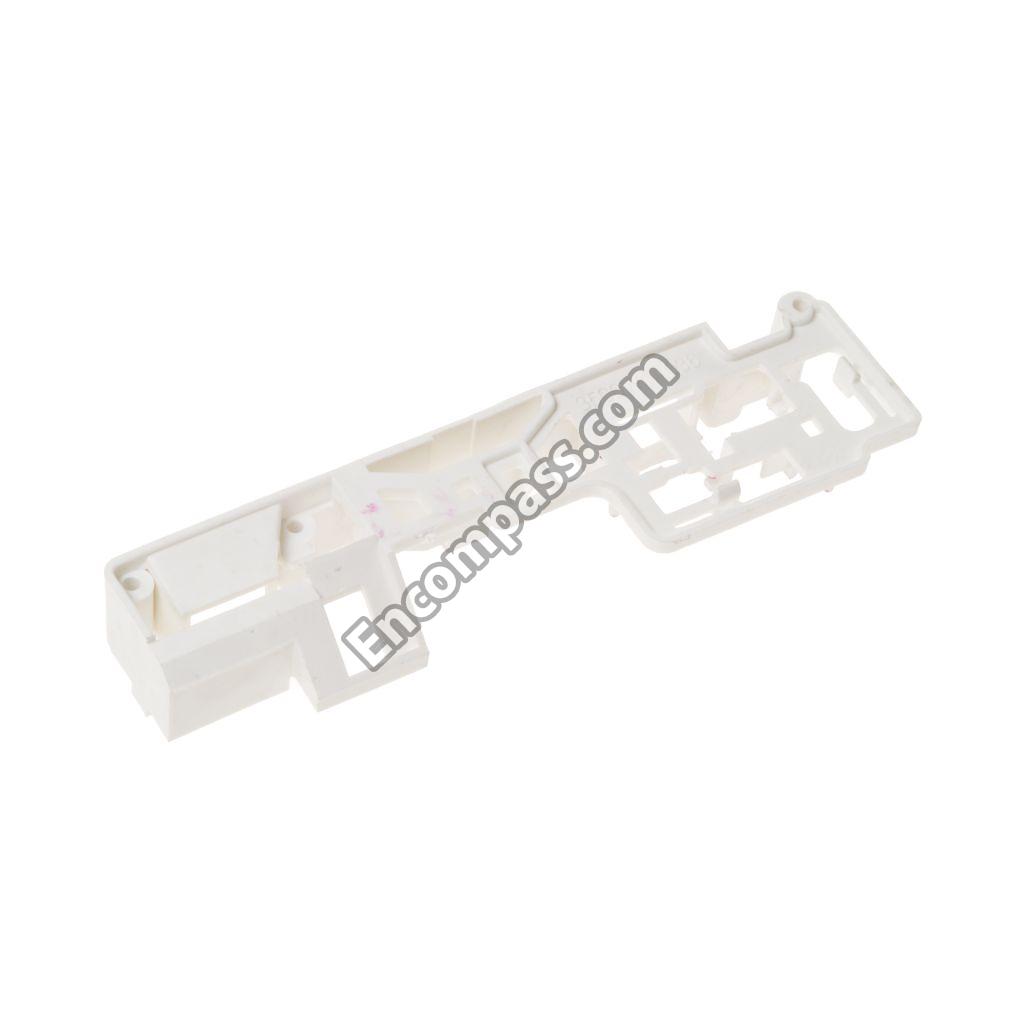

WB06X10743 WB06X10743 HOLDER LATCH
WB06X10586 WB06X10586 INSULATOR

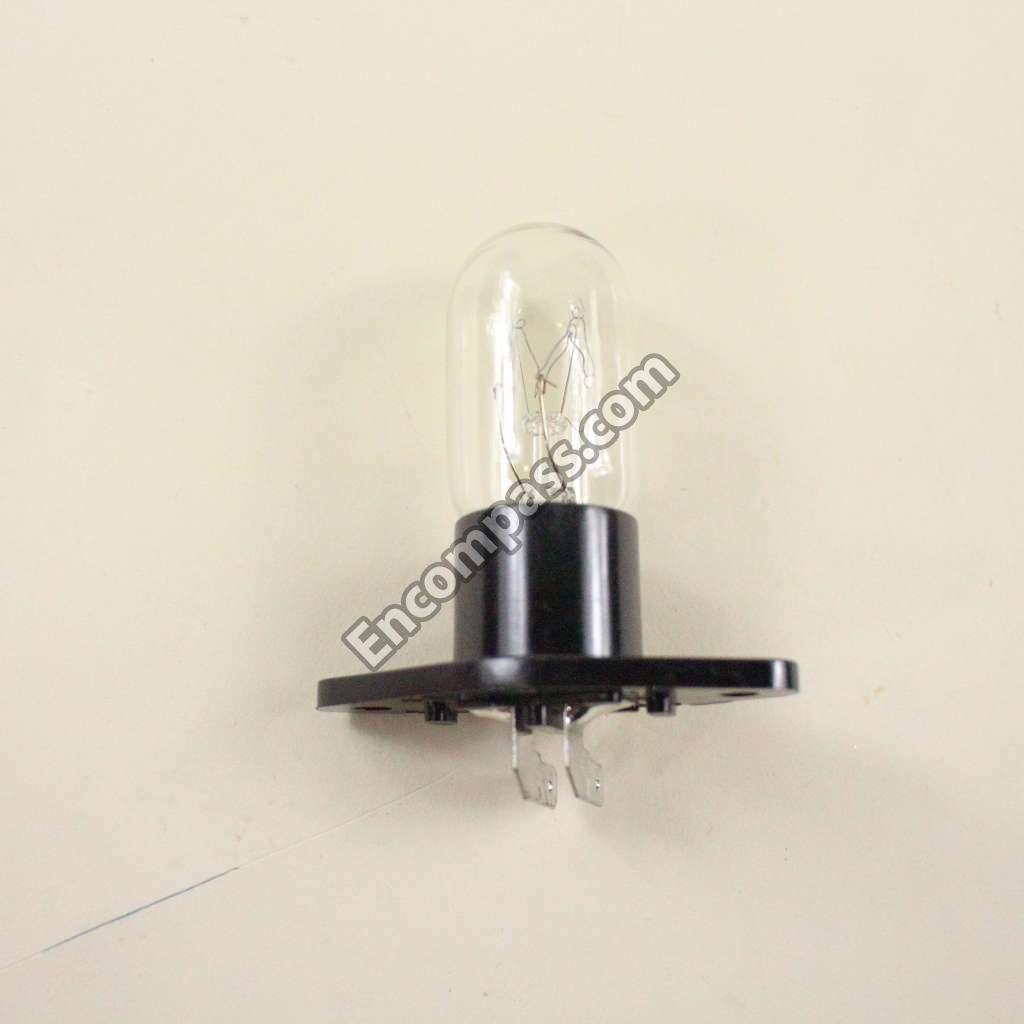

WB36X10303 WB36X10303 LAMP OVEN
WB06X10744 WB06X10744 LEVER

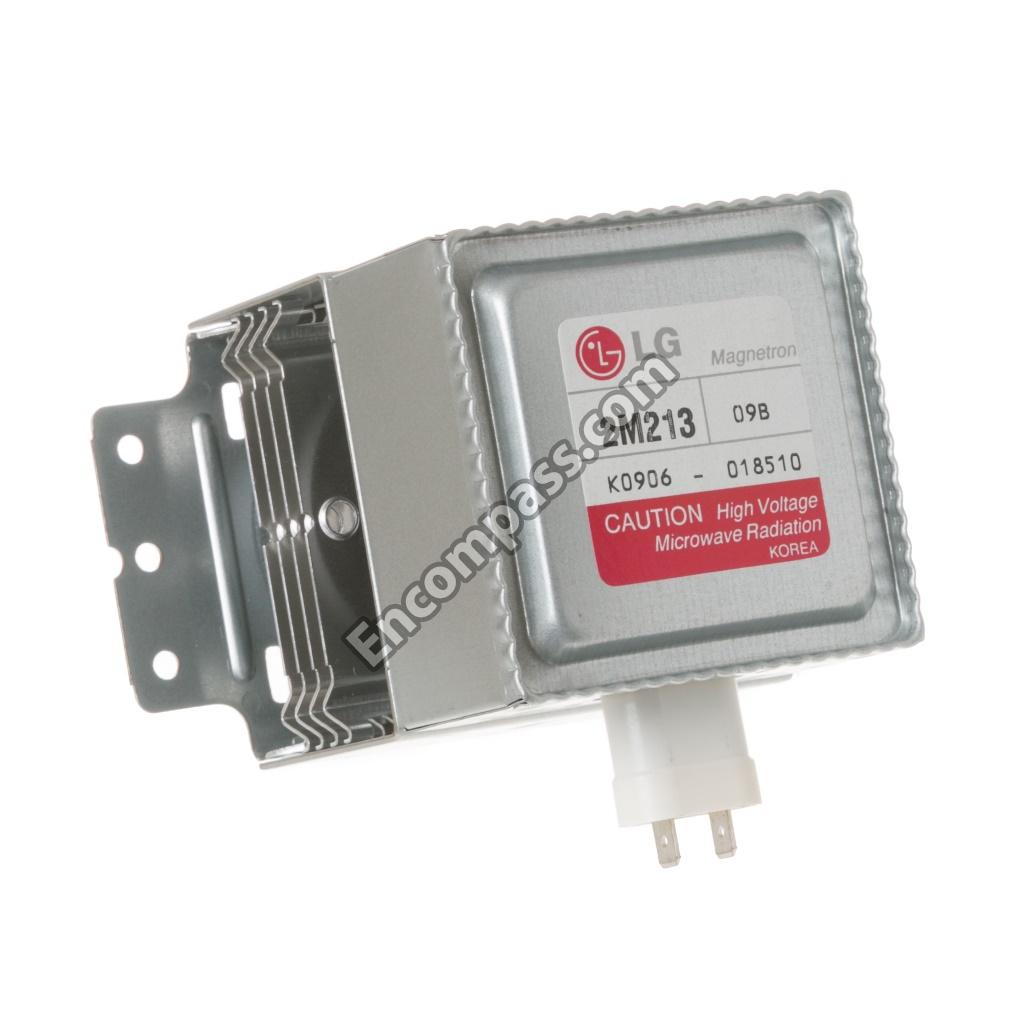

WB27X10981 WB27X10981 MAGNETRON
31-40431 31-40431 MINI MANUAL
WB26X10212 WB26X10212 MOTOR AC SYNCHRONOUS
WB26X10096 WB26X10096 MOTOR FAN ASSEMBLY
WB02X11255 WB02X11255 NOISE FILTER
WB07X11112 WB07X11112 PANEL CONTROL
WB56X10773 WB56X10773 PLATE BASE
WB18X10391 WB18X10391 POWER CORD ASM
WB01X10121 WB01X10121 SCREW
WB02X10727 WB02X10727 SCREW
WB1X1511 WB1X1511 SCREW
WB27X10986 WB27X10986 SMART BOARD
WB24X10047 WB24X10047 SW PRIM INTERLOCK & DOOR
WB24X10071 WB24X10071 SWITCH MICRO
WB24X10165 WB24X10165 THERMOSTAT
WB24X10166 WB24X10166 THERMOSTAT

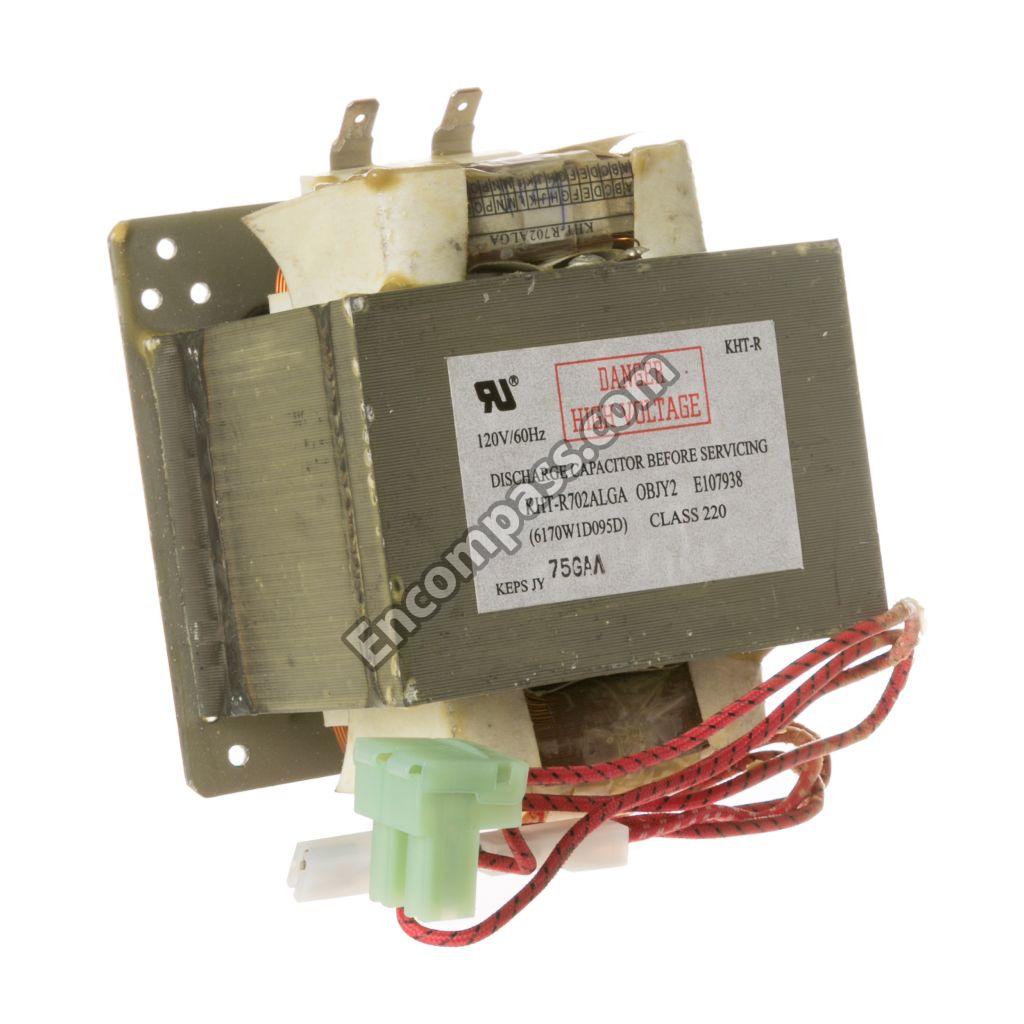

WB27X10984 WB27X10984 TRANSFORMER HV
WB49X10190 WB49X10190 TURNTABLE AND ROLLER ASM
49-40563 49-40563 USE & CARE MANUAL
