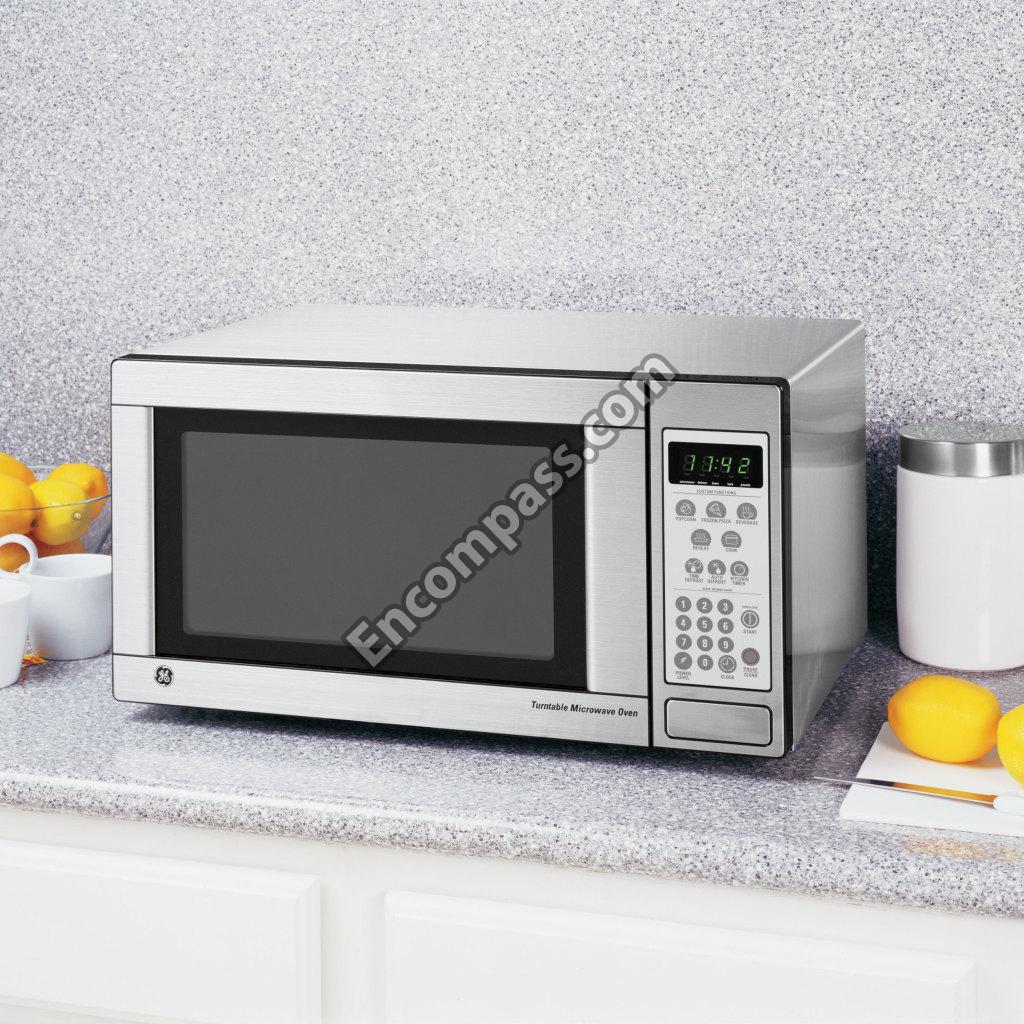

Model Image
Manufacturer

GE

Model Number

JES1142SJ01

Description

Microwave Or Advantium

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WB01X10157 WB01X10157 BAG SCREW
WB36X10299 WB36X10299 BARRIER SCREEN I
WB36X10298 WB36X10298 BARRIER SCREEN O
WB56X10243 WB56X10243 BASE
WB03X10241 WB03X10241 BUTTON DOOR OPEN
WB56X10567 WB56X10567 CABINET
WB27X10743 WB27X10743 CAPACITOR HV
WB07X10834 WB07X10834 CONTROL PANEL SUB AS.
WB39X82 WB39X82 COOKING TRAY
WB02X10803 WB02X10803 COUPLER
WB49X10078 WB49X10078 COVER WAVE GUIDE
WB06X10580 WB06X10580 DECORATOR BUTTON AS.
WB06X10578 WB06X10578 DECORATOR C-PANEL AS.
WB06X10579 WB06X10579 DECORATOR DOOR AS.

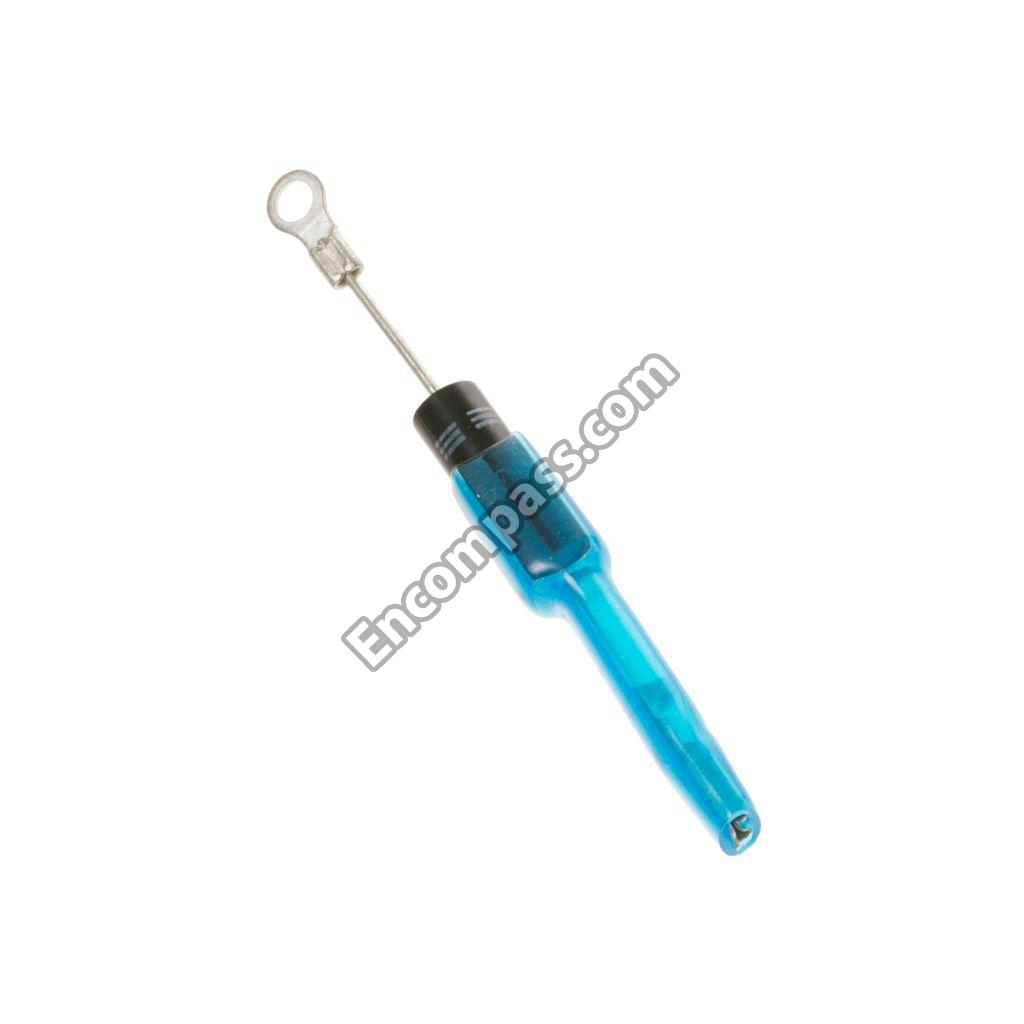

WB27X10562 WB27X10562 DIODE HV ASM
WB56X10568 WB56X10568 DOOR ASM SS
WB6X521 WB6X521 DOOR KEY
WB55X10737 WB55X10737 DOOR PAINTING AS
WB26X188 WB26X188 FAN BLADE
WB38X10065 WB38X10065 FAN DUCT
WB36X10208 WB36X10208 FAN MOTOR
WB6X522 WB6X522 FOOT
WB55X10736 WB55X10736 FRAME DOOR
WB02X10805 WB02X10805 GASKET DOOR
WB02X10806 WB02X10806 GUIDE ROLLER ASSEMBLY
WB18X10180 WB18X10180 HARNESS MAIN
WB14X210 WB14X210 HINGE UPPER
WB06X10407 WB06X10407 HOLDER HV CAPACITOR
WB02X10807 WB02X10807 HOLDER THERMOSTAT
WB36X951 WB36X951 LAMP
WB06X10269 WB06X10269 LATCH SLIDER
WB27X10566 WB27X10566 LINE FILTER ASSEMBLY
WB06X10408 WB06X10408 LOCK
WB27X10682 WB27X10682 MAGNETRON
WB24X10103 WB24X10103 MICRO SWITCH-SUBSTITUTE
31-20940 31-20940 MINI-MANUAL
WB26X186 WB26X186 MOTOR T/T
WB18X10179 WB18X10179 POWER CORD ASSEMBLY
WB27X10564 WB27X10564 SMART BOARD
WB9X306 WB9X306 SPRING DR BU
WB02X10808 WB02X10808 STOPPER HINGE
WB24X823 WB24X823 SW.PRI/SEC.
WB24X824 WB24X824 SWITCH MON.
WB27X10568 WB27X10568 THERMOSTAT CAVITY
WB27X10567 WB27X10567 THERMOSTAT MAGNETRON
WB27X10558 WB27X10558 TRANS HV
49-40385 49-40385 USE & CARE
