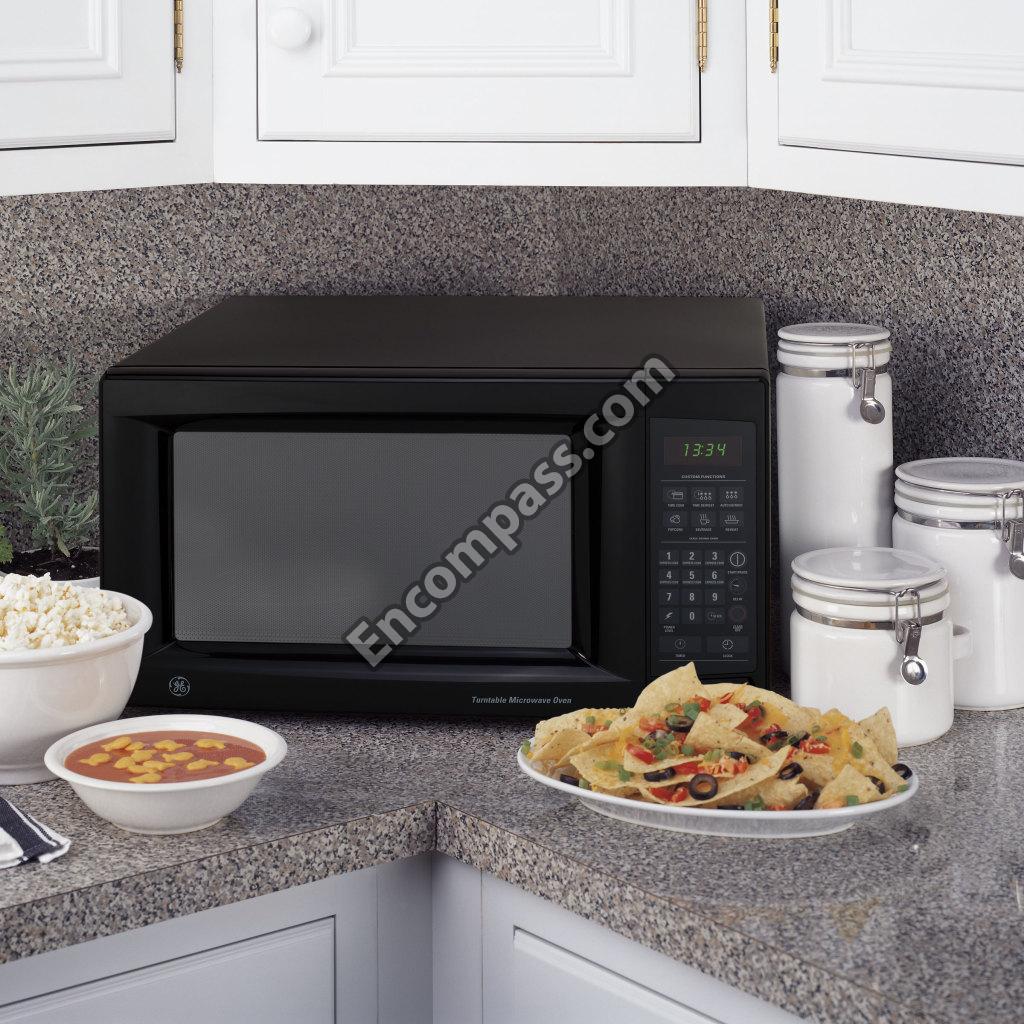

Model Image
Manufacturer

GE

Model Number

JES1334BH001

Description

Counter Top

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WB02X10517 WB02X10517 BRACKET-TCO
WB27X10073 WB27X10073 C-OIL
WB56X10237 WB56X10237 CASE OUTER BLACK
WB27X10765 WB27X10765 CONTROL PANEL ASSEMBLY
WB18X10160 WB18X10160 CORD POWER ASSEMBLY
WB06X10375 WB06X10375 COUPLER
WB38X10035 WB38X10035 COVER - AIR
WB06X10188 WB06X10188 COVER MAG TUBE
WB06X10049 WB06X10049 CUSHION-RUBBER
WB56X10479 WB56X10479 DOOR ASM
WB06X10227 WB06X10227 DOOR FILM
WB06X10186 WB06X10186 DOOR LEVER
WB55X10485 WB55X10485 DOOR SCREEN
WB55X10699 WB55X10699 DOOR-A
WB55X10195 WB55X10195 DOOR-C
WB55X10700 WB55X10700 DOOR-SUB ASM
WB26X10054 WB26X10054 FAN MOTOR ASSEMBLY
WB06X10194 WB06X10194 FOOT - BLACK
WB27X10928 WB27X10928 FUSE
WB06X10034 WB06X10034 FUSE-HOLDER
WB27X10597 WB27X10597 H.V. RECTIFIER
WB27X10764 WB27X10764 KEY PANEL
WB36X10057 WB36X10057 LAMP INCANDESCENT 40W
WB10X10019 WB10X10019 LATCH
WB06X10184 WB06X10184 LATCH-BODY
WB27X10516 WB27X10516 MAGNETRON ASM
WB06X10009 WB06X10009 MICROWAVE BRACKET
31-20975 31-20975 MINI-MANUAL
WB26X10024 WB26X10024 MOTOR DRIVE
WB18X10437 WB18X10437 POWER CORD

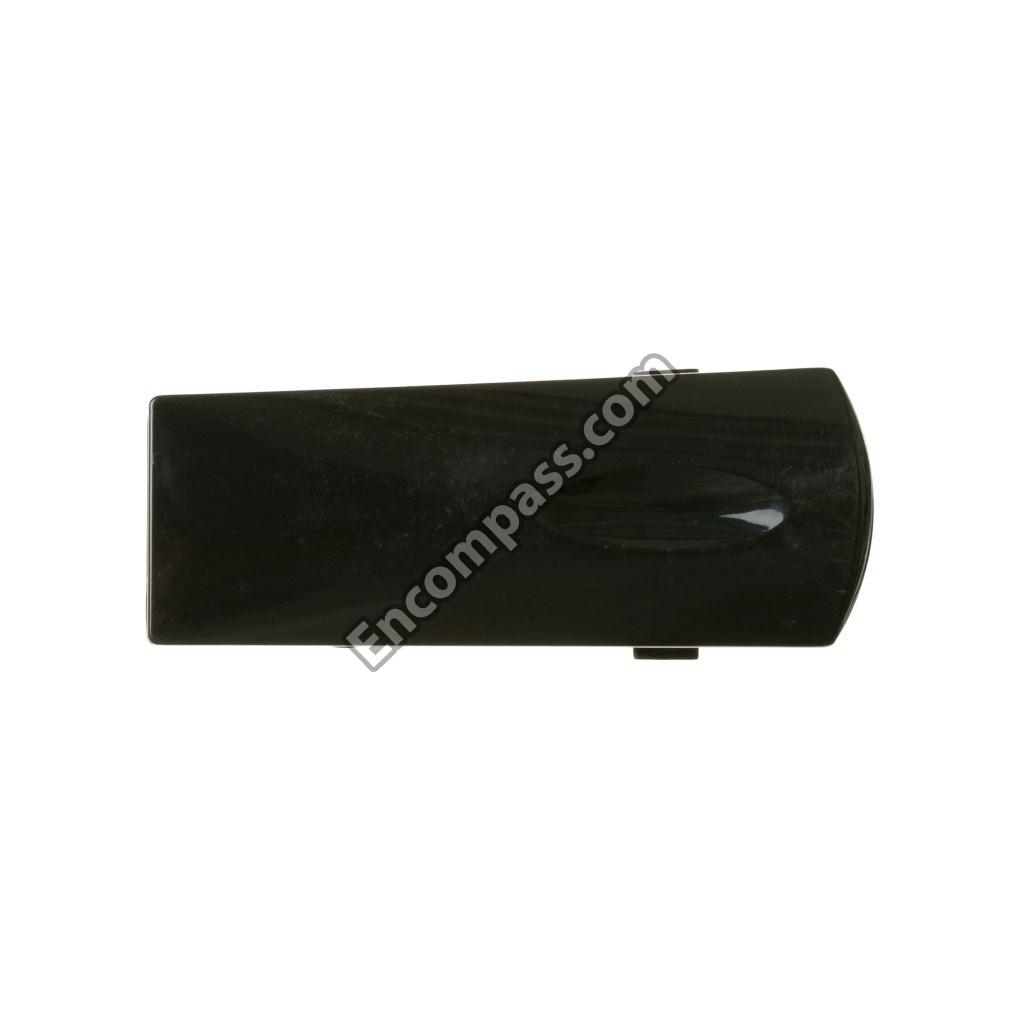

WB03X10207 WB03X10207 PUSH BUTTON
WB06X10374 WB06X10374 ROLLER GUIDE ASSEMBLY
WB27X10985 WB27X10985 SENSOR

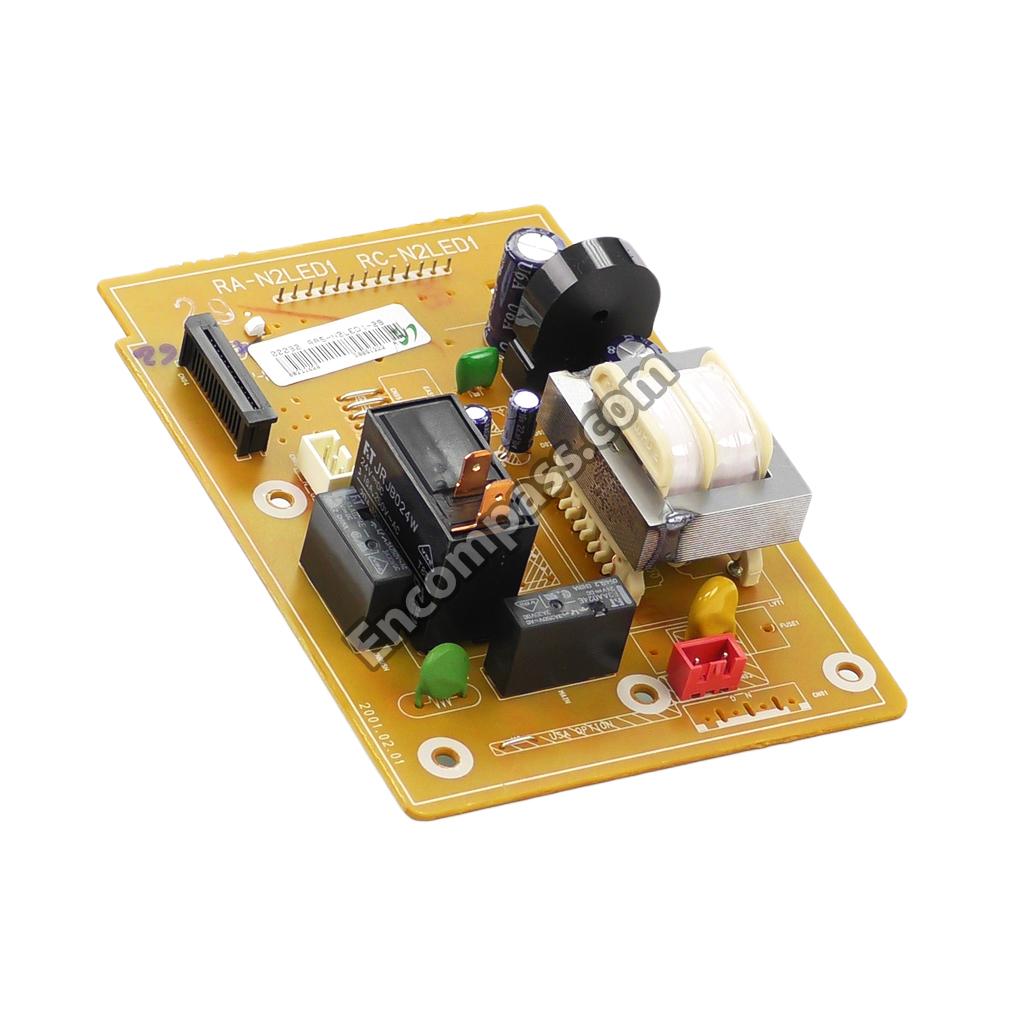

WB27X10626 WB27X10626 SMARTBOARD
WB09X10004 WB09X10004 SPRING KEY
WB09X10009 WB09X10009 SPRING-BUTTON
WB24X829 WB24X829 SW-SECONDARY
WB06X10185 WB06X10185 SWITCH-LEVER
WB24X10039 WB24X10039 SWITCH-MICRO
WB20X10003 WB20X10003 THERMOSTAT
WB27X10625 WB27X10625 TRANSFORMER H V
WB49X10030 WB49X10030 TRAY-COOKING
49-40396-1 49-40396-1 USE & CARE
WB36X10117 WB36X10117 WINDOW-DISPLAY
WB18X10178 WB18X10178 WIRE HARNESS-A ASSEMBLY
