Model Image
Manufacturer

GE

Model Number

JES1451DS1BB

Description

Microwave Or Advantium

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WB02X21662 WB02X21662 BOARD LATCH
WB06X10306 WB06X10306 BRACKET HVC
WB09X10006 WB09X10006 BUTTON SPRING
WB27X11033 WB27X11033 CAPACITOR HIGH VOLTAGE
WB56X26502 WB56X26502 CASE U BENDING
WB01X10296 WB01X10296 CMO HARDWARE ASM BAG

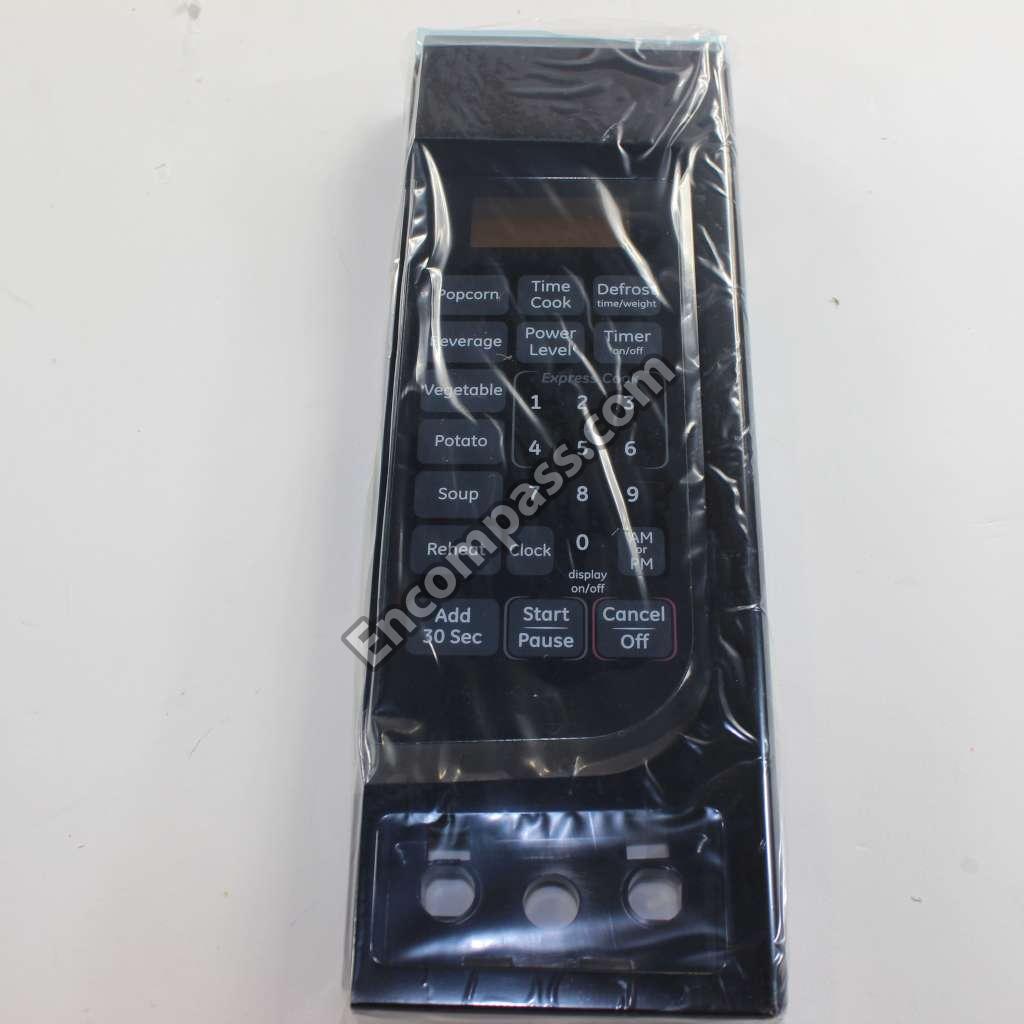

WB56X23922 WB56X23922 CONTROL PANEL ASM BB
WB27X11181 WB27X11181 CONTROL PANEL SUB ASM BB
WB56X23921 WB56X23921 CONTROL PANEL SUBASM BK
WB27X35382 WB27X35382 DIODE
WB56X10988 WB56X10988 DOOR ASM BB
WB55X10689 WB55X10689 DOOR FRAME ASM BLK
WB06X10543 WB06X10543 DUCT
WB06X10736 WB06X10736 DUCT
WB38X10078 WB38X10078 FAN
WB27X11178 WB27X11178 FILTER AC LINE
WB06X10307 WB06X10307 FOOT
WB27X10928 WB27X10928 FUSE
WB18X10512 WB18X10512 HARNESS MULTI
WB02X11233 WB02X11233 HOLDER WIRE
WB20X10066 WB20X10066 HV TRANSFORMER

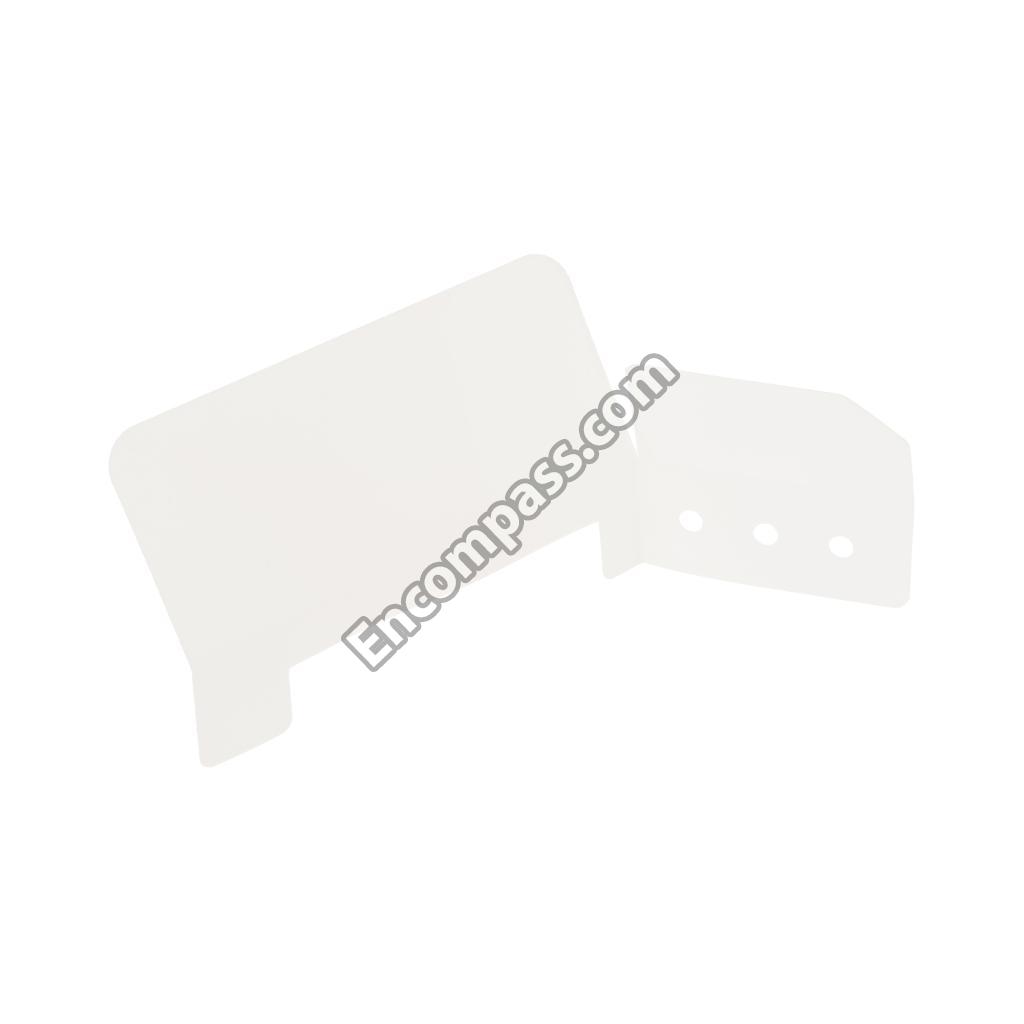

WB06X10544 WB06X10544 INSULATOR
WB36X10063 WB36X10063 LAMP
WB06X10093 WB06X10093 LATCH DOOR
WB06X10086 WB06X10086 LEVER RELEASE
WB26X32629 WB26X32629 MAGNETRON
31-41077 31-41077 MINI MANUAL
WB26X10267 WB26X10267 MOTOR AC FAN
WB26X10143 WB26X10143 MOTOR(CIRC) SYNCHRONOUS

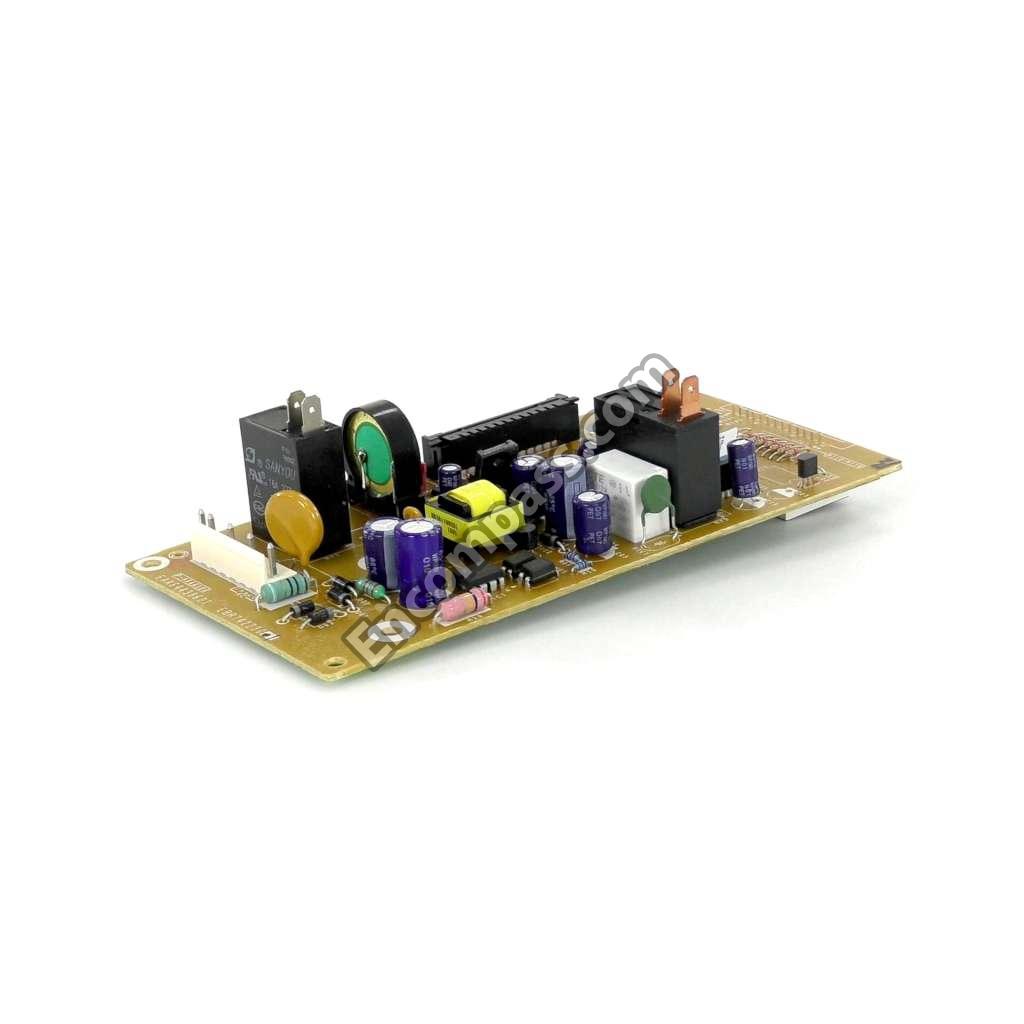

WB27X11179 WB27X11179 PCB ASM
WB18X10511 WB18X10511 POWER CORD ASM

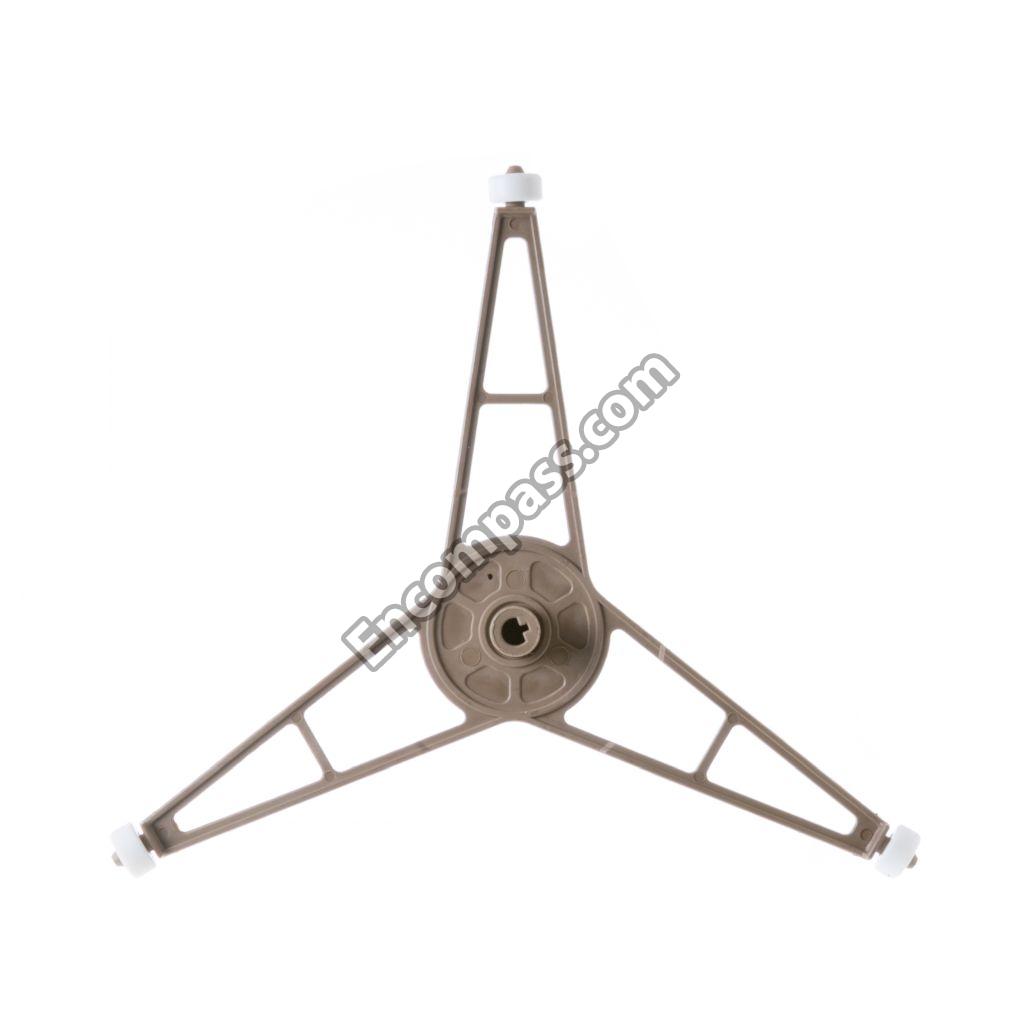

WB06X10549 WB06X10549 ROTATING RING ASSEMBLY
WB02X10727 WB02X10727 SCREW
WB01X10121 WB01X10121 SCREW
WB1X1511 WB1X1511 SCREW
WB1X1515 WB1X1515 SCREW
WB1X1514 WB1X1514 SCREW
WB02X10728 WB02X10728 SCREW - HAND
WB02X10730 WB02X10730 SCREW - PAN HEAD TAPPING
WB02X10729 WB02X10729 SCREW -PCB
WB02X10720 WB02X10720 SCREW TAPPING TRUSS HEAD
WB55X10691 WB55X10691 SEAL TAPE
WB24X10057 WB24X10057 SENSOR - HUMIDITY
WB09X10015 WB09X10015 SPRING
WB38X10146 WB38X10146 SUCTION GUIDE
WB24X10047 WB24X10047 SW PRIM INTERLOCK & DOOR
WB24X25397 WB24X25397 SWITCH MONITOR INTERLOCK

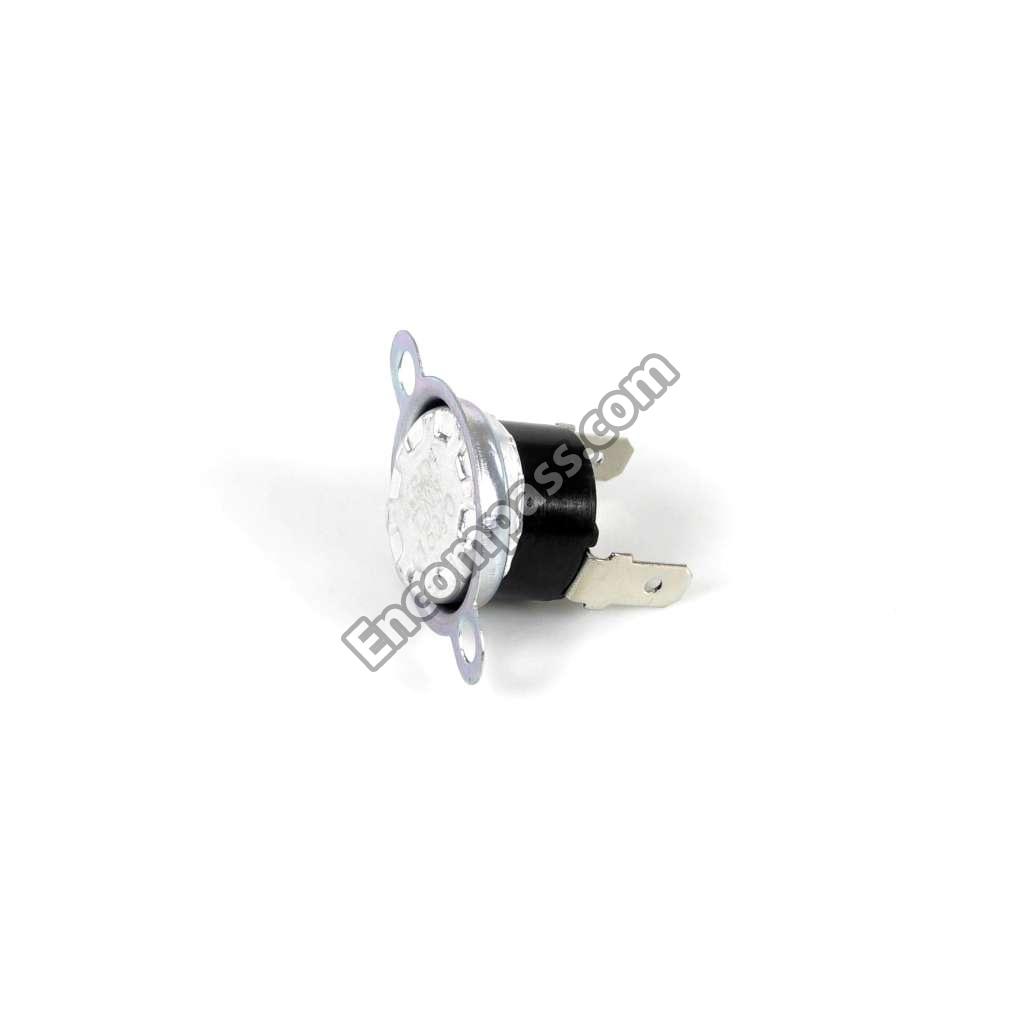

WB27X11100 WB27X11100 THERMOSTAT
WB24X10163 WB24X10163 THERMOSTAT

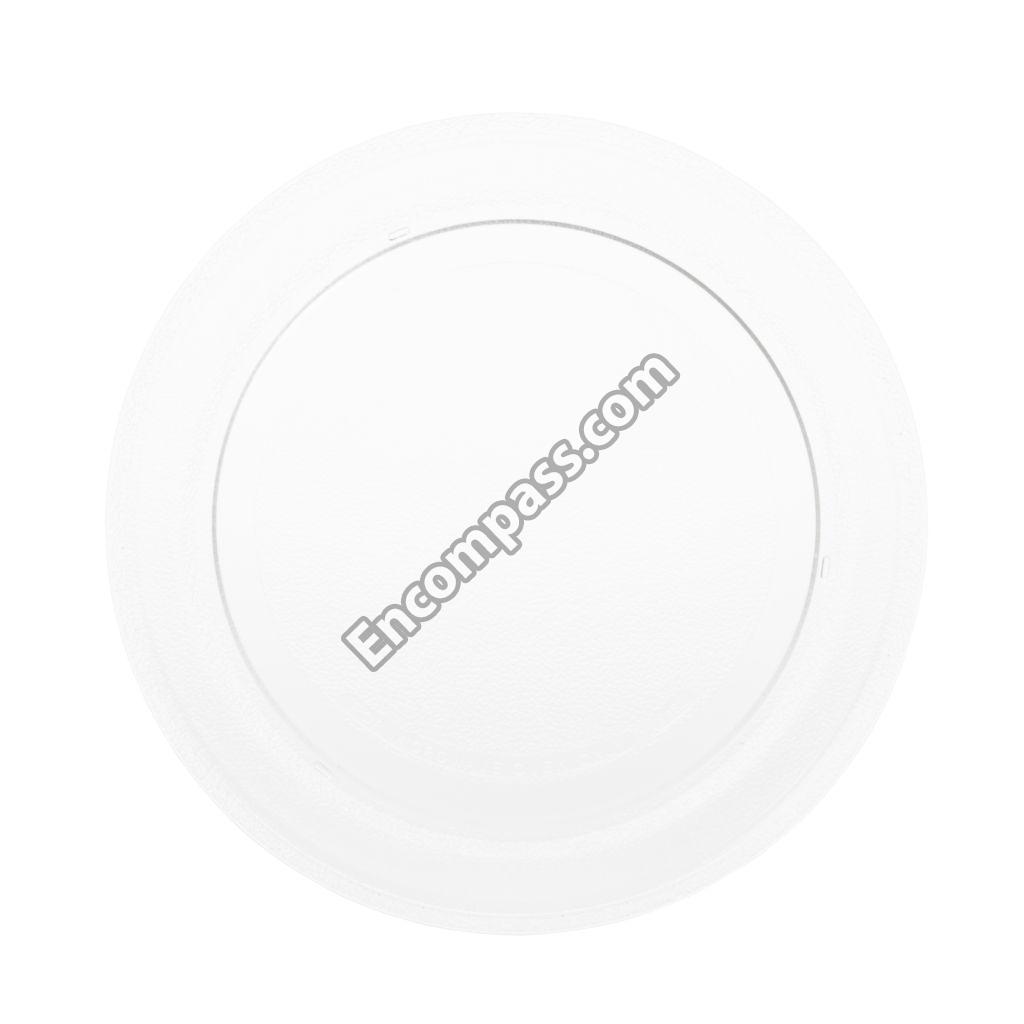

WB49X10139 WB49X10139 TRAY GLASS
49-40660 49-40660 USE & CARE
WB06X10764 WB06X10764 WAVE GUIDE - MICA COVER
WB02X10745 WB02X10745 WB02X10745
