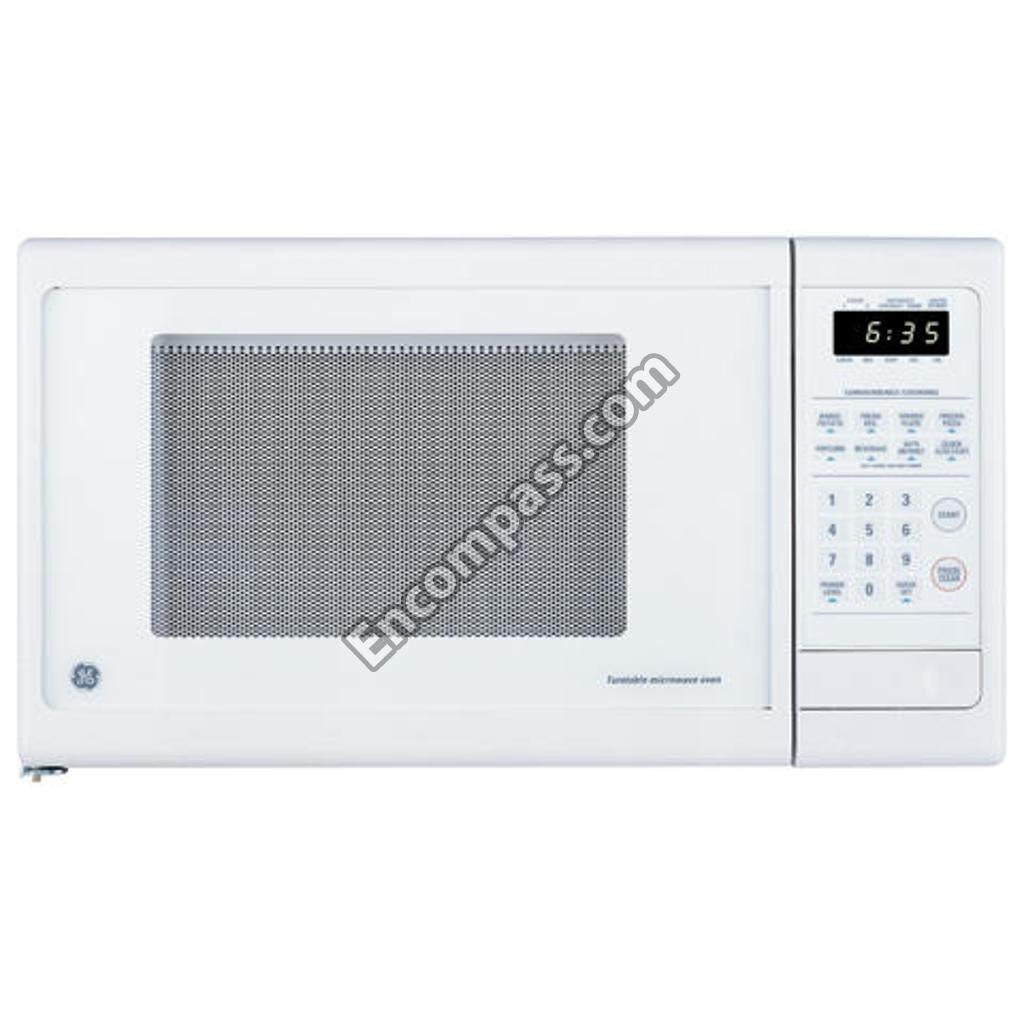

Model Image
Manufacturer

GE

Model Number

JES611WC001

Description

Microwave Or Advantium

Interactive Exploded View

Parts List

Part Number Description
WB03X10046 WB03X10046 BUTTON-PUSH WHITE
WB27X10359 WB27X10359 CAPACITOR-H V
WB07X10345 WB07X10345 CONTROL PANEL
WB49X10097 WB49X10097 COOKING TRAY - GLASS
WB06X10196 WB06X10196 COUPLER
WB56X10156 WB56X10156 COVER-AIR
WB06X10225 WB06X10225 COVER-MGT
WB55X10082 WB55X10082 DOOR - A WHITE
WB55X10081 WB55X10081 DOOR - C WHITE
WB06X10177 WB06X10177 DOOR FILM
WB06X10186 WB06X10186 DOOR LEVER
WB55X10327 WB55X10327 DOOR SCREEN
WB55X10328 WB55X10328 DOOR-E WHITE
WB06X10194 WB06X10194 FOOT - BLACK
WB02X8151 WB02X8151 FUSE 15 AMP
WB27X10454 WB27X10454 FUSE 250V 15A
WB06X10226 WB06X10226 FUSE HOLDER
WB27X1160 WB27X1160 H.V.D ASM
WB03X10088 WB03X10088 KNOB-TIMER
WB36X10057 WB36X10057 LAMP INCANDESCENT 40W
WB10X10020 WB10X10020 LATCH - WHITE
WB06X10184 WB06X10184 LATCH-BODY
WB27X10585 WB27X10585 MAGNETRON
WB24X10040 WB24X10040 MICRO SWITCH
WB06X10009 WB06X10009 MICROWAVE BRACKET
31-20941 31-20941 MINI MANUAL
WB26X10024 WB26X10024 MOTOR DRIVE
WB26X10070 WB26X10070 MOTOR FAN ASSEMBLY
WB01X10101 WB01X10101 NUT-FLANGE
WB56X10155 WB56X10155 PANEL-OUTER WHITE
WB18X10109 WB18X10109 POWER CORD
WB06X10078 WB06X10078 ROLLER GUIDE ASS'Y
WB01X10098 WB01X10098 SCREW M4X8
WB01X10099 WB01X10099 SCREW STAR POLE 4X12
WB01X10100 WB01X10100 SCREW-WASHER HVT
WB27X10985 WB27X10985 SENSOR
WB9X304 WB9X304 SPRING KEY
WB09X0308 WB09X0308 SPRING-BUTTON
WB09X10009 WB09X10009 SPRING-BUTTON
WB09X0304 WB09X0304 SPRING-KEY
WB02X10649 WB02X10649 ST AND -OFF
WB24X829 WB24X829 SW-SECONDARY
WB06X10185 WB06X10185 SWITCH-LEVER
WB24X0829 WB24X0829 SWITCH-MICRO
WB27X10361 WB27X10361 TIMER ASSEMBLY
WB27X10360 WB27X10360 TRANS-H V
49-40024 49-40024 USE & CARE MANUAL
WB18X10108 WB18X10108 WIRING HARNESS
