Model Image
Manufacturer

GE

Model Number

JES733WY002

Description

Microwave

Interactive Exploded View

Parts List

Part Number Description
WB18X10025 WB18X10025 ASSEMBLY POWER-CORD

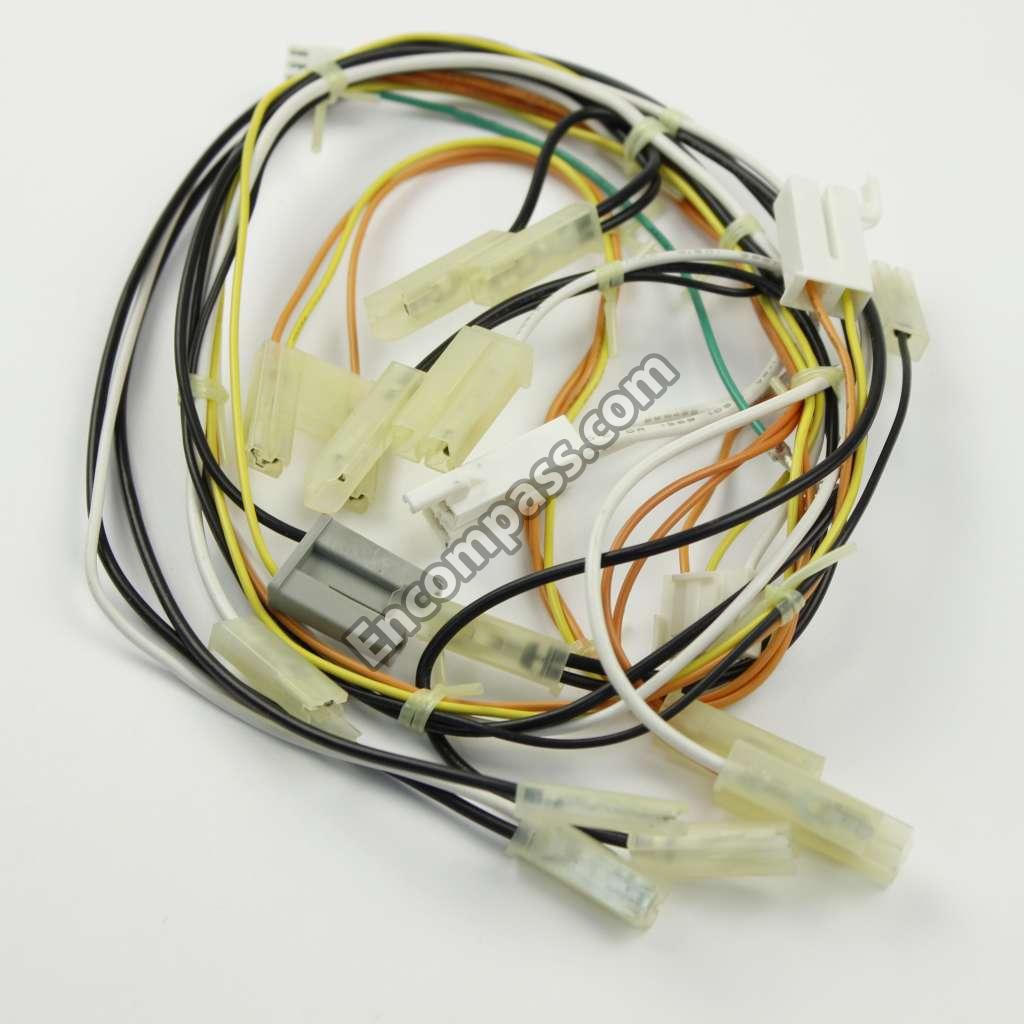

WB18X10037 WB18X10037 ASSEMBLY WIRE HARNESS-A
WB06X10078 WB06X10078 ASSEMBLY-GUIDE ROLLER
WB6X406 WB6X406 BRKT CAPACIT
WB03X10046 WB03X10046 BUTTON-PUSH WHITE
WB27X10102 WB27X10102 C-OIL
WB07X10177 WB07X10177 CONTROL PANEL
WB49X10097 WB49X10097 COOKING TRAY - GLASS
WB06X10059 WB06X10059 COUPLER
WB56X10066 WB56X10066 COVER-AIR
WB06X10075 WB06X10075 COVER-MGT
WB27X1160 WB27X1160 DIODE ASSEMBLY
WB55X10082 WB55X10082 DOOR - A WHITE
WB55X10081 WB55X10081 DOOR - C WHITE
WB55X10084 WB55X10084 DOOR ASSEMBLY WHITE
WB06X10177 WB06X10177 DOOR FILM
WB06X10057 WB06X10057 DOOR-KEY
WB26X10031 WB26X10031 FAN-MOTOR
WB6X398 WB6X398 FOOT W/PIN
WB27X10454 WB27X10454 FUSE 250V 15A.
WB06X10034 WB06X10034 FUSE HOLDER
WB14X10010 WB14X10010 HINGE-LOWER
WB14X10009 WB14X10009 HINGE-UPPER
WB27X10105 WB27X10105 KEY PANEL
WB36X10057 WB36X10057 LAMP INC AND ESCENT 40W
WB06X10054 WB06X10054 LATCH-BODY
WB6X404 WB6X404 LEVER DOOR
WB06X10055 WB06X10055 LEVER S/W
WB27X10585 WB27X10585 MAGNETRON
WB56X10067 WB56X10067 OUTER CASE-WHITE
WB55X10675 WB55X10675 SCREEN-DOOR
WB27X10985 WB27X10985 SENSOR

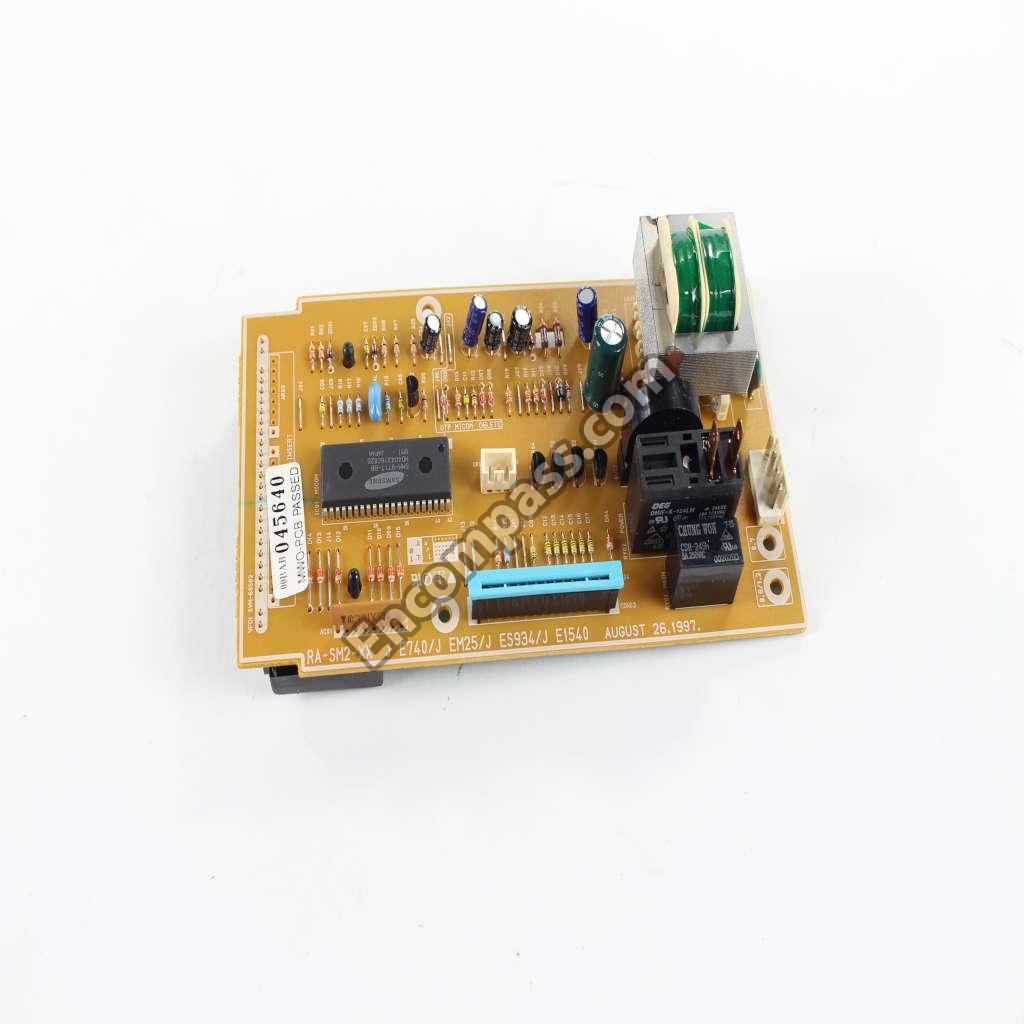

WB27X10088 WB27X10088 SMARTBOARD
WB09X10009 WB09X10009 SPRING-BUTTON
WB09X10019 WB09X10019 SPRING-KEY
WB24X829 WB24X829 SW-SECONDARY
WB20X10003 WB20X10003 THERMOSTAT
WB27X10339 WB27X10339 TRANS-H.V.
WB26X10024 WB26X10024 TURNTABLE MOTOR
WB36X10059 WB36X10059 WINDOW DISPLAY
WB06X10081 WB06X10081 WINDOW-SHEET
