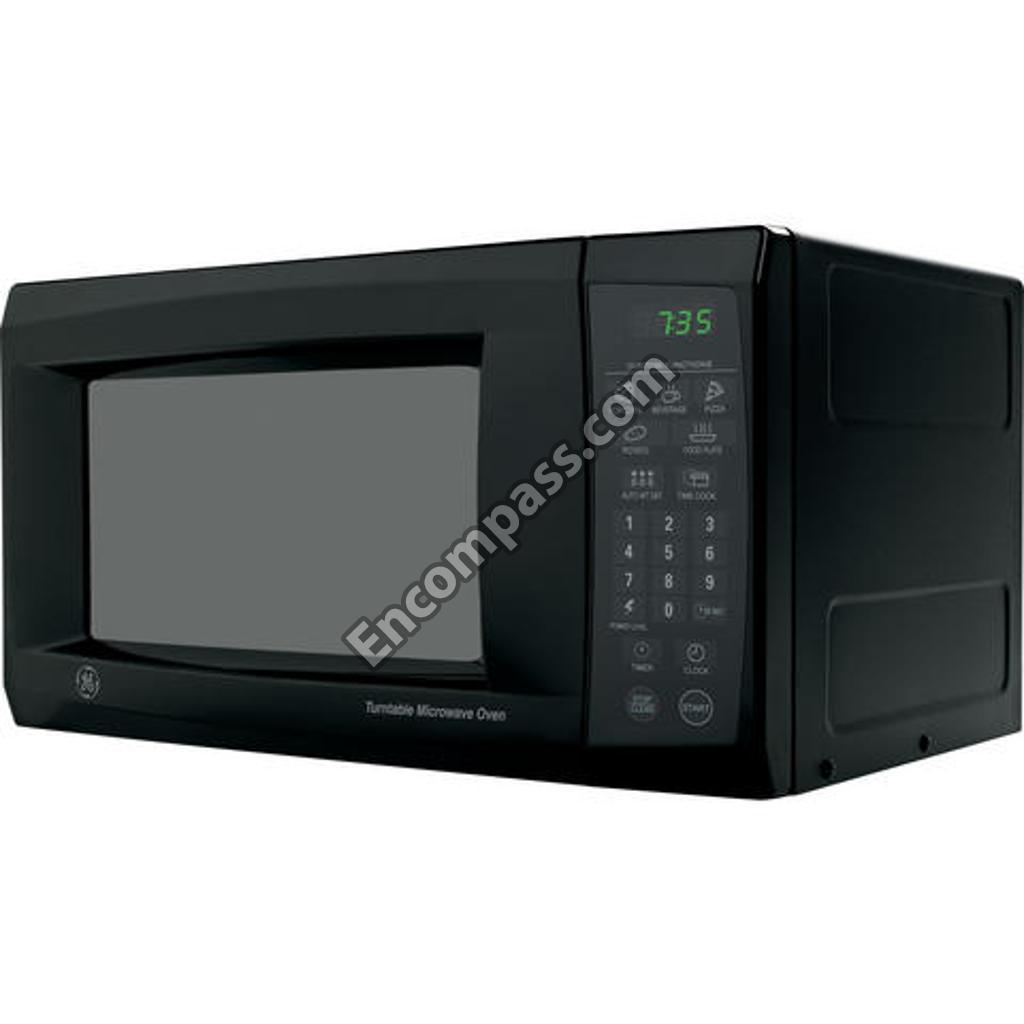

Model Image
Manufacturer

GE

Model Number

JES735BJ03

Description

Microwave Or Advantium

Interactive Exploded View

Parts List

Part Number Description
WB38X10051 WB38X10051 BLADE FAN
WB27X10930 WB27X10930 CABLE ASM
WB27X35382 WB27X35382 CABLE ASM
WB06X10745 WB06X10745 CAPACITOR BRACKET
WB27X10496 WB27X10496 CAPACITOR HIGH VOLTAGE
WB56X10772 WB56X10772 CASE U BENDING
WB56X10852 WB56X10852 CASE U BENDING
WB56X10853 WB56X10853 DOOR ASM
WB56X10851 WB56X10851 DOOR ASM BK
WB06X10746 WB06X10746 DUCT
WB06X10307 WB06X10307 FOOT
WB27X10982 WB27X10982 FUSE TIME DELAY
WB39X10020 WB39X10020 GUIDE AIR
WB39X10019 WB39X10019 GUIDE SUCTION
WB24X10164 WB24X10164 HARNESS SINGLE
WB06X10782 WB06X10782 HOLDER LOCKER

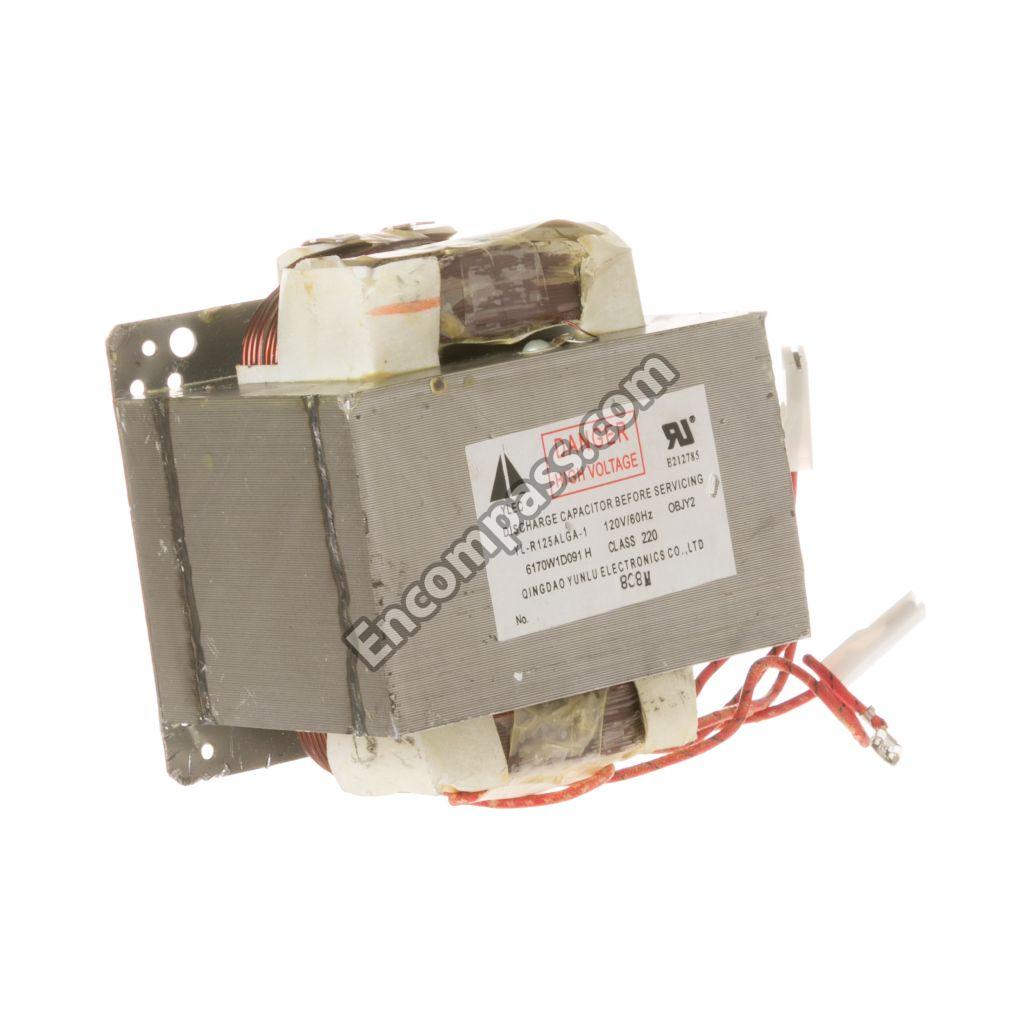

WB27X11028 WB27X11028 HV TRANSFORMER
WB06X10586 WB06X10586 INSULATOR
WB36X10303 WB36X10303 LAMP OVEN
WB27X10981 WB27X10981 MAGNETRON
31-41007 31-41007 MINI-MANUAL
WB26X10212 WB26X10212 MOTOR AC SYNCHRONOUS
WB26X10096 WB26X10096 MOTOR FAN ASSEMBLY
WB02X11255 WB02X11255 NOISE FILTER
WB07X11187 WB07X11187 PANEL CONTROL
WB01X10107 WB01X10107 PANEL-CONTROL MOUNTING
WB07X11188 WB07X11188 PARTS ASM
WB56X10773 WB56X10773 PLATE BASE
WB18X10391 WB18X10391 POWER CORD ASSEMBLY
WB06X10742 WB06X10742 RESIN COVER
WB01X10121 WB01X10121 SCREW
WB02X10727 WB02X10727 SCREW
WB27X10986 WB27X10986 SMART BOARD
WB24X10047 WB24X10047 SW PRIM INTERLOCK & DOOR
WB24X0817 WB24X0817 SWITCH MICRO
WB24X25397 WB24X25397 SWITCH MONITOR INTERLOCK
WB24X10171 WB24X10171 THERMOSTAT
WB24X10170 WB24X10170 THERMOSTAT

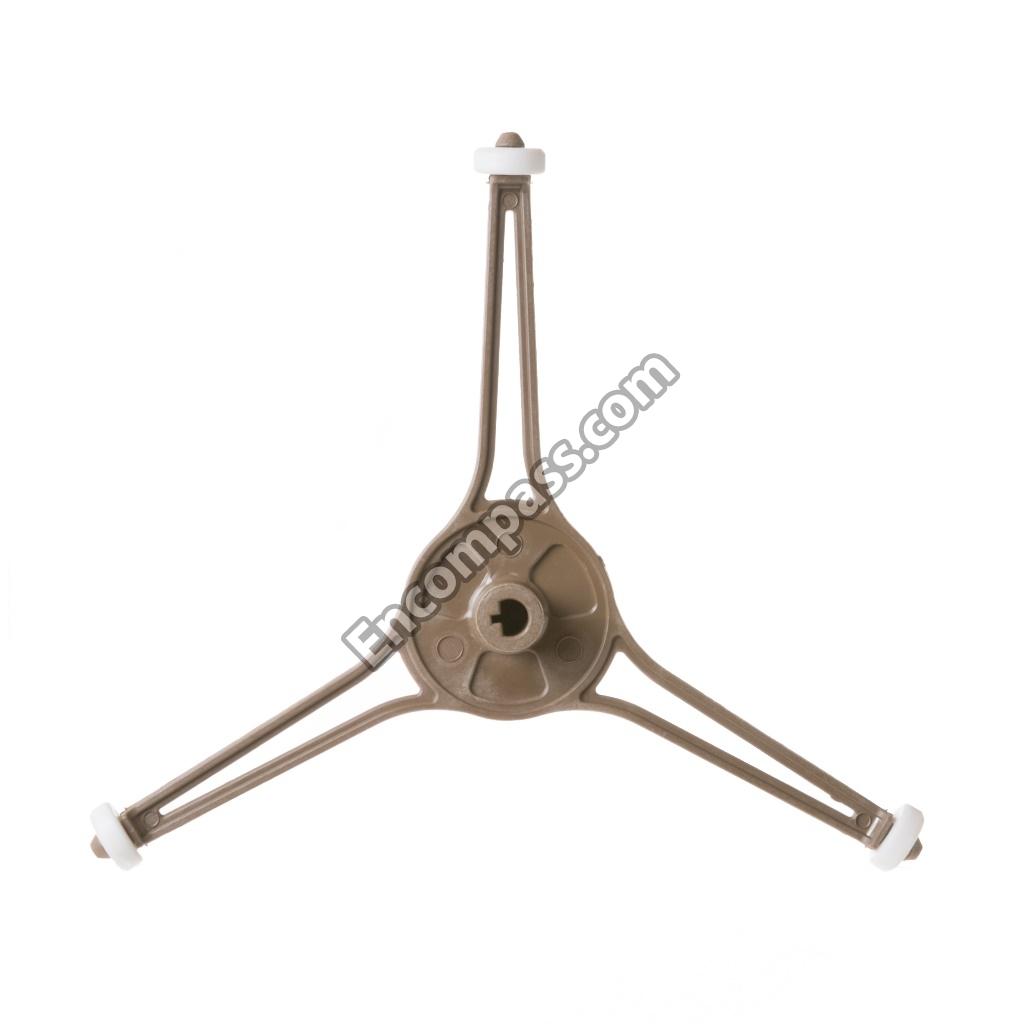

WB06X10770 WB06X10770 TURNTABLE ASM
WB49X10134 WB49X10134 TURNTABLE TRAY GLASS
49-40513 49-40513 USE & CARE
