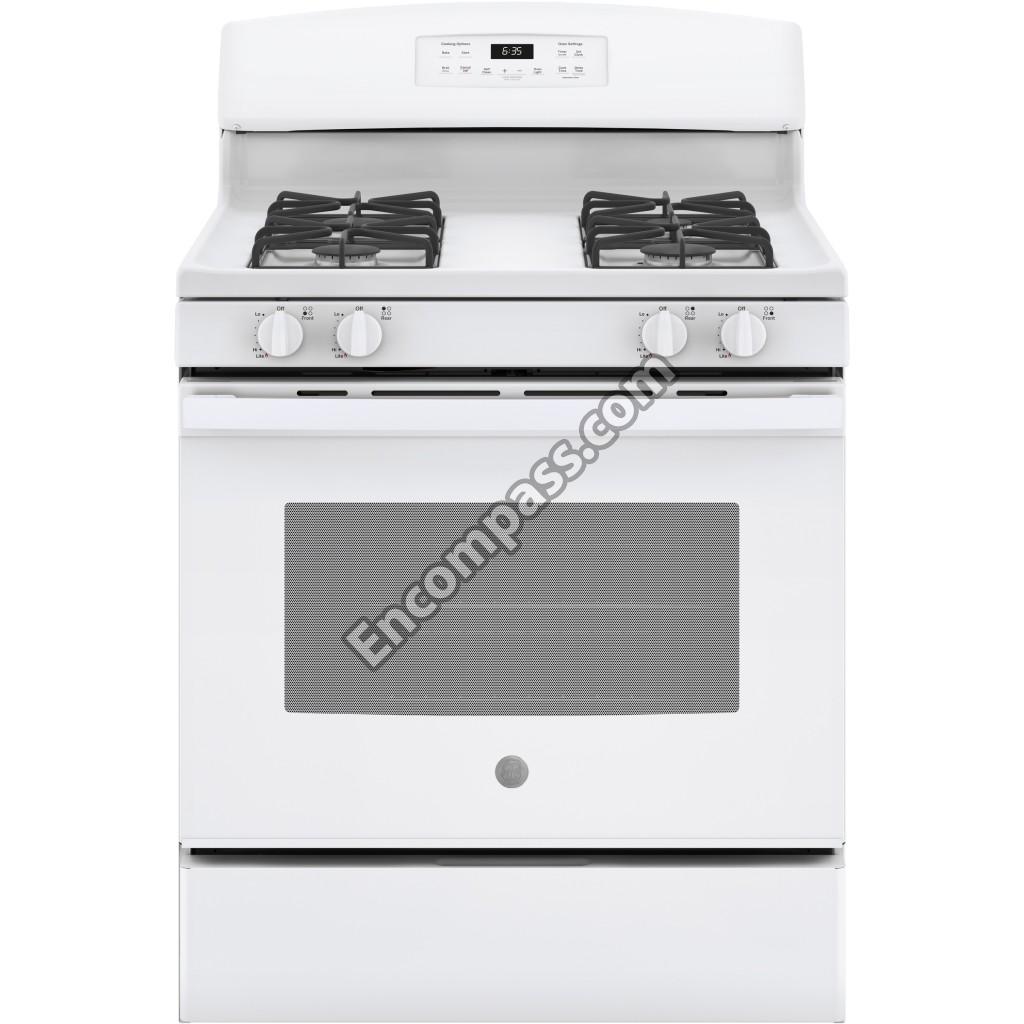

Model Image
Manufacturer

GE

Model Number

JGB635DEK3WW

Description

Gas Range Or Dual Fuel

Interactive Exploded View
Exploded View

Parts List

Part Number Description

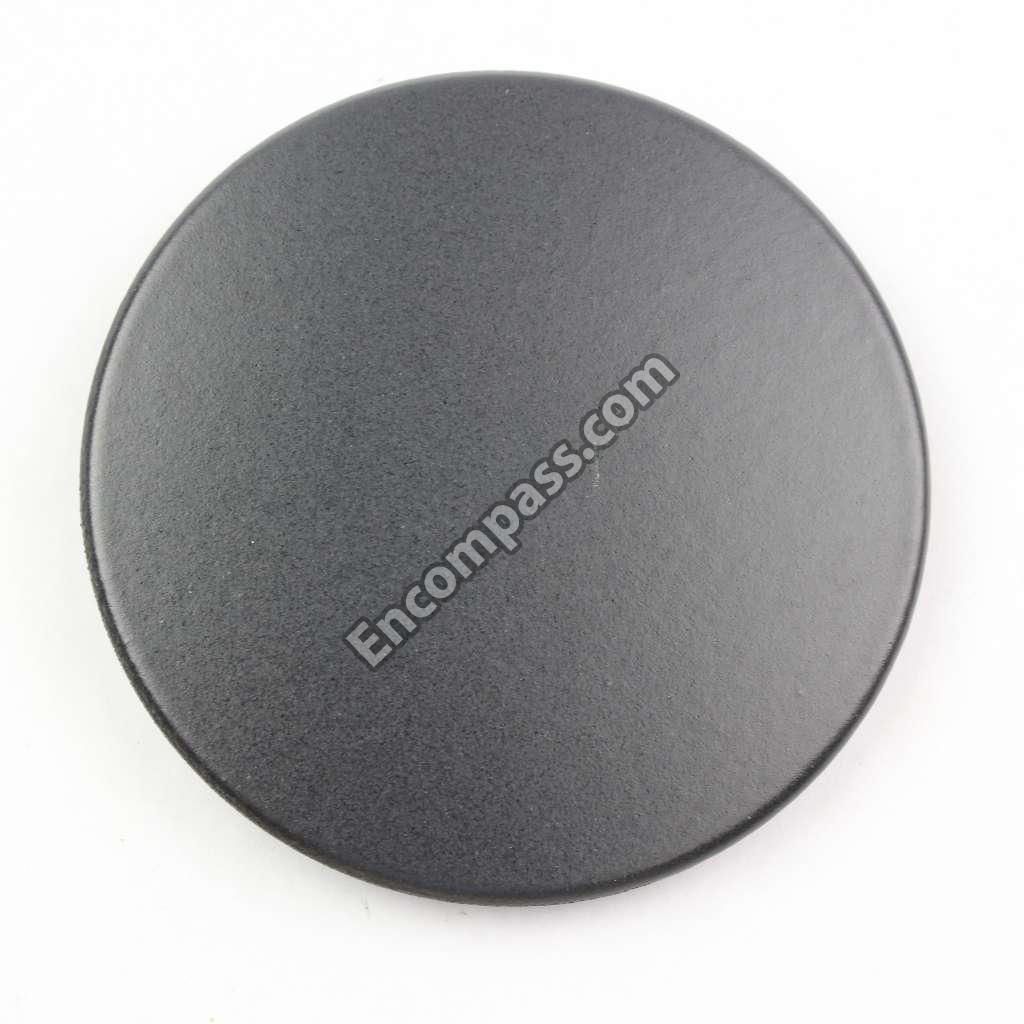

WB29K10024 WB29K10024 000 BTUS GAS RANGE BURNER CAP-LARGE; 12
40A15 40A15 40WATT 15AMP INC AND ESCENT BULB
WB29K10023 WB29K10023 500 BTUS GAS RANGE MEDIUM BURNER CAP; 9
WB28K10023 WB28K10023 89MM RANGE ORIFICE SPUD - NG TO LP
WB02K0027 WB02K0027 BAIL
WB2K27 WB2K27 BAIL
WB35X37973 WB35X37973 BOTTOM OVEN AND DEFLECTOR ASSEMBLY
WB02K0032 WB02K0032 BOTTOM OVEN BRACKT SUPPO
WB63K0015 WB63K0015 BRACE BOTTOM
WB02K10254 WB02K10254 BRACKET ANTI-TIP ASSEMBLY
WB63X24859 WB63X24859 BRACKET CAVITY
WB2K41 WB2K41 BRACKET OVEN

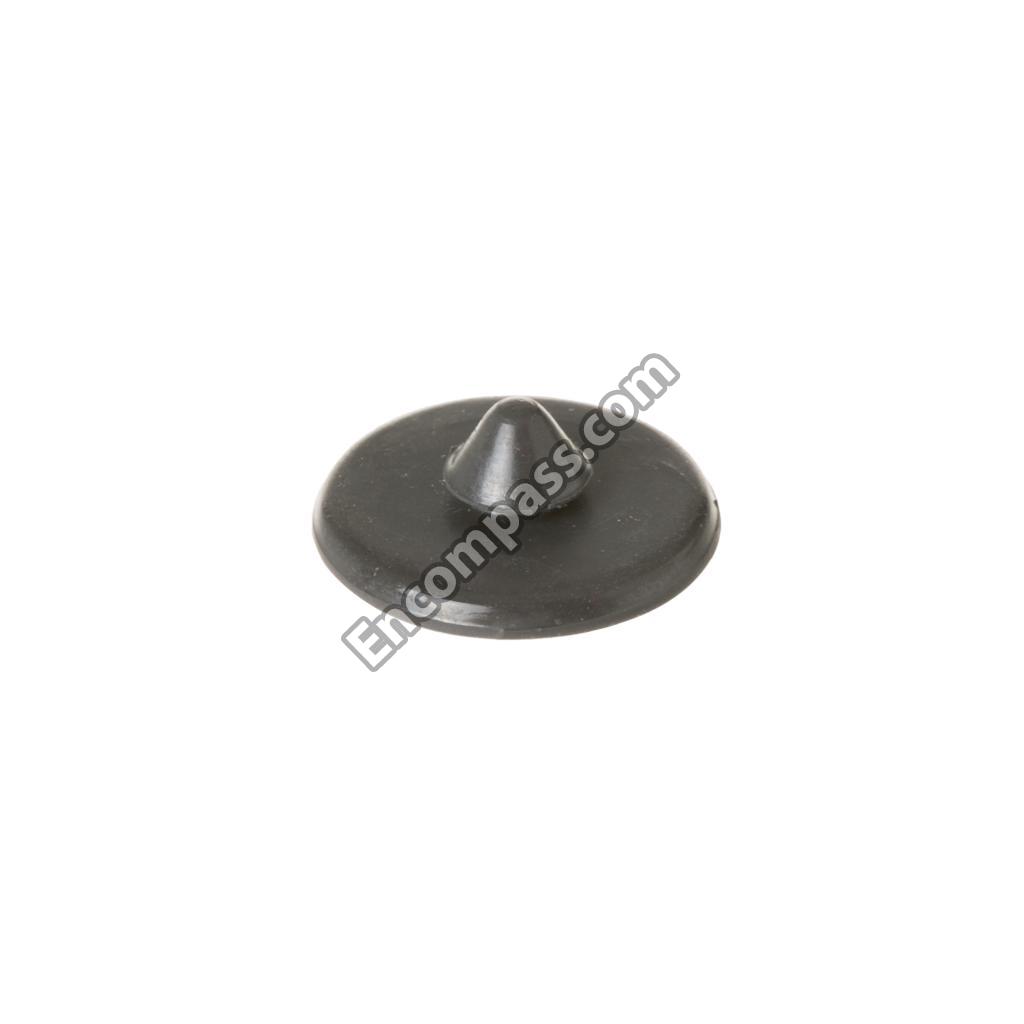

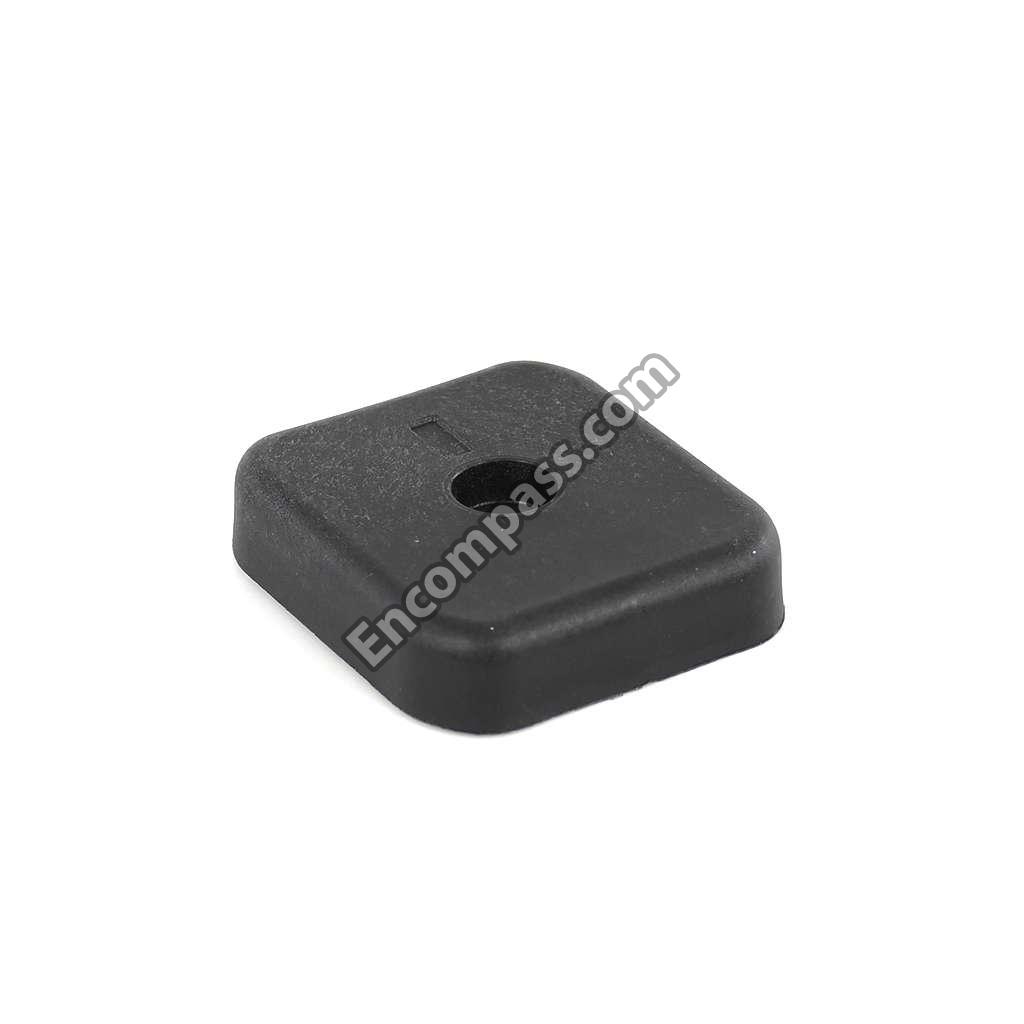

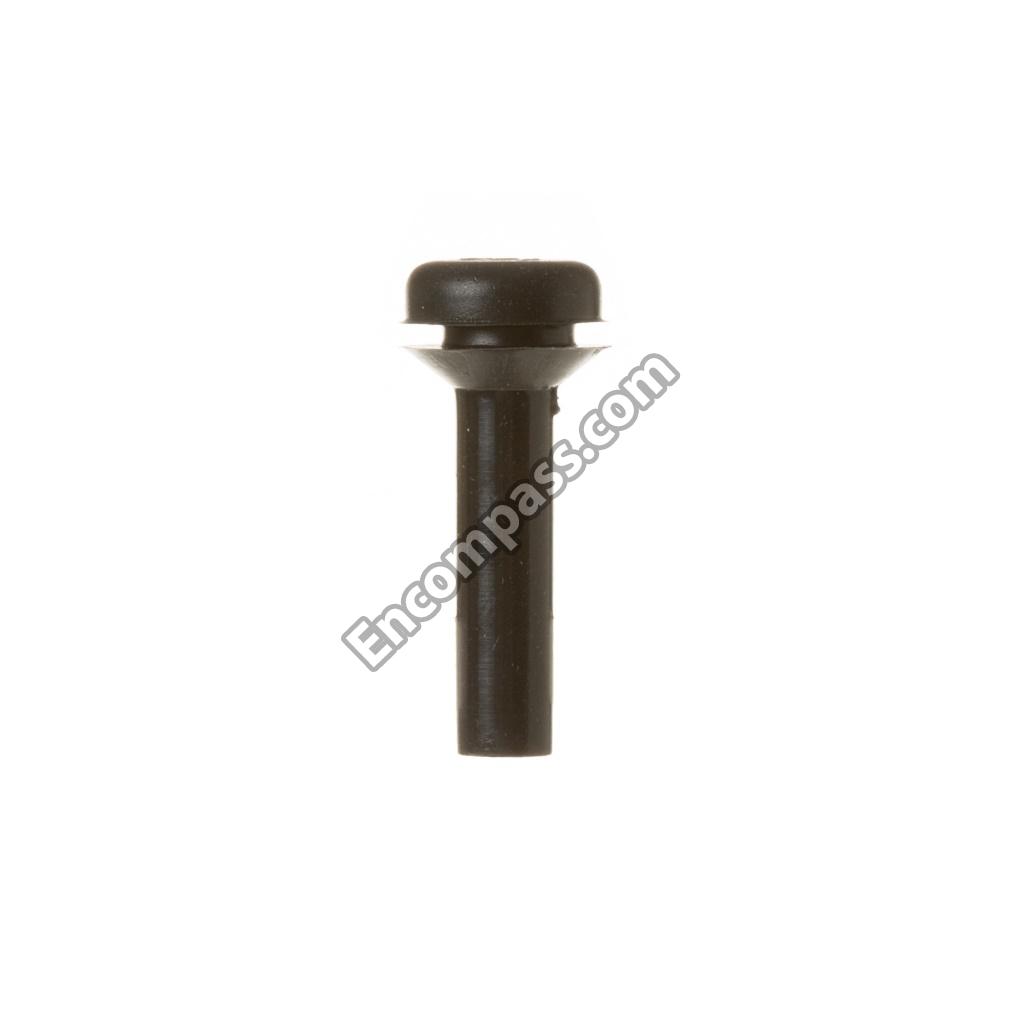

WB02X24790 WB02X24790 BUMPER

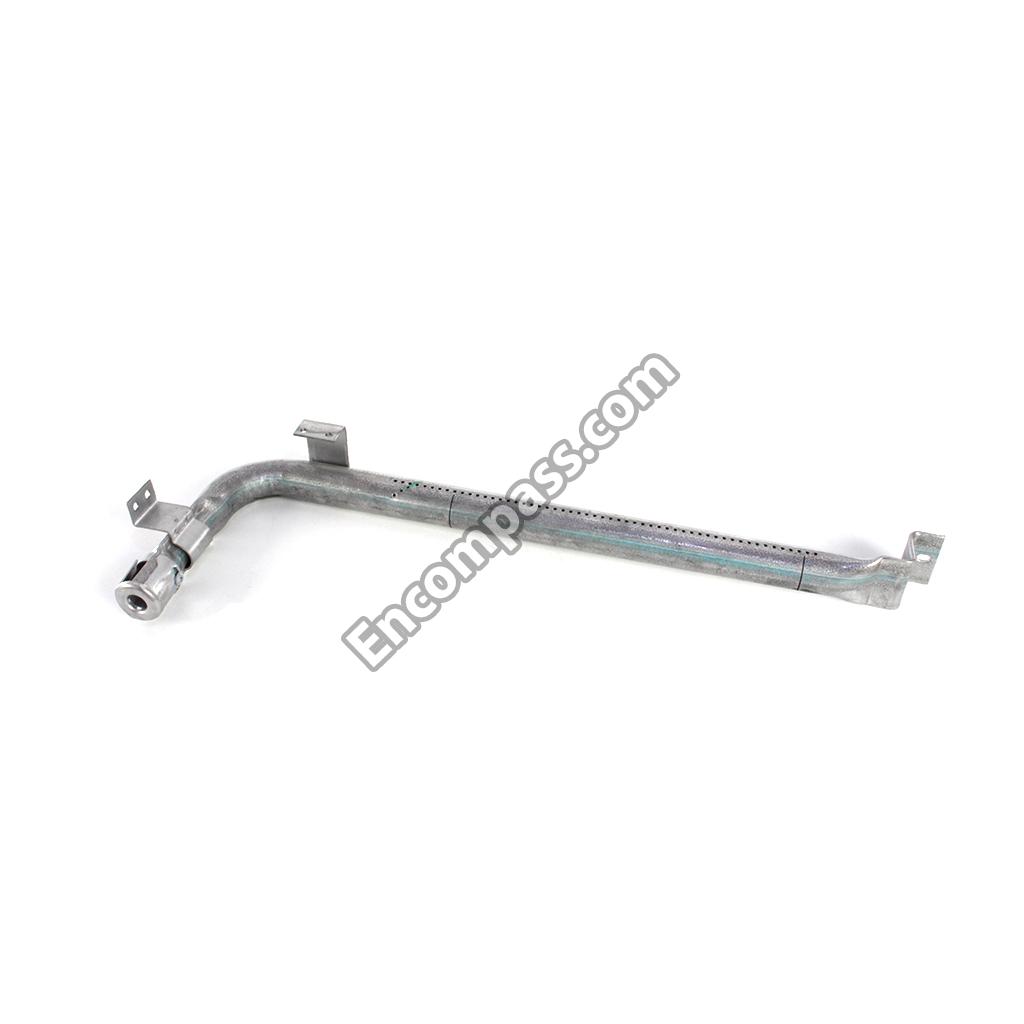

WB16X20463 WB16X20463 BURNER BAKE
WB01X24735 WB01X24735 CKT SCREW
WB02K0036 WB02K0036 CLAMP CABLE
WB2K36 WB2K36 CLAMP CABLE
WB02K0031 WB02K0031 CLIP CABLE
WB02X21679 WB02X21679 CLIP CABLE
WB02K10380 WB02K10380 CLIP INSULATION

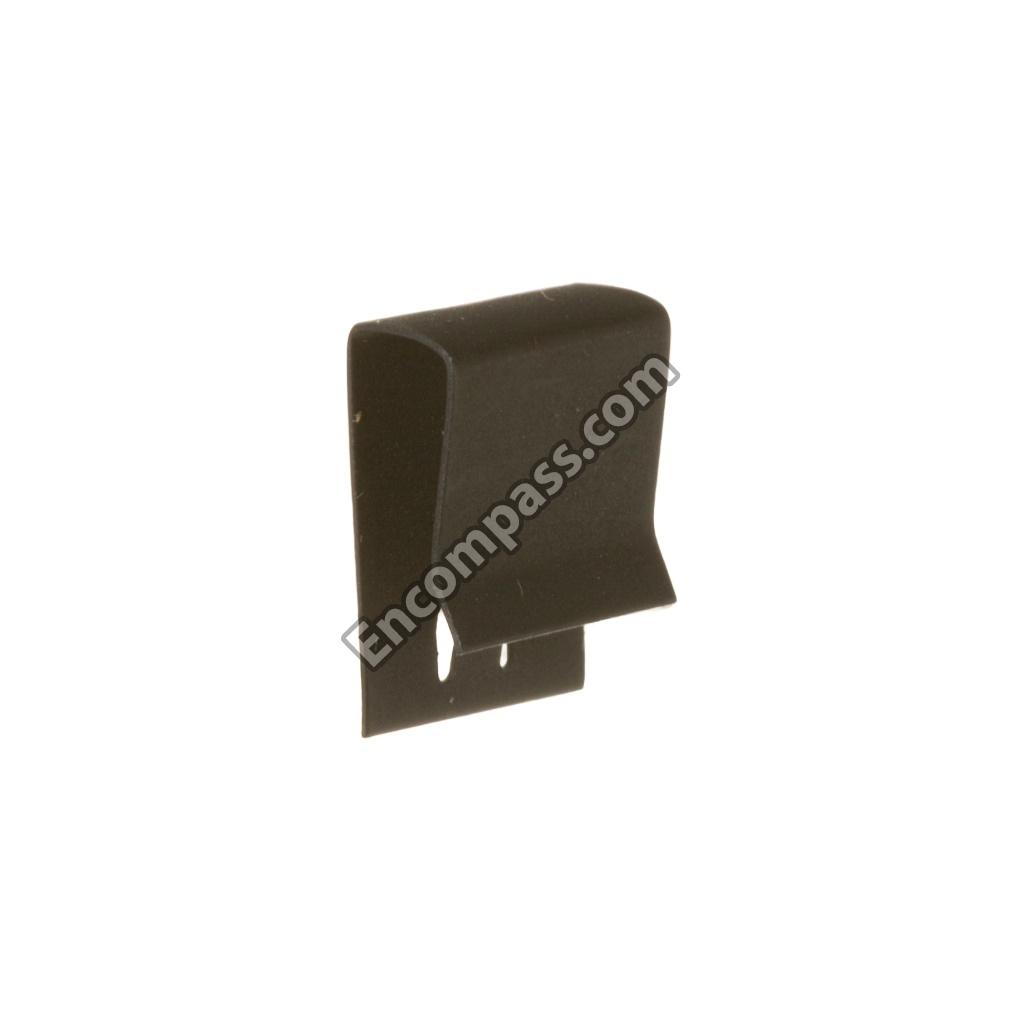

WB02K0052 WB02K0052 CLIP RANGETOP

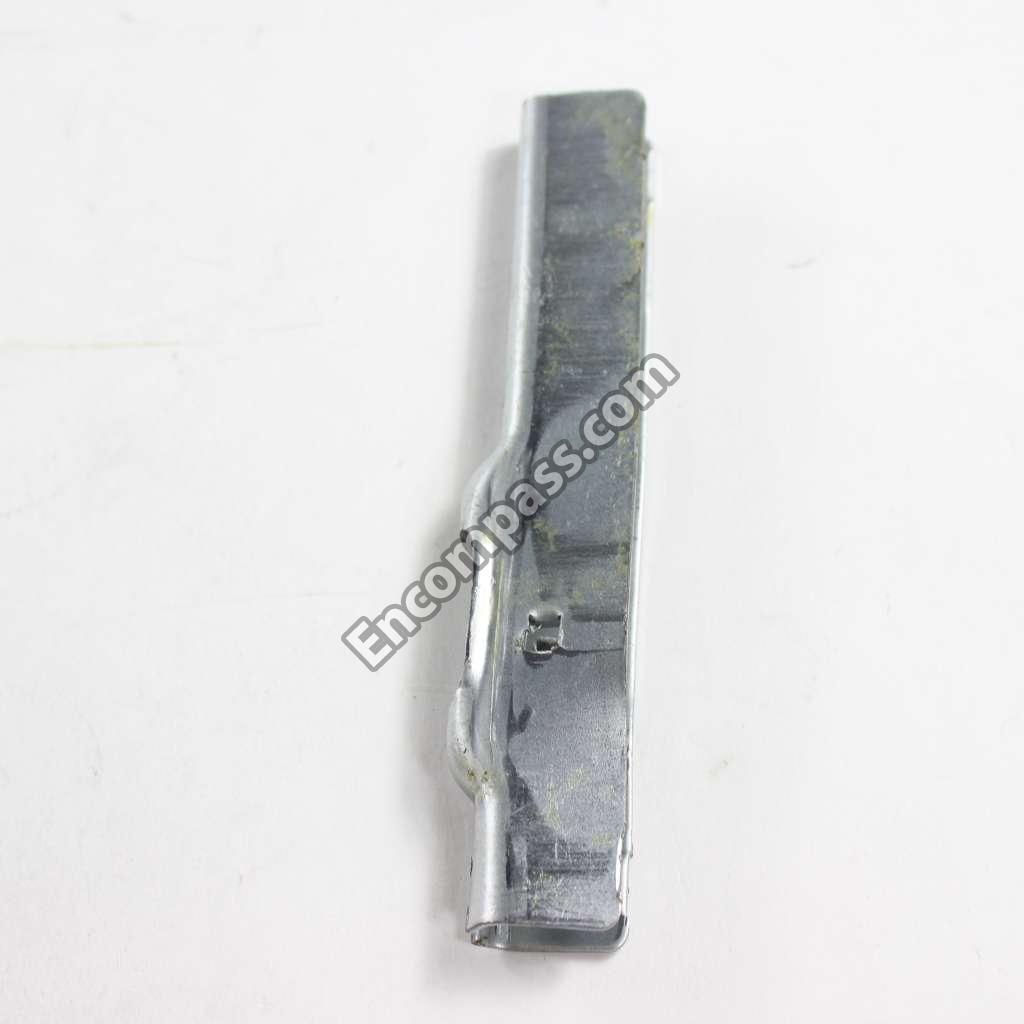

WB02X26569 WB02X26569 CLIP RANGETOP
WB2K52 WB2K52 CLIP RNGETOP

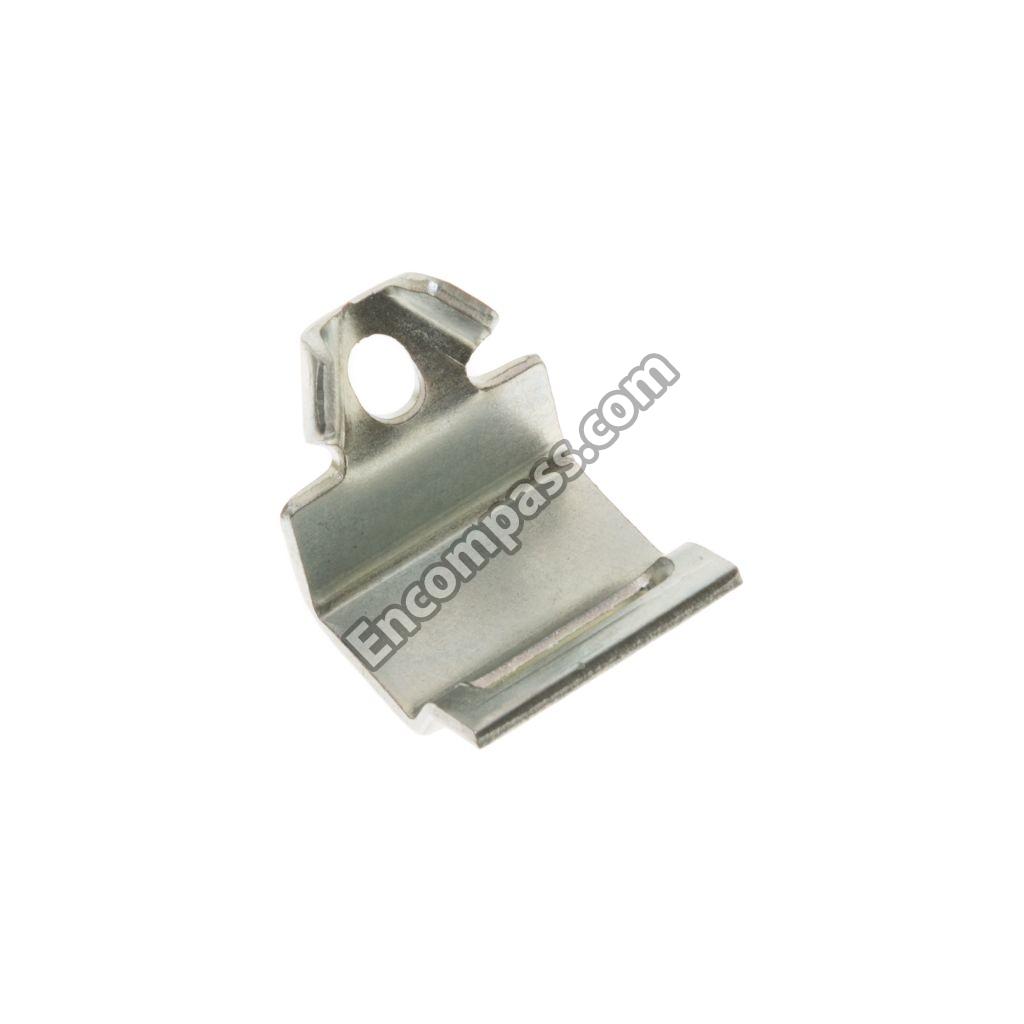

WB02K0056 WB02K0056 CLIP WINDOW
WB2K56 WB2K56 CLIP WINDOW
WB02X7066 WB02X7066 CLIP WIRE
WB02K10267 WB02K10267 CLIP WIRE
WB01X0119 WB01X0119 CONTOURED WASHER

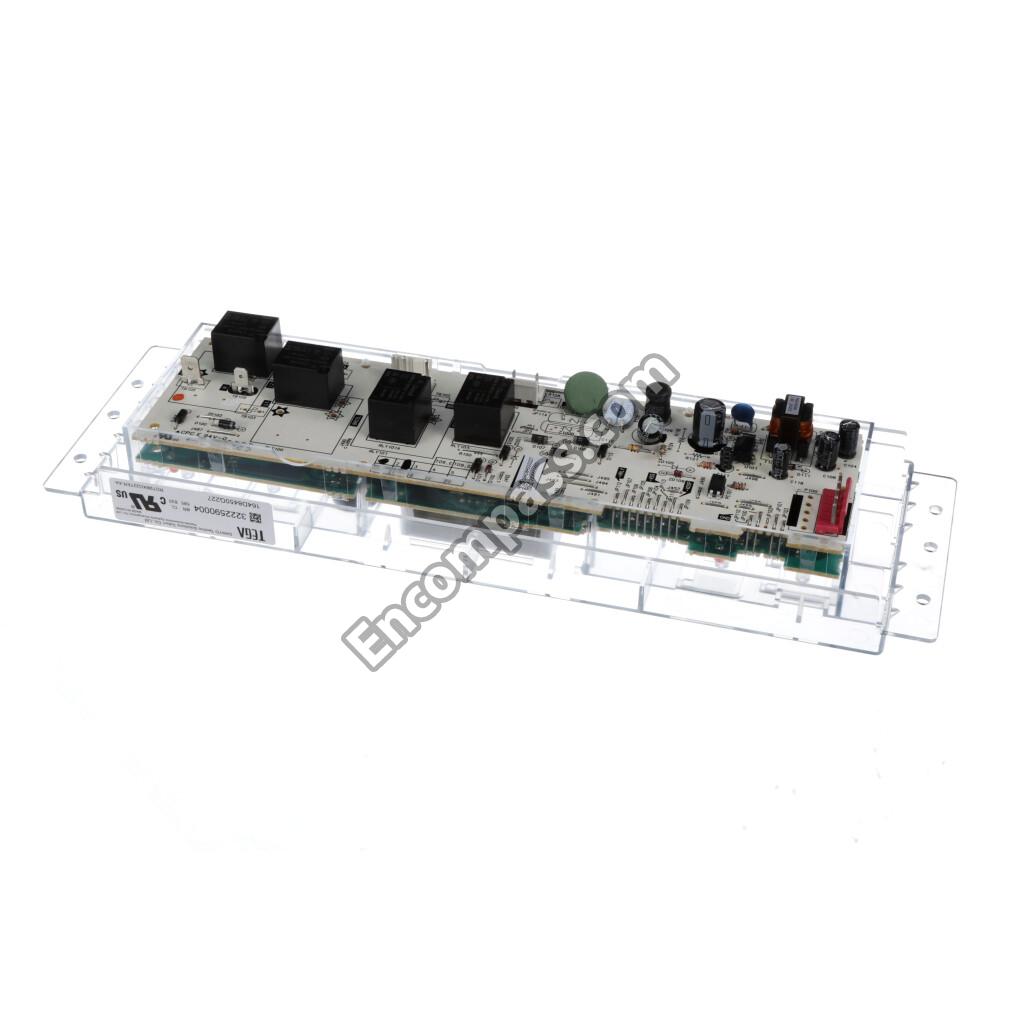

WB27X44729 WB27X44729 CONTROL OVEN TO9
WB34K0016 WB34K0016 COVER BACK
WB34X21575 WB34X21575 COVER BACK
WB34K16 WB34K16 COVER BACK

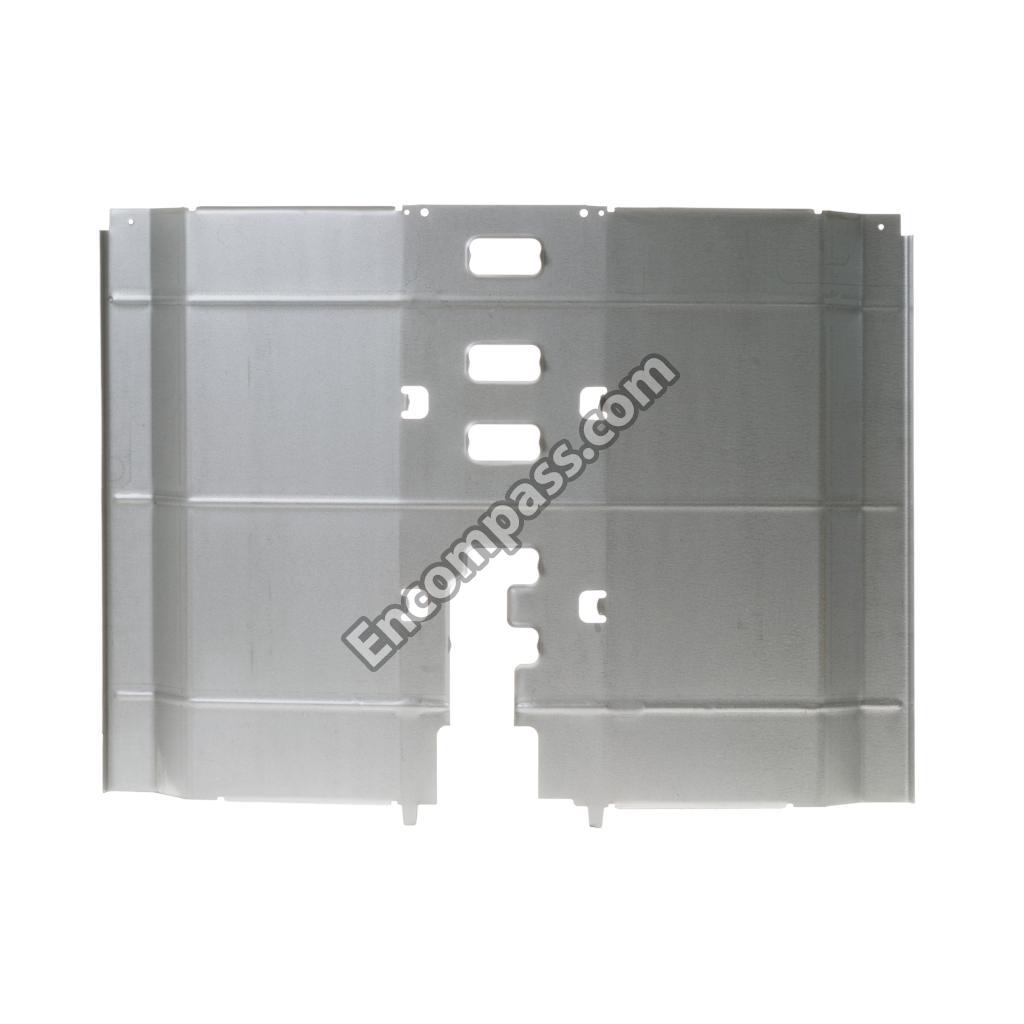

WB34K10129 WB34K10129 COVER BACK LOWER

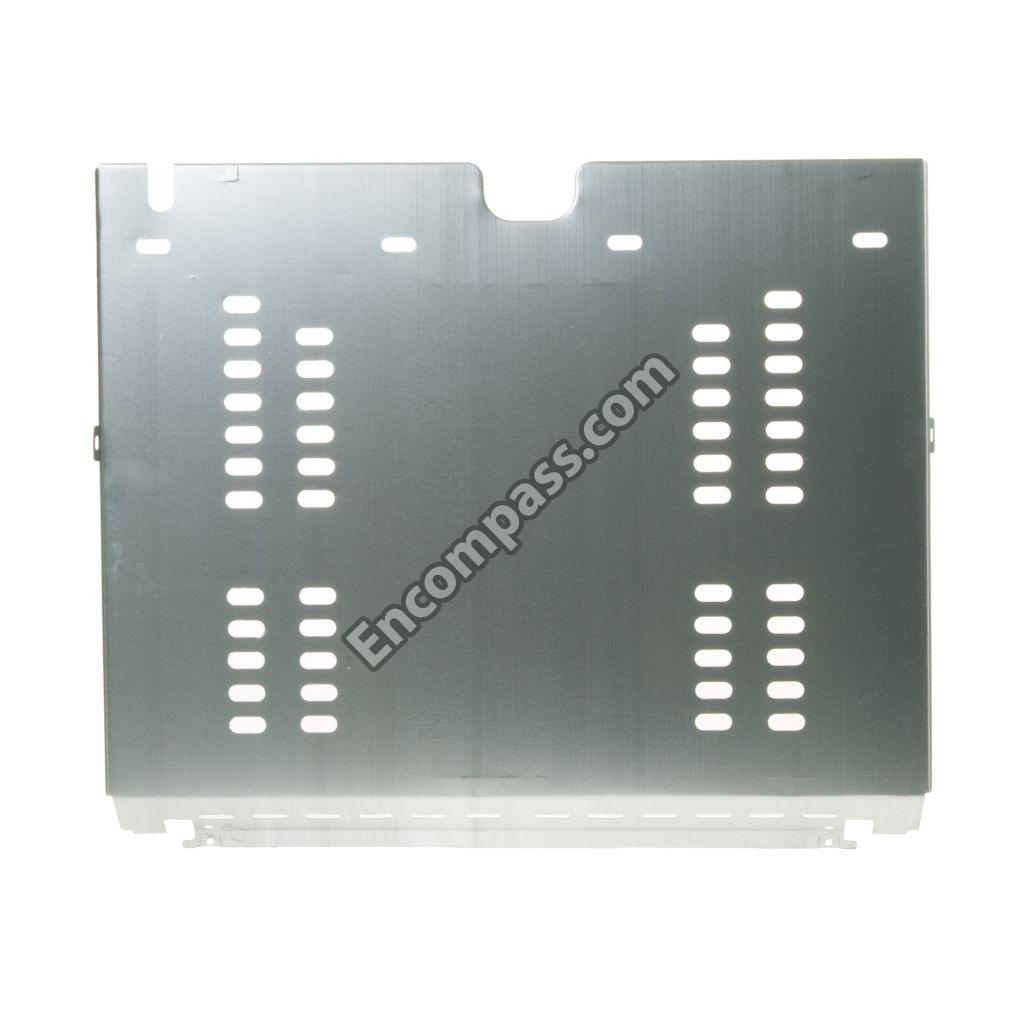

WB34X26858 WB34X26858 COVER BACK UPPER
WB63K10040 WB63K10040 COVER TERMINAL
WB02K0024 WB02K0024 COVER VALVE

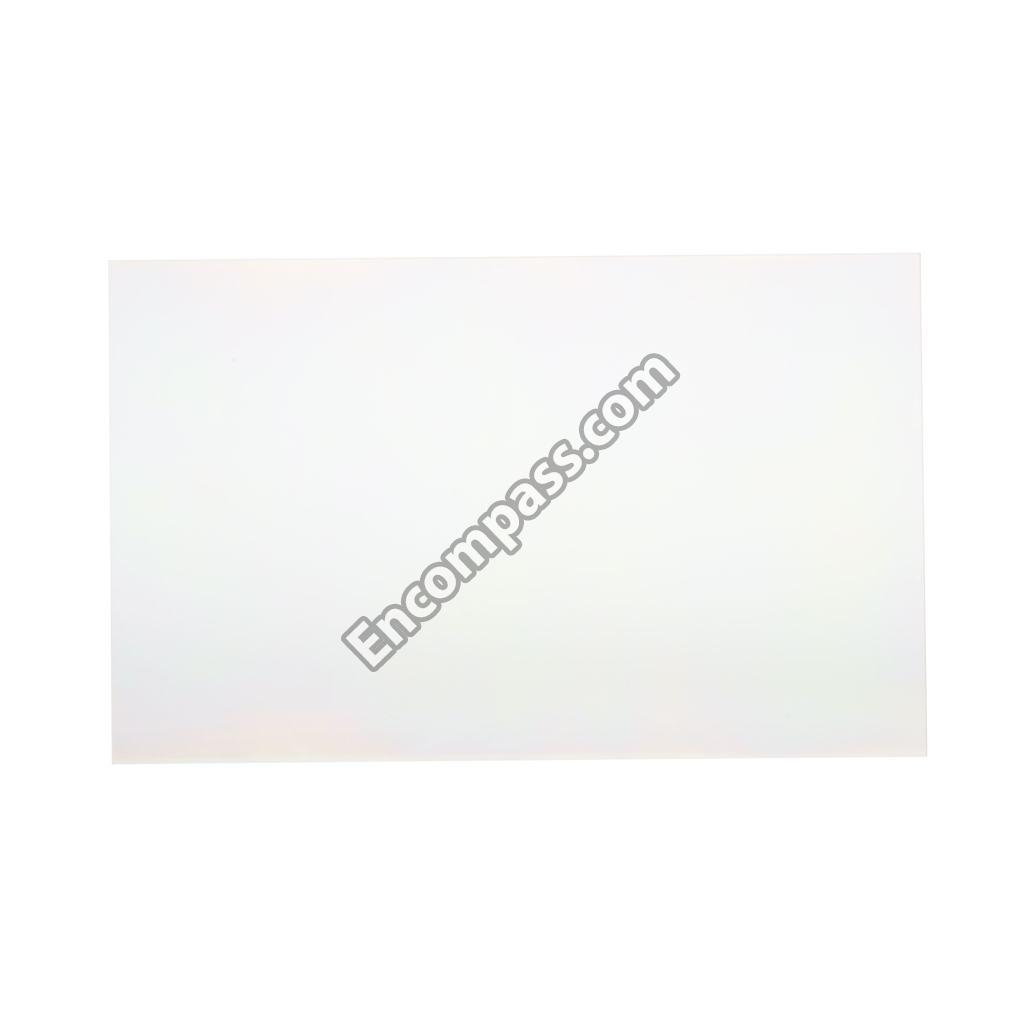

WB56X23809 WB56X23809 CRYSTAL WINDOW
WB56X26708 WB56X26708 DEFLECTOR BOTTOM DOOR
WB49K10037 WB49K10037 DEFLECTOR OVEN
WB38K10022 WB38K10022 DIFFUSER VENT
WB02K10163 WB02K10163 DRAWER SUPPORT
WB01K10037 WB01K10037 ECONOMIC NUT
WB28X20389 WB28X20389 ELBOW 90 ASSEMBLY
WB18X26607 WB18X26607 ELECTRODES AND HARNESS H.V
WB49K0044 WB49K0044 FLAME SPREADER
WB35K10005 WB35K10005 FOIL COOKTOP

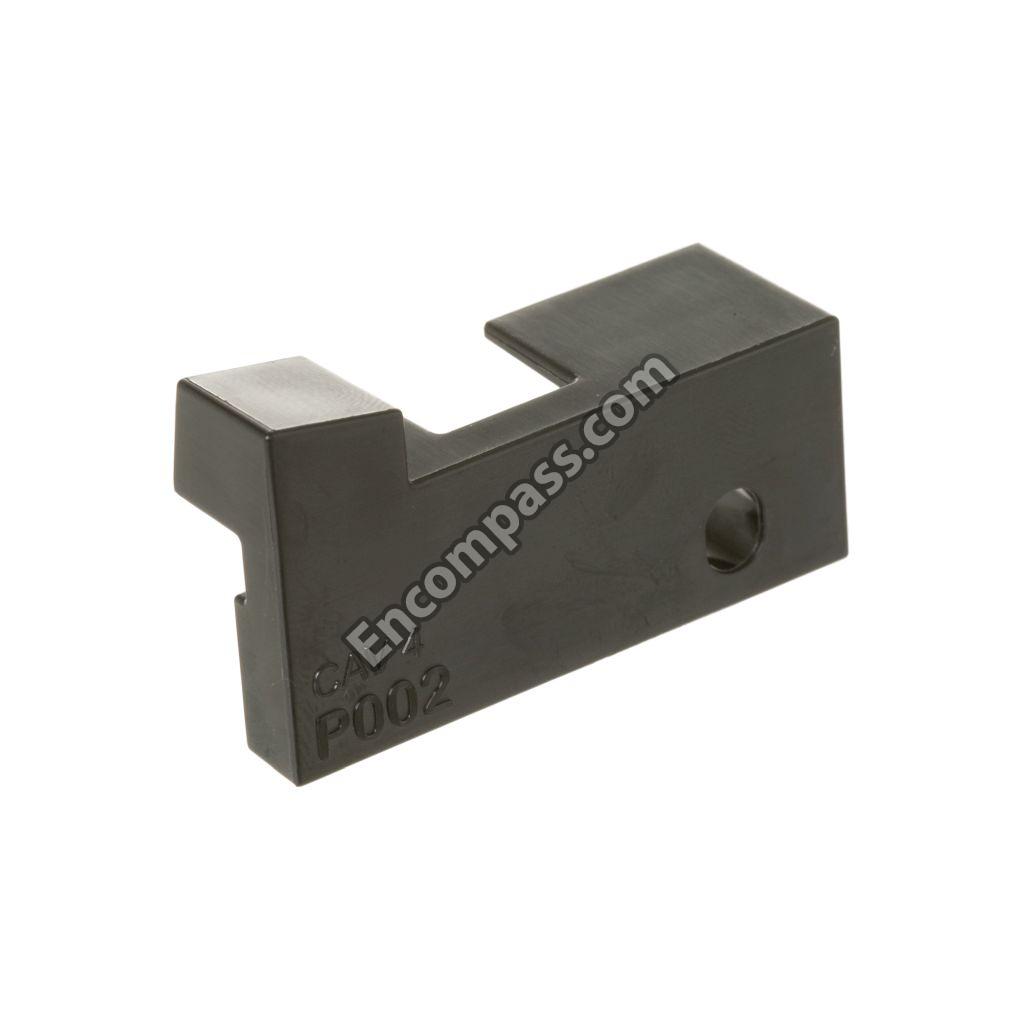

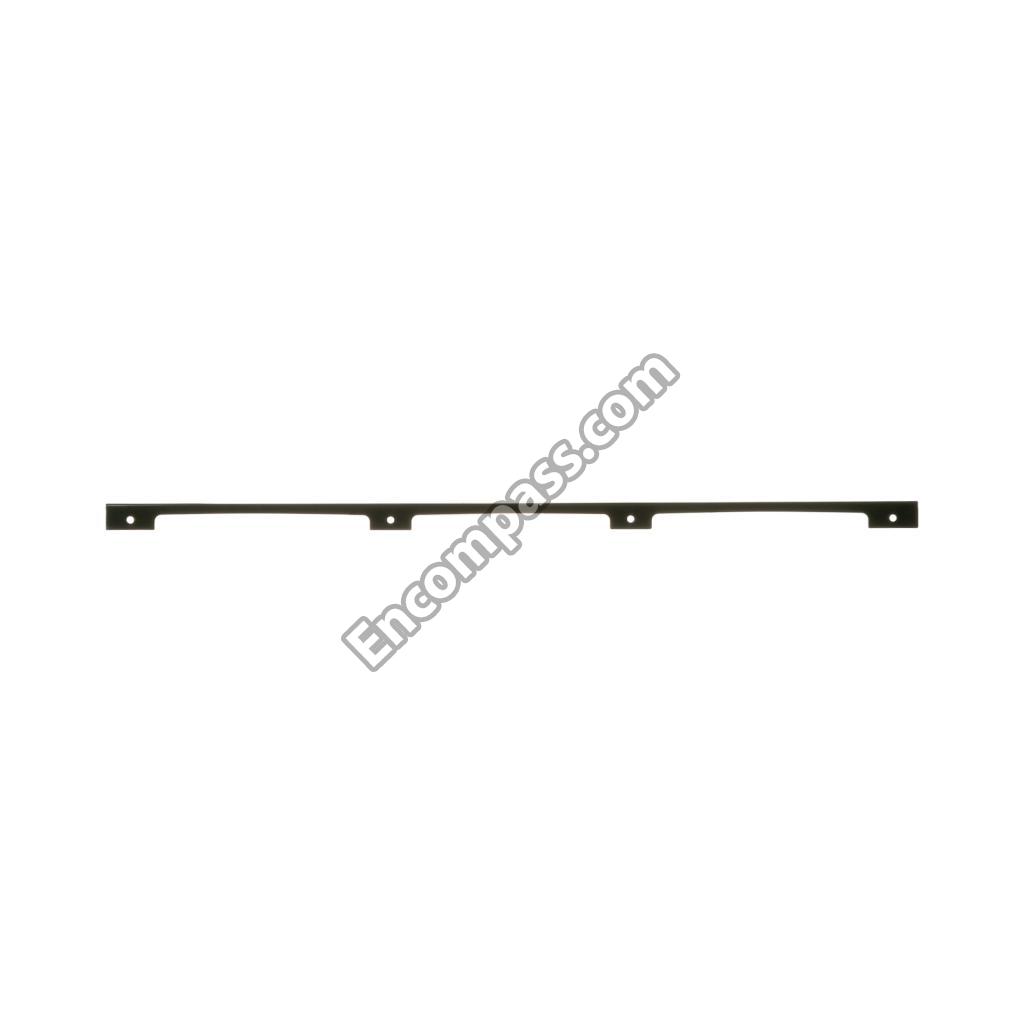

WB02X28738 WB02X28738 FRAME FRONT BUMPER
WB63X25196 WB63X25196 FRAME WELD ASSEMBLY
WB28X26604 WB28X26604 FRONT ORIFICE HOLDER
WB28X26306 WB28X26306 FRONT ORIFICE HOLDER LEF
WB18K10036 WB18K10036 GAS RANGE CORD

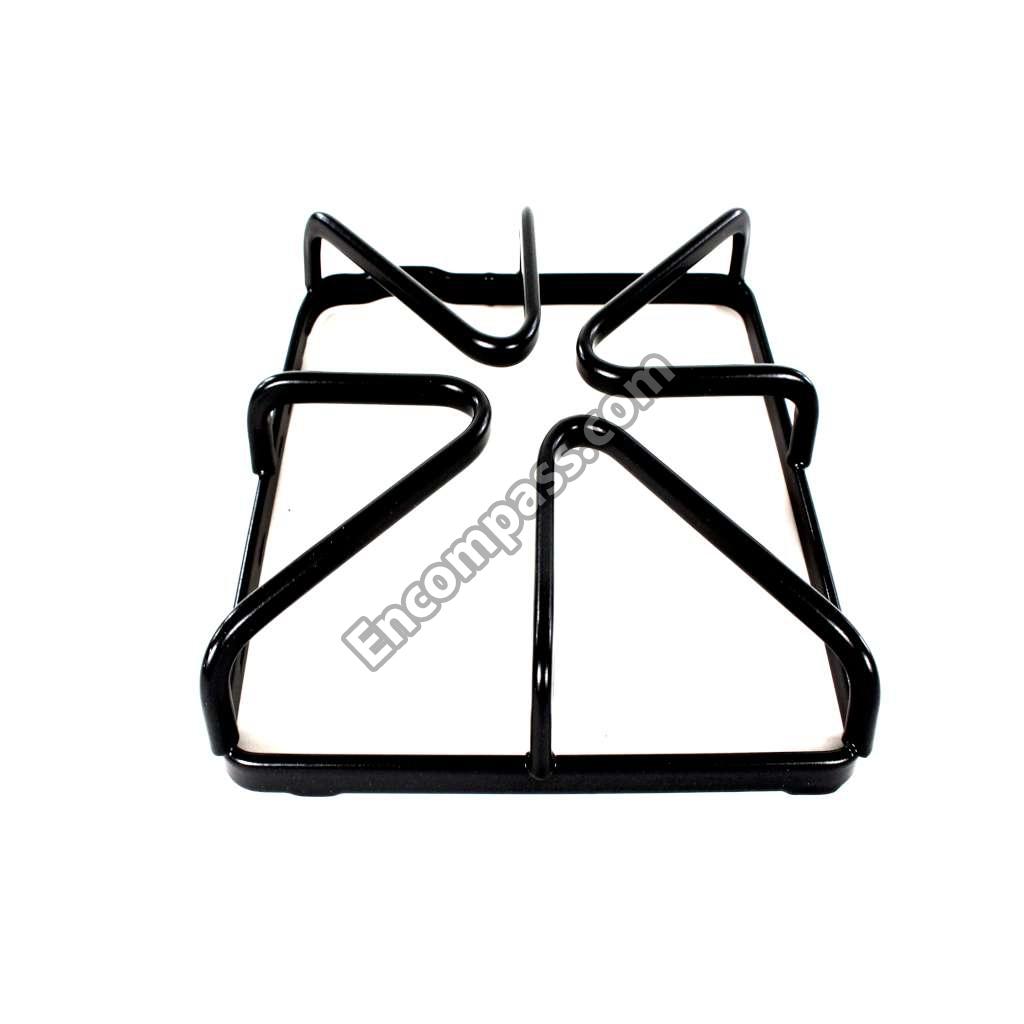

WB31X20643 WB31X20643 GAS RANGE GRATE - BLACK

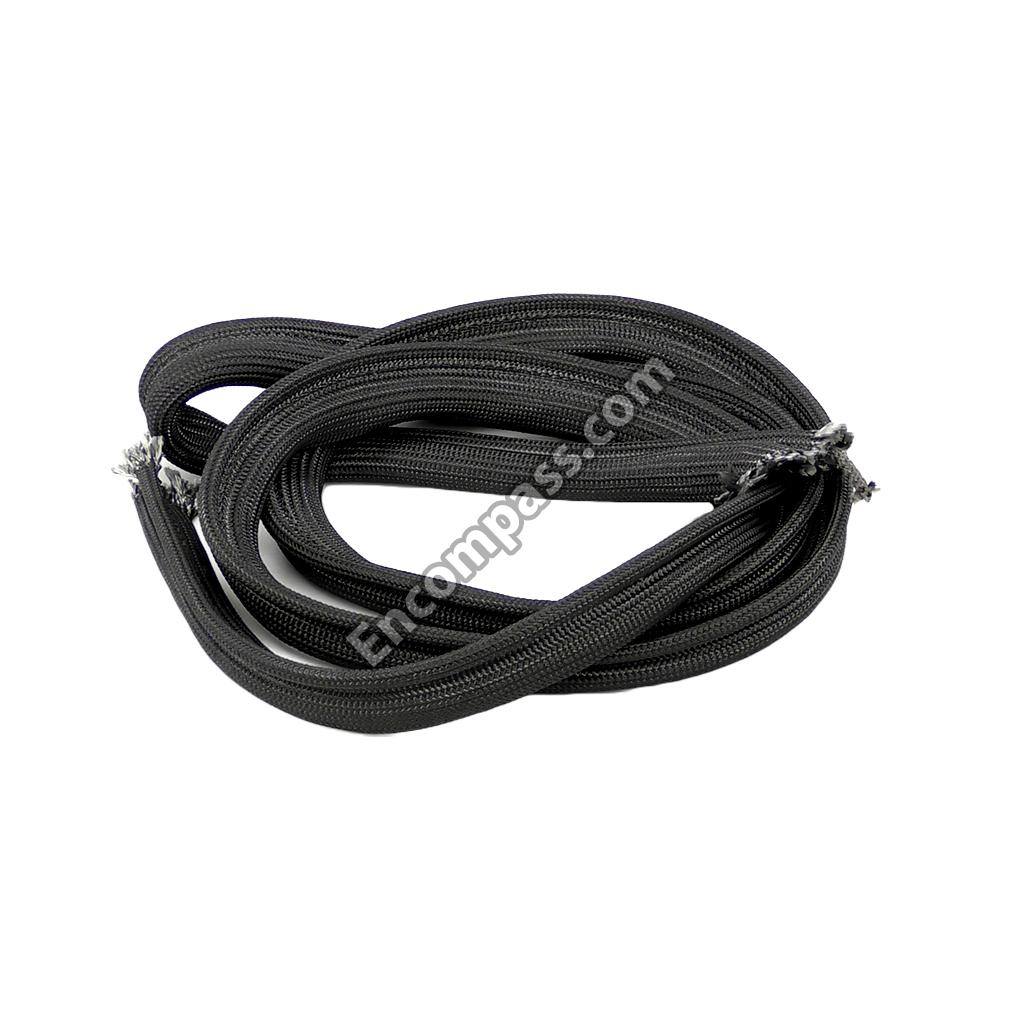

WB35X29668 WB35X29668 GASKET ASSEMBLY DOOR
WB32K0005 WB32K0005 GASKET OVEN LIGHT
WB32K2 WB32K2 GASKET OVEN SEAL LG

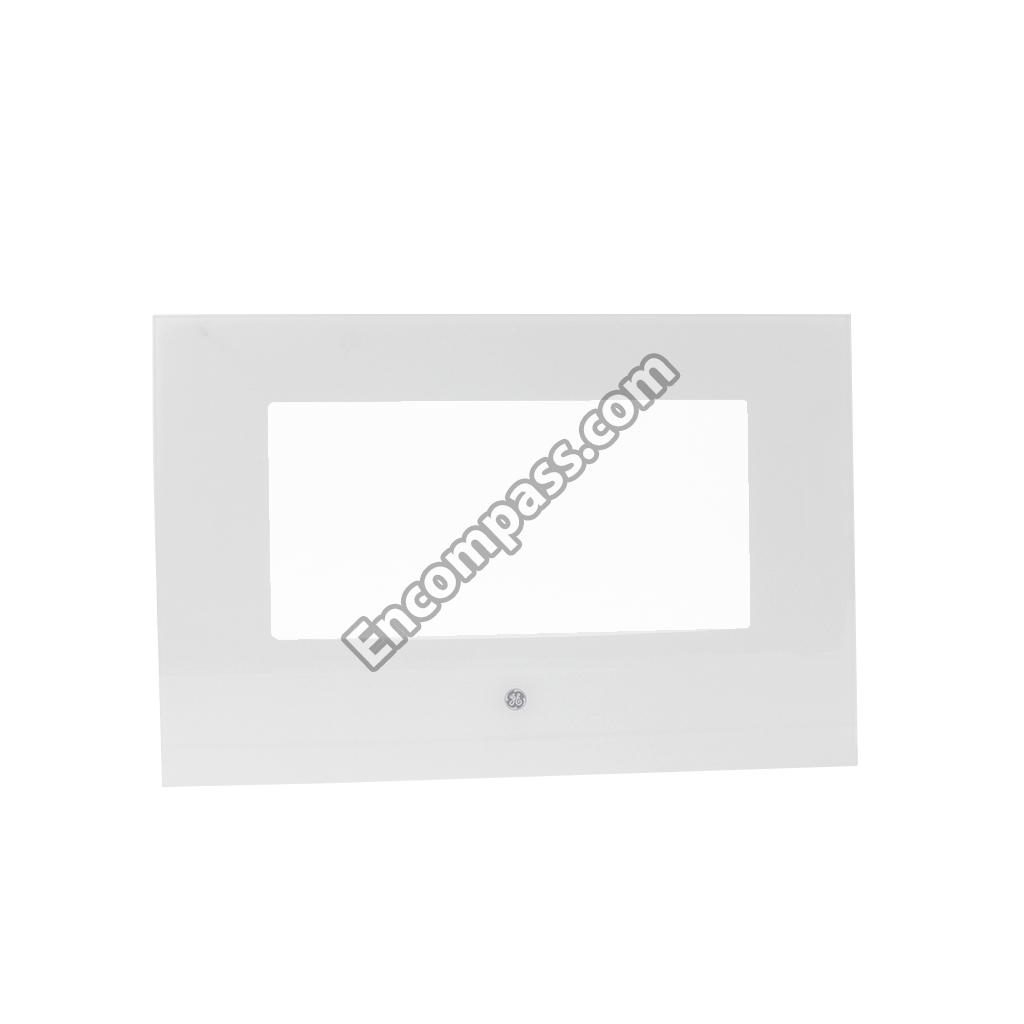

WB56X25570 WB56X25570 GLASS OVEN DOOR
WB08K0005 WB08K0005 GLASS OVEN LAMP
WB1K10 WB1K10 GROM HNDLE
WB2K8 WB2K8 GROMMET
WB01K0010 WB01K0010 GROMMET HANDLE
WB63K0016 WB63K0016 GUARD BOTTOM
WB56K12 WB56K12 GUARD INSUL
WB56K0012 WB56K0012 GUARD INSULATION
WB15T10214 WB15T10214 HANDLE (LE-WH)
WB18X31214 WB18X31214 HARNESS BURNER BOX
WB18X32416 WB18X32416 HARNESS CONTROL

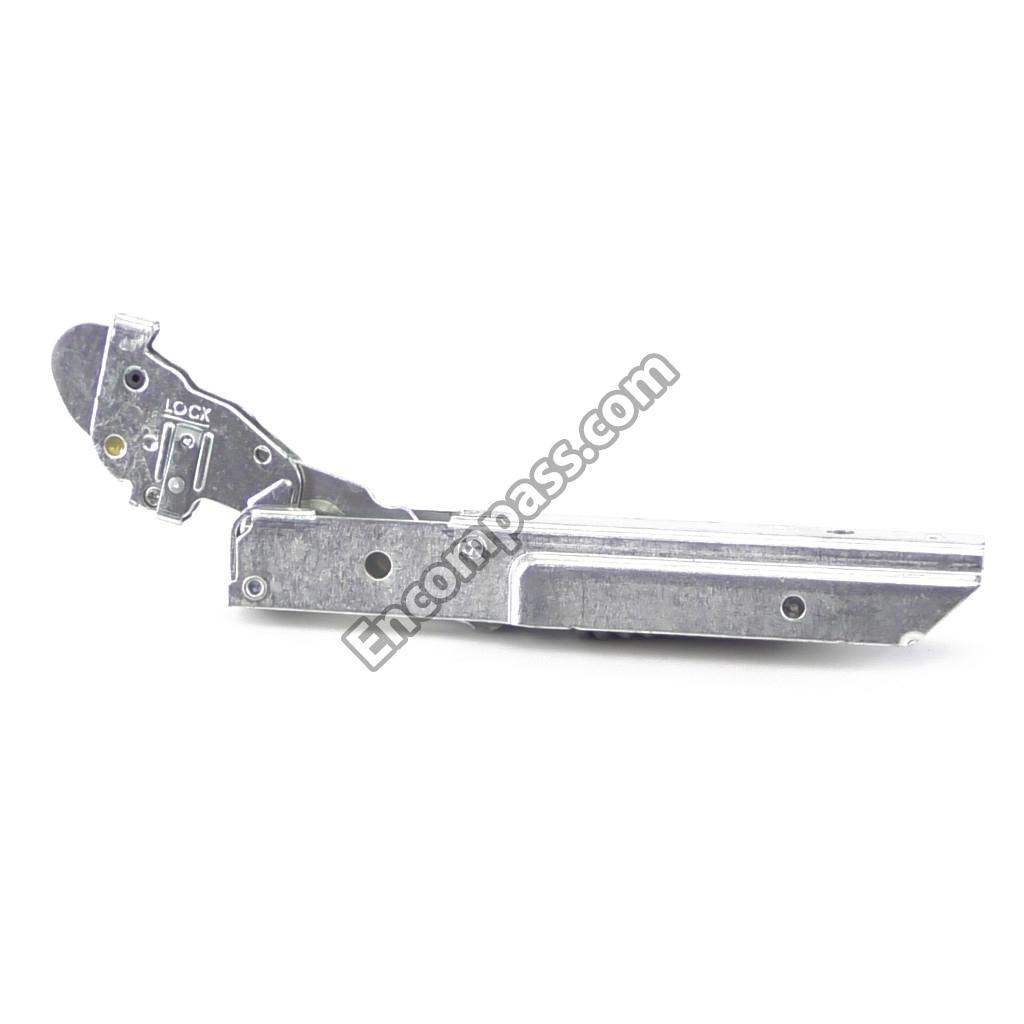

WB10X21659 WB10X21659 HINGE DOOR
WB34K0004 WB34K0004 HINGE GUARD LEFT
WB34K0003 WB34K0003 HINGE GUARD RIGHT
WB8K1 WB8K1 HOUS RECEPTL
WB08K0001 WB08K0001 HOUSING RECEPTACLE
WB13K0021 WB13K0021 IGNITER-OVEN BAKE

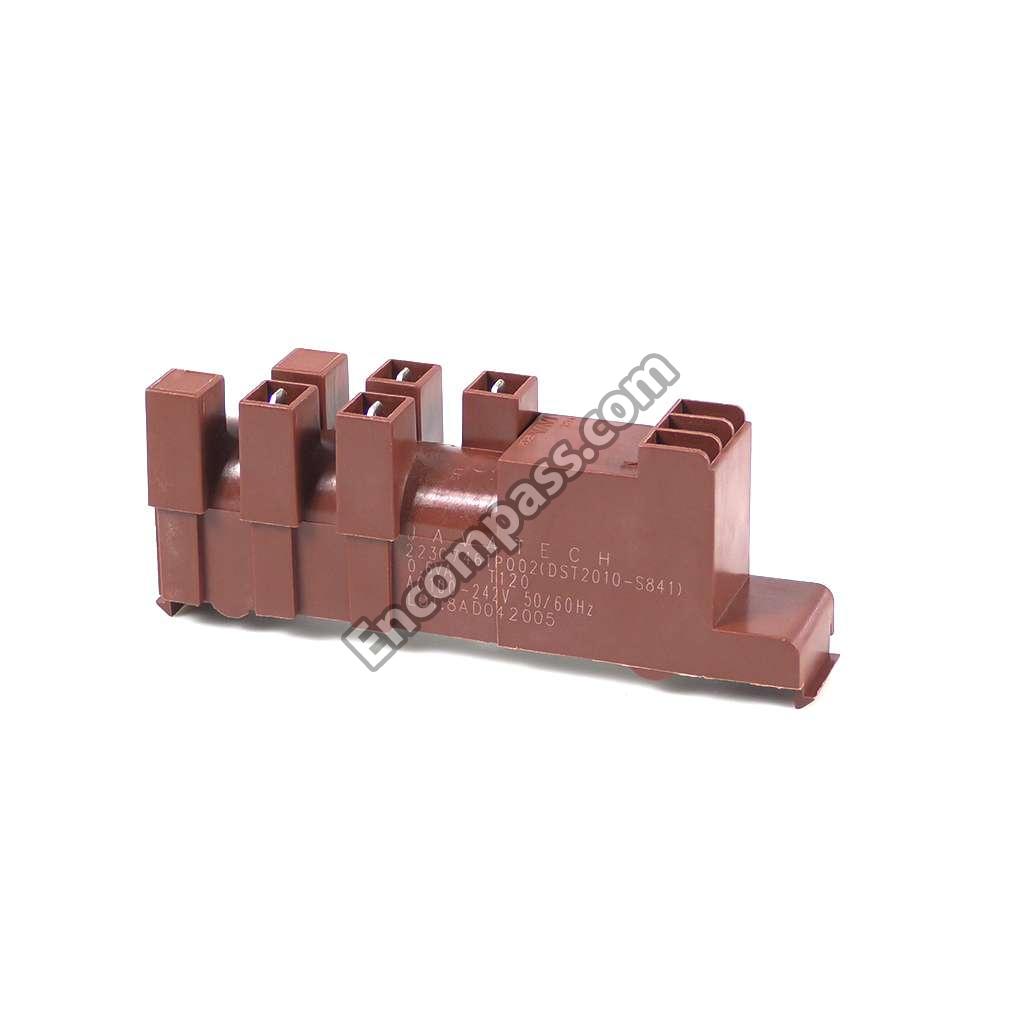

WB13X24323 WB13X24323 IGNITION MODULE

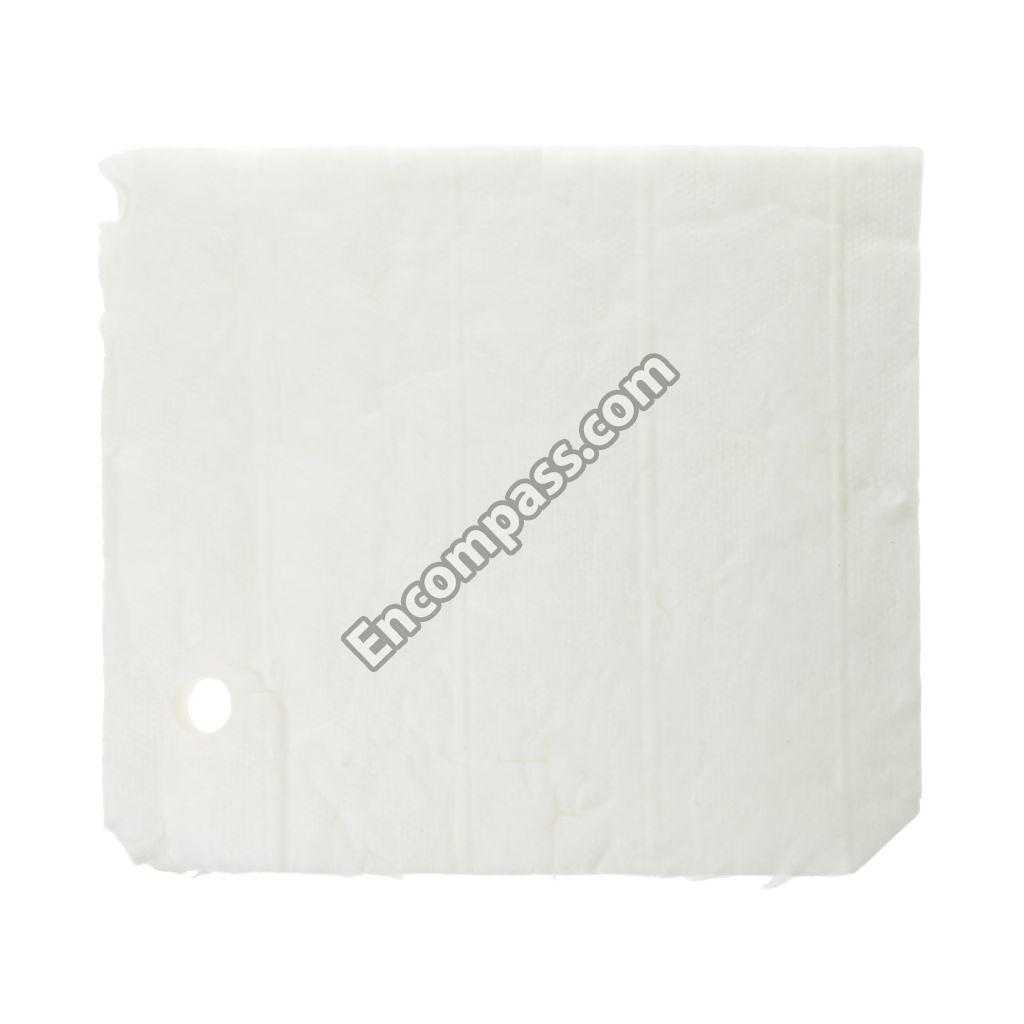

WB35K10150 WB35K10150 INSULATION BOTTOM DOOR
WB35K10040 WB35K10040 INSULATION CONTROL
WB35X21686 WB35X21686 INSULATION DOOR
WB35X24786 WB35X24786 INSULATION OVEN WRAP
WB35K10149 WB35K10149 INSULATION SIDE DOOR
WB35X24787 WB35X24787 INSULATION VENT
WB49X26121 WB49X26121 KIT BUTANE CONVERSION AS

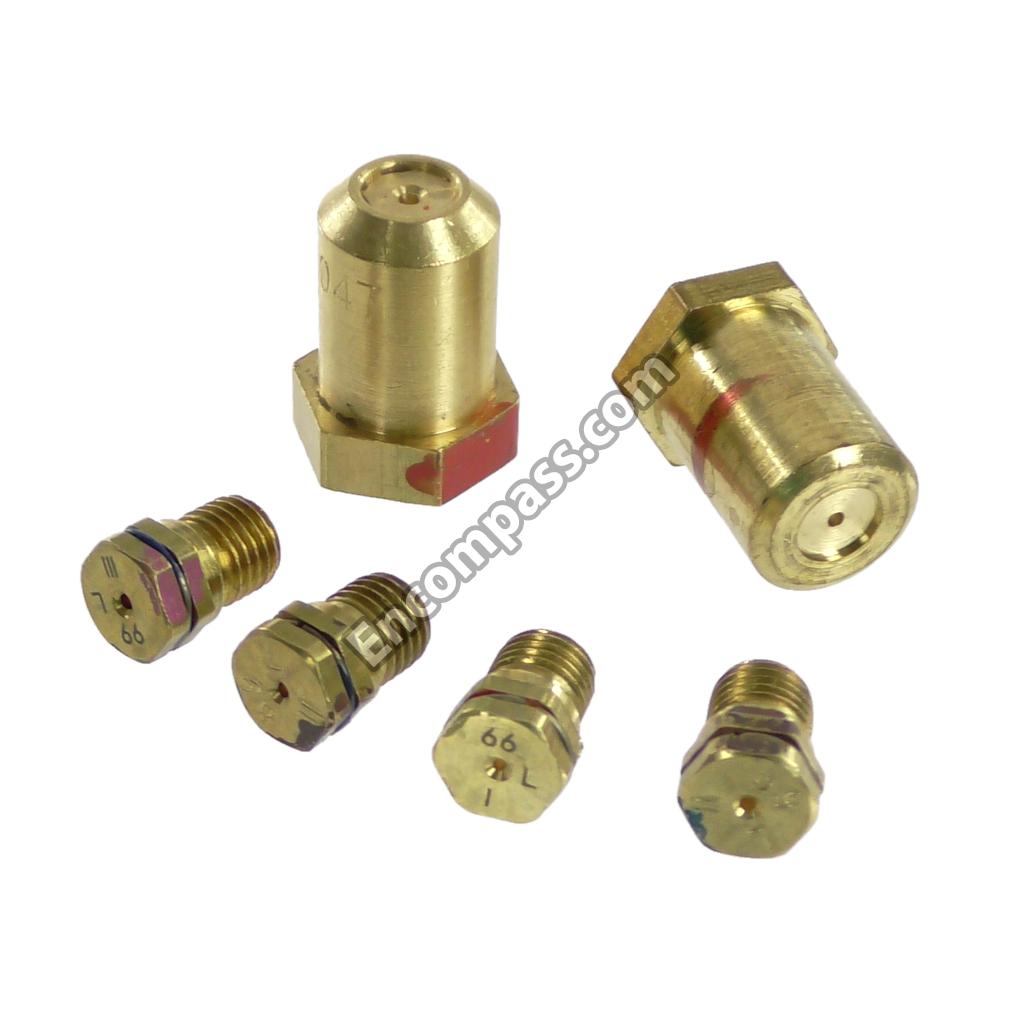

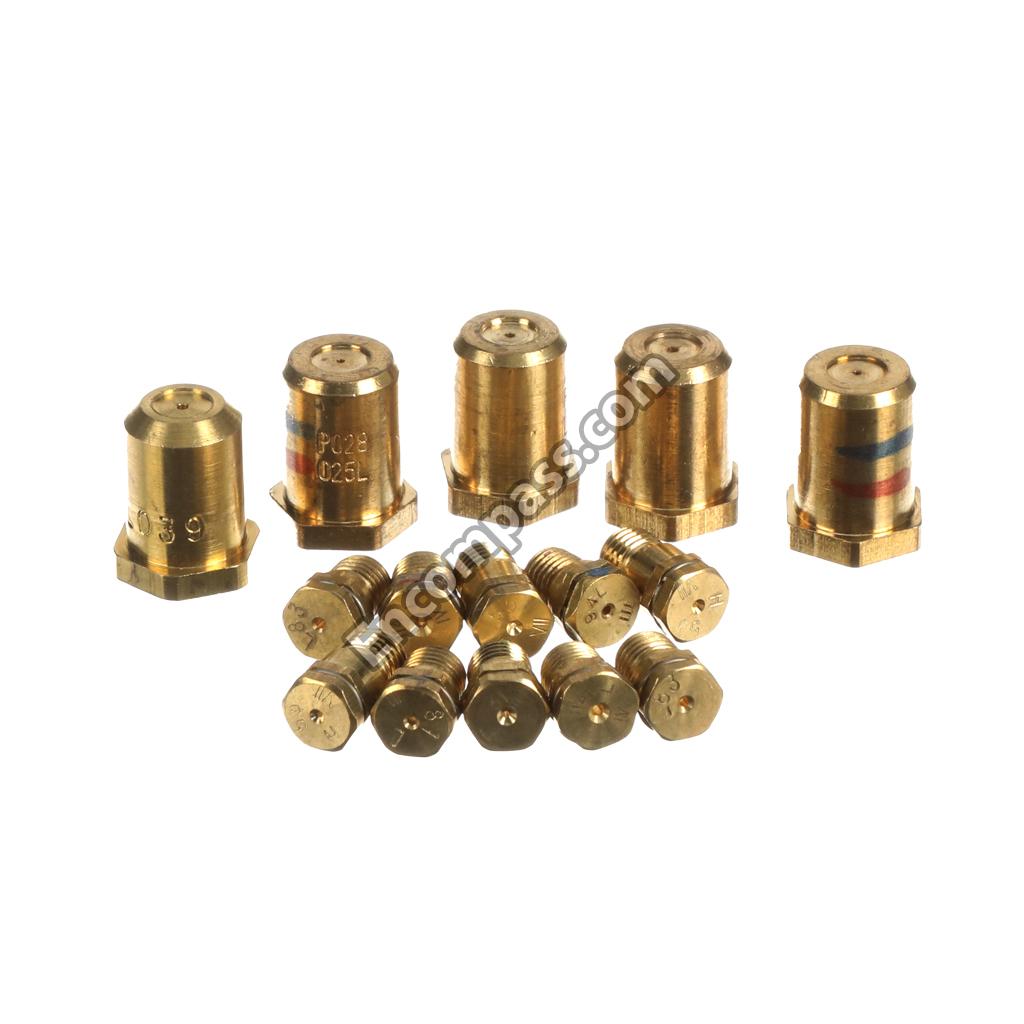

WB28X39143 WB28X39143 KIT LP CONVERSION ASSEMBLY

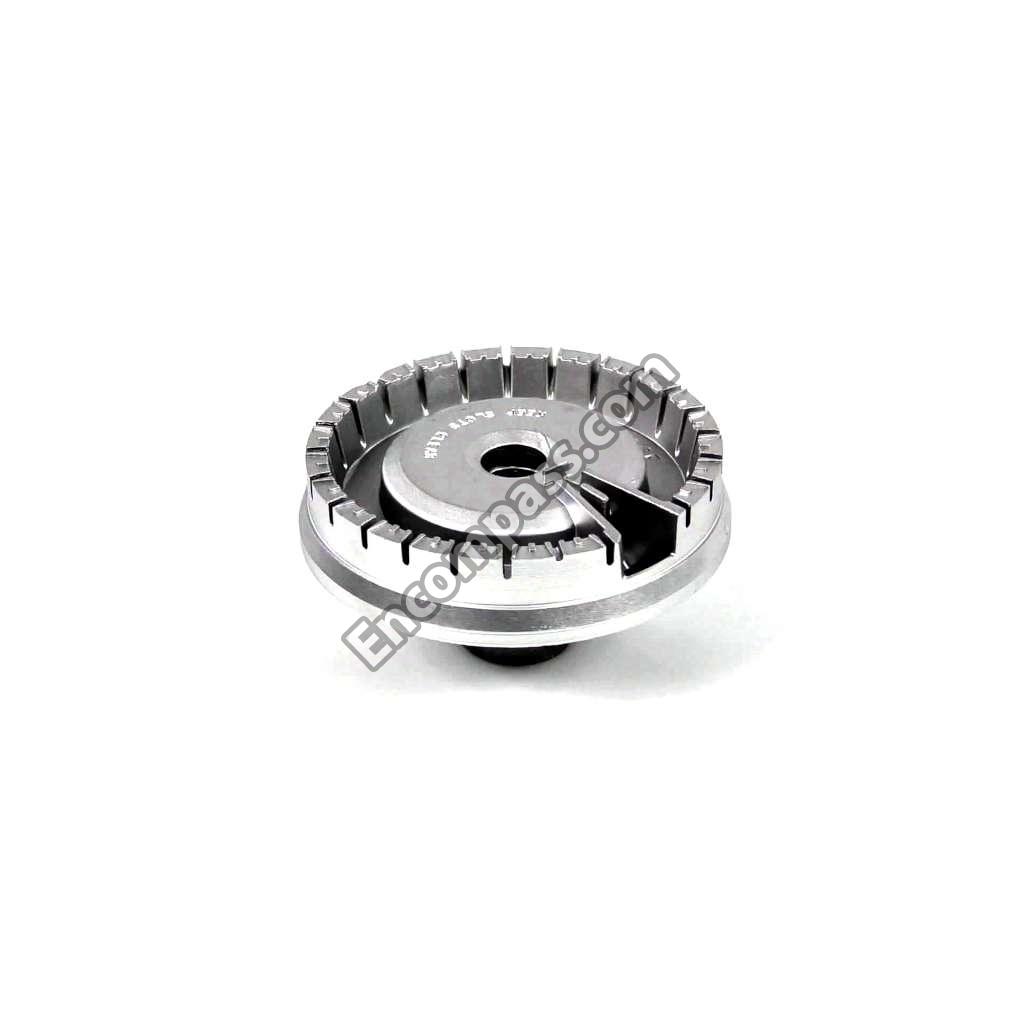

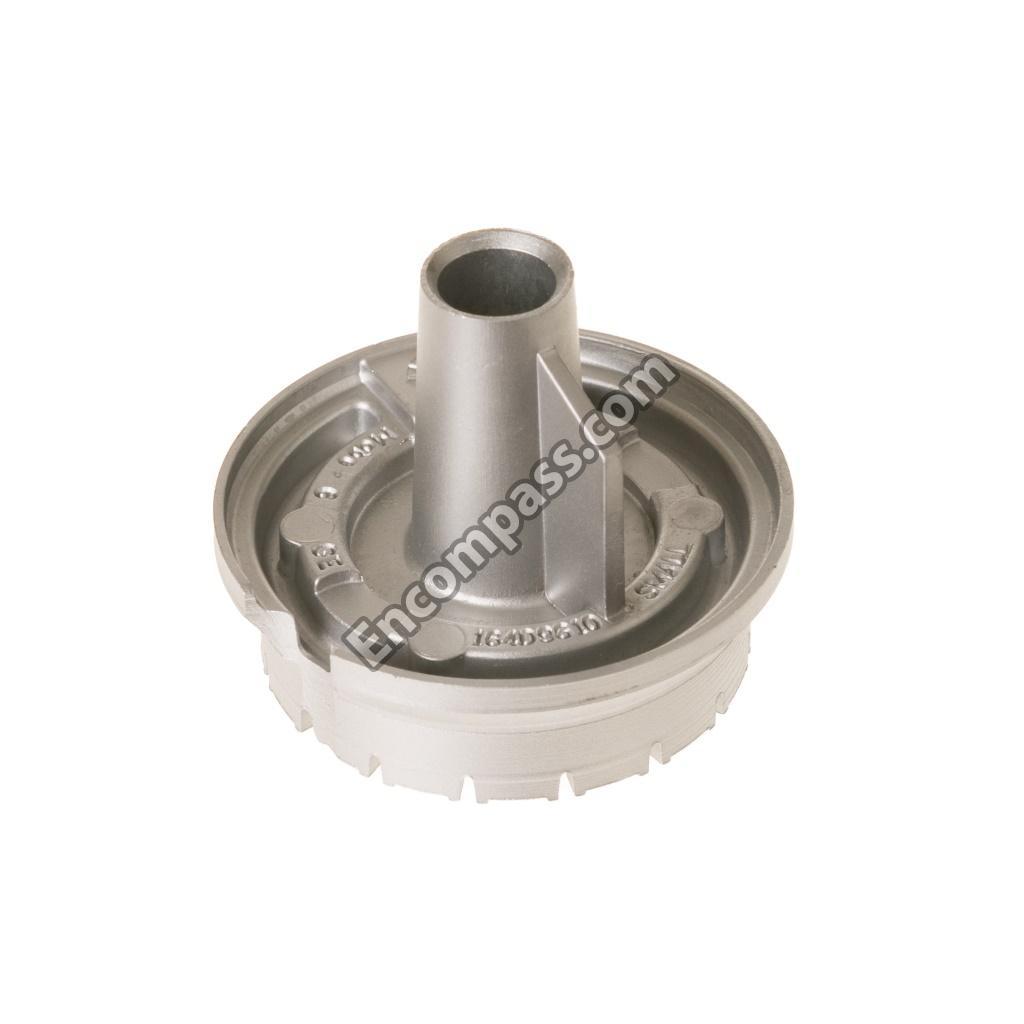

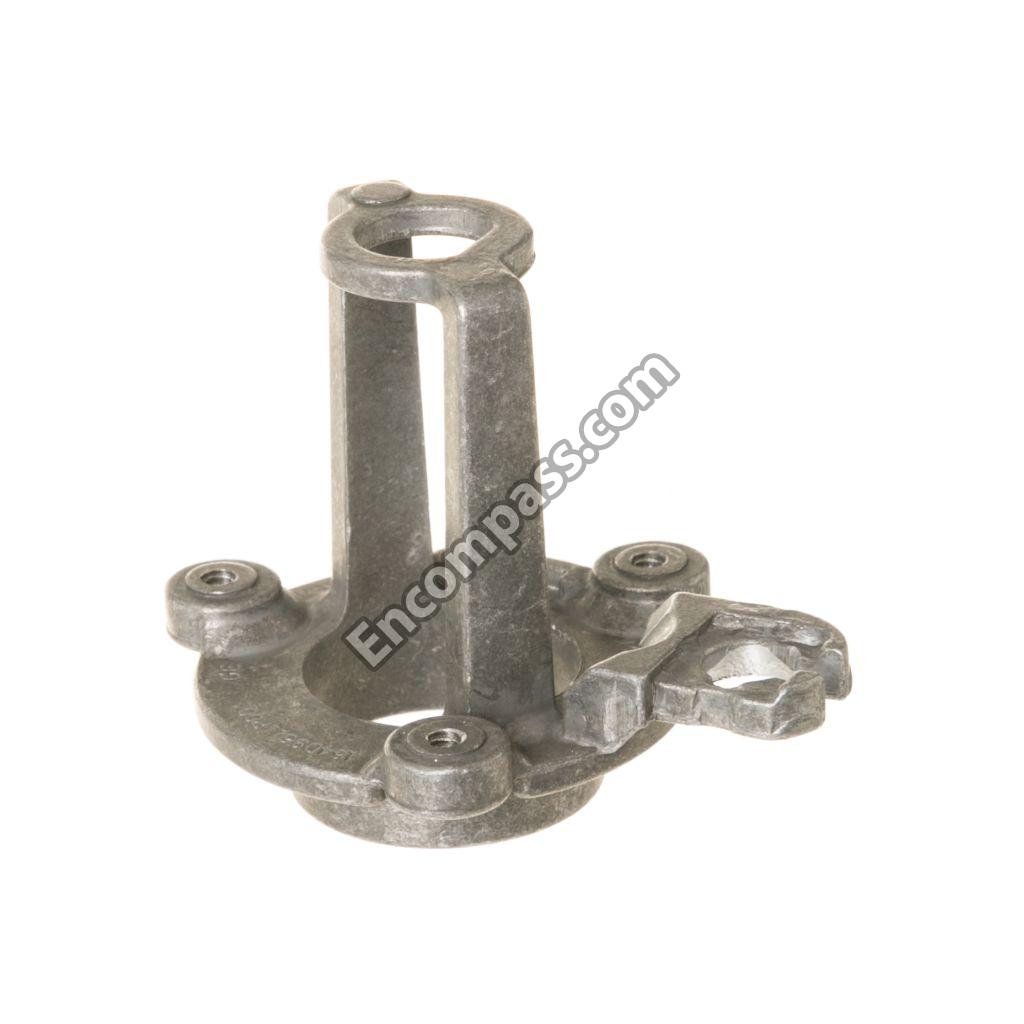

WB16X24723 WB16X24723 LARGE V2 BURNER

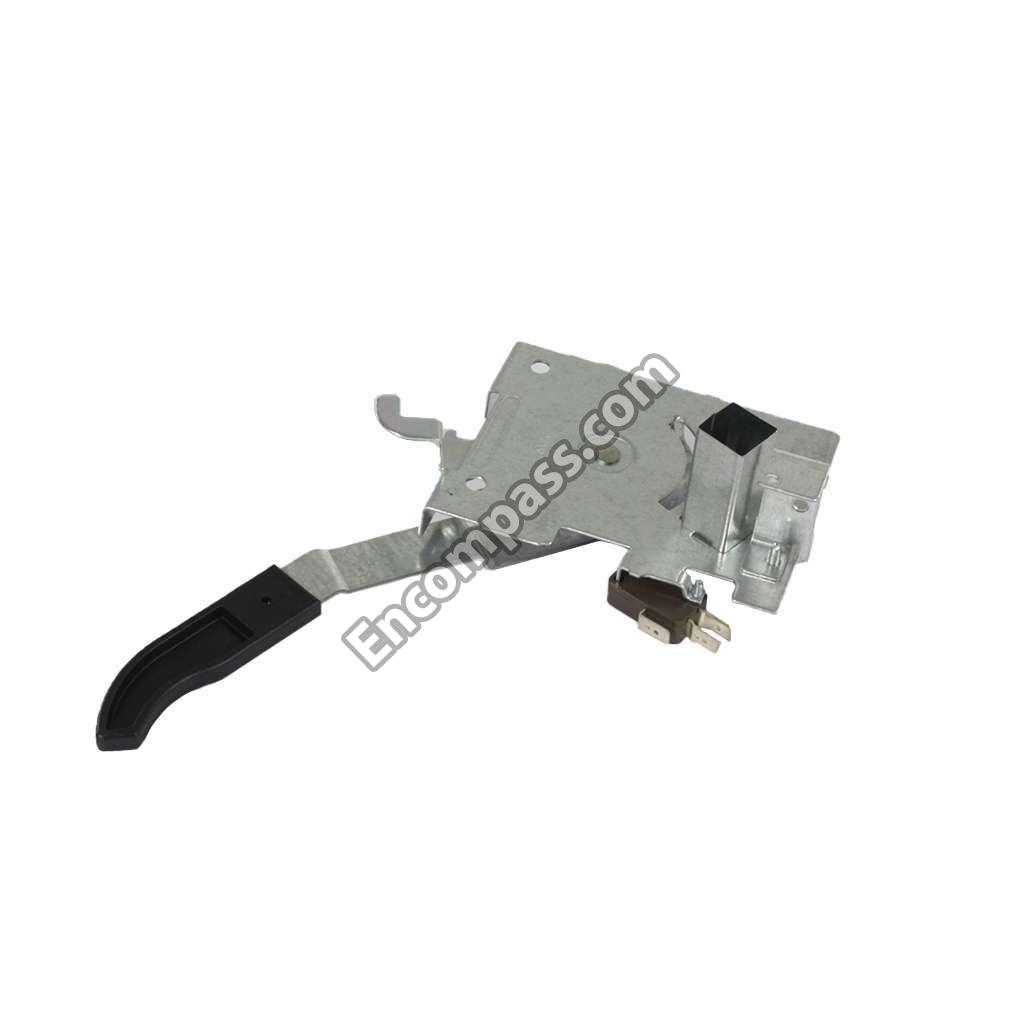

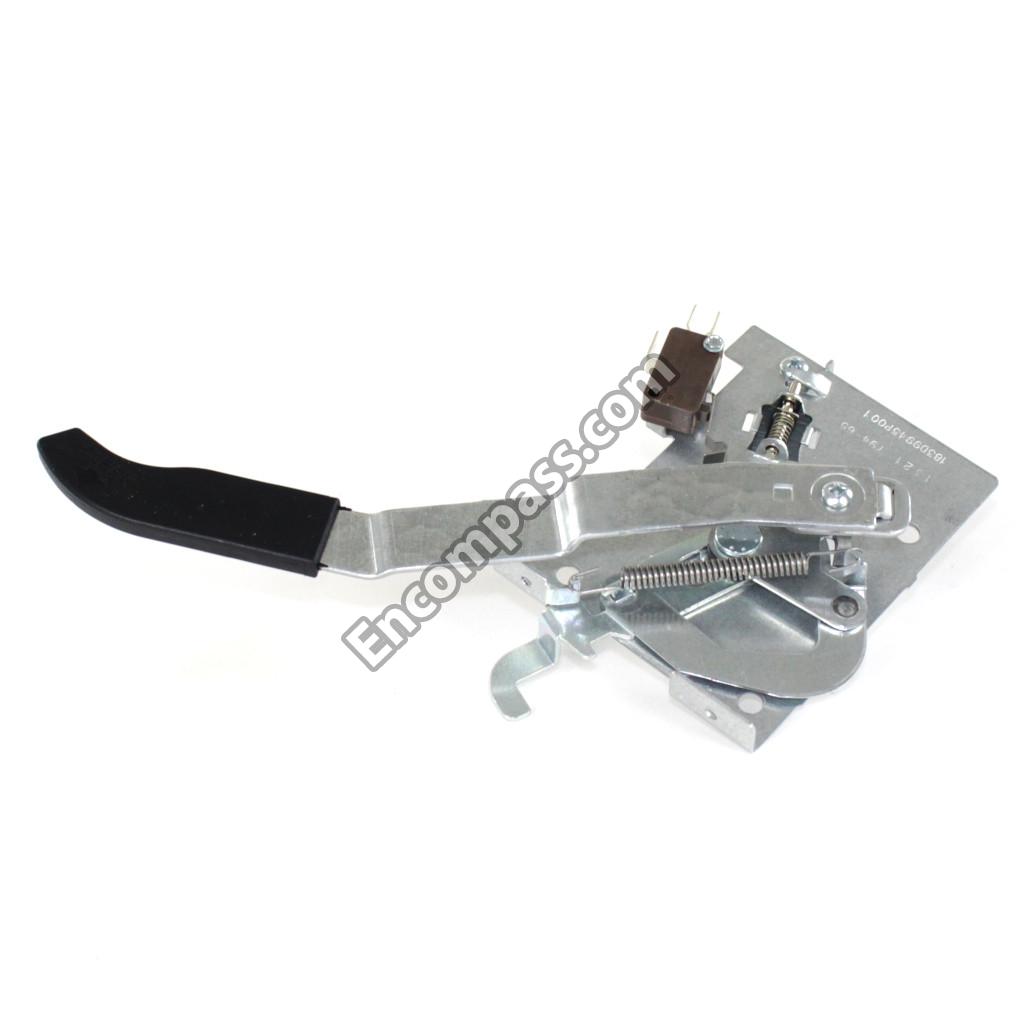

WB10X33060 WB10X33060 LATCH ASSEMBLY
WB02K10140 WB02K10140 LATCH ASSEMBLY
WB56X24855 WB56X24855 LINER ASSEMBLY WELD DOOR
WB28K10457 WB28K10457 MANIFOLD PIPE

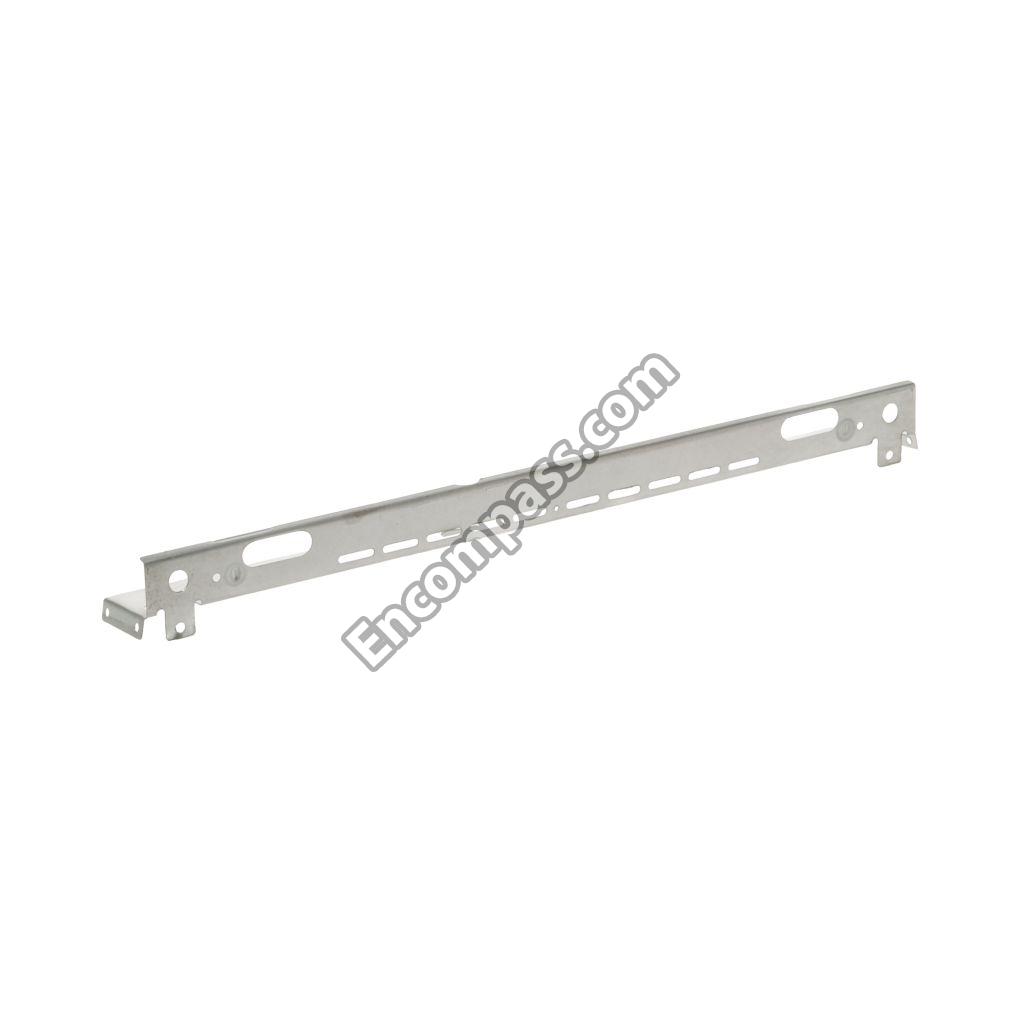

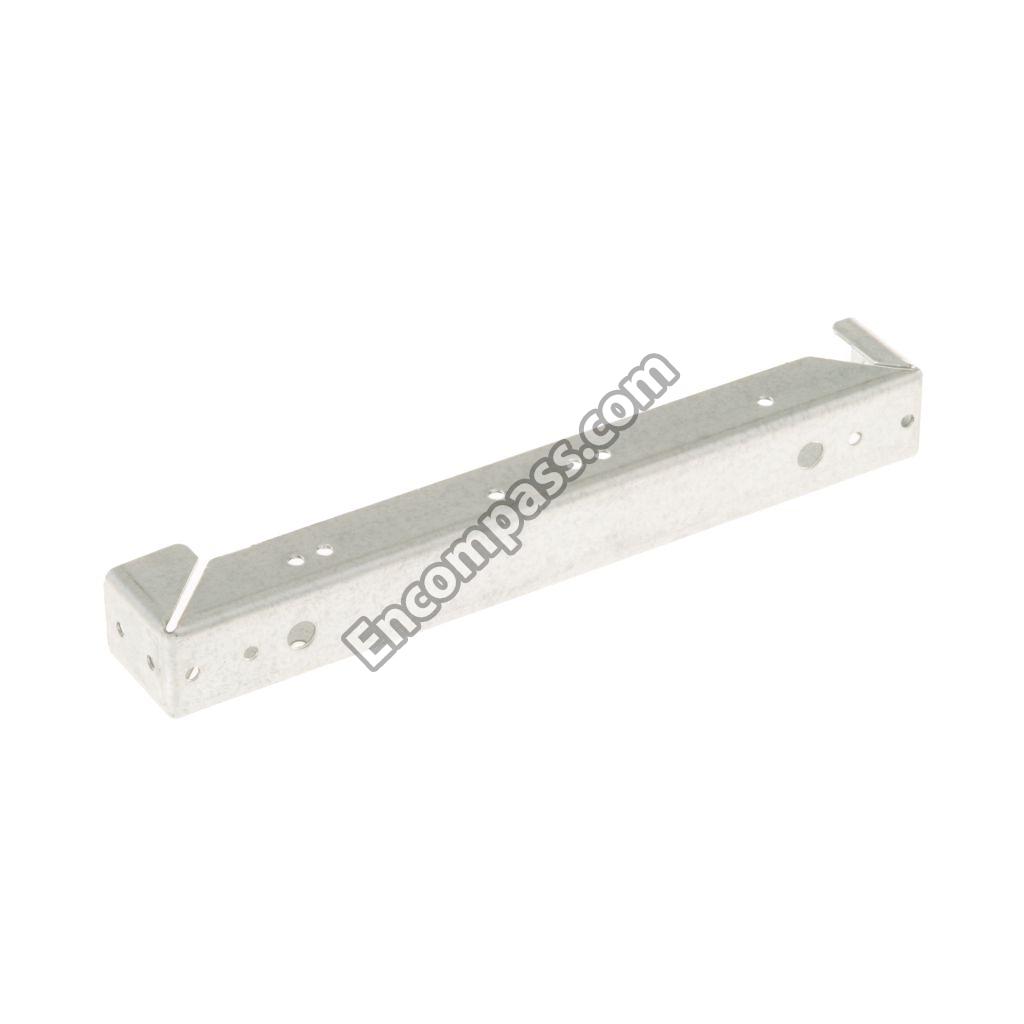

WB34X20680 WB34X20680 MANIFOLD SUPPORT
WB16X24724 WB16X24724 MEDIUM V2 BURNER

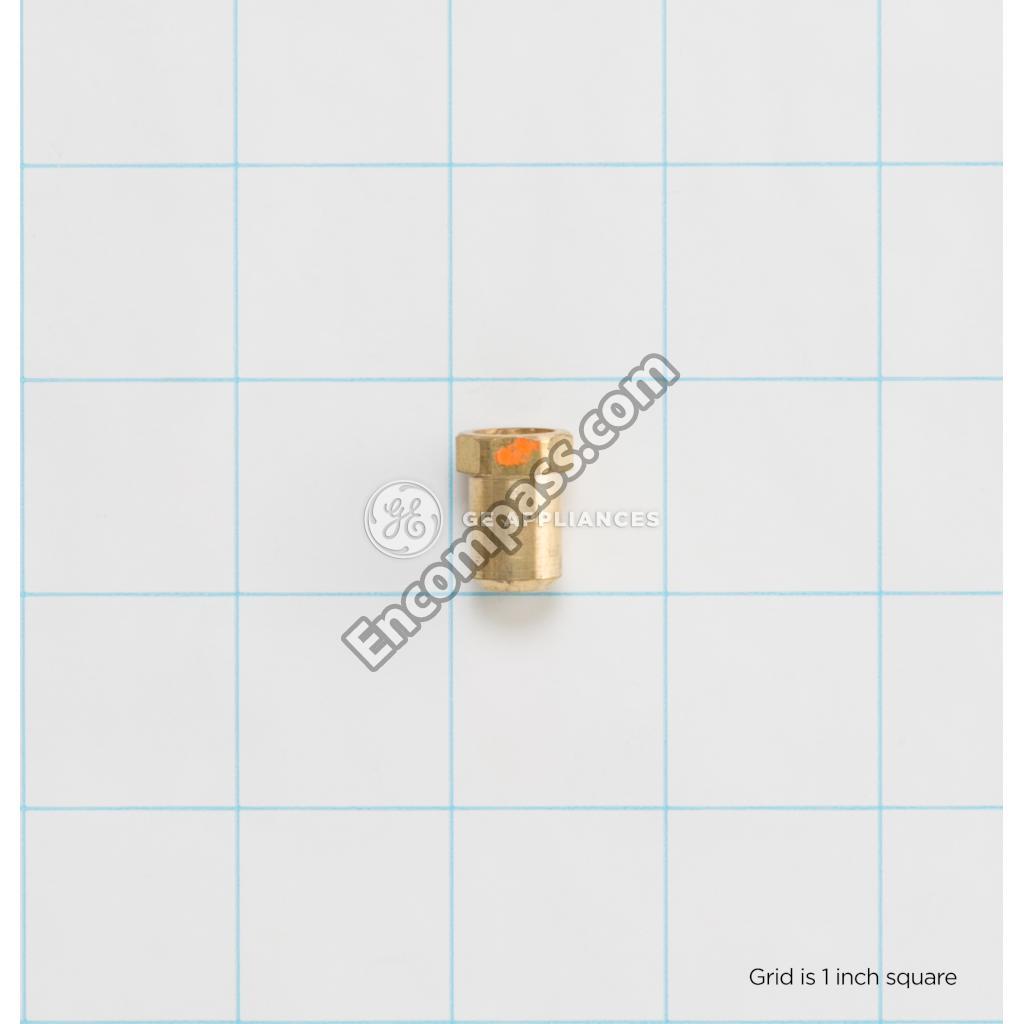

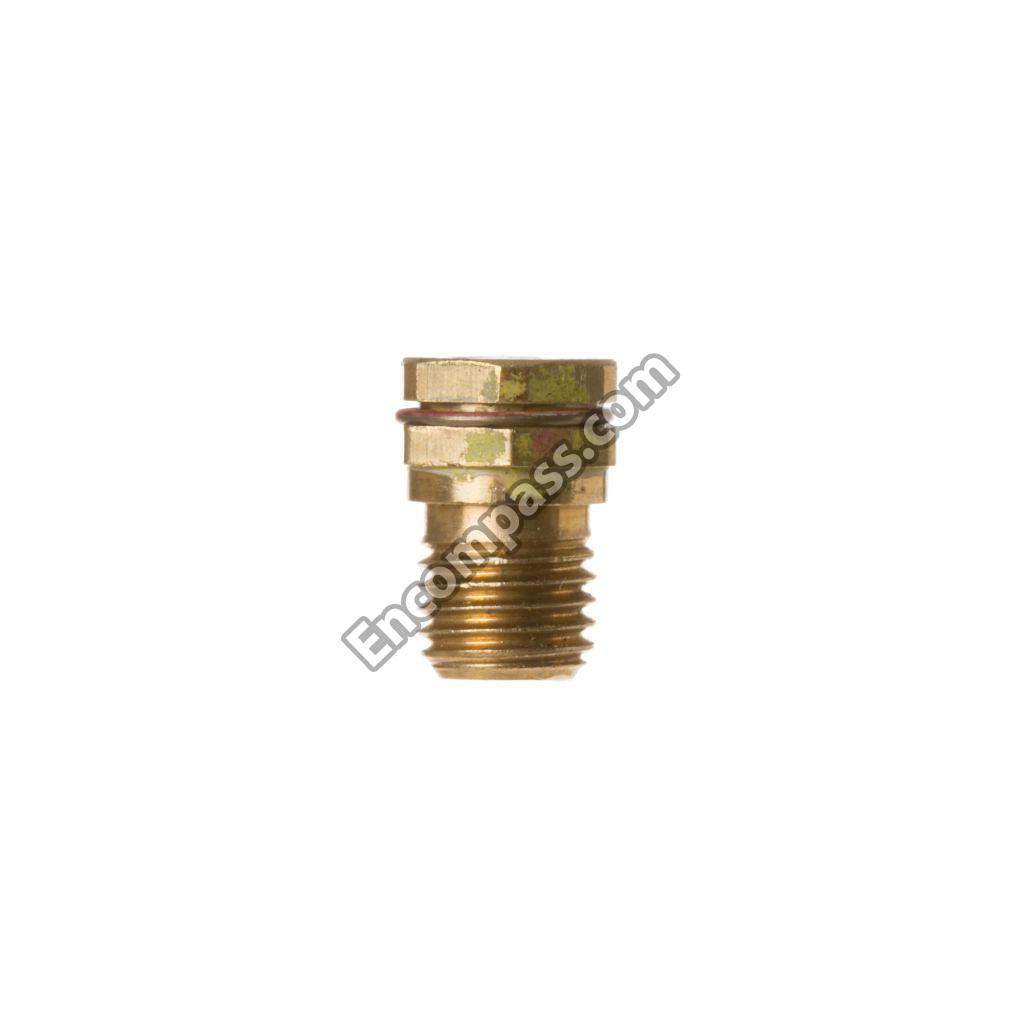

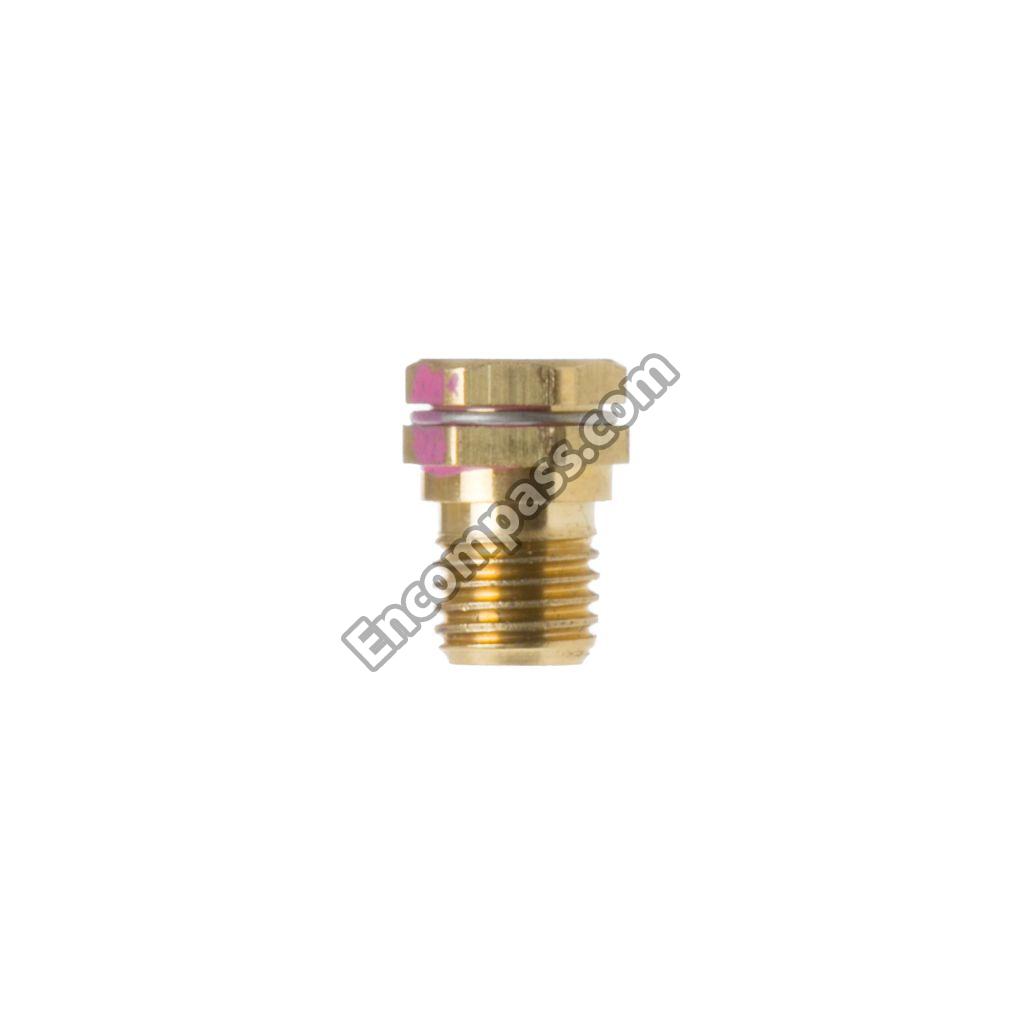

WB28K10834 WB28K10834 ORIFICE SPUD
WB28K10032 WB28K10032 ORIFICE-LP LG 99MM
WB63X20289 WB63X20289 OVEN BACK
WB53K10035 WB53K10035 OVEN SIDE LEFT
WB53K10034 WB53K10034 OVEN SIDE RIGHT
WB53K10015 WB53K10015 OVEN TOP
WB55K10033 WB55K10033 PANEL ASSEMBLY WELD
WB56X20809 WB56X20809 PANEL BACKER
WB56X24797 WB56X24797 PANEL DRAWER
WB63K10203 WB63K10203 PANEL REAR BROIL
WB56X29122 WB56X29122 PANEL SIDE
31-11018 31-11018 PM BUTANE INSTRUCTIONS
49-85224 49-85224 PM GAS QUICK GUIDE
31-10893 31-10893 PM INSTALL INSTRUCTIONS
31-11150 31-11150 PM INSTALL INSTRUCTIONS
31-17309 31-17309 PM MANUAL MINI & WD ASM
31-11015 31-11015 PM NG HA INSTRUCTIONS
WB39K0016 WB39K0016 RAIL DRAWER
WB63X20207 WB63X20207 RANGE BACK
WB07X20278 WB07X20278 RANGE BACK END SUPPORT
WB07X20288 WB07X20288 RANGE BARRIER DOOR
WB63K10187 WB63K10187 RANGE BOTTOM INNER GUARD
WB07K10250 WB07K10250 RANGE BOTTOM TRIM ASSEMBLY - WHITE
WB2K32 WB2K32 RANGE BRACKET SUPPORT
WB16K10086 WB16K10086 RANGE BROIL BURNER

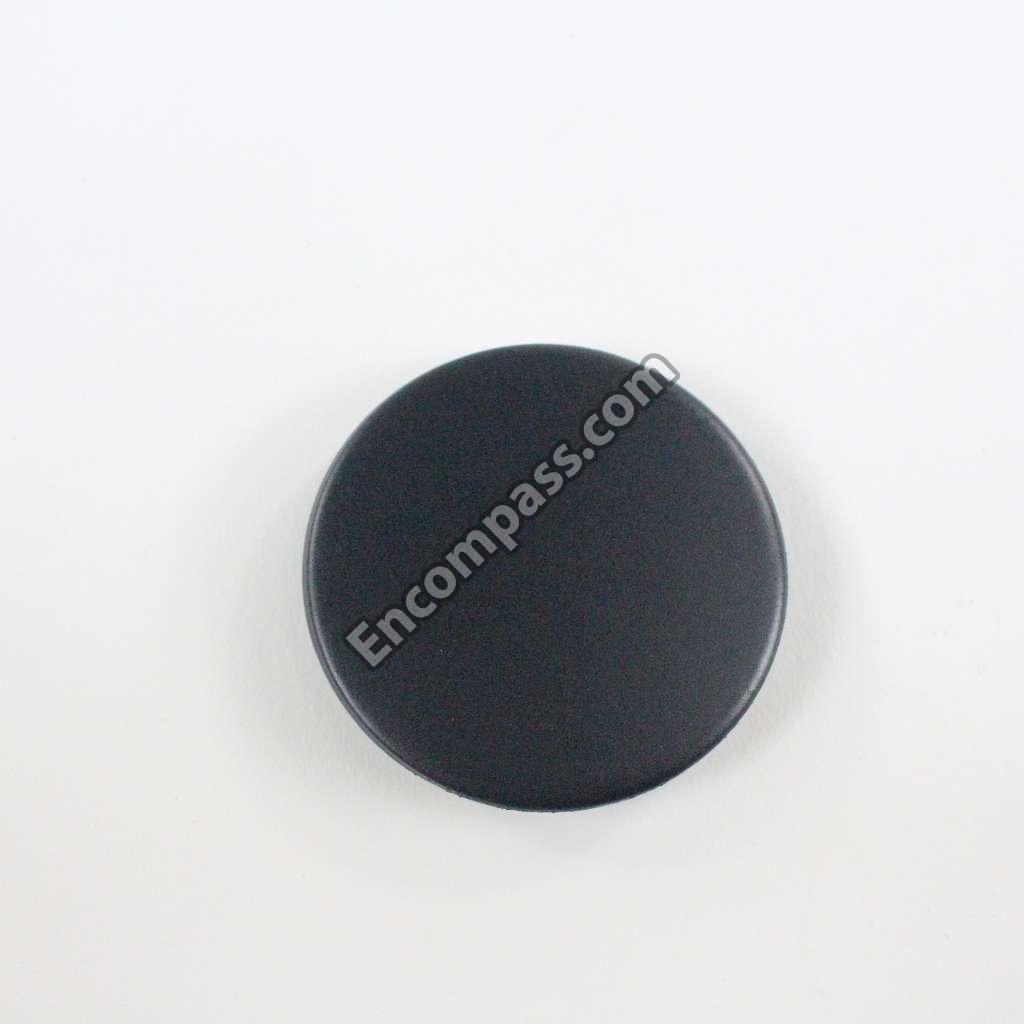

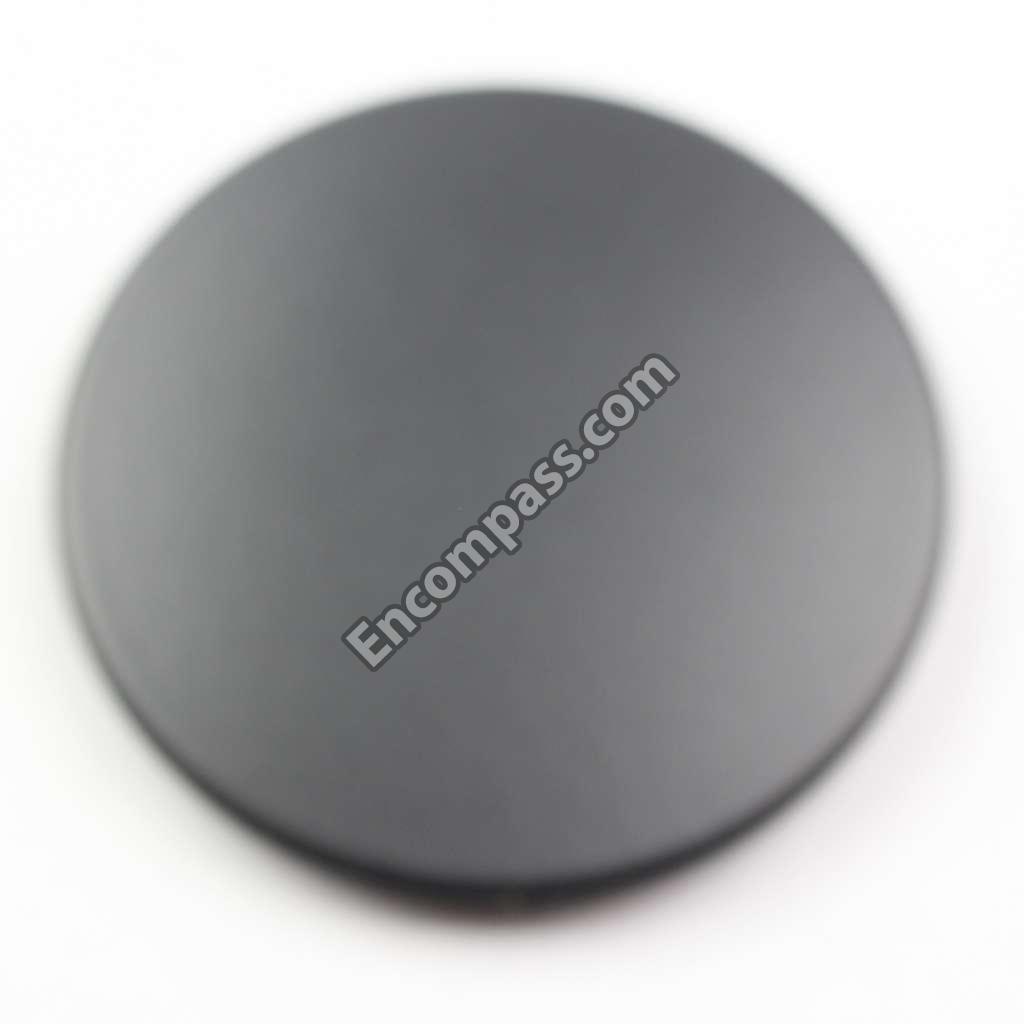

WB16X28654 WB16X28654 RANGE BURNER CAP - SMALL - V2

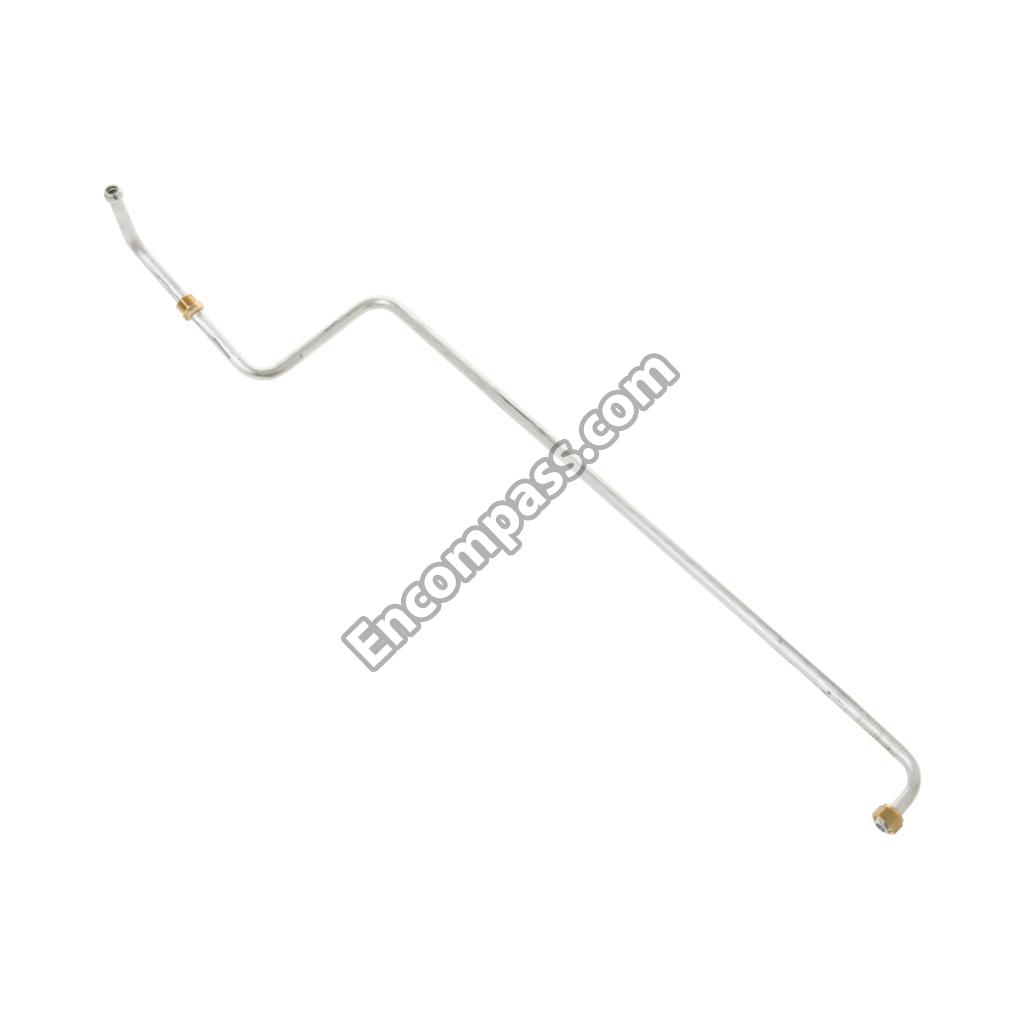

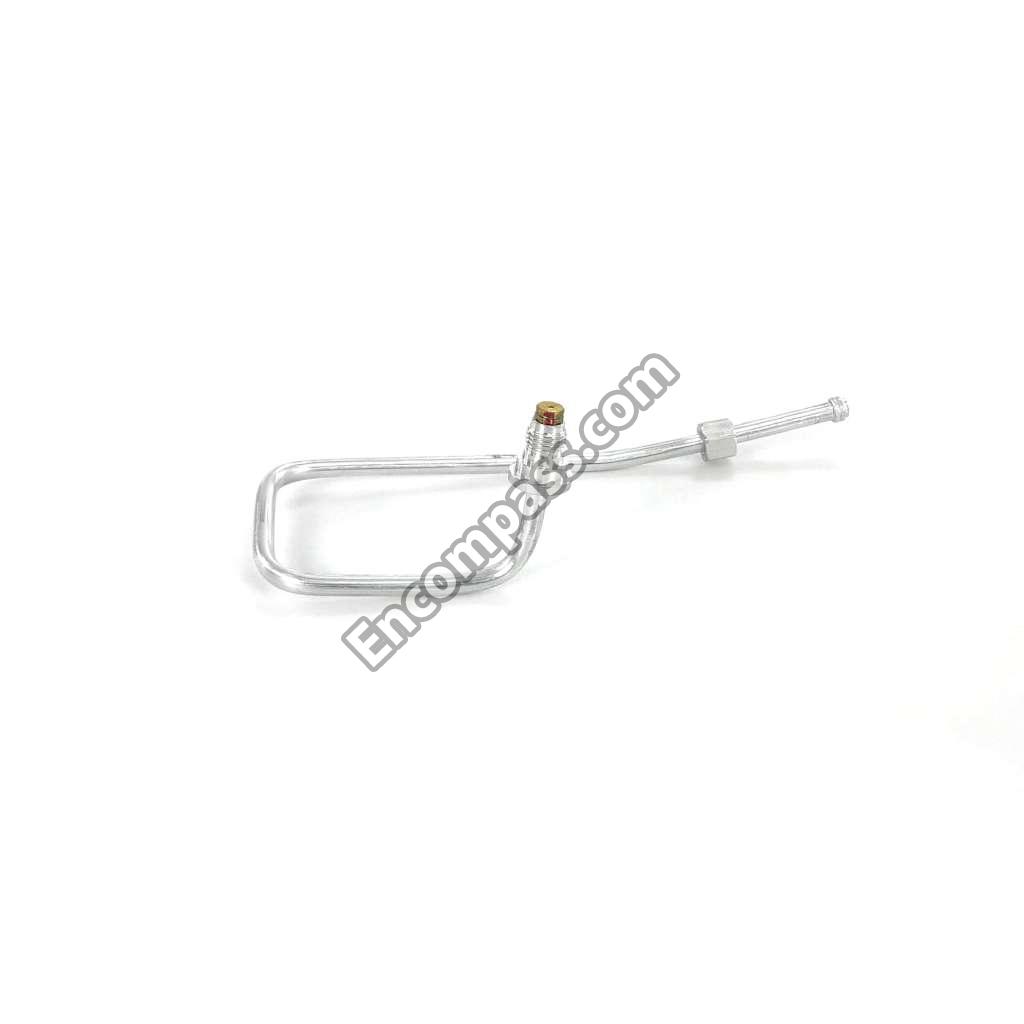

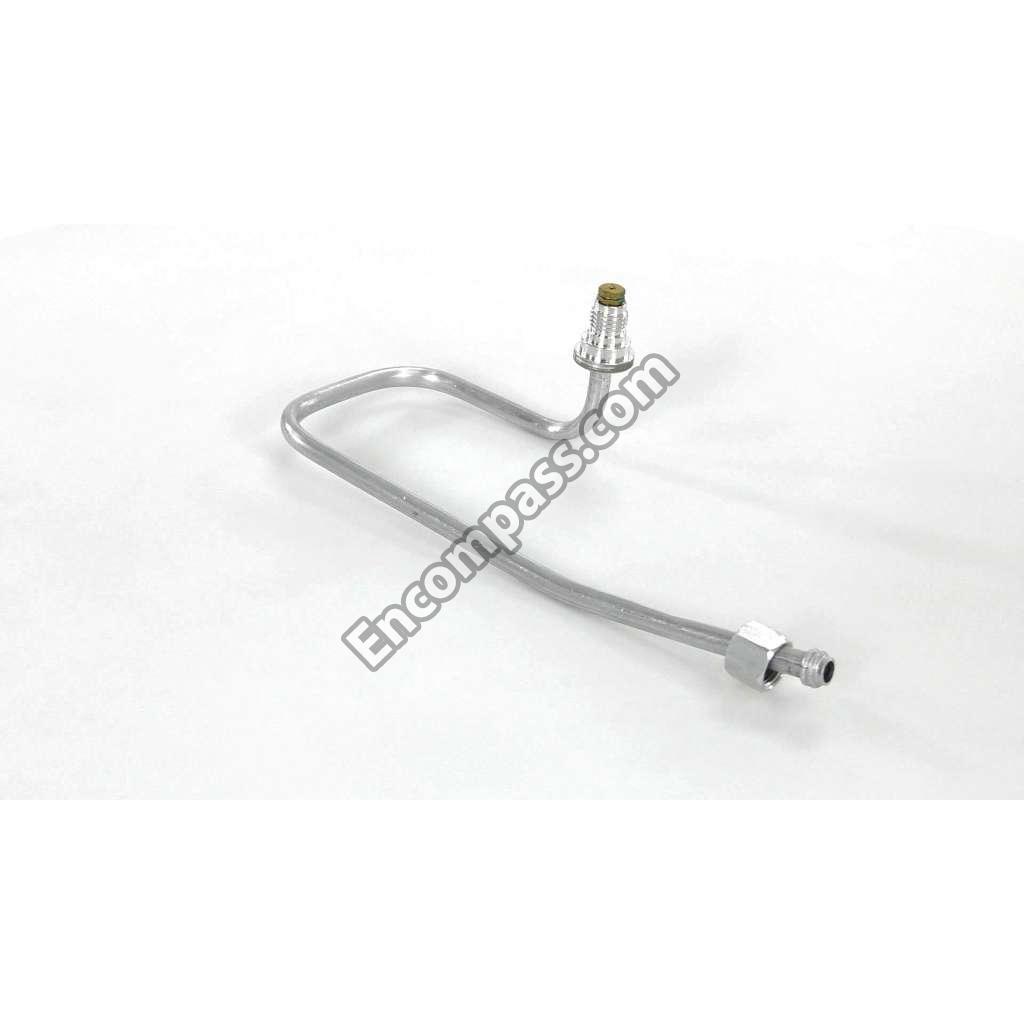

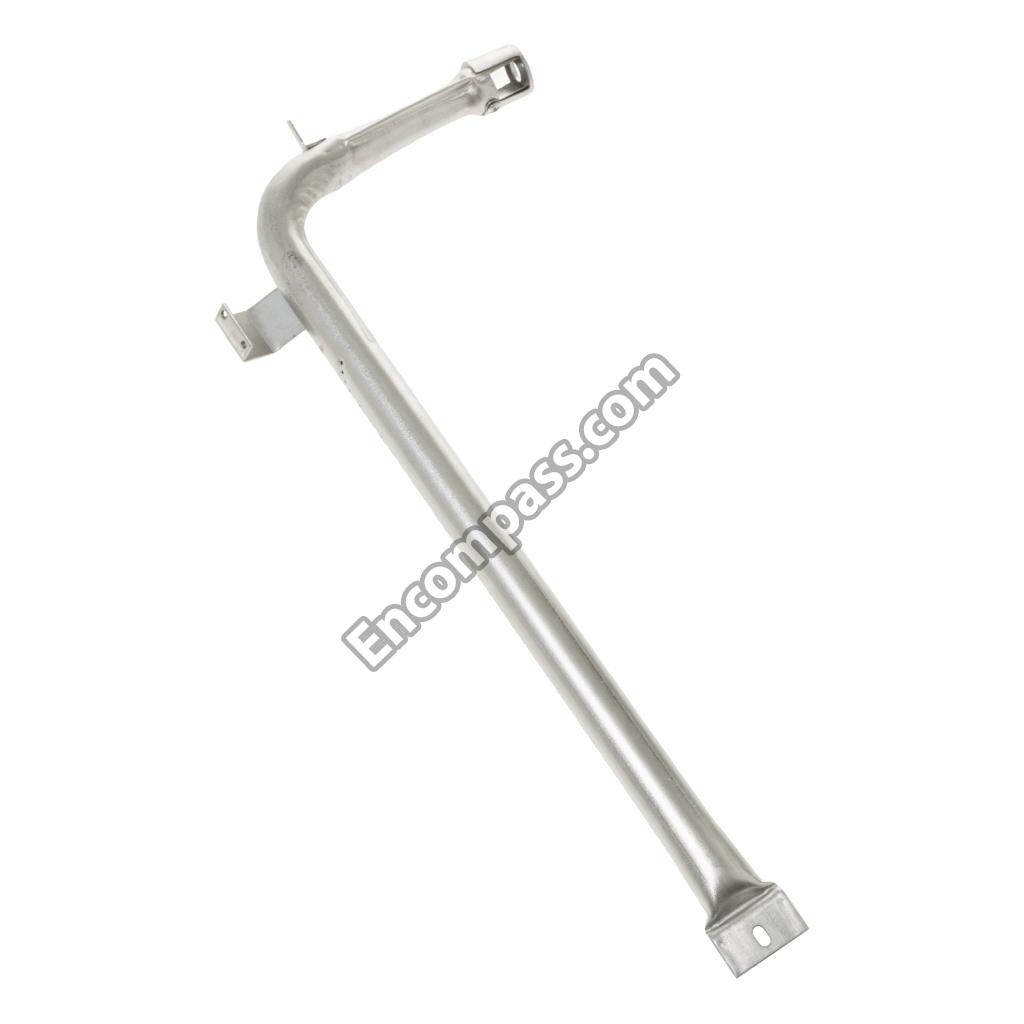

WB28X24773 WB28X24773 RANGE BURNER TUBE SUPPLY
WB02K10150 WB02K10150 RANGE CONTROL BRACKET
WB07X25206 WB07X25206 RANGE CONTROL PANEL - WHITE
WB49K10025 WB49K10025 RANGE DEFLECTOR

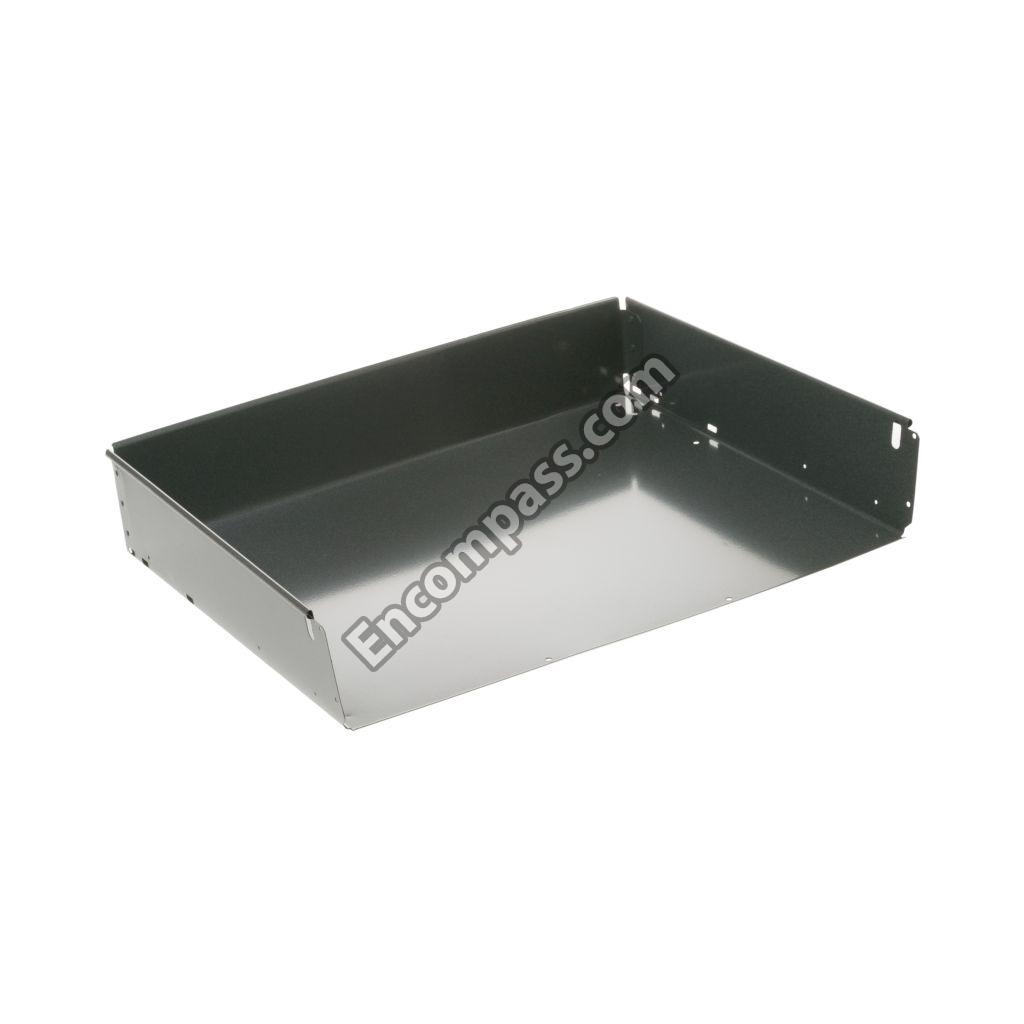

WB58K10015 WB58K10015 RANGE DRAWER BODY
WB02X24742 WB02X24742 RANGE DRAWER BRACKET

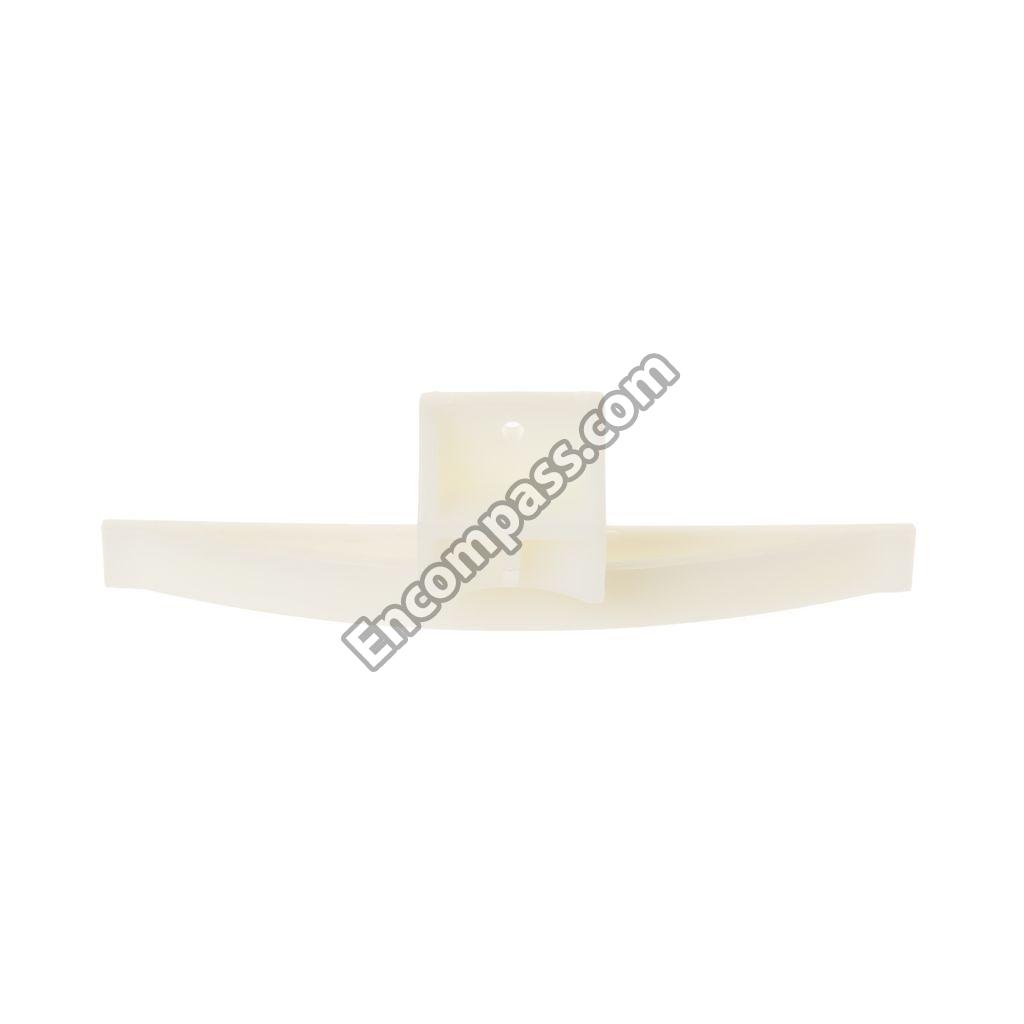

WB02X26847 WB02X26847 RANGE DRAWER GLIDER
WB39K16 WB39K16 RANGE DRAWER RAIL

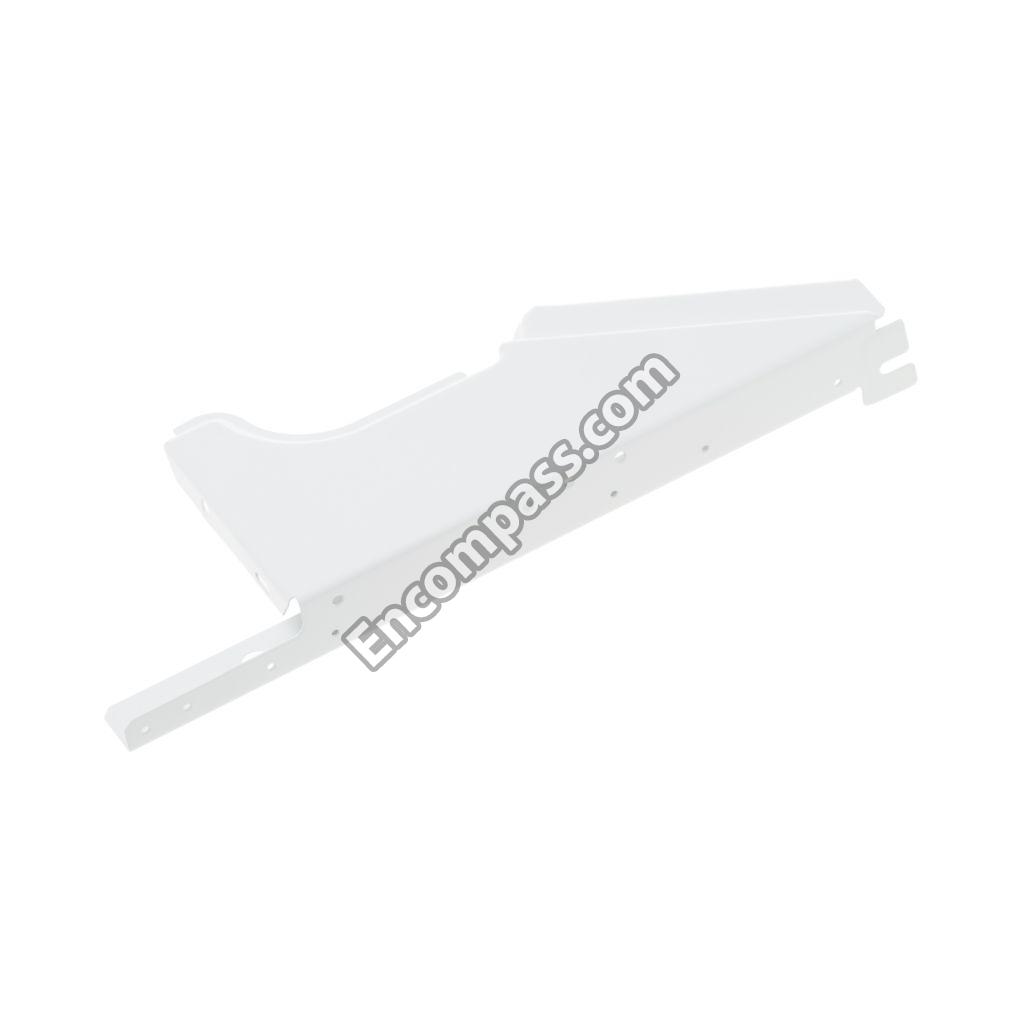

WB07X20277 WB07X20277 RANGE END SUPPORT - RIGHT - WHITE
WB28X29254 WB28X29254 RANGE HIGH ALTITUDE KIT - NP
WB10X20220 WB10X20220 RANGE HINGE RECEIVER
WB49X21392 WB49X21392 RANGE HINGE SERVICE KIT

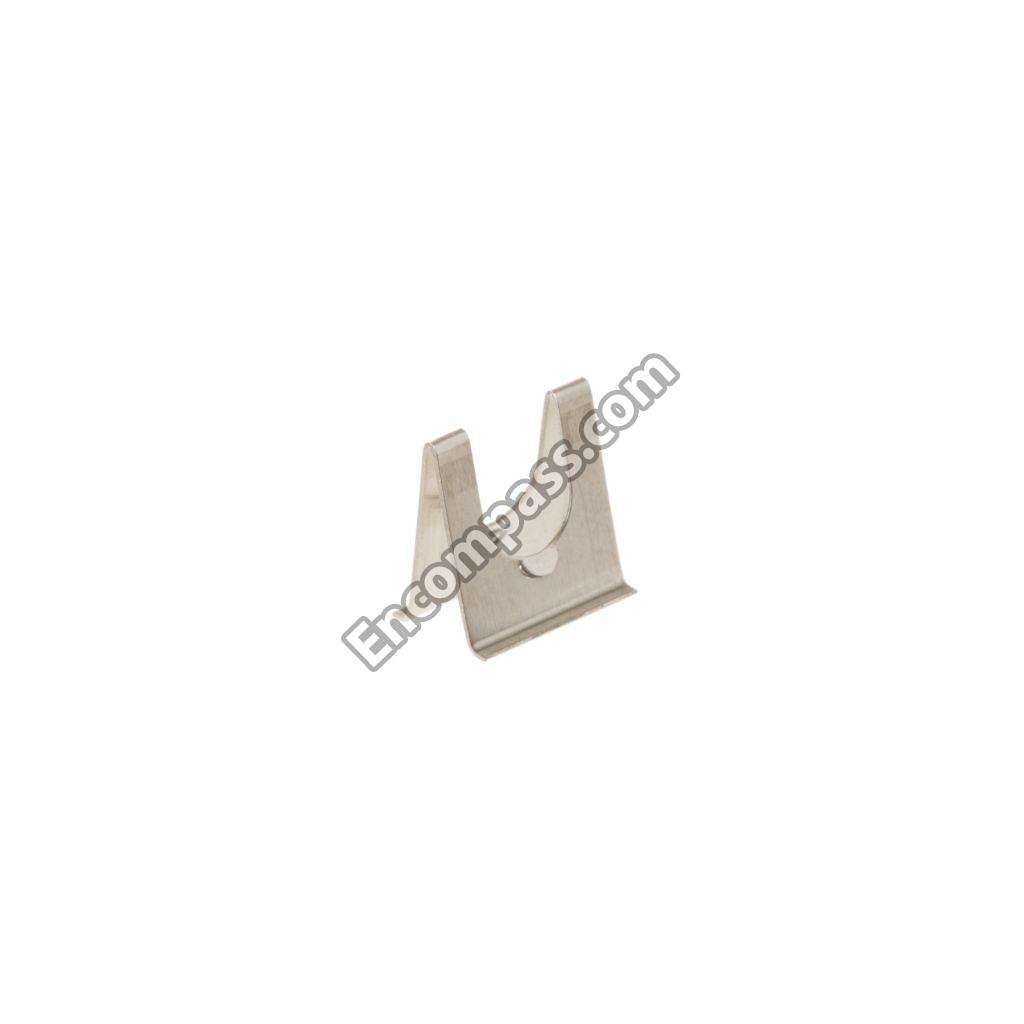

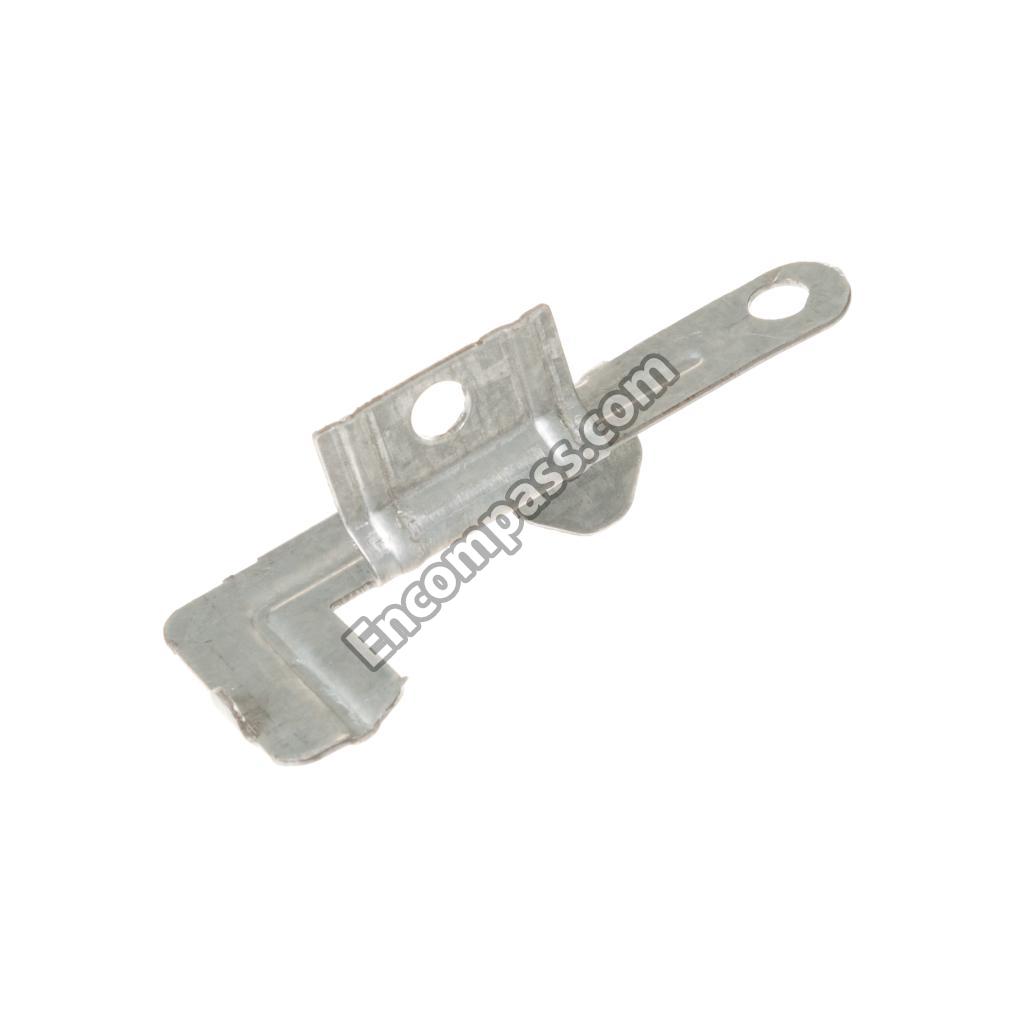

WB02X24976 WB02X24976 RANGE IGNITER CLIP V2
WB1X1293 WB1X1293 RANGE IGNITER MOUNTING SCREW

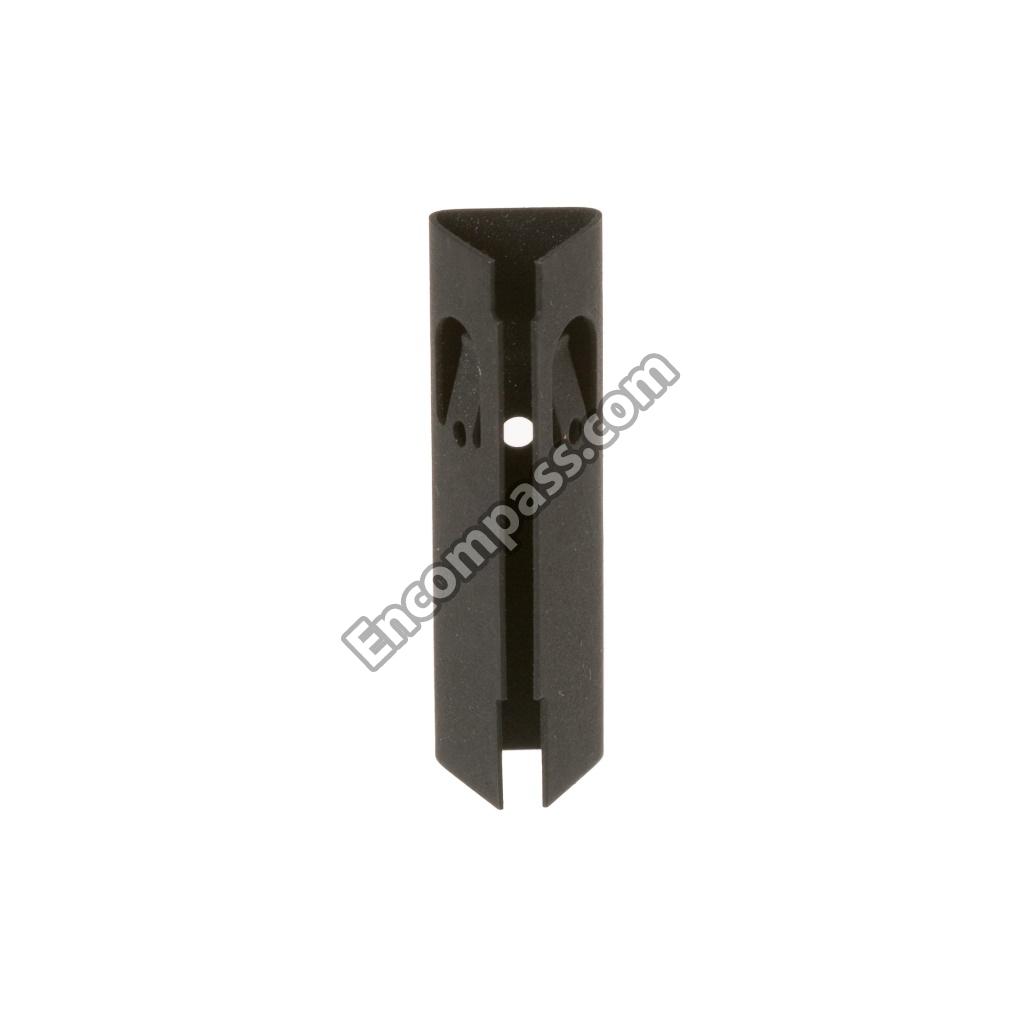

WB34X24753 WB34X24753 RANGE IGNITOR COVER

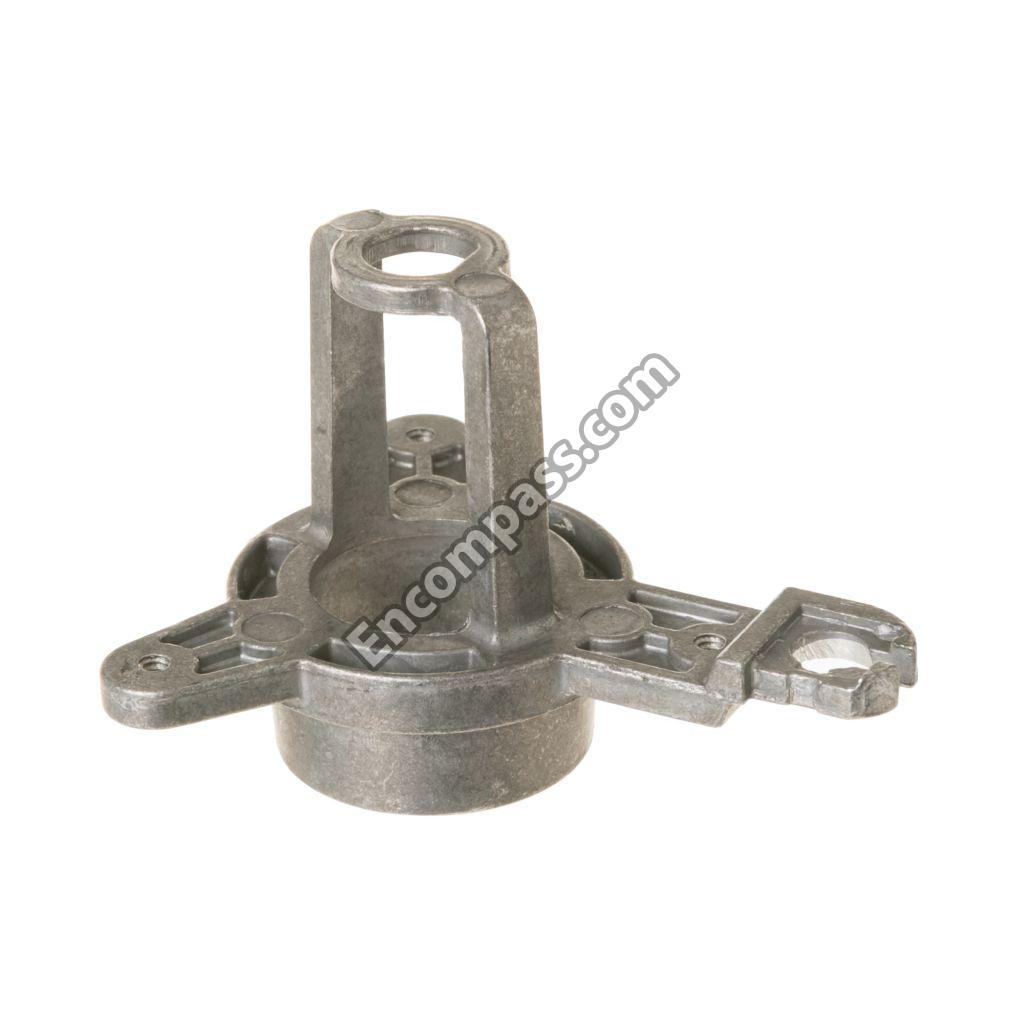

WB02X24726 WB02X24726 RANGE INJET LARGE

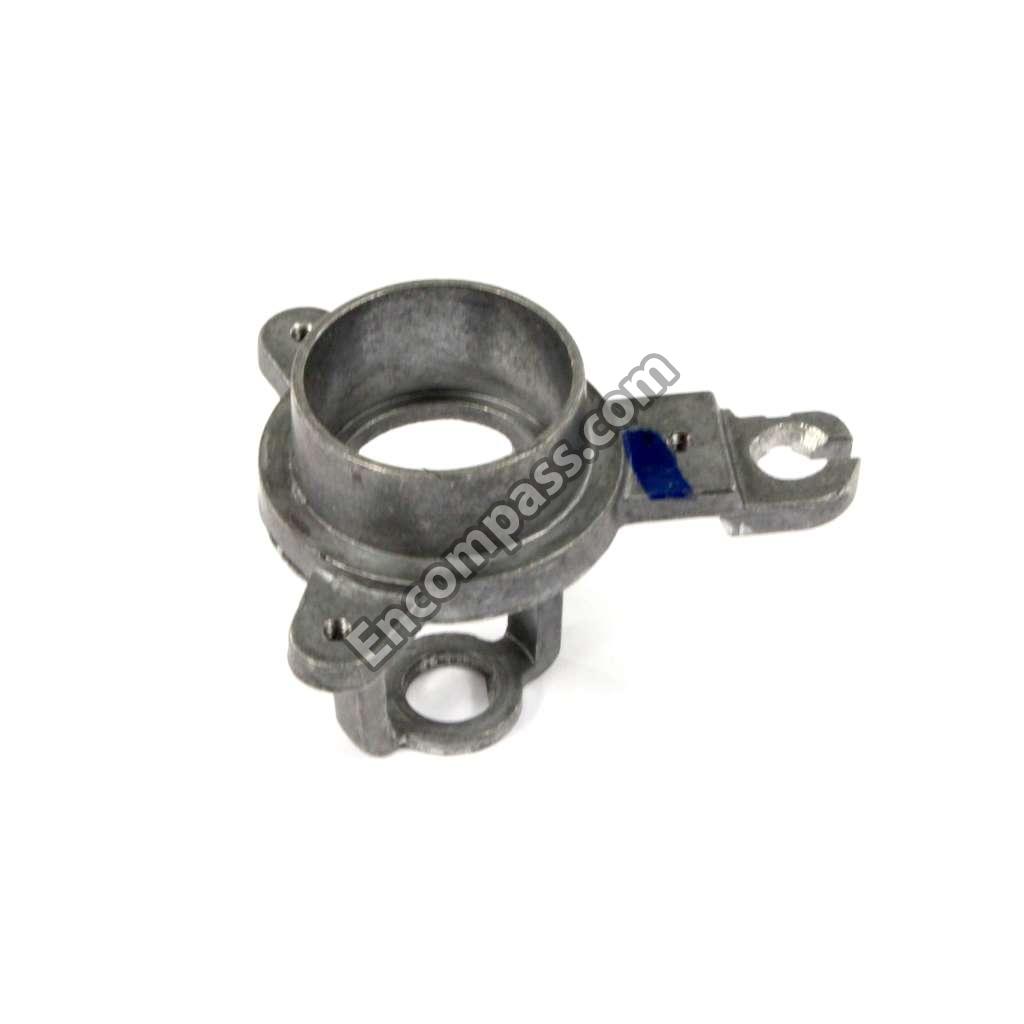

WB02X24727 WB02X24727 RANGE INJET MEDIUM
WB02X24728 WB02X24728 RANGE INJET SMALL

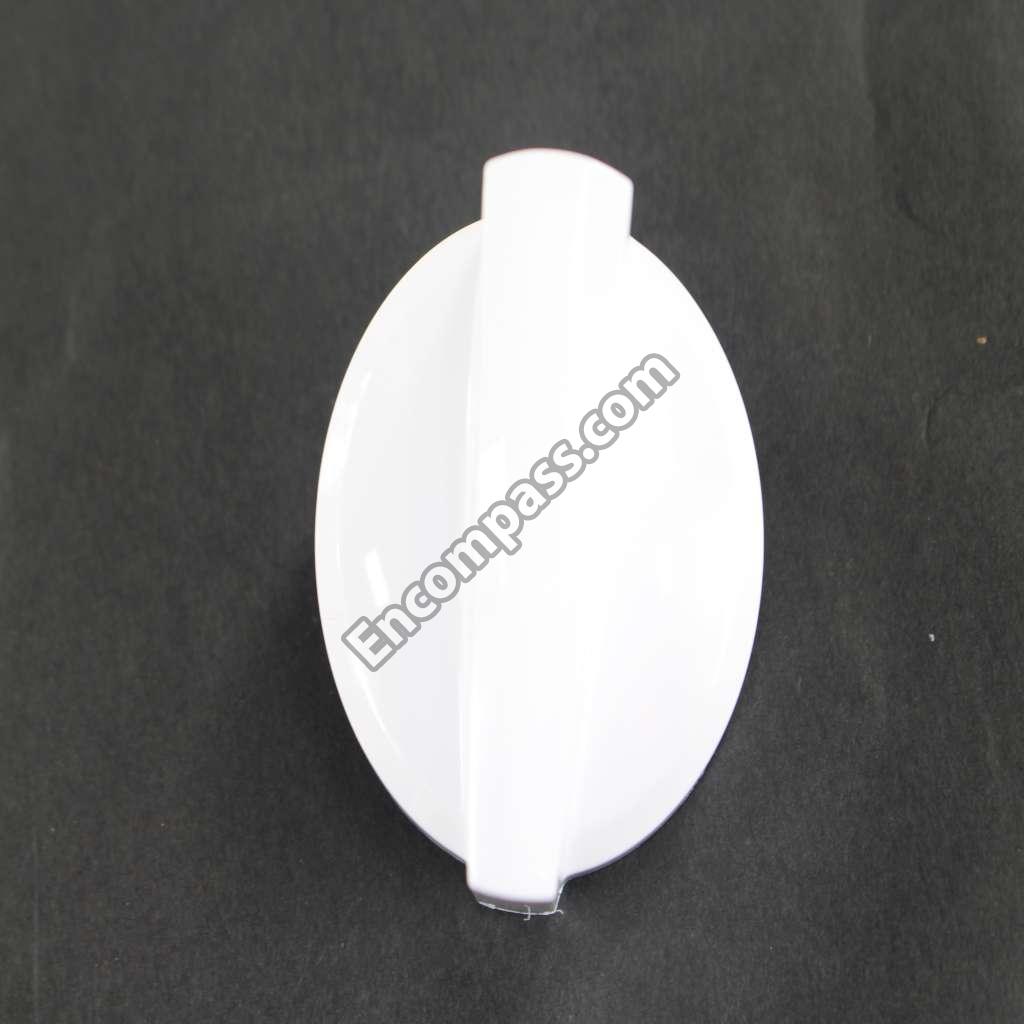

WB03X21228 WB03X21228 RANGE KNOB - WHITE

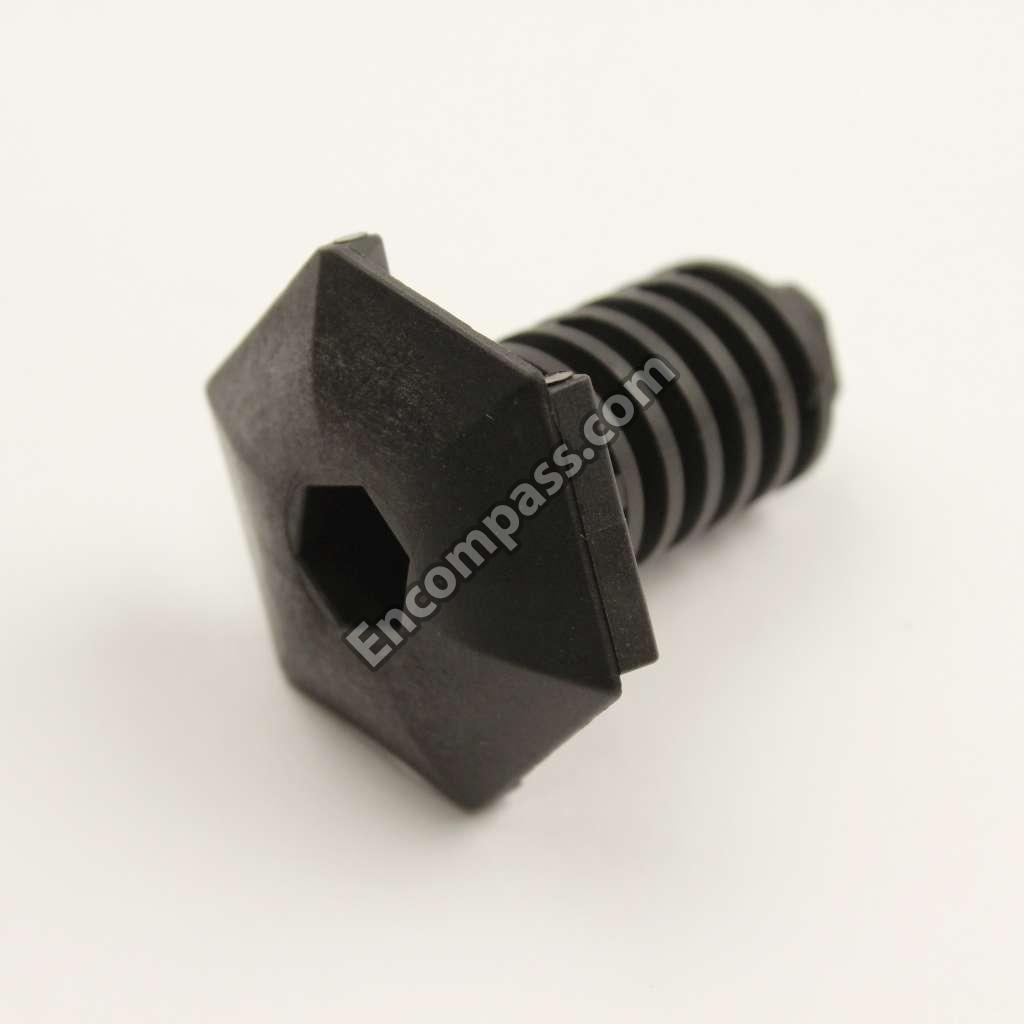

WB02K10182 WB02K10182 RANGE LEVELING LEG
WB34K10086 WB34K10086 RANGE LOWER HEAT SHIELD
WB35X20370 WB35X20370 RANGE OVEN BACK INSULATION
WB36X192 WB36X192 RANGE OVEN BULB COVER
WB32K5 WB32K5 RANGE OVEN GASKET
WB13K21 WB13K21 RANGE OVEN IGNITER
WB28X26089 WB28X26089 RANGE OVEN ORIFICE SPUD

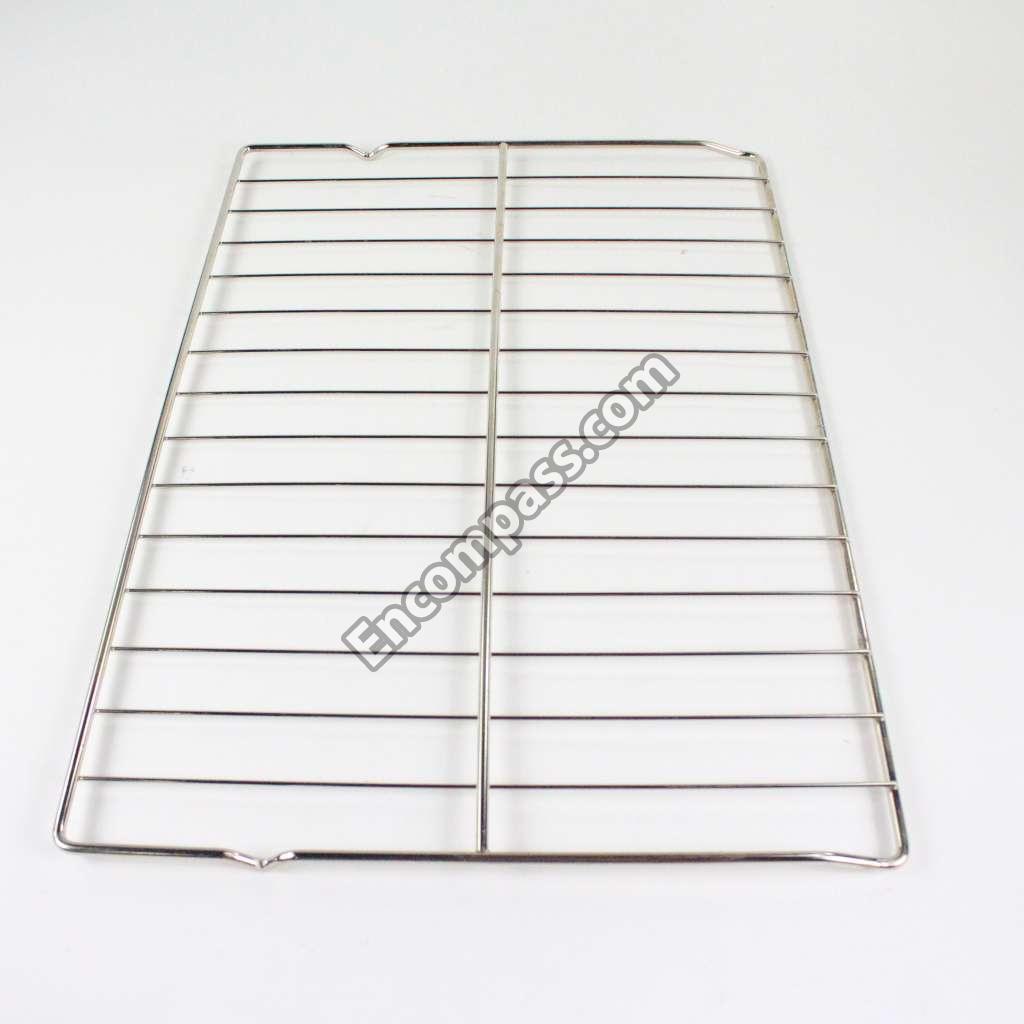

WB48X20249 WB48X20249 RANGE OVEN RACK
WB63K16 WB63K16 RANGE PANEL

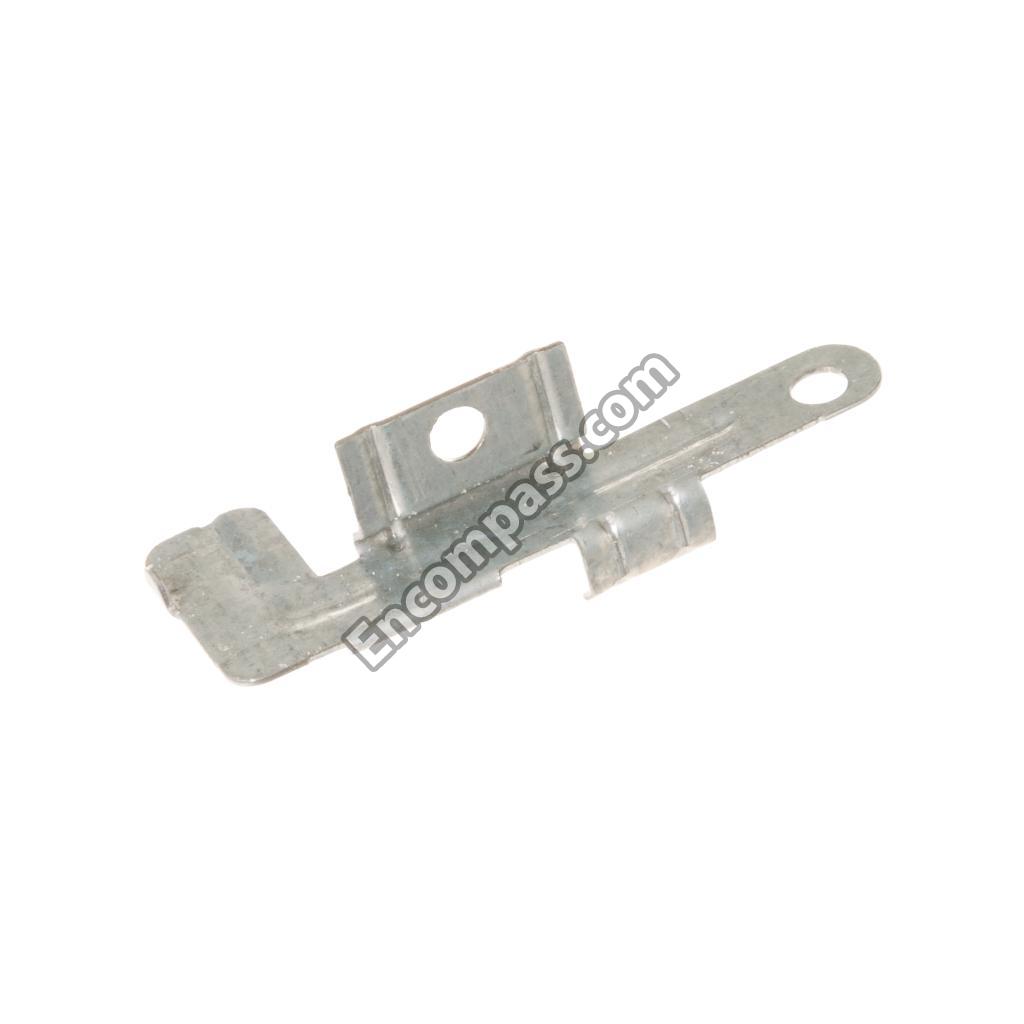

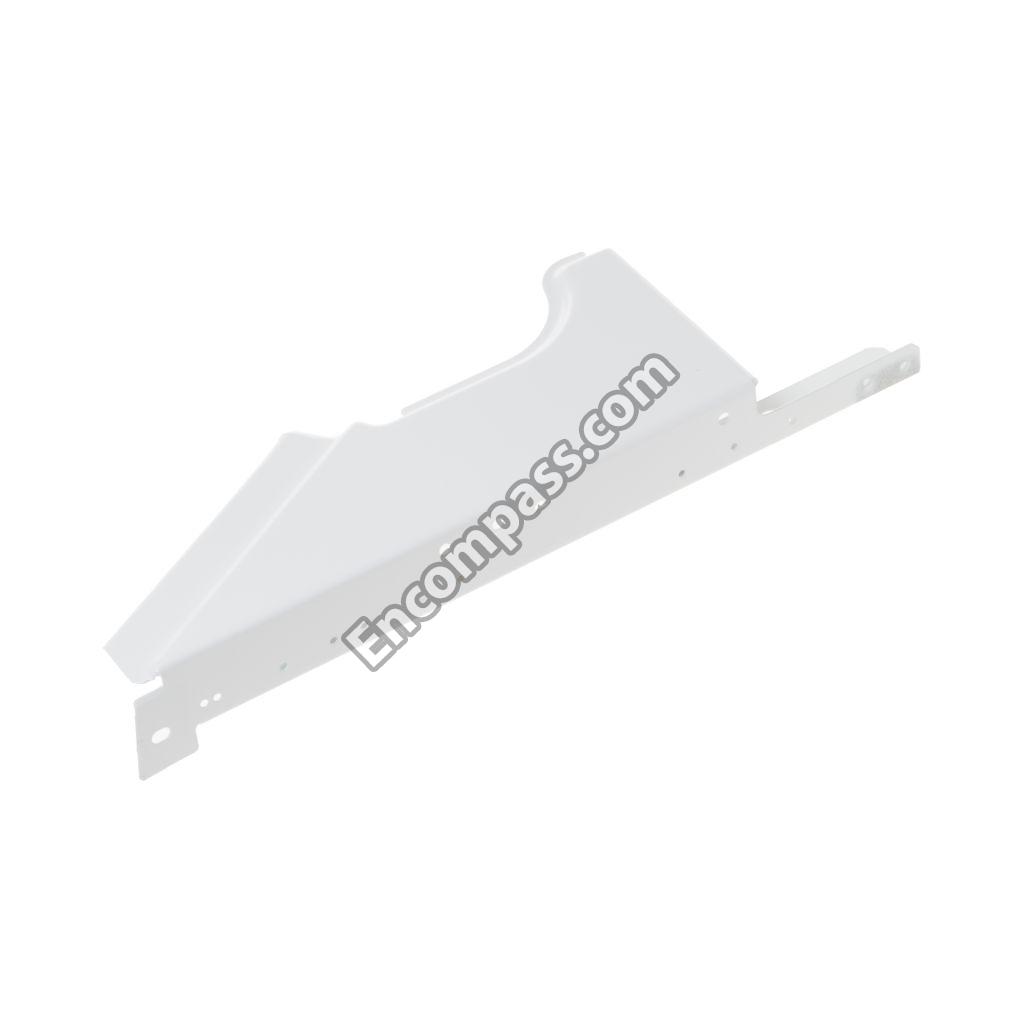

WB02X24940 WB02X24940 RANGE SIDE MANIFOLD BRACKET
WB02X24939 WB02X24939 RANGE SIDE MANIFOLD BRACKET
WB02X20849 WB02X20849 RANGE SIDE SPACER

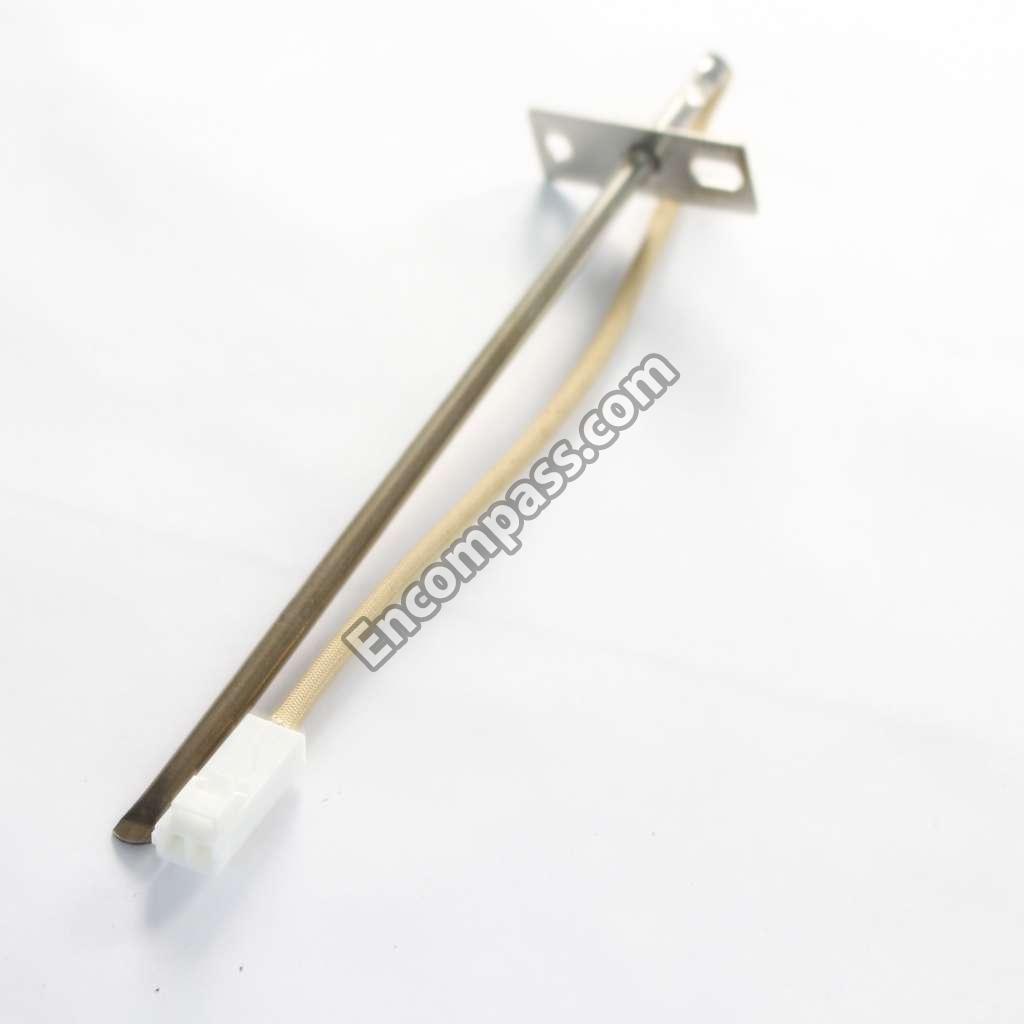

WB20K10027 WB20K10027 RANGE TEMPERATURE SENSOR
WB01K10097 WB01K10097 RANGE THERMOSTAT SCREW
WB63K15 WB63K15 RANGE VENT BRACE

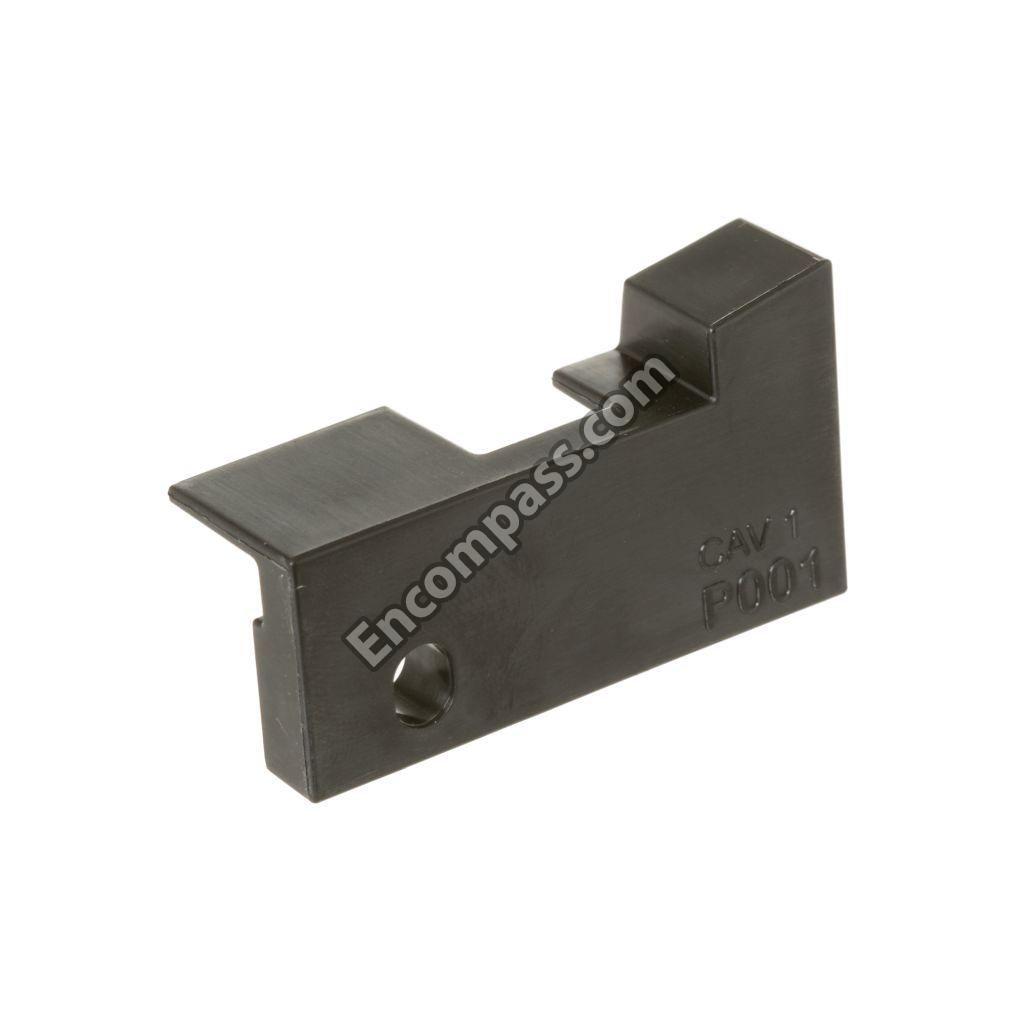

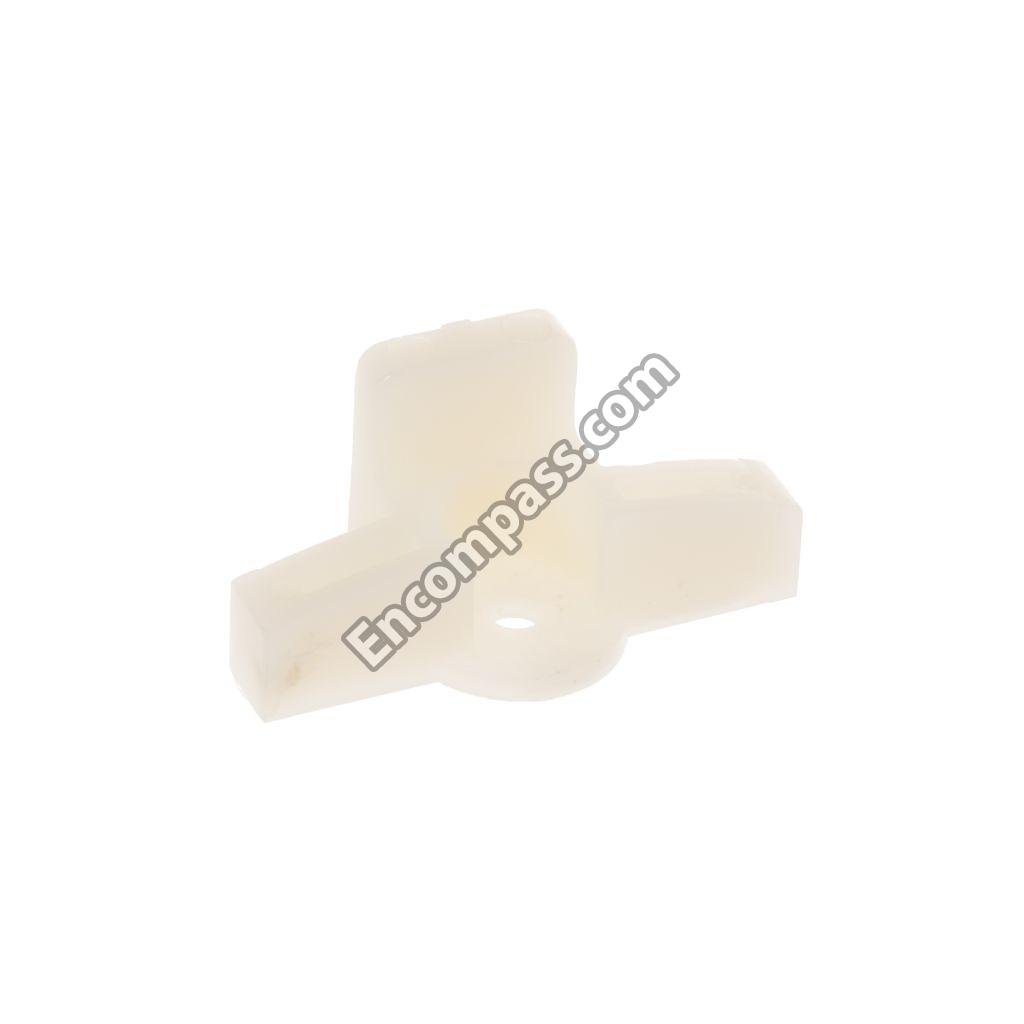

WB02X24942 WB02X24942 RANGETOP HOLDER
WB02X24941 WB02X24941 RANGETOP HOLDER
WB28X26308 WB28X26308 REAR ORIFICE HOLDER LEFT
WB28X26309 WB28X26309 REAR ORIFICE HOLDER RIGH
WB08T10026 WB08T10026 RECEPTACLE PUSH-IN
WB35K33 WB35K33 REFLECTOR
WB35K0022 WB35K0022 REFLECTOR 9.5 INCH
WB02K10263 WB02K10263 ROUND VALVE BRACKET

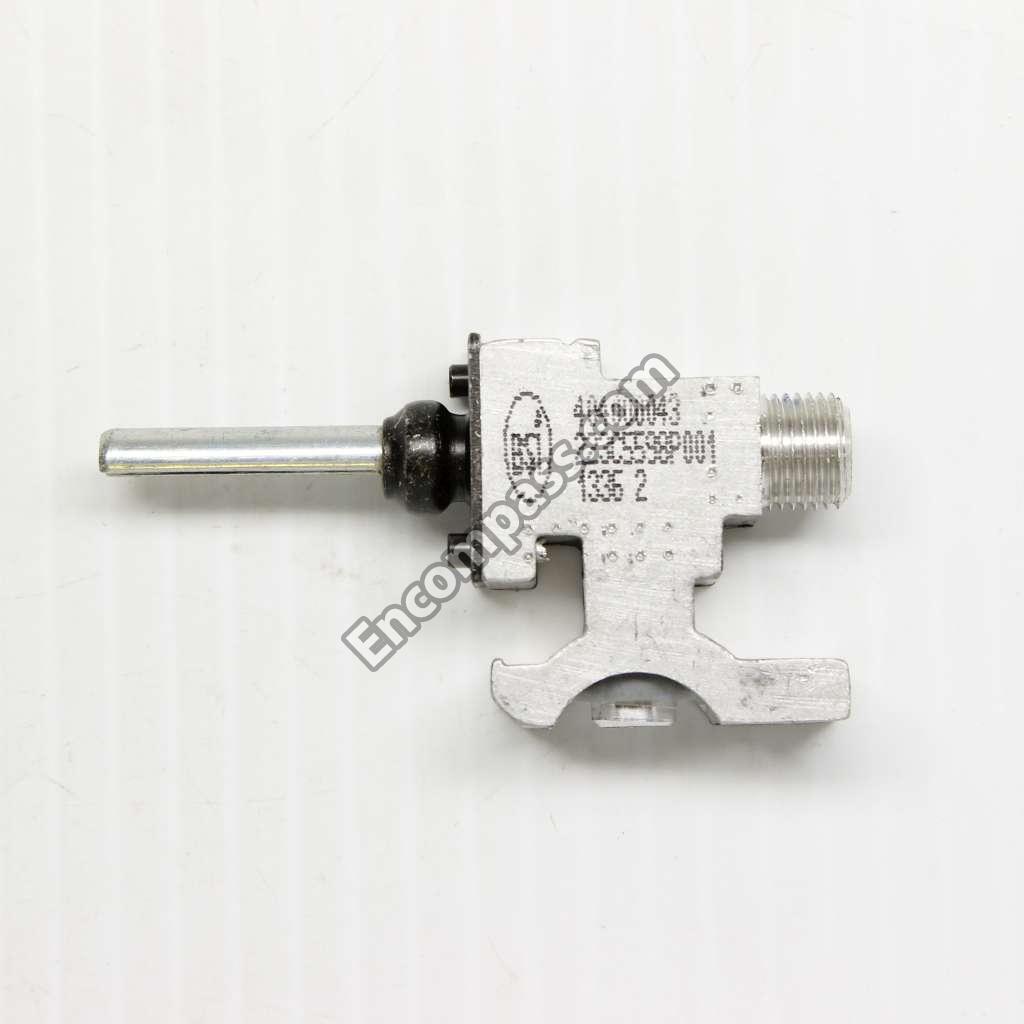

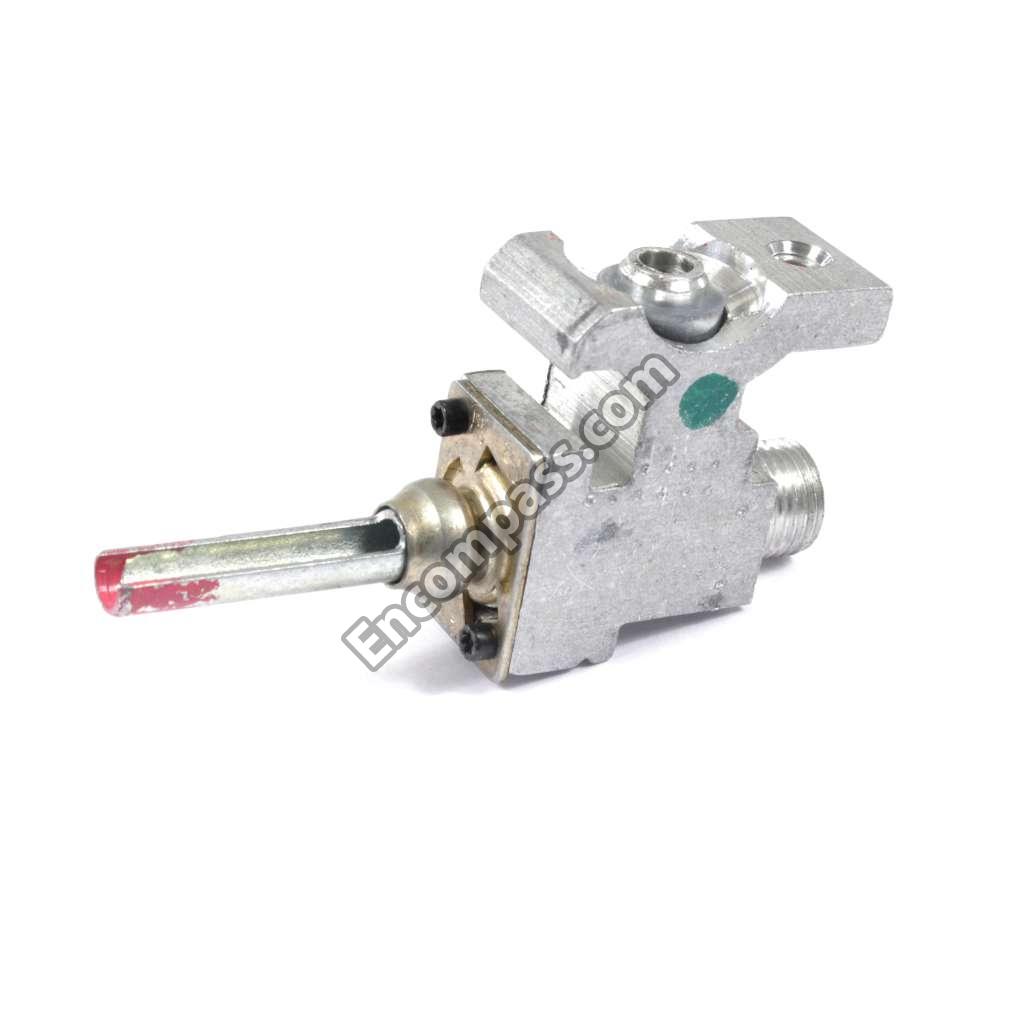

WB21K10169 WB21K10169 ROUND VALVE BURNER 140
WB21K10170 WB21K10170 ROUND VALVE BURNER 140
WB28K10578 WB28K10578 ROUND VALVE BURNER 140
WB1K44 WB1K44 SCEW LATCH
WB01K10091 WB01K10091 SCREW
WB1K5062 WB1K5062 SCREW
WB1X1261 WB1X1261 SCREW
WB1X536 WB1X536 SCREW

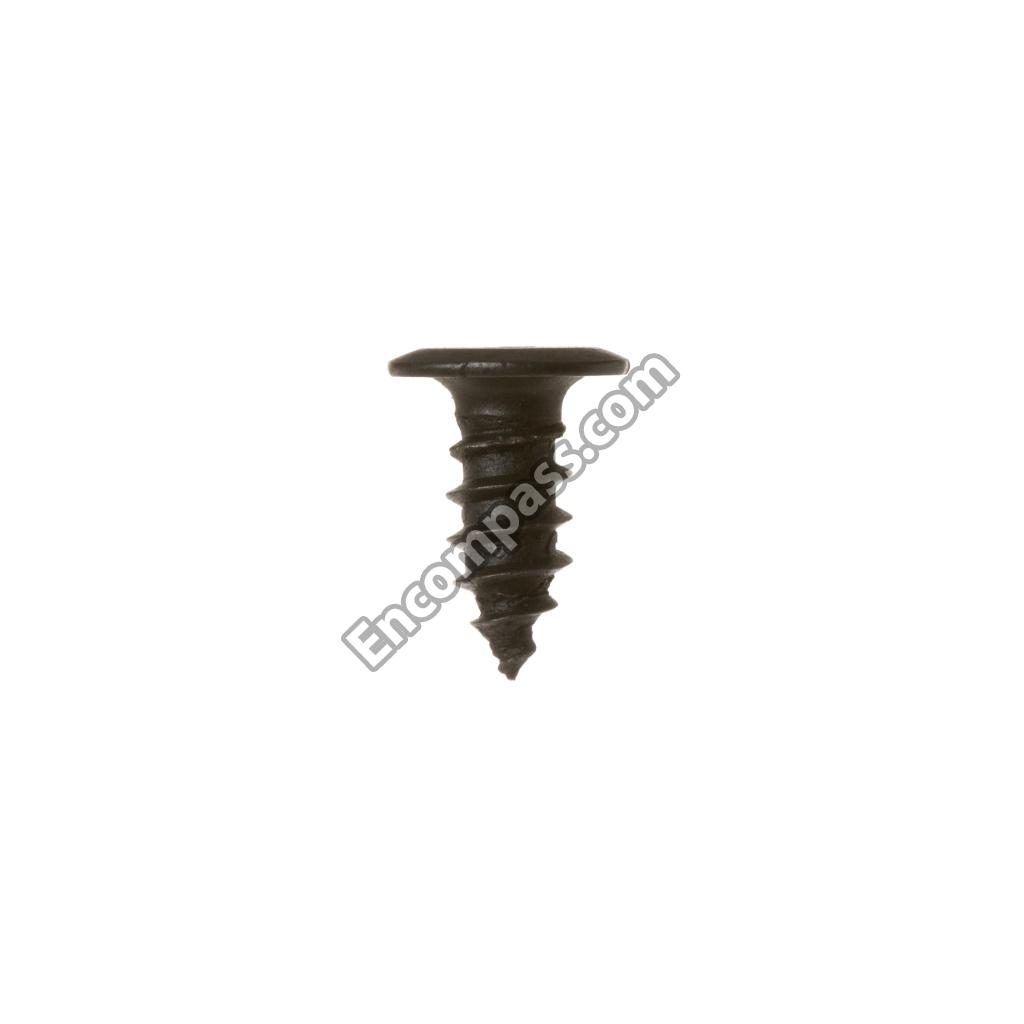

WB01K0042 WB01K0042 SCREW (BLK)
WB01X0593 WB01X0593 SCREW - DOOR ASM (4 PER)

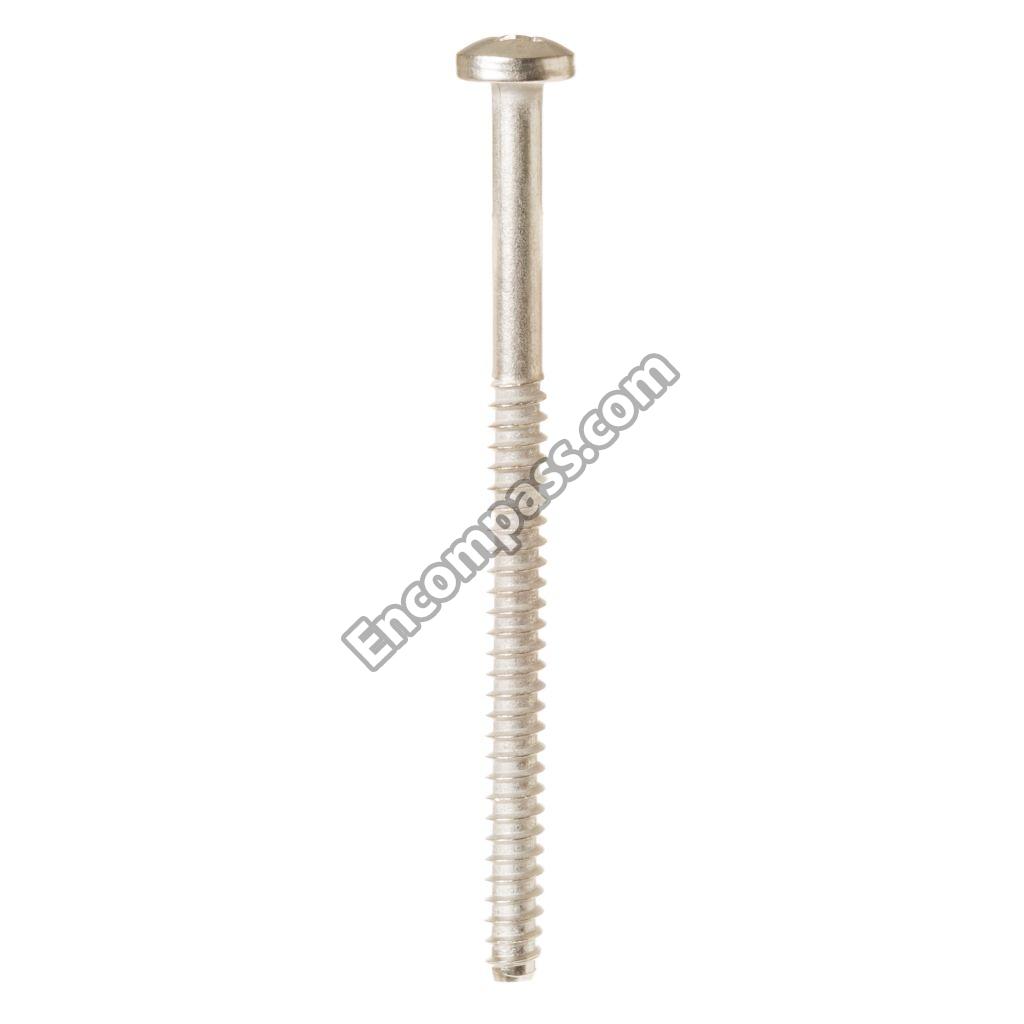

WB01K10078 WB01K10078 SCREW 10-16 X 2 3/4

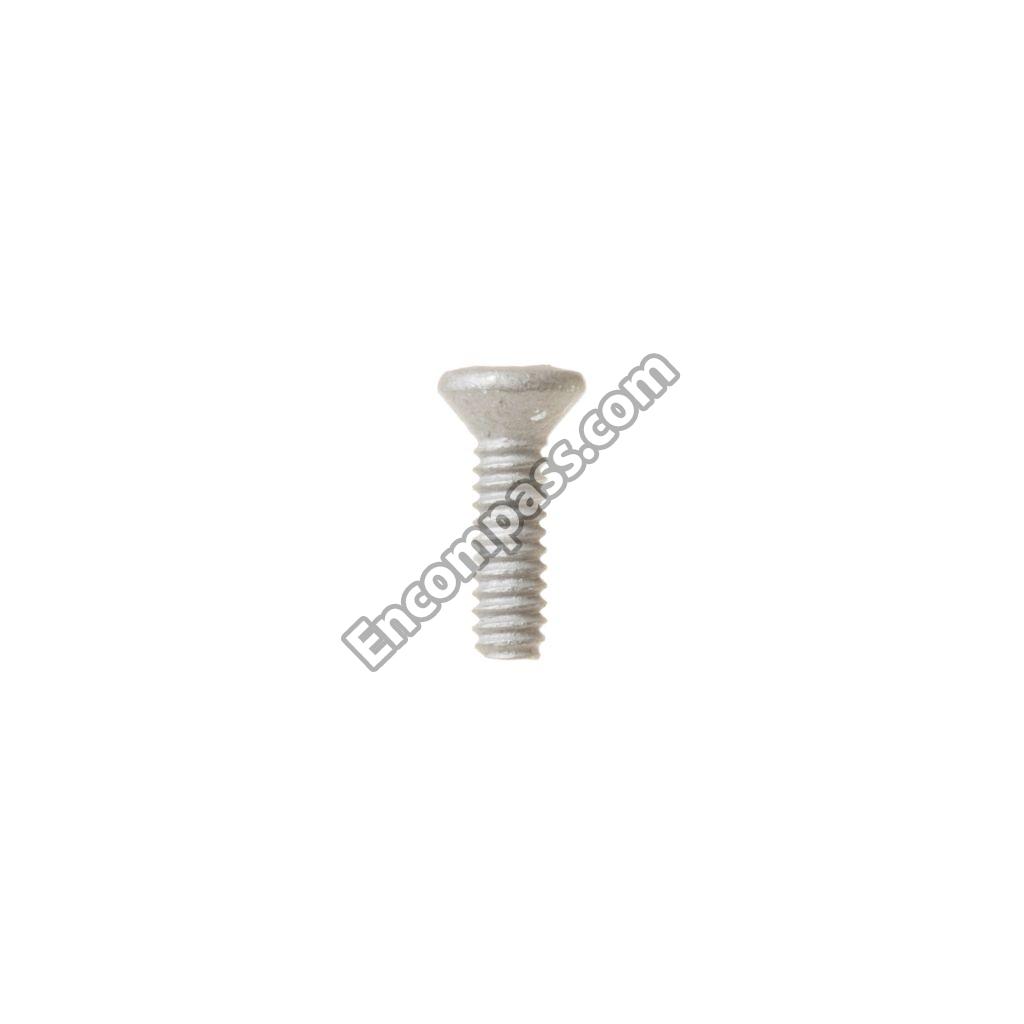

WB01T10008 WB01T10008 SCREW 10-32 TR T
WB01T10016 WB01T10016 SCREW 8-18 AB HXW 5/8 S

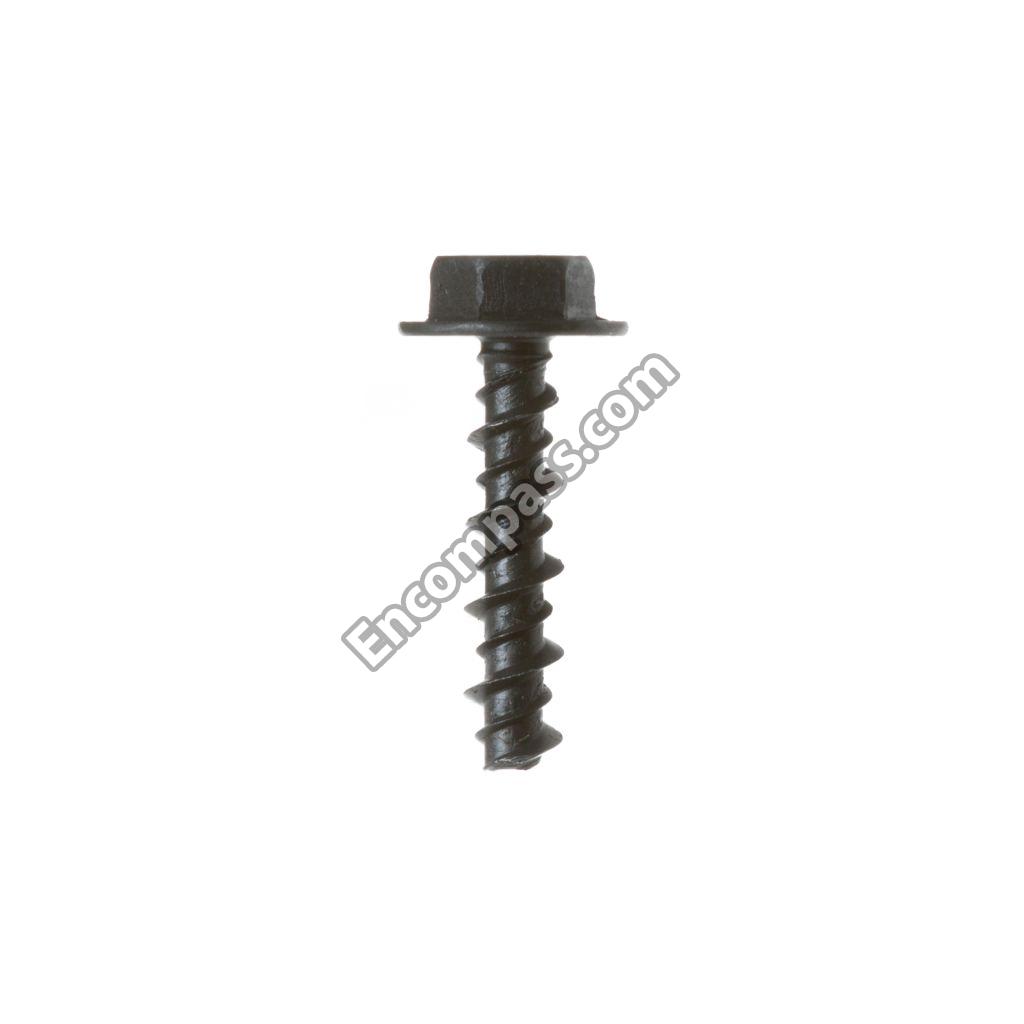

WZ4X345D WZ4X345D SCREW 8-18X5/8 HXW
WB01K10012 WB01K10012 SCREW 8-22 PL 1HX 71
WB01K10002 WB01K10002 SCREW 8-32
WB01K0044 WB01K0044 SCREW DOOR LATCH
WB01X1261 WB01X1261 SCREW GROUND
WB1K53 WB1K53 SCREW HINGE
WB01K0053 WB01K0053 SCREW MTG HINGE (TORX)
WB01K0050 WB01K0050 SCREW MTG IGNITER
WB01X5874 WB01X5874 SCREW WH
WB01K10004 WB01K10004 SCREW-MTG END CAP (WHITE )
WB34X20303 WB34X20303 SHIELD BROIL
WB34K12 WB34K12 SHIELD RADIA
WB34K0012 WB34K0012 SHIELD RADIATION

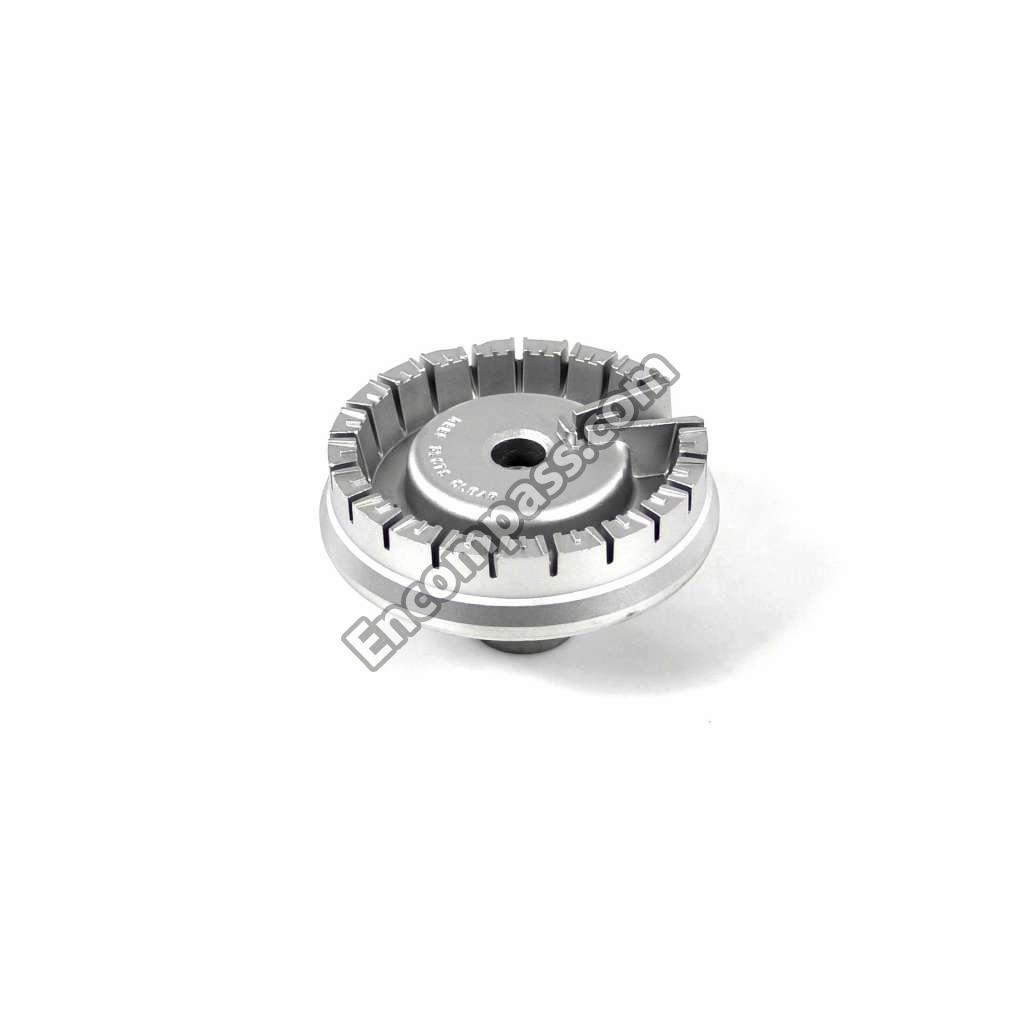

WB16X24721 WB16X24721 SMALL V2 BURNER

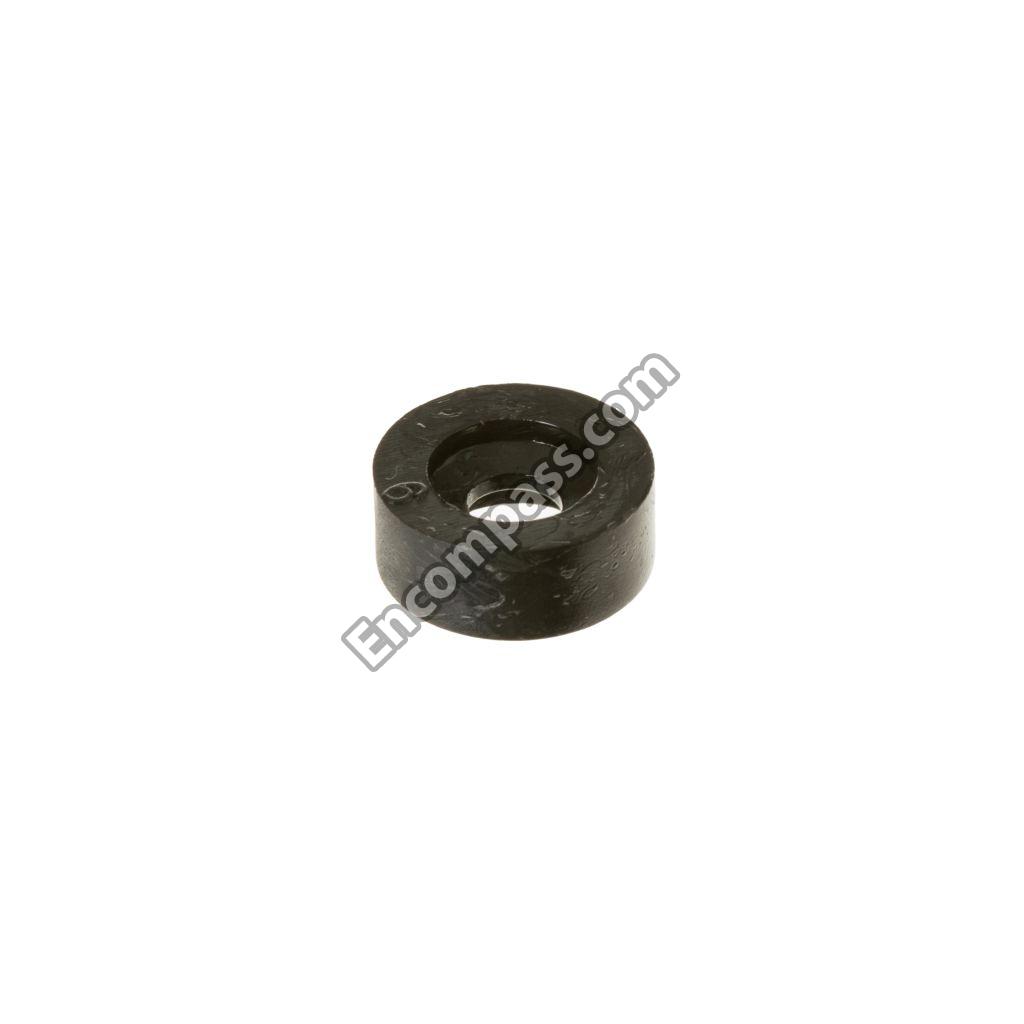

WB02K10156 WB02K10156 SPACER
WB16X20449 WB16X20449 SPACER BASE
WB16X20448 WB16X20448 SPACER BASE
WB01K0002 WB01K0002 SPEEDNUT
WB1K2 WB1K2 SPEEDNUT
WB63X20216 WB63X20216 SUPPORT BASE
WB63X20215 WB63X20215 SUPPORT BASE
WB07X20341 WB07X20341 TRIM CONTROL
WB07X24881 WB07X24881 TRIM DOOR
WB34X24779 WB34X24779 TRIM FRONT FRAME
WB28X25363 WB28X25363 TUBE MANIFOLD SUPPLY ASSEMBLY
WB21X33226 WB21X33226 VALVE CONTROL ASSEMBLY NOR.D
WB2K24 WB2K24 VALVE COVER
WB34X20294 WB34X20294 VENT ASSEMBLY
WB07X24882 WB07X24882 VENT TRIM
WB02X32440 WB02X32440 WASHER CONTOURED
WB1X119D WB1X119D WASHR-PKG 12
WB36X31442 WB36X31442 WHITE MANIFOLD PANEL

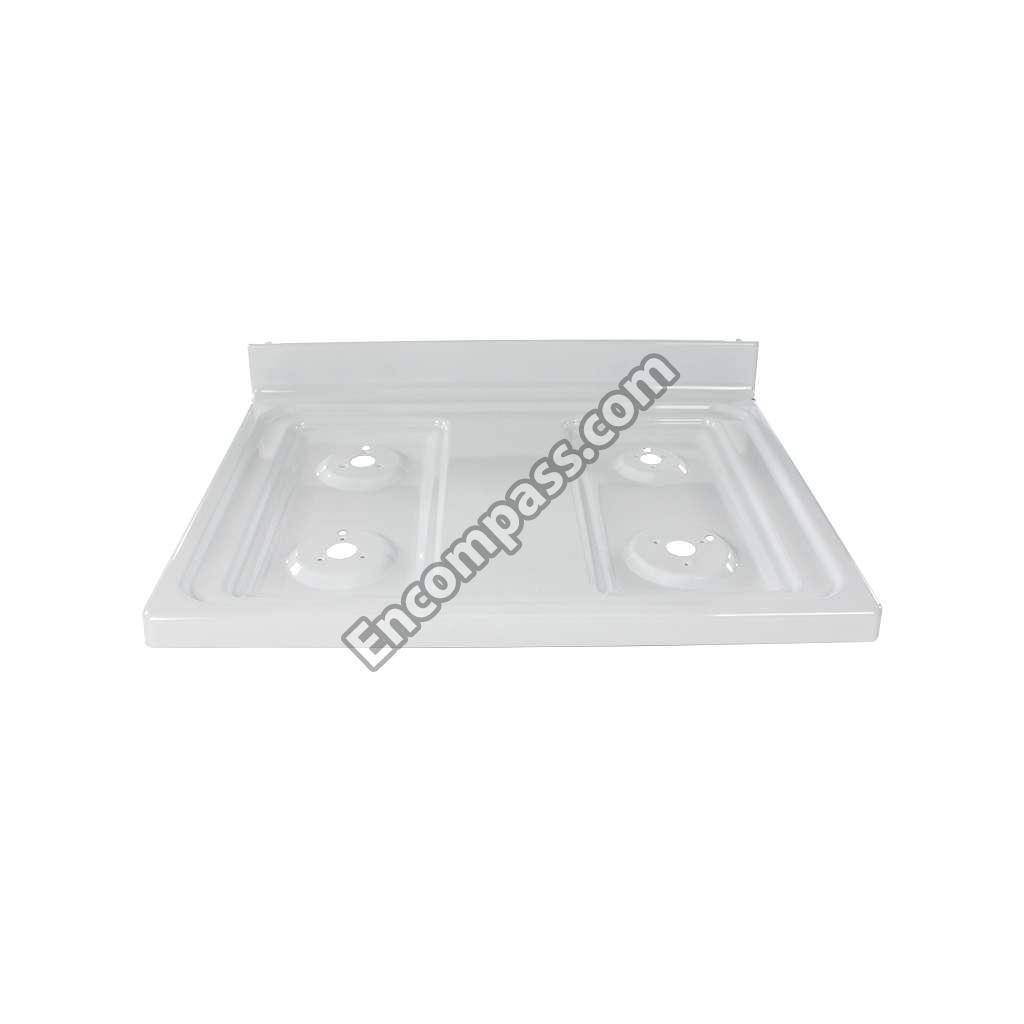

WB62X31580 WB62X31580 WHITE RANGE TOP

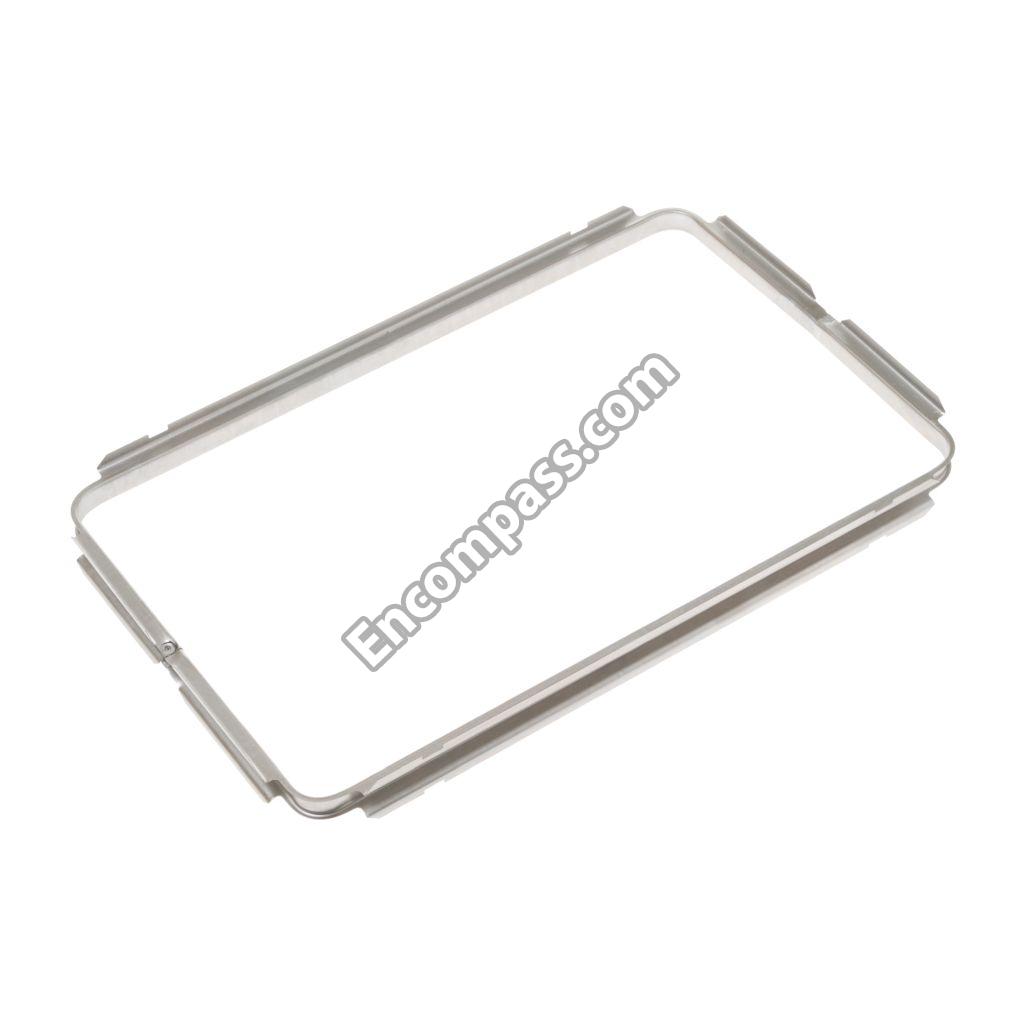

WB34K10087 WB34K10087 WINDOW SPACER ASSEMBLY
