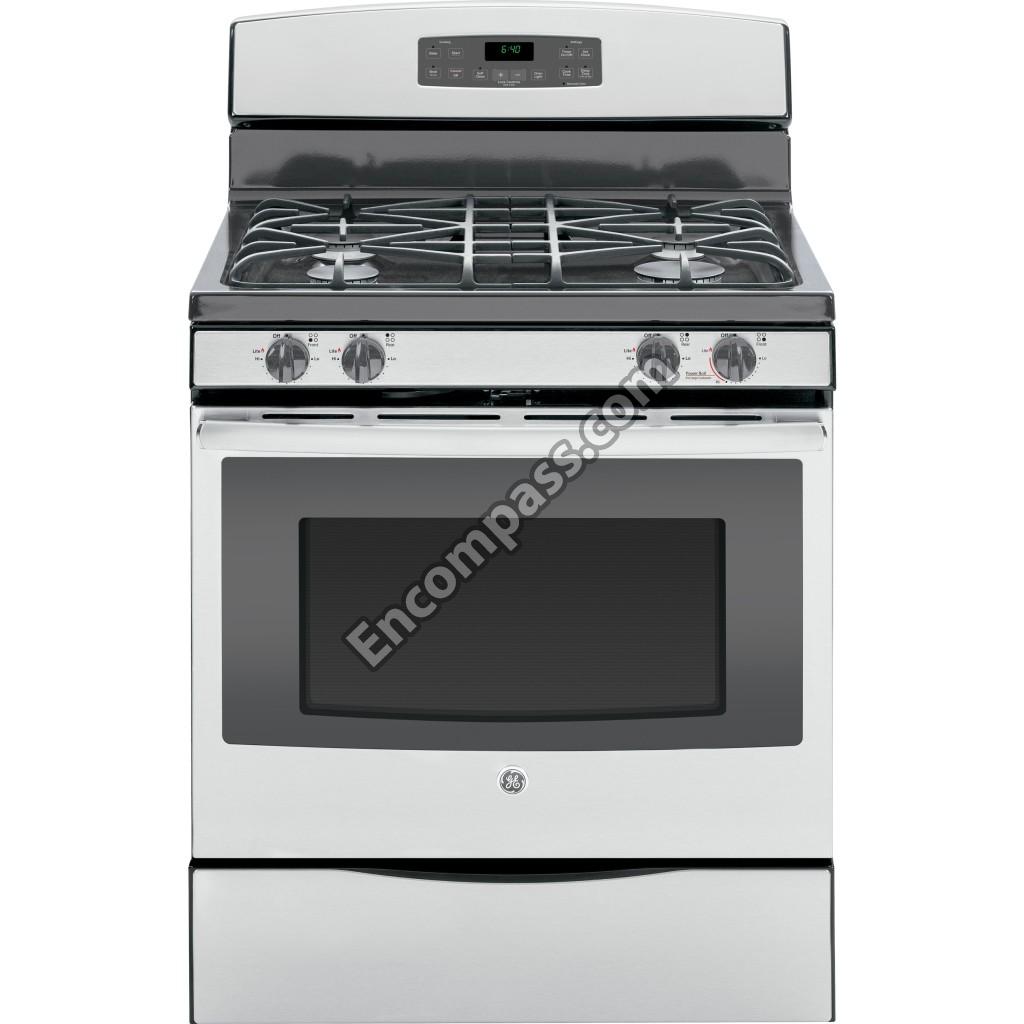

Model Image
Manufacturer

GE

Model Number

JGB640SEF5SS

Description

Gas Range Or Dual Fuel

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WB16K10070 WB16K10070 GE 000 BTUS GAS RANGE BURNER BASE; 5
WB29K10024 WB29K10024 GE 000 BTUS GAS RANGE BURNER CAP-LARGE; 12
WB29K10022 WB29K10022 GE 000 BTUS GAS RANGE SMALL BURNER CAP; 5
WB16T10046 WB16T10046 GE 12 GAS COOKTOP LARGE BURNER 000 BTUS
40A15 40A15 GE 40WATT 15AMP INC AND ESCENT BULB
WB29K10023 WB29K10023 GE 500 BTUS GAS RANGE MEDIUM BURNER CAP; 9
WB28K10023 WB28K10023 GE 89MM RANGE ORIFICE SPUD - NG TO LP
WB16K10055 WB16K10055 GE 9 RANGE SURFACE BURNER BASE-MEDIUM 500
WB02K0027 WB02K0027 GE BAIL
WB2K27 WB2K27 GE BAIL
WB35X37973 WB35X37973 GE BOTTOM OVEN AND DEFLECTOR ASSEMBLY
WB02K0032 WB02K0032 GE BOTTOM OVEN BRACKT SUPPO
WB63K0015 WB63K0015 GE BRACE BOTTOM
WB38K0002 WB38K0002 GE BRACE VENT
WB02K10254 WB02K10254 GE BRACKET ANTI-TIP ASSEMBLY
WB63X24859 WB63X24859 GE BRACKET CAVITY
WB39K0020 WB39K0020 GE BRACKET MOUNTING DRAWER
WB02K0041 WB02K0041 GE BRACKET OVEN CORNER
WB02X24790 WB02X24790 GE BUMPER
WB02K10171 WB02K10171 GE BUMPER
WB16X20463 WB16X20463 GE BURNER BAKE
WB02K10362 WB02K10362 GE CKT BRACKET MDM AND LGE
WB02K10361 WB02K10361 GE CKT BRACKET MDM AND LGE
WB02K10360 WB02K10360 GE CKT BRACKET SMALL
WB01X24735 WB01X24735 GE CKT SCREW
WB02K0036 WB02K0036 GE CLAMP CABLE
WB2K36 WB2K36 GE CLAMP CABLE
WB02K0031 WB02K0031 GE CLIP CABLE
WB02X21679 WB02X21679 GE CLIP CABLE
WB02K10380 WB02K10380 GE CLIP INSULATION
WB02K0052 WB02K0052 GE CLIP RANGETOP
WB02X26569 WB02X26569 GE CLIP RANGETOP
WB2K52 WB2K52 GE CLIP RNGETOP
WB02K0056 WB02K0056 GE CLIP WINDOW
WB2K56 WB2K56 GE CLIP WINDOW
WB02X7066 WB02X7066 GE CLIP WIRE
WB02K10267 WB02K10267 GE CLIP WIRE
WB01X0119 WB01X0119 GE CONTOURED WASHER
WB27X44729 WB27X44729 GE CONTROL OVEN TO9 (GAS)
WB02K10363 WB02K10363 GE COOKTOP BURNER BRACKET - EXTRA LARGE
WB34K0016 WB34K0016 GE COVER BACK
WB34X21575 WB34X21575 GE COVER BACK
WB34K16 WB34K16 GE COVER BACK
WB34K10129 WB34K10129 GE COVER BACK LOWER
WB34X26858 WB34X26858 GE COVER BACK UPPER
WB34K10123 WB34K10123 GE COVER BACK UPPER
WB63K10040 WB63K10040 GE COVER TERMINAL
WB02K0024 WB02K0024 GE COVER VALVE
WB56X23809 WB56X23809 GE CRYSTAL WINDOW
WB49K10037 WB49K10037 GE DEFLECTOR OVEN
WB38K10022 WB38K10022 GE DIFFUSER VENT
WB56X26048 WB56X26048 GE DRAWER ASSEMBLY
WB02K10163 WB02K10163 GE DRAWER SUPPORT
WB01K10037 WB01K10037 GE ECONOMIC NUT
WB28X20295 WB28X20295 GE ELBOW 90 ASSEMBLY
WB18K10098 WB18K10098 GE ELECTRODES AND HARNESS HV
WB49K0044 WB49K0044 GE FLAME SPREADER
WB63X25196 WB63X25196 GE FRAME WELD ASSEMBLY
WB28K10222 WB28K10222 GE GAS RANGE BURNER CAP - XL V2
WB16K10062 WB16K10062 GE GAS RANGE XL BURNER
WB35X29668 WB35X29668 GE GASKET ASSEMBLY DOOR
WB32K0005 WB32K0005 GE GASKET OVEN LIGHT
WB32K2 WB32K2 GE GASKET OVEN SEAL LG
WB32K0001 WB32K0001 GE GASKET VENT
WB32K1 WB32K1 GE GASKET VENT
WB02T10589X WB02T10589X GE GE BADGE GRAY
WB56X26047 WB56X26047 GE GLASS OVEN DOOR ASSEMBLY
WB08K0005 WB08K0005 GE GLASS OVEN LAMP
WB02K0068 WB02K0068 GE GLIDER DRAWER
WB2K68 WB2K68 GE GLIDER DRWR
WB31K10244 WB31K10244 GE GRATE CAST (DD) LF
WB31K10243 WB31K10243 GE GRATE CAST (DD) RT
WB1K10 WB1K10 GE GROM HNDLE
WB02K10294 WB02K10294 GE GROMMET
WB2K8 WB2K8 GE GROMMET
WB01K0010 WB01K0010 GE GROMMET HANDLE
WB63K0016 WB63K0016 GE GUARD BOTTOM
WB56K12 WB56K12 GE GUARD INSUL
WB56K0012 WB56K0012 GE GUARD INSULATION
WB15X26624 WB15X26624 GE HANDLE AND ASM CAP
WB18X31207 WB18X31207 GE HARNESS SWITCHES
WB10X21659 WB10X21659 GE HINGE DOOR
WB34K0004 WB34K0004 GE HINGE GUARD LEFT
WB34K0003 WB34K0003 GE HINGE GUARD RIGHT
WB14K10003 WB14K10003 GE HINGE RANGE TOP
WB34K4 WB34K4 GE HNGE GRD LFT
WB34K3 WB34K3 GE HNGE GRD RGT
WB8K1 WB8K1 GE HOUS RECEPTL
WB08K0001 WB08K0001 GE HOUSING RECEPTACLE
WB13X25261 WB13X25261 GE IGNITER GLOWBAR
WB13X24323 WB13X24323 GE IGNITION MODULE
WB35K10150 WB35K10150 GE INSULATION BOTTOM DOOR
WB35X24985 WB35X24985 GE INSULATION BURNER BOX
WB35K10040 WB35K10040 GE INSULATION CONTROL
WB35X21686 WB35X21686 GE INSULATION DOOR
WB35X24786 WB35X24786 GE INSULATION OVEN WRAP
WB35K10149 WB35K10149 GE INSULATION SIDE DOOR
WB35X24852 WB35X24852 GE INSULATION VENT
WB28X20687 WB28X20687 GE KIT HIGH ALTITUDE ASSEMBLY
WB49X20381 WB49X20381 GE KIT LP CONVERSION ASSEMBLY
WB10X33060 WB10X33060 GE LATCH ASSEMBLY
WB02K10140 WB02K10140 GE LATCH ASSEMBLY
WB18K0007 WB18K0007 GE LINE CORD
WB18K10036 WB18K10036 GE LINE CORD
WB56X24855 WB56X24855 GE LINER ASSEMBLY WELD DOOR
31-10917 31-10917 GE LP CONVERSION INST
WB28X20298 WB28X20298 GE MANIFOLD PIPE
WB34X20680 WB34X20680 GE MANIFOLD SUPPORT
WB28K10680 WB28K10680 GE ORIFICE HOLDER ASSEMBLY
WB28K10681 WB28K10681 GE ORIFICE HOLDER ASSEMBLY
WB28K10682 WB28K10682 GE ORIFICE HOLDER ASSEMBLY
WB28X20866 WB28X20866 GE ORIFICE HOLDER ASSEMBLY
WB28K10834 WB28K10834 GE ORIFICE SPUD
WB28K10842 WB28K10842 GE ORIFICE SPUD LP
WB28K10214 WB28K10214 GE ORIFICE SPUD LP 92L
WB63X20289 WB63X20289 GE OVEN BACK
WB53K10035 WB53K10035 GE OVEN SIDE LEFT
WB53K10034 WB53K10034 GE OVEN SIDE RIGHT
WB53K10015 WB53K10015 GE OVEN TOP
WB36X26382 WB36X26382 GE PANEL AND COVER ASSEMBLY
WB55K10033 WB55K10033 GE PANEL ASSEMBLY WELD
WB56X20809 WB56X20809 GE PANEL BACKER
WB63K10203 WB63K10203 GE PANEL REAR BROIL
WB56X29670 WB56X29670 GE PANEL SIDE
WB56X22013 WB56X22013 GE PANEL SIDE
WB14K10004 WB14K10004 GE PIN LOCATOR
WB14K10005 WB14K10005 GE PIN LOCATOR
49-85224 49-85224 GE PM GAS QUICK GUIDE
31-10895 31-10895 GE PM INSTALL INSTRUCTIONS
31-17070 31-17070 GE PM MINI MANUAL
WB39K0016 WB39K0016 GE RAIL DRAWER
WB63X20207 WB63X20207 GE RANGE BACK
WB63K10187 WB63K10187 GE RANGE BOTTOM INNER GUARD
WB2K32 WB2K32 GE RANGE BRACKET SUPPORT
WB16K10086 WB16K10086 GE RANGE BROIL BURNER
WB28X24773 WB28X24773 GE RANGE BURNER TUBE SUPPLY
WB02K10150 WB02K10150 GE RANGE CONTROL BRACKET
WB07X20323 WB07X20323 GE RANGE CONTROL PANEL - BLACK
WB07X20533 WB07X20533 GE RANGE COOKTOP END SUPPORT
WB49K10025 WB49K10025 GE RANGE DEFLECTOR
WB58K10015 WB58K10015 GE RANGE DRAWER BODY
WB55K10068 WB55K10068 GE RANGE DRAWER LINER
WB39K20 WB39K20 GE RANGE DRAWER MOUNTING BRACKET
WB39K16 WB39K16 GE RANGE DRAWER RAIL
WB01K10112 WB01K10112 GE RANGE ELECTRODE CLIP
WB07X20534 WB07X20534 GE RANGE END SUPPORT - LEFT
WB10X20220 WB10X20220 GE RANGE HINGE RECEIVER
WB49X21392 WB49X21392 GE RANGE HINGE SERVICE KIT
WB1X1293 WB1X1293 GE RANGE IGNITER MOUNTING SCREW
WB34X24753 WB34X24753 GE RANGE IGNITOR COVER

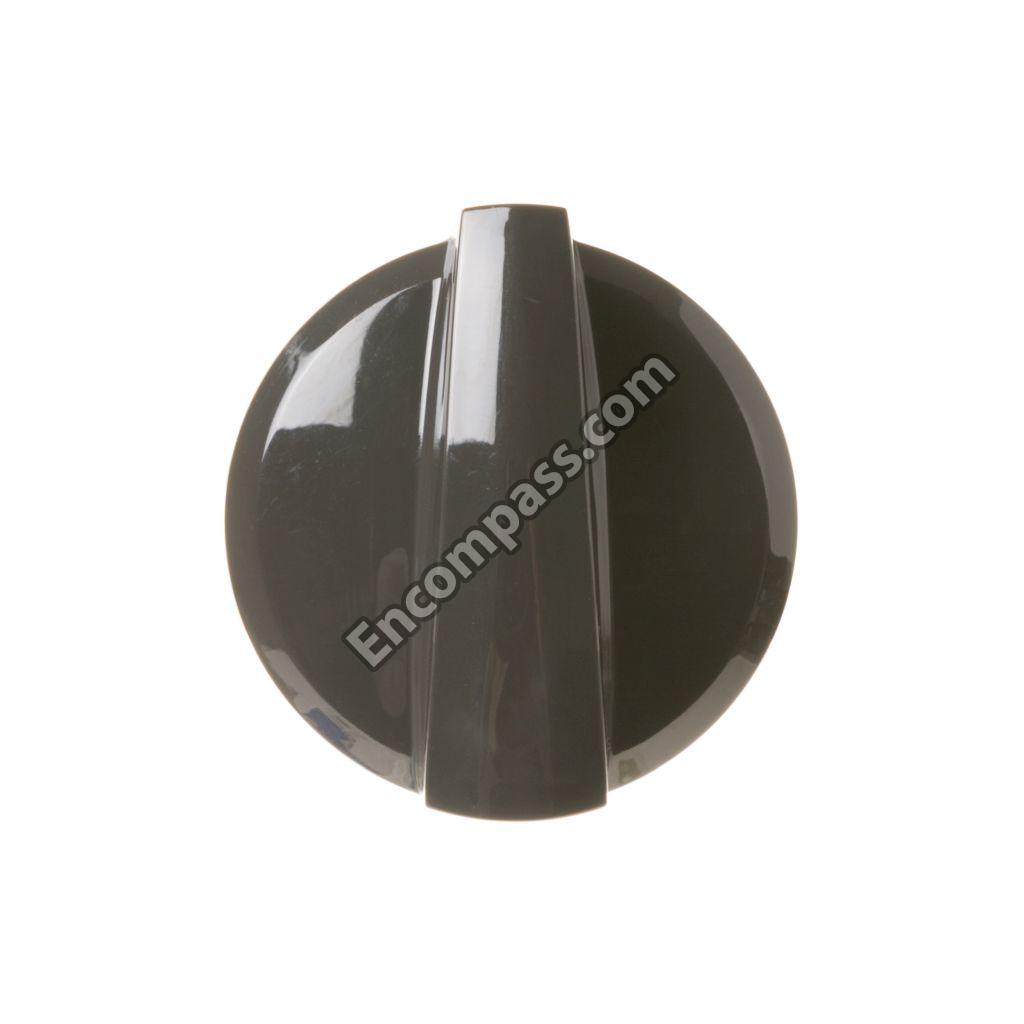

WB03X21505 WB03X21505 GE RANGE KNOB
WB02K10182 WB02K10182 GE RANGE LEVELING LEG
WB08K10018 WB08K10018 GE RANGE LIGHT COVER
WB34K10086 WB34K10086 GE RANGE LOWER HEAT SHIELD
WB35X20370 WB35X20370 GE RANGE OVEN BACK INSULATION
WB2K41 WB2K41 GE RANGE OVEN BRACKET
WB36X192 WB36X192 GE RANGE OVEN BULB COVER
WB32K5 WB32K5 GE RANGE OVEN GASKET
WB13K21 WB13K21 GE RANGE OVEN IGNITER
WB28X26089 WB28X26089 GE RANGE OVEN ORIFICE SPUD
WB48X20249 WB48X20249 GE RANGE OVEN RACK
WB63K16 WB63K16 GE RANGE PANEL
WB34K30 WB34K30 GE RANGE RADIATION GUARD
WB34K31 WB34K31 GE RANGE RADIATION GUARD
WB02X20849 WB02X20849 GE RANGE SIDE SPACER
WB20K10027 WB20K10027 GE RANGE TEMPERATURE SENSOR
WB01K10080 WB01K10080 GE RANGE THERMOSTAT SCREW
WB02K10297 WB02K10297 GE RANGE VALVE BRACKET
WB38K2 WB38K2 GE RANGE VENT BRACE
WB63K15 WB63K15 GE RANGE VENT BRACE
WB62X20489 WB62X20489 GE RANGETOP AND BRACKET ASSEMBLY_
WB08T10026 WB08T10026 GE RECEPTACLE PUSH-IN
WB1K44 WB1K44 GE SCEW LATCH
WB01K0001 WB01K0001 GE SCREW
WB01K10091 WB01K10091 GE SCREW
WB1K5062 WB1K5062 GE SCREW
WB1X1261 WB1X1261 GE SCREW
WB1X5716 WB1X5716 GE SCREW
WB1X536 WB1X536 GE SCREW
WB1K5119 WB1K5119 GE SCREW
WB01K0042 WB01K0042 GE SCREW (BLK)
WB01X5716 WB01X5716 GE SCREW (BLK)
WB01X5364 WB01X5364 GE SCREW (CR)
WB01X0593 WB01X0593 GE SCREW - DOOR ASM (4 PER)
WB01K10078 WB01K10078 GE SCREW 10-16 X 2 3/4
WB01T10008 WB01T10008 GE SCREW 10-32 TR T
WZ4X345D WZ4X345D GE SCREW 8-18X5/8 HXW
WB01K10012 WB01K10012 GE SCREW 8-22 PL 1HX 71
WB01K10002 WB01K10002 GE SCREW 8-32
WB01K0044 WB01K0044 GE SCREW DOOR LATCH
WB01X1261 WB01X1261 GE SCREW GROUND
WB1K53 WB1K53 GE SCREW HINGE
WB1X5364 WB1X5364 GE SCREW MTG
WB01K0053 WB01K0053 GE SCREW MTG HINGE (TORX)
WB01K0050 WB01K0050 GE SCREW MTG IGNITER
WB34X20303 WB34X20303 GE SHIELD BROIL
WB02K10156 WB02K10156 GE SPACER
WB16X20449 WB16X20449 GE SPACER BASE
WB16X20448 WB16X20448 GE SPACER BASE
WB01K0002 WB01K0002 GE SPEEDNUT
WB1K2 WB1K2 GE SPEEDNUT
WB63X20216 WB63X20216 GE SUPPORT BASE
WB63X20215 WB63X20215 GE SUPPORT BASE
WB36X26045 WB36X26045 GE TRIM CONTROL ASSEMBLY
WB07X29147 WB07X29147 GE TRIM DOOR DD
WB34X24779 WB34X24779 GE TRIM FRONT FRAME
WB28X25363 WB28X25363 GE TUBE MANIFOLD SUPPLY ASSEMBLY
WB21X20300 WB21X20300 GE VALVE BURNER 270
WB21X20302 WB21X20302 GE VALVE BURNER 270
WB21X20395 WB21X20395 GE VALVE BURNER 270
WB21X26381 WB21X26381 GE VALVE CONTROL ASSEMBLY NOR. D
WB2K24 WB2K24 GE VALVE COVER
WB38K10008 WB38K10008 GE VENT ASSEMBLY
WB16K10084 WB16K10084 GE VENTURI CHOKE 15K LP
WB02X32440 WB02X32440 GE WASHER CONTOURED
WB1X119D WB1X119D GE WASHR-PKG 12
WB34K10087 WB34K10087 GE WINDOW SPACER ASSEMBLY
