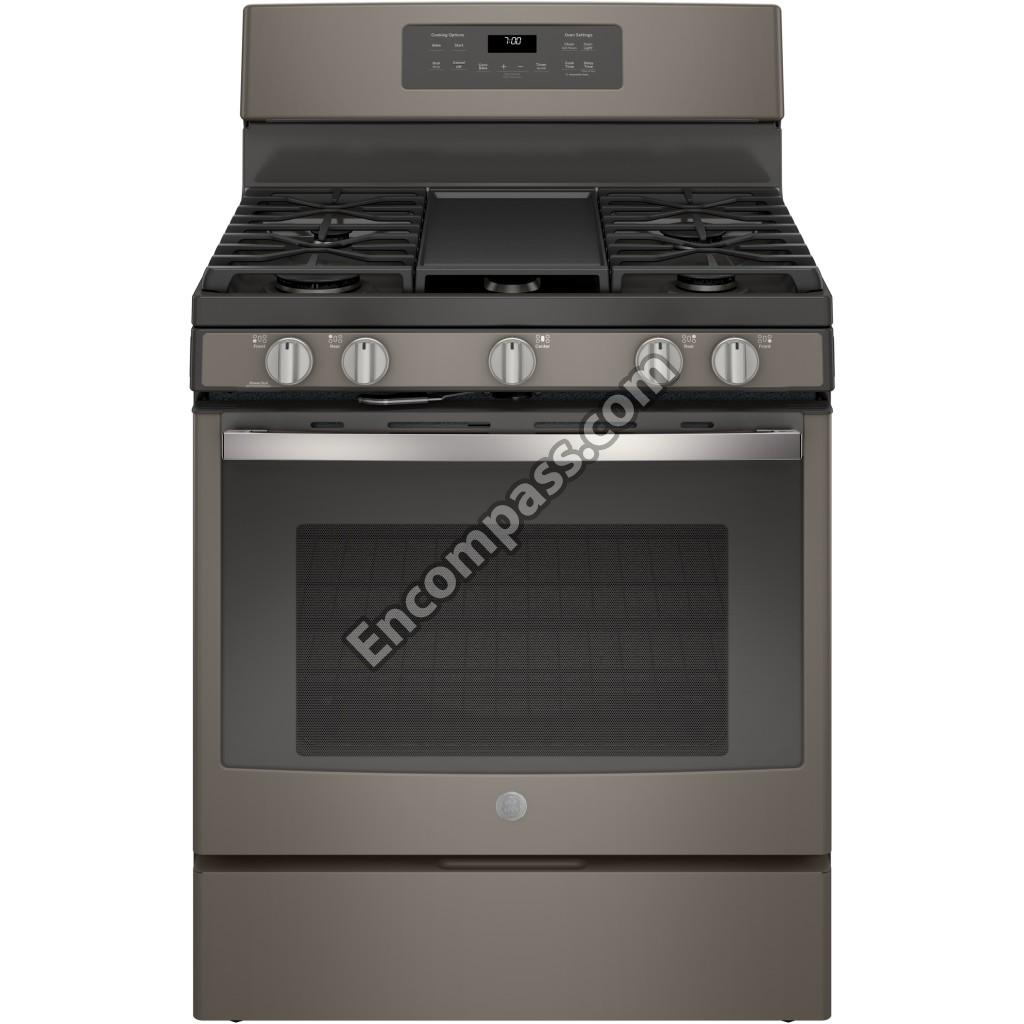

Model Image
Manufacturer

GE

Model Number

JGB700EEJ3ES

Description

Gas Range Or Dual Fuel

Interactive Exploded View
Exploded View

Parts List

Part Number Description
40A15 40A15 GE 40WATT 15AMP INC AND ESCENT BULB
WB16X28654 WB16X28654 GE ASM. CAP, BURNER SMALL V2
WB34X25717 WB34X25717 GE BACKGUARD
WB36X27741 WB36X27741 GE BACKGUARD RA
WB02K0027 WB02K0027 GE BAIL
WB2K27 WB2K27 GE BAIL
WB16X20449 WB16X20449 GE BASE SPACER
WB16X20448 WB16X20448 GE BASE SPACER
WB2K32 WB2K32 GE BCKT SUPP
WB63K10187 WB63K10187 GE BOTTOM INNER
WB35X37970 WB35X37970 GE BOTTOM OVEN AND DEFLECTOR ASM
WB02K0032 WB02K0032 GE BOTTOM OVEN BRACKT SUPPO
WB63K0015 WB63K0015 GE BRACE BOTTOM
WB38K0002 WB38K0002 GE BRACE VENT
WB02X24939 WB02X24939 GE BRACKET
WB02X24940 WB02X24940 GE BRACKET
WB63X24859 WB63X24859 GE BRACKET CAVITY
WB02K0041 WB02K0041 GE BRACKET OVEN CORNER
WB02K10297 WB02K10297 GE BRACKET VALVE
WB16K10086 WB16K10086 GE BROIL BURNER
WB16X24722 WB16X24722 GE BURNER
WB28X24773 WB28X24773 GE BURNER TUBE
WB2K36 WB2K36 GE CABLE CLAMP
WB02K0036 WB02K0036 GE CLAMP CABLE
WB02X26569 WB02X26569 GE CLIP
WB02K0031 WB02K0031 GE CLIP CABLE
WB02K0056 WB02K0056 GE CLIP WINDOW
WB02X7066 WB02X7066 GE CLIP WIRE
WB02X24845 WB02X24845 GE CONTROL BRACKET
WB35X25588 WB35X25588 GE CONVEX INSULATION
WB21X20394 WB21X20394 GE COOKTOP BURNER VALVE
WB21X20261 WB21X20261 GE COOKTOP BURNER VALVE
WB14K10003 WB14K10003 GE COOKTOP HINGE
WB28X24763 WB28X24763 GE COOKTOP HOLDER ORIFICE
WB28X24764 WB28X24764 GE COOKTOP HOLDER ORIFICE
WB28X24761 WB28X24761 GE COOKTOP HOLDER ORIFICE
WB28X24768 WB28X24768 GE COOKTOP ORIFICE SPUD
WB34K0016 WB34K0016 GE COVER BACK
WB34X24746 WB34X24746 GE COVER BACK L
WB34X24753 WB34X24753 GE COVER IGNITER
WB02K0024 WB02K0024 GE COVER VALVE
WB07X29142 WB07X29142 GE COVER VENT T
WB49K10025 WB49K10025 GE DEFLECTOR
WB56X25504 WB56X25504 GE DEFLECTOR BOTTOM DOOR
WB56X21576 WB56X21576 GE DEFLECTOR DO
WB07X20288 WB07X20288 GE DOOR BARRIER
WB56X24884 WB56X24884 GE DOOR GLASS
WB58K10015 WB58K10015 GE DRAWER BODY
WB02X24742 WB02X24742 GE DRAWER BRACKET
WB56X24821 WB56X24821 GE DRAWER PANEL
WB39K16 WB39K16 GE DRAWER RAIL
WB02K10163 WB02K10163 GE DRAWER SUPPORT
WB28X20389 WB28X20389 GE ELBOW 90 ASM
WB18X26980 WB18X26980 GE ELECTRODE
WB07X29144 WB07X29144 GE END SUPPORT
WB07X29143 WB07X29143 GE END SUPPORT
WB02X8351 WB02X8351 GE FAN BLADE
WB34K10037 WB34K10037 GE FAN COVER
WB35K10038 WB35K10038 GE FAN INSULATION
WB26X28953 WB26X28953 GE FAN MOTOR CONVECT
WB02K10034 WB02K10034 GE FAN SUPPORT
WB49K0044 WB49K0044 GE FLAME SPREADER
WB02X28738 WB02X28738 GE FRAME FRONT BUMPER
WB63X24857 WB63X24857 GE FRAME WELD ASM
WB34X24779 WB34X24779 GE FRONT TRIM
WB35X29668 WB35X29668 GE GASKET ASSEMBLY
WB32K0005 WB32K0005 GE GASKET OVEN LIGHT
WB32K2 WB32K2 GE GASKET OVEN SEAL LG
WB32K0001 WB32K0001 GE GASKET VENT
WB08K0005 WB08K0005 GE GLASS OVEN LAMP
WB02K0068 WB02K0068 GE GLIDER DRAWER
WB13X40207 WB13X40207 GE GLOW BAR IGNITER
WB31X24736 WB31X24736 GE GRATE ASM
WB2K8 WB2K8 GE GROMMET
WB63K16 WB63K16 GE GUARD
WB63K0016 WB63K0016 GE GUARD BOTTOM
WB56K12 WB56K12 GE GUARD INSERT
WB56K0012 WB56K0012 GE GUARD INSULATION
WB63K10040 WB63K10040 GE GUARD VALVE
WB18X24748 WB18X24748 GE HARNESS
WB34K0004 WB34K0004 GE HINGE GUARD LEFT
WB34K0003 WB34K0003 GE HINGE GUARD RIGHT
WB10X20220 WB10X20220 GE HINGE RECEIVER
WB34K4 WB34K4 GE HNGE GRD LFT
WB28X24766 WB28X24766 GE HOLDER ORIFICE
WB28X24762 WB28X24762 GE HOLDER ORIFICE
WB8K1 WB8K1 GE HOUS RECE
WB08K0001 WB08K0001 GE HOUSING RECEPTACLE
WB02X24976 WB02X24976 GE IGNITER CLIP
WB02X24728 WB02X24728 GE INJET
WB02X24726 WB02X24726 GE INJET
WB02X24727 WB02X24727 GE INJET
WB02X24725 WB02X24725 GE INJET, XL V2
WB35K10149 WB35K10149 GE INSULATION
WB35K10150 WB35K10150 GE INSULATION
WB35X24985 WB35X24985 GE INSULATION
WB35X21198 WB35X21198 GE INSULATION ASSEMBLY
WB02K10380 WB02K10380 GE INSULATION CLIP
WB35X24852 WB35X24852 GE INSULATION VENT TUBE
WB28X29254 WB28X29254 GE KIT HIGH ALT
WB28X29255 WB28X29255 GE KIT HIGH ALT
WB02K10140 WB02K10140 GE LATCH ASSEMBLY
WB56X24855 WB56X24855 GE LINER ASM WE
WB34K10086 WB34K10086 GE LOWER HEAT SHIELD
31-10990 31-10990 GE LP CONVERSION INST
WB28X24765 WB28X24765 GE MANIFOLD PIPE
WB34X20680 WB34X20680 GE MANIFOLD SUPPORT
WB28X24772 WB28X24772 GE MANIFOLD TUBE
WB34X25587 WB34X25587 GE MOTOR COVER
WB02T10017 WB02T10017 GE NUT
WB2K41 WB2K41 GE ORIFICE BRACKET
WB63X20422 WB63X20422 GE OVEN
WB53K10015 WB53K10015 GE OVEN
WB34K10038 WB34K10038 GE OVEN BACK CO
WB63K15 WB63K15 GE OVEN BRACE
WB02X24790 WB02X24790 GE OVEN BUMPER
WB16X24724 WB16X24724 GE OVEN BURNER
WB16X24721 WB16X24721 GE OVEN BURNER
WB34X21575 WB34X21575 GE OVEN COVER
WB34K16 WB34K16 GE OVEN COVER
WB34X24851 WB34X24851 GE OVEN COVER
WB32K5 WB32K5 GE OVEN DOOR GASKET
WB56X23809 WB56X23809 GE OVEN GLASS
WB35X24786 WB35X24786 GE OVEN INSULATION
WB10X33060 WB10X33060 GE OVEN LATCH
WB53K10035 WB53K10035 GE OVEN SIDE LE
WB53K10034 WB53K10034 GE OVEN SIDE RI
WB07X27884 WB07X27884 GE OVERLAY T09 LARGE
WB56X22013 WB56X22013 GE PANEL
WB36X24894 WB36X24894 GE PANEL AND CO
WB55K10033 WB55K10033 GE PANEL ASSEMBLY WELD
WB24K10068 WB24K10068 GE PLUNGER SWITCH
49-85224 49-85224 GE PM GAS QUICK GUIDE
31-10998 31-10998 GE PM INSTALL INSTRUCTIONS
31-17175 31-17175 GE PM MINI MANUAL
WB08T10026 WB08T10026 GE PUSH-IN RECEPTICLE
WB39K0016 WB39K0016 GE RAIL DRAWER
WB02K10254 WB02K10254 GE RANGE ANTI-TIP BRACKET
WB63X23200 WB63X23200 GE RANGE BACK
WB16X20463 WB16X20463 GE RANGE BAKE BURNER
WB49K10037 WB49K10037 GE RANGE BAKE BURNER SHIELD
WB2X8351 WB2X8351 GE RANGE CONVECTION FAN BLADE
WB2K68 WB2K68 GE RANGE DRAWER GLIDE
WB21X21506 WB21X21506 GE RANGE GAS VALVE AND REGULATOR ASSEMBLY
WB31X49806 WB31X49806 GE RANGE GRIDDLE
WB34K3 WB34K3 GE RANGE HINGE BUSHING
WB02X24942 WB02X24942 GE RANGE HOLDER
WB02X24941 WB02X24941 GE RANGE HOLDER
WB18X31213 WB18X31213 GE RANGE IGNITER SWITCH AND HARNESS ASSEMBLY
WB02K10182 WB02K10182 GE RANGE LEVELING LEG
WB28X39132 WB28X39132 GE RANGE LP CONVERSION KIT
WB62X24822 WB62X24822 GE RANGE MAIN TOP
WB01K10037 WB01K10037 GE RANGE NUT
WB16K10076 WB16K10076 GE RANGE OVAL SURFACE BURNER
WB13X40206 WB13X40206 GE RANGE OVEN BURNER IGNITER
WB27X27882 WB27X27882 GE RANGE OVEN CONTROL BOARD
WB2K56 WB2K56 GE RANGE OVEN DOOR GLASS CLIP
WB15X27280 WB15X27280 GE RANGE OVEN DOOR HANDLE ASSEMBLY
WB10X21659 WB10X21659 GE RANGE OVEN DOOR HINGE
WB1K53 WB1K53 GE RANGE OVEN DOOR HINGE SCREW
WB36X192 WB36X192 GE RANGE OVEN LIGHT LENS
WB48X20249 WB48X20249 GE RANGE OVEN RACK
WB20K10027 WB20K10027 GE RANGE OVEN TEMPERATURE SENSOR
WB18K10055 WB18K10055 GE RANGE POWER CORD
WB1X536 WB1X536 GE RANGE SCREW
WB1X1261 WB1X1261 GE RANGE SCREW
WB01K10091 WB01K10091 GE RANGE SCREW
WB1K5062 WB1K5062 GE RANGE SCREW
WB1X1293 WB1X1293 GE RANGE SCREW
WB13X24741 WB13X24741 GE RANGE SPARK MODULE
WB28K10222 WB28K10222 GE RANGE SURFACE BURNER CAP
WB29K10024 WB29K10024 GE RANGE SURFACE BURNER CAP
WB29K10023 WB29K10023 GE RANGE SURFACE BURNER CAP
WB03X24818 WB03X24818 GE RANGE SURFACE BURNER KNOB
WB28K10032 WB28K10032 GE RANGE SURFACE BURNER LP ORIFICE
WB28K10215 WB28K10215 GE RANGE SURFACE BURNER ORIFICE
WB28K10023 WB28K10023 GE RANGE SURFACE BURNER ORIFICE
WB28K10834 WB28K10834 GE RANGE SURFACE BURNER ORIFICE
WB02K10360 WB02K10360 GE RANGE SURFACE BURNER ORIFICE HOLDER
WB2K24 WB2K24 GE RANGE SURFACE BURNER VALVE GUARD
WB16X24723 WB16X24723 GE RANGE SURFACE BURNER, 12,000-BTU
WB63K10203 WB63K10203 GE REAR BROIL PANEL
WB1K44 WB1K44 GE SCEW LATC
WB01T10008 WB01T10008 GE SCR 10-32 TR
WB01X26995 WB01X26995 GE SCR 8-18 AB
WB1X5716 WB1X5716 GE SCREW
WB01X24735 WB01X24735 GE SCREW
WB01K0042 WB01K0042 GE SCREW (BLK)
WB01X5716 WB01X5716 GE SCREW (BLK)
WB01X0593 WB01X0593 GE SCREW - DOOR ASM (4 PER)
WZ4X345D WZ4X345D GE SCREW 8-18X5/8 HXW
WB01K0044 WB01K0044 GE SCREW DOOR LATCH
WB01X1261 WB01X1261 GE SCREW GROUND
WB01K0053 WB01K0053 GE SCREW MTG HINGE (TORX)
WB01K0050 WB01K0050 GE SCREW MTG IGNITER
WB34X20303 WB34X20303 GE SHIELD BROIL
WB02X20849 WB02X20849 GE SPACER
WB63X20216 WB63X20216 GE SUPPORT BASE
WB63X20215 WB63X20215 GE SUPPORT BASE
WB01K10080 WB01K10080 GE THERMOSTAT SCREW
WB21X20262 WB21X20262 GE VALVE
WB21X20260 WB21X20260 GE VALVE
WB38K2 WB38K2 GE VEN BRACE
WB38K10022 WB38K10022 GE VEN DIFFUSER
WB38K10008 WB38K10008 GE VENT
WB34K10087 WB34K10087 GE WINDOW SPACER
WB02K10267 WB02K10267 GE WIRE CLIP
WB02X21679 WB02X21679 GE WIRE CLIP
