Model Image
Manufacturer

GE

Model Number

JGB720BEJ1TS

Description

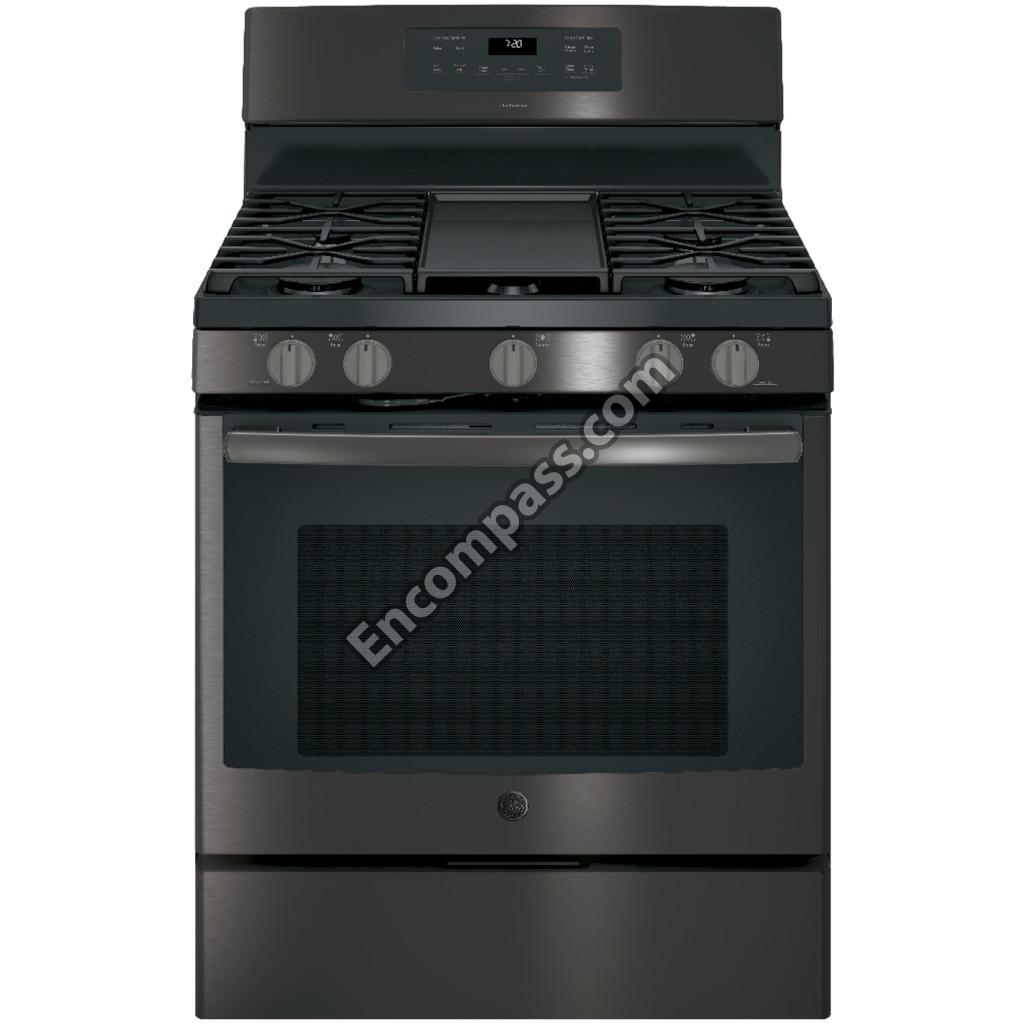

Free-standing Gas Range

Interactive Exploded View
Exploded View

Parts List

Part Number Description
40A15 40A15 GE 40WATT 15AMP INC AND ESCENT BULB
WB29K10023 WB29K10023 GE 500 BTUS GAS RANGE MEDIUM BURNER CAP; 9
WB28K10023 WB28K10023 GE 89MM RANGE ORIFICE SPUD - NG TO LP
WB34X25717 WB34X25717 GE BACKGUARD EYEBROW
WB36X29786 WB36X29786 GE BACKGUARD RANGE
WB02X29637 WB02X29637 GE BADGE ASSEMBLY
WB02K0027 WB02K0027 GE BAIL
WB2K27 WB2K27 GE BAIL
WB2X8351 WB2X8351 GE BLADE FAN
WB35X37970 WB35X37970 GE BOTTOM OVEN AND DEFLECTOR ASM
WB02K0032 WB02K0032 GE BOTTOM OVEN BRACKT SUPPO
WB63K0015 WB63K0015 GE BRACE BOTTOM
WB38K0002 WB38K0002 GE BRACE VENT
WB02K10254 WB02K10254 GE BRACKET ANTI-TIP ASSEMBLY
WB63X24859 WB63X24859 GE BRACKET CAVITY
WB02K0041 WB02K0041 GE BRACKET OVEN CORNER
WB02X24790 WB02X24790 GE BUMPER
WB16X20463 WB16X20463 GE BURNER BAKE
WB02K10360 WB02K10360 GE CKT BRACKET SMALL
WB01X24735 WB01X24735 GE CKT SCREW
WB02K0036 WB02K0036 GE CLAMP CABLE
WB2K36 WB2K36 GE CLAMP CABLE
WB02K0031 WB02K0031 GE CLIP CABLE
WB02X21679 WB02X21679 GE CLIP CABLE
WB02K10380 WB02K10380 GE CLIP INSULATION
WB02X26569 WB02X26569 GE CLIP RANGETOP
WB02K0056 WB02K0056 GE CLIP WINDOW
WB2K56 WB2K56 GE CLIP WINDOW
WB02X7066 WB02X7066 GE CLIP WIRE
WB02K10267 WB02K10267 GE CLIP WIRE
WB27X29135 WB27X29135 GE CONTROL OVEN TO9
WB34K0016 WB34K0016 GE COVER BACK
WB34X21575 WB34X21575 GE COVER BACK
WB34K16 WB34K16 GE COVER BACK
WB34X24746 WB34X24746 GE COVER BACK LOWER
WB34X24851 WB34X24851 GE COVER BACK UPPER
WB34X25587 WB34X25587 GE COVER MOTOR
WB63K10040 WB63K10040 GE COVER TERMINAL
WB02K0024 WB02K0024 GE COVER VALVE
WB07X29142 WB07X29142 GE COVER VENT TRIM DD
WB56X23809 WB56X23809 GE CRYSTAL WINDOW
WB56X25504 WB56X25504 GE DEFLECTOR BOTTOM DOOR
WB56X21576 WB56X21576 GE DEFLECTOR DOOR
WB49K10037 WB49K10037 GE DEFLECTOR OVEN
WB38K10022 WB38K10022 GE DIFFUSER VENT
WB02K10163 WB02K10163 GE DRAWER SUPPORT
WB01K10037 WB01K10037 GE ECONOMIC NUT
WB28X20389 WB28X20389 GE ELBOW 90 ASSEMBLY
WB18X26980 WB18X26980 GE ELECTRODES AND HARNESS H.V
WB07X29144 WB07X29144 GE END SUPPORT DD
WB07X29143 WB07X29143 GE END SUPPORT DD
WB02X8351 WB02X8351 GE FAN BLADE
WB34K10037 WB34K10037 GE FAN COVER FRONT
WB26X28953 WB26X28953 GE FAN MOTOR CONVECT
WB49K0044 WB49K0044 GE FLAME SPREADER
WB02X28738 WB02X28738 GE FRAME FRONT BUMPER
WB63X24857 WB63X24857 GE FRAME WELD ASSEMBLY
WB31X49806 WB31X49806 GE GAS RANGE ALUMINUM GRIDDLE
WB28K10222 WB28K10222 GE GAS RANGE BURNER CAP - XL V2
WB35X29668 WB35X29668 GE GASKET ASSEMBLY DOOR
WB32K0005 WB32K0005 GE GASKET OVEN LIGHT
WB32K2 WB32K2 GE GASKET OVEN SEAL LG
WB32K0001 WB32K0001 GE GASKET VENT
WB56X29782 WB56X29782 GE GLASS DOOR ASSEMBLY
WB08K0005 WB08K0005 GE GLASS OVEN LAMP
WB02K0068 WB02K0068 GE GLIDER DRAWER
WB2K68 WB2K68 GE GLIDER DRWR
WB31X24736 WB31X24736 GE GRATE ASM
WB2K8 WB2K8 GE GROMMET
WB63K0016 WB63K0016 GE GUARD BOTTOM
WB56K12 WB56K12 GE GUARD INSUL
WB56K0012 WB56K0012 GE GUARD INSULATION
WB15X28756 WB15X28756 GE HANDLE AND END CAP ASSEMBLY
WB18X24748 WB18X24748 GE HARNESS GROUND
WB10X21659 WB10X21659 GE HINGE DOOR
WB34K0004 WB34K0004 GE HINGE GUARD LEFT
WB34K0003 WB34K0003 GE HINGE GUARD RIGHT
WB14K10003 WB14K10003 GE HINGE RANGE TOP
WB34K4 WB34K4 GE HNGE GRD LFT
WB34K3 WB34K3 GE HNGE GRD RGT
WB8K1 WB8K1 GE HOUS RECEPTL
WB08K0001 WB08K0001 GE HOUSING RECEPTACLE
WB13X40207 WB13X40207 GE IGNITER GLOWBAR
WB13X24741 WB13X24741 GE IGNITION MODULE
WB35X21198 WB35X21198 GE INSULATION ASSEMBLY
WB35K10150 WB35K10150 GE INSULATION BOTTOM DOOR
WB35X24985 WB35X24985 GE INSULATION BURNER BOX
WB35X25588 WB35X25588 GE INSULATION CONTROL
WB35X24786 WB35X24786 GE INSULATION OVEN WRAP
WB35K10149 WB35K10149 GE INSULATION SIDE DOOR
WB35X24852 WB35X24852 GE INSULATION VENT
WB28X39138 WB28X39138 GE KIT LP CONVERSION ASSEMBLY
WB03X29781 WB03X29781 GE KNOB ASSEMBLY
WB10X33060 WB10X33060 GE LATCH ASSEMBLY
WB02K10140 WB02K10140 GE LATCH ASSEMBLY
WB18K10055 WB18K10055 GE LINE CORD
WB56X24855 WB56X24855 GE LINER ASSEMBLY WELD DOOR
31-10991 31-10991 GE LP CONVERSION INST
WB36X32658 WB36X32658 GE MANIFOLD PANEL
WB36X44706 WB36X44706 GE MANIFOLD PANEL
WB28X24765 WB28X24765 GE MANIFOLD PIPE
WB34X20680 WB34X20680 GE MANIFOLD SUPPORT
WB16X24724 WB16X24724 GE MEDIUM V2 BURNER
WB02T10017 WB02T10017 GE NUT
WB28X25593 WB28X25593 GE ORIFICE HOLDER
WB28X25592 WB28X25592 GE ORIFICE HOLDER
WB28X24850 WB28X24850 GE ORIFICE HOLDER
WB28X24761 WB28X24761 GE ORIFICE HOLDER RF
WB28K10834 WB28K10834 GE ORIFICE SPUD
WB28X24768 WB28X24768 GE ORIFICE SPUD
WB16K10076 WB16K10076 GE OVAL BURNER ASSEMBLY
WB53K10035 WB53K10035 GE OVEN SIDE LEFT
WB53K10034 WB53K10034 GE OVEN SIDE RIGHT
WB53K10015 WB53K10015 GE OVEN TOP
WB07X27884 WB07X27884 GE OVERLAY T09 LARGE
WB55K10033 WB55K10033 GE PANEL ASSEMBLY WELD
WB56X30211 WB56X30211 GE PANEL DRAWER
WB63K10203 WB63K10203 GE PANEL REAR BROIL
WB56X29670 WB56X29670 GE PANEL SIDE
WB24K10068 WB24K10068 GE PLUNGER SWITCH
49-85224 49-85224 GE PM GAS QUICK GUIDE
31-10999 31-10999 GE PM INSTALL INSTRUCTIONS
31-17176 31-17176 GE PM MINI MANUAL
WB39K0016 WB39K0016 GE RAIL DRAWER
WB63X23200 WB63X23200 GE RANGE BACK
WB07X20288 WB07X20288 GE RANGE BARRIER DOOR
WB63K10187 WB63K10187 GE RANGE BOTTOM INNER GUARD
WB2K32 WB2K32 GE RANGE BRACKET SUPPORT
WB16K10086 WB16K10086 GE RANGE BROIL BURNER
WB16X28654 WB16X28654 GE RANGE BURNER CAP - SMALL - V2
WB28K10215 WB28K10215 GE RANGE BURNER ORIFICE
WB28X24773 WB28X24773 GE RANGE BURNER TUBE SUPPLY
WB02X24845 WB02X24845 GE RANGE CONTROL BRACKET
WB49K10025 WB49K10025 GE RANGE DEFLECTOR
WB58K10015 WB58K10015 GE RANGE DRAWER BODY
WB02X24742 WB02X24742 GE RANGE DRAWER BRACKET
WB39K16 WB39K16 GE RANGE DRAWER RAIL
WB02K10034 WB02K10034 GE RANGE FAN SUPPORT
WB18X31213 WB18X31213 GE RANGE HARNESS SWITCHES
WB28X29255 WB28X29255 GE RANGE HIGH ALTITUDE KIT - LP
WB28X29254 WB28X29254 GE RANGE HIGH ALTITUDE KIT - NP
WB10X20220 WB10X20220 GE RANGE HINGE RECEIVER
WB02X24976 WB02X24976 GE RANGE IGNITER CLIP V2
WB13X40206 WB13X40206 GE RANGE IGNITER GLOWBAR
WB1X1293 WB1X1293 GE RANGE IGNITER MOUNTING SCREW
WB34X24753 WB34X24753 GE RANGE IGNITOR COVER
WB02X24727 WB02X24727 GE RANGE INJET MEDIUM
WB02X24728 WB02X24728 GE RANGE INJET SMALL
WB02X24725 WB02X24725 GE RANGE INJET XL V2
WB35K10038 WB35K10038 GE RANGE INSULATOR FAN
WB02K10182 WB02K10182 GE RANGE LEVELING LEG
WB34K10086 WB34K10086 GE RANGE LOWER HEAT SHIELD
WB28X24763 WB28X24763 GE RANGE ORIFICE HOLDER LR
WB2K41 WB2K41 GE RANGE OVEN BRACKET
WB36X192 WB36X192 GE RANGE OVEN BULB COVER
WB32K5 WB32K5 GE RANGE OVEN GASKET
WB48X20249 WB48X20249 GE RANGE OVEN RACK
WB63K16 WB63K16 GE RANGE PANEL
WB02X24940 WB02X24940 GE RANGE SIDE MANIFOLD BRACKET
WB02X24939 WB02X24939 GE RANGE SIDE MANIFOLD BRACKET
WB02X20849 WB02X20849 GE RANGE SIDE SPACER
WB20K10027 WB20K10027 GE RANGE TEMPERATURE SENSOR
WB01K10080 WB01K10080 GE RANGE THERMOSTAT SCREW
WB02K10297 WB02K10297 GE RANGE VALVE BRACKET
WB38K2 WB38K2 GE RANGE VENT BRACE
WB63K15 WB63K15 GE RANGE VENT BRACE
WB62X24887 WB62X24887 GE RANGETOP AND BRACKET ASSEMBLY
WB02X24942 WB02X24942 GE RANGETOP HOLDER
WB02X24941 WB02X24941 GE RANGETOP HOLDER
WB08T10026 WB08T10026 GE RECEPTACLE PUSH-IN
WB1K44 WB1K44 GE SCEW LATCH
WB01X26995 WB01X26995 GE SCR 8-18 AB X 5/16S
WB01K10091 WB01K10091 GE SCREW
WB1K5062 WB1K5062 GE SCREW
WB1X1261 WB1X1261 GE SCREW
WB1X5754 WB1X5754 GE SCREW
WB1X536 WB1X536 GE SCREW
WB01K0042 WB01K0042 GE SCREW (BLK)
WB01X0593 WB01X0593 GE SCREW - DOOR ASM (4 PER)
WB01T10008 WB01T10008 GE SCREW 10-32 TR T
WB01X5754 WB01X5754 GE SCREW 8-18 ABT 1/2 S
WZ4X345D WZ4X345D GE SCREW 8-18X5/8 HXW
WB01K0044 WB01K0044 GE SCREW DOOR LATCH
WB01X1261 WB01X1261 GE SCREW GROUND
WB1K53 WB1K53 GE SCREW HINGE
WB01K0053 WB01K0053 GE SCREW MTG HINGE (TORX)
WB01K0050 WB01K0050 GE SCREW MTG IGNITER
WB34X20303 WB34X20303 GE SHIELD BROIL
WB16X24721 WB16X24721 GE SMALL V2 BURNER
WB16X20449 WB16X20449 GE SPACER BASE
WB16X20448 WB16X20448 GE SPACER BASE
WB63X20216 WB63X20216 GE SUPPORT BASE
WB63X20215 WB63X20215 GE SUPPORT BASE
WB34X29145 WB34X29145 GE TOP COMPLEMENT BACKGUARD
WB34X24779 WB34X24779 GE TRIM FRONT FRAME
WB28X24772 WB28X24772 GE TUBE MANIFOLD SUPPLY
WB21X20260 WB21X20260 GE VALVE BURNER 270
WB21X20261 WB21X20261 GE VALVE BURNER 270
WB21X20262 WB21X20262 GE VALVE BURNER 270
WB21X20394 WB21X20394 GE VALVE BURNER 270
WB21X33225 WB21X33225 GE VALVE CONTROL ASSEMBLY NOR. D
WB2K24 WB2K24 GE VALVE COVER
WB38K10008 WB38K10008 GE VENT ASSEMBLY
WB34K10087 WB34K10087 GE WINDOW SPACER ASSEMBLY
WB16X24722 WB16X24722 GE XL V2 BURNER
