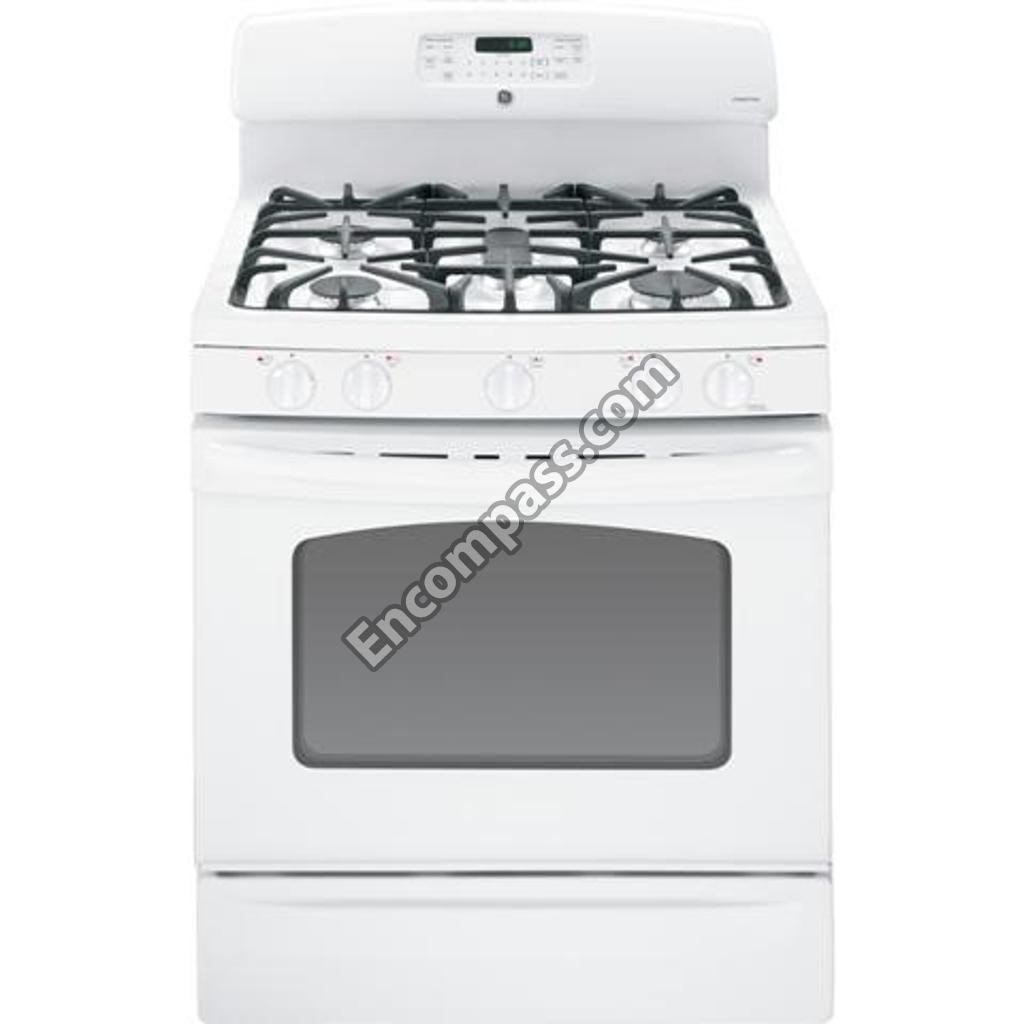

Model Image
Manufacturer

GE

Model Number

JGB810DET2WW

Description

Gas Range Or Dual Fuel

Interactive Exploded View

Parts List

Part Number Description
40A15 40A15 GE 40WATT 15AMP INC AND ESCENT BULB
WB64X10005 WB64X10005 GE ADHESIVE-GRATE FOOT
WB02K0012 WB02K0012 GE ARM ANTI TIP
WB2K12 WB2K12 GE ARM ANTI TIP
WB29K10024 WB29K10024 GE ASM BURNER CAP (12000)
WB29K10022 WB29K10022 GE ASM BURNER CAP (5000)
WB29K10023 WB29K10023 GE ASM BURNER CAP (9500)
WB02T10359 WB02T10359 GE BADGE GE
WB02K0027 WB02K0027 GE BAIL
WB2K27 WB2K27 GE BAIL
WB07K10342 WB07K10342 GE BARRIER DOOR
WB2X8351 WB2X8351 GE BLADE FAN
WB63K10187 WB63K10187 GE BOTTOM INNER GUARD
WB35X37973 WB35X37973 GE BOTTOM OVEN
WB02K0032 WB02K0032 GE BOTTOM OVEN BRACKT SUPPO
WB63K10190 WB63K10190 GE BOX BURNER SP
WB63K0015 WB63K0015 GE BRACE BOTTOM
WB38K0002 WB38K0002 GE BRACE VENT
WB02K10360 WB02K10360 GE BRACKET
WB02K0020 WB02K0020 GE BRACKET ASM ANTI-TIP
WB02K10155 WB02K10155 GE BRACKET CONTROL
WB02K10363 WB02K10363 GE BRACKET COOKTOP
WB02K10268 WB02K10268 GE BRACKET DOOR
WB39K0020 WB39K0020 GE BRACKET MOUNTING DRAWER
WB02K0041 WB02K0041 GE BRACKET OVEN CORNER
WB02K10297 WB02K10297 GE BRACKET VALVE
WB02K10180 WB02K10180 GE BUMPER
WB02K10179 WB02K10179 GE BUMPER
WB02K10178 WB02K10178 GE BUMPER
WB16T10046 WB16T10046 GE BURNER 12K
WB16K10035 WB16K10035 GE BURNER BAKE
WB16K10067 WB16K10067 GE BURNER BROIL
WB16K10055 WB16K10055 GE BURNER MEDIUM (9500)
WB28K10222 WB28K10222 GE CAP BURNER ASM (15K)
WB02K10361 WB02K10361 GE CKT BRACKET MDM & LGE
WB02K10362 WB02K10362 GE CKT BRACKET MDM LGE
WB01K10106 WB01K10106 GE CKT SCREW
WB02K0036 WB02K0036 GE CLAMP CABLE
WB2K36 WB2K36 GE CLAMP CABLE
WB02K0031 WB02K0031 GE CLIP CABLE
WB02X21679 WB02X21679 GE CLIP CABLE
WB02K0052 WB02K0052 GE CLIP RANGETOP
WB2K52 WB2K52 GE CLIP RNGETOP
WB02K0056 WB02K0056 GE CLIP WINDOW
WB2K56 WB2K56 GE CLIP WINDOW
WB02X7066 WB02X7066 GE CLIP WIRE
WB02K10267 WB02K10267 GE CLIP WIRE
WB01X0119 WB01X0119 GE CONTOURED WASHER
WB34K10124 WB34K10124 GE COVER BACK LAMP
WB34K10123 WB34K10123 GE COVER BACK UPPER
WB34K10125 WB34K10125 GE COVER MOTOR
WB63K10054 WB63K10054 GE COVER TERMINALS
WB02K0024 WB02K0024 GE COVER VALVE
WB34K10129 WB34K10129 GE COVERBACKLOWER
WB56K0020 WB56K0020 GE CRYSTAL WINDOW
WB34K13 WB34K13 GE CVR B PNL SP
WB34K14 WB34K14 GE CVR IGNITOR
WB49K10037 WB49K10037 GE DEFLECTOR OVEN
WB35K10048 WB35K10048 GE DEFLECTOR SIDE
WB38K10022 WB38K10022 GE DIFFUSER VENT
WB58K10015 WB58K10015 GE DRAWER BODY
WB58K10011 WB58K10011 GE DRAWER BODY
WB02K10163 WB02K10163 GE DRAWER SUPPORT
WB01K10037 WB01K10037 GE ECONOMIC NUT
WB28K10310 WB28K10310 GE ELBOW HI BROIL
WB07K10247 WB07K10247 GE END SUPPORT
WB07K10246 WB07K10246 GE END SUPPORT
WB07K10283 WB07K10283 GE END SUPPORT LF BSQ
WB07K10252 WB07K10252 GE END SUPPORT LF WH
WB07K10282 WB07K10282 GE END SUPPORT RT BSQ
WB07K10251 WB07K10251 GE END SUPPORT RT WH
WB02X8351 WB02X8351 GE FAN BLADE
WB34K10038 WB34K10038 GE FAN COVER BACK
WB34K10037 WB34K10037 GE FAN COVER FRONT
WB35K10038 WB35K10038 GE FAN INSULATOR
WB26K10003 WB26K10003 GE FAN MOTOR CONVECT-2SPEED
WB02K10034 WB02K10034 GE FAN SUPPORT
WB49K0044 WB49K0044 GE FLAME SPREADER
WB01X1378 WB01X1378 GE FLAT WASHER-M4
WB63K10191 WB63K10191 GE FRAME WELD ASM.
WB04K10029 WB04K10029 GE GASKET ASM. DOOR
WB32K0005 WB32K0005 GE GASKET OVEN LIGHT
WB32K0002 WB32K0002 GE GASKET OVEN SEAL LG
WB32K0001 WB32K0001 GE GASKET VENT
WB32K1 WB32K1 GE GASKET VENT
WB57K10112 WB57K10112 GE GLASS OVEN DOOR
WB57K10110 WB57K10110 GE GLASS OVEN DOOR
WB57K10109 WB57K10109 GE GLASS OVEN DOOR (BK)
WB08K0005 WB08K0005 GE GLASS OVEN LAMP
WB02K0068 WB02K0068 GE GLIDER DRAWER
WB2K68 WB2K68 GE GLIDER DRWR
WB31K10235 WB31K10235 GE GRATE CAST CN BK
WB31K10233 WB31K10233 GE GRATE CAST LF BK
WB31K10234 WB31K10234 GE GRATE CAST RT BK
WB1K10 WB1K10 GE GROM HNDLE
WB2K8 WB2K8 GE GROMMET
WB01K0010 WB01K0010 GE GROMMET HANDLE
WB63K0016 WB63K0016 GE GUARD BOTTOM
WB56K12 WB56K12 GE GUARD INSUL
WB56K0012 WB56K0012 GE GUARD INSULATION
WB34K0031 WB34K0031 GE GUARD RADIATION LFT
WB34K0030 WB34K0030 GE GUARD RADIATION RT
WB15K10106 WB15K10106 GE HANDLE
WB15K10103 WB15K10103 GE HANDLE BK
WB15K10104 WB15K10104 GE HANDLE WH
WB18K10059 WB18K10059 GE HARNSESS HV AND 5 ELECTRODES
WB28K10825 WB28K10825 GE HI ALTITUDE ORIFICE KIT
WB10K0012 WB10K0012 GE HINGE ASM GUIDE
WB2X6195 WB2X6195 GE HINGE PIN
WB14K10003 WB14K10003 GE HINGE RANGE TOP
WB02K0011 WB02K0011 GE HOOK DOOR SPRING
WB2K11 WB2K11 GE HOOK DR SPRG
WB8K1 WB8K1 GE HOUS RECEPTL
WB08K0001 WB08K0001 GE HOUSING RECEPTACLE
WB24K10077 WB24K10077 GE IGNIT SWITCHES AND HARNESS
WB34K0014 WB34K0014 GE IGNITER COVER
WB13X25261 WB13X25261 GE IGNITER GLOWBAR
WB35K10150 WB35K10150 GE INSULATION BOTTOM DOOR
WB35K10040 WB35K10040 GE INSULATION CONTROL
WB35K10168 WB35K10168 GE INSULATION OVEN BACK
WB35K10210 WB35K10210 GE INSULATION OVEN WRAP
WB35K10149 WB35K10149 GE INSULATION SIDE DOOR
WB2K101 WB2K101 GE KIT FEET-RUB
WB02K0101 WB02K0101 GE KIT-RUBBER FEET
WB03K10354 WB03K10354 GE KNOB
WB03K10312 WB03K10312 GE KNOB
WB03K10316 WB03K10316 GE KNOB ASM
WB03K10314 WB03K10314 GE KNOB ASM
WB03K10356 WB03K10356 GE KNOB ASM
WB03K10355 WB03K10355 GE KNOB ASM
WB03K10313 WB03K10313 GE KNOB LOCATOR
WB18K10055 WB18K10055 GE LINE CORD
WB55K10042 WB55K10042 GE LINER ASM WELD DOOR
WB34K10086 WB34K10086 GE LOWER HEAT SHIELD
WB26K10016 WB26K10016 GE MANIFOLD PANEL
WB02T10017 WB02T10017 GE NUT
WB01K0003 WB01K0003 GE NUT SPEED
WB1K3 WB1K3 GE NUT SPEED
WB28K10817 WB28K10817 GE ORIFICE HOLDER
WB28K10816 WB28K10816 GE ORIFICE HOLDER
WB28K10814 WB28K10814 GE ORIFICE HOLDER
WB28K10591 WB28K10591 GE ORIFICE HOLDER ASM
WB28K10812 WB28K10812 GE ORIFICE HOLDER RF
WB28K10839 WB28K10839 GE ORIFICE SPUD
WB28K10215 WB28K10215 GE ORIFICE SPUD LP 86L
WB28K10214 WB28K10214 GE ORIFICE SPUD LP 88L
WB28K10031 WB28K10031 GE ORIFICE-LP 63MM
WB28K10023 WB28K10023 GE ORIFICE-LP 89MM
WB16K10076 WB16K10076 GE OVAL BURNER ASSEMBLY
WB53K10025 WB53K10025 GE OVEN BACK
WB53K10035 WB53K10035 GE OVEN SIDE LEFT
WB53K10034 WB53K10034 GE OVEN SIDE RIGHT
WB53K10015 WB53K10015 GE OVEN TOP
WB27K10408 WB27K10408 GE OVERLAY
WB27K10407 WB27K10407 GE OVERLAY T011
WB27K10418 WB27K10418 GE OVERLAY T011
WB55K0013 WB55K0013 GE PANEL ASM WELD INNER
WB36K10164 WB36K10164 GE PANEL DRAWER (BISQUE)
WB55K10001 WB55K10001 GE PANEL DRAWER (BLACK)
WB36K10033 WB36K10033 GE PANEL DRAWER (WHITE)
WB63K10203 WB63K10203 GE PANEL REAR BROIL
WB63K10122 WB63K10122 GE PANEL SIDE
WB63K10124 WB63K10124 GE PANEL SIDE
WB63K10119 WB63K10119 GE PANEL SIDE BK
WB63K0003 WB63K0003 GE PANEL SIDE BROIL LFT
WB63K0002 WB63K0002 GE PANEL SIDE BROIL RT
WB02X6195 WB02X6195 GE PIN HINGE DOOR
WB14K10005 WB14K10005 GE PIN LOCATOR
WB14K10004 WB14K10004 GE PIN LOCATOR
WB24K10068 WB24K10068 GE PLUNGER SWITCH
31-10805-1 31-10805-1 GE PM INSTALL INSTRUCTIONS
31-14992-1 31-14992-1 GE PM MINI MANUAL
49-85183-1 49-85183-1 GE PM OWNERS AND INSTALL
WB55K13 WB55K13 GE PNL ASM WELD
WB63K3 WB63K3 GE PNL SD BRO L
WB63K2 WB63K2 GE PNL SD BRO R
WB48T10095 WB48T10095 GE RACK OVEN
WB39K0016 WB39K0016 GE RAIL DRAWER
WB16K10083 WB16K10083 GE RANGE 15K LP TUBE
WB2K20 WB2K20 GE RANGE ANTI-TIP BRACKET
WB63K10192 WB63K10192 GE RANGE BACK
WB2K32 WB2K32 GE RANGE BRACKET SUPPORT
WB49K10025 WB49K10025 GE RANGE DEFLECTOR
WB10K12 WB10K12 GE RANGE DOOR HINGE ASSEMBLY
WB39K20 WB39K20 GE RANGE DRAWER MOUNTING BRACKET
WB39K16 WB39K16 GE RANGE DRAWER RAIL
WB1X1293 WB1X1293 GE RANGE IGNITER MOUNTING SCREW
WB02K10182 WB02K10182 GE RANGE LEVELING LEG
WB2K41 WB2K41 GE RANGE OVEN BRACKET
WB36X192 WB36X192 GE RANGE OVEN BULB COVER
WB32K2 WB32K2 GE RANGE OVEN DOOR GASKET
WB32K5 WB32K5 GE RANGE OVEN GASKET
WB13K21 WB13K21 GE RANGE OVEN IGNITER
WB48X20249 WB48X20249 GE RANGE OVEN RACK
WB63K16 WB63K16 GE RANGE PANEL
WB34K31 WB34K31 GE RANGE RADIATION GUARD
WB34K30 WB34K30 GE RANGE RADIATION GUARD
WB13X26360 WB13X26360 GE RANGE SPARK MODULE 6+0
WB63K15 WB63K15 GE RANGE VENT BRACE
WB38K2 WB38K2 GE RANGE VENT BRACE
WB62K10155 WB62K10155 GE RANGETOP & BRKT ASM
WB62K10154 WB62K10154 GE RANGETOP BRKT ASM
WB62K10153 WB62K10153 GE RANGETOP BRKT ASM
WB08T10026 WB08T10026 GE RECEPTACLE PUSH-IN
WB35K33 WB35K33 GE REFLECTOR
WB35K0022 WB35K0022 GE REFLECTOR 9.5 INCH
WB2X1082 WB2X1082 GE RETAINER
WB2X2030 WB2X2030 GE RETAINER
WB08K0004 WB08K0004 GE RETAINER INSULATION LAMP
WB02K0030 WB02K0030 GE RETAINER-INSULATION VENT
WB31X23201 WB31X23201 GE REVERSIBLE GRIDDLE
WB02X1082 WB02X1082 GE RING RETAINING
WB28K10583 WB28K10583 GE ROUND MANIFOLD PIPE
WB1K44 WB1K44 GE SCEW LATCH
WB01K0063 WB01K0063 GE SCREW
WB01K0001 WB01K0001 GE SCREW
WB1K5119 WB1K5119 GE SCREW
WB1X536 WB1X536 GE SCREW
WB1X1261 WB1X1261 GE SCREW
WB1K5062 WB1K5062 GE SCREW
WB01K10091 WB01K10091 GE SCREW
WB01K0042 WB01K0042 GE SCREW (BLK)
WB01X5364 WB01X5364 GE SCREW (CR)
WB01X0593 WB01X0593 GE SCREW - DOOR ASM (4 PER)
WB01K0065 WB01K0065 GE SCREW 10-16
WB1K63 WB1K63 GE SCREW 10-16 X 0.95 TYPE B
WB1K78 WB1K78 GE SCREW 12-14
WB01K0078 WB01K0078 GE SCREW 12-14, 5/8S
WB01K10018 WB01K10018 GE SCREW 8-18 (BISQUE)
WB01T10016 WB01T10016 GE SCREW 8-18 AB HXW 5/8 S
WZ04X0345 WZ04X0345 GE SCREW 8-18X5/8 HXW
WB01K10002 WB01K10002 GE SCREW 8-32
WB01K0044 WB01K0044 GE SCREW DOOR LATCH
WB01X1261 WB01X1261 GE SCREW GROUND
WB1K53 WB1K53 GE SCREW HINGE
WB1X5364 WB1X5364 GE SCREW MTG
WB01K0053 WB01K0053 GE SCREW MTG HINGE (TORX)
WB01K0050 WB01K0050 GE SCREW MTG IGNITER
WB01X0558 WB01X0558 GE SCREW NAIL POINT
WB01K10080 WB01K10080 GE SCREW THERMOSTAT
WB01X5874 WB01X5874 GE SCREW WH
WB01K10004 WB01K10004 GE SCREW-MTG END CAP (WHITE )
WZ4X423D WZ4X423D GE SCREW-PKG 12
WB1X558D WB1X558D GE SCREW-PKG 12
WZ4X345D WZ4X345D GE SCREWS - 12 PACK
WB49K10045 WB49K10045 GE SHIELD BROIL
WB34K0013 WB34K0013 GE SHIELD HEAT INNER
WB16K10070 WB16K10070 GE SMALL BURNER V 5K
WB01K0002 WB01K0002 GE SPEEDNUT
WB1K2 WB1K2 GE SPEEDNUT
WB01K10093 WB01K10093 GE SPEEDNUT
WB09K0005 WB09K0005 GE SPRING DOOR
WB9K5 WB9K5 GE SPRING DOOR
WB10K10009 WB10K10009 GE SUPPORT ASM RIVET LF
WB10K10010 WB10K10010 GE SUPPORT ASM RIVET RT
WB63K10232 WB63K10232 GE SUPPORT BASE
WB63K10233 WB63K10233 GE SUPPORT BASE
WB27K10319 WB27K10319 GE T011 OVEN CONTROL
WB20K10027 WB20K10027 GE TEMPERATURE SENSOR
WB07K10269 WB07K10269 GE TRIM BOTTOM ASM
WB07K10250 WB07K10250 GE TRIM BOTTOM ASM
WB07K10232 WB07K10232 GE TRIM BOTTOM ASM
WB36K10957 WB36K10957 GE TRIM CONTROL
WB07K10258 WB07K10258 GE TRIM POST LF
WB07K10236 WB07K10236 GE TRIM POST LF
WB07K10259 WB07K10259 GE TRIM POST RT
WB07K10237 WB07K10237 GE TRIM POST RT
WB07K10414 WB07K10414 GE TRIM VENT
WB07K10416 WB07K10416 GE TRIM VENT
WB07K10415 WB07K10415 GE TRIM VENT WH
WB28K10168 WB28K10168 GE TUBE BURNER SUPPLY
WB28X24772 WB28X24772 GE TUBE MANIFOLD SUPPLY
WB02K10136 WB02K10136 GE TWO SWITCH MOTOR LATCH
WB21K10122 WB21K10122 GE VALVE BURNER 270
WB21K10114 WB21K10114 GE VALVE BURNER 270
WB21K10113 WB21K10113 GE VALVE BURNER 270
WB21K10112 WB21K10112 GE VALVE BURNER 270
WB21K10117 WB21K10117 GE VALVE BURNER 270 HI-CAP
WB19K10078 WB19K10078 GE VALVE CONTROL ASSEMBLY
WB2K24 WB2K24 GE VALVE COVER
WB38K10008 WB38K10008 GE VENT ASSEMBLY
WB35K10003 WB35K10003 GE VENT INSULATION
WB16K10046 WB16K10046 GE VENTURI 15K LP
WB16K10062 WB16K10062 GE VISION BURNER XL
WB02X32440 WB02X32440 GE WASHER CONTOURED
WB1X119D WB1X119D GE WASHR-PKG 12
WB56K20 WB56K20 GE WIND PACK LG
WB34K10087 WB34K10087 GE WINDOW SPACER ASM
Main Menu x
