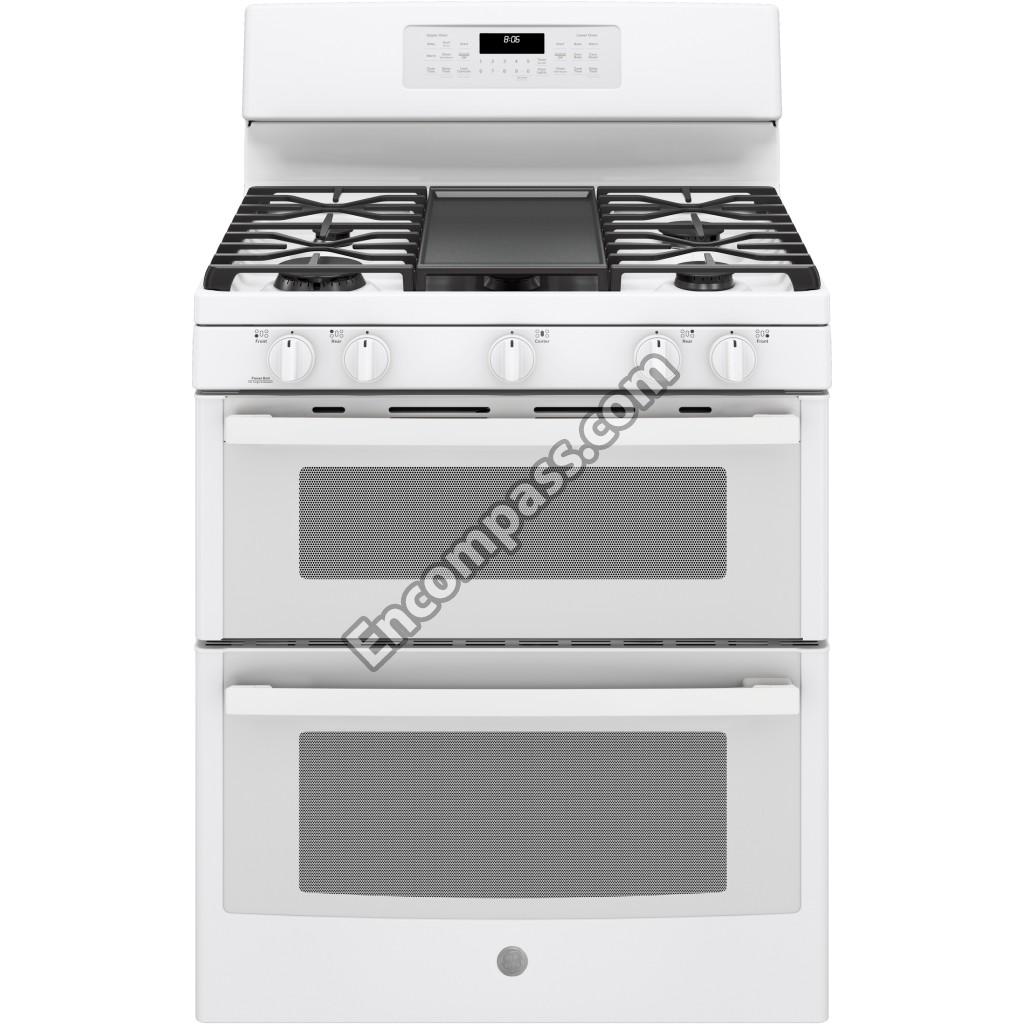

Model Image
Manufacturer

GE

Model Number

JGB860DEJ5WW

Description

30-inch Free-standing Gas Double Oven Convection R

Interactive Exploded View
Exploded View

Parts List

Part Number Description
40A15 40A15 40WATT 15AMP INC AND ESCENT BULB
WB02K0003 WB02K0003 ANGLE SUPPORT
WB2K3 WB2K3 ANGLE SUPPORT
WB16X28654 WB16X28654 ASM. CAP, BURNER SMALL V2
WB07X24789 WB07X24789 BACKGUARD
WB34X25730 WB34X25730 BACKGUARD
WB16X20606 WB16X20606 BAKE BURNER
WB49K10029 WB49K10029 BAKE DEFLECT
WB49K10036 WB49K10036 BAKE DEFLECT
WB56X20457 WB56X20457 BARRIER
WB16X20448 WB16X20448 BASE SPACER
WB16X20450 WB16X20450 BASE SPACER
WB16X20449 WB16X20449 BASE SPACER
WB63X21725 WB63X21725 BOTTOM DUCT
WB63X20441 WB63X20441 BOTTOM RANGE
WB02X24939 WB02X24939 BRACKET
WB02X24940 WB02X24940 BRACKET
WB02X20519 WB02X20519 BRACKET CAVI
WB02K0041 WB02K0041 BRACKET OVEN CORNER
WB02X21734 WB02X21734 BRACKET PIPE
WB02K10297 WB02K10297 BRACKET VALVE
WB16K10072 WB16K10072 BROIL
WB16X24722 WB16X24722 BURNER
WB02K10337 WB02K10337 CAP COVER
WB02X26569 WB02X26569 CLIP
WB02K0031 WB02K0031 CLIP CABLE
WB02X21694 WB02X21694 CONNECTION BRACKET
WB21X20261 WB21X20261 COOKTOP BURNER VALVE
WB21X20394 WB21X20394 COOKTOP BURNER VALVE
WB14K10003 WB14K10003 COOKTOP HINGE
WB28X25632 WB28X25632 COOKTOP HOLDER ORIFICE
WB28X24761 WB28X24761 COOKTOP HOLDER ORIFICE
WB28X24764 WB28X24764 COOKTOP HOLDER ORIFICE
WB28X24763 WB28X24763 COOKTOP HOLDER ORIFICE
WB28X24768 WB28X24768 COOKTOP ORIFICE SPUD
WB34X24915 WB34X24915 COVER
WB02K0024 WB02K0024 COVER VALVE
WB57K10156 WB57K10156 CRYSTAL WINDOW
WB57K10155 WB57K10155 CRYSTAL WINDOW
WB63X25991 WB63X25991 DEFLECTOR
WB56X24943 WB56X24943 DOOR GLASS
WB10X24916 WB10X24916 DOOR HINGE
WB10X24917 WB10X24917 DOOR HINGE
WB10X20569 WB10X20569 DOOR LATCH AUTOMATIC
WB28X20619 WB28X20619 ELBOW 90 ASM
WB28X20787 WB28X20787 ELBOW 90 ASM
WB28X20451 WB28X20451 ELBOW 90 ASM
WB18X26985 WB18X26985 ELECTRODE
WB44K10034 WB44K10034 ELEMENT ASSEMBLY
WB07X24791 WB07X24791 END SUPPORT
WB07X24792 WB07X24792 END SUPPORT
WB02X8351 WB02X8351 FAN BLADE
WB34K10132 WB34K10132 FAN COVER
WB35K10038 WB35K10038 FAN INSULATION
WB02K10034 WB02K10034 FAN SUPPORT
WB35X21685 WB35X21685 FIBER CORD
WB02X28737 WB02X28737 FRAME FRONT BUMPER
WB63K10251 WB63K10251 FRAME WELD A
WB34X28740 WB34X28740 FRAME WINDOW ASSY
WB63X27545 WB63X27545 FRONT FRAME
WB32K0001 WB32K0001 GASKET VENT
WB32K1 WB32K1 GASKET VENT
WB02T10589X WB02T10589X GE BADGE GRAY
WB56X24944 WB56X24944 GLASS PANEL
WB13X24925 WB13X24925 GLOW BAR IGNITER
WB13X25633 WB13X25633 GLOW BAR IGNITER
WB13X24924 WB13X24924 GLOW BAR IGNITER
WB2K8 WB2K8 GROMMET
WB35X21704 WB35X21704 GUARD INSULATION
WB56K10079 WB56K10079 GUARD INSULATION
WB53K10047 WB53K10047 GUARD TOP IN
WB02X24913 WB02X24913 HAND BRACKET
WB02X24914 WB02X24914 HAND BRACKET
WB02X20520 WB02X20520 HAND BRACKET
WB15X21772 WB15X21772 HANDLE (WHITE)
WB18X24748 WB18X24748 HARNESS
WB18X25597 WB18X25597 HARNESS GROU
WB18X27594 WB18X27594 HARNESS GROUND
WB10X21528 WB10X21528 HINGE ASSEMBLY
WB10K10033 WB10K10033 HINGE ASSEMBLY
WB10X26561 WB10X26561 HINGE RECEIVER
WB10K10025 WB10K10025 HINGE RECEIVER
WB10K10026 WB10K10026 HINGE RECEIVER
WB28X24766 WB28X24766 HOLDER ORIFICE
WB02X24976 WB02X24976 IGNITER CLIP
WB02X24727 WB02X24727 INJET
WB02X24726 WB02X24726 INJET
WB02X24728 WB02X24728 INJET
WB02X24725 WB02X24725 INJET, XL V2
WB35X24984 WB35X24984 INSULATION
WB34X21730 WB34X21730 INSULATION
WB34X21729 WB34X21729 INSULATION
WB34X21727 WB34X21727 INSULATION
WB34X21726 WB34X21726 INSULATION
WB34X21728 WB34X21728 INSULATION
WB35X21691 WB35X21691 INSULATION
WB49X26121 WB49X26121 KIT BUTANE C
WB28X29255 WB28X29255 KIT HIGH ALT
WB28X29254 WB28X29254 KIT HIGH ALT
WB02K10326 WB02K10326 L SUPPORT
WB10X24930 WB10X24930 LATCH
WB34X21619 WB34X21619 LATCH COVER
WB55K10081 WB55K10081 LINER DOOR A
WB56X24931 WB56X24931 LINER DOOR W
31-10995 31-10995 LP CONVERSION INST
WB28X39144 WB28X39144 LP CONVERSION KIT
WB49X26120 WB49X26120 MAIN TOP KIT
WB36X24802 WB36X24802 MANIFOLD PANEL
WB28X24932 WB28X24932 MANIFOLD PIPE
WB34X20680 WB34X20680 MANIFOLD SUPPORT
WB28X24937 WB28X24937 MANIFOLD TUBE
WB34X25587 WB34X25587 MOTOR COVER
WB28X24933 WB28X24933 MULTITUBE SU
WB02T10017 WB02T10017 NUT
WB01T10086 WB01T10086 NUT KEPS 6-3
WB2K41 WB2K41 ORIFICE BRACKET
WB63X20729 WB63X20729 OVEN
WB34X24912 WB34X24912 OVEN
WB53K10039 WB53K10039 OVEN
WB53K10041 WB53K10041 OVEN
WB63X20427 WB63X20427 OVEN
WB63X20428 WB63X20428 OVEN
WB34K10038 WB34K10038 OVEN BACK CO
WB63X20785 WB63X20785 OVEN BACK UC
WB63X24934 WB63X24934 OVEN BOTTOM
WB02X20414 WB02X20414 OVEN BRACE
WB02X24790 WB02X24790 OVEN BUMPER
WB02K10179 WB02K10179 OVEN BUMPER
WB16X24721 WB16X24721 OVEN BURNER
WB16X24724 WB16X24724 OVEN BURNER
WB34X20444 WB34X20444 OVEN DEFLECT
WB34X20443 WB34X20443 OVEN DEFLECT
WB34X42148 WB34X42148 OVEN DEFLECTOR
WB32K10047 WB32K10047 OVEN DOOR GASKET
WB32K10044 WB32K10044 OVEN DOOR GASKET
WB32K10046 WB32K10046 OVEN DOOR GASKET
WB35X24927 WB35X24927 OVEN INSULATION
WB35X24986 WB35X24986 OVEN INSULATION
WB35X24928 WB35X24928 OVEN INSULATION
WB08K10018 WB08K10018 OVEN LAMP COVER
WB53K10042 WB53K10042 OVEN SIDE UC
WB63X20784 WB63X20784 OVEN SIDE UC
WB27X32200 WB27X32200 OVERLAY AND
WB56X22009 WB56X22009 PANEL
WB24X27550 WB24X27550 PLUNGER SWIT
49-85226 49-85226 PM GAS QUICK GUIDE
31-11005 31-11005 PM INSTALL INSTRUCTIONS
31-17182 31-17182 PM MINI MANUAL
WB34X24995 WB34X24995 POST
WB21X20795 WB21X20795 PRESSURE REGULATOR
WB02K10254 WB02K10254 RANGE ANTI-TIP BRACKET
WB63X20794 WB63X20794 RANGE BACK
WB16K10074 WB16K10074 RANGE BAKE BURNER
WB26K10003 WB26K10003 RANGE CONVECTION FAN ASSEMBLY
WB2X8351 WB2X8351 RANGE CONVECTION FAN BLADE
WB31X49806 WB31X49806 RANGE GRIDDLE
WB02X24941 WB02X24941 RANGE HOLDER
WB02X24942 WB02X24942 RANGE HOLDER
WB03X24795 WB03X24795 RANGE KNOB ASSEMBLY
WB02K10182 WB02K10182 RANGE LEVELING LEG
WB49X26122 WB49X26122 RANGE NATURAL GAS CONVERSION KIT
WB01K10037 WB01K10037 RANGE NUT
WB16K10076 WB16K10076 RANGE OVAL SURFACE BURNER
WB48X20249 WB48X20249 RANGE OVEN RACK
WB18K10070 WB18K10070 RANGE POWER CORD
WB1X1293 WB1X1293 RANGE SCREW
WB01K10004 WB01K10004 RANGE SCREW
WB1K5062 WB1K5062 RANGE SCREW
WB1X1261 WB1X1261 RANGE SCREW
WB01K10091 WB01K10091 RANGE SCREW
WR01X10065 WR01X10065 RANGE SCREW
WB1X5731D WB1X5731D RANGE SCREW, 12-PACK
WB01T10016 WB01T10016 RANGE SCREW, 8-18 X 5/8-IN
WB35K10100 WB35K10100 RANGE SIDE INSULATION
WB13X24741 WB13X24741 RANGE SPARK MODULE
WB29K10023 WB29K10023 RANGE SURFACE BURNER CAP
WB29K10024 WB29K10024 RANGE SURFACE BURNER CAP
WB28K10222 WB28K10222 RANGE SURFACE BURNER CAP
WB28K10032 WB28K10032 RANGE SURFACE BURNER LP ORIFICE
WB28K10834 WB28K10834 RANGE SURFACE BURNER ORIFICE
WB28K10023 WB28K10023 RANGE SURFACE BURNER ORIFICE
WB28K10215 WB28K10215 RANGE SURFACE BURNER ORIFICE
WB02K10360 WB02K10360 RANGE SURFACE BURNER ORIFICE HOLDER
WB2K24 WB2K24 RANGE SURFACE BURNER VALVE GUARD
WB16X24723 WB16X24723 RANGE SURFACE BURNER, 12,000-BTU
WB62X24798 WB62X24798 RANGE TOP AND BRACKET ASSEMBLY
WB28X24405 WB28X24405 REGULATOR
WB21X20475 WB21X20475 SAFETY VALVE
WB21X20474 WB21X20474 SAFETY VALVE
WB01T10008 WB01T10008 SCR 10-32 TR
WB01K0021 WB01K0021 SCREW
WB01X24735 WB01X24735 SCREW
WB01K0042 WB01K0042 SCREW (BLK)
WB01K0031 WB01K0031 SCREW 10-16 PL PNT 2.5 S
WZ4X345D WZ4X345D SCREW 8-18X5/8 HXW
WB01X1261 WB01X1261 SCREW GROUND
WB01K0050 WB01K0050 SCREW MTG IGNITER
WB01X5874 WB01X5874 SCREW WH
WB01K10116 WB01K10116 SCREW, #10-16
WB24X25557 WB24X25557 SENSOR ASSEMBLY
WB24X25056 WB24X25056 SENSOR-UP OV
WB34X20303 WB34X20303 SHIELD BROIL
WB34X20526 WB34X20526 SHUTTER COVER
WB31X26570 WB31X26570 SIDE GRATE
WB02X20849 WB02X20849 SPACER
WB1K2 WB1K2 SPEED NUT
WB01K0002 WB01K0002 SPEEDNUT
WB63X25481 WB63X25481 SUPPORT BASE
WB63X25480 WB63X25480 SUPPORT BASE LT
WB02X20735 WB02X20735 SUPPORT COOK
WB02X21705 WB02X21705 SUPPORT REGULATOR
WB02K10325 WB02K10325 SUPPORT VALVE
WB18X27597 WB18X27597 SWITCH HARNESS
WB01K10080 WB01K10080 THERMOSTAT SCREW
WB56X25945 WB56X25945 TOP COVER AS
WB28X20757 WB28X20757 TUBE LOWER B
WB28X20758 WB28X20758 TUBE UPPER B
WB28X20468 WB28X20468 TUBE VALVE
WB21X20260 WB21X20260 VALVE
WB21X20262 WB21X20262 VALVE
WB07X26421 WB07X26421 VENT COVER
WB34X20439 WB34X20439 VENT LOWER A
WB34X20597 WB34X20597 VENT UPPER A
WB08T10002 WB08T10002 WALL OVEN LIGHT ASSEMBLY
WB34X28741 WB34X28741 WINDOW FRAME
WB02X21679 WB02X21679 WIRE CLIP
WB02K10267 WB02K10267 WIRE CLIP
