Model Image
Manufacturer

GE

Model Number

JGB870SET1SS

Description

Gas Range Or Dual Fuel

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WB02K0003 WB02K0003 ANGLE SUPPORT
WB29K10024 WB29K10024 ASM BURNER CAP (12000)
WB29K10022 WB29K10022 ASM BURNER CAP (5000)
WB29K10023 WB29K10023 ASM BURNER CAP (9500)
WB36K11008 WB36K11008 ASM MANIFOLD PANEL
WB02T10359 WB02T10359 BADGE GE
WB49K10036 WB49K10036 BAKE DEFLECTOR COMPLEMEN
WB49K10029 WB49K10029 BAKE DEFLECTOR UC
WB28K10708 WB28K10708 BAKE ELBOW
WB2X8351 WB2X8351 BLADE FAN
WB35X37967 WB35X37967 BOTTOM OVEN ASM
WB63K10239 WB63K10239 BOTTOM RANGE
WB63K10269 WB63K10269 BOX BURNER SP
WB63K10208 WB63K10208 BRACE
WB02K10329 WB02K10329 BRACE OVEN TOP
WB02K10254 WB02K10254 BRACKET ANTI-TIP ASM
WB02K10313 WB02K10313 BRACKET CAVITY SUPPORT
WB02K10155 WB02K10155 BRACKET CONTROL
WB02K10082 WB02K10082 BRACKET COOKTOP XL
WB02K10366 WB02K10366 BRACKET DUCT
WB02K10350 WB02K10350 BRACKET GLASS
WB02K10335 WB02K10335 BRACKET INNER DOOR
WB02K0041 WB02K0041 BRACKET OVEN CORNER
WB02K10297 WB02K10297 BRACKET VALVE
WB49K10028 WB49K10028 BROIL DEFLECTOR UC
WB02K10178 WB02K10178 BUMPER
WB02X28737 WB02X28737 BUMPER DOOR
WB16T10046 WB16T10046 BURNER 12K
WB30X28763 WB30X28763 BURNER BAKE
WB16K10074 WB16K10074 BURNER BAKE
WB16K10077 WB16K10077 BURNER BROIL UPPER
WB16K10055 WB16K10055 BURNER MEDIUM (9500)
WB28K10222 WB28K10222 CAP BURNER ASM (15K)
WB16K10053 WB16K10053 CENTRAL BURNER & CAP ASM
WB02K10362 WB02K10362 CKT BRACKET MDM AND LGE
WB02K10361 WB02K10361 CKT BRACKET MEDIUM
WB02K10360 WB02K10360 CKT BRACKET SMALL
WB01K10106 WB01K10106 CKT SCREW
WB02K0036 WB02K0036 CLAMP CABLE
WB2K36 WB2K36 CLAMP CABLE
WB02K10367 WB02K10367 CLAMP HEAT ELEMENT
WB02K10023 WB02K10023 CLAMP-HEAT ELEMENT
WB02T10111 WB02T10111 CLEANER-SS
WB02K0031 WB02K0031 CLIP CABLE
WB02X21679 WB02X21679 CLIP CABLE
WB02K0010 WB02K0010 CLIP CAPILLARY
WB02K10073 WB02K10073 CLIP CAPILLARY
WB01K10112 WB01K10112 CLIP ELECTRODE
WB02K0052 WB02K0052 CLIP RANGETOP
WB2K52 WB2K52 CLIP RNGETOP
WB02K0038 WB02K0038 CLIP WIRE
WB02X7066 WB02X7066 CLIP WIRE
WB02K10267 WB02K10267 CLIP WIRE
WB02K10068 WB02K10068 CLIP WIRE
WB34K10124 WB34K10124 COVER BACK LAMP
WB34K10115 WB34K10115 COVER BACK UPPER
WB02K10337 WB02K10337 COVER CAP
WB08K10018 WB08K10018 COVER LAMP
WB02K10317 WB02K10317 COVER LATCH
WB34K10135 WB34K10135 COVER MOTOR
WB34K10133 WB34K10133 COVER SHUTER
WB37K10019 WB37K10019 COVER THERMOSTAT
WB37K10012 WB37K10012 COVER THERMOSTAT
WB02K0024 WB02K0024 COVER VALVE
WB56K0020 WB56K0020 CRYSTAL WINDOW
WB57K10158 WB57K10158 CRYSTAL WINDOW
WB57K10155 WB57K10155 CRYSTAL WINDOW
WB34K14 WB34K14 CVR IGNITOR
WB49K10037 WB49K10037 DEFLECTOR OVER
WB38K10022 WB38K10022 DIFFUSER VENT
WB01K10037 WB01K10037 ECONOMIC NUT
WB28K10706 WB28K10706 ELBOW BAKE UPPER
WB28K10738 WB28K10738 ELBOW DUAL CAVITY
WB13K10014 WB13K10014 ELECTRODE TOP
WB07K10246 WB07K10246 END SUPPORT
WB07K10247 WB07K10247 END SUPPORT
WB02X8351 WB02X8351 FAN BLADE
WB34K10132 WB34K10132 FAN COVER
WB34K10038 WB34K10038 FAN COVER BACK
WB35K10038 WB35K10038 FAN INSULATOR
WB26K10003 WB26K10003 FAN MOTOR CONVECT-2SPEED
WB02K10034 WB02K10034 FAN SUPPORT
WB02K10182 WB02K10182 FOOT LEVELING
WB55K10082 WB55K10082 FRAME FRONT UC
WB63K10251 WB63K10251 FRAME WELD ASSEMBLY
WB34X28740 WB34X28740 FRAME WINDOW ASSY
WB34X28741 WB34X28741 FRAME WINDOW PACK
WB32K10047 WB32K10047 GASKET OVEN
WB32K10046 WB32K10046 GASKET OVEN
WB32K10044 WB32K10044 GASKET OVEN LIGHT
WB32K0001 WB32K0001 GASKET VENT
WB32K10045 WB32K10045 GASKET VENT
WB32K1 WB32K1 GASKET VENT
WB57K10163 WB57K10163 GLASS AND TRIM ASSEMBLY
WB57K10165 WB57K10165 GLASS DOOR ASM
WB31K10187 WB31K10187 GRATE CAST LF
WB31K10189 WB31K10189 GRATE CAST MID
WB31K10188 WB31K10188 GRATE CAST RT
WB1K10 WB1K10 GROM HNDLE
WB2K8 WB2K8 GROMMET
WB01K0010 WB01K0010 GROMMET HANDLE
WB01K10023 WB01K10023 GROMMET HANDLE
WB56K10081 WB56K10081 GUARD INSULATION
WB56K10079 WB56K10079 GUARD INSULATION
WB53K10047 WB53K10047 GUARD TOP INSULATION
WB15K10108 WB15K10108 HANDLE SS
WB15T10163 WB15T10163 HANDLE SS
WB18K10083 WB18K10083 HARNESS GROUND
WB18K10056 WB18K10056 HARNESS GROUND
WB18K10037 WB18K10037 HARNESS HV
WB18K10075 WB18K10075 HARNESS SWITCH
WB10K10033 WB10K10033 HINGE ASM
WB10K10032 WB10K10032 HINGE ASM
WB10K10024 WB10K10024 HINGE DOOR
WB10K10023 WB10K10023 HINGE DOOR
WB14K10003 WB14K10003 HINGE RANGE TOP
WB10K10025 WB10K10025 HINGE RECEIVER
WB10K10026 WB10K10026 HINGE RECEIVER
WB28K10713 WB28K10713 HOOD SPUD ORIFICE
WB28K10712 WB28K10712 HOOD SPUD ORIFICE
WB34K0014 WB34K0014 IGNITER COVER
WB13K10043 WB13K10043 IGNITOR GLOW BAR
WB57K10156 WB57K10156 INNER GLASS
WB35K10040 WB35K10040 INSULATION CONTROL
WB02K10348 WB02K10348 INSULATION COVER LAMP
WB35K10206 WB35K10206 INSULATION OVEN BACK
WB35K10202 WB35K10202 INSULATION OVEN WRAP
WB35K10207 WB35K10207 INSULATION OVEN WRAP
WB02K10347 WB02K10347 INSULATION THERMOSTAT
WB2K101 WB2K101 KIT FEET-RUB
WB02K0101 WB02K0101 KIT-RUBBER FEET
WB03K10317 WB03K10317 KNOB
WB03K10318 WB03K10318 KNOB
WB03K10320 WB03K10320 KNOB
WB03K10319 WB03K10319 KNOB GE ASM
WB02K10326 WB02K10326 L SUPPORT
WB02K10349 WB02K10349 LAMP INSULATION
WB02K10318 WB02K10318 LATCH ASSEMBLY LOWER
WB02K10334 WB02K10334 LATCH AUTOMATIC
WB25K10009 WB25K10009 LENS
WB25K10010 WB25K10010 LIGHT INDICATOR PILOT
WB18K10073 WB18K10073 LINE CORD
WB55K10081 WB55K10081 LINER DOOR ASSEMBLY
WB55K10080 WB55K10080 LINER DOOR WELD ASSEMBLY

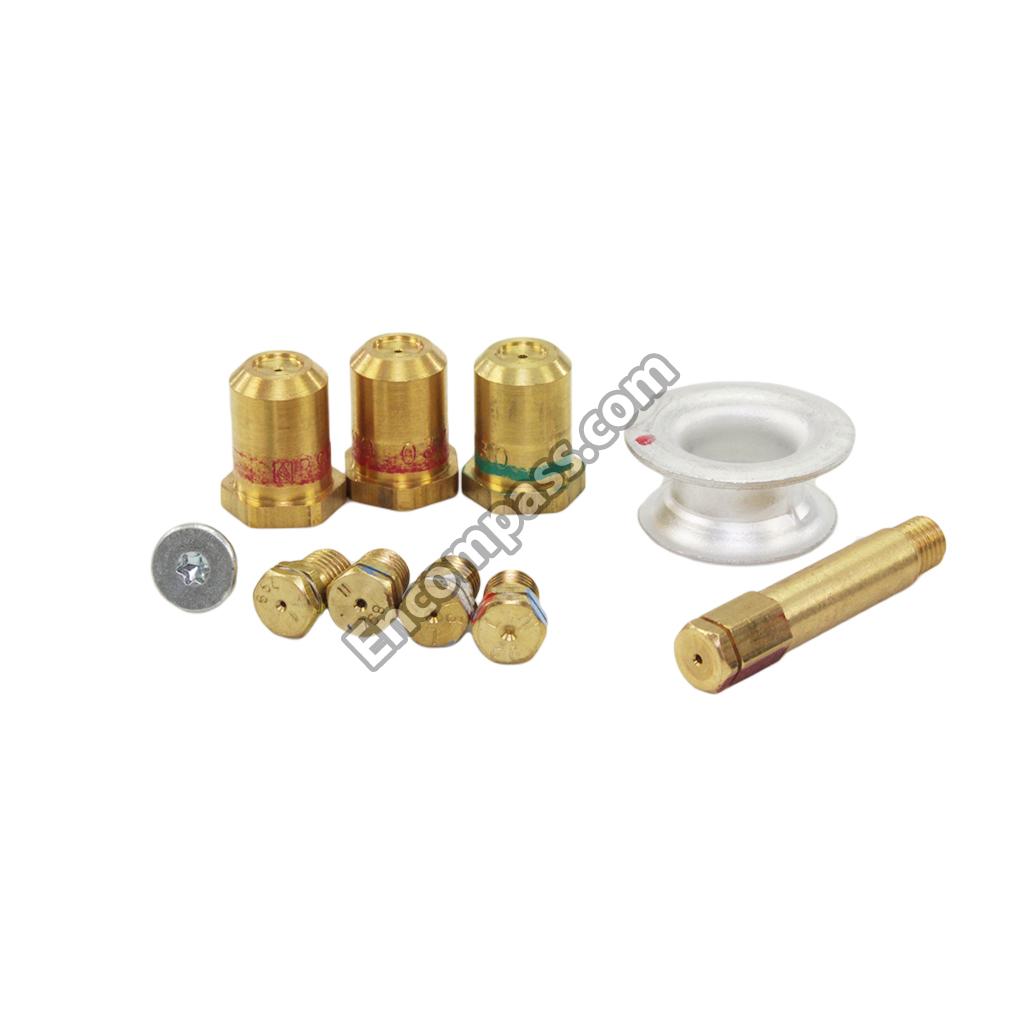

WB28K10801 WB28K10801 LP CONVERSION KIT
31-10776 31-10776 LP INSTALL INSTRUCTIONS
WB35K10211 WB35K10211 MANIFOLD EYEBROW

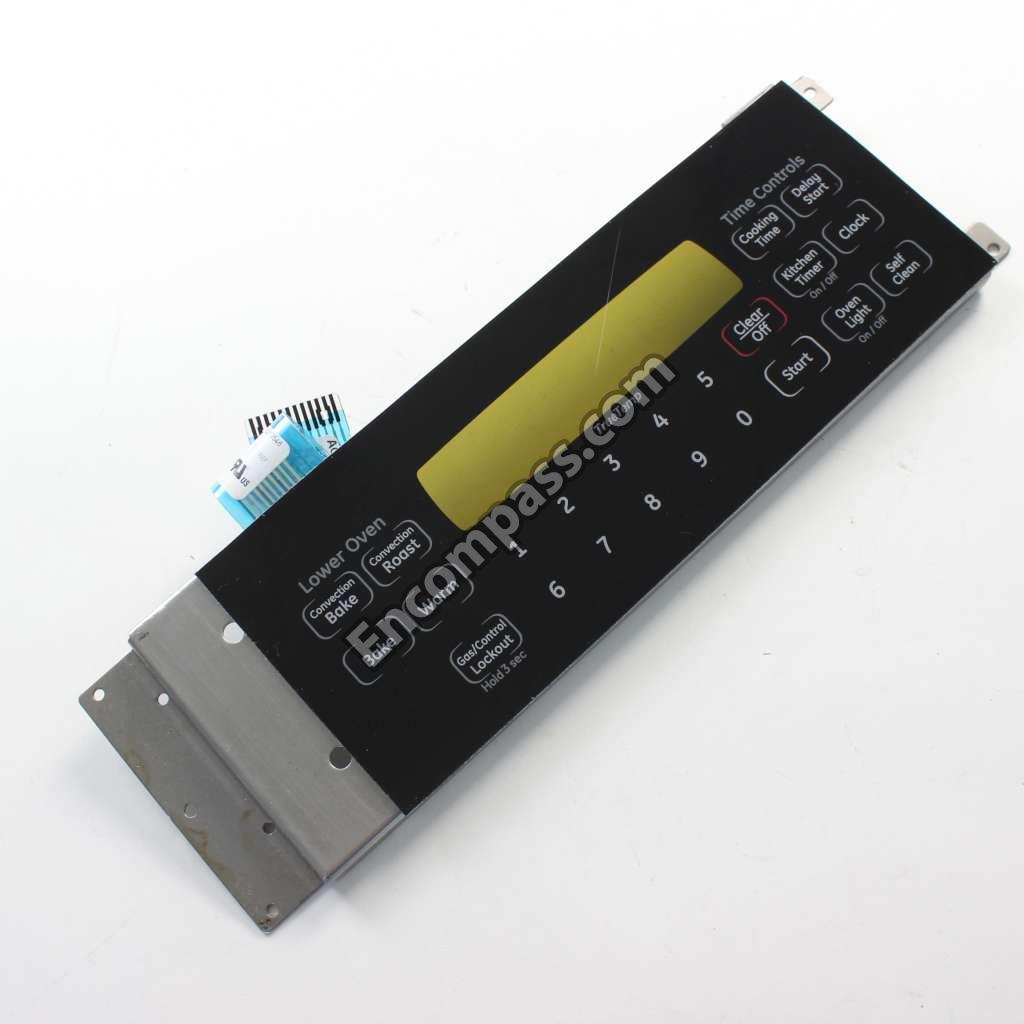

WB27K10372 WB27K10372 MEMBRANE ASM
WB28K10867 WB28K10867 NG ORIFICE AND TUBE CNTRAL
WB27K10402 WB27K10402 NLA PART
WB02T10017 WB02T10017 NUT
WB01T10086 WB01T10086 NUT KEPS 6-32 SPECIAL
WB01K0003 WB01K0003 NUT SPEED
WB1K3 WB1K3 NUT SPEED
WB28K10389 WB28K10389 ORIFICE HOLDER LR
WB28K10735 WB28K10735 ORIFICE HOLDER RF
WB28K10834 WB28K10834 ORIFICE SPUD
WB28K10288 WB28K10288 ORIFICE SPUD
WB28K10842 WB28K10842 ORIFICE SPUD LP
WB28K10835 WB28K10835 ORIFICE SPUD LP
WB28K10214 WB28K10214 ORIFICE SPUD LP 88L

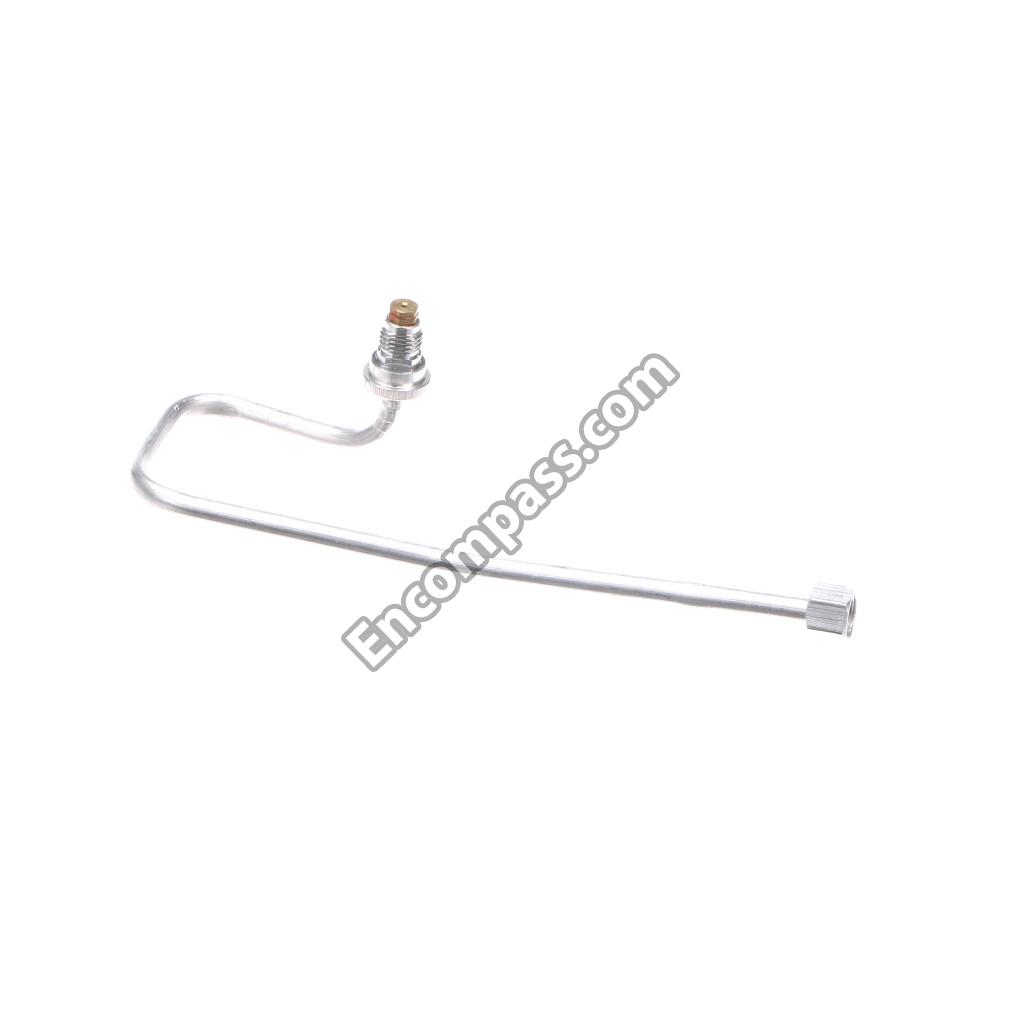

WB28K10736 WB28K10736 ORIFICE TUBING
WB28K10737 WB28K10737 ORIFICE TUBING
WB28K10023 WB28K10023 ORIFICE-LP 89MM
WB53K10050 WB53K10050 OVEN BACK
WB63K10238 WB63K10238 OVEN BACK UC
WB35K10200 WB35K10200 OVEN BOTTOM UC
WB49K10030 WB49K10030 OVEN DEFLECTOR
WB49K10031 WB49K10031 OVEN DEFLECTOR
WB08T10002 WB08T10002 OVEN LAMP HO
WB48X20783 WB48X20783 OVEN RACK
WB53K10041 WB53K10041 OVEN SIDE
WB53K10049 WB53K10049 OVEN SIDE
WB53K10043 WB53K10043 OVEN SIDE UC
WB53K10042 WB53K10042 OVEN SIDE UC
WB53K10044 WB53K10044 OVEN TOP
WB53K10039 WB53K10039 OVEN TOP
WB63K10119 WB63K10119 PANEL SIDE BK
WB07K10399 WB07K10399 PERIMETRAL TRIM
WB14K10004 WB14K10004 PIN LOCATOR
WB14K10005 WB14K10005 PIN LOCATOR
WB24K10068 WB24K10068 PLUNGER SWITCH
WB06K10007 WB06K10007 PM HELPFUL HINT
31-14980-2 31-14980-2 PM MINI MANUAL
49-85181 49-85181 PM OWNERS AND INSTALL

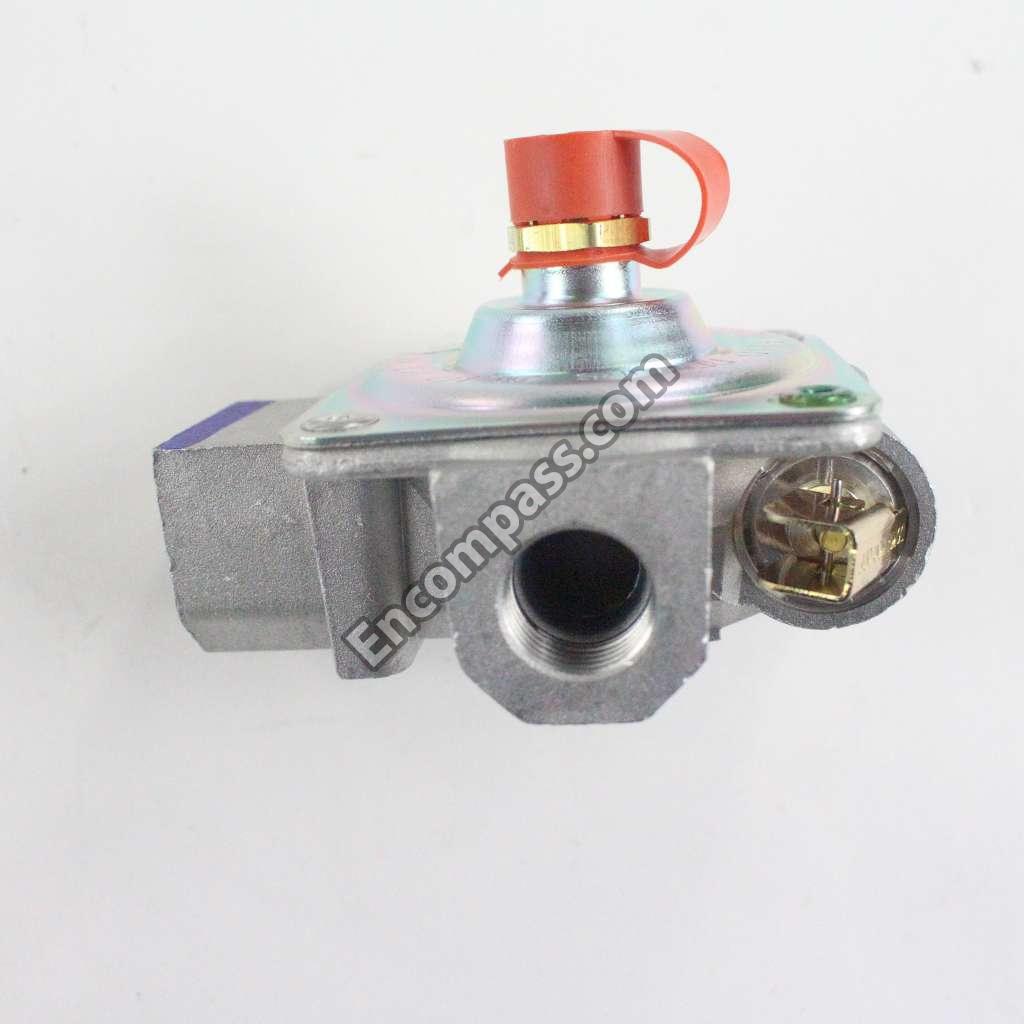

WB19K10077 WB19K10077 PRESSURE REGULATOR
WB63K10218 WB63K10218 RANGE BACK
WB02K10336 WB02K10336 RANGE DOOR BRACKET
WB31K10217 WB31K10217 RANGE GRIDDLE
WB13X25263 WB13X25263 RANGE IGNITER GLOWBAR
WB13X25262 WB13X25262 RANGE IGNITER GLOWBAR
WB1X1293 WB1X1293 RANGE IGNITER MOUNTING SCREW
WB02K10324 WB02K10324 RANGE INLET SUPPLY
WB2K41 WB2K41 RANGE OVEN BRACKET
WB35K10100 WB35K10100 RANGE SIDE INSULATION
WB13X26360 WB13X26360 RANGE SPARK MODULE 6+0
WB62K10110 WB62K10110 RANGETOP & BRKT ASM
WB10K10029 WB10K10029 RECEIVER HINGE
WB13K10050 WB13K10050 RELAY
WB2X2030 WB2X2030 RETAINER
WB02K0030 WB02K0030 RETAINER-INSULATION VENT
WB28K10714 WB28K10714 ROUND MANIFOLD PIPE
WB01K10047 WB01K10047 SCR 10-32 HXW 9/16 DWR
WB01K0084 WB01K0084 SCREW
WB01K0001 WB01K0001 SCREW
WB01K10091 WB01K10091 SCREW
WB01K10070 WB01K10070 SCREW
WB1K5062 WB1K5062 SCREW
WB1X1261 WB1X1261 SCREW
WB1X536 WB1X536 SCREW
WB01K10111 WB01K10111 SCREW
WB1K5119 WB1K5119 SCREW
WB01K10099 WB01K10099 SCREW #6-32
WB1K84 WB1K84 SCREW & WASH
WB01K0042 WB01K0042 SCREW (BLK)
WB01X5364 WB01X5364 SCREW (CR)
WB01X0593 WB01X0593 SCREW - DOOR ASM (4 PER)
WB01K10009 WB01K10009 SCREW 10-32 MTG HANDLE
WB01T10008 WB01T10008 SCREW 10-32 TR T
WZ4X345D WZ4X345D SCREW 8-18X5/8 HXW
WB01X1261 WB01X1261 SCREW GROUND
WB1K53 WB1K53 SCREW HINGE
WB1X5364 WB1X5364 SCREW MTG
WB01K0053 WB01K0053 SCREW MTG HINGE (TORX)
WB01K0050 WB01K0050 SCREW MTG IGNITER
WB01K10080 WB01K10080 SCREW THERMOSTAT
WB01X5874 WB01X5874 SCREW WH
WB34K10136 WB34K10136 SHIELD BROIL
WB16K10070 WB16K10070 SMALL BURNER V 5K
WB02K10345 WB02K10345 SPACER BASE
WB02K10320 WB02K10320 SPACER BASE
WB02K10270 WB02K10270 SPACER BASE
WB1X5743D WB1X5743D SPDNUT-PKQ12
WB01X5743 WB01X5743 SPEEDNUT
WB01K10093 WB01K10093 SPEEDNUT
WB63K10268 WB63K10268 SUPPORT BASE
WB63K10267 WB63K10267 SUPPORT BASE
WB02K10333 WB02K10333 SUPPORT H AND LE
WB02K10325 WB02K10325 SUPPORT VALVE SINGLE
WB24K10091 WB24K10091 SWITCH LIMIT BIMETAL
WB24K10090 WB24K10090 SWITCH THERMOSTAT
WB20K10027 WB20K10027 TEMPERATURE SENSOR

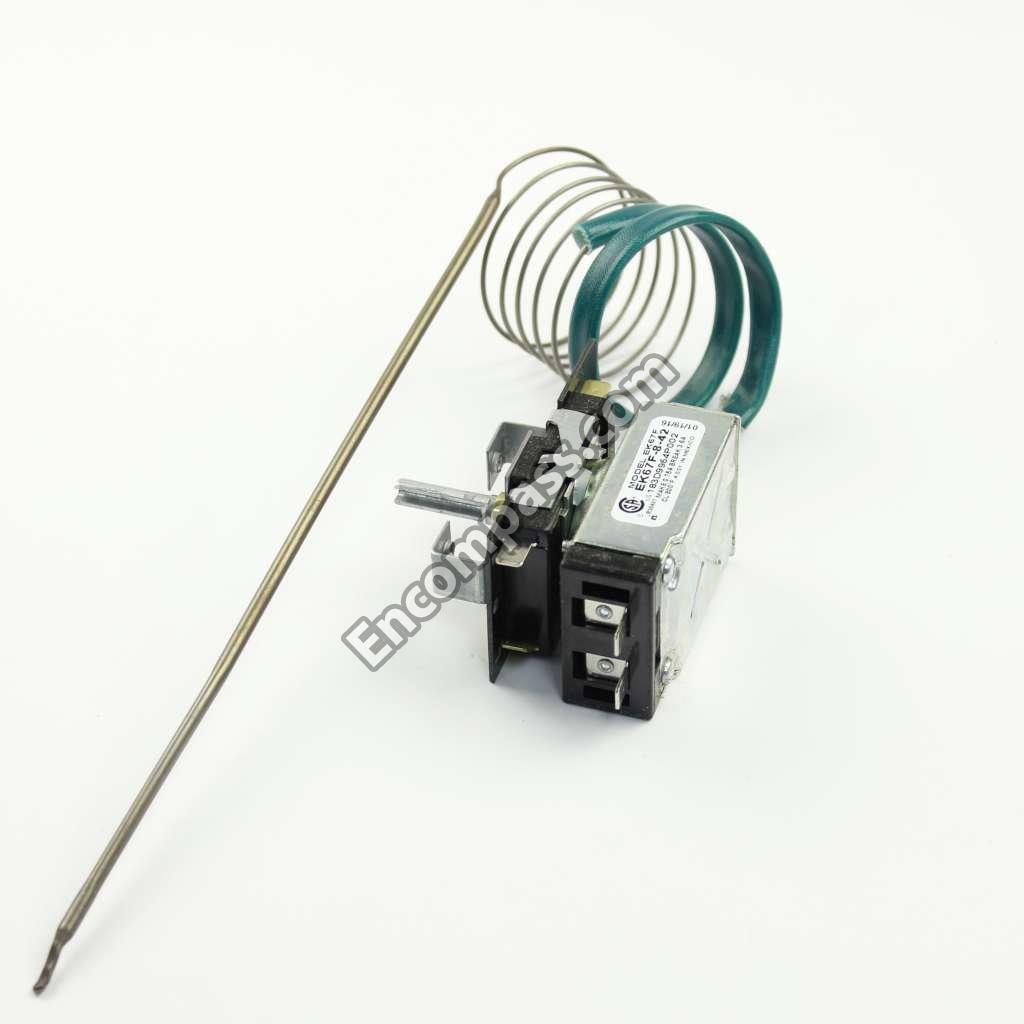

WB20K10036 WB20K10036 THERMOSTAT
WB36K10786 WB36K10786 TRIM CONTROL
WB07K10397 WB07K10397 TRIM POST
WB07K10398 WB07K10398 TRIM POST
WB07K10423 WB07K10423 TRIM VENT
WB28K10700 WB28K10700 TUBE BURNER SUPPLY BAKE
WB28K10795 WB28K10795 TUBE BURNER SUPPLY BROIL
WB28K10716 WB28K10716 TUBE MANIFOLD SUPPLY
WB28K10715 WB28K10715 TUBE MANIFOLD SUPPLY
WB28K10701 WB28K10701 TUBE VALVE SAFETY
WB28K10703 WB28K10703 TUBE VALVE SUPPLY
WB28K10796 WB28K10796 TUBE VALVE SUPPLY
WB21K10113 WB21K10113 VALVE BURNER 270
WB21K10114 WB21K10114 VALVE BURNER 270
WB21K10122 WB21K10122 VALVE BURNER 270
WB21K10117 WB21K10117 VALVE BURNER 270 HI-CAP
WB21K10160 WB21K10160 VALVE CONTROL ASM
WB21K10161 WB21K10161 VALVE CONTROL ASM
WB2K24 WB2K24 VALVE COVER
WB19K10072 WB19K10072 VALVE LOCKOUT
WB38K10038 WB38K10038 VENT ASSEMBLY
WB38K10033 WB38K10033 VENT BACKER
WB16K10046 WB16K10046 VENTURI 15K LP
WB16K10062 WB16K10062 VISION BURNER XL
WB56K20 WB56K20 WIND PACK LG
