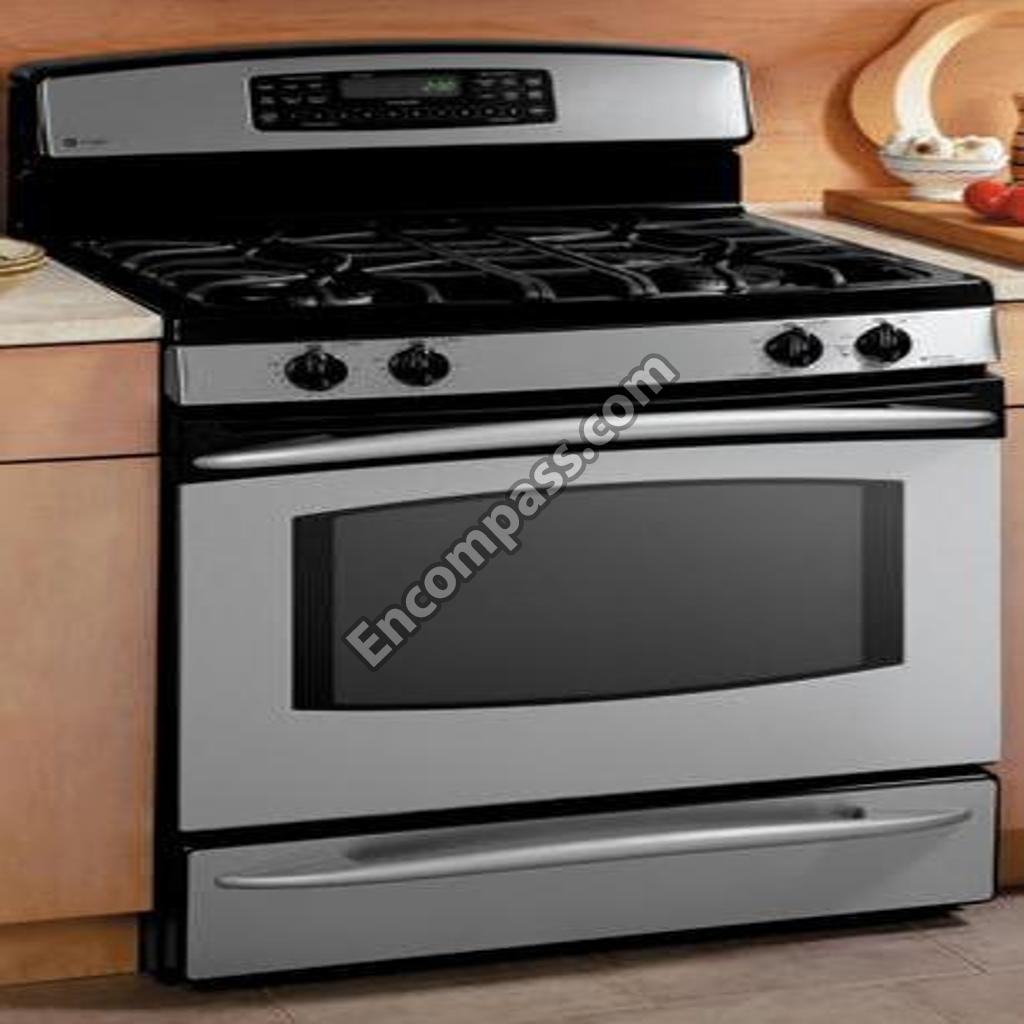

Model Image
Manufacturer

GE

Model Number

JGB915SEF1SS

Description

Gas Range Or Dual Fuel

Interactive Exploded View

Parts List

Part Number Description
40A15 40A15 40WATT 15AMP INC AND ESCENT BULB
WB02K0012 WB02K0012 ARM ANTI TIP
WB2K12 WB2K12 ARM ANTI TIP
WB02K0027 WB02K0027 BAIL
WB2K27 WB2K27 BAIL
WB16T10033 WB16T10033 BASE BURNER LARGE
WB16T10030 WB16T10030 BASE BURNER MED
WB16T10032 WB16T10032 BASE BURNER RT FRT
WB2X8351 WB2X8351 BLADE FAN
WB58K10005 WB58K10005 BODY-DRAWER
WB35X37973 WB35X37973 BOTTOM OVEN ASM
WB02K0032 WB02K0032 BOTTOM OVEN BRACKT SUPPO
WB01K0005 WB01K0005 BOTTOM OVEN SCREW
WB63K10037 WB63K10037 BOX BURNER SP
WB63K0015 WB63K0015 BRACE BOTTOM
WB63K0005 WB63K0005 BRACE BOTTOM
WB63K5 WB63K5 BRACE BOTTOM
WB38K0002 WB38K0002 BRACE VENT
WB02K0020 WB02K0020 BRACKET ASM ANTI-TIP
WB02K10066 WB02K10066 BRACKET BURNER
WB02K10067 WB02K10067 BRACKET BURNER
WB02K10071 WB02K10071 BRACKET DOOR
WB39K0020 WB39K0020 BRACKET MOUNTING DRAWER
WB2K88 WB2K88 BRACKET REG
WB02K0088 WB02K0088 BRACKET REGULATOR
WB02K0065 WB02K0065 BRACKET SAFETY VALVE
WB02K10011 WB02K10011 BRACKET-LATCH
WB2K65 WB2K65 BRKT SAF VLV
WB49K2 WB49K2 BROIL PAN 16X16 3/4 FITS RACK
WB48K2 WB48K2 BROIL PAN RACK 15 1/2X16 3/4 F
WB16K10035 WB16K10035 BURNER BAKE
WB16T10031 WB16T10031 BURNER BASE SMALL
WB16K10004 WB16K10004 BURNER BROIL

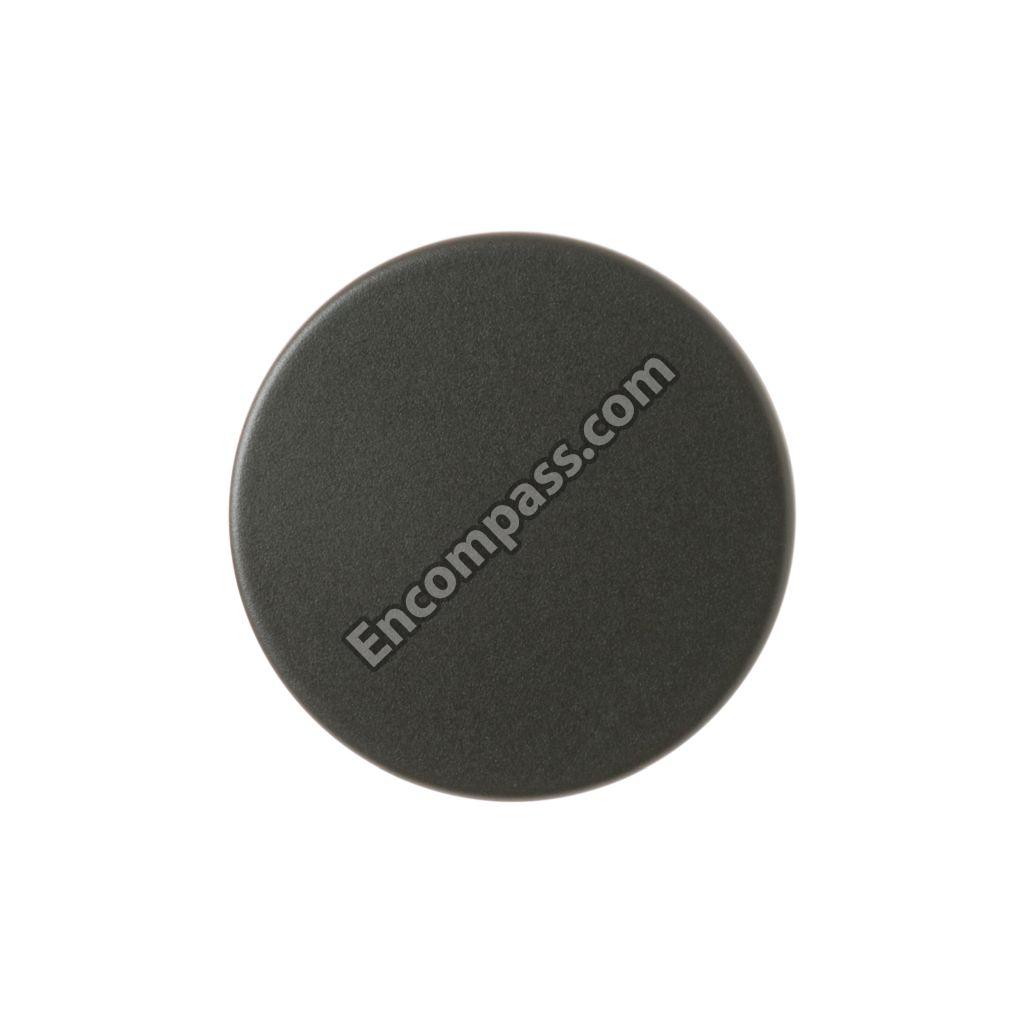

WB13T10035 WB13T10035 BURNER CAP SBK B MED

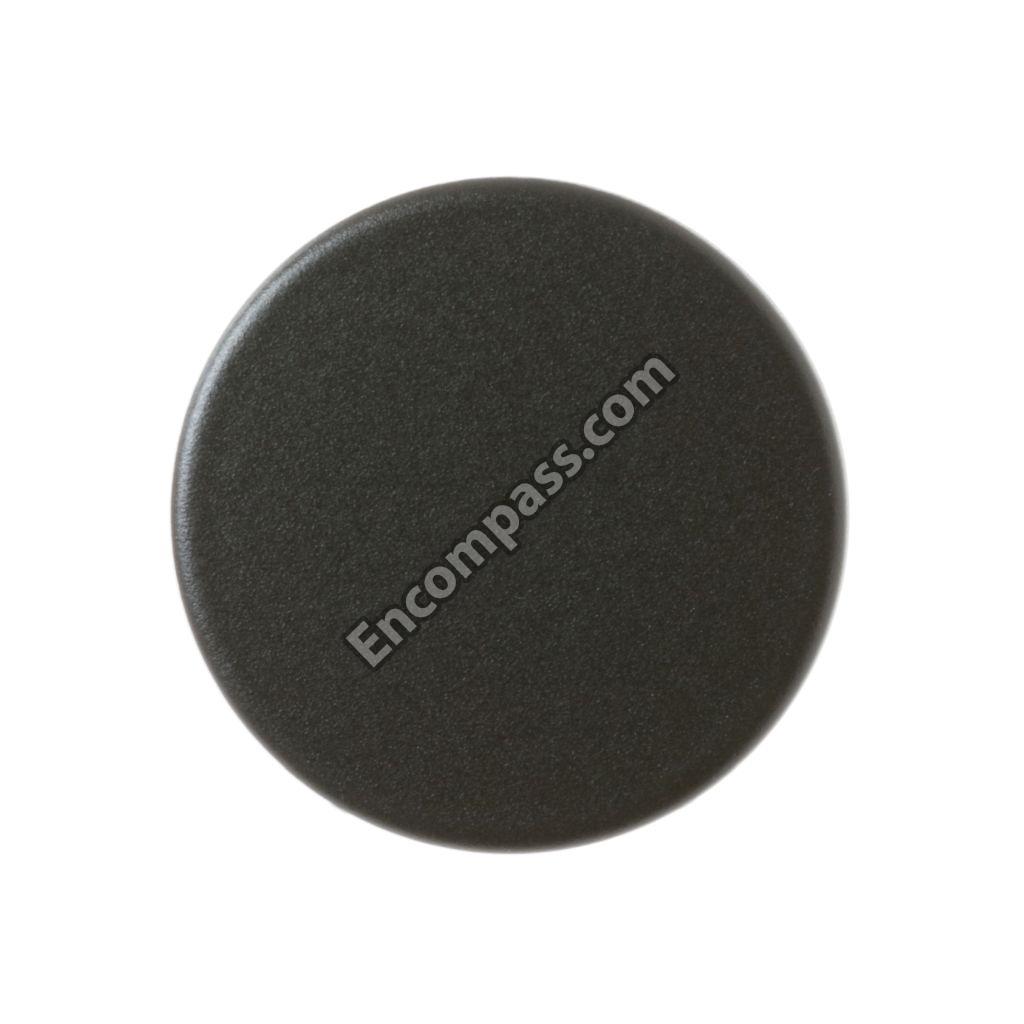

WB13T10036 WB13T10036 BURNER CAP SBK C LG

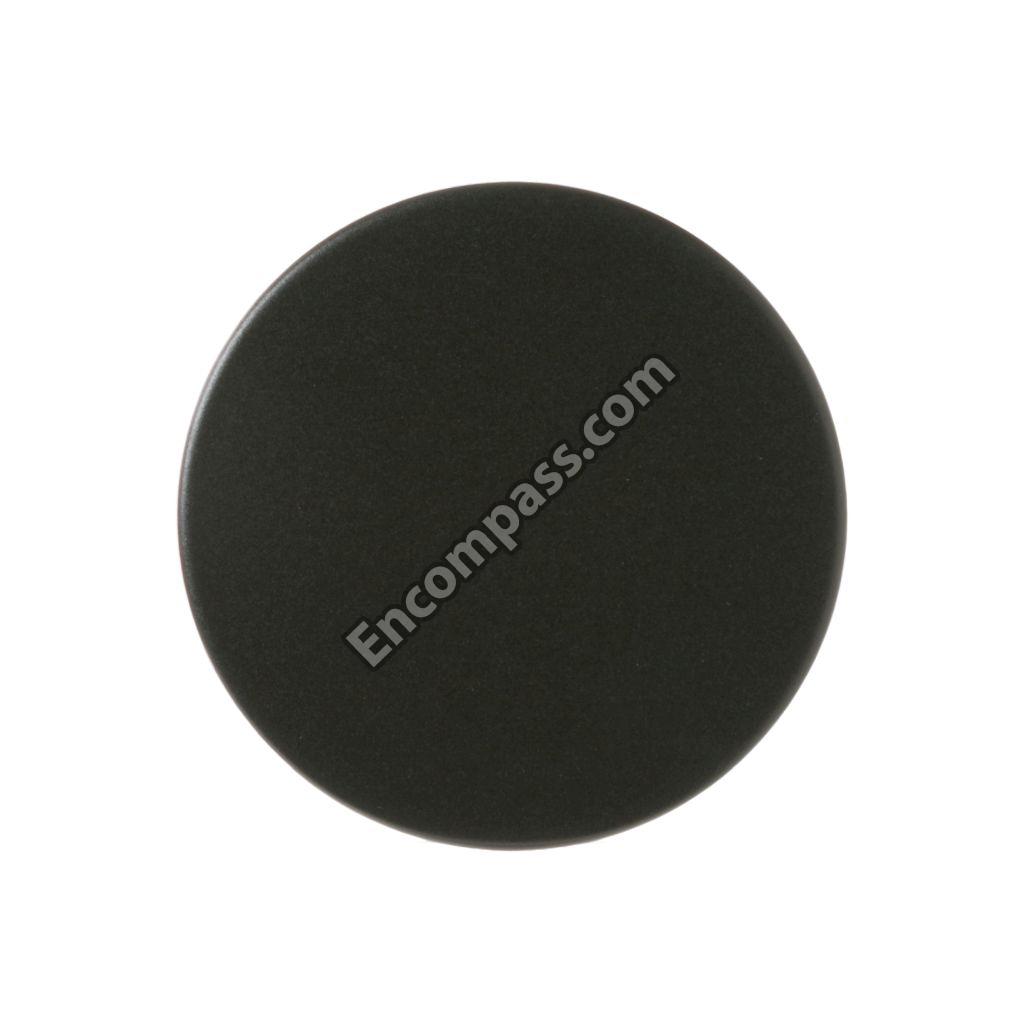

WB13T10033 WB13T10033 BURNER CAP SBK D X-LG
WB13T10034 WB13T10034 BURNER CAP SBK H SMALL
WB16K10033 WB16K10033 BURNER HEAD C MED
WB16K10034 WB16K10034 BURNER HEAD D LG
WB16K10036 WB16K10036 BURNER HEAD H SMALL
WB28K10142 WB28K10142 BURNER HOLDER BKT MED
WB28K10141 WB28K10141 BURNER HOLDER BKT SMALL
WB02K0036 WB02K0036 CLAMP CABLE
WB2K36 WB2K36 CLAMP CABLE
WB02K10023 WB02K10023 CLAMP-HEAT ELEMENT
WB02K0031 WB02K0031 CLIP CABLE
WB02X21679 WB02X21679 CLIP CABLE
WB02K0052 WB02K0052 CLIP RANGETOP
WB2K52 WB2K52 CLIP RNGETOP
WB02K0037 WB02K0037 CLIP SPACER
WB2K37 WB2K37 CLIP SPACER
WB02K0038 WB02K0038 CLIP WIRE
WB02X7066 WB02X7066 CLIP WIRE
WB01K10112 WB01K10112 CLIP-ELECTRODE
WB01X0119 WB01X0119 CONTOURED WASHER
WB27K10145 WB27K10145 CONTROL GLASS TOUCH
WB35K10037 WB35K10037 CONTROL INSULATION
WB28K10144 WB28K10144 CONVERSION KIT LP
WB34K10062 WB34K10062 COVER BACK LOWER
WB34K0006 WB34K0006 COVER BACK PANEL
WB34K10064 WB34K10064 COVER BACK UPPER
WB63K0022 WB63K0022 COVER BURNER BOX
WB34K10065 WB34K10065 COVER MOTOR
WB02K0024 WB02K0024 COVER VALVE
WB56K0020 WB56K0020 CRYSTAL WINDOW
WB34K13 WB34K13 CVR B PNL SP
WB34K6 WB34K6 CVR BACK PNL
WB63K22 WB63K22 CVR BRNR BOX
WB34K14 WB34K14 CVR IGNITOR
WB49K10003 WB49K10003 DEFLECTOR
WB49K10037 WB49K10037 DEFLECTOR OVEN
WB38K10009 WB38K10009 DIFFUSER VENT
WB15K10053 WB15K10053 DOOR HANDLE (SS)
WB39K10021 WB39K10021 DRAWER SLIDE ASSEMBLY LEFT
WB39K10020 WB39K10020 DRAWER SLIDE ASSEMBLY RIGHT
WB28K61 WB28K61 ELBOW 90 DEG
WB28K0061 WB28K0061 ELBOW 90 DEGREES
WB28K10018 WB28K10018 ELBOW HI-BROIL
WB13K10012 WB13K10012 ELECTRODE TOP
WB07K10184 WB07K10184 END SUPPORT (GLOSS BLACK) LEFT
WB07K10183 WB07K10183 END SUPPORT RIGHT
WB02X8351 WB02X8351 FAN BLADE
WB34K10038 WB34K10038 FAN COVER BACK
WB34K10037 WB34K10037 FAN COVER FRONT
WB35K10038 WB35K10038 FAN INSULATOR
WB26K10003 WB26K10003 FAN MOTOR CONVECT-2SPEED
WB02K10034 WB02K10034 FAN SUPPORT
WB49K0044 WB49K0044 FLAME SPREADER
WB63K10018 WB63K10018 FRONT FRAME ASSEMBLY
WB04K0001 WB04K0001 GASKET DOOR
WB4K1 WB4K1 GASKET DOOR
WB32K0005 WB32K0005 GASKET OVEN LIGHT
WB32K0002 WB32K0002 GASKET OVEN SEAL LG
WB32K0001 WB32K0001 GASKET VENT
WB32K1 WB32K1 GASKET VENT
WB57K10128 WB57K10128 GLASS DOOR (SS)
WB08K0005 WB08K0005 GLASS OVEN LAMP
WB31K10084 WB31K10084 GRATE DD CNTRL B MATTE
WB31K10082 WB31K10082 GRATE DD LFT BLACK MATTE
WB31K10083 WB31K10083 GRATE DD RG BLACK MATTE
WB2K8 WB2K8 GROMMET
WB63K17 WB63K17 GUARD BOT IN
WB63K0016 WB63K0016 GUARD BOTTOM
WB63K0017 WB63K0017 GUARD BOTTOM INNER
WB63K0018 WB63K0018 GUARD BOTTOM MIDDLE
WB53K11 WB53K11 GUARD INS RH
WB53K12 WB53K12 GUARD INSUL
WB56K12 WB56K12 GUARD INSUL
WB53K0011 WB53K0011 GUARD INSUL. OVEN RIGHT
WB56K0012 WB56K0012 GUARD INSULATION
WB53K0012 WB53K0012 GUARD INSULATION LEFT
WB34K0031 WB34K0031 GUARD RADIATION LFT
WB34K0030 WB34K0030 GUARD RADIATION RT
WB15T10107 WB15T10107 HANDLE PROFILE SS
WB24K10003 WB24K10003 HARNESS BURNER BOX
WB18K10019 WB18K10019 HARNESS HV
WB18K10006 WB18K10006 HARNESS-MEAT PROBE
WB16T10029 WB16T10029 HEAD BURNER B
WB44K10006 WB44K10006 HEATING ELEMENT
WB10K0012 WB10K0012 HINGE ASM GUIDE
WB2X6195 WB2X6195 HINGE PIN
WB14K10003 WB14K10003 HINGE RANGE TOP
WB02K0011 WB02K0011 HOOK DOOR SPRING
WB2K11 WB2K11 HOOK DR SPRG
WB8K1 WB8K1 HOUS RECEPTL
WB08K0001 WB08K0001 HOUSING RECEPTACLE
WB34K0014 WB34K0014 IGNITER COVER
WB13K21 WB13K21 IGNITER OVEN
WB13K0021 WB13K0021 IGNITER-OVEN BAKE
WB35K25 WB35K25 INSUL BOT DR
WB35K7 WB35K7 INSUL OV WRP
WB35K24 WB35K24 INSUL SD DR
WB35K0025 WB35K0025 INSULATION BOTTOM DOOR
WB35K10026 WB35K10026 INSULATION BURNER BOX
WB35K10039 WB35K10039 INSULATION MOTOR
WB35K10012 WB35K10012 INSULATION OVEN BACK
WB35K0007 WB35K0007 INSULATION OVEN WRAP
WB35K0024 WB35K0024 INSULATION SIDE DOOR
WB35K10218 WB35K10218 INSULATION VENT
WB03K10138 WB03K10138 KNOB -TOP BURNERS (BLK)
WB02X10521 WB02X10521 LEG LEVELER
WB18K10022 WB18K10022 LINE CORD
WB55K25 WB55K25 LINER ASM
WB55K0025 WB55K0025 LINER ASM WELD DOOR
WB55K10005 WB55K10005 LINER DRAWER
WB34K10086 WB34K10086 LOWER HEAT SHIELD
WB28K10243 WB28K10243 MANIFOLD PIPE
49-85038 49-85038 MANUAL USE & CARE
WB1X5572 WB1X5572 NUT
WB02T10017 WB02T10017 NUT
WB01K0006 WB01K0006 NUT LOCK
WB1K6 WB1K6 NUT LOCK
WB01X5572 WB01X5572 NUT MEAT PROBE
WB01K0003 WB01K0003 NUT SPEED
WB1K3 WB1K3 NUT SPEED
WB28K10143 WB28K10143 ORIFICE HOLDER BKT LARGE
WB28K10149 WB28K10149 ORIFICE HOLDER BKT X-LG
WB28K202 WB28K202 ORIFICE OVEN

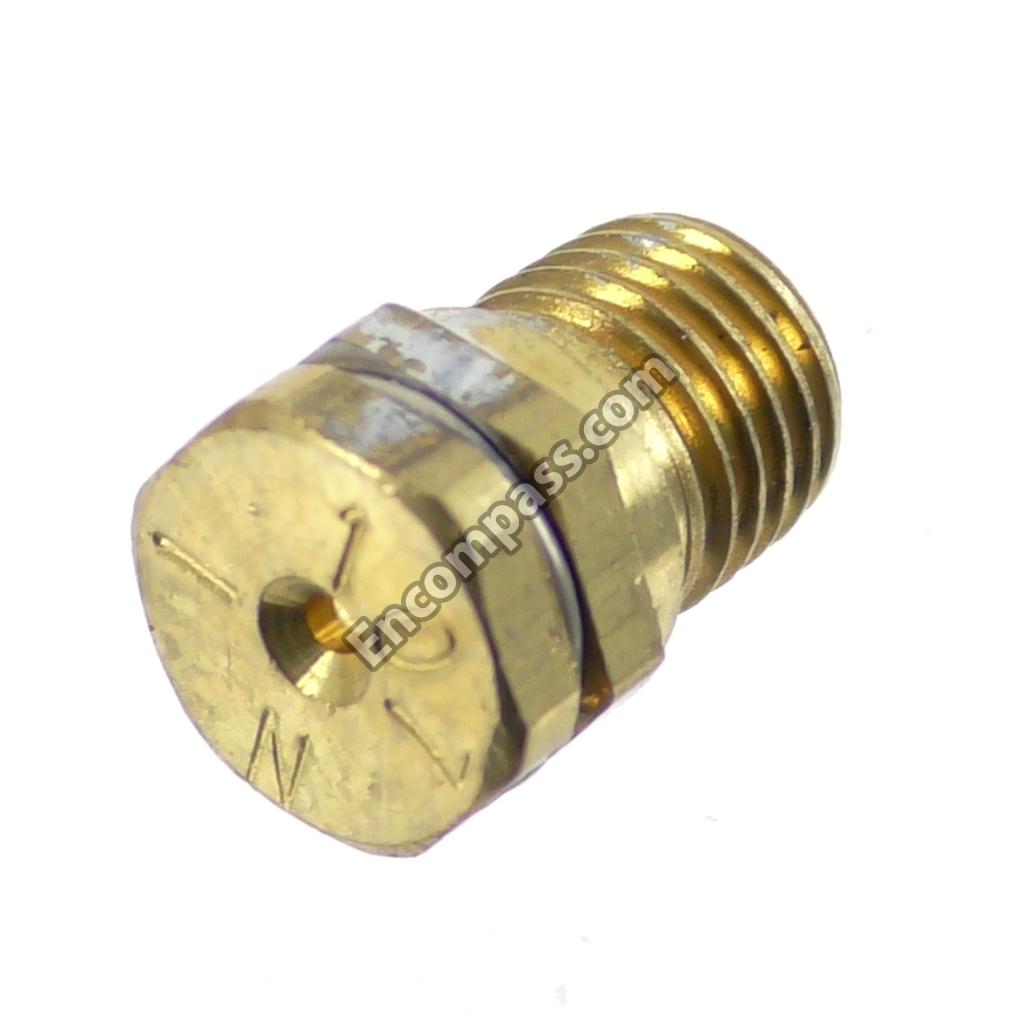

WB28K0202 WB28K0202 ORIFICE SPUD BURNER BAKE
WB28K10152 WB28K10152 ORIFICE SPUD LP 0.74 MM
WB28K10150 WB28K10150 ORIFICE SPUD LP 0.90 MM
WB28K10151 WB28K10151 ORIFICE SPUD LP 1.02 MM
WB53K10009 WB53K10009 OVEN BACK
WB53K10008 WB53K10008 OVEN SIDE LEFT
WB53K0002 WB53K0002 OVEN SIDE RIGHT
WB53K2 WB53K2 OVEN SIDE RT
WB53K10015 WB53K10015 OVEN TOP
WB02K0064 WB02K0064 PAD FELT (BK)
WB2K64 WB2K64 PAD FELT BK
WB49K0002 WB49K0002 PAN BROILER
WB48K10005 WB48K10005 PAN-DRAWER
WB55K0013 WB55K0013 PANEL ASM WELD INNER
WB55K10014 WB55K10014 PANEL DRAWER ASM S.S.
WB02K10064 WB02K10064 PANEL DRAWER SPACER
WB36K10312 WB36K10312 PANEL MANIFOLD (STAINLESS STEEL)
WB63K0025 WB63K0025 PANEL REAR BROIL
WB63K52 WB63K52 PANEL SIDE
WB63K0052 WB63K0052 PANEL SIDE (BK)
WB63K0003 WB63K0003 PANEL SIDE BROIL LFT
WB63K0002 WB63K0002 PANEL SIDE BROIL RT
WB02X6195 WB02X6195 PIN HINGE DOOR
WB14K10004 WB14K10004 PIN LOCATOR
WB14K10005 WB14K10005 PIN LOCATOR
WB24K10020 WB24K10020 PLUNGER SWITCH
31-21065 31-21065 PM MINI MANUAL/ELEC
WB55K13 WB55K13 PNL ASM WELD
WB63K25 WB63K25 PNL RR BROIL
WB63K3 WB63K3 PNL SD BRO L
WB63K2 WB63K2 PNL SD BRO R
WB2X8309 WB2X8309 PR0BE COVER
WB20T10024 WB20T10024 PROBE
WB02X8309 WB02X8309 PROBE COVER
WB20X5050 WB20X5050 PROBE THERMISTOR
WB08T10026 WB08T10026 PUSH-IN RECEPTICLE
WB48K0002 WB48K0002 RACK BROILER PAN
WB48K0004 WB48K0004 RACK OVEN
WB48T10095 WB48T10095 RACK OVEN
WB48K10002 WB48K10002 RACK-WARMING DRAWER
WB2K20 WB2K20 RANGE ANTI-TIP BRACKET
WB63K10020 WB63K10020 RANGE BACK
WB63K10233 WB63K10233 RANGE BASE SUPPORT
WB63K0004 WB63K0004 RANGE BOTTOM
WB63K4 WB63K4 RANGE BOTTOM
WB2K32 WB2K32 RANGE BRACKET SUPPORT
WB10K12 WB10K12 RANGE DOOR HINGE ASSEMBLY
WB39K20 WB39K20 RANGE DRAWER MOUNTING BRACKET
WB1X1293 WB1X1293 RANGE IGNITER MOUNTING SCREW
WB36X192 WB36X192 RANGE OVEN BULB COVER
WB32K2 WB32K2 RANGE OVEN DOOR GASKET
WB32K5 WB32K5 RANGE OVEN GASKET
WB63K16 WB63K16 RANGE PANEL
WB34K31 WB34K31 RANGE RADIATION GUARD
WB34K30 WB34K30 RANGE RADIATION GUARD
WB10K13 WB10K13 RANGE SUPPORT RIVET
WB62K10075 WB62K10075 RANGE TOP & BRACKETS ASSEMBLY
WB63K15 WB63K15 RANGE VENT BRACE
WB38K2 WB38K2 RANGE VENT BRACE
WB35K33 WB35K33 REFLECTOR
WB35K0022 WB35K0022 REFLECTOR 9.5 INCH
WB19K10001 WB19K10001 REGULATOR PRESSURE
WB2X1082 WB2X1082 RETAINER
WB2X2030 WB2X2030 RETAINER
WB08K0004 WB08K0004 RETAINER INSULATION LAMP
WB02K0030 WB02K0030 RETAINER-INSULATION VENT
WB02X1082 WB02X1082 RING RETAINING
WB1K44 WB1K44 SCEW LATCH
WB01K0021 WB01K0021 SCREW
WB1X536 WB1X536 SCREW
WB1X5716 WB1X5716 SCREW
WB1K5062 WB1K5062 SCREW
WB01K10030 WB01K10030 SCREW
WB01K0042 WB01K0042 SCREW (BLK)
WB01X5716 WB01X5716 SCREW (BLK)
WB01X5364 WB01X5364 SCREW (CR)
WB01X0593 WB01X0593 SCREW - DOOR ASM (4 PER)
WB01K0031 WB01K0031 SCREW 10-16 PL PNT 2.5 S
WR01X10065 WR01X10065 SCREW 10-32 GXTT FLP 595 S
WB01K10009 WB01K10009 SCREW 10-32 MTG HANDLE
WB01T10016 WB01T10016 SCREW 8-18 AB HXW 5/8 S
WB1K5 WB1K5 SCREW 8-18 X 1/2 -INCH
WZ04X0345 WZ04X0345 SCREW 8-18X5/8 HXW
WB01K10002 WB01K10002 SCREW 8-32
WB01X23501 WB01X23501 SCREW 8-32 TPT FLR 215 SN
WB1X5967 WB1X5967 SCREW ASM
WB01X5967 WB01X5967 SCREW ASM.- TERMINAL BLK
WB01K0044 WB01K0044 SCREW DOOR LATCH
WB1K53 WB1K53 SCREW HINGE
WB1X5364 WB1X5364 SCREW MTG
WB01K10021 WB01K10021 SCREW MTG BURNER BASE
WB01K0053 WB01K0053 SCREW MTG HINGE (TORX)
WB01K0050 WB01K0050 SCREW MTG IGNITER
WB01X0558 WB01X0558 SCREW NAIL POINT
WB01K0083 WB01K0083 SCREW-MTG VALVE BURNER
WB1K83 WB1K83 SCREW-MTG VALVE BURNER 10-32
WB1X5731D WB1X5731D SCREW-PKG 12
WB1X558D WB1X558D SCREW-PKG 12
WZ4X345D WZ4X345D SCREWS - 12 PACK
WB04K10003 WB04K10003 SEAL DRAWER
WB20K0004 WB20K0004 SENSOR
WB21X5301 WB21X5301 SENSOR ASM
WB34K0010 WB34K0010 SHIELD BROIL
WB34K10 WB34K10 SHIELD BROIL
WB34K0013 WB34K0013 SHIELD HEAT INNER
WB34K0011 WB34K0011 SHIELD HEAT LOWER
WB34K12 WB34K12 SHIELD RADIA
WB34K0012 WB34K0012 SHIELD RADIATION
WB63X23859 WB63X23859 SLIDE INTERNAL
WB13K25 WB13K25 SPARK MODULE
WB13K0025 WB13K0025 SPARK MODULE 4+0
WB01X5736 WB01X5736 SPEEDNUT
WB01K0002 WB01K0002 SPEEDNUT
WB01K10093 WB01K10093 SPEEDNUT
WB1K2 WB1K2 SPEEDNUT
WB09K0005 WB09K0005 SPRING DOOR
WB9K5 WB9K5 SPRING DOOR
WB63K10232 WB63K10232 SUPPORT BASE
WB10K0014 WB10K0014 SUPPORT RIVET LFT
WB10K0013 WB10K0013 SUPPORT RIVET RT
WB10K14 WB10K14 SUPT RIVET

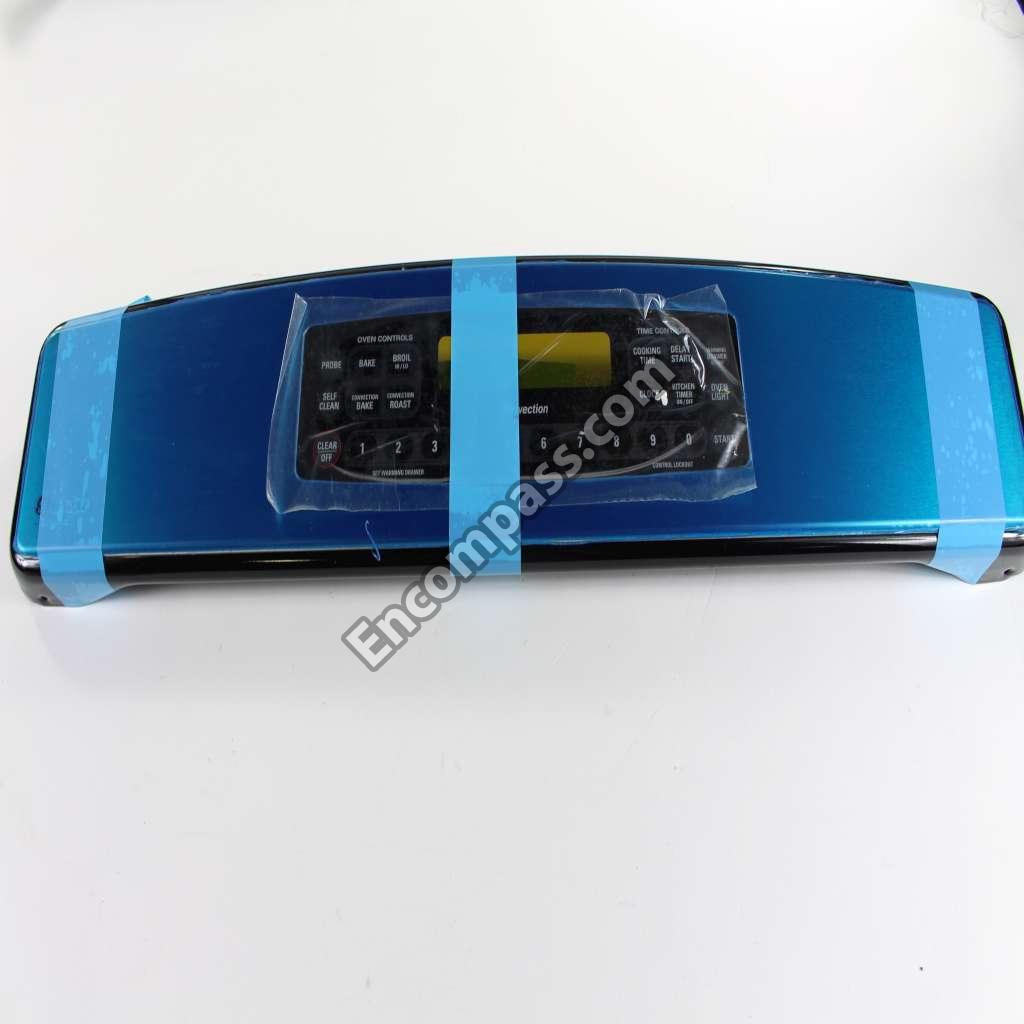

WB36K10588 WB36K10588 TRIM & MEMBRANE ASM (SS)
WB07K10019 WB07K10019 TRIM POST
WB07K10016 WB07K10016 TRIM POST
WB28K55 WB28K55 TUBE BNR SUP
WB28K60 WB28K60 TUBE BNR SUP
WB28K0060 WB28K0060 TUBE BURNER SUPPLY
WB28K0055 WB28K0055 TUBE BURNER SUPPLY
WB28K10134 WB28K10134 TUBE SUPPLY FRONT
WB28K10133 WB28K10133 TUBE SUPPLY FRONT
WB28K10135 WB28K10135 TUBE SUPPLY REAR
WB28K10136 WB28K10136 TUBE SUPPLY REAR
WB28K0150 WB28K0150 TUBE VALVE SUPPLY
WB28K150 WB28K150 TUBE VLV SUP
WB28K10021 WB28K10021 TUBE-MANIFOLD SUPPLY
WB02K10136 WB02K10136 TWO SWITCH MOTOR LATCH

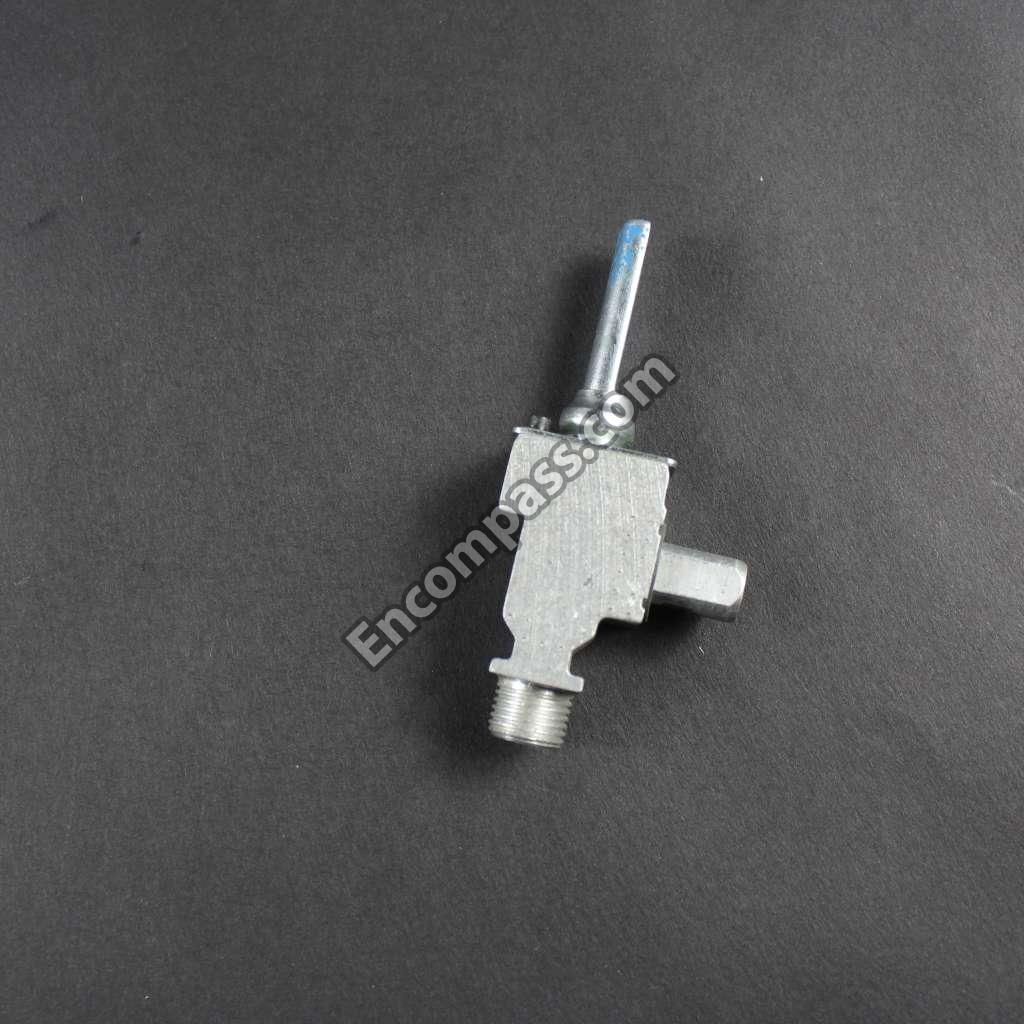

WB28K10096 WB28K10096 VALVE BURNER 270
WB21K10012 WB21K10012 VALVE BURNER 270 HI-CAP
WB28K10097 WB28K10097 VALVE BURNER RT FT
WB2K24 WB2K24 VALVE COVER
WB19K36 WB19K36 VALVE CTRL
WB28K10098 WB28K10098 VALVE FRONT LT & RT
WB19K0036 WB19K0036 VALVE SAFETY
WB38K10008 WB38K10008 VENT ASSEMBLY
WB07K10216 WB07K10216 VENT TRIM
WB07K10182 WB07K10182 VENT TRIM
WB02X32440 WB02X32440 WASHER CONTOURED
WB1X119D WB1X119D WASHR-PKG 12
WB56K20 WB56K20 WIND PACK LG
WB34K10087 WB34K10087 WINDOW SPACER ASSEMBLY
Main Menu x
