Model Image
Manufacturer

GE

Model Number

JGBC16GEJ3

Description

Gas Range Or Dual Fuel

Interactive Exploded View

Parts List

Part Number Description
WB02X4777 WB02X4777 *BUMPER-FRONT MAIN BODY
WB02X4961 WB02X4961 *INSULATION-OVEN TOP
WB02X4964 WB02X4964 *INSULATION-OVEN WRAP
WB2X10010 WB2X10010 *NLA*BRACKET-OVEN BURNER
WB01X0787 WB01X0787 *SCREW-DOOR ASSEMBLY
WB01X1094 WB01X1094 *SCREW-OVEN BOTTOM
WB02X4952 WB02X4952 *SUPPORT-BACKSPLASH
WB02X4776 WB02X4776 *SUPPORT-OVEN BOTTOM
WB02X4190 WB02X4190 ADAPTER-THERMOSTAT
WB2X4190 WB2X4190 ADAPTOR
WB2X9804 WB2X9804 ANTI-TIP BKT
WB02X9804 WB02X9804 ANTI-TIP BRACKET KIT
WB63X0276 WB63X0276 BACK-MAIN
WB49X0593 WB49X0593 BAFFLE-OVEN
WB49X593 WB49X593 BAFFLE-OVEN
WB63X0288 WB63X0288 BASE-BROIL
WB63X288 WB63X288 BASE-BROIL
WB07X1479 WB07X1479 BEZEL-SWITCH
WB7X1479 WB7X1479 BEZEL-SWITCH
WB53X0272 WB53X0272 BOTTOM-OVEN
WB53X266 WB53X266 BOTTOM-OVEN
WB02X4983 WB02X4983 BRACKET
WB2X10000 WB2X10000 BRACKET-REGULATOR
WB10X5201 WB10X5201 BRKT-MAIN TOP HINGE-L
WB48X10056 WB48X10056 BROILER PAN&RACK LARGE 12-3/4
WB2X4777 WB2X4777 BUMPER-FRONT MAIN
WB56X1780 WB56X1780 BURNER BOX
WB02X4742 WB02X4742 BURNER TUBE LEFT FRONT
WB02X4744 WB02X4744 BURNER TUBE-LEFT REAR
WB2X4744 WB2X4744 BURNER TUBE-LEFT REAR
WB02X4745 WB02X4745 BURNER TUBE-RIGHT FRONT
WB2X4743 WB2X4743 BURNER TUBE-RIGHT REA
WB02X4743 WB02X4743 BURNER TUBE-RIGHT REAR
WB28X0080 WB28X0080 BURNER-OVEN
WB28X80 WB28X80 BURNER-OVEN
WB28X0067 WB28X0067 BURNER-TOP (DOUBLE) (2)
WB28X67 WB28X67 BURNER-TOP-DOUBLE
WB02X4967 WB02X4967 CHANNEL-LIGHT SHIELD
WB01X1015 WB01X1015 CLIP-HINGE
WB1X927 WB1X927 CLIP-RETAINER
WB01X0927 WB01X0927 CLIP-RETAINER (2)
WB01X0706 WB01X0706 CLIP-THERM BULB
WB1X706 WB1X706 CLIP-THERMO BULB
WB01X0923 WB01X0923 CLIP-WIRE
WB19X0231 WB19X0231 CLOCK
WB21X445 WB21X445 CONTROL
WB07X1529 WB07X1529 CONTROL PANEL
WB21X0445 WB21X0445 CONTROL-REGULATOR
WB62X1641 WB62X1641 COOK TOP-WHITE
WB62X1642 WB62X1642 COOKTOP-ALMOND
WB02X4775 WB02X4775 COVER PLATE
WB55X0636 WB55X0636 COVER-DOOR LINER
WB2X10119 WB2X10119 COVER-FRONT MAIN
WB02X4763 WB02X4763 COVER-HINGE CUT OUT
WB2X4963 WB2X4963 COVER-PLATE **NLA*
WB10X236 WB10X236 DOOR HINGE
WB55X5349 WB55X5349 DRAWER BODY ** NLA **
WB55X0569 WB55X0569 DRAWER-BROILER
WB02X4750 WB02X4750 ELBOW-1/2 NP TO 9/16-24
WB61X0316 WB61X0316 END CAP-LH
WB61X0317 WB61X0317 END CAP-RH
WB61X317 WB61X317 END-CAP-RH
WB2X9052 WB2X9052 FASTENER
WB1X1015 WB1X1015 FASTENER-HINGE
WB01X0698 WB01X0698 FASTENER-PUSH NUT
WB1X698 WB1X698 FASTENER-PUSH NUT
WB01X0705 WB01X0705 FASTENER-SPACER
WB1X688 WB1X688 FASTENER-SPACER
WB01X1014 WB01X1014 FASTENER-WIRE
WB1X1014 WB1X1014 FASTENER-WIRE
WB2X4746 WB2X4746 FERRULE
WB02X4746 WB02X4746 FERRULE (4)
WB2X10003 WB2X10003 FITTING-LOXIT
WB02X4756 WB02X4756 FITTING-LOXIT
WB2X10012 WB2X10012 FITTING-LOXIT
WB38X0094 WB38X0094 FLUE
WB38X94 WB38X94 FLUE
WB2X7901 WB2X7901 GASKET 50
WB38X0095 WB38X0095 GASKET-FLUE
WB02X4984 WB02X4984 GASKET-OVEN DOOR
WB55X602 WB55X602 GASKET-OVEN DOOR
WB61X326 WB61X326 GLASS
WB61X0326 WB61X0326 GLASS-CONTROL PANEL
WB56X1834 WB56X1834 GLASS-INNER **NLA*
WB56X1883 WB56X1883 GLASS-OVEN DOOR-FRONT
WB39X65 WB39X65 GLIDE-BROILER
WB39X0065 WB39X0065 GLIDE-BROILER (6)
WB2X8248 WB2X8248 GLIDER ADJ
WB32X0089 WB32X0089 GRATE (4)
WB32X5087 WB32X5087 GRATE 4 PACK
WB15X0233 WB15X0233 HANDLE
WB15X0245 WB15X0245 HANDLE-OVEN DOOR
WB15X245 WB15X245 HANDLE-OVEN DOOR
WB15X5197 WB15X5197 HANDLE-UTILITY DRAWER
WB2X4763 WB2X4763 HINGE CUT-OUT COVER
WB14X84 WB14X84 HINGE LH **NLA*
WB14X0084 WB14X0084 HINGE-BROILER-LH
WB14X0085 WB14X0085 HINGE-BROILER-RH
WB10X0239 WB10X0239 HINGE-COOKTOP-LEFT
WB10X0240 WB10X0240 HINGE-COOKTOP-RIGHT
WB10X240 WB10X240 HINGE-LEFT
WB10X0245 WB10X0245 HINGE-OVEN DOORT
WB2X4751 WB2X4751 HOOD
WB2X10007 WB2X10007 IGNITER
WB2X10009 WB2X10009 IGNITER-OVEN
WB2X10016 WB2X10016 IGNITER-OVEN
31-0627 31-0627 INSTALLATION INSTRUCTION
WB2X4961 WB2X4961 INSULATION **NLA*
WB02X4995 WB02X4995 INSULATION-BROILER DOOR
WB02X4985 WB02X4985 INSULATION-DOOR
WB2X4995 WB2X4995 INSULATION-DRAWER
WB02X4965 WB02X4965 INSULATION-OVEN-BACK
WB3X459 WB3X459 KNOB TIMER
WB03X0628 WB03X0628 KNOB-CLOCK
WB3X716 WB3X716 KNOB-THERMO

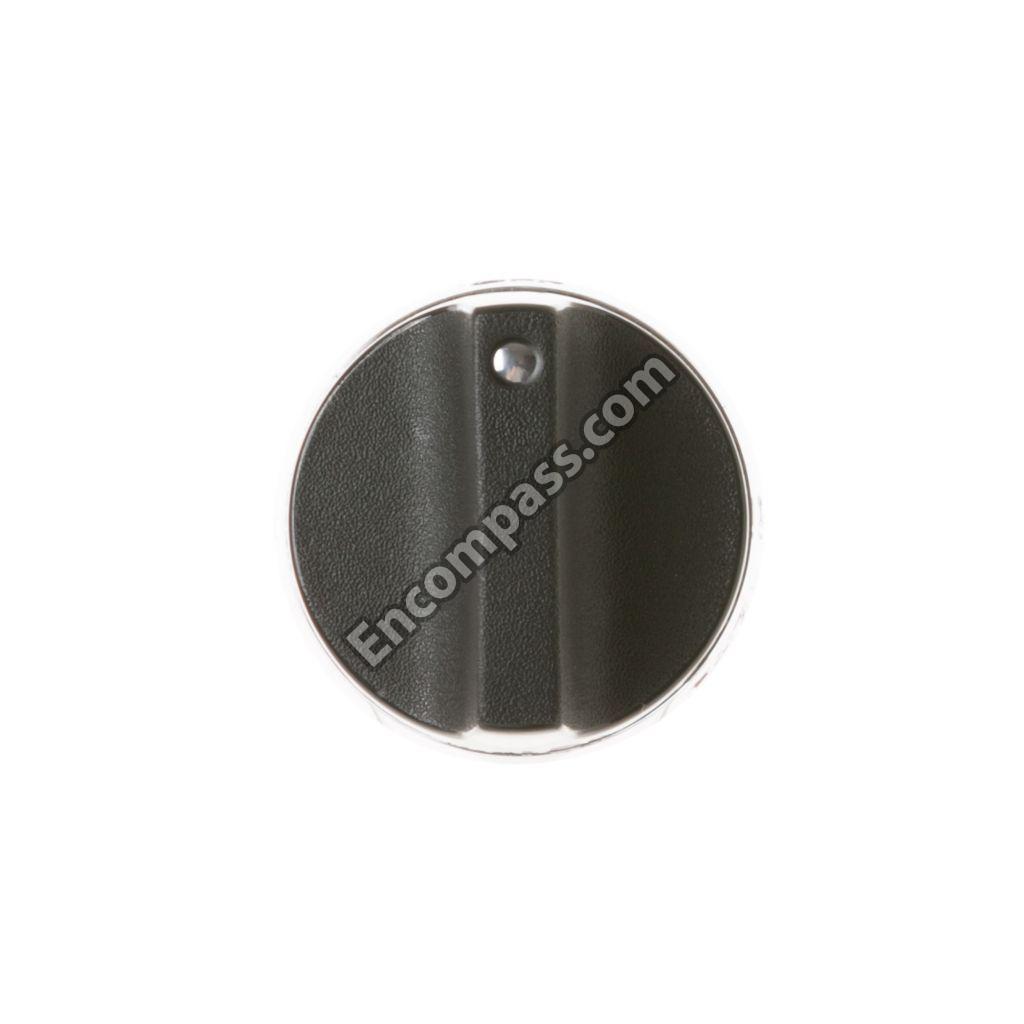

WB03X0716 WB03X0716 KNOB-THERMOSTAT
WB3X714 WB3X714 KNOB-TOP

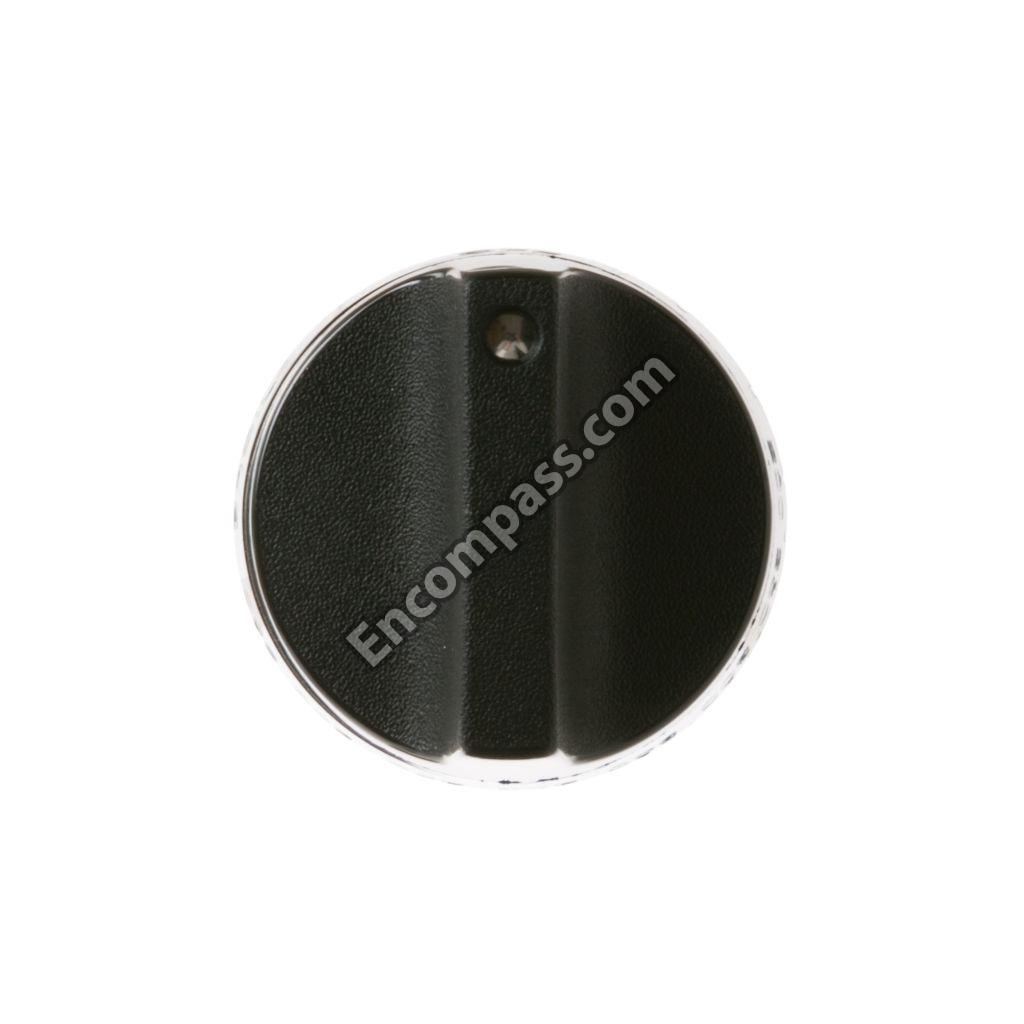

WB03X0714 WB03X0714 KNOB-TOPVALVE(4)
WB01X0711 WB01X0711 LEG-LEVELING
WB56X1851 WB56X1851 LINER-BROILER DRAWER
WB56X1974 WB56X1974 LINER-OVEN DOOR
WB2X10001 WB2X10001 MANIFOLD PIPE
WB19X231 WB19X231 N.L.A.CLOCK
WB14X85 WB14X85 N.L.A.HINGE RH
WB24X409 WB24X409 N/L/A 03/24/03
WB2X9053 WB2X9053 N/L/A 05/13/02
WB48X5100 WB48X5100 N/L/A 06/14/05
WB21X442 WB21X442 N/L/A 09/14/06
WB2X4758 WB2X4758 N/L/A 12/10/08
WB01X0928 WB01X0928 NUT
WB1X5888 WB1X5888 NUT WHIZ LCK
WB01X0694 WB01X0694 NUT-BAFFLE MOUNTING
WB01X1027 WB01X1027 NUT-COMPRESSION
WB48X0190 WB48X0190 OVEN RACK
WB49X0568 WB49X0568 PAN-BROILER
WB32X90 WB32X90 PAN-BURNER
WB56X1855 WB56X1855 PANEL BLACK
WB56X1852 WB56X1852 PANEL-BROILER DOOR-BLACK
WB63X0281 WB63X0281 PANEL-SIDE-LH-ALMOND
WB63X0282 WB63X0282 PANEL-SIDE-LH-WHITE
WB63X0283 WB63X0283 PANEL-SIDE-RH-ALMOND
WB63X0284 WB63X0284 PANEL-SIDE-RH-WHITE
WB2X10004 WB2X10004 PILOT
WB01X0701 WB01X0701 PIN-HINGE
WB1X701 WB1X701 PIN-HINGE
WB02X4945 WB02X4945 PLATE-INSTRUMENT MOUNTING
WB2X4967 WB2X4967 PLATE-OVEN LIGHT
WB02X4996 WB02X4996 PLUB-BROILER DRAWER (2)
WB2X4996 WB2X4996 PLUG-BROILER DRAWER
WB18X0255 WB18X0255 POWER CORD SUPPLY
WB18X255 WB18X255 POWER CORD SUPPLY
WB49X0569 WB49X0569 RACK-BROILER PAN
WB08X0262 WB08X0262 RECEPTACLE-OVEN LIGHT
WB8X262 WB8X262 RECEPTACLE-OVEN LIGHT
WB2X4946 WB2X4946 RETAINER
WB02X4751 WB02X4751 RETAINER-IGNITER
WB02X4736 WB02X4736 ROD-COOKTOP SUPPORT (2)
WB01X0784 WB01X0784 SCREW
WB01X0786 WB01X0786 SCREW
WB1X787 WB1X787 SCREW
WB1X1443 WB1X1443 SCREW
WB01X1024 WB01X1024 SCREW-HANDLE
WB1X5818 WB1X5818 SCREW-HANDLE
WB01X1016 WB01X1016 SCREW-HANDLE MOUNTING
WB1X1094 WB1X1094 SCREW-OV-BTM
WB38X99 WB38X99 SHIELD-FLUE
WB02X4976 WB02X4976 SHIELD-INSULATION
WB63X0287 WB63X0287 SHIELD-LOWER REAR WALL
WB61X0319 WB61X0319 SHIELD-REAR WALL
WB63X0286 WB63X0286 SHIELD-REAR WALL
WB38X0099 WB38X0099 SHIELD-WIRE
WB1X931 WB1X931 SPACER
WB01X0931 WB01X0931 SPACER-BODY-SIDE
WB01X0688 WB01X0688 SPACER-FASTENER
WB01X1025 WB01X1025 SPACER-HANDLE ASSEMBLY
WB20X0093 WB20X0093 SPARK MODULE
WB49X10192 WB49X10192 SPARK MODULE KIT
WB9X5115 WB9X5115 SPRING LH C
WB9X197 WB9X197 SPRING-BROILER HINGE-
WB09X0200 WB09X0200 SPRING-BROILER HINGE-LH
WB09X0197 WB09X0197 SPRING-BROILER HINGE-RH
WB09X0228 WB09X0228 SPRING-OVEN DOOR
WB9X228 WB9X228 SPRING-OVEN DOOR
WB2X4280 WB2X4280 SUPPORT ROD
WB2X4738 WB2X4738 SUPPORT-GLAS **NLA*
WB02X4738 WB02X4738 SUPPORT-GLASS (2)
WB2X4776 WB2X4776 SUPPORT-OVEN BOTTOM
WB24X393 WB24X393 SWITCH
WB24X377 WB24X377 SWITCH-FLOOR

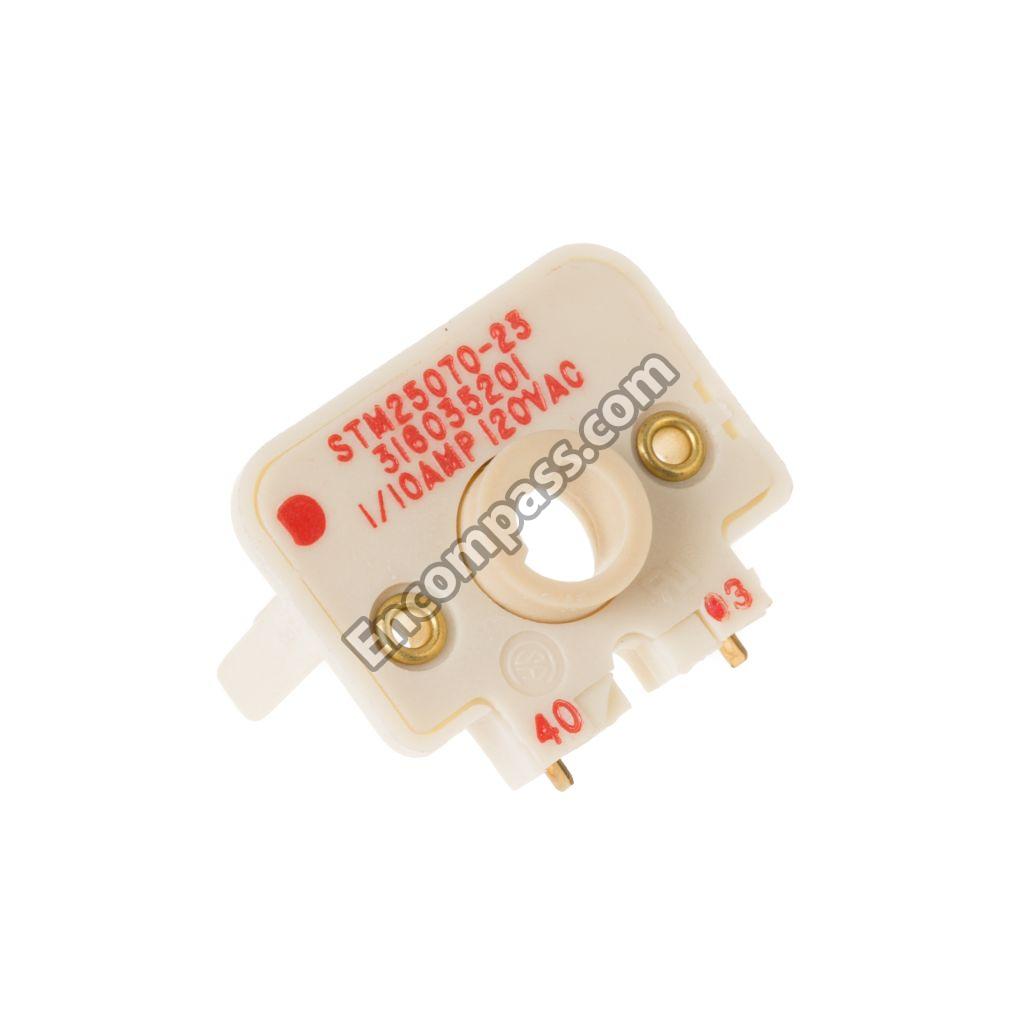

WB24X0409 WB24X0409 SWITCH-IGNITER
WB24X0393 WB24X0393 SWITCH-IGNITER
WB24X0376 WB24X0376 SWITCH-OVEN LIGHT
WB21X0442 WB21X0442 THERMOSTAT
WB39X0066 WB39X0066 TRACK-BROILER (4)
WB39X66 WB39X66 TRACK-DRAWER
WB7X1362 WB7X1362 TRIM TOP L H
WB07X1518 WB07X1518 TRIM-BACKSPLASH
WB7X1527 WB7X1527 TRIM-COOKTOP **NLA*
WB07X1527 WB07X1527 TRIM-COOKTOP-RIGHT
WB02X4946 WB02X4946 TRIM-GLASS RETAINER (2)
WB07X1362 WB07X1362 TRIM-MAIN TOP LH
WB07X1483 WB07X1483 TRIM-OVEN DOOR
WB07X1532 WB07X1532 TRIM-SIDE-VERTICAL
WB07X1517 WB07X1517 TRIM-VENT
WB7X1517 WB7X1517 TRIM-VENT
WB07X1516 WB07X1516 TRIM-WRAPPER-SURROUND
WB02X4758 WB02X4758 TUBE
WB2X10006 WB2X10006 TUBE-ALUM **NLA*
WB2X10005 WB2X10005 TUBE-PILOT
WB02X4997 WB02X4997 UNKNOWN
WB02X4977 WB02X4977 UNKNOWN
WB55X0635 WB55X0635 UNKNOWN
WB32X0090 WB32X0090 UNKNOWN
49-4946 49-4946 USE AND CARE BOOK
WB21X0444 WB21X0444 VALVE-SAFETY
WB21X444 WB21X444 VALVE-SAFETY
WB21X443 WB21X443 VALVE-TOP
WB21X0443 WB21X0443 VALVE-TOP BURNER(4)
WB1X1029 WB1X1029 WASHER-VALVE
