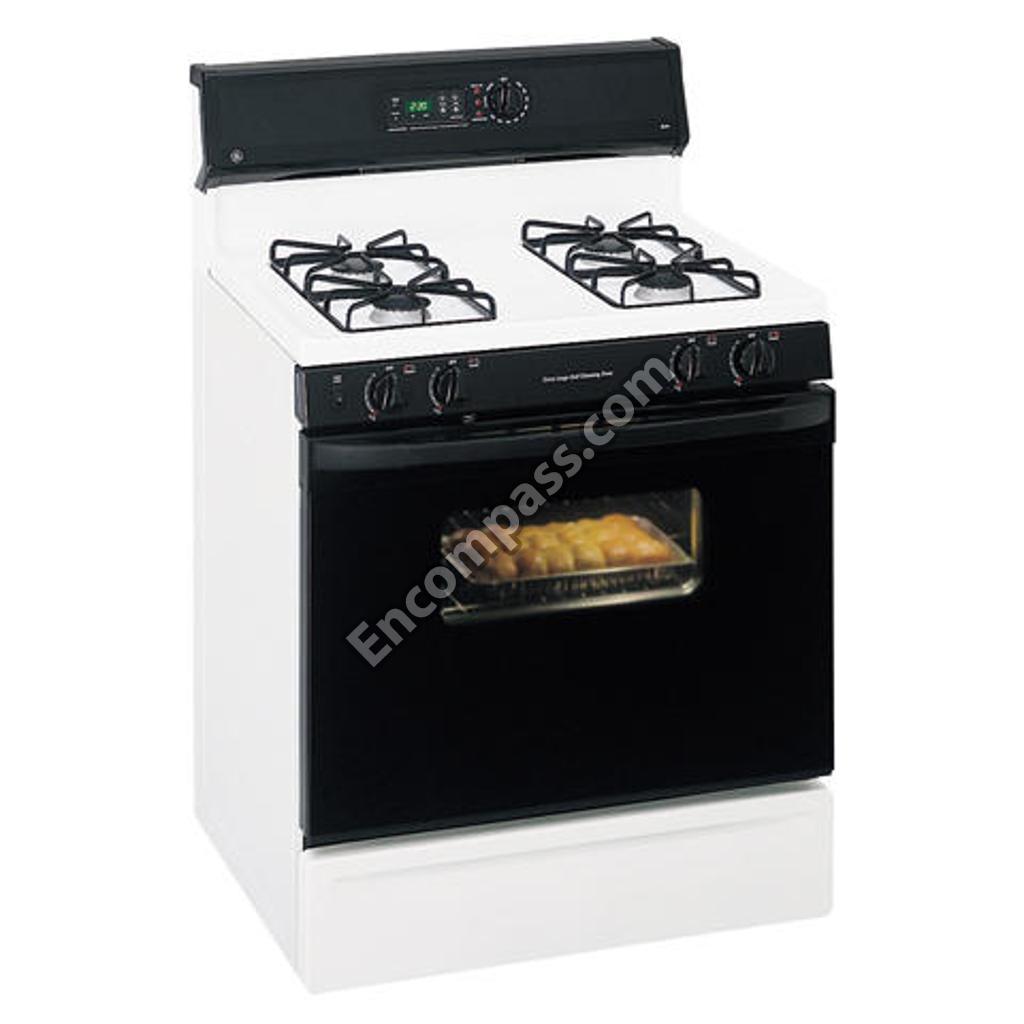

Model Image
Manufacturer

GE

Model Number

JGBP28BEA3AD

Description

Gas Range Or Dual Fuel

Interactive Exploded View

Parts List

Part Number Description
40A15 40A15 40WATT 15AMP
WB02K0012 WB02K0012 ARM ANTI TIP
WB2K12 WB2K12 ARM ANTI TIP
WB02K0027 WB02K0027 BAIL
WB2K27 WB2K27 BAIL
WB63K7 WB63K7 BASE SUPP LF
WB63K6 WB63K6 BASE SUPP RT
WB63K0007 WB63K0007 BASE SUPPORT LEFT
WB63K0006 WB63K0006 BASE SUPPORT RIGHT
WB2K32 WB2K32 BCKT SUPPORT
WB53K0035 WB53K0035 BOTTOM OVEN
WB53K35 WB53K35 BOTTOM OVEN
WB02K0032 WB02K0032 BOTTOM OVEN BRACKT SUPPO
WB01K0005 WB01K0005 BOTTOM OVEN SCREW
WB63K0023 WB63K0023 BOX BURNER SP
WB63K10037 WB63K10037 BOX BURNER SP
WB63K15 WB63K15 BRACE
WB63K0015 WB63K0015 BRACE BOTTOM
WB38K0002 WB38K0002 BRACE VENT
WB38K2 WB38K2 BRACE VENT
WB02K0020 WB02K0020 BRACKET ASM ANTI-TIP
WB02K0001 WB02K0001 BRACKET GLIDER
WB39K0020 WB39K0020 BRACKET MOUNTING DRAWER
WB2K41 WB2K41 BRACKET OVEN
WB02K0041 WB02K0041 BRACKET OVEN CORNER
WB2K88 WB2K88 BRACKET REG
WB02K0088 WB02K0088 BRACKET REGULATOR
WB02K0065 WB02K0065 BRACKET SAFETY VALVE
WB02K10006 WB02K10006 BRACKET-BURNER (MED)
WB02K10005 WB02K10005 BRACKET-TIMER
WB2K20 WB2K20 BRKT ASM A-T
WB2K1 WB2K1 BRKT GLIDER
WB39K20 WB39K20 BRKT MTG DRW
WB2K65 WB2K65 BRKT SAF VLV
WB49K2 WB49K2 BROIL PAN 16X16 3/4 FITS RACK
WB48K2 WB48K2 BROIL PAN RACK 15 1/2X16 3/4 F
WB16K0022 WB16K0022 BURNER BAKE
WB16K22 WB16K22 BURNER BAKE
WB16K10008 WB16K10008 BURNER BROIL
WB16K10055 WB16K10055 BURNER MEDIUM (9500)
WB18X21511 WB18X21511 BURNER-MEDIUM
WB25K0002 WB25K0002 CAMERA LENS
WB29K10001 WB29K10001 CAP-BURNER MED (BLK)
WB02K0036 WB02K0036 CLAMP CABLE
WB2K36 WB2K36 CLAMP CABLE
WB02K0031 WB02K0031 CLIP CABLE
WB02K0052 WB02K0052 CLIP RANGETOP
WB2K52 WB2K52 CLIP RNGETOP
WB02K0037 WB02K0037 CLIP SPACER
WB2K37 WB2K37 CLIP SPACER
WB02K0038 WB02K0038 CLIP WIRE
WB02X7066 WB02X7066 CLIP WIRE
WB02X21679 WB02X21679 CLIP WIRE
WB2K22 WB2K22 CLIP WIRE
WB02K0022 WB02K0022 CLIP WIRE
WB01K10112 WB01K10112 CLIP-ELECTRODE
WB01X0119 WB01X0119 CONTOURED WASHER
WB27K10141 WB27K10141 CONTROL T08-2K
WB28K10046 WB28K10046 CONVERSION KIT (L.P.)
WB62K10047 WB62K10047 COOKTOP (AL)
WB34K0006 WB34K0006 COVER BACK PANEL
WB34K10003 WB34K10003 COVER BACK UPPER
WB63K0022 WB63K0022 COVER BURNER BOX
WB07K10009 WB07K10009 COVER END LT (ALMOND)
WB07K10002 WB07K10002 COVER END LT (WH)
WB07K10008 WB07K10008 COVER END RT (ALMOND)
WB07K10001 WB07K10001 COVER END RT (WH)
WB34K10007 WB34K10007 COVER LOWER BACK
WB34K0005 WB34K0005 COVER WIRE
WB34K5 WB34K5 COVER WIRE
WB56K0019 WB56K0019 CRYSTAL WINDOW
WB34K13 WB34K13 CVR B PNL SP
WB34K6 WB34K6 CVR BACK PNL
WB63K22 WB63K22 CVR BRNR BOX
WB34K14 WB34K14 CVR IGNITOR
WB49K10003 WB49K10003 DEFLECTOR
WB35K10007 WB35K10007 DEFLECTOR DRAWER
WB35K0023 WB35K0023 DEFLECTOR HEAT
WB35K23 WB35K23 DEFLECTOR HT
WB49K10037 WB49K10037 DEFLECTOR OVER
WB02K0042 WB02K0042 DOOR LATCH
WB58K10001 WB58K10001 DRAWER BODY ASSEMBLY
WB02K0043 WB02K0043 DRAWER SUPPORT
WB02K10158 WB02K10158 DRAWER SUPPORT
WB28K61 WB28K61 ELBOW 90 DEG
WB28K0061 WB28K0061 ELBOW 90 DEGREES
WB28K10018 WB28K10018 ELBOW HI-BROIL
WB13K10003 WB13K10003 ELECTRODE-TOP BURNERS
WB7X7290 WB7X7290 END CAP DOOR
WB7X7289 WB7X7289 END CAP DOOR
WB07X7182 WB07X7182 END CAP DOOR LF (BK)
WB07X7181 WB07X7181 END CAP DOOR RT (BK)
WB07K10004 WB07K10004 END CAP LT (BLK)
WB07K10003 WB07K10003 END CAP RT (BLK)
WB49K0044 WB49K0044 FLAME SPREADER
WB63K36 WB63K36 FRAME WELD
WB63K0036 WB63K0036 FRAME WELD ASM
WB04K0001 WB04K0001 GASKET DOOR
WB4K1 WB4K1 GASKET DOOR
WB32K5 WB32K5 GASKET OV LT
WB32K0005 WB32K0005 GASKET OVEN LIGHT
WB32K0002 WB32K0002 GASKET OVEN SEAL LG
WB32K0001 WB32K0001 GASKET VENT
WB32K1 WB32K1 GASKET VENT
WB2K66 WB2K66 GD SUPT RGTP
WB57K2 WB57K2 GL DOOR BLK
WB57K0002 WB57K0002 GLASS DOOR (BLK)
WB08K0005 WB08K0005 GLASS OVEN LAMP
WB02X7701 WB02X7701 GLIDER
WB2X8248 WB2X8248 GLIDER ADJ
WB02K0068 WB02K0068 GLIDER DRAWER
WB2K68 WB2K68 GLIDER DRWR
WB31K10033 WB31K10033 GRATE (BLK)
WB53K18 WB53K18 GRD TOP INSU
WB2K8 WB2K8 GROMMET
WB32K2 WB32K2 GSKT OV SEAL
WB63K17 WB63K17 GUARD BOT IN
WB63K0016 WB63K0016 GUARD BOTTOM
WB63K16 WB63K16 GUARD BOTTOM
WB63K0017 WB63K0017 GUARD BOTTOM INNER
WB63K0018 WB63K0018 GUARD BOTTOM MIDDLE
WB53K11 WB53K11 GUARD INS RH
WB56K8 WB56K8 GUARD INSUL
WB53K12 WB53K12 GUARD INSUL
WB53K0011 WB53K0011 GUARD INSUL. OVEN RIGHT
WB56K0008 WB56K0008 GUARD INSULATION DOOR
WB53K0012 WB53K0012 GUARD INSULATION LEFT
WB34K30 WB34K30 GUARD RADIAT
WB34K31 WB34K31 GUARD RADIAT
WB34K0031 WB34K0031 GUARD RADIATION LFT
WB34K0030 WB34K0030 GUARD RADIATION RT
WB53K0018 WB53K0018 GUARD TOP INSULATION
WB02K0066 WB02K0066 GUIDE SUPPORT RGTP
WB15X10047 WB15X10047 HANDLE DOOR (BLACK)
WB15K0028 WB15K0028 HANDLE DOOR LATCH
WB07X10034 WB07X10034 HANDLE END CAP (BLK)
WB18K10035 WB18K10035 HARNESS HV
WB10K12 WB10K12 HINGE ASM GD
WB10K0012 WB10K0012 HINGE ASM GUIDE
WB2X6195 WB2X6195 HINGE PIN
WB15K28 WB15K28 HNDL LATCH
WB02K0011 WB02K0011 HOOK DOOR SPRING
WB2K11 WB2K11 HOOK DR SPRG
WB8K1 WB8K1 HOUS RECEPTL
WB08K0001 WB08K0001 HOUSING RECEPTACLE
WB13K0004 WB13K0004 IGNITER BURNER BAKE
WB13K0003 WB13K0003 IGNITER BURNER BROIL
WB34K0014 WB34K0014 IGNITER COVER
WB2X9154 WB2X9154 IGNITR BR/OV
WB35K8 WB35K8 INSUL OV BCK
WB35K7 WB35K7 INSUL OV WRP
WB35K0020 WB35K0020 INSULATION DOOR
WB35K0008 WB35K0008 INSULATION OVEN BACK
WB35K0007 WB35K0007 INSULATION OVEN WRAP
WB35K10004 WB35K10004 INSULATION-CONTROL
WB35K20 WB35K20 INSULATN DR
WB03K10053 WB03K10053 KNOB-CONTROL (BLK)
WB03K10045 WB03K10045 KNOB-LATCH (BLACK)
WB03K10035 WB03K10035 KNOB-TOP BURNERS (BLK)
WB36X192 WB36X192 LAMP COV ASM
WB2K42 WB2K42 LATCH
WB25T10041 WB25T10041 LENS
WB18K0007 WB18K0007 LINE CORD
WB18K10036 WB18K10036 LINE CORD
WB55K25 WB55K25 LINER ASM
WB55K0025 WB55K0025 LINER ASM WELD DOOR
WB34K10086 WB34K10086 LOWER HEAT SHIELD
WB28K10028 WB28K10028 MANIFOLD PIPE
31-20632 31-20632 MANUAL-MINI/ELEC. DIAG.
49-8855 49-8855 MANUAL-USE & CARE
WB01K0006 WB01K0006 NUT LOCK
WB1K6 WB1K6 NUT LOCK
WB01K0003 WB01K0003 NUT SPEED
WB1K3 WB1K3 NUT SPEED
WB28K202 WB28K202 ORIFICE OVEN
WB28K0202 WB28K0202 ORIFICE SPUD BURNER BAKE
WB28K10023 WB28K10023 ORIFICE-LP MED .89MM
WB28K10022 WB28K10022 ORIFICE-NG MED 1.50MM
WB53K0019 WB53K0019 OVEN BACK
WB53K0003 WB53K0003 OVEN SIDE LEFT
WB53K3 WB53K3 OVEN SIDE LF
WB53K0002 WB53K0002 OVEN SIDE RIGHT
WB53K2 WB53K2 OVEN SIDE RT
WB53K10004 WB53K10004 OVEN TOP
WB27K10015 WB27K10015 OVERLAY (BLACK)
WB2X1222 WB2X1222 PAD
WB2K85 WB2K85 PAD (FELT)
WB02K0085 WB02K0085 PAD FELT (WH)
WB02X1222 WB02X1222 PAD GLASS (FELT)
WB49K0002 WB49K0002 PAN BROILER
WB55K0020 WB55K0020 PANEL ASM WELD INNER
WB55K10002 WB55K10002 PANEL DRAWER (ALMOND)
WB36K10033 WB36K10033 PANEL DRAWER (WH)
WB36K10105 WB36K10105 PANEL MANIFOLD (BLACK)
WB63K0025 WB63K0025 PANEL REAR BROIL
WB63K51 WB63K51 PANEL SIDE
WB63K0051 WB63K0051 PANEL SIDE (AL)
WB63K0003 WB63K0003 PANEL SIDE BROIL LFT
WB63K0002 WB63K0002 PANEL SIDE BROIL RT
WB14K0005 WB14K0005 PIN HINGE
WB14K5 WB14K5 PIN HINGE
WB02X6195 WB02X6195 PIN HINGE DOOR
WB2K17 WB2K17 PIN LOCATOR
WB02K0017 WB02K0017 PIN LOCATOR FRONT
WB37K0018 WB37K0018 PLATE END LEFT
WB37K18 WB37K18 PLATE END LT
WB37K0017 WB37K0017 PLATE END RIGHT
WB37K17 WB37K17 PLATE END RT
WB55K20 WB55K20 PNL ASM WELD
WB63K25 WB63K25 PNL RR BROIL
WB63K3 WB63K3 PNL SD BRO L
WB63K2 WB63K2 PNL SD BRO R
WB48K0002 WB48K0002 RACK BROILER PAN
WB48T10095 WB48T10095 RACK OVEN
WB39K0016 WB39K0016 RAIL DRAWER
WB39K16 WB39K16 RAIL DRAWER
WB63K0021 WB63K0021 RANGE BACK
WB63K21 WB63K21 RANGE BACK
WB08K0002 WB08K0002 RECEPTACLE PUSH IN
WB08T10026 WB08T10026 RECEPTACLE PUSH-IN
WB35K0033 WB35K0033 REFLECTOR
WB35K33 WB35K33 REFLECTOR
WB35K0022 WB35K0022 REFLECTOR 9.5 INCH
WB19K10001 WB19K10001 REGULATOR PRESSURE
WB2X2030 WB2X2030 RETAINER
WB2X1082 WB2X1082 RETAINER
WB08K0004 WB08K0004 RETAINER INSULATION LAMP
WB02K0030 WB02K0030 RETAINER-INSULATION VENT
WB02X1082 WB02X1082 RING RETAINING
WB1K44 WB1K44 SCEW LATCH
WB1K45 WB1K45 SCR&WSHR ASM
WB01K0001 WB01K0001 SCREW
WB01K0021 WB01K0021 SCREW
WB1X5716 WB1X5716 SCREW
WB1K5062 WB1K5062 SCREW
WB1K5119 WB1K5119 SCREW
WB1X1293 WB1X1293 SCREW
WB01K0042 WB01K0042 SCREW (BLK)
WB01X5716 WB01X5716 SCREW (BLK)
WB01X5364 WB01X5364 SCREW (CR)
WB1K69 WB1K69 SCREW 10-16
WB01K0069 WB01K0069 SCREW 10-16 DOOR
WB1K12 WB1K12 SCREW 10-24 X 1/4
WR01X10065 WR01X10065 SCREW 10-32 GXTT FLP 595 S
WB01K0070 WB01K0070 SCREW 7-19
WB1K5 WB1K5 SCREW 8-18 X 1/2
WZ04X0345 WZ04X0345 SCREW 8-18X5/8 HXW
WB1K67 WB1K67 SCREW 8-22
WB01K10002 WB01K10002 SCREW 8-32
WB01K10008 WB01K10008 SCREW CKTP
WB01K0044 WB01K0044 SCREW DOOR LATCH
WB01K0012 WB01K0012 SCREW HANDL DOOR LATCH
WB1K62 WB1K62 SCREW HEAD PAINTED BLACK
WB1K53 WB1K53 SCREW HINGE
WB1X5364 WB1X5364 SCREW MTG
WB01K0062 WB01K0062 SCREW MTG END CAP (BK)
WB01K0053 WB01K0053 SCREW MTG HINGE (TORX)
WB01K0050 WB01K0050 SCREW MTG IGNITER
WB01X0558 WB01X0558 SCREW NAIL POINT
WZ05X0124 WZ05X0124 SCREW SWITCH 5/8 S
WB01K0045 WB01K0045 SCREW WASHER ASM
WB01K10003 WB01K10003 SCREW-MTG END CAP (BLACK)
WZ5X124D WZ5X124D SCREW-PKG 12
WB1X558D WB1X558D SCREW-PKG 12
WZ4X345D WZ4X345D SCREW-PKG 12
WB20K0004 WB20K0004 SENSOR
WB21X5301 WB21X5301 SENSOR ASM
WB34K0010 WB34K0010 SHIELD BROIL
WB34K10 WB34K10 SHIELD BROIL
WB02K0029 WB02K0029 SHIELD DOOR LATCH
WB34K0013 WB34K0013 SHIELD HEAT INNER
WB34K0011 WB34K0011 SHIELD HEAT LOWER
WB2K29 WB2K29 SHIELD LATCH
WB34K12 WB34K12 SHIELD RADIA
WB34K0012 WB34K0012 SHIELD RADIATION
WB02K0039 WB02K0039 SHIELD SWITCH
WB2K39 WB2K39 SHLD SWITCH
WB02K0084 WB02K0084 SPACER
WB2K84 WB2K84 SPACER
WB13K25 WB13K25 SPARK MODULE
WB13K0025 WB13K0025 SPARK MODULE 4+0
WB01K0002 WB01K0002 SPEEDNUT
WB1K2 WB1K2 SPEEDNUT
WB09K0005 WB09K0005 SPRING DOOR
WB9K5 WB9K5 SPRING DOOR
WB02K0091 WB02K0091 SUPPORT RANGETOP
WB10K0014 WB10K0014 SUPPORT RIVET LFT
WB10K0013 WB10K0013 SUPPORT RIVET RT
WB2K91 WB2K91 SUPPORT TOP
WB10K14 WB10K14 SUPT RIVET
WB10K13 WB10K13 SUPT RIVET
WB24K0015 WB24K0015 SWITCH DOOR LATCH
WB24K15 WB24K15 SWITCH LATCH
WB24K0003 WB24K0003 SWITCH ROCKER (BLK)
WB24X415 WB24X415 SWITCH-LITE
WB24K10002 WB24K10002 SWITCH-VALVE SERVICE
WB07K10232 WB07K10232 TRIM BOTTOM ASM
WB07K0379 WB07K0379 TRIM BOTTOM DOOR (BK)
WB36K10106 WB36K10106 TRIM CONTROL (BLACK)
WB07K10104 WB07K10104 TRIM DOOR (BLACK)
WB7K403 WB7K403 TRIM TOP DR
WB07K0403 WB07K0403 TRIM VENT ASM DOOR BLK
WB28K60 WB28K60 TUBE BNR SUP
WB28K55 WB28K55 TUBE BNR SUP
WB28K0060 WB28K0060 TUBE BURNER SUPPLY
WB28K0055 WB28K0055 TUBE BURNER SUPPLY
WB28K0150 WB28K0150 TUBE VALVE SUPPLY
WB28K150 WB28K150 TUBE VLV SUP
WB28K10025 WB28K10025 TUBE-BURNER LEFT FRONT
WB28K10027 WB28K10027 TUBE-BURNER LEFT REAR
WB28K10024 WB28K10024 TUBE-BURNER RIGHT FRONT
WB28K10026 WB28K10026 TUBE-BURNER RIGHT REAR
WB28K10021 WB28K10021 TUBE-MANIFOLD SUPPLY
WB21K0038 WB21K0038 VALVE BURNER 140
WB19K14 WB19K14 VALVE CNTRL
WB19K0014 WB19K0014 VALVE CONTROL
WB63K0019 WB63K0019 VALVE GUARD BOTTOM
WB21K38 WB21K38 VALVE-BURNER
WB38K10001 WB38K10001 VENT ASM
WB35K10003 WB35K10003 VENT INSULATION
WB63K19 WB63K19 VLV GRD BOT
WB01K0057 WB01K0057 WASHER (CLEAR)
WB01K0024 WB01K0024 WASHER (FELT)
WB1K57 WB1K57 WASHER(CLEAR
WB1X119D WB1X119D WASHR-PKG 12
WB1K83 WB1K83 WB1K83
WB56K19 WB56K19 WIND PACK SM
Main Menu x
