Model Image
Manufacturer

GE

Model Number

JGBP80WEH3WW

Description

Gas Range Or Dual Fuel

Interactive Exploded View

Parts List

Part Number Description
WB16T10046 WB16T10046 12 RANGE LARGE BURNER 000 BTUS
40A15 40A15 40WATT 15AMP INC AND ESCENT BULB
WB16K10055 WB16K10055 9 RANGE SURFACE BURNER BASE-MEDIUM 500
WB02K0012 WB02K0012 ARM ANTI TIP
WB2K12 WB2K12 ARM ANTI TIP
WB02K0027 WB02K0027 BAIL
WB2K27 WB2K27 BAIL
WB35X37973 WB35X37973 BOTTOM OVEN ASM
WB02K0032 WB02K0032 BOTTOM OVEN BRACKT SUPPO
WB01K0005 WB01K0005 BOTTOM OVEN SCREW
WB63K10037 WB63K10037 BOX BURNER SP
WB63K0015 WB63K0015 BRACE BOTTOM
WB38K0002 WB38K0002 BRACE VENT
WB02K0020 WB02K0020 BRACKET ASM ANTI-TIP
WB02K10074 WB02K10074 BRACKET CONTROL
WB37K10004 WB37K10004 BRACKET COOK TOP LF
WB37K10003 WB37K10003 BRACKET COOK TOP RG
WB39K0020 WB39K0020 BRACKET MOUNTING DRAWER
WB02K0041 WB02K0041 BRACKET OVEN CORNER

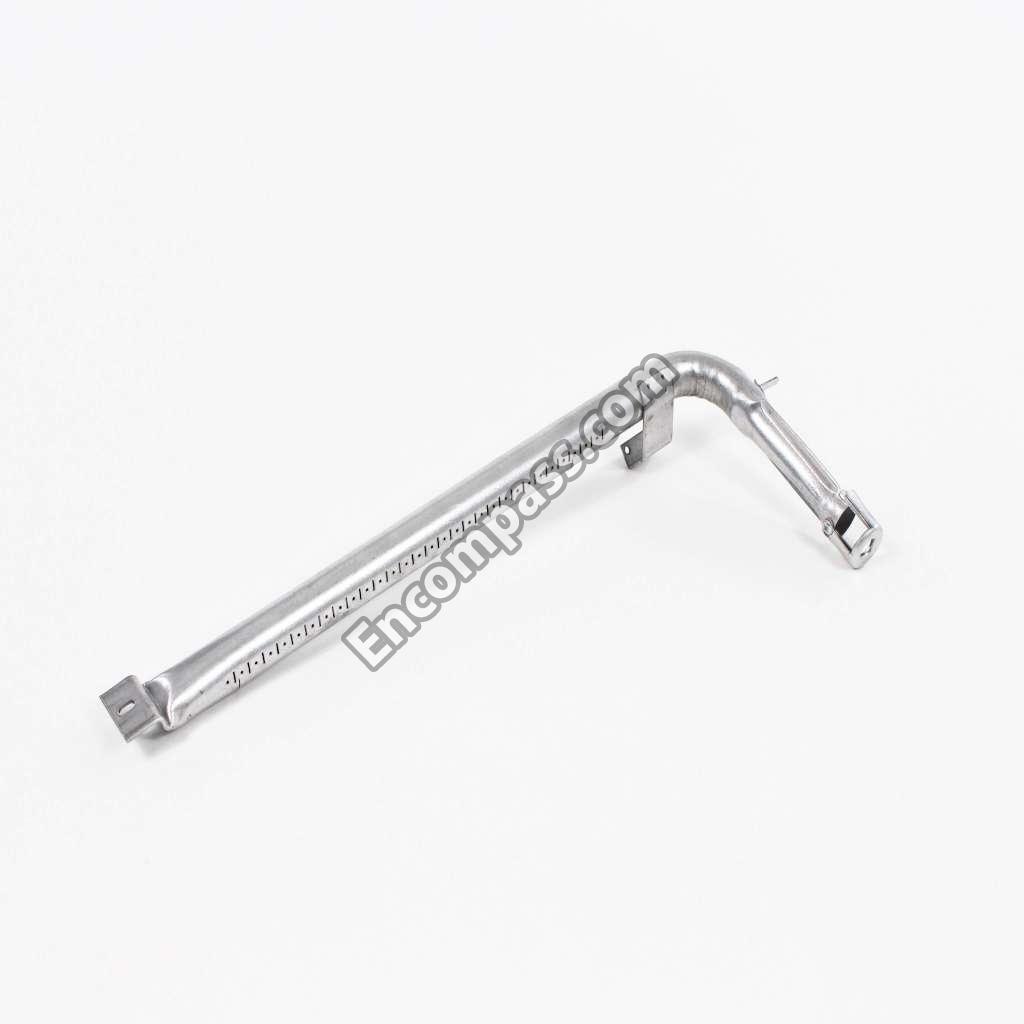

WB16K10035 WB16K10035 BURNER BAKE
WB16K10004 WB16K10004 BURNER BROIL
WB16K10056 WB16K10056 BURNER-LARGE
WB16K10070 WB16K10070 BURNER-SMALL
WB07K10129 WB07K10129 CAP END DOOR LT (BISQUE)
WB07K10128 WB07K10128 CAP END DOOR RT (BISQUE)
WB29K10006 WB29K10006 CAP-BURNER LARGE (BLK)
WB29K10007 WB29K10007 CAP-BURNER LARGE (GRAY)
WB29X36765 WB29X36765 CAP-BURNER LARGE TAUPE
WB29K10001 WB29K10001 CAP-BURNER MED (BLK)
WB29K10004 WB29K10004 CAP-BURNER MED (GRAY)
WB29K10005 WB29K10005 CAP-BURNER MED TAUPE
WB29K10009 WB29K10009 CAP-BURNER SMALL (BLK)
WB29K10002 WB29K10002 CAP-BURNER SMALL (GRAY)
WB29K10003 WB29K10003 CAP-BURNER SMALL TAUPE
WB02K10362 WB02K10362 CKT BRACKET MDM AND LGE
WB02K10361 WB02K10361 CKT BRACKET MEDIUM
WB02K10360 WB02K10360 CKT BRACKET SMALL
WB02K0036 WB02K0036 CLAMP CABLE
WB2K36 WB2K36 CLAMP CABLE
WB02K0031 WB02K0031 CLIP CABLE
WB02X21679 WB02X21679 CLIP CABLE
WB02K0052 WB02K0052 CLIP RANGETOP
WB2K52 WB2K52 CLIP RNGETOP
WB02K0056 WB02K0056 CLIP WINDOW
WB2K56 WB2K56 CLIP WINDOW
WB02K0038 WB02K0038 CLIP WIRE
WB02X7066 WB02X7066 CLIP WIRE
WB2K22 WB2K22 CLIP WIRE
WB02K0022 WB02K0022 CLIP WIRE
WB01K10112 WB01K10112 CLIP-ELECTRODE
WB01X0119 WB01X0119 CONTOURED WASHER
WB28K10557 WB28K10557 CONVERTION KIT ASSEMBLY
WB62K10054 WB62K10054 COOKTOP (BISQUE)
WB62K10053 WB62K10053 COOKTOP (BLACK)
WB62K10055 WB62K10055 COOKTOP (WH)
WB34K10062 WB34K10062 COVER BACK LOWER
WB34K0006 WB34K0006 COVER BACK PANEL
WB34K10003 WB34K10003 COVER BACK UPPER
WB63K0022 WB63K0022 COVER BURNER BOX
WB63K10040 WB63K10040 COVER TERMINAL
WB02K0024 WB02K0024 COVER VALVE
WB56K0020 WB56K0020 CRYSTAL WINDOW
WB34K13 WB34K13 CVR B PNL SP
WB34K6 WB34K6 CVR BACK PNL
WB63K22 WB63K22 CVR BRNR BOX
WB34K14 WB34K14 CVR IGNITOR
WB49K10003 WB49K10003 DEFLECTOR
WB35K0023 WB35K0023 DEFLECTOR HEAT
WB35K23 WB35K23 DEFLECTOR HT
WB49K10037 WB49K10037 DEFLECTOR OVEN
WB34K10018 WB34K10018 DOUBLE GRAY PORCELAIN PAN LEFT
WB34K10015 WB34K10015 DOUBLE TAUPE PORC PAN RIGHT SI
WB58K10001 WB58K10001 DRAWER BODY ASSEMBLY
WB02K0043 WB02K0043 DRAWER SUPPORT
WB02K10158 WB02K10158 DRAWER SUPPORT
WB01K10037 WB01K10037 ECONOMIC NUT
WB28K30 WB28K30 ELBOW HI BRL
WB28K0030 WB28K0030 ELBOW HI-BROIL
WB13K10014 WB13K10014 ELECTRODE TOP
WB07X7188 WB07X7188 END CAP DOOR - LF (WH)
WB07X7187 WB07X7187 END CAP DOOR - RH (WH)
WB7X7188 WB7X7188 END CAP-LH
WB7X7187 WB7X7187 END CAP-RH
WB07K10194 WB07K10194 END SUPPORT GLOSS BLACK
WB07K10193 WB07K10193 END SUPPORT GLOSS BLACK
WB07K10198 WB07K10198 END SUPPORT LF (BSQT)
WB07K10196 WB07K10196 END SUPPORT LF (WH)
WB07K10197 WB07K10197 END SUPPORT RT (BSQT)
WB07K10195 WB07K10195 END SUPPORT RT (WH)

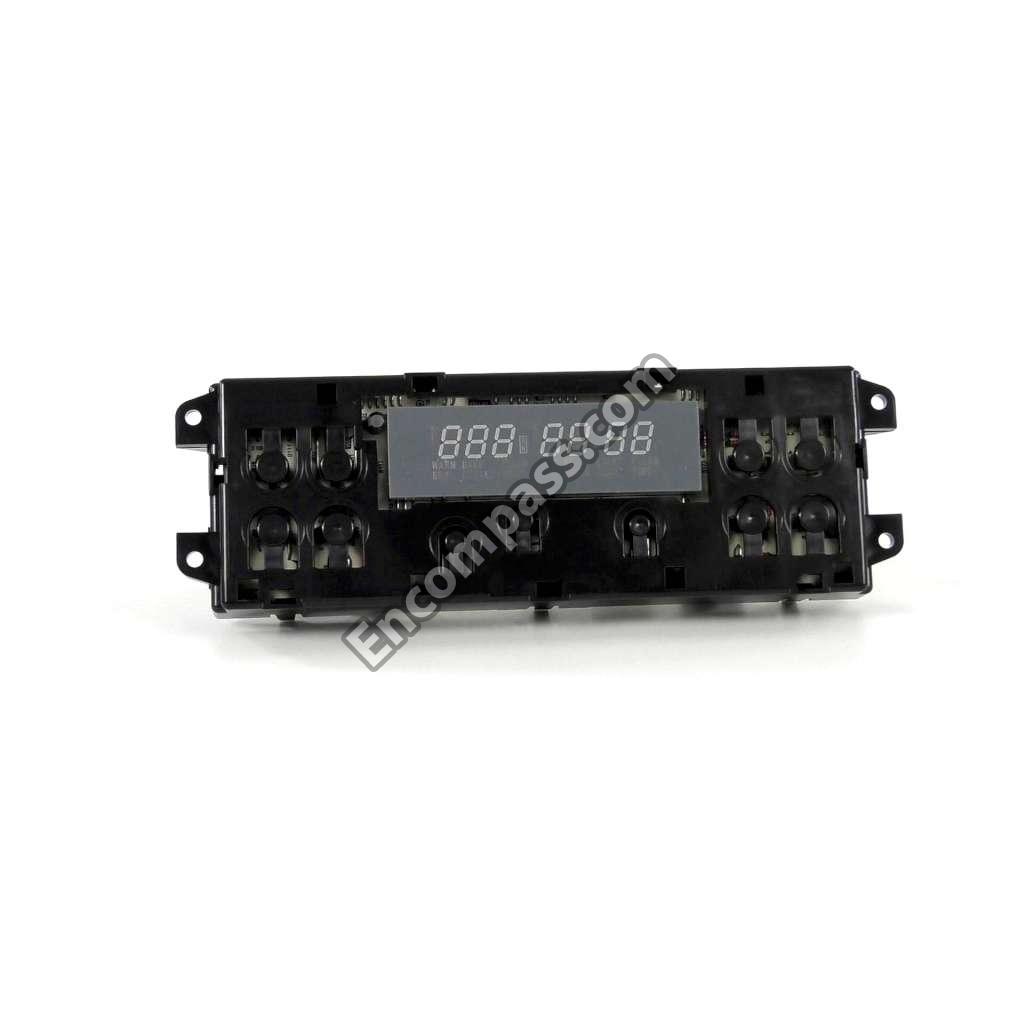

WB27K10148 WB27K10148 ERC3B CONTROL
WB01X0560 WB01X0560 FIBER WASHER
WB49K0044 WB49K0044 FLAME SPREADER
WB63K36 WB63K36 FRAME WELD
WB63K0036 WB63K0036 FRAME WELD ASM
WB28K10217 WB28K10217 FRONT ORIFICE HOLDER
WB28K10189 WB28K10189 FRONT ORIFICE HOLDER
WB04K0001 WB04K0001 GASKET DOOR
WB4K1 WB4K1 GASKET DOOR
WB32K0005 WB32K0005 GASKET OVEN LIGHT
WB32K0002 WB32K0002 GASKET OVEN SEAL LG
WB32K0001 WB32K0001 GASKET VENT
WB32K1 WB32K1 GASKET VENT
WB2K66 WB2K66 GD SUPT RGTP
WB57K5 WB57K5 GLASS DOOR

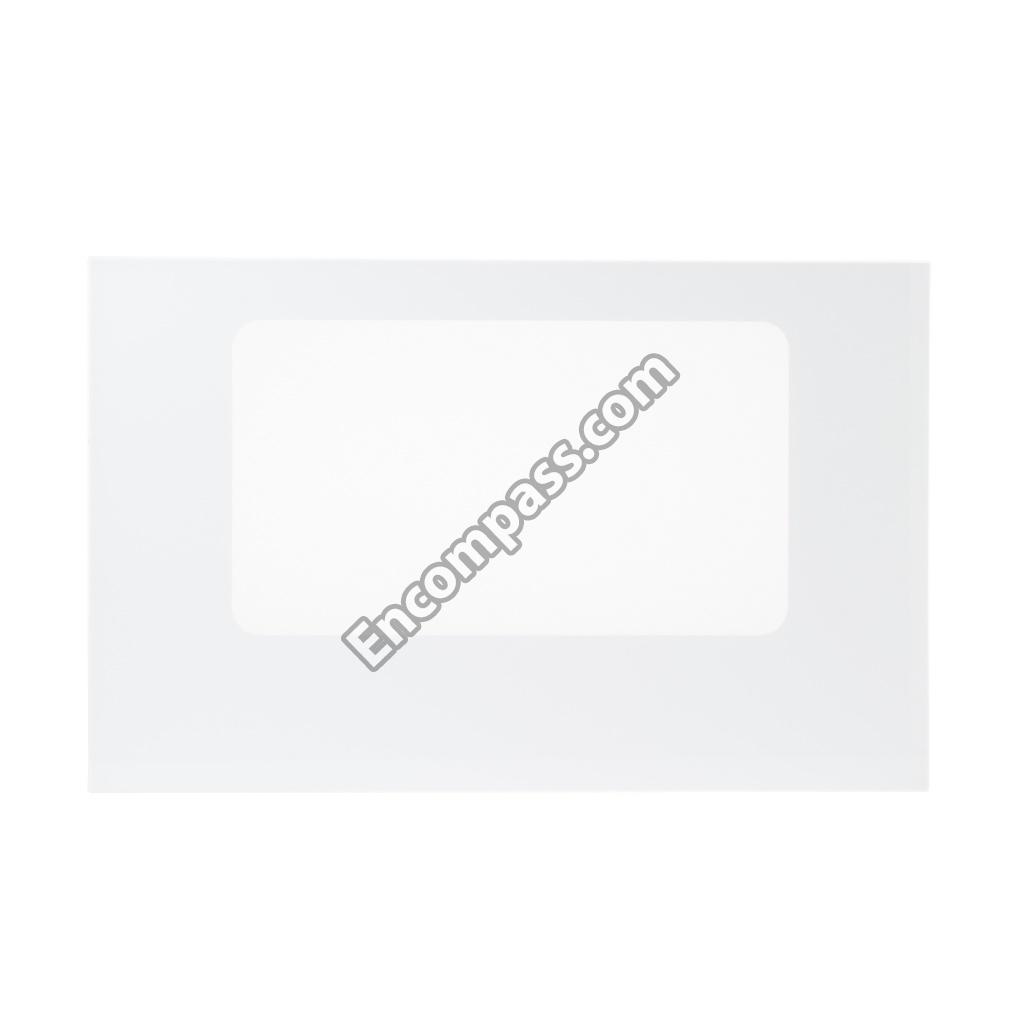

WB57K10100 WB57K10100 GLASS OVEN DOOR
WB08K0005 WB08K0005 GLASS OVEN LAMP
WB02K10062 WB02K10062 GLIDER DRAWER LEFT
WB02K10061 WB02K10061 GLIDER DRAWER RIGHT

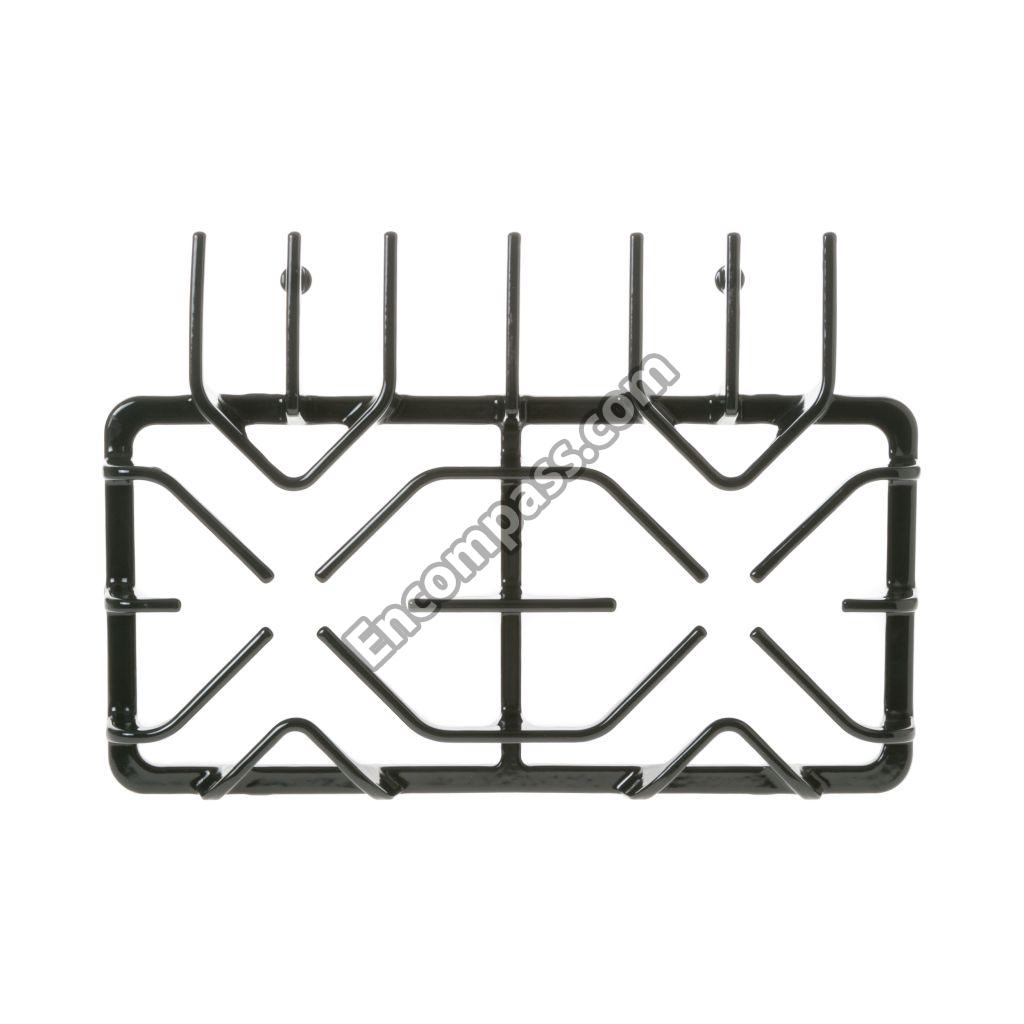

WB31K10042 WB31K10042 GRATE-DUAL (BLACK)

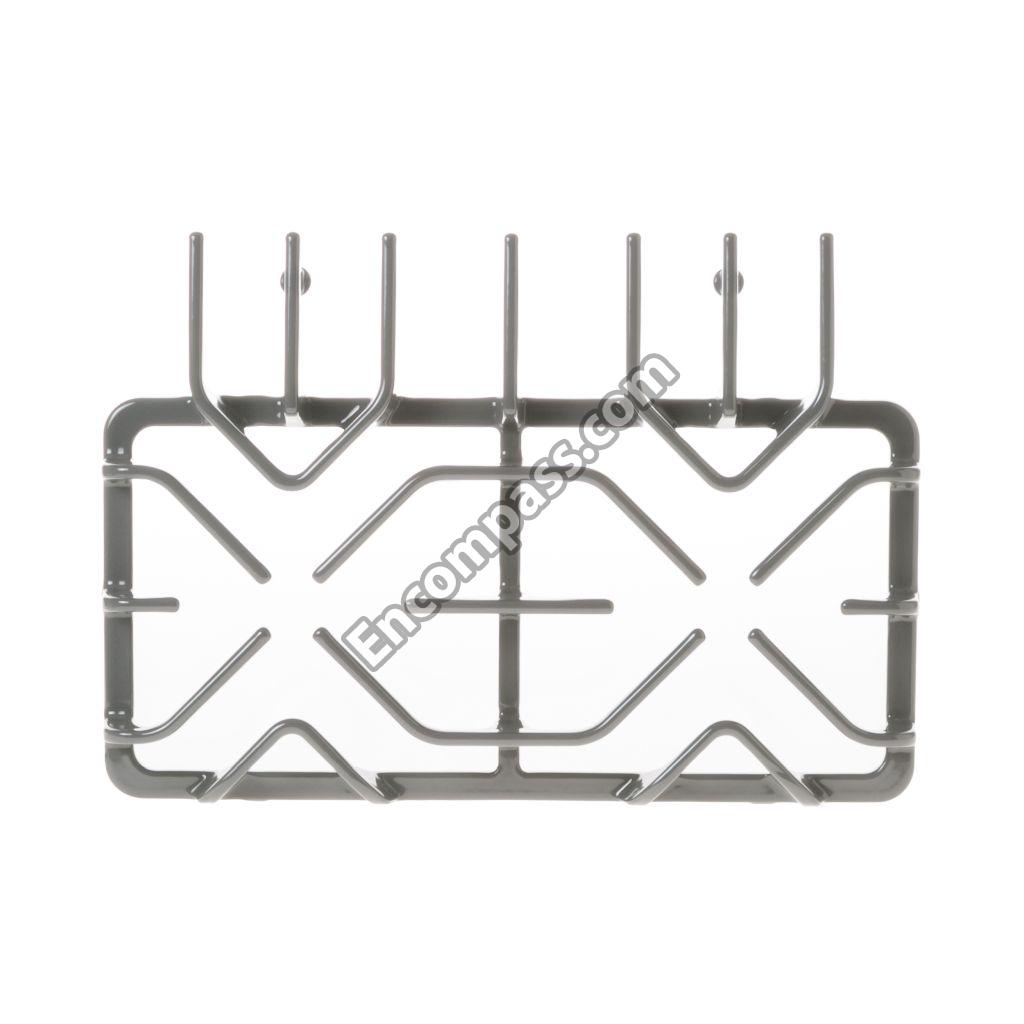

WB31K10040 WB31K10040 GRATE-DUAL (GRAY)
WB31K10041 WB31K10041 GRATE-DUAL TAUPE
WB53K18 WB53K18 GRD TOP INSU
WB2K8 WB2K8 GROMMET
WB63K17 WB63K17 GUARD BOT IN
WB63K0016 WB63K0016 GUARD BOTTOM
WB63K0017 WB63K0017 GUARD BOTTOM INNER
WB63K0018 WB63K0018 GUARD BOTTOM MIDDLE
WB53K11 WB53K11 GUARD INS RH
WB56K12 WB56K12 GUARD INSUL
WB53K12 WB53K12 GUARD INSUL
WB53K0011 WB53K0011 GUARD INSUL. OVEN RIGHT
WB56K0012 WB56K0012 GUARD INSULATION
WB53K0012 WB53K0012 GUARD INSULATION LEFT
WB34K0031 WB34K0031 GUARD RADIATION LFT
WB34K0030 WB34K0030 GUARD RADIATION RT
WB53K0018 WB53K0018 GUARD TOP INSULATION
WB02K0066 WB02K0066 GUIDE SUPPORT RGTP
WB15K10046 WB15K10046 HANDLE ASM (BLK)
WB15K10048 WB15K10048 HANDLE ASM (WH)
WB15K10047 WB15K10047 HANDLE ASSEMBLY
WB15K10049 WB15K10049 HANDLE LATCH
WB18K10035 WB18K10035 HARNESS HV
WB10K0012 WB10K0012 HINGE ASM GUIDE
WB2X6195 WB2X6195 HINGE PIN
WB02K0011 WB02K0011 HOOK DOOR SPRING
WB2K11 WB2K11 HOOK DR SPRG
WB8K1 WB8K1 HOUS RECEPTL
WB08K0001 WB08K0001 HOUSING RECEPTACLE
WB34K0014 WB34K0014 IGNITER COVER
WB13K21 WB13K21 IGNITER OVEN
WB13K0021 WB13K0021 IGNITER-OVEN BAKE
WB35K25 WB35K25 INSUL BOT DR
WB35K8 WB35K8 INSUL OV BCK
WB35K7 WB35K7 INSUL OV WRP
WB35K24 WB35K24 INSUL SD DR
WB35K0025 WB35K0025 INSULATION BOTTOM DOOR
WB35K0008 WB35K0008 INSULATION OVEN BACK
WB35K0007 WB35K0007 INSULATION OVEN WRAP
WB35K0024 WB35K0024 INSULATION SIDE DOOR
WB35K10004 WB35K10004 INSULATION-CONTROL

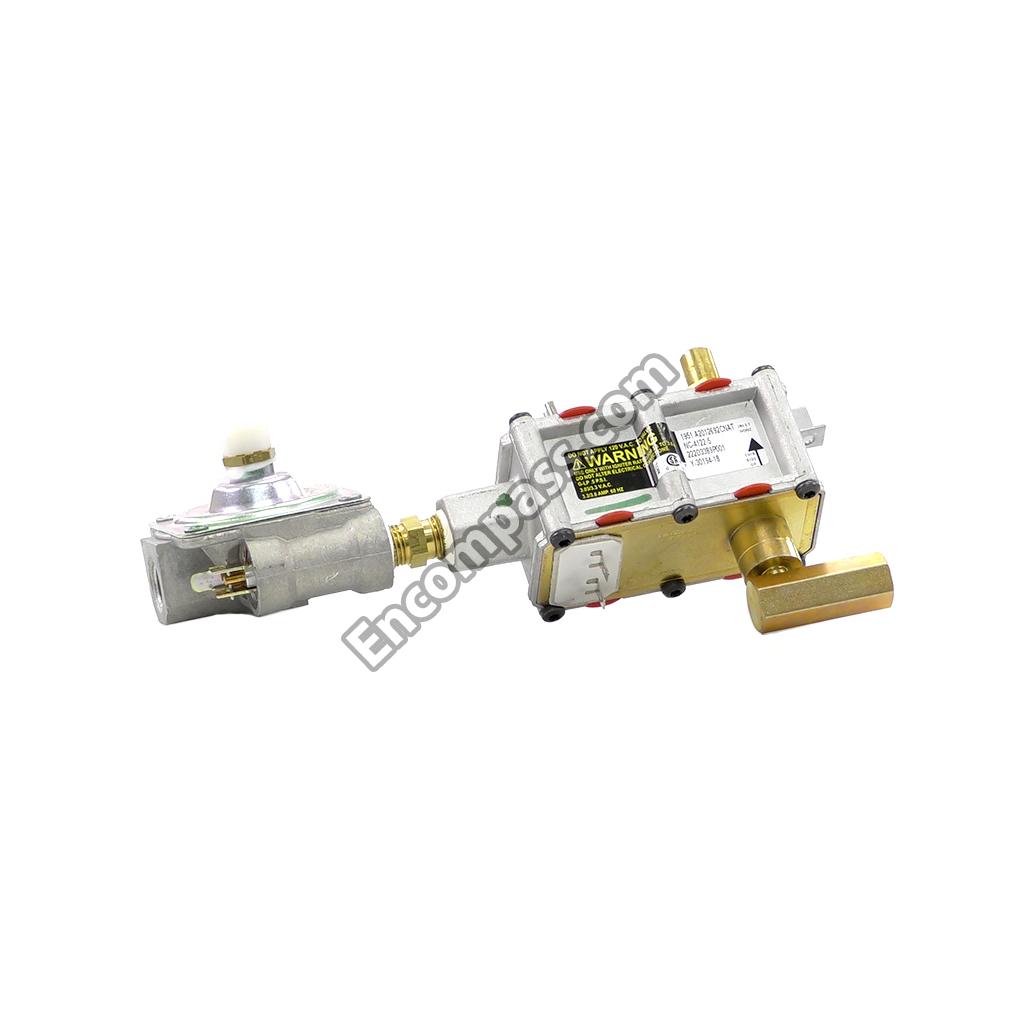

WB19K10041 WB19K10041 KIT VALVE & REGULATOR NG
WB03K10141 WB03K10141 KNOB MINIVALVE
WB03K10147 WB03K10147 KNOB-TOP BURNERS (BSQT)
WB03K10143 WB03K10143 KNOB-TOP BURNERS (WH)
WB02K10096 WB02K10096 LATCH
WB02X10521 WB02X10521 LEG LEVELER
WB18K0007 WB18K0007 LINE CORD
WB18K10036 WB18K10036 LINE CORD
WB55K25 WB55K25 LINER ASM
WB55K0025 WB55K0025 LINER ASM WELD DOOR
WB34K10086 WB34K10086 LOWER HEAT SHIELD
WB28K10028 WB28K10028 MANIFOLD PIPE
WB01K0006 WB01K0006 NUT LOCK
WB1K6 WB1K6 NUT LOCK
WB01K0003 WB01K0003 NUT SPEED
WB1K3 WB1K3 NUT SPEED
WB28K10032 WB28K10032 ORIFICE-LP LG LR
WB28K10023 WB28K10023 ORIFICE-LP MED .89MM
WB28K10031 WB28K10031 ORIFICE-LP SM RR/CTR
WB53K0019 WB53K0019 OVEN BACK
WB53K0003 WB53K0003 OVEN SIDE LEFT
WB53K3 WB53K3 OVEN SIDE LF
WB53K0002 WB53K0002 OVEN SIDE RIGHT
WB53K2 WB53K2 OVEN SIDE RT
WB53K10004 WB53K10004 OVEN TOP

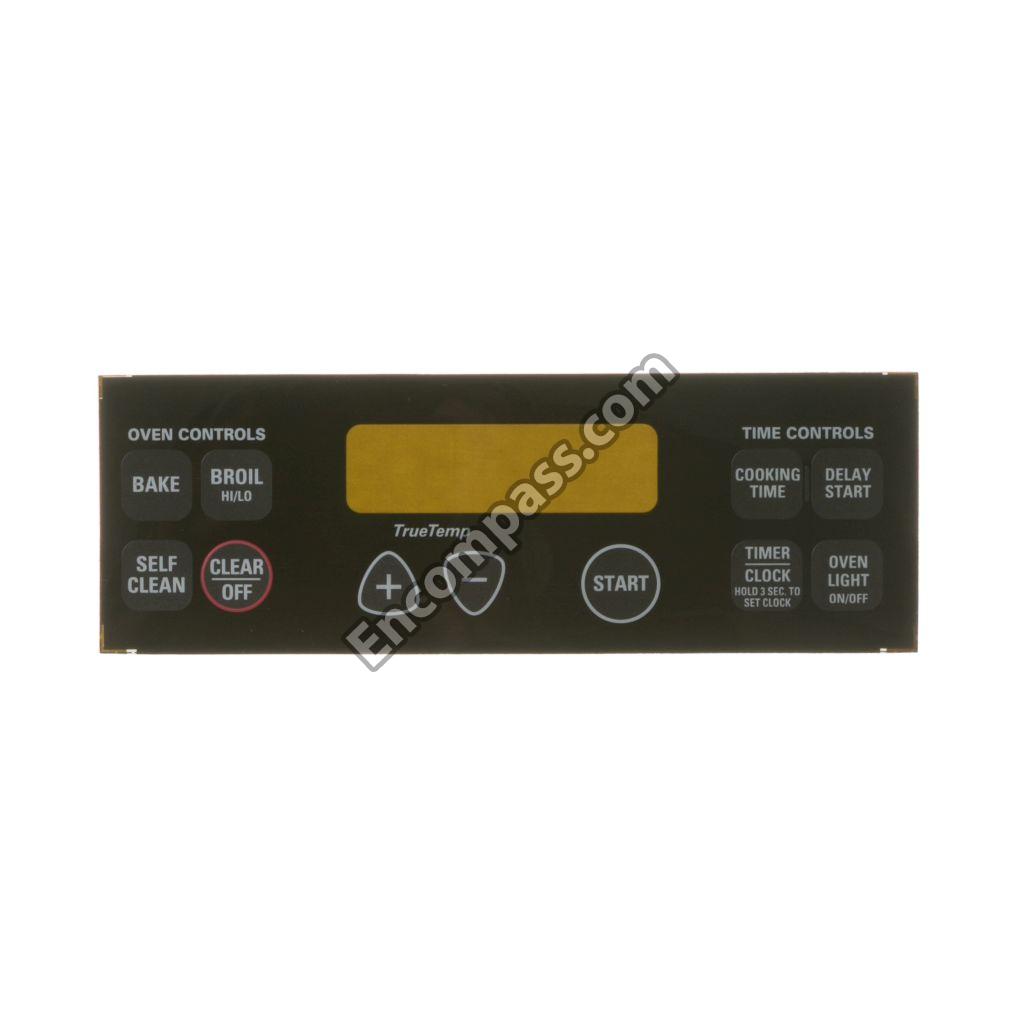

WB27K10180 WB27K10180 OVERLAY ERC3B TACTIL
WB27K10128 WB27K10128 OVERLAY ERC3B TACTIL
WB27K10112 WB27K10112 OVERLAY ERC3B(GLOSS BLACK)
WB02K10099 WB02K10099 PAD
WB02K10098 WB02K10098 PAD
WB48X10056 WB48X10056 PAN BROILER

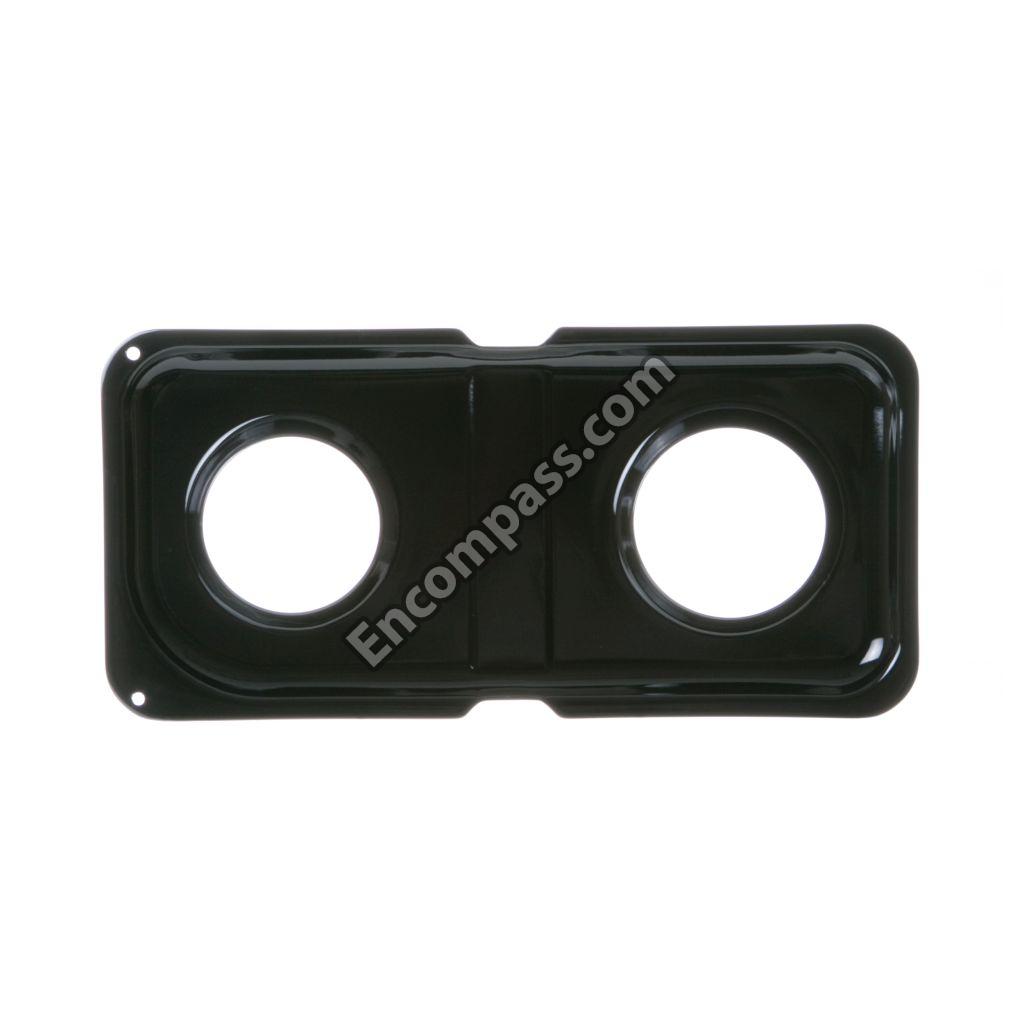

WB34K10017 WB34K10017 PAN UNIT LEFT (BLK)
WB34K10019 WB34K10019 PAN UNIT LEFT (TAUPE)
WB34K10009 WB34K10009 PAN UNIT-RIGHT (BLK)
WB34K10013 WB34K10013 PAN UNIT-RIGHT (GRAY)
WB55K0013 WB55K0013 PANEL ASM WELD INNER
WB36K10164 WB36K10164 PANEL DRAWER (BISQUE)
WB55K10001 WB55K10001 PANEL DRAWER (BLACK)
WB36K10033 WB36K10033 PANEL DRAWER (WH)
WB36K10360 WB36K10360 PANEL MANIFOLD (WH)
WB36K10714 WB36K10714 PANEL MANIFOLD(BLK)
WB63K10203 WB63K10203 PANEL REAR BROIL
WB63K50 WB63K50 PANEL SIDE
WB62K10039 WB62K10039 PANEL SIDE (BISQUE)
WB63K0050 WB63K0050 PANEL SIDE (WH)
WB63K0003 WB63K0003 PANEL SIDE BROIL LFT
WB63K0002 WB63K0002 PANEL SIDE BROIL RT
WB14K0005 WB14K0005 PIN HINGE
WB14K5 WB14K5 PIN HINGE
WB02X6195 WB02X6195 PIN HINGE DOOR
WB2K17 WB2K17 PIN LOCATOR
WB02K0017 WB02K0017 PIN LOCATOR FRONT
31-21110 31-21110 PM MINI-MANUAL ELECT
49-85073 49-85073 PM USE & CARE MANUAL
WB55K13 WB55K13 PNL ASM WELD
WB63K3 WB63K3 PNL SD BRO L
WB63K2 WB63K2 PNL SD BRO R
WB08T10026 WB08T10026 PUSH-IN RECEPTICLE
WB48T10095 WB48T10095 RACK OVEN
WB39K0016 WB39K0016 RAIL DRAWER
WB2K20 WB2K20 RANGE ANTI-TIP BRACKET
WB63K0021 WB63K0021 RANGE BACK
WB63K21 WB63K21 RANGE BACK
WB63K10233 WB63K10233 RANGE BASE SUPPORT
WB2K32 WB2K32 RANGE BRACKET SUPPORT
WB10K12 WB10K12 RANGE DOOR HINGE ASSEMBLY
WB39K20 WB39K20 RANGE DRAWER MOUNTING BRACKET
WB39K16 WB39K16 RANGE DRAWER RAIL
WB1X1293 WB1X1293 RANGE IGNITER MOUNTING SCREW
WB2K41 WB2K41 RANGE OVEN BRACKET
WB36X192 WB36X192 RANGE OVEN BULB COVER
WB32K2 WB32K2 RANGE OVEN DOOR GASKET
WB32K5 WB32K5 RANGE OVEN GASKET
WB63K16 WB63K16 RANGE PANEL
WB34K31 WB34K31 RANGE RADIATION GUARD
WB34K30 WB34K30 RANGE RADIATION GUARD
WB10K13 WB10K13 RANGE SUPPORT RIVET
WB63K15 WB63K15 RANGE VENT BRACE
WB38K2 WB38K2 RANGE VENT BRACE
WB28K10188 WB28K10188 REAR ORIF.H R 150N 9500B
WB28K10187 WB28K10187 REAR ORIFICE HOLDER
WB35K0033 WB35K0033 REFLECTOR
WB35K33 WB35K33 REFLECTOR
WB35K0022 WB35K0022 REFLECTOR 9.5 INCH
WB2X1082 WB2X1082 RETAINER
WB2X2030 WB2X2030 RETAINER
WB08K0004 WB08K0004 RETAINER INSULATION LAMP
WB02K0030 WB02K0030 RETAINER-INSULATION VENT
WB02X1082 WB02X1082 RING RETAINING
WB1K44 WB1K44 SCEW LATCH
WB1K45 WB1K45 SCR AND WSHR ASSEMBLY
WB01K0063 WB01K0063 SCREW
WB01K0001 WB01K0001 SCREW
WB01K0021 WB01K0021 SCREW
WB1K5119 WB1K5119 SCREW
WB1X536 WB1X536 SCREW
WB1X1261 WB1X1261 SCREW
WB1K5062 WB1K5062 SCREW
WB01K10030 WB01K10030 SCREW
WB01K0042 WB01K0042 SCREW (BLK)
WB1K66 WB1K66 SCREW (WH)/ NLA PER GE
WB01X0593 WB01X0593 SCREW - DOOR ASM (4 PER)
WB1K69 WB1K69 SCREW 10-16
WB01K0069 WB01K0069 SCREW 10-16 DOOR
WB1K63 WB1K63 SCREW 10-16 X 0.95 TYPE B
WB1K12 WB1K12 SCREW 10-24 X 1/4
WR01X10065 WR01X10065 SCREW 10-32 GXTT FLP 595 S
WB01K0070 WB01K0070 SCREW 7-19
WB01K10018 WB01K10018 SCREW 8-18 (BISQUE)
WB01T10016 WB01T10016 SCREW 8-18 AB HXW 5/8 S
WB1K5 WB1K5 SCREW 8-18 X 1/2 -INCH
WZ04X0345 WZ04X0345 SCREW 8-18X5/8 HXW
WB1K67 WB1K67 SCREW 8-22
WB01K10002 WB01K10002 SCREW 8-32
WB01K10008 WB01K10008 SCREW CKTP
WB01K0044 WB01K0044 SCREW DOOR LATCH
WB01X1261 WB01X1261 SCREW GROUND
WB01K0012 WB01K0012 SCREW HANDL DOOR LATCH
WB1K53 WB1K53 SCREW HINGE
WB01K10024 WB01K10024 SCREW MTG END CAP (BISQUE)
WB01K0066 WB01K0066 SCREW MTG END CAP (WH)
WB01K0053 WB01K0053 SCREW MTG HINGE (TORX)
WB01K0050 WB01K0050 SCREW MTG IGNITER
WB01X0558 WB01X0558 SCREW NAIL POINT
WZ05X0124 WZ05X0124 SCREW SWITCH 5/8 S
WB01K0045 WB01K0045 SCREW WASHER ASM
WB01X5874 WB01X5874 SCREW WH
WB01K10004 WB01K10004 SCREW-MTG END CAP (WHITE )
WB01K0083 WB01K0083 SCREW-MTG VALVE BURNER
WB1K83 WB1K83 SCREW-MTG VALVE BURNER 10-32
WZ5X124D WZ5X124D SCREW-PKG 12
WB1X558D WB1X558D SCREW-PKG 12
WZ4X345D WZ4X345D SCREWS - 12 PACK
WB34K0010 WB34K0010 SHIELD BROIL
WB34K10 WB34K10 SHIELD BROIL
WB02K0029 WB02K0029 SHIELD DOOR LATCH
WB34K0013 WB34K0013 SHIELD HEAT INNER
WB34K0011 WB34K0011 SHIELD HEAT LOWER
WB2K29 WB2K29 SHIELD LATCH
WB34K12 WB34K12 SHIELD RADIA
WB34K0012 WB34K0012 SHIELD RADIATION
WB02K0039 WB02K0039 SHIELD SWITCH
WB2K39 WB2K39 SHLD SWITCH
WB02K0084 WB02K0084 SPACER
WB2K84 WB2K84 SPACER
WB13K25 WB13K25 SPARK MODULE
WB13K0025 WB13K0025 SPARK MODULE 4+0
WB01K0002 WB01K0002 SPEEDNUT
WB1K2 WB1K2 SPEEDNUT
WB09K0005 WB09K0005 SPRING DOOR
WB9K5 WB9K5 SPRING DOOR
WB63K10232 WB63K10232 SUPPORT BASE
WB02K0091 WB02K0091 SUPPORT RANGETOP
WB10K0014 WB10K0014 SUPPORT RIVET LFT
WB10K0013 WB10K0013 SUPPORT RIVET RT
WB2K91 WB2K91 SUPPORT TOP
WB10K14 WB10K14 SUPT RIVET

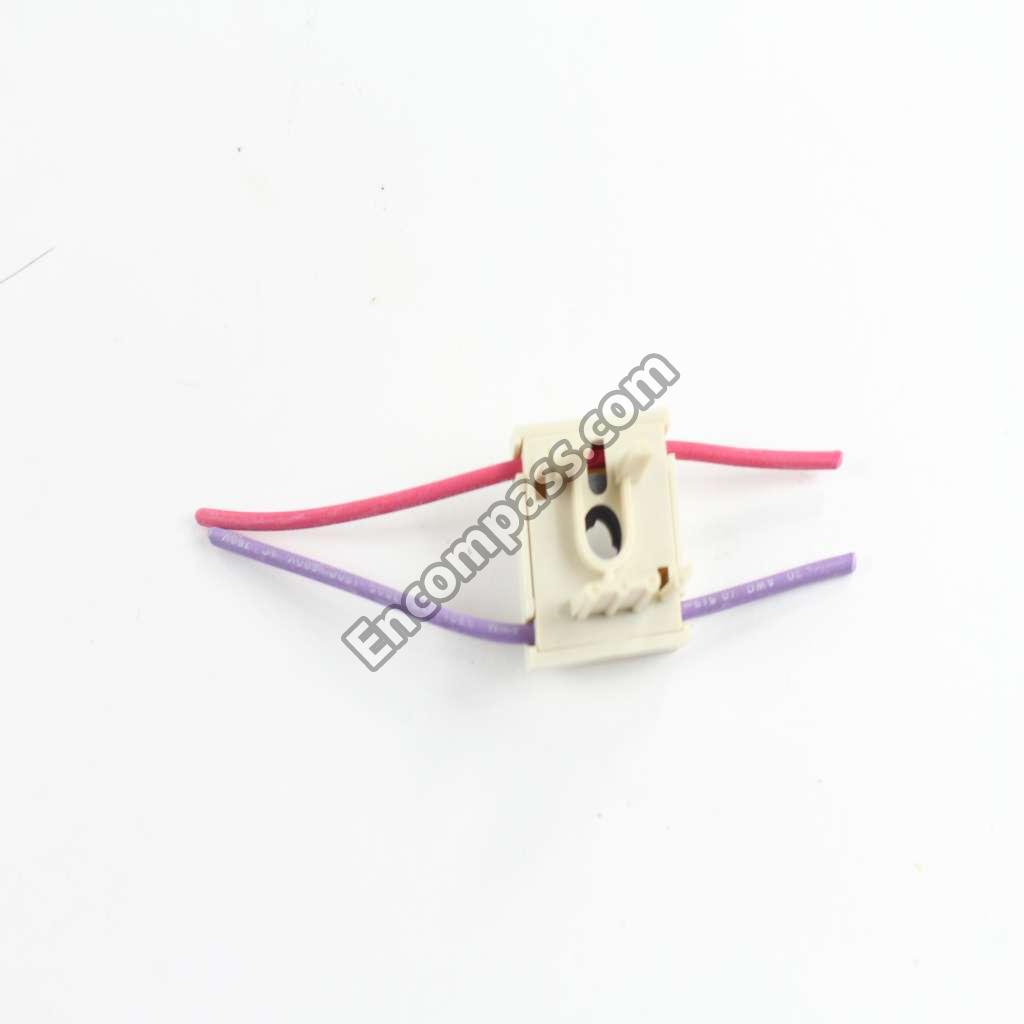

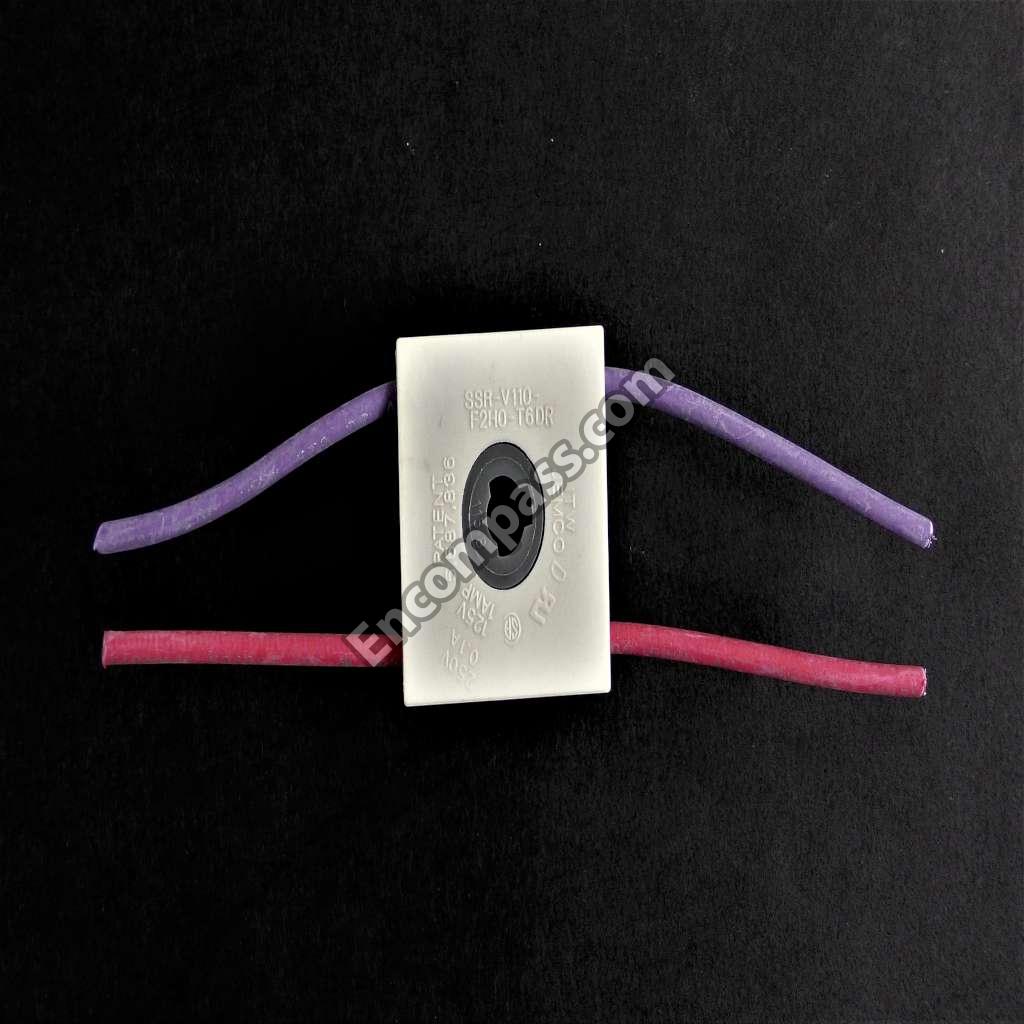

WB24K10024 WB24K10024 SW VALVE SERVICE 270 1WI
WB24K10023 WB24K10023 SW VALVE SERVICE 270 2WI
WB24K10010 WB24K10010 SWITCH LATCH
WB20K10015 WB20K10015 TEMPERATURE SENSOR
WB07K10250 WB07K10250 TRIM BOTTOM
WB07K10269 WB07K10269 TRIM BOTTOM DOOR (BISQUE)
WB07K0384 WB07K0384 TRIM BOTTOM DOOR (WH)
WB36K10361 WB36K10361 TRIM CONTROL
WB36K10359 WB36K10359 TRIM CONTROL (BSQT)
WB07K10104 WB07K10104 TRIM DOOR (BLACK)
WB07K10103 WB07K10103 TRIM DOOR (WHITE)
WB07K10130 WB07K10130 TRIM DOOR-(BISQUE)
WB36K10212 WB36K10212 TRIM TOP DOOR (BISQUE)
WB07K0400 WB07K0400 TRIM TOP DOOR (WH)
WB7K400 WB7K400 TRIM TOP DR
WB28K10168 WB28K10168 TUBE BURNER SUPPLY
WB28X24772 WB28X24772 TUBE MANIFOLD SUPPLY
WB21K10084 WB21K10084 VALVE BURNER 270
WB21K10083 WB21K10083 VALVE BURNER 270
WB21K10082 WB21K10082 VALVE BURNER 270 11000 B
WB2K24 WB2K24 VALVE COVER
WB38K10001 WB38K10001 VENT ASM
WB35K10003 WB35K10003 VENT INSULATION
WB02X32440 WB02X32440 WASHER CONTOURED
WB1X119D WB1X119D WASHR-PKG 12
WB1X560D WB1X560D WASHR-PKG 12
WB56K20 WB56K20 WIND PACK LG
WB34K10087 WB34K10087 WINDOW SPACER ASSEMBLY
Main Menu x
