Model Image
Manufacturer

GE

Model Number

JGBP88WEL1WW

Description

Gas Range Or Dual Fuel

Interactive Exploded View

Parts List

Part Number Description
40A15 40A15 40WATT 15AMP INC AND ESCENT BULB
WB02K0012 WB02K0012 ARM ANTI TIP
WB2K12 WB2K12 ARM ANTI TIP
WB16K10049 WB16K10049 AUXI BURNER
WB02K0027 WB02K0027 BAIL
WB2K27 WB2K27 BAIL
WB58K10005 WB58K10005 BODY-DRAWER
WB35X37973 WB35X37973 BOTTOM OVEN
WB02K0032 WB02K0032 BOTTOM OVEN BRACKT SUPPO
WB01K0005 WB01K0005 BOTTOM OVEN SCREW
WB63K10041 WB63K10041 BOTTOM RANGE
WB63K10037 WB63K10037 BOX BURNER SP
WB63K0015 WB63K0015 BRACE BOTTOM
WB63K0005 WB63K0005 BRACE BOTTOM
WB63K5 WB63K5 BRACE BOTTOM
WB38K0002 WB38K0002 BRACE VENT
WB02K0020 WB02K0020 BRACKET ASM ANTI-TIP
WB02K10074 WB02K10074 BRACKET CONTROL
WB39K0020 WB39K0020 BRACKET MOUNTING DRAWER
WB02K0041 WB02K0041 BRACKET OVEN CORNER
WB16K10035 WB16K10035 BURNER BAKE
WB16K10004 WB16K10004 BURNER BROIL
WB49X20248 WB49X20248 CAP BURNER
WB29K10029 WB29K10029 CAP BURNER
WB29K10028 WB29K10028 CAP BURNER
WB29K10036 WB29K10036 CAP BURNER
WB29K10035 WB29K10035 CAP BURNER
WB29K10034 WB29K10034 CAP BURNER
WB29K10033 WB29K10033 CAP BURNER
WB29K10031 WB29K10031 CAP BURNER
WB29K10030 WB29K10030 CAP BURNER
WB29K10039 WB29K10039 CAP BURNER
WB29K10038 WB29K10038 CAP BURNER
WB29K10032 WB29K10032 CAP BURNER
WB07K10129 WB07K10129 CAP END DOOR LT (BISQUE)
WB07K10128 WB07K10128 CAP END DOOR RT (BISQUE)
WB16K10059 WB16K10059 CENTRAL BURNER & CAP ASM
WB16K10052 WB16K10052 CENTRAL BURNER & CAP ASM
WB16K10029 WB16K10029 CENTRAL BURNER & CAP ASSEMBLY
WB02K10360 WB02K10360 CKT BRACKET SMALL
WB02K0036 WB02K0036 CLAMP CABLE
WB2K36 WB2K36 CLAMP CABLE
WB02K10023 WB02K10023 CLAMP-HEAT ELEMENT
WB02K0031 WB02K0031 CLIP CABLE
WB02X21679 WB02X21679 CLIP CABLE
WB02K0052 WB02K0052 CLIP RANGETOP
WB2K52 WB2K52 CLIP RNGETOP
WB02K0056 WB02K0056 CLIP WINDOW
WB2K56 WB2K56 CLIP WINDOW
WB02K0038 WB02K0038 CLIP WIRE
WB02X7066 WB02X7066 CLIP WIRE
WB01X0119 WB01X0119 CONTOURED WASHER
WB28K10296 WB28K10296 CONVERSION KIT LP
WB02K0004 WB02K0004 COVER ACCESS SPRING
WB34K10062 WB34K10062 COVER BACK LOWER
WB34K0006 WB34K0006 COVER BACK PANEL
WB34K10003 WB34K10003 COVER BACK UPPER
WB63K0022 WB63K0022 COVER BURNER BOX
WB63K10040 WB63K10040 COVER TERMINAL
WB02K0024 WB02K0024 COVER VALVE
WB56K0020 WB56K0020 CRYSTAL WINDOW
WB2K4 WB2K4 CVR ACC SPRG
WB34K13 WB34K13 CVR B PNL SP
WB34K6 WB34K6 CVR BACK PNL
WB63K22 WB63K22 CVR BRNR BOX
WB34K14 WB34K14 CVR IGNITOR
WB49K10003 WB49K10003 DEFLECTOR
WB35K0023 WB35K0023 DEFLECTOR HEAT
WB35K23 WB35K23 DEFLECTOR HT
WB49K10037 WB49K10037 DEFLECTOR OVEN
WB38K10009 WB38K10009 DIFFUSER VENT
WB39K10021 WB39K10021 DRAWER SLIDE ASSEMBLY LEFT
WB39K10020 WB39K10020 DRAWER SLIDE ASSEMBLY RIGHT
WB01K10037 WB01K10037 ECONOMIC NUT
WB28K10311 WB28K10311 ELBOW HI BROIL
WB13K10025 WB13K10025 ELECTRODE RF LF LR RR
WB13K10014 WB13K10014 ELECTRODE TOP
WB07X7188 WB07X7188 END CAP DOOR - LF (WH)
WB07X7187 WB07X7187 END CAP DOOR - RH (WH)
WB7X7188 WB7X7188 END CAP-LH
WB7X7187 WB7X7187 END CAP-RH
WB07K10210 WB07K10210 END SUPPORT
WB07K10209 WB07K10209 END SUPPORT
WB07K10214 WB07K10214 END SUPPORT
WB07K10213 WB07K10213 END SUPPORT
WB07K10212 WB07K10212 END SUPPORT
WB07K10211 WB07K10211 END SUPPORT
WB49K0044 WB49K0044 FLAME SPREADER
WB63K10018 WB63K10018 FRONT FRAME ASSEMBLY
WB13X26360 WB13X26360 GAS RANGE SPARK MODULE
WB35X29668 WB35X29668 GASKET ASM DOOR
WB04K10001 WB04K10001 GASKET DRAWER
WB32K0005 WB32K0005 GASKET OVEN LIGHT
WB32K0002 WB32K0002 GASKET OVEN SEAL LG
WB32K0001 WB32K0001 GASKET VENT
WB32K1 WB32K1 GASKET VENT
WB2K66 WB2K66 GD SUPT RGTP
WB57K5 WB57K5 GLASS DOOR
WB57K10110 WB57K10110 GLASS OVEN DOOR
WB57K10100 WB57K10100 GLASS OVEN DOOR
WB57K10112 WB57K10112 GLASS OVEN DOOR
WB57K10109 WB57K10109 GLASS OVEN DOOR (BK)
WB08K0005 WB08K0005 GLASS OVEN LAMP
WB31K10147 WB31K10147 GRATE CAST
WB31K10142 WB31K10142 GRATE CAST
WB31K10141 WB31K10141 GRATE CAST
WB31K10148 WB31K10148 GRATE CAST
WB31K10145 WB31K10145 GRATE CAST
WB31K10144 WB31K10144 GRATE CAST
WB31K10143 WB31K10143 GRATE CAST MID
WB31K10149 WB31K10149 GRATE CAST MID
WB31K10146 WB31K10146 GRATE CAST MID
WB2K8 WB2K8 GROMMET
WB63K17 WB63K17 GUARD BOT IN
WB63K0016 WB63K0016 GUARD BOTTOM
WB63K0017 WB63K0017 GUARD BOTTOM INNER
WB63K0018 WB63K0018 GUARD BOTTOM MIDDLE
WB53K11 WB53K11 GUARD INS RH
WB53K12 WB53K12 GUARD INSUL
WB56K12 WB56K12 GUARD INSUL
WB53K0011 WB53K0011 GUARD INSUL. OVEN RIGHT
WB56K0012 WB56K0012 GUARD INSULATION
WB53K0012 WB53K0012 GUARD INSULATION LEFT
WB34K0031 WB34K0031 GUARD RADIATION LFT
WB34K0030 WB34K0030 GUARD RADIATION RT
WB53K10030 WB53K10030 GUARD TOP INSULATION
WB02K0066 WB02K0066 GUIDE SUPPORT RGTP
WB63X23859 WB63X23859 GUIDE- SLIDE DRAWER
WB15T10135 WB15T10135 HANDLE
WB15K10057 WB15K10057 HANDLE ASM
WB15K10060 WB15K10060 HANDLE ASM
WB15T10134 WB15T10134 HANDLE BQ
WB18K10029 WB18K10029 HARNESS HV
WB18K10027 WB18K10027 HARNESS MODULE
WB44K10011 WB44K10011 HEATING ELEMENT
WB10K0012 WB10K0012 HINGE ASM GUIDE
WB2X6195 WB2X6195 HINGE PIN
WB14K10003 WB14K10003 HINGE RANGE TOP
WB02K0011 WB02K0011 HOOK DOOR SPRING
WB2K11 WB2K11 HOOK DR SPRG
WB8K1 WB8K1 HOUS RECEPTL
WB08K0001 WB08K0001 HOUSING RECEPTACLE
WB34K0014 WB34K0014 IGNITER COVER
WB13X25261 WB13X25261 IGNITER GLOWBAR
WB13K21 WB13K21 IGNITER OVEN
WB13K0021 WB13K0021 IGNITER-OVEN BAKE
WB35K25 WB35K25 INSUL BOT DR
WB35K8 WB35K8 INSUL OV BCK
WB35K7 WB35K7 INSUL OV WRP
WB35K24 WB35K24 INSUL SD DR
WB35K0025 WB35K0025 INSULATION BOTTOM DOOR
WB35K10040 WB35K10040 INSULATION CONTROL
WB35K0008 WB35K0008 INSULATION OVEN BACK
WB35K0007 WB35K0007 INSULATION OVEN WRAP
WB35K0024 WB35K0024 INSULATION SIDE DOOR
WB35K10218 WB35K10218 INSULATION VENT
WB03K10141 WB03K10141 KNOB-TOP BURNERS (BLACK)
WB03K10147 WB03K10147 KNOB-TOP BURNERS (BSQT)
WB03K10143 WB03K10143 KNOB-TOP BURNERS (WH)
WB02X10521 WB02X10521 LEG LEVELER
WB18K0007 WB18K0007 LINE CORD
WB18K10036 WB18K10036 LINE CORD
WB55K10022 WB55K10022 LINER ASM WELD DOOR
WB34K10086 WB34K10086 LOWER HEAT SHIELD
WB36K10525 WB36K10525 MANIFOLD PANEL
WB28K10380 WB28K10380 MANIFOLD PIPE
WB01K0003 WB01K0003 NUT SPEED
WB1K3 WB1K3 NUT SPEED

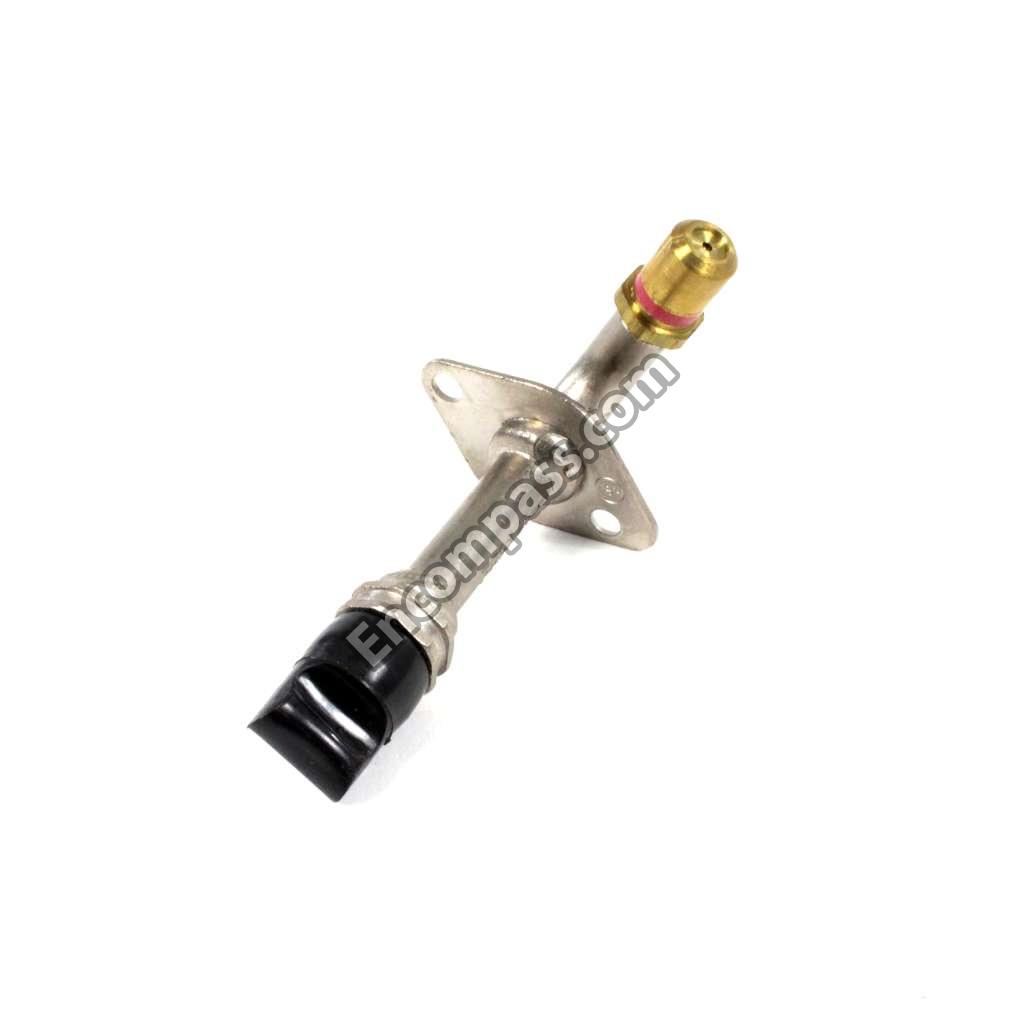

WB28K10293 WB28K10293 ORIFICE HOLDER ASM
WB28K10292 WB28K10292 ORIFICE HOLDER ASM
WB28K10291 WB28K10291 ORIFICE HOLDER ASM
WB28K10290 WB28K10290 ORIFICE HOLDER ASM
WB28K10289 WB28K10289 ORIFICE HOLDER ASM
WB28K10261 WB28K10261 ORIFICE SPUD
WB28K10260 WB28K10260 ORIFICE SPUD
WB28K10259 WB28K10259 ORIFICE SPUD
WB28K10258 WB28K10258 ORIFICE SPUD
WB28K10288 WB28K10288 ORIFICE SPUD
WB28K10287 WB28K10287 ORIFICE SPUD
WB28K10284 WB28K10284 ORIFICE SPUD
WB28K10283 WB28K10283 ORIFICE SPUD
WB28K10282 WB28K10282 ORIFICE SPUD
WB28K10281 WB28K10281 ORIFICE SPUD
WB53K10024 WB53K10024 OVEN BACK
WB53K0003 WB53K0003 OVEN SIDE LEFT
WB53K3 WB53K3 OVEN SIDE LF
WB53K0002 WB53K0002 OVEN SIDE RIGHT
WB53K2 WB53K2 OVEN SIDE RT
WB53K10015 WB53K10015 OVEN TOP
WB27K10226 WB27K10226 OVERLAY TO11
WB27K10225 WB27K10225 OVERLAY TO11
WB27K10224 WB27K10224 OVERLAY TO11
WB2K85 WB2K85 PAD (FELT)
WB02K0062 WB02K0062 PAD FELT (2"")
WB02K0085 WB02K0085 PAD FELT (WH)
WB2K62 WB2K62 PAD FELT 2
WB48X10056 WB48X10056 PAN BROILER
WB55K0013 WB55K0013 PANEL ASM WELD INNER
WB36K10164 WB36K10164 PANEL DRAWER (BISQUE)
WB55K10001 WB55K10001 PANEL DRAWER (BLACK)
WB36K10033 WB36K10033 PANEL DRAWER (WHITE)
WB63K10203 WB63K10203 PANEL REAR BROIL
WB63K50 WB63K50 PANEL SIDE
WB62K10039 WB62K10039 PANEL SIDE (BISQUE)
WB63K0050 WB63K0050 PANEL SIDE (WH)
WB63K0003 WB63K0003 PANEL SIDE BROIL LFT
WB63K0002 WB63K0002 PANEL SIDE BROIL RT
WB02X6195 WB02X6195 PIN HINGE DOOR
WB14K10005 WB14K10005 PIN LOCATOR
WB14K10004 WB14K10004 PIN LOCATOR
31-21241 31-21241 PM MINI-MANUAL ELECT
49-85101 49-85101 PM USE & CARE MANUAL
WB55K13 WB55K13 PNL ASM WELD
WB63K3 WB63K3 PNL SD BRO L
WB63K2 WB63K2 PNL SD BRO R
WB08T10026 WB08T10026 PUSH-IN RECEPTACLE
WB48T10095 WB48T10095 RACK OVEN
WB2K20 WB2K20 RANGE ANTI-TIP BRACKET
WB63K0021 WB63K0021 RANGE BACK
WB63K21 WB63K21 RANGE BACK
WB63K10233 WB63K10233 RANGE BASE SUPPORT
WB2K32 WB2K32 RANGE BRACKET SUPPORT
WB10K12 WB10K12 RANGE DOOR HINGE ASSEMBLY
WB39K20 WB39K20 RANGE DRAWER MOUNTING BRACKET
WB01K10112 WB01K10112 RANGE ELECTRODE CLIP
WB31K10217 WB31K10217 RANGE GRIDDLE
WB1X1293 WB1X1293 RANGE IGNITER MOUNTING SCREW
WB2K41 WB2K41 RANGE OVEN BRACKET
WB36X192 WB36X192 RANGE OVEN BULB COVER
WB32K2 WB32K2 RANGE OVEN DOOR GASKET
WB32K5 WB32K5 RANGE OVEN GASKET
WB63K16 WB63K16 RANGE PANEL
WB34K31 WB34K31 RANGE RADIATION GUARD
WB34K30 WB34K30 RANGE RADIATION GUARD
WB10K13 WB10K13 RANGE SUPPORT RIVET
WB63K15 WB63K15 RANGE VENT BRACE
WB38K2 WB38K2 RANGE VENT BRACE
WB62K10106 WB62K10106 RANGETOP & BRKT ASM
WB62K10105 WB62K10105 RANGETOP & BRKT ASM
WB62K10104 WB62K10104 RANGETOP & BRKT ASM
WB16K10051 WB16K10051 RAPID BURNER
WB35K0033 WB35K0033 REFLECTOR
WB35K33 WB35K33 REFLECTOR
WB35K0022 WB35K0022 REFLECTOR 9.5 INCH
WB2X1082 WB2X1082 RETAINER
WB2X2030 WB2X2030 RETAINER
WB08K0004 WB08K0004 RETAINER INSULATION LAMP
WB02K0030 WB02K0030 RETAINER-INSULATION VENT
WB02X1082 WB02X1082 RING RETAINING
WB1K44 WB1K44 SCEW LATCH
WB01K10044 WB01K10044 SCR 12-24 UNC
WB01K10046 WB01K10046 SCR M4X.7 TT RNT-15 S
WB01K0021 WB01K0021 SCREW
WB1X536 WB1X536 SCREW
WB1X1261 WB1X1261 SCREW
WB1K5062 WB1K5062 SCREW
WB01K10030 WB01K10030 SCREW
WB01K0042 WB01K0042 SCREW (BLK)
WB1K66 WB1K66 SCREW (WH)/ NLA PER GE
WB01X0593 WB01X0593 SCREW - DOOR ASM (4 PER)
WB1K69 WB1K69 SCREW 10-16
WB01K0069 WB01K0069 SCREW 10-16 DOOR
WR01X10065 WR01X10065 SCREW 10-32 GXTT FLP 595 S
WB01K10018 WB01K10018 SCREW 8-18 (BISQUE)
WB01T10016 WB01T10016 SCREW 8-18 AB HXW 5/8 S
WB1K5 WB1K5 SCREW 8-18 X 1/2 -INCH
WZ04X0345 WZ04X0345 SCREW 8-18X5/8 HXW
WB01K10012 WB01K10012 SCREW 8-22 PL 1HX 71
WB01K10002 WB01K10002 SCREW 8-32
WB01K10008 WB01K10008 SCREW CKTP 6-32X12
WB01K0044 WB01K0044 SCREW DOOR LATCH
WB01X1261 WB01X1261 SCREW GROUND
WB1K53 WB1K53 SCREW HINGE
WB01K10024 WB01K10024 SCREW MTG END CAP (BISQUE)
WB01K0066 WB01K0066 SCREW MTG END CAP (WH)
WB01K0053 WB01K0053 SCREW MTG HINGE (TORX)
WB01K0050 WB01K0050 SCREW MTG IGNITER
WB01X0558 WB01X0558 SCREW NAIL POINT
WB01X5874 WB01X5874 SCREW WH
WB01K10004 WB01K10004 SCREW-MTG END CAP (WHITE )
WB01K0083 WB01K0083 SCREW-MTG VALVE BURNER
WB1K83 WB1K83 SCREW-MTG VALVE BURNER 10-32
WB1X558D WB1X558D SCREW-PKG 12
WZ4X345D WZ4X345D SCREWS - 12 PACK
WB16K10048 WB16K10048 SEMI-RAPID RAPID
WB34K0010 WB34K0010 SHIELD BROIL
WB34K10 WB34K10 SHIELD BROIL
WB34K0013 WB34K0013 SHIELD HEAT INNER
WB34K0011 WB34K0011 SHIELD HEAT LOWER
WB34K12 WB34K12 SHIELD RADIA
WB34K0012 WB34K0012 SHIELD RADIATION
WB02K0084 WB02K0084 SPACER
WB2K84 WB2K84 SPACER
WB02K10106 WB02K10106 SPACER BASE
WB02K10105 WB02K10105 SPACER BASE
WB02K10104 WB02K10104 SPACER BASE
WB01K0002 WB01K0002 SPEEDNUT
WB1K2 WB1K2 SPEEDNUT
WB09K0005 WB09K0005 SPRING DOOR
WB9K5 WB9K5 SPRING DOOR
WB63K10232 WB63K10232 SUPPORT BASE
WB10K0014 WB10K0014 SUPPORT RIVET LFT
WB10K0013 WB10K0013 SUPPORT RIVET RT
WB10K14 WB10K14 SUPT RIVET
WB24K10024 WB24K10024 SW VALVE SERVICE 270 1WI
WB24K10023 WB24K10023 SW VALVE SERVICE 270 2WI
WB24T10147 WB24T10147 SWITCH PLUNGER

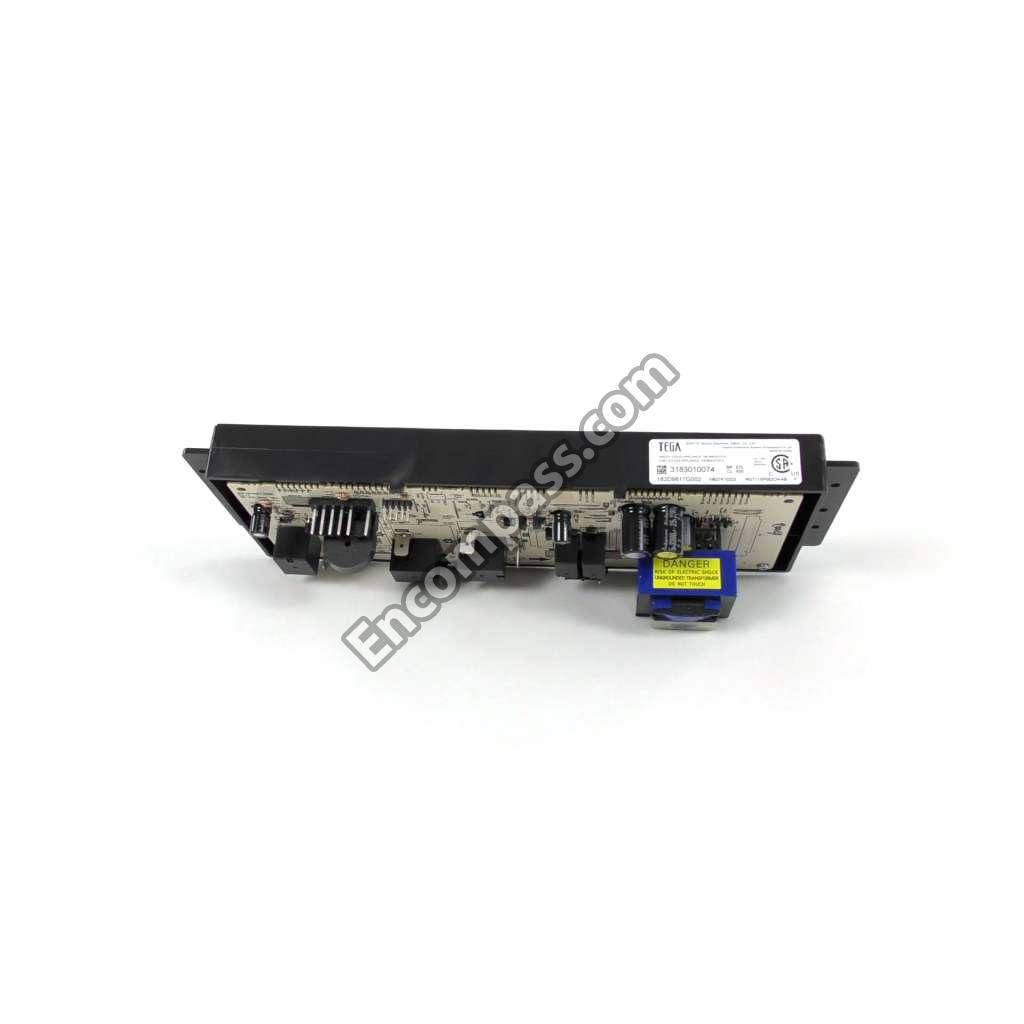

WB27K10222 WB27K10222 T011 OVEN CONTROL
WB20K10015 WB20K10015 TEMPERATURE SENSOR
WB07K10250 WB07K10250 TRIM BOTTOM
WB07K10269 WB07K10269 TRIM BOTTOM DOOR (BISQUE)
WB07K0384 WB07K0384 TRIM BOTTOM DOOR (WH)
WB36K10342 WB36K10342 TRIM CONTROL (BSQT)
WB36K10340 WB36K10340 TRIM CONTROL (GLOSS BLACK)
WB36K10344 WB36K10344 TRIM CONTROL (WH)
WB07K10104 WB07K10104 TRIM DOOR (BLACK)
WB07K10103 WB07K10103 TRIM DOOR (WHITE)
WB07K10130 WB07K10130 TRIM DOOR-(BISQUE)
WB36K10212 WB36K10212 TRIM TOP DOOR (BISQUE)
WB07K0400 WB07K0400 TRIM TOP DOOR (WH)
WB7K400 WB7K400 TRIM TOP DR
WB28K10168 WB28K10168 TUBE BURNER SUPPLY
WB28X24772 WB28X24772 TUBE MANIFOLD SUPPLY
WB02K10136 WB02K10136 TWO SWITCH MOTOR LATCH
WB16K10050 WB16K10050 ULTRA RAPID BURNER
WB21K10096 WB21K10096 VALVE BURNER 270
WB21K10097 WB21K10097 VALVE BURNER 270
WB21K10119 WB21K10119 VALVE BURNER 270
WB21K10065 WB21K10065 VALVE BURNER 270 11000
WB21K10080 WB21K10080 VALVE BURNER 270 HI-CAP
WB19K10043 WB19K10043 VALVE CONTROL ASSEMBLY NOR. D
WB2K24 WB2K24 VALVE COVER
WB38K10008 WB38K10008 VENT ASSEMBLY
WB02X32440 WB02X32440 WASHER CONTOURED
WB1X119D WB1X119D WASHR-PKG 12
WB56K20 WB56K20 WIND PACK LG
WB34K10087 WB34K10087 WINDOW SPACER ASSEMBLY
Main Menu x
