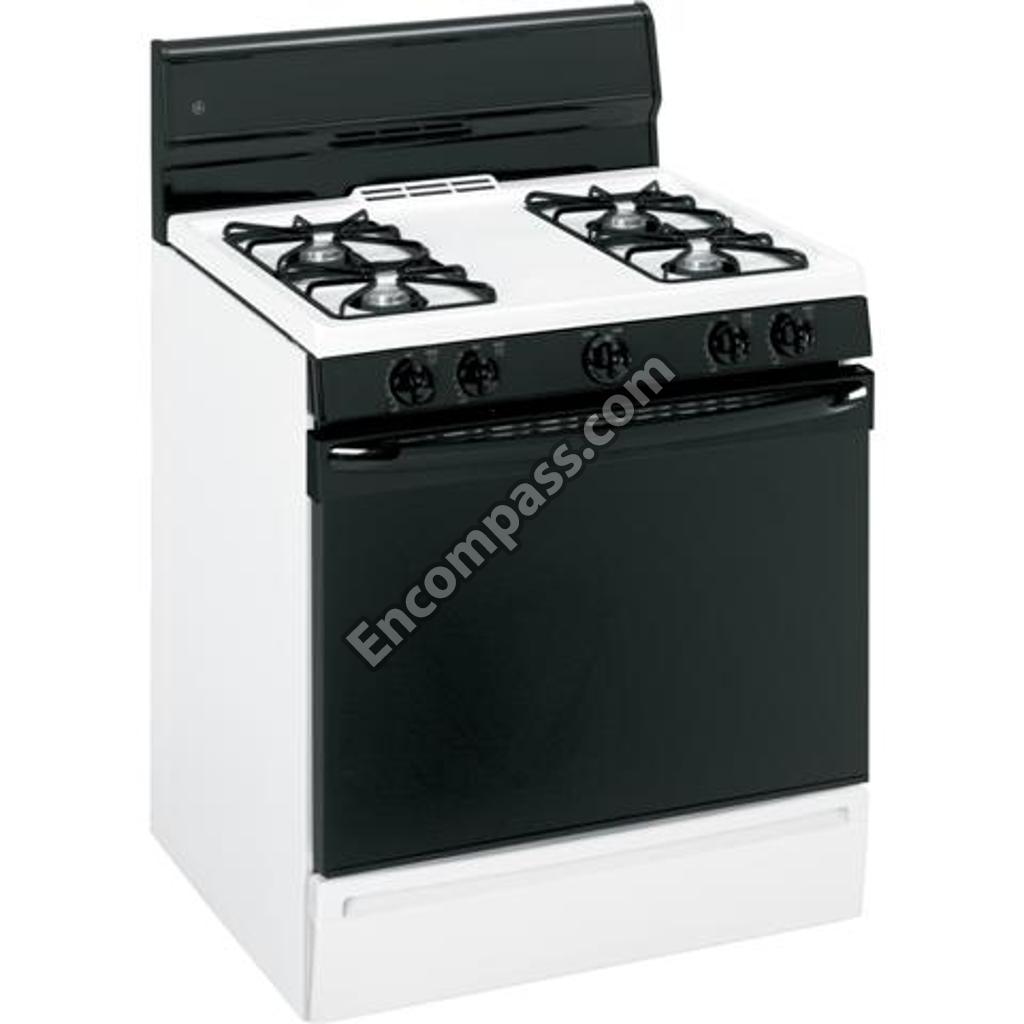

Model Image
Manufacturer

GE

Model Number

JGBS04BET1WH

Description

Gas Range Or Dual Fuel

Interactive Exploded View

Parts List

Part Number Description
WB02K0003 WB02K0003 ANGLE SUPPORT
WB2K3 WB2K3 ANGLE SUPPRT
WB02K0012 WB02K0012 ARM ANTI TIP
WB2K12 WB2K12 ARM ANTI TIP
WB07K10342 WB07K10342 BARRIER DOOR
WB35K10042 WB35K10042 BOTTOM OVEN
WB01K0005 WB01K0005 BOTTOM OVEN SCREW
WB63K10029 WB63K10029 BOTTOM RANGE
WB2K95 WB2K95 BRACE (LT &
WB02K0095 WB02K0095 BRACE (LT & RT)
WB63K0005 WB63K0005 BRACE BOTTOM
WB63K5 WB63K5 BRACE BOTTOM
WB7K139 WB7K139 BRACE SIDE
WB07K0139 WB07K0139 BRACE SIDE (LFT&RGT)
WB38K0003 WB38K0003 BRACE VENT
WB38K3 WB38K3 BRACE VENT
WB02K0020 WB02K0020 BRACKET ASM ANTI-TIP
WB02K0065 WB02K0065 BRACKET SAFETY VALVE
WB2K65 WB2K65 BRKT SAF VLV
WB02K10179 WB02K10179 BUMPER
WB2K15 WB2K15 BUMPER BLACK
WB02K0015 WB02K0015 BUMPER, BLACK
WB16K10065 WB16K10065 BURNER BAKE ASSEMBLY
WB64K10001 WB64K10001 BURNER BOX
WB02K0036 WB02K0036 CLAMP CABLE
WB2K36 WB2K36 CLAMP CABLE
WB02K0010 WB02K0010 CLIP CAPILLARY
WB02K10073 WB02K10073 CLIP CAPILLARY
WB02X7066 WB02X7066 CLIP WIRE
WB02K10267 WB02K10267 CLIP WIRE
WB01X0119 WB01X0119 CONTOURED WASHER
WB36K10326 WB36K10326 CONTROL TRIM (BLACK)
31-21458 31-21458 CONVERSION STEPS SHEET
WB62K10001 WB62K10001 COOKTOP (WHITE)
WB06K10002 WB06K10002 COUNTERWEIGHT
WB34K0016 WB34K0016 COVER BACK
WB34K16 WB34K16 COVER BACK
WB34K0021 WB34K0021 COVER BACK PANEL
WB7K381 WB7K381 COVER END LE
WB07K0381 WB07K0381 COVER END LEFT (BLK)
WB7K380 WB7K380 COVER END RI
WB07K0380 WB07K0380 COVER END RIGHT (BLK)
WB2K6 WB2K6 COVER THERMO
WB02K0006 WB02K0006 COVER THERMOSTAT
WB02K0024 WB02K0024 COVER VALVE
WB34K21 WB34K21 CVR BCK PNL
WB16K10026 WB16K10026 DOUBLE BURNER ASSEMBLY
WB7X7289 WB7X7289 END CAP DOOR
WB7X7290 WB7X7290 END CAP DOOR
WB07X7182 WB07X7182 END CAP DOOR LF (BK)
WB07X7181 WB07X7181 END CAP DOOR RT (BK)
WB01X0560 WB01X0560 FIBER WASHER
WB63K10236 WB63K10236 FRAME WELD ASSEMBLY
WB63K10235 WB63K10235 FRAME WELD ASSEMBLY
WB28K10010 WB28K10010 FRONT TUBE ASSEMBLY
WB28K10009 WB28K10009 FRONT TUBE ASSEMBLY
WB28K10376 WB28K10376 GAS RANGE ORIFICE
WB32K0003 WB32K0003 GASKET DOOR ASM
WB35X29720 WB35X29720 GASKET DOOR ASM
WB32K0002 WB32K0002 GASKET OVEN SEAL LG
WB32K0001 WB32K0001 GASKET VENT
WB32K1 WB32K1 GASKET VENT
WB2K66 WB2K66 GD SUPT RGTP
WB56K31 WB56K31 GL DOOR BLK
WB56K0031 WB56K0031 GLASS DOOR (BLK)
WB31K10026 WB31K10026 GRATE-HAIRPIN (BLACK)
WB02K0009 WB02K0009 GROMMET
WB2K8 WB2K8 GROMMET
WB10K18 WB10K18 GUIDE HINGE
WB10K19 WB10K19 GUIDE HINGE
WB10K0019 WB10K0019 GUIDE HINGE LEFT
WB10K0018 WB10K0018 GUIDE HINGE RIGHT
WB02K0066 WB02K0066 GUIDE SUPPORT RGTP
WB15K10102 WB15K10102 HANDLE
WB15K10008 WB15K10008 HANDLE-BROILER (WHITE)
WB24K10065 WB24K10065 HARNESS BURNER BOX
WB10K0012 WB10K0012 HINGE ASM GUIDE
WB10K0011 WB10K0011 HINGE BRIOLER LEFT
WB10K0010 WB10K0010 HINGE BRIOLER RIGHT
WB10K11 WB10K11 HINGE BRO LT
WB10K10 WB10K10 HINGE BRO RT
WB34K0004 WB34K0004 HINGE GUARD LEFT
WB34K0003 WB34K0003 HINGE GUARD RIGHT
WB2X6195 WB2X6195 HINGE PIN
WB34K4 WB34K4 HNGE GRD LFT
WB34K3 WB34K3 HNGE GRD RGT
WB02K0011 WB02K0011 HOOK DOOR SPRING
WB2K11 WB2K11 HOOK DR SPRG
WB13K21 WB13K21 IGNITER OVEN
WB13K0021 WB13K0021 IGNITER-OVEN BAKE
WB35K3 WB35K3 INS DRAWER
WB35K10152 WB35K10152 INSULATION DOOR
WB35K0003 WB35K0003 INSULATION DRAWER
WB35K10162 WB35K10162 INSULATION OVEN BACK
WB35K10155 WB35K10155 INSULATION OVEN WRAP
WB03K10216 WB03K10216 KNOB MINIVALVE
WB03K10217 WB03K10217 KNOB THERMOSTAT ASM.
WB18K10036 WB18K10036 LINE CORD
WB55K10046 WB55K10046 LINER ASM WELD DOOR
WB39K10042 WB39K10042 LINER DRAWER
WB36K10708 WB36K10708 MANIFOLD PANEL
WB01K0004 WB01K0004 NUT
WB1K4 WB1K4 NUT
WB01K0006 WB01K0006 NUT LOCK
WB1K6 WB1K6 NUT LOCK
WB01K0003 WB01K0003 NUT SPEED
WB1K3 WB1K3 NUT SPEED
WB28K0008 WB28K0008 ORIFICE LP GAS
WB28K10033 WB28K10033 ORIFICE NAT GAS
WB53K10016 WB53K10016 OVEN BACK
WB53K10035 WB53K10035 OVEN SIDE LEFT
WB53K10034 WB53K10034 OVEN SIDE RIGHT
WB53K0001 WB53K0001 OVEN TOP
WB53K1 WB53K1 OVEN TOP
WB02K0062 WB02K0062 PAD FELT (2"")
WB2K62 WB2K62 PAD FELT 2
WB63X26890 WB63X26890 PANEL BROILER
WB56X21199 WB56X21199 PANEL DRAWER
WB39K0003 WB39K0003 PANEL DRAWER WHITE
WB63K0001 WB63K0001 PANEL REAR BROIL
WB63K10122 WB63K10122 PANEL SIDE
WB1K7 WB1K7 PIN BROILER
WB01K10035 WB01K10035 PIN BROILER
WB01K0007 WB01K0007 PIN BROILER RT
WB02X6195 WB02X6195 PIN HINGE DOOR
WB2K17 WB2K17 PIN LOCATOR
WB02K0017 WB02K0017 PIN LOCATOR FRONT
31-21464 31-21464 PM MINI-MANUAL ELECT
49-85166 49-85166 PM USE & CARE MANUAL
WB63K1 WB63K1 PNL REAR BRO
WB19K10055 WB19K10055 PRESSURE REGULATOR
WB48X10056 WB48X10056 RACK BROILER PAN
WB48T10095 WB48T10095 RACK OVEN
WB2K20 WB2K20 RANGE ANTI-TIP BRACKET
WB63K0020 WB63K0020 RANGE BACK
WB63K20 WB63K20 RANGE BACK
WB10K12 WB10K12 RANGE DOOR HINGE ASSEMBLY
WB1X1293 WB1X1293 RANGE IGNITER MOUNTING SCREW
WB02K10182 WB02K10182 RANGE LEVELING LEG
WB32K2 WB32K2 RANGE OVEN DOOR GASKET
WB48X20249 WB48X20249 RANGE OVEN RACK
WB6K8 WB6K8 RANGE SUPPORT BRACKET
WB20K8 WB20K8 RANGE THERMOSTAT ASSEMBLY
WB33K1 WB33K1 RET WIRE INS
WB2X1082 WB2X1082 RETAINER
WB33K0001 WB33K0001 RETAINER WIRE INSULATION
WB02X1082 WB02X1082 RING RETAINING
WB28K10579 WB28K10579 ROUND MANIFOLD PIPE
WB02K10263 WB02K10263 ROUND VALVE BRACKET
WB28K10578 WB28K10578 ROUND VALVE BURNER
WB01K10073 WB01K10073 SCR 10-16PL PNT 2.22S
WB1K45 WB1K45 SCR AND WSHR ASSEMBLY
WB01K0063 WB01K0063 SCREW
WB01K0037 WB01K0037 SCREW
WB1K37 WB1K37 SCREW
WB1X1261 WB1X1261 SCREW
WB1K5062 WB1K5062 SCREW
WB01K10091 WB01K10091 SCREW
WB01K10043 WB01K10043 SCREW
WB01K0042 WB01K0042 SCREW (BLK)
WB01K0031 WB01K0031 SCREW 10-16 PL PNT 2.5 S
WB1K63 WB1K63 SCREW 10-16 X 0.95 TYPE B
WB1K78 WB1K78 SCREW 12-14
WB01K0078 WB01K0078 SCREW 12-14, 5/8S
WB01K0070 WB01K0070 SCREW 7-19
WB1K5 WB1K5 SCREW 8-18 X 1/2 -INCH
WZ04X0345 WZ04X0345 SCREW 8-18X5/8 HXW
WB1K67 WB1K67 SCREW 8-22
WB01K10002 WB01K10002 SCREW 8-32
WB01X1261 WB01X1261 SCREW GROUND
WB1K62 WB1K62 SCREW HEAD PAINTED BLACK
WB1K53 WB1K53 SCREW HINGE
WB1X5364 WB1X5364 SCREW MTG
WB01K0062 WB01K0062 SCREW MTG END CAP (BK)
WB01K0053 WB01K0053 SCREW MTG HINGE (TORX)
WB01K0050 WB01K0050 SCREW MTG IGNITER
WB01X0558 WB01X0558 SCREW NAIL POINT
WB1K8 WB1K8 SCREW THERMO
WB01K0008 WB01K0008 SCREW THERMOSTAT
WB01K10080 WB01K10080 SCREW THERMOSTAT
WB01K0045 WB01K0045 SCREW WASHER ASM
WB1X5731D WB1X5731D SCREW-PKG 12
WB1X558D WB1X558D SCREW-PKG 12
WZ4X345D WZ4X345D SCREWS - 12 PACK
WB34K0002 WB34K0002 SHIELD VALVE
WB34K2 WB34K2 SHIELD VALVE
WB02K0014 WB02K0014 SPACER
WB2K14 WB2K14 SPACER
WB02K10161 WB02K10161 SPACER
WB18X26988 WB18X26988 SPARK ELECTRODE
WB18X26987 WB18X26987 SPARK ELECTRODE TOP
WB13X24321 WB13X24321 SPARK MODULE 2+0
WB1X5743D WB1X5743D SPDNUT-PKQ12
WB01X5743 WB01X5743 SPEEDNUT
WB09K0001 WB09K0001 SPRING DOOR
WB9K1 WB9K1 SPRING DOOR
WB39K0033 WB39K0033 SUPPORT
WB39K33 WB39K33 SUPPORT
WB10K10009 WB10K10009 SUPPORT ASM RIVET LF
WB10K10010 WB10K10010 SUPPORT ASM RIVET RT
WB63K10231 WB63K10231 SUPPORT BASE
WB63K10230 WB63K10230 SUPPORT BASE
WB06K0008 WB06K0008 SUPPORT RANGE TOP
WB07K10232 WB07K10232 TRIM BOTTOM ASM
WB07K10248 WB07K10248 TRIM POST LF
WB07K10249 WB07K10249 TRIM POST RT
WB7K403 WB7K403 TRIM TOP DR
WB07K0403 WB07K0403 TRIM VENT ASM DOOR BLK
WB28K0147 WB28K0147 TUBE VALVE SUPPLY
WB28K147 WB28K147 TUBE VLV SUP
WB28K10011 WB28K10011 TUBE-BURNER LT REAR
WB28K10012 WB28K10012 TUBE-BURNER RT REAR
WB2K24 WB2K24 VALVE COVER
WB19K31 WB19K31 VALVE SAFETY
WB19K0031 WB19K0031 VALVE SAFETY ASM
WB38K0004 WB38K0004 VENT ASM
WB38K4 WB38K4 VENT ASM
WB02X32440 WB02X32440 WASHER CONTOURED
WB01K10036 WB01K10036 WASHER SPRING
WB1X560D WB1X560D WASHR-PKG 12
WB1X119D WB1X119D WASHR-PKG 12
