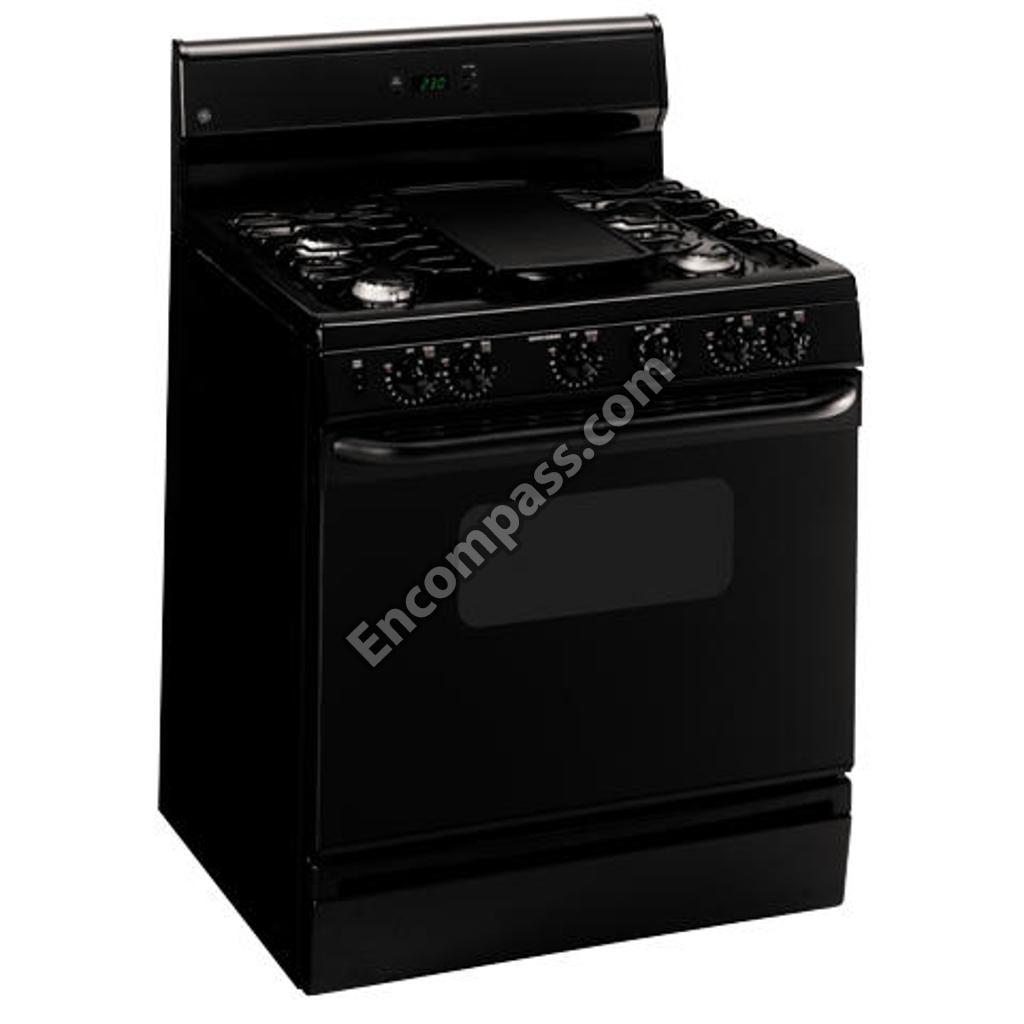

Model Image
Manufacturer

GE

Model Number

JGBS10BEH5BB

Description

Gas Range Or Dual Fuel

Interactive Exploded View

Parts List

Part Number Description
40A15 40A15 40WATT 15AMP INC AND ESCENT BULB
WB02K0003 WB02K0003 ANGLE SUPPORT
WB2K3 WB2K3 ANGLE SUPPRT
WB02K0012 WB02K0012 ARM ANTI TIP
WB2K12 WB2K12 ARM ANTI TIP
WB35X37973 WB35X37973 BOTTOM OVEN
WB01K0005 WB01K0005 BOTTOM OVEN SCREW
WB63K10029 WB63K10029 BOTTOM RANGE
WB63K10036 WB63K10036 BOX BURNER SP
WB2K95 WB2K95 BRACE (LT &
WB02K0095 WB02K0095 BRACE (LT & RT)
WB63K0005 WB63K0005 BRACE BOTTOM
WB63K5 WB63K5 BRACE BOTTOM
WB38K0003 WB38K0003 BRACE VENT
WB38K3 WB38K3 BRACE VENT
WB02K0020 WB02K0020 BRACKET ASM ANTI-TIP
WB02K0065 WB02K0065 BRACKET SAFETY VALVE
WB01K0043 WB01K0043 BRACKET SUPPORT
WB1K43 WB1K43 BRACKET SUPT
WB2K65 WB2K65 BRKT SAF VLV
WB49K2 WB49K2 BROIL PAN 16X16 3/4 FITS RACK
WB48K2 WB48K2 BROIL PAN RACK 15 1/2X16 3/4 F
WB39K35 WB39K35 BROIL SUP LH
WB2K15 WB2K15 BUMPER BLACK
WB02K0015 WB02K0015 BUMPER, BLACK
WB13K10013 WB13K10013 BURNER IGNITER ASM
WB16K10055 WB16K10055 BURNER MEDIUM (9500)
WB03K10167 WB03K10167 BUTTON CLOCK (BLK)
WB03K10168 WB03K10168 BUTTON CLOCK (BSQT)
WB03K10166 WB03K10166 BUTTON CLOCK (WH)
WB7K263 WB7K263 CAP END DR
WB7K264 WB7K264 CAP END DR
WB29K10001 WB29K10001 CAP-BURNER MED (BLACK)
WB28K10197 WB28K10197 CENTER ORIFICE HOLDER
WB16K10059 WB16K10059 CENTRAL BURNER & CAP ASM
WB31K10166 WB31K10166 CENTRAL TOP GRATE
WB02K10361 WB02K10361 CKT BRACKET MEDIUM
WB02K10360 WB02K10360 CKT BRACKET SMALL
WB02K0036 WB02K0036 CLAMP CABLE
WB2K36 WB2K36 CLAMP CABLE
WB02K0010 WB02K0010 CLIP CAPILLARY
WB02K10073 WB02K10073 CLIP CAPILLARY
WB02K0052 WB02K0052 CLIP RANGETOP
WB2K52 WB2K52 CLIP RNGETOP
WB01X0119 WB01X0119 CONTOURED WASHER
WB28K10112 WB28K10112 CONVERSION KIT LP GAS
WB62K10067 WB62K10067 COOKTOP (BLK)
WB62K10066 WB62K10066 COOKTOP (BSQT)
WB06K10002 WB06K10002 COUNTERWEIGHT
WB34K0021 WB34K0021 COVER BACK PANEL
WB34K10061 WB34K10061 COVER LOWER BACK
WB2K6 WB2K6 COVER THERMO
WB02K0006 WB02K0006 COVER THERMOSTAT
WB35K10032 WB35K10032 COVER TIMER
WB34K10060 WB34K10060 COVER UPPER BACK
WB02K0024 WB02K0024 COVER VALVE
WB56K5 WB56K5 CRYSTAL WIND
WB56K0005 WB56K0005 CRYSTAL WINDOW
WB34K21 WB34K21 CVR BCK PNL
WB34K14 WB34K14 CVR IGNITOR
WB49K10037 WB49K10037 DEFLECTOR OVEN
WB34K10059 WB34K10059 DEFLECTOR VENT
WB01K10037 WB01K10037 ECONOMIC NUT
WB13K10021 WB13K10021 ELECTRODE TOP
WB07K0264 WB07K0264 END CAP DOOR LFT (BK)
WB07K10159 WB07K10159 END CAP DOOR LT (BISQUE)
WB07K10158 WB07K10158 END CAP DOOR RT (BISQUE)
WB07K0263 WB07K0263 END CAP DOOR RT (BK)
WB07K0415 WB07K0415 END CAP LEFT (BLK)
WB07K0414 WB07K0414 END CAP RIGHT (BLK)
WB01X0560 WB01X0560 FIBER WASHER
WB49K0044 WB49K0044 FLAME SPREADER
WB63K10035 WB63K10035 FRAME WELD ASM.
WB28K10196 WB28K10196 FRONT ORIFICE HOLDER
WB28K10195 WB28K10195 FRONT ORIFICE HOLDER
WB13X26360 WB13X26360 GAS RANGE SPARK MODULE
WB32K0003 WB32K0003 GASKET DOOR ASM
WB35X29720 WB35X29720 GASKET DOOR ASM
WB32K0002 WB32K0002 GASKET OVEN SEAL LG
WB32K0001 WB32K0001 GASKET VENT
WB32K1 WB32K1 GASKET VENT
WB2K66 WB2K66 GD SUPT RGTP
WB57K2 WB57K2 GL DOOR BLK
WB36K10292 WB36K10292 GLASS & TRIM CONTROL ASM
WB36K10290 WB36K10290 GLASS & TRIM CONTROL ASM
WB57K10087 WB57K10087 GLASS DOOR (BSQT)
WB57K10086 WB57K10086 GLASS DOOR (WH)
WB31K10068 WB31K10068 GRIDDLE
WB1K10 WB1K10 GROM HNDLE
WB2K8 WB2K8 GROMMET
WB01K0010 WB01K0010 GROMMET HANDLE
WB56K0006 WB56K0006 GUARD INSULATION
WB56K10032 WB56K10032 GUARD INSULATION
WB02K10057 WB02K10057 GUIDE COOKTOP LEFT
WB02K10056 WB02K10056 GUIDE COOKTOP RIGHT
WB02K0066 WB02K0066 GUIDE SUPPORT RGTP
WB15K10029 WB15K10029 HANDLE - BROIL (BISQUE)
WB15K10047 WB15K10047 HANDLE ASSEMBLY
WB15K10046 WB15K10046 HANDLE ASSEMBLY (BLACK)
WB15K10048 WB15K10048 HANDLE ASSEMBLY (WHITE)
WB15K10013 WB15K10013 HANDLE-BROILER (BLACK)
WB15K10008 WB15K10008 HANDLE-BROILER (WHITE)
WB18K10026 WB18K10026 HARNESS HV
WB10K0012 WB10K0012 HINGE ASM GUIDE
WB10K0011 WB10K0011 HINGE BRIOLER LEFT
WB10K0010 WB10K0010 HINGE BRIOLER RIGHT
WB10K11 WB10K11 HINGE BRO LT
WB10K10 WB10K10 HINGE BRO RT
WB34K0004 WB34K0004 HINGE GUARD LEFT
WB34K0003 WB34K0003 HINGE GUARD RIGHT
WB2X6195 WB2X6195 HINGE PIN
WB34K4 WB34K4 HNGE GRD LFT
WB34K3 WB34K3 HNGE GRD RGT
WB02K0011 WB02K0011 HOOK DOOR SPRING
WB2K11 WB2K11 HOOK DR SPRG
WB34K0014 WB34K0014 IGNITER COVER
WB13K21 WB13K21 IGNITER OVEN
WB13K0021 WB13K0021 IGNITER-OVEN BAKE
WB35K1 WB35K1 INS OV WRAP
WB35K5 WB35K5 INSUL DOOR
WB35K17 WB35K17 INSUL OV BCK
WB35K0005 WB35K0005 INSULATION DOOR
WB35K0017 WB35K0017 INSULATION OVEN BACK
WB35K0001 WB35K0001 INSULATION OVEN WRAP
WB36K10282 WB36K10282 INSULATION VENT
WB03K10206 WB03K10206 KNOB THERMOSTAT (BLACK)
WB03K10148 WB03K10148 KNOB THERMOSTAT (BSQT)
WB03K10144 WB03K10144 KNOB THERMOSTAT GE (WH)
WB03K10141 WB03K10141 KNOB-TOP BURNERS (BLACK)
WB03K10147 WB03K10147 KNOB-TOP BURNERS (BSQT)
WB03K10143 WB03K10143 KNOB-TOP BURNERS (WH)
WB02X10521 WB02X10521 LEG LEVELER
WB18K0007 WB18K0007 LINE CORD
WB18K10036 WB18K10036 LINE CORD
WB55K0021 WB55K0021 LINER ASM WELD DOOR
WB55K21 WB55K21 LINER DOOR
WB39K0037 WB39K0037 LINER DRAWER
WB39K37 WB39K37 LINER DRAWER
WB28K10248 WB28K10248 MANIFOLD PIPE
WB01K0006 WB01K0006 NUT LOCK
WB1K6 WB1K6 NUT LOCK
WB01K0003 WB01K0003 NUT SPEED
WB1K3 WB1K3 NUT SPEED
WB28K10126 WB28K10126 ORIFICE-LP LG 85 MM
WB28K10125 WB28K10125 ORIFICE-LP MED 81 MM
WB28K10124 WB28K10124 ORIFICE-LP SM 76 MM
WB53K10014 WB53K10014 OVEN BACK
WB16K10043 WB16K10043 OVEN BURNER BAKE
WB48X20249 WB48X20249 OVEN RACK
WB53K0003 WB53K0003 OVEN SIDE LEFT
WB53K3 WB53K3 OVEN SIDE LF
WB53K0002 WB53K0002 OVEN SIDE RIGHT
WB53K2 WB53K2 OVEN SIDE RT
WB53K0001 WB53K0001 OVEN TOP
WB53K1 WB53K1 OVEN TOP
WB02K0062 WB02K0062 PAD FELT (2"")
WB2K62 WB2K62 PAD FELT 2
WB49K0002 WB49K0002 PAN BROILER
WB48X10056 WB48X10056 PAN BROILER
WB63K0029 WB63K0029 PANEL BRIOLER
WB35K10030 WB35K10030 PANEL DEFLECTOR
WB55K10010 WB55K10010 PANEL DRAWER BISQUE
WB39K0010 WB39K0010 PANEL DRAWER BLK
WB36K10468 WB36K10468 PANEL MANIFOLD
WB63K0001 WB63K0001 PANEL REAR BROIL
WB63K52 WB63K52 PANEL SIDE
WB62K10039 WB62K10039 PANEL SIDE (BISQUE)
WB63K0052 WB63K0052 PANEL SIDE (BK)
WB1K7 WB1K7 PIN BROILER
WB01K10035 WB01K10035 PIN BROILER
WB01K0007 WB01K0007 PIN BROILER RT
WB02X6195 WB02X6195 PIN HINGE DOOR
WB2K17 WB2K17 PIN LOCATOR
WB02K0017 WB02K0017 PIN LOCATOR FRONT
49-85091 49-85091 PM USE & CARE MANUAL
31-21159 31-21159 PMMINI/MANUAL-ELEC
WB63K29 WB63K29 PNL BROILER
WB39K10 WB39K10 PNL DRWR BLK
WB63K1 WB63K1 PNL REAR BRO
WB19K10055 WB19K10055 PRESSURE REGULATOR
WB08T10026 WB08T10026 PUSH-IN RECEPTACLE
WB48K0002 WB48K0002 RACK BROILER PAN
WB48K0005 WB48K0005 RACK OVEN
WB2K20 WB2K20 RANGE ANTI-TIP BRACKET
WB63K10034 WB63K10034 RANGE BACK
WB63K10233 WB63K10233 RANGE BASE SUPPORT
WB10K12 WB10K12 RANGE DOOR HINGE ASSEMBLY
WB01K10112 WB01K10112 RANGE ELECTRODE CLIP
WB1X1293 WB1X1293 RANGE IGNITER MOUNTING SCREW
WB32K2 WB32K2 RANGE OVEN DOOR GASKET
WB10K13 WB10K13 RANGE SUPPORT RIVET
WB13K10014 WB13K10014 RANGE SURFACE BURNER SPARK IGNITER
WB20K8 WB20K8 RANGE THERMOSTAT ASSEMBLY
WB62K10065 WB62K10065 RANGE TOP FLAT
WB28K10193 WB28K10193 REAR ORIFICE HOLDER
WB28K10194 WB28K10194 REAR ORIFICE HOLDER
WB55K1 WB55K1 REFLECTOR
WB55K0001 WB55K0001 REFLECTOR LG
WB19K0027 WB19K0027 REGULATOR PRESSURE
WB2X1082 WB2X1082 RETAINER
WB02X1082 WB02X1082 RING RETAINING
WB01K10066 WB01K10066 SCR 8 HD 10-32
WB1K45 WB1K45 SCR AND WSHR ASSEMBLY
WB01K0063 WB01K0063 SCREW
WB04X0366 WB04X0366 SCREW
WB01K0021 WB01K0021 SCREW
WB4X366 WB4X366 SCREW
WB1X1261 WB1X1261 SCREW
WB1K5062 WB1K5062 SCREW
WB01K0042 WB01K0042 SCREW (BLK)
WB01X5364 WB01X5364 SCREW (CR)
WB1K69 WB1K69 SCREW 10-16
WB01K0069 WB01K0069 SCREW 10-16 DOOR
WB01K0031 WB01K0031 SCREW 10-16 PL PNT 2.5 S
WB1K63 WB1K63 SCREW 10-16 X 0.95 TYPE B
WR01X10065 WR01X10065 SCREW 10-32 GXTT FLP 595 S
WB1K78 WB1K78 SCREW 12-14
WB01K0078 WB01K0078 SCREW 12-14, 5/8S
WB1K5 WB1K5 SCREW 8-18 X 1/2 -INCH
WZ04X0345 WZ04X0345 SCREW 8-18X5/8 HXW
WB01K10029 WB01K10029 SCREW 832 1/8
WB01K10008 WB01K10008 SCREW CKTP 6-32X12
WB01X1261 WB01X1261 SCREW GROUND
WB1K62 WB1K62 SCREW HEAD PAINTED BLACK
WB1K53 WB1K53 SCREW HINGE
WB1X5364 WB1X5364 SCREW MTG
WB01K10024 WB01K10024 SCREW MTG END CAP (BISQUE)
WB01K0062 WB01K0062 SCREW MTG END CAP (BK)
WB01K0053 WB01K0053 SCREW MTG HINGE (TORX)
WB01K0050 WB01K0050 SCREW MTG IGNITER
WB01X0558 WB01X0558 SCREW NAIL POINT
WB1K8 WB1K8 SCREW THERMO
WB01K0008 WB01K0008 SCREW THERMOSTAT
WB01K0045 WB01K0045 SCREW WASHER ASM
WB01K0083 WB01K0083 SCREW-MTG VALVE BURNER
WB1K83 WB1K83 SCREW-MTG VALVE BURNER 10-32
WB1X5731D WB1X5731D SCREW-PKG 12
WB1X558D WB1X558D SCREW-PKG 12
WZ4X345D WZ4X345D SCREWS - 12 PACK
WB34K0002 WB34K0002 SHIELD VALVE
WB34K2 WB34K2 SHIELD VALVE
WB02K0084 WB02K0084 SPACER
WB02K0014 WB02K0014 SPACER
WB2K14 WB2K14 SPACER
WB2K84 WB2K84 SPACER
WB1X5743D WB1X5743D SPDNUT-PKQ12
WB01K0002 WB01K0002 SPEEDNUT
WB01X5743 WB01X5743 SPEEDNUT
WB1K2 WB1K2 SPEEDNUT
WB09K0001 WB09K0001 SPRING DOOR
WB9K1 WB9K1 SPRING DOOR
WB39K34 WB39K34 SUP BROIL RT
WB39K0033 WB39K0033 SUPPORT
WB39K33 WB39K33 SUPPORT
WB63K10232 WB63K10232 SUPPORT BASE
WB39K0035 WB39K0035 SUPPORT BRIOLER LEFT
WB39K0034 WB39K0034 SUPPORT BRIOLER RIGHT
WB02K10081 WB02K10081 SUPPORT COOKTOP
WB10K0014 WB10K0014 SUPPORT RIVET LFT
WB10K0013 WB10K0013 SUPPORT RIVET RT
WB10K14 WB10K14 SUPT RIVET
WB24K10024 WB24K10024 SW VALVE SERVICE 270 1WI
WB24K10023 WB24K10023 SW VALVE SERVICE 270 2WI
WB24K10005 WB24K10005 SWITCH ROCKER (BISQUE)
WB24K0003 WB24K0003 SWITCH ROCKER (BLK)
WB24X415 WB24X415 SWITCH-LITE
WB27T10469 WB27T10469 TIMER TOD LED
WB31K10165 WB31K10165 TOP GRATE
WB07K10232 WB07K10232 TRIM BOTTOM ASM
WB07K10269 WB07K10269 TRIM BOTTOM DOOR (BISQUE)
WB07K0379 WB07K0379 TRIM BOTTOM DOOR (BK)
WB07K10205 WB07K10205 TRIM POST
WB07K10206 WB07K10206 TRIM POST
WB07K10204 WB07K10204 TRIM POST BK
WB07K10203 WB07K10203 TRIM POST BK
WB07K10207 WB07K10207 TRIM POST LEFT
WB07K10208 WB07K10208 TRIM POST RIGHT
WB36K10212 WB36K10212 TRIM TOP DOOR (BISQUE)
WB7K403 WB7K403 TRIM TOP DR
WB07K0403 WB07K0403 TRIM VENT ASM DOOR BLK
WB28K10120 WB28K10120 TUBE BURNER SUPPLY
WB21K10083 WB21K10083 VALVE BURNER 270
WB21K10082 WB21K10082 VALVE BURNER 270
WB21K10049 WB21K10049 VALVE BURNER 270 11000 B
WB2K24 WB2K24 VALVE COVER
WB19K10006 WB19K10006 VALVE SAFETY SINLGE
WB38K0004 WB38K0004 VENT ASM
WB38K4 WB38K4 VENT ASM
WB38K10007 WB38K10007 VENT COMPLEMENT
WB01K0038 WB01K0038 WASHER
WB1K38 WB1K38 WASHER
WB02X32440 WB02X32440 WASHER CONTOURED
WB01K10036 WB01K10036 WASHER SPRING
WB1X560D WB1X560D WASHR-PKG 12
WB1X119D WB1X119D WASHR-PKG 12
