Model Image
Manufacturer

GE

Model Number

JGBS10DEK1BB

Description

Gas Range Or Dual Fuel

Interactive Exploded View
Exploded View

Parts List

Part Number Description
40A15 40A15 40WATT 15AMP INC AND ESCENT BULB
WB02K0003 WB02K0003 ANGLE SUPPORT
WB2K3 WB2K3 ANGLE SUPPRT
WB35X37973 WB35X37973 BOTTOM OVEN AND DEFLECTOR ASSEMBLY
WB01K0005 WB01K0005 BOTTOM OVEN SCREW
WB63K10029 WB63K10029 BOTTOM RANGE
WB63K0005 WB63K0005 BRACE BOTTOM
WB63K5 WB63K5 BRACE BOTTOM
WB38K0002 WB38K0002 BRACE VENT
WB02K10254 WB02K10254 BRACKET ANTI-TIP ASSEMBLY
WB37X20193 WB37X20193 BRACKET COOK TOP
WB37X20196 WB37X20196 BRACKET COOK TOP
WB02K0065 WB02K0065 BRACKET SAFETY VALVE
WB01K0043 WB01K0043 BRACKET SUPPORT
WB1K43 WB1K43 BRACKET SUPT
WB2K65 WB2K65 BRKT SAF VLV
WB02K10178 WB02K10178 BUMPER
WB64K10001 WB64K10001 BURNER BOX
WB16X20253 WB16X20253 BURNER OVEN ASSEMBLY
WB02K0036 WB02K0036 CLAMP CABLE
WB2K36 WB2K36 CLAMP CABLE
WB02K0031 WB02K0031 CLIP CABLE
WB02X21679 WB02X21679 CLIP CABLE
WB02K0010 WB02K0010 CLIP CAPILLARY
WB02K10073 WB02K10073 CLIP CAPILLARY
WB02K0050 WB02K0050 CLIP CRYSTAL
WB2K50 WB2K50 CLIP CRYSTAL
WB02X7066 WB02X7066 CLIP WIRE
WB02K10267 WB02K10267 CLIP WIRE
WB01X0119 WB01X0119 CONTOURED WASHER
WB06K10002 WB06K10002 COUNTERWEIGHT
WB34K0021 WB34K0021 COVER BACK PANEL
WB2K6 WB2K6 COVER THERMO
WB02K0006 WB02K0006 COVER THERMOSTAT
WB02K0024 WB02K0024 COVER VALVE
WB56K25 WB56K25 CRYSTAL WIND
WB56K5 WB56K5 CRYSTAL WIND
WB56K0025 WB56K0025 CRYSTAL WINDOW
WB56K0005 WB56K0005 CRYSTAL WINDOW
WB34K21 WB34K21 CVR BCK PNL
WB49K10037 WB49K10037 DEFLECTOR OVEN
WB16K10026 WB16K10026 DOUBLE BURNER ASSEMBLY
WB49K0044 WB49K0044 FLAME SPREADER
WB02X28737 WB02X28737 FRAME FRONT BUMPER
WB63X20251 WB63X20251 FRAME WELD ASSEMBLY
WB28K10009 WB28K10009 FRONT TUBE ASSEMBLY
WB28K10010 WB28K10010 FRONT TUBE ASSEMBLY
WB18K10036 WB18K10036 GAS RANGE CORD
WB31K10033 WB31K10033 GAS RANGE GRATE - BLACK
WB28K10376 WB28K10376 GAS RANGE ORIFICE
WB35X29720 WB35X29720 GASKET DOOR ASM
WB32K2 WB32K2 GASKET OVEN SEAL LG
WB32K0001 WB32K0001 GASKET VENT
WB32K1 WB32K1 GASKET VENT
WB14K4 WB14K4 GD SLIDE LFT
WB14K3 WB14K3 GD SLIDE RGT
WB2K66 WB2K66 GD SUPT RGTP
WB02T10589X WB02T10589X GE BADGE GRAY
WB2K8 WB2K8 GROMMET
WB56K10032 WB56K10032 GUARD INSULATION
WB14K0002 WB14K0002 GUIDE HOLDER LEFT
WB14K2 WB14K2 GUIDE HOLDER LEFT
WB14K0001 WB14K0001 GUIDE HOLDER RIGHT
WB14K1 WB14K1 GUIDE HOLDER RIGHT
WB14K0004 WB14K0004 GUIDE SLIDE LEFT
WB14K0003 WB14K0003 GUIDE SLIDE RIGHT
WB02K0066 WB02K0066 GUIDE SUPPORT RGTP
WB15K10102 WB15K10102 HANDLE
WB15X26671 WB15X26671 HANDLE BROIL
WB10X21977 WB10X21977 HINGE DOOR
WB10X26678 WB10X26678 HINGE DOOR
WB34K0004 WB34K0004 HINGE GUARD LEFT
WB34K0003 WB34K0003 HINGE GUARD RIGHT
WB34K4 WB34K4 HNGE GRD LFT
WB34K3 WB34K3 HNGE GRD RGT
WB8K1 WB8K1 HOUS RECEPTL
WB08K0001 WB08K0001 HOUSING RECEPTACLE
WB13K21 WB13K21 IGNITER OVEN
WB13K0021 WB13K0021 IGNITER-OVEN BAKE
WB35K16 WB35K16 INSUL OVBACK
WB35K10151 WB35K10151 INSULATION DOOR
WB35K0016 WB35K0016 INSULATION OVEN BACK
WB35K10155 WB35K10155 INSULATION OVEN WRAP
WB03X21227 WB03X21227 KNOB VALVE
WB56X21217 WB56X21217 LINER ASSEMBLY WELD DOOR
WB56X26676 WB56X26676 LINER DRAWER
31-10927 31-10927 LP CONVERSION INST
WB36X21220 WB36X21220 MANIFOLD PANEL
WB01K0004 WB01K0004 NUT
WB1K4 WB1K4 NUT
WB01K0006 WB01K0006 NUT LOCK
WB1K6 WB1K6 NUT LOCK
WB28K0008 WB28K0008 ORIFICE LP GAS
WB53K4 WB53K4 OV BACK 24
WB53K0004 WB53K0004 OVEN BACK 24 INCH
WB28X21079 WB28X21079 OVEN ORIFICE SPUD LP
WB48X26677 WB48X26677 OVEN RACK
WB53K10035 WB53K10035 OVEN SIDE LEFT
WB53K10034 WB53K10034 OVEN SIDE RIGHT
WB53K10002 WB53K10002 OVEN TOP
WB63X26890 WB63X26890 PANEL BROILER
WB56X21214 WB56X21214 PANEL DOOR
WB56X26689 WB56X26689 PANEL DRAWER
WB63K0001 WB63K0001 PANEL REAR BROIL
WB56X29128 WB56X29128 PANEL SIDE
WB35X26892 WB35X26892 PANEL SIDE FOIL
WB14K0005 WB14K0005 PIN HINGE
WB14K5 WB14K5 PIN HINGE
WB14K10004 WB14K10004 PIN LOCATOR
WB2K17 WB2K17 PIN LOCATOR
WB02K0017 WB02K0017 PIN LOCATOR FRONT
49-85230 49-85230 PM GAS QUICK GUIDE
31-17083 31-17083 PM MINI MANUAL
WB63K1 WB63K1 PNL REAR BRO
WB63K0020 WB63K0020 RANGE BACK
WB63K20 WB63K20 RANGE BACK
WB34X20669 WB34X20669 RANGE BACK COVER
WB07X20288 WB07X20288 RANGE BARRIER DOOR
WB01X26891 WB01X26891 RANGE BROIL ELEMENT CLIP
WB18X31203 WB18X31203 RANGE BURNER HARNESS
WB07X20197 WB07X20197 RANGE END SUPPORT - LEFT
WB07X20194 WB07X20194 RANGE END SUPPORT - RIGHT
WB10X20220 WB10X20220 RANGE HINGE RECEIVER
WB49X21392 WB49X21392 RANGE HINGE SERVICE KIT
WB1X1293 WB1X1293 RANGE IGNITER MOUNTING SCREW
WB02K10182 WB02K10182 RANGE LEVELING LEG
WB48X20249 WB48X20249 RANGE OVEN RACK
WB19K10055 WB19K10055 RANGE PRESSURE REGULATOR
WB35X26709 WB35X26709 RANGE SIDE INSULATION
WB6K8 WB6K8 RANGE SUPPORT BRACKET
WB20K8 WB20K8 RANGE THERMOSTAT ASSEMBLY

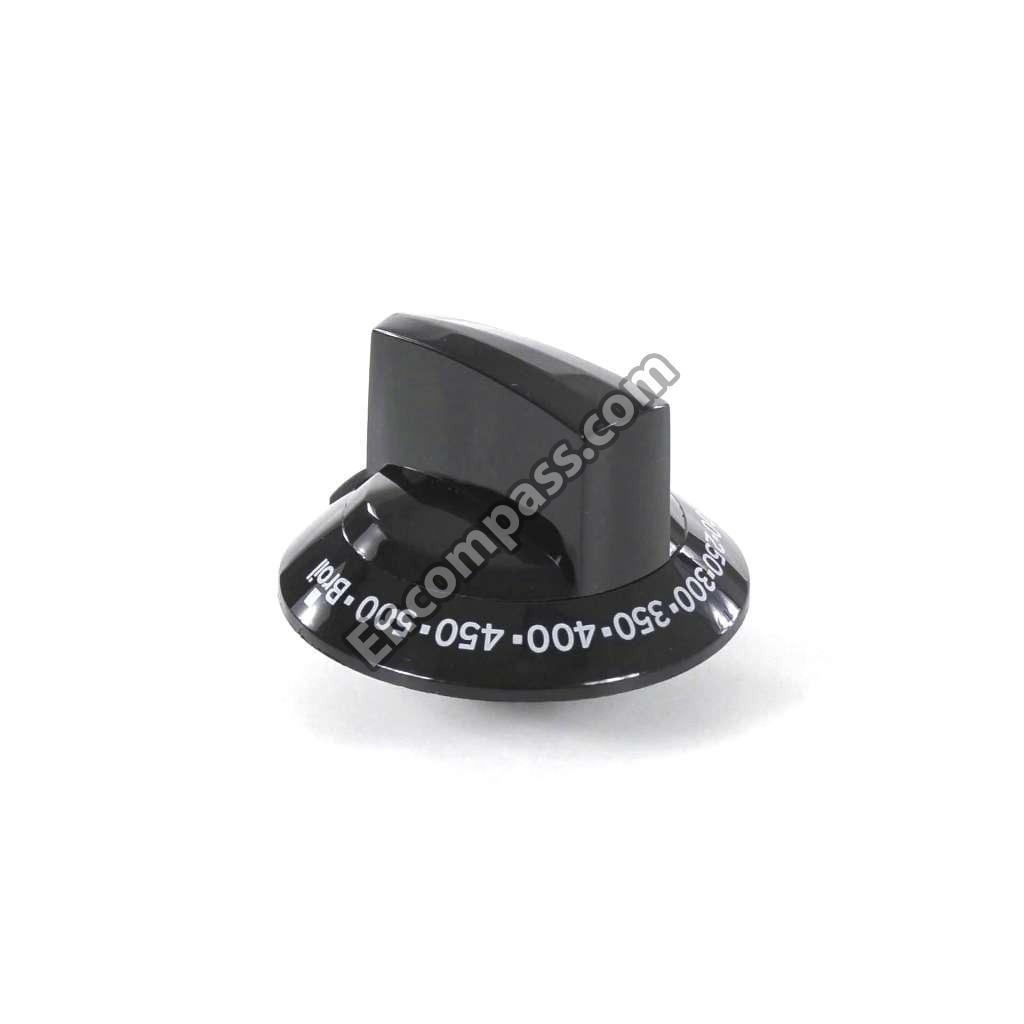

WB03X21219 WB03X21219 RANGE THERMOSTAT KNOB - BLACK
WB01K10080 WB01K10080 RANGE THERMOSTAT SCREW
WB38K2 WB38K2 RANGE VENT BRACE
WB62X21213 WB62X21213 RANGETOP STD
WB08T10026 WB08T10026 RECEPTACLE PUSH-IN
WB55K1 WB55K1 REFLECTOR
WB55K0001 WB55K0001 REFLECTOR LG
WB28K10579 WB28K10579 ROUND MANIFOLD PIPE
WB02K10263 WB02K10263 ROUND VALVE BRACKET
WB28K10578 WB28K10578 ROUND VALVE BURNER 140

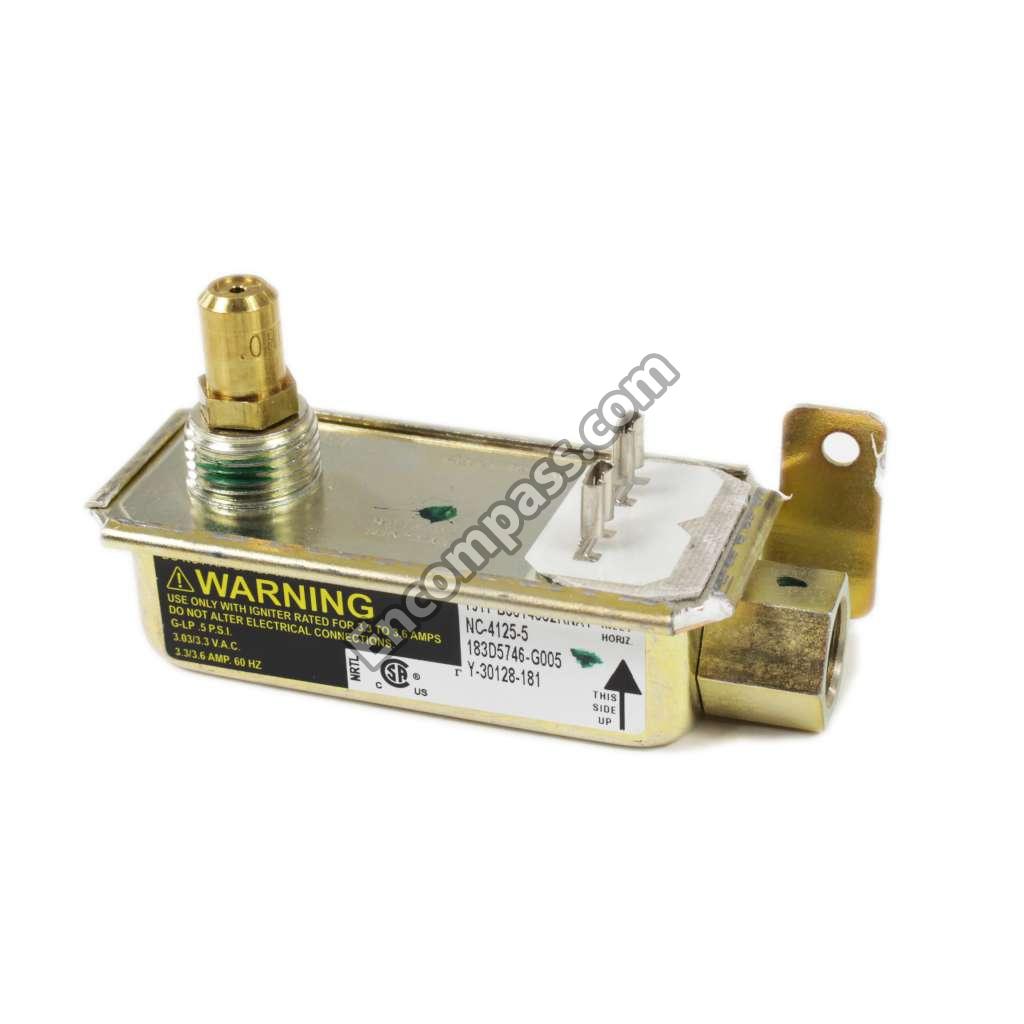

WB21X21212 WB21X21212 SAFETY VALVE SINGLE
WB1K45 WB1K45 SCR AND WSHR ASSEMBLY
WB01K0001 WB01K0001 SCREW
WB01K0037 WB01K0037 SCREW
WB01K10091 WB01K10091 SCREW
WB01K10043 WB01K10043 SCREW
WB1K5062 WB1K5062 SCREW
WB1X1261 WB1X1261 SCREW
WB1X536 WB1X536 SCREW
WB1K37 WB1K37 SCREW
WB1K5119 WB1K5119 SCREW
WB01K0042 WB01K0042 SCREW (BLK)
WB01K0031 WB01K0031 SCREW 10-16 PL PNT 2.5 S
WB01T10008 WB01T10008 SCREW 10-32 TR T
WB01T10016 WB01T10016 SCREW 8-18 AB HXW 5/8 S
WB1K5 WB1K5 SCREW 8-18 X 1/2 -INCH
WB01K10012 WB01K10012 SCREW 8-22 PL 1HX 71
WB01K10002 WB01K10002 SCREW 8-32
WB01X1261 WB01X1261 SCREW GROUND
WB1K53 WB1K53 SCREW HINGE
WB01K0053 WB01K0053 SCREW MTG HINGE (TORX)
WB01K0050 WB01K0050 SCREW MTG IGNITER
WB1K8 WB1K8 SCREW THERMO
WB01K0008 WB01K0008 SCREW THERMOSTAT
WB01K0045 WB01K0045 SCREW WASHER ASM
WB01X5874 WB01X5874 SCREW WH
WB01K10004 WB01K10004 SCREW-MTG END CAP (WHITE )
WB1X5731D WB1X5731D SCREW-PKG 12
WZ4X345D WZ4X345D SCREWS - 12 PACK
WB34K12 WB34K12 SHIELD RADIA
WB34K0012 WB34K0012 SHIELD RADIATION
WB34K0002 WB34K0002 SHIELD VALVE
WB34K2 WB34K2 SHIELD VALVE
WB02K10156 WB02K10156 SPACER
WB18X26987 WB18X26987 SPARK ELECTRODE TOP
WB18X26988 WB18X26988 SPARK ELECTRODE TOP
WB13X24321 WB13X24321 SPARK MODULE 2+0
WB01K10093 WB01K10093 SPEEDNUT
WB63X20216 WB63X20216 SUPPORT BASE
WB63X20215 WB63X20215 SUPPORT BASE
WB06K0008 WB06K0008 SUPPORT RANGE TOP
WB24K0003 WB24K0003 SWITCH ROCKER (BLK)
WB24X415 WB24X415 SWITCH-LITE
WB36X21588 WB36X21588 TRIM CONTROL
WB28K0147 WB28K0147 TUBE VALVE SUPPLY
WB28K147 WB28K147 TUBE VLV SUP
WB28K10011 WB28K10011 TUBE-BURNER LEFT REAR
WB28K10012 WB28K10012 TUBE-BURNER RT REAR
WB2K24 WB2K24 VALVE COVER
WB38K10001 WB38K10001 VENT ASSEMBLY
WB02X32440 WB02X32440 WASHER CONTOURED
WB1X119D WB1X119D WASHR-PKG 12
