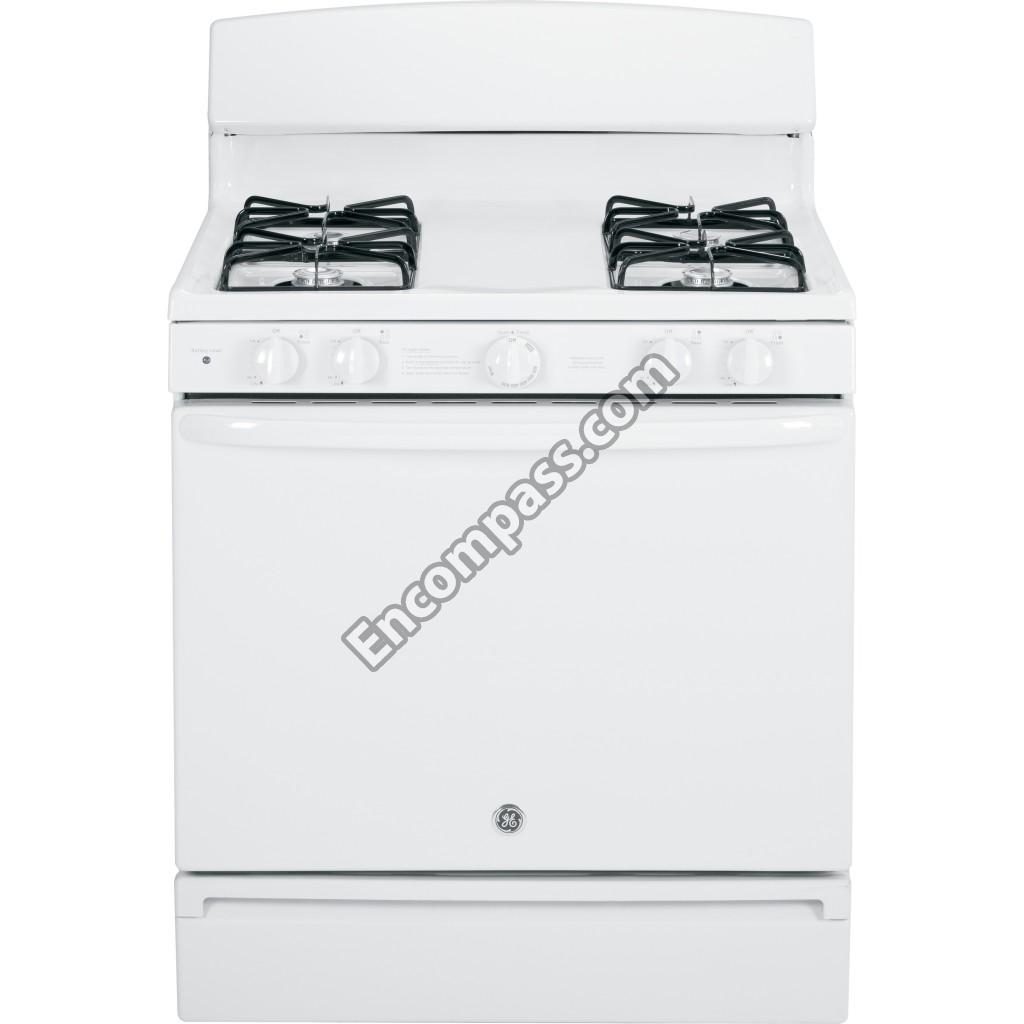

Model Image
Manufacturer

GE

Model Number

JGBS14PCF1WW

Description

Gas Range Or Dual Fuel

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WB2K12 WB2K12 ARM ANTI TIP
WB18K10088 WB18K10088 BATTERY CASE
WB35X37973 WB35X37973 BOTTOM OVEN AND DEFLECTOR ASM
WB01K0005 WB01K0005 BOTTOM OVEN SCREW
WB63K10029 WB63K10029 BOTTOM RANGE
WB63K0005 WB63K0005 BRACE BOTTOM
WB63K5 WB63K5 BRACE BOTTOM
WB38K0002 WB38K0002 BRACE VENT
WB02K10254 WB02K10254 BRACKET ANTI-TIP ASSEMBLY
WB37X20193 WB37X20193 BRACKET COOK TOP
WB37X20196 WB37X20196 BRACKET COOK TOP
WB02K0065 WB02K0065 BRACKET SAFETY VALVE
WB1K43 WB1K43 BRACKET SUPT
WB02K10264 WB02K10264 BRACKET THERMOSTAT
WB2K65 WB2K65 BRKT SAF VLV
WB39K35 WB39K35 BROIL SUP LH
WB02K10179 WB02K10179 BUMPER
WB2K15 WB2K15 BUMPER BLACK
WB02K0015 WB02K0015 BUMPER, BLACK
WB64K10001 WB64K10001 BURNER BOX
WB16K10082 WB16K10082 BURNER OVEN ASSEMBLY
WB02K0031 WB02K0031 CLIP CABLE
WB02X21679 WB02X21679 CLIP CABLE
WB02K10073 WB02K10073 CLIP CAPILLARY
WB01X0119 WB01X0119 CONTOURED WASHER
WB06K10002 WB06K10002 COUNTERWEIGHT
WB34K10094 WB34K10094 COVER BACK LOWER
WB34K10144 WB34K10144 COVER BACK PANEL
WB34X26858 WB34X26858 COVER BACK UPPER
WB34K10115 WB34K10115 COVER BACK UPPER
WB02K0024 WB02K0024 COVER VALVE
WB49K10044 WB49K10044 DEFLECTOR OVEN
WB16K10026 WB16K10026 DOUBLE BURNER ASSEMBLY
WB28K10860 WB28K10860 ENV CONVERSION STEPS ASSEMBLY
WB01X0560 WB01X0560 FIBER WASHER
WB56X21237 WB56X21237 FRAME FRONT WELD ASSEMBLY
WB63X21240 WB63X21240 FRAME WELD ASSEMBLY
WB28K10009 WB28K10009 FRONT TUBE ASSEMBLY
WB28K10010 WB28K10010 FRONT TUBE ASSEMBLY
WB31K10033 WB31K10033 GAS RANGE GRATE - BLACK
WB28K10376 WB28K10376 GAS RANGE ORIFICE
WB35X29720 WB35X29720 GASKET DOOR ASSEMBLY
WB32K0001 WB32K0001 GASKET VENT
WB32K1 WB32K1 GASKET VENT
WB14K4 WB14K4 GD SLIDE LFT
WB14K3 WB14K3 GD SLIDE RGT
WB2K66 WB2K66 GD SUPT RGTP
WB02T10589X WB02T10589X GE BADGE GRAY
WB02K0009 WB02K0009 GROMMET
WB2K8 WB2K8 GROMMET
WB32K2 WB32K2 GSKT OV SEAL
WB14K0004 WB14K0004 GUIDE SLIDE LEFT
WB14K0003 WB14K0003 GUIDE SLIDE RIGHT
WB02K0066 WB02K0066 GUIDE SUPPORT RGTP
WB15K10008 WB15K10008 H AND LE-BROILER (WHITE)
WB15K10096 WB15K10096 HANDLE WH
WB18K10091 WB18K10091 HARNESS BATTERY
WB18X31206 WB18X31206 HARNESS BURNER BOX
WB10K0011 WB10K0011 HINGE BRIOLER LEFT
WB10K0010 WB10K0010 HINGE BRIOLER RIGHT
WB10K11 WB10K11 HINGE BRO LT
WB10K10 WB10K10 HINGE BRO RT
WB10X21955 WB10X21955 HINGE DOOR
WB34K0004 WB34K0004 HINGE GUARD LEFT
WB34K0003 WB34K0003 HINGE GUARD RIGHT
WB34K4 WB34K4 HNGE GRD LFT
WB34K3 WB34K3 HNGE GRD RGT
WB13K10053 WB13K10053 IGNITION MODULE
WB35K3 WB35K3 INS DRAWER
WB35K10152 WB35K10152 INSULATION DOOR
WB35K0003 WB35K0003 INSULATION DRAWER
WB35K0016 WB35K0016 INSULATION OVEN BACK
WB35K10226 WB35K10226 INSULATION OVEN BACK
WB35K10155 WB35K10155 INSULATION OVEN WRAP
WB27K10420 WB27K10420 LED CARD ASSEMBLY
WB25K10016 WB25K10016 LENS
WB39K10042 WB39K10042 LINER DRAWER
31-10928 31-10928 LP CONVERSION INST
WB36X21236 WB36X21236 MANIFOLD PANEL
WB20K10037 WB20K10037 MODULATING THERMOSTAT
WB01K0004 WB01K0004 NUT
WB1K4 WB1K4 NUT
WB01K0006 WB01K0006 NUT LOCK
WB1K6 WB1K6 NUT LOCK
WB01K0003 WB01K0003 NUT SPEED
WB1K3 WB1K3 NUT SPEED
WB28K10033 WB28K10033 ORIFICE NAT GAS
WB53K10016 WB53K10016 OVEN BACK
WB53K10035 WB53K10035 OVEN SIDE LEFT
WB53K10034 WB53K10034 OVEN SIDE RIGHT
WB53K10002 WB53K10002 OVEN TOP
WB28X21675 WB28X21675 OVEN TUBE SUPPLY
WB63X26890 WB63X26890 PANEL BROILER
WB56X21238 WB56X21238 PANEL DOOR
WB56X21199 WB56X21199 PANEL DRAWER
WB63K0001 WB63K0001 PANEL REAR BROIL
WB63K10122 WB63K10122 PANEL SIDE
WB56X29122 WB56X29122 PANEL SIDE
WB63K0003 WB63K0003 PANEL SIDE BROIL LFT
WB63K0002 WB63K0002 PANEL SIDE BROIL RT
WB01K10035 WB01K10035 PIN BROILER
WB1K7 WB1K7 PIN BROILER
WB01K0007 WB01K0007 PIN BROILER RT
WB14K0005 WB14K0005 PIN HINGE
WB14K5 WB14K5 PIN HINGE
WB14K10004 WB14K10004 PIN LOCATOR
WB2K17 WB2K17 PIN LOCATOR
WB02K0017 WB02K0017 PIN LOCATOR FRONT
31-10936 31-10936 PM INSTALL INSTRUCTIONS
31-17084 31-17084 PM MINI MANUAL
49-85215 49-85215 PM OWNERS MANUAL
WB63K1 WB63K1 PNL REAR BRO
WB63K3 WB63K3 PNL SD BRO L
WB63K2 WB63K2 PNL SD BRO R
WB19K10054 WB19K10054 PRESSURE REGULATOR
WB48X10056 WB48X10056 RACK BROILER PAN
WB63K0020 WB63K0020 RANGE BACK
WB63K20 WB63K20 RANGE BACK
WB07X20278 WB07X20278 RANGE BACK END SUPPORT
WB07X20288 WB07X20288 RANGE BARRIER DOOR
WB07X20277 WB07X20277 RANGE END SUPPORT - RIGHT - WHITE
WB10X20220 WB10X20220 RANGE HINGE RECEIVER
WB49X21392 WB49X21392 RANGE HINGE SERVICE KIT
WB1X1293 WB1X1293 RANGE IGNITER MOUNTING SCREW
WB03X21228 WB03X21228 RANGE KNOB - WHITE
WB02K10182 WB02K10182 RANGE LEVELING LEG
WB48X20249 WB48X20249 RANGE OVEN RACK
WB19K10088 WB19K10088 RANGE PILOT ASSEMBLY
WB6K8 WB6K8 RANGE SUPPORT BRACKET

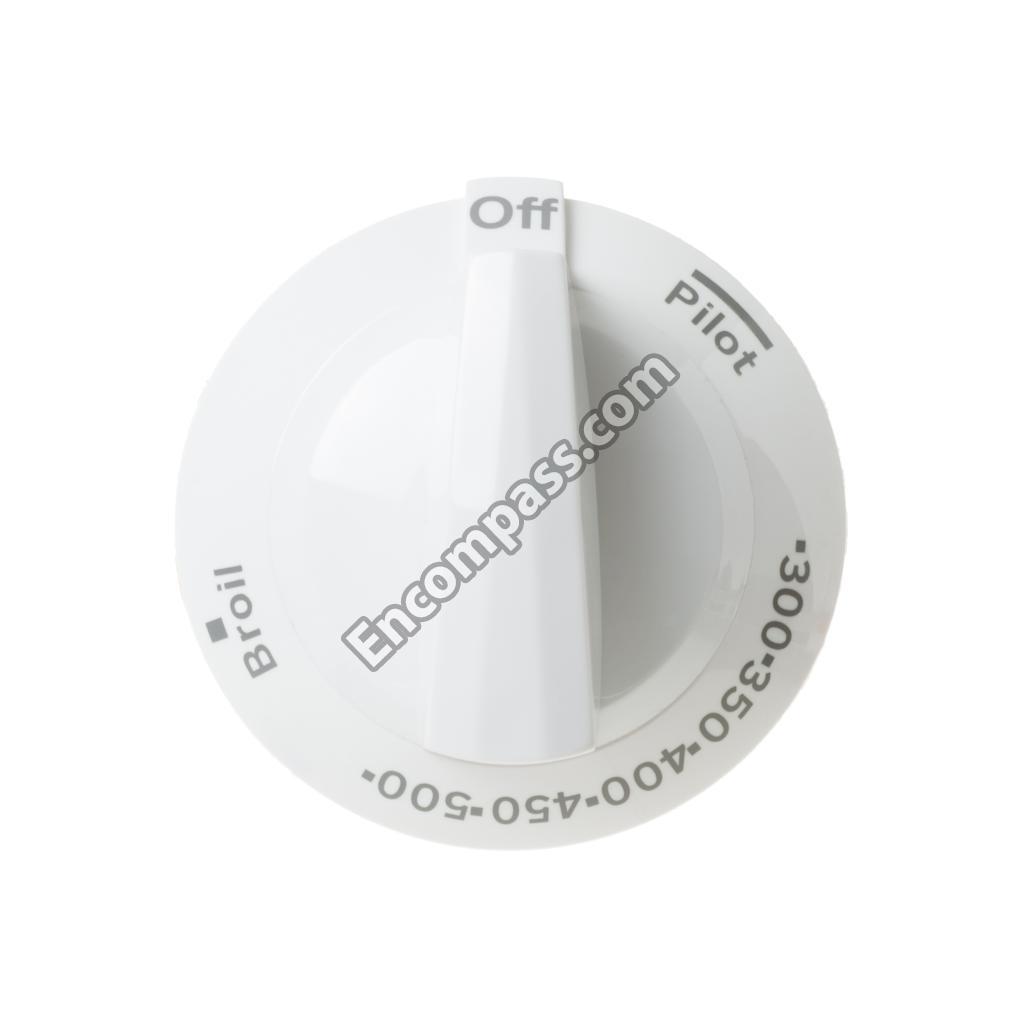

WB03X21235 WB03X21235 RANGE THERMOSTAT KNOB - WHITE
WB01K10097 WB01K10097 RANGE THERMOSTAT SCREW
WB01K10080 WB01K10080 RANGE THERMOSTAT SCREW
WB38K2 WB38K2 RANGE VENT BRACE
WB62X21233 WB62X21233 RANGETOP STD
WB28K10844 WB28K10844 ROUND MANIFOLD PIPE
WB02K10263 WB02K10263 ROUND VALVE BRACKET
WB28K10578 WB28K10578 ROUND VALVE BURNER 140
8911237P044 8911237P044 SCR 10-16 DR HXWP 1-3/4
WB1K45 WB1K45 SCR AND WSHR ASSEMBLY
WB01K0063 WB01K0063 SCREW
WB01K0084 WB01K0084 SCREW
WB01K0001 WB01K0001 SCREW
WB01K0037 WB01K0037 SCREW
WB01K10091 WB01K10091 SCREW
WB1X1261 WB1X1261 SCREW
WB1X5754 WB1X5754 SCREW
WB1X536 WB1X536 SCREW
WB1K37 WB1K37 SCREW
WB01K10043 WB01K10043 SCREW
WB1K5119 WB1K5119 SCREW
WB1K84 WB1K84 SCREW & WASH
WB01X0593 WB01X0593 SCREW - DOOR ASM (4 PER)
WB02X32438 WB02X32438 SCREW 10-16 PL PNT 2.15S
WB01K0031 WB01K0031 SCREW 10-16 PL PNT 2.5 S
WB01T10008 WB01T10008 SCREW 10-32 TR T
WB01K10074 WB01K10074 SCREW 10-32 TT PNT 2.05
WB01T10016 WB01T10016 SCREW 8-18 AB HXW 5/8 S
WB01X5754 WB01X5754 SCREW 8-18 ABT 1/2 S
WB1K5 WB1K5 SCREW 8-18 X 1/2 -INCH
WZ4X345D WZ4X345D SCREW 8-18X5/8 HXW
WB01K10012 WB01K10012 SCREW 8-22 PL 1HX 71
WB01K10002 WB01K10002 SCREW 8-32
WB01X1261 WB01X1261 SCREW GROUND
WB1K53 WB1K53 SCREW HINGE
WB01K0053 WB01K0053 SCREW MTG HINGE (TORX)
WB01K0050 WB01K0050 SCREW MTG IGNITER
WB01K0045 WB01K0045 SCREW WASHER ASM
WB01X5874 WB01X5874 SCREW WH
WB1X5731D WB1X5731D SCREW-PKG 12
WB02K0014 WB02K0014 SPACER
WB02K10156 WB02K10156 SPACER
WB2K14 WB2K14 SPACER
WB18X26992 WB18X26992 SPARK ELECTRODE TOP LH
WB19K10083 WB19K10083 SPARK ELECTRODE TOP RH
WB1X5743D WB1X5743D SPDNUT-PKQ12
WB01X5743 WB01X5743 SPEEDNUT
WB01K10036 WB01K10036 SPRING WASHER
WB39K34 WB39K34 SUP BROIL RT
WB63K10230 WB63K10230 SUPPORT BASE
WB63K10231 WB63K10231 SUPPORT BASE
WB39K0035 WB39K0035 SUPPORT BRIOLER LEFT
WB39K0034 WB39K0034 SUPPORT BRIOLER RIGHT
WB06K0008 WB06K0008 SUPPORT RANGE TOP
WB36X21594 WB36X21594 TRIM CONTROL
WB28K10843 WB28K10843 TUBE PILOT SUPPLY
WB28K10011 WB28K10011 TUBE-BURNER LEFT REAR
WB28K10012 WB28K10012 TUBE-BURNER RT REAR
WB2K24 WB2K24 VALVE COVER
WB38K10001 WB38K10001 VENT ASSEMBLY
WB01K0038 WB01K0038 WASHER
WB1K38 WB1K38 WASHER
WB02X32440 WB02X32440 WASHER CONTOURED
WB1X119D WB1X119D WASHR-PKG 12
