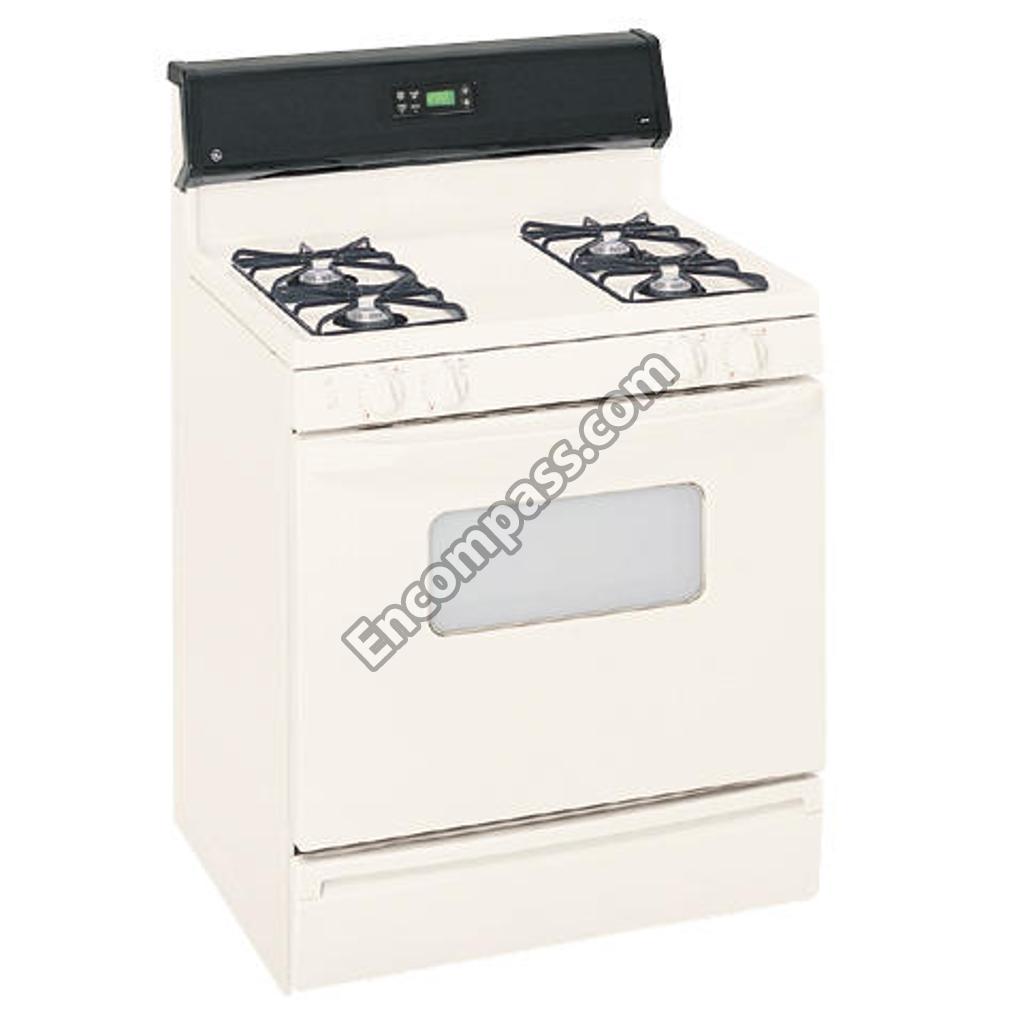

Model Image
Manufacturer

GE

Model Number

JGBS17PEA3CT

Description

Gas Range Or Dual Fuel

Interactive Exploded View

Parts List

Part Number Description
40A15 40A15 GE 40WATT 15AMP INC AND ESCENT BULB
WB02K0003 WB02K0003 GE ANGLE SUPPORT
WB2K3 WB2K3 GE ANGLE SUPPRT
WB02K0012 WB02K0012 GE ARM ANTI TIP
WB2K12 WB2K12 GE ARM ANTI TIP
WB53K0035 WB53K0035 GE BOTTOM OVEN
WB53K35 WB53K35 GE BOTTOM OVEN
WB01K0005 WB01K0005 GE BOTTOM OVEN SCREW
WB63K10029 WB63K10029 GE BOTTOM RANGE
WB63K0005 WB63K0005 GE BRACE BOTTOM
WB63K5 WB63K5 GE BRACE BOTTOM
WB38K0002 WB38K0002 GE BRACE VENT
WB02K0020 WB02K0020 GE BRACKET ASM ANTI-TIP
WB02K0065 WB02K0065 GE BRACKET SAFETY VALVE
WB02K10005 WB02K10005 GE BRACKET-TIMER
WB2K65 WB2K65 GE BRKT SAF VLV
WB39K6 WB39K6 GE BROIL WELD A
WB02K0005 WB02K0005 GE BROILER STOP
WB2K5 WB2K5 GE BROILER STOP
WB39K0006 WB39K0006 GE BROILER WELD ASM
WB2K15 WB2K15 GE BUMPER BLACK
WB02K0015 WB02K0015 GE BUMPER, BLACK
WB64K10001 WB64K10001 GE BURNER BOX
WB02K0036 WB02K0036 GE CLAMP CABLE
WB2K36 WB2K36 GE CLAMP CABLE
WB02K0010 WB02K0010 GE CLIP CAPILLARY
WB02K10073 WB02K10073 GE CLIP CAPILLARY
WB02K0050 WB02K0050 GE CLIP CRYSTAL
WB2K50 WB2K50 GE CLIP CRYSTAL
WB02X7066 WB02X7066 GE CLIP WIRE
WB2K22 WB2K22 GE CLIP WIRE
WB02K0022 WB02K0022 GE CLIP WIRE
WB01X0119 WB01X0119 GE CONTOURED WASHER
WB28K10564 WB28K10564 GE CONVERSION KIT L.P. GAS
WB62K10062 WB62K10062 GE COOKTOP (BISQUE)
WB62K10003 WB62K10003 GE COOKTOP (WH)
WB02K0004 WB02K0004 GE COVER ACCESS SPRING
WB34K0021 WB34K0021 GE COVER BACK PANEL
WB34K10003 WB34K10003 GE COVER BACK UPPER
WB07K10116 WB07K10116 GE COVER END LEFT (BISQUE)
WB07K10002 WB07K10002 GE COVER END LT (WH)
WB07K10115 WB07K10115 GE COVER END RIGHT (BISQUE)
WB07K10001 WB07K10001 GE COVER END RT (WH)
WB34K10001 WB34K10001 GE COVER LOWER BACK
WB2K6 WB2K6 GE COVER THERMO
WB02K0006 WB02K0006 GE COVER THERMOSTAT
WB34K0005 WB34K0005 GE COVER WIRE
WB34K5 WB34K5 GE COVER WIRE
WB56K25 WB56K25 GE CRYSTAL WIND
WB56K5 WB56K5 GE CRYSTAL WIND
WB56K0025 WB56K0025 GE CRYSTAL WINDOW
WB56K0005 WB56K0005 GE CRYSTAL WINDOW
WB2K4 WB2K4 GE CVR ACC SPRG
WB34K21 WB34K21 GE CVR BCK PNL
WB34K14 WB34K14 GE CVR IGNITOR
WB49K10037 WB49K10037 GE DEFLECTOR OVEN
WB16K10026 WB16K10026 GE DOUBLE BURNER ASSEMBLY
WB07K10004 WB07K10004 GE END CAP LT (BLK)
WB07K10003 WB07K10003 GE END CAP RT (BLK)
WB01X0560 WB01X0560 GE FIBER WASHER
WB49K0044 WB49K0044 GE FLAME SPREADER
WB63K31 WB63K31 GE FRAME WELD
WB63K0031 WB63K0031 GE FRAME WELD ASM
WB28K10010 WB28K10010 GE FRONT TUBE ASSEMBLY
WB28K10009 WB28K10009 GE FRONT TUBE ASSEMBLY
WB28K10376 WB28K10376 GE GAS RANGE ORIFICE
WB32K0003 WB32K0003 GE GASKET DOOR ASM
WB35X29720 WB35X29720 GE GASKET DOOR ASM
WB32K0002 WB32K0002 GE GASKET OVEN SEAL LG
WB32K0001 WB32K0001 GE GASKET VENT
WB32K1 WB32K1 GE GASKET VENT
WB14K4 WB14K4 GE GD SLIDE LFT
WB14K3 WB14K3 GE GD SLIDE RGT
WB2K66 WB2K66 GE GD SUPT RGTP
WB31K10026 WB31K10026 GE GRATE-HAIRPIN (BLACK)
WB02K0009 WB02K0009 GE GROMMET
WB2K8 WB2K8 GE GROMMET
WB56K10032 WB56K10032 GE GUARD INSUL
WB56K0006 WB56K0006 GE GUARD INSULATION
WB14K0002 WB14K0002 GE GUIDE HOLDER LEFT
WB14K2 WB14K2 GE GUIDE HOLDER LEFT
WB14K0001 WB14K0001 GE GUIDE HOLDER RIGHT
WB14K1 WB14K1 GE GUIDE HOLDER RIGHT
WB14K0004 WB14K0004 GE GUIDE SLIDE LEFT
WB14K0003 WB14K0003 GE GUIDE SLIDE RIGHT
WB02K0066 WB02K0066 GE GUIDE SUPPORT RGTP
WB15K10029 WB15K10029 GE HANDLE - BROIL (BISQUE)
WB15T10036 WB15T10036 GE HANDLE DOOR (BISQUE)
WB15X10048 WB15X10048 GE HANDLE DOOR (WH)
WB15K10008 WB15K10008 GE HANDLE-BROILER (WH)
WB10K0012 WB10K0012 GE HINGE ASM GUIDE
WB10K0006 WB10K0006 GE HINGE BROILER LEFT
WB10K0005 WB10K0005 GE HINGE BROILER RIGHT
WB34K0004 WB34K0004 GE HINGE GUARD LEFT
WB34K0003 WB34K0003 GE HINGE GUARD RIGHT
WB2X6195 WB2X6195 GE HINGE PIN
WB10K6 WB10K6 GE HNGE BROIL L
WB10K5 WB10K5 GE HNGE BROIL R
WB34K4 WB34K4 GE HNGE GRD LFT
WB34K3 WB34K3 GE HNGE GRD RGT
WB02K0011 WB02K0011 GE HOOK DOOR SPRING
WB2K11 WB2K11 GE HOOK DR SPRG
WB8K1 WB8K1 GE HOUS RECEPTL
WB08K0001 WB08K0001 GE HOUSING RECEPTACLE
WB34K0014 WB34K0014 GE IGNITER COVER
WB13K21 WB13K21 GE IGNITER OVEN
WB13K0021 WB13K0021 GE IGNITER-OVEN BAKE
WB35K3 WB35K3 GE INS DRAWER
WB35K1 WB35K1 GE INS OV WRAP
WB35K5 WB35K5 GE INSUL DOOR
WB35K16 WB35K16 GE INSUL OVBACK
WB35K0005 WB35K0005 GE INSULATION DOOR
WB35K0003 WB35K0003 GE INSULATION DRAWER
WB35K0016 WB35K0016 GE INSULATION OVEN BACK
WB35K0001 WB35K0001 GE INSULATION OVEN WRAP

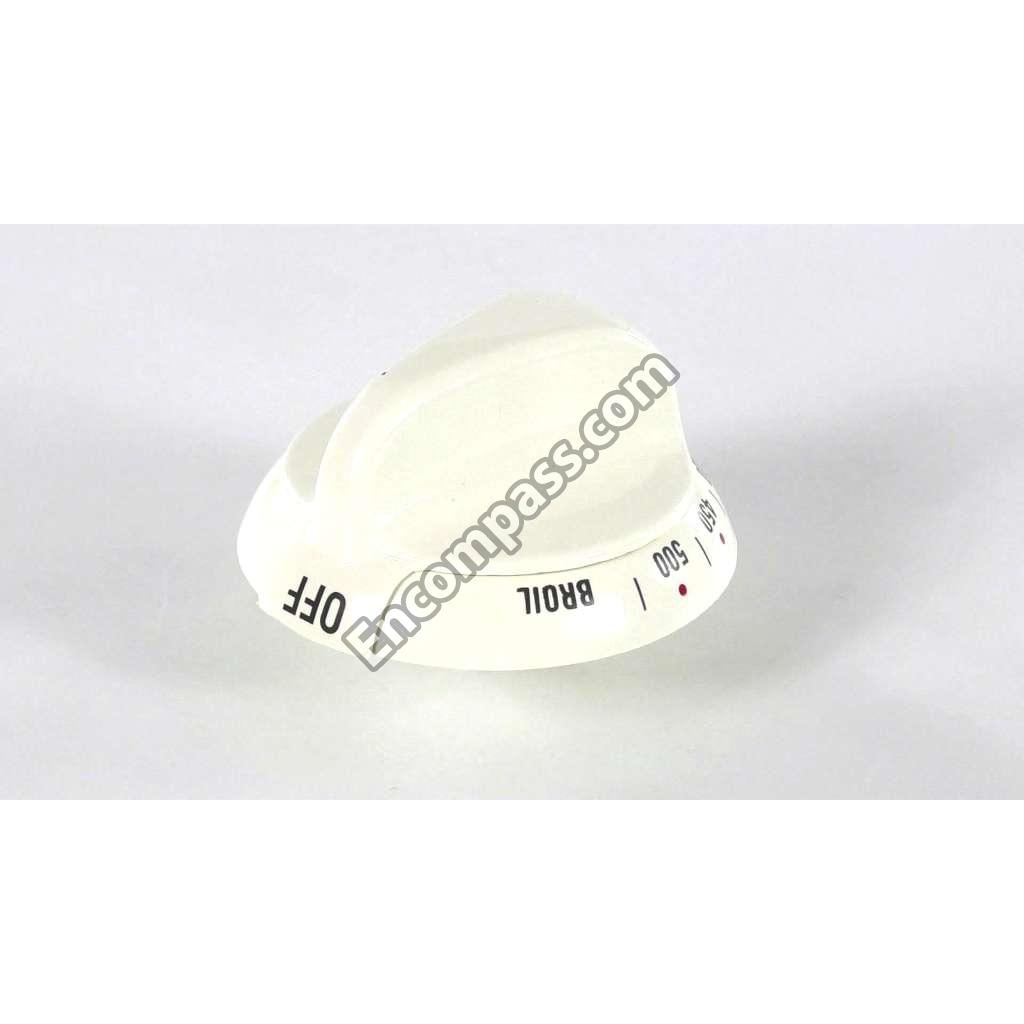

WB03K10126 WB03K10126 GE KNOB THERMOSTAT (BISQUE)
WB03K10036 WB03K10036 GE KNOB-THERMOSTAT (WH)
WB03K10099 WB03K10099 GE KNOB-TOB BURNERS BISQUE
WB03K10034 WB03K10034 GE KNOB-TOP BURNERS (WH)
WB02X10521 WB02X10521 GE LEG LEVELER
WB18K0007 WB18K0007 GE LINE CORD
WB18K10036 WB18K10036 GE LINE CORD
WB55K0021 WB55K0021 GE LINER ASM WELD DOOR
WB55K21 WB55K21 GE LINER DOOR
WB39K0005 WB39K0005 GE LINER DRAWER
WB39K5 WB39K5 GE LINER DRAWER
WB28K10200 WB28K10200 GE MANIFOLD
49-85029 49-85029 GE MANUAL USE & CARE
31-21037 31-21037 GE MANUAL-MINI/ELEC DIAG
WB01K0004 WB01K0004 GE NUT
WB1K4 WB1K4 GE NUT
WB01K0006 WB01K0006 GE NUT LOCK
WB1K6 WB1K6 GE NUT LOCK
WB01K0003 WB01K0003 GE NUT SPEED
WB1K3 WB1K3 GE NUT SPEED
WB28K0008 WB28K0008 GE ORIFICE LP GAS
WB28K10033 WB28K10033 GE ORIFICE NAT GAS
WB53K4 WB53K4 GE OV BACK 24
WB53K0004 WB53K0004 GE OVEN BACK 24 INCH
WB16K0027 WB16K0027 GE OVEN BURNER
WB16K10043 WB16K10043 GE OVEN BURNER BAKE
WB53K0003 WB53K0003 GE OVEN SIDE LEFT
WB53K3 WB53K3 GE OVEN SIDE LF
WB53K0002 WB53K0002 GE OVEN SIDE RIGHT
WB53K2 WB53K2 GE OVEN SIDE RT
WB53K10002 WB53K10002 GE OVEN TOP

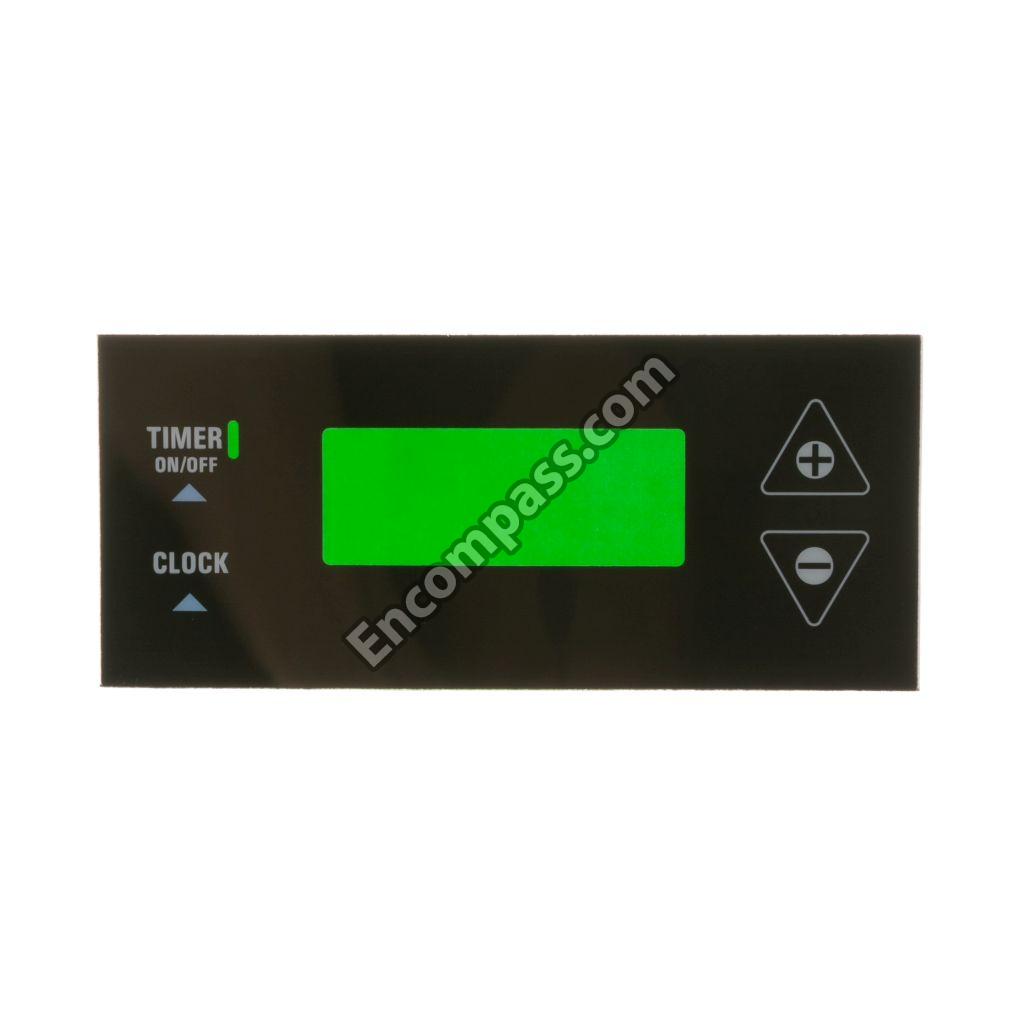

WB27K10004 WB27K10004 GE OVERLAY (BLACK)
WB2K85 WB2K85 GE PAD (FELT)
WB02K0085 WB02K0085 GE PAD FELT (WH)
WB48X10056 WB48X10056 GE PAN BROILER
WB56K10013 WB56K10013 GE PANEL DOOR (BISQUE)
WB55K10010 WB55K10010 GE PANEL DRAWER BISQUE
WB36K10262 WB36K10262 GE PANEL MANIFOLD (BISQUE)
WB63K0001 WB63K0001 GE PANEL REAR BROIL
WB62K10039 WB62K10039 GE PANEL SIDE (BISQUE)
WB63K0003 WB63K0003 GE PANEL SIDE BROIL LFT
WB63K0002 WB63K0002 GE PANEL SIDE BROIL RT
WB36K10056 WB36K10056 GE PANEL-MANIFOLD (WHITE)
WB1K7 WB1K7 GE PIN BROILER
WB01K0007 WB01K0007 GE PIN BROILER RT
WB14K0005 WB14K0005 GE PIN HINGE
WB14K5 WB14K5 GE PIN HINGE
WB02X6195 WB02X6195 GE PIN HINGE DOOR
WB2K17 WB2K17 GE PIN LOCATOR
WB02K0017 WB02K0017 GE PIN LOCATOR FRONT
WB37K0015 WB37K0015 GE PLATE END LEFT
WB37K15 WB37K15 GE PLATE END LT
WB37K0014 WB37K0014 GE PLATE END RIGHT
WB37K14 WB37K14 GE PLATE END RT
WB63K1 WB63K1 GE PNL REAR BRO
WB63K3 WB63K3 GE PNL SD BRO L
WB63K2 WB63K2 GE PNL SD BRO R
WB19K10055 WB19K10055 GE PRESSURE REGULATOR
WB08T10026 WB08T10026 GE PUSH-IN RECEPTICLE
WB48K0004 WB48K0004 GE RACK OVEN
WB48T10095 WB48T10095 GE RACK OVEN
WB2K20 WB2K20 GE RANGE ANTI-TIP BRACKET
WB63K0020 WB63K0020 GE RANGE BACK
WB63K20 WB63K20 GE RANGE BACK
WB63K10233 WB63K10233 GE RANGE BASE SUPPORT
WB10K12 WB10K12 GE RANGE DOOR HINGE ASSEMBLY
WB1X1293 WB1X1293 GE RANGE IGNITER MOUNTING SCREW
WB32K2 WB32K2 GE RANGE OVEN DOOR GASKET
WB6K8 WB6K8 GE RANGE SUPPORT BRACKET
WB10K13 WB10K13 GE RANGE SUPPORT RIVET
WB38K2 WB38K2 GE RANGE VENT BRACE
WB55K1 WB55K1 GE REFLECTOR
WB55K0001 WB55K0001 GE REFLECTOR LG
WB19K0027 WB19K0027 GE REGULATOR PRESSURE
WB2X1082 WB2X1082 GE RETAINER
WB02X1082 WB02X1082 GE RING RETAINING
WB1K45 WB1K45 GE SCR AND WSHR ASSEMBLY
WB01K0063 WB01K0063 GE SCREW
WB01K0021 WB01K0021 GE SCREW
WB01K0001 WB01K0001 GE SCREW
WB01K0037 WB01K0037 GE SCREW
WB1K5119 WB1K5119 GE SCREW
WB1K37 WB1K37 GE SCREW
WB1X536 WB1X536 GE SCREW
WB1X5716 WB1X5716 GE SCREW
WB1K5062 WB1K5062 GE SCREW
WB01K0042 WB01K0042 GE SCREW (BLK)
WB01X5716 WB01X5716 GE SCREW (BLK)
WB01X5364 WB01X5364 GE SCREW (CR)
WB01X0593 WB01X0593 GE SCREW - DOOR ASM (4 PER)
WB1K69 WB1K69 GE SCREW 10-16
WB01K0069 WB01K0069 GE SCREW 10-16 DOOR
WB01K0031 WB01K0031 GE SCREW 10-16 PL PNT 2.5 S
WB1K63 WB1K63 GE SCREW 10-16 X 0.95 TYPE B
WR01X10065 WR01X10065 GE SCREW 10-32 GXTT FLP 595 S
WB01K0070 WB01K0070 GE SCREW 7-19
WB1K5 WB1K5 GE SCREW 8-18 X 1/2 -INCH
WZ04X0345 WZ04X0345 GE SCREW 8-18X5/8 HXW
WB1K67 WB1K67 GE SCREW 8-22
WB01K10002 WB01K10002 GE SCREW 8-32
WB1K53 WB1K53 GE SCREW HINGE
WB1X5364 WB1X5364 GE SCREW MTG
WB01K0053 WB01K0053 GE SCREW MTG HINGE (TORX)
WB01K0050 WB01K0050 GE SCREW MTG IGNITER
WB01X0558 WB01X0558 GE SCREW NAIL POINT
WB1K8 WB1K8 GE SCREW THERMO
WB01K0008 WB01K0008 GE SCREW THERMOSTAT
WB01K0045 WB01K0045 GE SCREW WASHER ASM
WB01K10003 WB01K10003 GE SCREW-MTG END CAP (BLACK)
WB01K0083 WB01K0083 GE SCREW-MTG VALVE BURNER
WB1K83 WB1K83 GE SCREW-MTG VALVE BURNER 10-32
WB1X5731D WB1X5731D GE SCREW-PKG 12
WB1X558D WB1X558D GE SCREW-PKG 12
WZ4X345D WZ4X345D GE SCREWS - 12 PACK
WB34K0002 WB34K0002 GE SHIELD VALVE
WB34K2 WB34K2 GE SHIELD VALVE
WB39K2 WB39K2 GE SLIDE BOT LF
WB39K1 WB39K1 GE SLIDE BOT RT
WB39K7 WB39K7 GE SLIDE BRLR P
WB39K8 WB39K8 GE SLIDE BRLR P
WB39K0009 WB39K0009 GE SLIDE BROILER
WB39K0008 WB39K0008 GE SLIDE BROILER PAN LEFT
WB39K0007 WB39K0007 GE SLIDE BROILER PAN RIGHT
WB39K9 WB39K9 GE SLIDE BROILR
WB39K0002 WB39K0002 GE SLIDE RANGE BOTTOM LEFT
WB39K0001 WB39K0001 GE SLIDE RANGE BOTTOM RIGHT
WB02K0002 WB02K0002 GE SPACER
WB02K0014 WB02K0014 GE SPACER
WB2K14 WB2K14 GE SPACER
WB2K2 WB2K2 GE SPACER
WB02K0013 WB02K0013 GE SPACER DOOR
WB2K13 WB2K13 GE SPACER DOOR
WB19K0020 WB19K0020 GE SPARK ELECTRODE TOP
WB18X26988 WB18X26988 GE SPARK ELECTRODE TOP
WB20K5037 WB20K5037 GE SPARK MODULE 2+0
WB1X5743D WB1X5743D GE SPDNUT-PKQ12
WB01X5743 WB01X5743 GE SPEEDNUT
WB01K0002 WB01K0002 GE SPEEDNUT
WB1K2 WB1K2 GE SPEEDNUT
WB9K3 WB9K3 GE SPRG BROIL L
WB9K2 WB9K2 GE SPRG BROIL R
WB09K0003 WB09K0003 GE SPRING BROILER LEFT
WB09K0002 WB09K0002 GE SPRING BROILER RIGHT
WB09K0004 WB09K0004 GE SPRING DOOR
WB9K4 WB9K4 GE SPRING DOOR
WB63K10232 WB63K10232 GE SUPPORT BASE
WB06K0008 WB06K0008 GE SUPPORT RANGE TOP
WB10K0014 WB10K0014 GE SUPPORT RIVET LFT
WB10K0013 WB10K0013 GE SUPPORT RIVET RT
WB10K14 WB10K14 GE SUPT RIVET
WB24K10005 WB24K10005 GE SWITCH ROCKER (BISQUE)
WB24K10017 WB24K10017 GE SWITCH-BURNER IGNITION
WB20K8 WB20K8 GE THERMOSTAT ATEA
WB27T10469 WB27T10469 GE TIMER TOD LED
WB07K0086 WB07K0086 GE TRIM CRYSTAL
WB7X7069 WB7X7069 GE TRIM CRYSTAL
WB36K10059 WB36K10059 GE TRIM-CONTROL (BLACK)
WB28K0147 WB28K0147 GE TUBE VALVE SUPPLY
WB28K147 WB28K147 GE TUBE VLV SUP
WB28K10011 WB28K10011 GE TUBE-BURNER LT REAR
WB28K10012 WB28K10012 GE TUBE-BURNER RT REAR
WB21K10081 WB21K10081 GE VALVE BURNER 140
WB19K31 WB19K31 GE VALVE SAFETY
WB19K0031 WB19K0031 GE VALVE SAFETY ASM
WB38K10001 WB38K10001 GE VENT ASM
WB02X32440 WB02X32440 GE WASHER CONTOURED
WB1X560D WB1X560D GE WASHR-PKG 12
WB1X119D WB1X119D GE WASHR-PKG 12
