Model Image
Manufacturer

GE

Model Number

JGBS23GEV7AD

Description

Gas Range Or Dual Fuel

Interactive Exploded View

Parts List

Part Number Description
40A15 40A15 40WATT 15AMP
WB02K0003 WB02K0003 ANGLE SUPPORT
WB2K3 WB2K3 ANGLE SUPPRT
WB02K0012 WB02K0012 ARM ANTI TIP
WB2K12 WB2K12 ARM ANTI TIP
WB63K7 WB63K7 BASE SUPP LF
WB63K6 WB63K6 BASE SUPP RT
WB63K0007 WB63K0007 BASE SUPPORT LEFT
WB63K0006 WB63K0006 BASE SUPPORT RIGHT
WB32K10 WB32K10 BLACK DOUBLE PAN LEFT SIDE - G
WB32K9 WB32K9 BLACK DOUBLE PAN RIGHT SIDE -
WB35K0013 WB35K0013 BOTTOM INSULATION DOOR
WB53K0035 WB53K0035 BOTTOM OVEN
WB53K35 WB53K35 BOTTOM OVEN
WB01K0005 WB01K0005 BOTTOM OVEN SCREW
WB63K24 WB63K24 BOX BRNR SP
WB63K0024 WB63K0024 BOX BURNER SP
WB63K0005 WB63K0005 BRACE BOTTOM
WB63K5 WB63K5 BRACE BOTTOM
WB38K0002 WB38K0002 BRACE VENT
WB38K2 WB38K2 BRACE VENT
WB02K0020 WB02K0020 BRACKET ASM ANTI-TIP
WB2K99 WB2K99 BRACKET BURN
WB02K0001 WB02K0001 BRACKET GLIDER
WB2K98 WB2K98 BRACKET ORIF
WB02K0099 WB02K0099 BRACKET ORIFICE LT
WB02K0098 WB02K0098 BRACKET ORIFICE RT
WB2K88 WB2K88 BRACKET REG
WB02K0088 WB02K0088 BRACKET REGULATOR
WB02K0065 WB02K0065 BRACKET SAFETY VALVE
WB02K0063 WB02K0063 BRACKET TIMER
WB2K20 WB2K20 BRKT ASM A-T
WB2K1 WB2K1 BRKT GLIDER
WB2K65 WB2K65 BRKT SAF VLV
WB2K63 WB2K63 BRKT TIMER
WB16K10 WB16K10 BRNR HEAD LG
WB49K2 WB49K2 BROIL PAN 16X16 3/4 FITS RACK
WB48K2 WB48K2 BROIL PAN RACK 15 1/2X16 3/4 F
WB39K6 WB39K6 BROIL WELD A
WB02K0005 WB02K0005 BROILER STOP
WB2K5 WB2K5 BROILER STOP
WB39K0006 WB39K0006 BROILER WELD ASM
WB2K15 WB2K15 BUMPER BLACK
WB02K0015 WB02K0015 BUMPER, BLACK
WB29K0047 WB29K0047 BURNER CAP-LARGE-BLK
WB29K0041 WB29K0041 BURNER CAP-SM-BLK
WB16K0010 WB16K0010 BURNER HEAD-LARGE
WB29K41 WB29K41 CAP BURNER
WB29K47 WB29K47 CAP BURNER
WB29K44 WB29K44 CAP BURNER
WB29K0044 WB29K0044 CAP BURNER MED (BK)
WB7K341 WB7K341 CAP END LEFT
WB07K0341 WB07K0341 CAP END LEFT (BK)
WB7K340 WB7K340 CAP END RGHT
WB07K0340 WB07K0340 CAP END RIGHT (BK)
WB02K0036 WB02K0036 CLAMP CABLE
WB2K36 WB2K36 CLAMP CABLE
WB02K0010 WB02K0010 CLIP CAPILLARY
WB02K10073 WB02K10073 CLIP CAPILLARY
WB1K56 WB1K56 CLIP ELECTRD
WB02K0052 WB02K0052 CLIP RANGETOP
WB2K52 WB2K52 CLIP RNGETOP
WB02X7066 WB02X7066 CLIP WIRE
WB2K22 WB2K22 CLIP WIRE
WB02K0022 WB02K0022 CLIP WIRE
WB01X0119 WB01X0119 CONTOURED WASHER
WB62K0065 WB62K0065 COOKTOP (AL)
WB62K65 WB62K65 COOKTOP (AL)
WB02K0004 WB02K0004 COVER ACCESS SPRING
WB34K0021 WB34K0021 COVER BACK PANEL
WB36K0017 WB36K0017 COVER BACK UPPER
WB07K0243 WB07K0243 COVER END LEFT (AD)
WB07K0242 WB07K0242 COVER END RIGHT (AD)
WB36K0002 WB36K0002 COVER LOWER BACK
WB34K10007 WB34K10007 COVER LOWER BACK
WB34K0029 WB34K0029 COVER REGULATOR
WB2K6 WB2K6 COVER THERMO
WB02K0006 WB02K0006 COVER THERMOSTAT
WB02K0108 WB02K0108 COVER VALVE
WB2K108 WB2K108 COVER VALVE
WB34K0005 WB34K0005 COVER WIRE
WB34K5 WB34K5 COVER WIRE
WB56K14 WB56K14 CRYSTAL WIND
WB56K0014 WB56K0014 CRYSTAL WINDOW
WB2K4 WB2K4 CVR ACC SPRG
WB36K17 WB36K17 CVR BACK UPR
WB34K21 WB34K21 CVR BCK PNL
WB7K243 WB7K243 CVR END LEFT
WB7K242 WB7K242 CVR END RGHT
WB34K29 WB34K29 CVR REGULATR
WB49K10037 WB49K10037 DEFLECTOR OVER
WB28K61 WB28K61 ELBOW 90 DEG
WB28K0061 WB28K0061 ELBOW 90 DEGREES
WB13K0018 WB13K0018 ELECTRODE
WB13K18 WB13K18 ELECTRODE
WB01K0056 WB01K0056 ELECTRODE CLIP
WB7X7290 WB7X7290 END CAP DOOR
WB7X7289 WB7X7289 END CAP DOOR
WB07X7182 WB07X7182 END CAP DOOR LF (BK)
WB07X7181 WB07X7181 END CAP DOOR RT (BK)
WB07X7183 WB07X7183 END CAP HANDLE (BLK)
WB7X7183 WB7X7183 END CAP HNDL
WB01X0560 WB01X0560 FIBER WASHER
WB49K0044 WB49K0044 FLAME SPREADER
WB63K31 WB63K31 FRAME WELD
WB63K0031 WB63K0031 FRAME WELD ASM
WB32K0003 WB32K0003 GASKET DOOR ASM
WB35X29720 WB35X29720 GASKET DOOR ASM
WB32K0002 WB32K0002 GASKET OVEN SEAL LG
WB32K0001 WB32K0001 GASKET VENT
WB32K1 WB32K1 GASKET VENT
WB2K66 WB2K66 GD SUPT RGTP
WB57K0004 WB57K0004 GLASS DOOR (BLK)
WB57K4 WB57K4 GLASS DR BLK
WB02X7701 WB02X7701 GLIDER
WB2X8248 WB2X8248 GLIDER ADJ
WB31K0021 WB31K0021 GRATE HP (BK)
WB2K8 WB2K8 GROMMET
WB32K2 WB32K2 GSKT OV SEAL
WB56K0015 WB56K0015 GUARD INSULATION
WB56K10020 WB56K10020 GUARD INSULATION
WB02K0066 WB02K0066 GUIDE SUPPORT RGTP
WB15K18 WB15K18 HANDLE BROIL
WB15K0018 WB15K0018 HANDLE BROIL (AD)
WB15K5078 WB15K5078 HANDLE OVEN DR-WHITE
WB18K6 WB18K6 HARN WIRE HV
WB18K0006 WB18K0006 HARNESS HV
WB16K11 WB16K11 HEAD BURNER
WB16K12 WB16K12 HEAD BURNER
WB16K0011 WB16K0011 HEAD-BURNER MED
WB16K0012 WB16K0012 HEAD-BURNER SMALL
WB10K12 WB10K12 HINGE ASM GD
WB10K0012 WB10K0012 HINGE ASM GUIDE
WB10K0006 WB10K0006 HINGE BROILER LEFT
WB10K0005 WB10K0005 HINGE BROILER RIGHT
WB34K0004 WB34K0004 HINGE GUARD LEFT
WB34K0003 WB34K0003 HINGE GUARD RIGHT
WB2X6195 WB2X6195 HINGE PIN
WB10K6 WB10K6 HNGE BROIL L
WB10K5 WB10K5 HNGE BROIL R
WB34K4 WB34K4 HNGE GRD LFT
WB34K3 WB34K3 HNGE GRD RGT
WB02K0011 WB02K0011 HOOK DOOR SPRING
WB2K11 WB2K11 HOOK DR SPRG
WB8K1 WB8K1 HOUS RECEPTL
WB08K0001 WB08K0001 HOUSING RECEPTACLE
WB13K21 WB13K21 IGNITER OVEN
WB13K0021 WB13K0021 IGNITER-OVEN BAKE
WB35K3 WB35K3 INS DRAWER
WB35K1 WB35K1 INS OV WRAP
WB35K16 WB35K16 INSUL OVBACK
WB35K11 WB35K11 INSULATION
WB35K12 WB35K12 INSULATION **NLA*
WB35K0003 WB35K0003 INSULATION DRAWER
WB35K0016 WB35K0016 INSULATION OVEN BACK
WB35K0001 WB35K0001 INSULATION OVEN WRAP
WB35K0014 WB35K0014 INSULATION TOP DOOR
WB31K10172 WB31K10172 KIT GRATES ASM BLACK
WB03K10049 WB03K10049 KNOB-TOP BURNERS (BLACK)
WB18K0007 WB18K0007 LINE CORD
WB18K10036 WB18K10036 LINE CORD
WB55K14 WB55K14 LINER ASM
WB55K0014 WB55K0014 LINER ASM WELD DOOR
WB39K0005 WB39K0005 LINER DRAWER
WB39K5 WB39K5 LINER DRAWER
WB07K0005 WB07K0005 LOWER FRONT TRIM
WB7K5 WB7K5 LWR FRT TRIM
WB28K0066 WB28K0066 MANIFOLD
WB28K66 WB28K66 MANIFOLD
WB28K168 WB28K168 NAT GAS CONV
WB28K0168 WB28K0168 NAT GAS CONVERSION KIT
WB01K0004 WB01K0004 NUT
WB1K4 WB1K4 NUT
WB01K0006 WB01K0006 NUT LOCK
WB1K6 WB1K6 NUT LOCK
WB01K0003 WB01K0003 NUT SPEED
WB1K3 WB1K3 NUT SPEED
WB28K144 WB28K144 ORIF SPUD LG
WB28K145 WB28K145 ORIF SPUD LP
WB28K146 WB28K146 ORIF SPUD LP
WB28K0144 WB28K0144 ORIF. SPUD (LP) .56LMM
WB28K0145 WB28K0145 ORIF. SPUD (LP) .78LMM
WB28K0146 WB28K0146 ORIF. SPUD (LP) .90 LMM
WB53K4 WB53K4 OV BACK 24
WB53K0004 WB53K0004 OVEN BACK 24 INCH
WB16K0027 WB16K0027 OVEN BURNER
WB16K10043 WB16K10043 OVEN BURNER BAKE
WB15K5076 WB15K5076 OVEN DOOR HANDLE (BLACK)
WB53K0003 WB53K0003 OVEN SIDE LEFT
WB53K3 WB53K3 OVEN SIDE LF
WB53K0002 WB53K0002 OVEN SIDE RIGHT
WB53K2 WB53K2 OVEN SIDE RT
WB53K0001 WB53K0001 OVEN TOP
WB53K1 WB53K1 OVEN TOP
WB11K0050 WB11K0050 OVERLAY (BK)
WB11K50 WB11K50 OVERLAY (BK)
WB2K85 WB2K85 PAD (FELT)
WB02K0085 WB02K0085 PAD FELT (WH)
WB49K0002 WB49K0002 PAN BROILER
WB32K0010 WB32K0010 PAN UNIT LEFT (BK)
WB32K0009 WB32K0009 PAN UNIT RIGHT (BK)
WB39K0004 WB39K0004 PANEL DRAWER ALMOND
WB36K0027 WB36K0027 PANEL MANIFOLD (BK)
WB63K0025 WB63K0025 PANEL REAR BROIL
WB63K51 WB63K51 PANEL SIDE
WB63K0051 WB63K0051 PANEL SIDE (AL)
WB63K0003 WB63K0003 PANEL SIDE BROIL LFT
WB63K0002 WB63K0002 PANEL SIDE BROIL RT
WB1K7 WB1K7 PIN BROILER
WB01K0007 WB01K0007 PIN BROILER RT
WB14K0005 WB14K0005 PIN HINGE
WB14K5 WB14K5 PIN HINGE
WB02X6195 WB02X6195 PIN HINGE DOOR
WB2K17 WB2K17 PIN LOCATOR
WB02K0017 WB02K0017 PIN LOCATOR FRONT
WB37K0018 WB37K0018 PLATE END LEFT
WB37K18 WB37K18 PLATE END LT
WB37K0017 WB37K0017 PLATE END RIGHT
WB37K17 WB37K17 PLATE END RT
31-20615 31-20615 PM MINI-MANUAL/ELEC
WB39K4 WB39K4 PNL DRWR AD
WB36K27 WB36K27 PNL MANIFOLD
WB63K25 WB63K25 PNL RR BROIL
WB63K3 WB63K3 PNL SD BRO L
WB63K2 WB63K2 PNL SD BRO R
WB48K0002 WB48K0002 RACK BROILER PAN
WB48K0004 WB48K0004 RACK OVEN
WB48T10095 WB48T10095 RACK OVEN
WB63K0021 WB63K0021 RANGE BACK
WB63K21 WB63K21 RANGE BACK
WB63K0004 WB63K0004 RANGE BOTTOM
WB63K4 WB63K4 RANGE BOTTOM
WB08K0002 WB08K0002 RECEPTACLE PUSH IN
WB08T10026 WB08T10026 RECEPTACLE PUSH-IN
WB19K28 WB19K28 REG PRESSURE
WB19K0028 WB19K0028 REGULATOR PRESSURE
WB2X1082 WB2X1082 RETAINER
WB02X1082 WB02X1082 RING RETAINING
WB1K45 WB1K45 SCR&WSHR ASM
WB01X5731 WB01X5731 SCREW
WB01K0084 WB01K0084 SCREW
WB01K0001 WB01K0001 SCREW
WB01K0021 WB01K0021 SCREW
WB1X1293 WB1X1293 SCREW
WB1X5716 WB1X5716 SCREW
WB1K5062 WB1K5062 SCREW
WB1K5119 WB1K5119 SCREW
WB1K84 WB1K84 SCREW & WASH
WB01K0042 WB01K0042 SCREW (BLK)
WB01X5716 WB01X5716 SCREW (BLK)
WB01X5364 WB01X5364 SCREW (CR)
WB1K69 WB1K69 SCREW 10-16
WB01K0069 WB01K0069 SCREW 10-16 DOOR
WR01X10065 WR01X10065 SCREW 10-32 GXTT FLP 595 S
WB01K0070 WB01K0070 SCREW 7-19
WB1K75 WB1K75 SCREW 8-18 A
WB01K0075 WB01K0075 SCREW 8-18 AB T 1.5 (BK)
WB1K5 WB1K5 SCREW 8-18 X 1/2
WZ04X0345 WZ04X0345 SCREW 8-18X5/8 HXW
WB1K67 WB1K67 SCREW 8-22
WB1K62 WB1K62 SCREW HEAD PAINTED BLACK
WB1K53 WB1K53 SCREW HINGE
WB1X5364 WB1X5364 SCREW MTG
WB01K0062 WB01K0062 SCREW MTG END CAP (BK)
WB01K0053 WB01K0053 SCREW MTG HINGE (TORX)
WB01K0050 WB01K0050 SCREW MTG IGNITER
WB01X0558 WB01X0558 SCREW NAIL POINT
WB1K8 WB1K8 SCREW THERMO
WB01K0008 WB01K0008 SCREW THERMOSTAT
WB01K0045 WB01K0045 SCREW WASHER ASM
WB1X5731D WB1X5731D SCREW-PKG 12
WZ4X345D WZ4X345D SCREW-PKG 12
WB1X558D WB1X558D SCREW-PKG 12
WB34K0002 WB34K0002 SHIELD VALVE
WB34K2 WB34K2 SHIELD VALVE
WB35K0011 WB35K0011 SIDE INSULATION DOOR
WB39K2 WB39K2 SLIDE BOT LF
WB39K1 WB39K1 SLIDE BOT RT
WB39K8 WB39K8 SLIDE BRLR P
WB39K7 WB39K7 SLIDE BRLR P
WB39K0009 WB39K0009 SLIDE BROILER
WB39K0008 WB39K0008 SLIDE BROILER PAN LEFT
WB39K0007 WB39K0007 SLIDE BROILER PAN RIGHT
WB39K9 WB39K9 SLIDE BROILR
WB39K0002 WB39K0002 SLIDE RANGE BOTTOM LEFT
WB39K0001 WB39K0001 SLIDE RANGE BOTTOM RIGHT
WB02K0084 WB02K0084 SPACER
WB02K0014 WB02K0014 SPACER
WB2K84 WB2K84 SPACER
WB2K14 WB2K14 SPACER
WB13K25 WB13K25 SPARK MODULE
WB13K0025 WB13K0025 SPARK MODULE 4+0
WB1X5743D WB1X5743D SPDNUT-PKQ12
WB01K0002 WB01K0002 SPEEDNUT
WB01X5743 WB01X5743 SPEEDNUT
WB1K2 WB1K2 SPEEDNUT
WB9K3 WB9K3 SPRG BROIL L
WB9K2 WB9K2 SPRG BROIL R
WB09K0003 WB09K0003 SPRING BROILER LEFT
WB09K0002 WB09K0002 SPRING BROILER RIGHT
WB09K0004 WB09K0004 SPRING DOOR
WB9K4 WB9K4 SPRING DOOR
WB02K0091 WB02K0091 SUPPORT RANGETOP
WB10K0014 WB10K0014 SUPPORT RIVET LFT
WB10K0013 WB10K0013 SUPPORT RIVET RT
WB2K91 WB2K91 SUPPORT TOP
WB10K14 WB10K14 SUPT RIVET
WB10K13 WB10K13 SUPT RIVET
WB03K0160 WB03K0160 SURFACE BURNER KNOB (BK)
WB24K0003 WB24K0003 SWITCH ROCKER (BLK)
WB24K0030 WB24K0030 SWITCH VALVE BRNR
WB24X415 WB24X415 SWITCH-LITE
WB3K60 WB3K60 THERMOS KNOB
WB20K8 WB20K8 THERMOSTAT
WB03K0065 WB03K0065 THERMOSTAT KNOB (BK)
WB11K0044 WB11K0044 TIMER (NO OVERLAY)
WB27T10469 WB27T10469 TIMER TOD LED
WB35K14 WB35K14 TOP INSULATI
WB07K10232 WB07K10232 TRIM BOTTOM ASM
WB07K0379 WB07K0379 TRIM BOTTOM DOOR (BK)
WB36K0096 WB36K0096 TRIM CONTROL (BK)
WB36K96 WB36K96 TRIM CTRL BK
WB07K10104 WB07K10104 TRIM DOOR (BLACK)
WB07X7185 WB07X7185 TRIM DOOR (BLK)
WB7K403 WB7K403 TRIM TOP DR
WB07K0403 WB07K0403 TRIM VENT ASM DOOR BLK
WB16K14 WB16K14 TUBE AIR-MIX
WB16K13 WB16K13 TUBE AIR-MIX
WB16K0013 WB16K0013 TUBE AIR-MIXER
WB16K0014 WB16K0014 TUBE AIR-MIXER (SM)
WB28K0149 WB28K0149 TUBE VALVE SUPPLY
WB28K0148 WB28K0148 TUBE VALVE SUPPLY
WB28K149 WB28K149 TUBE VLV SUP
WB28K148 WB28K148 TUBE VLV SUP

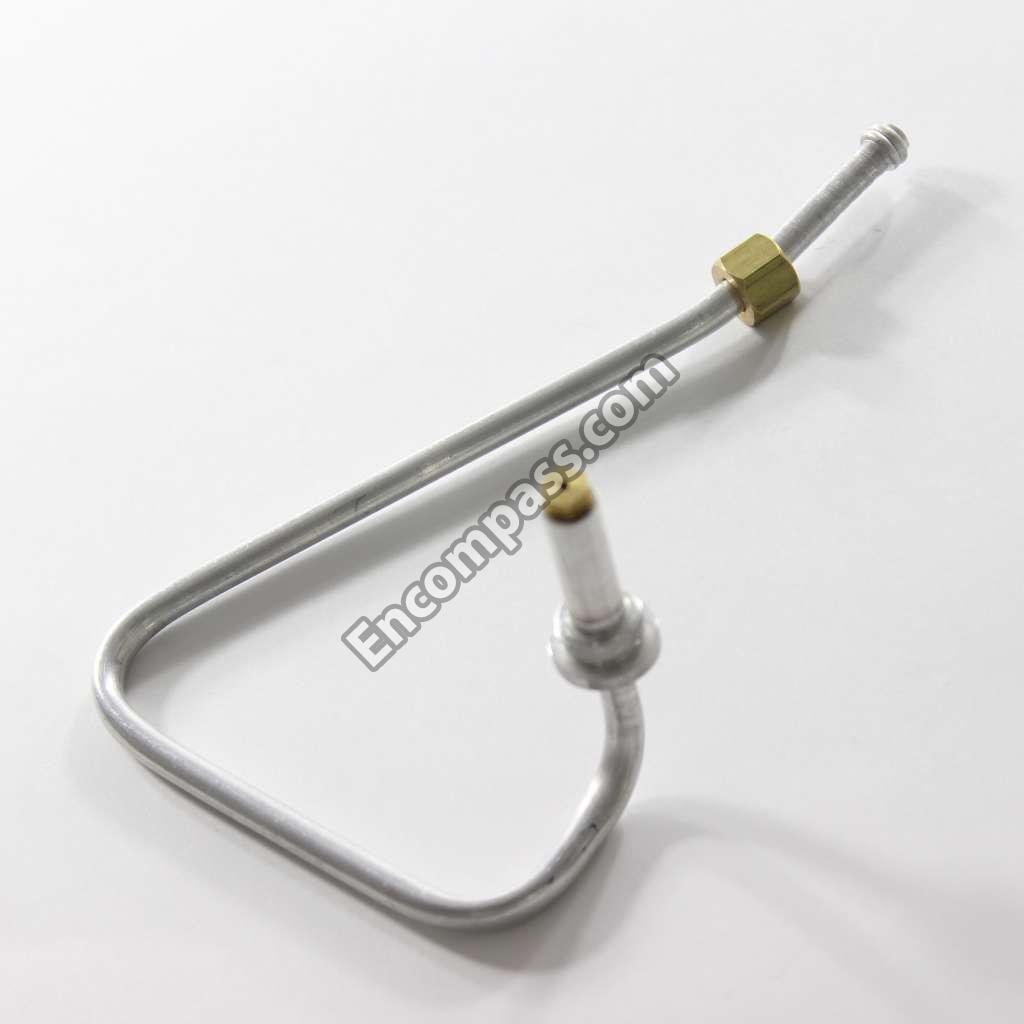

WB28K186 WB28K186 TUBE-ORIF.
WB28K189 WB28K189 TUBE-ORIF.
WB28K187 WB28K187 TUBE-ORIF.
WB28K188 WB28K188 TUBE-ORIF.
WB28K0187 WB28K0187 TUBE-ORIF. HOLDER LT FT
WB28K0189 WB28K0189 TUBE-ORIF. HOLDER LT RR
WB28K0186 WB28K0186 TUBE-ORIF. HOLDER RT FT
WB28K0188 WB28K0188 TUBE-ORIF. HOLDER RT RR
49-8765 49-8765 USE CARE MANUAL
WB21K28 WB21K28 VALVE
WB21K27 WB21K27 VALVE
WB24K30 WB24K30 VALVE BURNER
WB21K26 WB21K26 VALVE CTL
WB21K0026 WB21K0026 VALVE CTL RT FT BURNER
WB21K0028 WB21K0028 VALVE CTL RT RR BURNER
WB21K0027 WB21K0027 VALVE LEFT BURNERS
WB19K31 WB19K31 VALVE SAFETY
WB19K0031 WB19K0031 VALVE SAFETY ASM
WB38K0001 WB38K0001 VENT ASM
WB38K1 WB38K1 VENT ASM
WB01K0057 WB01K0057 WASHER (CLEAR)
WB1K57 WB1K57 WASHER(CLEAR
WB1X560D WB1X560D WASHR-PKG 12
WB1X119D WB1X119D WASHR-PKG 12
Main Menu x
