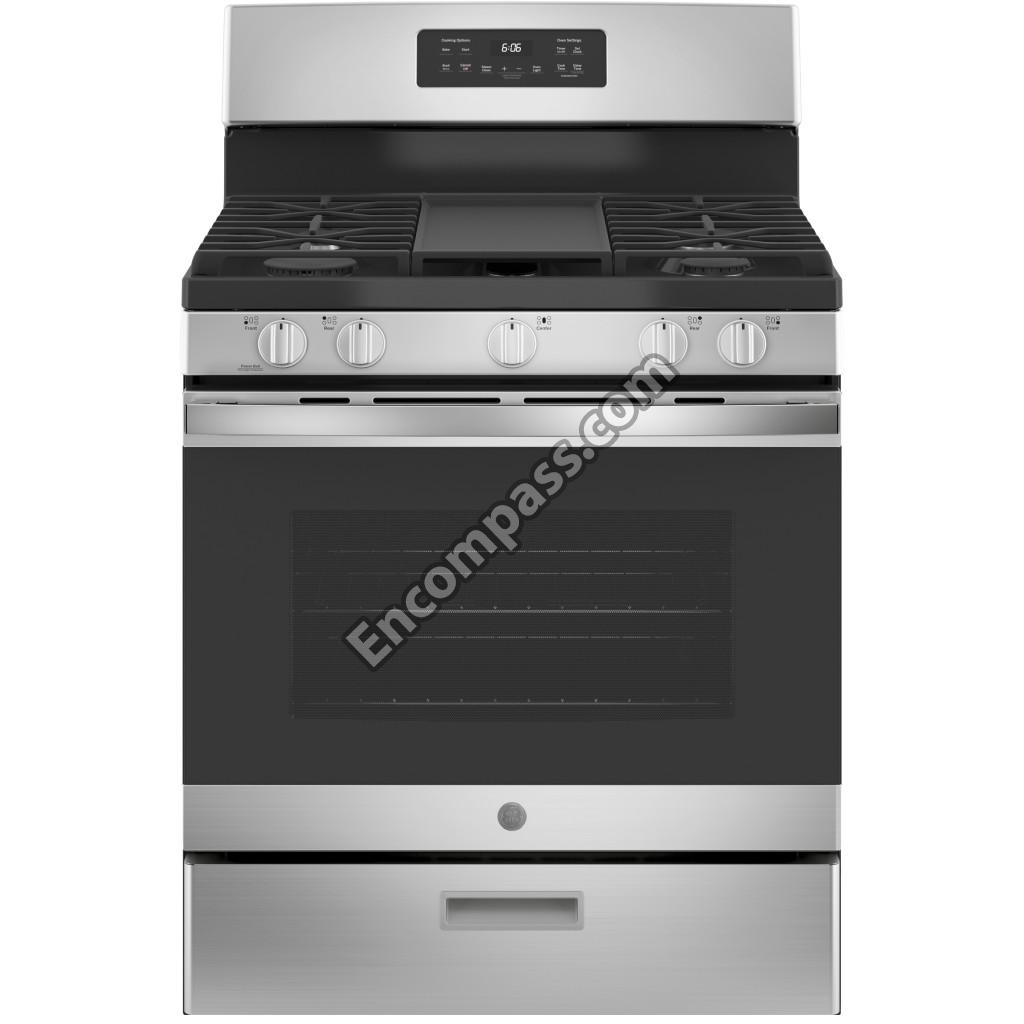

Model Image
Manufacturer

GE

Model Number

JGBS66REK1SS

Description

Gas Range Or Dual Fuel

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WB29K10024 WB29K10024 GE 000 BTUS GAS RANGE BURNER CAP-LARGE; 12
40A15 40A15 GE 40WATT 15AMP INC AND ESCENT BULB
WB29K10023 WB29K10023 GE 500 BTUS GAS RANGE MEDIUM BURNER CAP; 9
WB28K10023 WB28K10023 GE 89MM RANGE ORIFICE SPUD - NG TO LP
WB02K0003 WB02K0003 GE ANGLE SUPPORT
WB2K3 WB2K3 GE ANGLE SUPPRT
WB36X25218 WB36X25218 GE BACKGUARD RANGE
WB35K10147 WB35K10147 GE BOTTOM INSULATION DOOR
WB35X37970 WB35X37970 GE BOTTOM OVEN AND DEFLECTOR ASM
WB63K10029 WB63K10029 GE BOTTOM RANGE
WB63X26259 WB63X26259 GE BRACE BOTTOM
WB38K0002 WB38K0002 GE BRACE VENT
WB02K10254 WB02K10254 GE BRACKET ANTI-TIP ASSEMBLY
WB02X22890 WB02X22890 GE BRACKET REGULATOR
WB02K0065 WB02K0065 GE BRACKET SAFETY VALVE
WB01K0043 WB01K0043 GE BRACKET SUPPORT
WB1K43 WB1K43 GE BRACKET SUPT
WB2K65 WB2K65 GE BRKT SAF VLV
WB02X24790 WB02X24790 GE BUMPER
WB02K10178 WB02K10178 GE BUMPER
WB16X20253 WB16X20253 GE BURNER OVEN ASSEMBLY
WB16X28654 WB16X28654 GE BURNER SMALL V ASSEMBLY. CAP
WB31X24737 WB31X24737 GE CENTRAL GRATE
WB02K10360 WB02K10360 GE CKT BRACKET SMALL
WB01X24735 WB01X24735 GE CKT SCREW
WB02K0036 WB02K0036 GE CLAMP CABLE
WB2K36 WB2K36 GE CLAMP CABLE
WB02K0031 WB02K0031 GE CLIP CABLE
WB02X21679 WB02X21679 GE CLIP CABLE
WB02X26569 WB02X26569 GE CLIP RANGETOP
WB02X7066 WB02X7066 GE CLIP WIRE
WB02K10267 WB02K10267 GE CLIP WIRE
WB01X0119 WB01X0119 GE CONTOURED WASHER
WB27X26655 WB27X26655 GE CONTROL OVEN TO9 (GAS)
WB34K0016 WB34K0016 GE COVER BACK
WB34X21575 WB34X21575 GE COVER BACK
WB34K16 WB34K16 GE COVER BACK
WB34X24746 WB34X24746 GE COVER BACK LOWER
WB34X24851 WB34X24851 GE COVER BACK UPPER
WB02K0024 WB02K0024 GE COVER VALVE
WB07X26414 WB07X26414 GE COVER VENT TRIM
WB56X23809 WB56X23809 GE CRYSTAL WINDOW
WB49K10037 WB49K10037 GE DEFLECTOR OVEN
WB56X26616 WB56X26616 GE DIVERTER SIDE
WB56X26617 WB56X26617 GE DIVERTER SIDE
WB01K10037 WB01K10037 GE ECONOMIC NUT
WB18X26961 WB18X26961 GE ELECTRODES AND HARNESS H.V
WB49K0044 WB49K0044 GE FLAME SPREADER
WB02X28737 WB02X28737 GE FRAME FRONT BUMPER
WB63X20251 WB63X20251 GE FRAME WELD ASSEMBLY
WB31X49806 WB31X49806 GE GAS RANGE ALUMINUM GRIDDLE
WB28K10222 WB28K10222 GE GAS RANGE BURNER CAP - XL V2
WB18K10036 WB18K10036 GE GAS RANGE CORD
WB35X29720 WB35X29720 GE GASKET DOOR ASM
WB32K0001 WB32K0001 GE GASKET VENT
WB32K1 WB32K1 GE GASKET VENT
WB31X24736 WB31X24736 GE GRATE ASM
WB02K10294 WB02K10294 GE GROMMET
WB2K8 WB2K8 GE GROMMET
WB15X26624 WB15X26624 GE HANDLE AND END CAP ASSEMBLY
WB15X26672 WB15X26672 GE HANDLE BROIL
WB18X32406 WB18X32406 GE HARNESS CONTROL
WB10X21809 WB10X21809 GE HINGE DOOR
WB10X26678 WB10X26678 GE HINGE DOOR
WB34K0004 WB34K0004 GE HINGE GUARD LEFT
WB34K0003 WB34K0003 GE HINGE GUARD RIGHT
WB14K10003 WB14K10003 GE HINGE RANGE TOP
WB34K4 WB34K4 GE HNGE GRD LFT
WB34K3 WB34K3 GE HNGE GRD RGT
WB8K1 WB8K1 GE HOUS RECEPTL
WB08K0001 WB08K0001 GE HOUSING RECEPTACLE
WB13K21 WB13K21 GE IGNITER OVEN
WB13K0021 WB13K0021 GE IGNITER-OVEN BAKE
WB35K16 WB35K16 GE INSUL OVBACK
WB35X24985 WB35X24985 GE INSULATION BURNER BOX
WB35X21579 WB35X21579 GE INSULATION FRONT DOOR
WB35K0016 WB35K0016 GE INSULATION OVEN BACK
WB35K10157 WB35K10157 GE INSULATION OVEN WRAP
WB35K10148 WB35K10148 GE INSULATION TOP DOOR
WB28X29254 WB28X29254 GE KIT NG HIGH ALTITUDE ASM
WB16X24723 WB16X24723 GE LARGE V2 BURNER
WB56X26676 WB56X26676 GE LINER DRAWER
WB36X32657 WB36X32657 GE MANIFOLD PANEL
WB28X24765 WB28X24765 GE MANIFOLD PIPE
WB34X20680 WB34X20680 GE MANIFOLD SUPPORT
WB16X24724 WB16X24724 GE MEDIUM V2 BURNER
WB01K0006 WB01K0006 GE NUT LOCK
WB1K6 WB1K6 GE NUT LOCK
WB28X24764 WB28X24764 GE ORIFICE HOLDER
WB28X26621 WB28X26621 GE ORIFICE HOLDER
WB28X24762 WB28X24762 GE ORIFICE HOLDER CENTRAL
WB28K10834 WB28K10834 GE ORIFICE SPUD
WB28X26625 WB28X26625 GE ORIFICE SPUD
WB28K10032 WB28K10032 GE ORIFICE-LP LG 99MM
WB16K10076 WB16K10076 GE OVAL BURNER ASSEMBLY
WB63X20219 WB63X20219 GE OVEN BACK
WB28X21079 WB28X21079 GE OVEN ORIFICE SPUD LP
WB48X26677 WB48X26677 GE OVEN RACK
WB53K10035 WB53K10035 GE OVEN SIDE LEFT
WB53K10034 WB53K10034 GE OVEN SIDE RIGHT
WB53K10015 WB53K10015 GE OVEN TOP
WB07X26702 WB07X26702 GE OVERLAY T09
WB56X20809 WB56X20809 GE PANEL BACKER
WB63X26890 WB63X26890 GE PANEL BROILER
WB56X27780 WB56X27780 GE PANEL DRAWER
WB63X26606 WB63X26606 GE PANEL REAR BROIL
WB35X26892 WB35X26892 GE PANEL SIDE FOIL
49-85224 49-85224 GE PM GAS QUICK GUIDE
31-10998 31-10998 GE PM INSTALL INSTRUCTIONS
31-17101 31-17101 GE PM INSTALL INSTRUCTIONS
31-17233 31-17233 GE PM MANUAL MINI & WD ASM
WB63X20207 WB63X20207 GE RANGE BACK
WB07X20288 WB07X20288 GE RANGE BARRIER DOOR
WB01X26891 WB01X26891 GE RANGE BROIL ELEMENT CLIP
WB28K10215 WB28K10215 GE RANGE BURNER ORIFICE
WB02X24845 WB02X24845 GE RANGE CONTROL BRACKET
WB56X20206 WB56X20206 GE RANGE DOOR PANEL
WB07X24732 WB07X24732 GE RANGE END SUPPORT - LEFT - BLACK
WB07X24733 WB07X24733 GE RANGE END SUPPORT - RIGHT - BLACK
WB18X31213 WB18X31213 GE RANGE HARNESS SWITCHES
WB10X20220 WB10X20220 GE RANGE HINGE RECEIVER
WB49X21392 WB49X21392 GE RANGE HINGE SERVICE KIT
WB02X24976 WB02X24976 GE RANGE IGNITER CLIP V2
WB1X1293 WB1X1293 GE RANGE IGNITER MOUNTING SCREW
WB02X24726 WB02X24726 GE RANGE INJET LARGE
WB02X24727 WB02X24727 GE RANGE INJET MEDIUM
WB02X24728 WB02X24728 GE RANGE INJET SMALL
WB02X24725 WB02X24725 GE RANGE INJET XL V2
WB56K10033 WB56K10033 GE RANGE INSULATION
WB03X24818 WB03X24818 GE RANGE KNOB - STAINLESS STEEL
WB02K10182 WB02K10182 GE RANGE LEVELING LEG
WB49X26658 WB49X26658 GE RANGE LP CONVERSION KIT
WB28X24766 WB28X24766 GE RANGE ORIFICE HOLDER
WB28X24763 WB28X24763 GE RANGE ORIFICE HOLDER LR
WB56X26696 WB56X26696 GE RANGE OVEN DOOR
WB48X20249 WB48X20249 GE RANGE OVEN RACK
WB35X26709 WB35X26709 GE RANGE SIDE INSULATION
WB02X24940 WB02X24940 GE RANGE SIDE MANIFOLD BRACKET
WB02X24939 WB02X24939 GE RANGE SIDE MANIFOLD BRACKET
WB56X22008 WB56X22008 GE RANGE SIDE PANEL
WB13X26360 WB13X26360 GE RANGE SPARK MODULE 6+0
WB20K10015 WB20K10015 GE RANGE TEMPERATURE SENSOR
WB01K10080 WB01K10080 GE RANGE THERMOSTAT SCREW
WB02K10297 WB02K10297 GE RANGE VALVE BRACKET
WB38K2 WB38K2 GE RANGE VENT BRACE
WB62X24778 WB62X24778 GE RANGETOP AND BRACKET ASSEMBLY
WB02X24942 WB02X24942 GE RANGETOP HOLDER
WB02X24941 WB02X24941 GE RANGETOP HOLDER
WB08T10026 WB08T10026 GE RECEPTACLE PUSH-IN
WB02X32441 WB02X32441 GE SCR 10-16 PL PNT 2.5 S
WB01K0035 WB01K0035 GE SCREW
WB01K0001 WB01K0001 GE SCREW
WB01K10091 WB01K10091 GE SCREW
WB1K5062 WB1K5062 GE SCREW
WB1X1261 WB1X1261 GE SCREW
WB1X5716 WB1X5716 GE SCREW
WB1X536 WB1X536 GE SCREW
WB1K5099 WB1K5099 GE SCREW
WB1K5119 WB1K5119 GE SCREW
WB01K0042 WB01K0042 GE SCREW (BLK)
WB01X5716 WB01X5716 GE SCREW (BLK)
WB01X0593 WB01X0593 GE SCREW - DOOR ASM (4 PER)
WB01T10008 WB01T10008 GE SCREW 10-32 TR T
WB01T10016 WB01T10016 GE SCREW 8-18 AB HXW 5/8 S
WZ4X345D WZ4X345D GE SCREW 8-18X5/8 HXW
WB01K10002 WB01K10002 GE SCREW 8-32
WB01X1261 WB01X1261 GE SCREW GROUND
WB1K53 WB1K53 GE SCREW HINGE
WB01K0053 WB01K0053 GE SCREW MTG HINGE (TORX)
WB01K0050 WB01K0050 GE SCREW MTG IGNITER
WB34K12 WB34K12 GE SHIELD RADIA
WB34K0012 WB34K0012 GE SHIELD RADIATION
WB34K0002 WB34K0002 GE SHIELD VALVE
WB34K2 WB34K2 GE SHIELD VALVE
WB35K10146 WB35K10146 GE SIDE INSULATION DOOR
WB16X24721 WB16X24721 GE SMALL V2 BURNER
WB02K10156 WB02K10156 GE SPACER
WB16X20449 WB16X20449 GE SPACER BASE
WB16X20448 WB16X20448 GE SPACER BASE
WB1X5743D WB1X5743D GE SPDNUT-PKQ12
WB01X5743 WB01X5743 GE SPEEDNUT
WB39K0033 WB39K0033 GE SUPPORT
WB39K33 WB39K33 GE SUPPORT
WB63X20216 WB63X20216 GE SUPPORT BASE
WB63X20215 WB63X20215 GE SUPPORT BASE
WB56X26681 WB56X26681 GE TOP COMPLEMENT BACKGUARD
WB07X20354 WB07X20354 GE TRIM DOOR
WB28X24772 WB28X24772 GE TUBE MANIFOLD SUPPLY
WB21X20260 WB21X20260 GE VALVE BURNER 270
WB21X20261 WB21X20261 GE VALVE BURNER 270
WB21X20262 WB21X20262 GE VALVE BURNER 270
WB21X20394 WB21X20394 GE VALVE BURNER 270
WB21X20252 WB21X20252 GE VALVE CONTROL ASSEMBLY NOR. S
WB2K24 WB2K24 GE VALVE COVER
WB38K10008 WB38K10008 GE VENT ASSEMBLY
WB07X26937 WB07X26937 GE VENT TRIM
WB02X32440 WB02X32440 GE WASHER CONTOURED
WB1X119D WB1X119D GE WASHR-PKG 12
WB16X24722 WB16X24722 GE XL V2 BURNER
