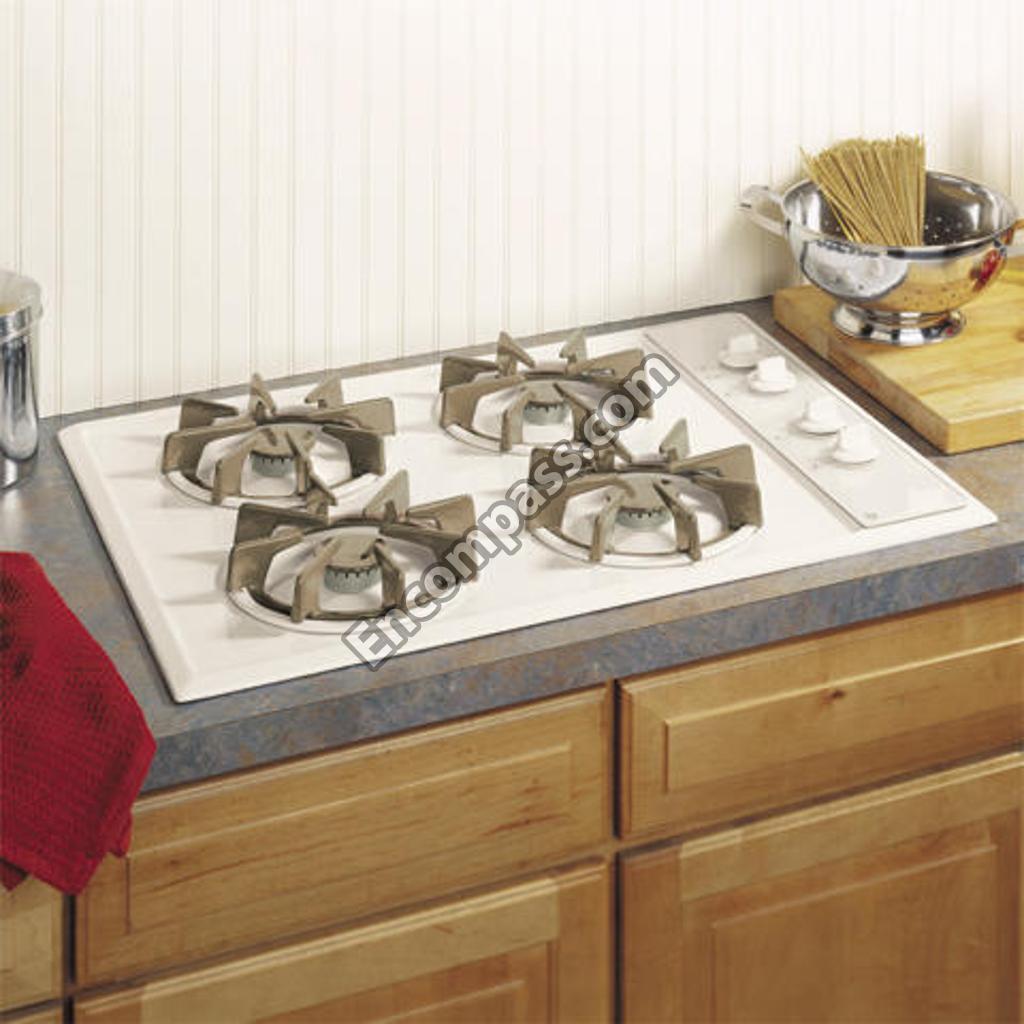

Model Image
Manufacturer

GE

Model Number

JGP326CEF1CC

Description

Gas Range Or Dual Fuel

Interactive Exploded View

Parts List

Part Number Description
WB31T10079 WB31T10079 BISQUE GAS BURNER BOWL SMALL
WB2K5375 WB2K5375 BOWL BRACKET
WB2K5376 WB2K5376 BOWL BRACKET
WB02K5375 WB02K5375 BOWL BRACKET-MED, LG
WB02K5376 WB02K5376 BOWL BRACKET-SMALL
WB31T10080 WB31T10080 BOWL BURNER (BQT)
WB64T10037 WB64T10037 BOX BURNER
WB2K5328 WB2K5328 BRKT HOLD DN
WB31K5092 WB31K5092 BURNER BOWL-WHT-MED, LG
WB31K5091 WB31K5091 BURNER BOWL-WHT-SM
WB02X9495 WB02X9495 BURNER BOX SHIELD
WB29T10006 WB29T10006 BURNER CAP FINISH MEDIUM
WB29K43 WB29K43 CAP BURNER
WB29X22306 WB29X22306 CAP BURNER KIT
WB6X93 WB6X93 CLAMP
WB1K56 WB1K56 CLIP ELECTRD
WB57T10036 WB57T10036 CONTROL PANE
WB57T10037 WB57T10037 CONTROL PANE
WB32K5048 WB32K5048 CONTROL SEAL-AD
WB32K5027 WB32K5027 CONTROL SEAL-GRAY
WB13K0018 WB13K0018 ELECTRODE
WB13K18 WB13K18 ELECTRODE
WB01K0056 WB01K0056 ELECTRODE CLIP
WB06T10002 WB06T10002 FOAM TAPE
WB31K5090 WB31K5090 GAS BLACK PORCELAIN BURNER BOW
WB31K5088 WB31K5088 GAS BLACK PORCELAIN BURNER BOW
WB21K5029 WB21K5029 GAS VALVE-SMALL
WB6X91 WB6X91 GASKET
WB57T10199 WB57T10199 GLASS CONTROL PNL ASSEMBLY (BQT)
WB31T10021 WB31T10021 GRATE TAUPE
WB18T10238 WB18T10238 HARNESS WIRE BURNER
WB16K12 WB16K12 HEAD BURNER
WB16K11 WB16K11 HEAD BURNER
WB16K0011 WB16K0011 HEAD-BURNER MED
WB16K0012 WB16K0012 HEAD-BURNER SMALL
WB14X129 WB14X129 HINGE-TOP
WB02K5328 WB02K5328 HOLD DOWN BRACKET
31-10504 31-10504 INSTRUCTION INSTALL
13-10495 13-10495 INSTRUCTION LP
WB03T10187 WB03T10187 KNOB VLV GAS 210 (BQT)
WB62K10100 WB62K10100 MAIN TOP
WB62K10088 WB62K10088 MAIN TOP ASSEMBLY-WHITE
WB02K5217 WB02K5217 MAIN TOP SUPPORT
WB62T10220 WB62T10220 MAINTOP GAS ASM
WB28K5085 WB28K5085 MANIFOLD PIPE
WB02X9487 WB02X9487 MANIFOLD SEAL RETAINER
31-13973 31-13973 MANUAL MINI & WD ASM
WB13T10046 WB13T10046 MODULE SPARK (4+0)
WB14X0129 WB14X0129 MT HINGE
WB2K5217 WB2K5217 MTOP SUPPORT
WB01X1129 WB01X1129 NUT
WB1X1129 WB1X1129 NUT
WB2K5370 WB2K5370 ORIF BRACKET
WB28K145 WB28K145 ORIF SPUD LP
WB28K0145 WB28K0145 ORIF. SPUD (LP) .78LMM
WB02K5370 WB02K5370 ORIFICE BRACKET
WB28K141 WB28K141 ORIFICE SPUD
WB28K0141 WB28K0141 ORIFICE SPUD NG SM
WB28K5087 WB28K5087 ORIFICE SPUD-LP-SM
WB28K5095 WB28K5095 ORIFICE SPUD-NAT-MEDIUM
WB02K5389 WB02K5389 ORIFICE SUPPORT
WB2K5389 WB2K5389 ORIFICE SUPT
49-8878 49-8878 PM MANUAL USE & CARE
WB19T10078 WB19T10078 PRESSURE REGULATOR
WB08K5040 WB08K5040 RANGE CORD
WB8K5040 WB8K5040 RANGE CORD
WB2X9487 WB2X9487 RETAINR-SEAL
WB01X0500 WB01X0500 SCR 8-18 B HXW 1/4 S
WB01M0014 WB01M0014 SCREW
WB01K5122 WB01K5122 SCREW
WB01X1137 WB01X1137 SCREW
WB01M0001 WB01M0001 SCREW
WB1X1293 WB1X1293 SCREW
WB1M14 WB1M14 SCREW
WB1K5122 WB1K5122 SCREW
WB1K5062 WB1K5062 SCREW
WB1M1 WB1M1 SCREW
WB1X1261 WB1X1261 SCREW
WB01X1261 WB01X1261 SCREW GROUND
WB01K5062 WB01K5062 SCREW ST8-18X.500TRBRNI
WB01X1293 WB01X1293 SCREW TC10-32X.250HEXNI
WB01X1424 WB01X1424 SCREW, TRANSFORMER
WB1X1137 WB1X1137 SCREW-10AB
WB1X1118 WB1X1118 SCREW-6-32T 6-20 X 3/8
WB01X1158 WB01X1158 SCREW-NICKEL
WB1X1424D WB1X1424D SCREW-PKG 12
WB1X500D WB1X500D SCREW-PKG 12
WB32T10011 WB32T10011 SEAL MANIFOLD
WB2X9495 WB2X9495 SHIELD
WB2K5275 WB2K5275 STRAIN RELEF
WB02K5275 WB02K5275 STRAIN RELIEF-RT ANGLE
WB24T10071 WB24T10071 SWITCH GAS VALVE
WB16K13 WB16K13 TUBE AIR-MIX
WB16K14 WB16K14 TUBE AIR-MIX
WB16K0013 WB16K0013 TUBE AIR-MIXER
WB16K0014 WB16K0014 TUBE AIR-MIXER (SM)
WB28K5094 WB28K5094 TUBE ASSEMBLY LT FRT
WB28K5086 WB28K5086 TUBE ASSEMBLY RT FRT
WB28K5077 WB28K5077 TUBE ASSEMBLY RT RR
WB28K5092 WB28K5092 TUBE ASSEMBLY-LT REAR
WB06X0093 WB06X0093 VALVE CLAMP
WB21X22069 WB21X22069 VALVE GAS 210 (BLACK)
WB06X0091 WB06X0091 VALVE GASKET
WB18K5558 WB18K5558 VALVE SWITCH WIRE HARNESS
WB01X1421 WB01X1421 WASHER
WB1X1421D WB1X1421D WASHR-PKG 12
