Model Image
Manufacturer

GE

Model Number

JGP326WEV2WW

Description

Gas Range Or Dual Fuel

Interactive Exploded View

Parts List

Part Number Description
WB2K5375 WB2K5375 BOWL BRACKET
WB2K5376 WB2K5376 BOWL BRACKET
WB02K5375 WB02K5375 BOWL BRACKET-MED, LG
WB02K5376 WB02K5376 BOWL BRACKET-SMALL
WB64K5094 WB64K5094 BOX BURNER
WB02K5409 WB02K5409 BRACKET
WB2K5328 WB2K5328 BRKT HOLD DN
WB31K5092 WB31K5092 BURNER BOWL-WHT-MED, LG
WB31K5091 WB31K5091 BURNER BOWL-WHT-SM
WB02X9495 WB02X9495 BURNER BOX SHIELD
WB29K0045 WB29K0045 BURNER CAP-MED-GRAY
WB29K0042 WB29K0042 BURNER CAP-SM-GRAY
WB18K5585 WB18K5585 BURNER WIRE HARNESS
WB29X22306 WB29X22306 CAP BURNER KIT
WB6X93 WB6X93 CLAMP
WB02X9106 WB02X9106 CLIP
WB02X9733 WB02X9733 CLIP
WB2X9733 WB2X9733 CLIP
WB2X9106 WB2X9106 CLIP
WB1K56 WB1K56 CLIP ELECTRD

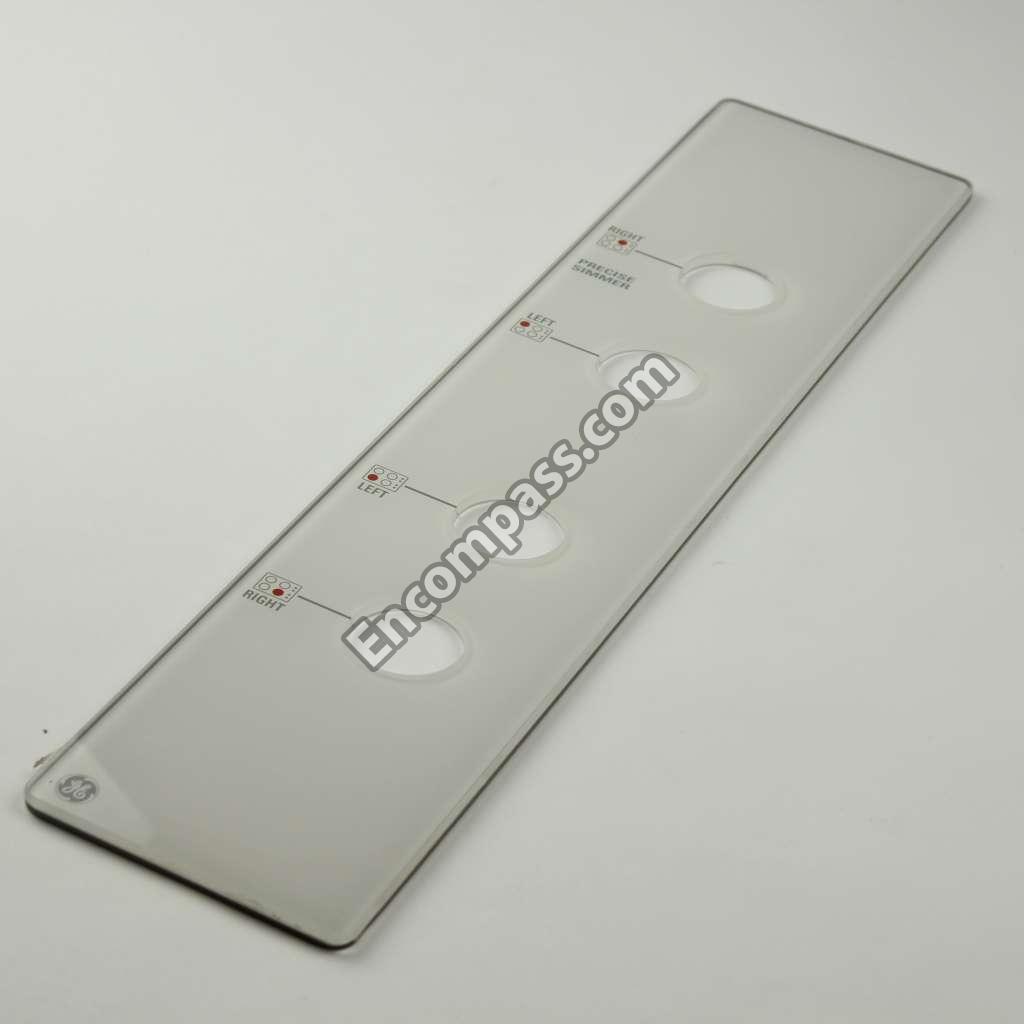

WB57T10037 WB57T10037 CONTROL PANE
WB32K5027 WB32K5027 CONTROL SEAL-GRAY
WB13K0018 WB13K0018 ELECTRODE
WB13K18 WB13K18 ELECTRODE
WB01K0056 WB01K0056 ELECTRODE CLIP
WB06K5042 WB06K5042 FOAM STRIP
WB06T10002 WB06T10002 FOAM TAPE
WB21K5029 WB21K5029 GAS VALVE-SMALL
WB6X91 WB6X91 GASKET
WB31T10004 WB31T10004 GRATE BURN (
WB16K11 WB16K11 HEAD BURNER
WB16K12 WB16K12 HEAD BURNER
WB16K0011 WB16K0011 HEAD-BURNER MED
WB16K0012 WB16K0012 HEAD-BURNER SMALL
WB14X129 WB14X129 HINGE-TOP
WB02K5328 WB02K5328 HOLD DOWN BRACKET
WB32M0007 WB32M0007 INLET-SEAL
31-10172 31-10172 INSTALLATION INSTRUCTION
31-10253 31-10253 INSTRUCTIONS INSTALL
31-10240 31-10240 INSTRUCTIONS INSTALL
WB35K5112 WB35K5112 INSULATOR MODULE
WB01X1399 WB01X1399 LOCKWASHER
WB62K10088 WB62K10088 MAIN TOP ASSEMBLY-WHITE
WB32M0001 WB32M0001 MAIN TOP SEAL
WB02K5217 WB02K5217 MAIN TOP SUPPORT
WB14K5022 WB14K5022 MAINTOP STRIKE
WB32M7 WB32M7 MANIFLD SEAL
WB28K5085 WB28K5085 MANIFOLD PIPE
WB02X9487 WB02X9487 MANIFOLD SEAL RETAINER
31-13228 31-13228 MINI MANUAL W/WIRE DIAG.
WB14X0129 WB14X0129 MT HINGE
WB2K5217 WB2K5217 MTOP SUPPORT
WB01X1129 WB01X1129 NUT
WB1X1129 WB1X1129 NUT
WB2K5370 WB2K5370 ORIF BRACKET
WB28K145 WB28K145 ORIF SPUD LP
WB28K0145 WB28K0145 ORIF. SPUD (LP) .78LMM
WB02K5370 WB02K5370 ORIFICE BRACKET
WB28K141 WB28K141 ORIFICE SPUD
WB28K0141 WB28K0141 ORIFICE SPUD NG SM
WB28K5087 WB28K5087 ORIFICE SPUD-LP-SM
WB28K5095 WB28K5095 ORIFICE SPUD-NAT-MEDIUM
WB02K5389 WB02K5389 ORIFICE SUPPORT
WB2K5389 WB2K5389 ORIFICE SUPT
WB19T10078 WB19T10078 PRESSURE REGULATOR
WB08K5040 WB08K5040 RANGE CORD
WB8K5040 WB8K5040 RANGE CORD
WB2X9487 WB2X9487 RETAINR-SEAL
WB01M0014 WB01M0014 SCREW
WB01M0001 WB01M0001 SCREW
WZ04X0044 WZ04X0044 SCREW
WB01K5122 WB01K5122 SCREW
WB01X1137 WB01X1137 SCREW
WB1K5122 WB1K5122 SCREW
WB1K5062 WB1K5062 SCREW
WB1M14 WB1M14 SCREW
WB1X1293 WB1X1293 SCREW
WB1M1 WB1M1 SCREW
WB1X1261 WB1X1261 SCREW
WH2X930 WH2X930 SCREW 8-18 AB HXW 3/8
WB01X1261 WB01X1261 SCREW GROUND
WB01K5062 WB01K5062 SCREW ST8-18X.500TRBRNI
WB01X1293 WB01X1293 SCREW TC10-32X.250HEXNI
WB01X1424 WB01X1424 SCREW, TRANSFORMER
WB1X1137 WB1X1137 SCREW-10AB
WB1X1118 WB1X1118 SCREW-6-32T 6-20 X 3/8
WB01X1158 WB01X1158 SCREW-NICKEL
WB1X1424D WB1X1424D SCREW-PKG 12
WZ4X44D WZ4X44D SCREW-PKG 12
WB2X9495 WB2X9495 SHIELD
WB13K25 WB13K25 SPARK MODULE
WB13K0025 WB13K0025 SPARK MODULE 4+0
WB2K5275 WB2K5275 STRAIN RELEF
WB02K5275 WB02K5275 STRAIN RELIEF-RT ANGLE
WB24T10071 WB24T10071 SWITCH GAS VALVE
WB02X26088 WB02X26088 TAPE FOAM
WB16K14 WB16K14 TUBE AIR-MIX
WB16K13 WB16K13 TUBE AIR-MIX
WB16K0013 WB16K0013 TUBE AIR-MIXER
WB16K0014 WB16K0014 TUBE AIR-MIXER (SM)
WB28K5094 WB28K5094 TUBE ASSEMBLY LT FRT
WB28K5086 WB28K5086 TUBE ASSEMBLY RT FRT
WB28K5077 WB28K5077 TUBE ASSEMBLY RT RR
WB28K5092 WB28K5092 TUBE ASSEMBLY-LT REAR
49-8609 49-8609 USE & CARE MANUAL
WB06X0093 WB06X0093 VALVE CLAMP

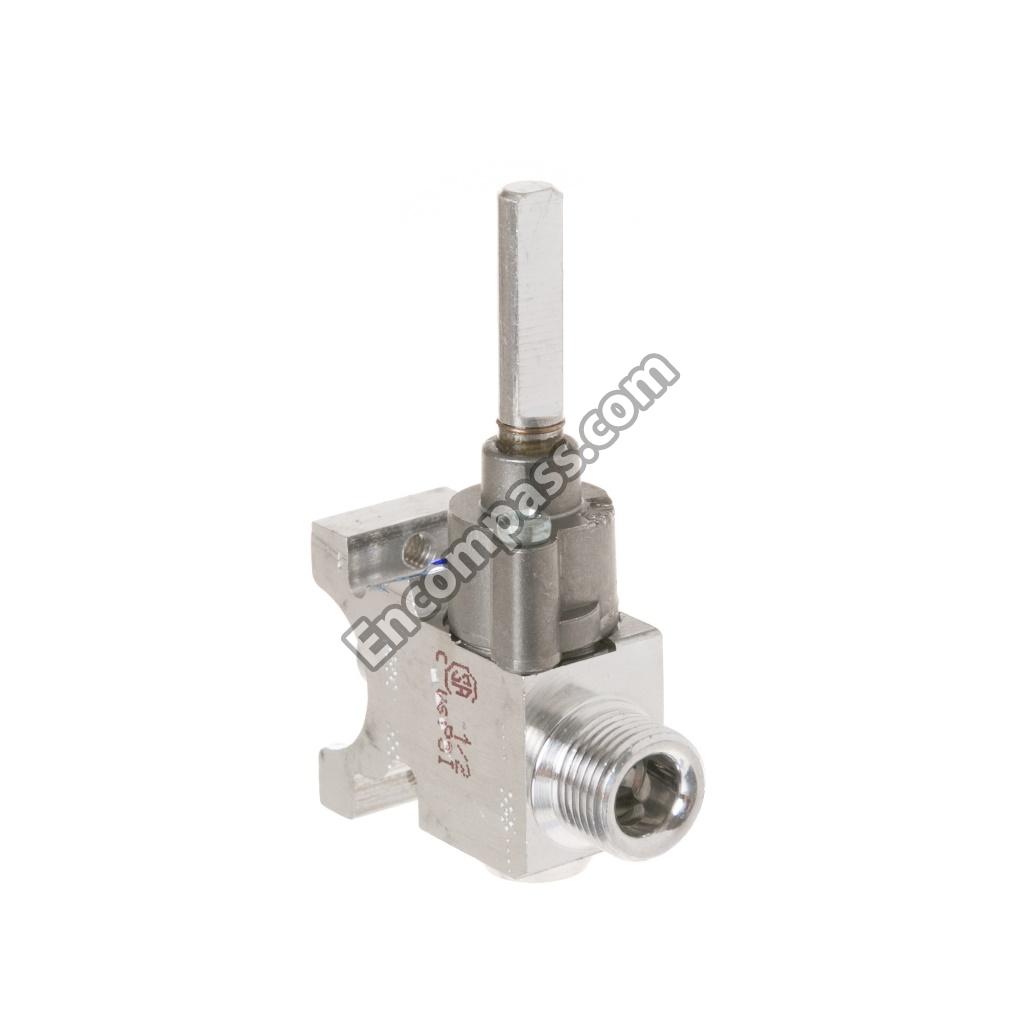

WB21X22069 WB21X22069 VALVE GAS 210 (BLACK)
WB06X0091 WB06X0091 VALVE GASKET

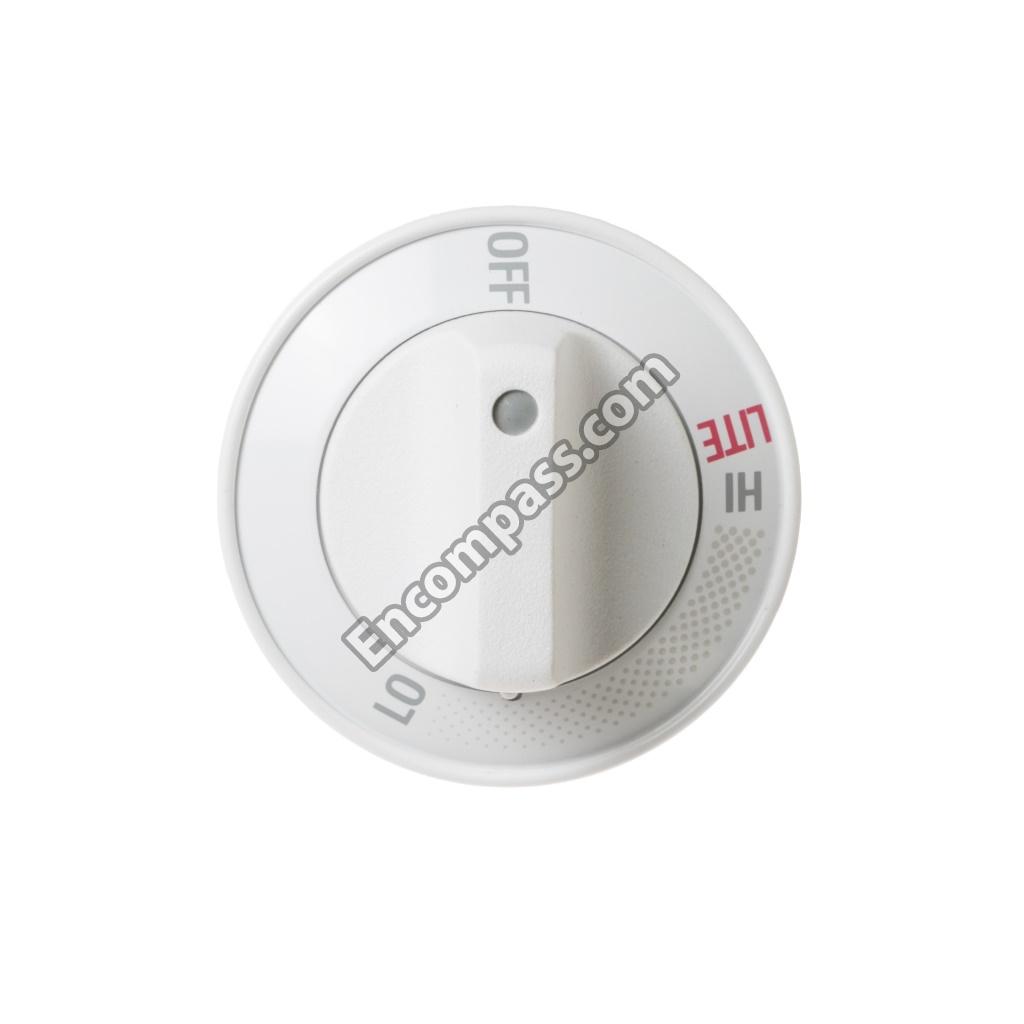

WB03K5281 WB03K5281 VALVE KNOB-WHITE
WB18K5558 WB18K5558 VALVE SWITCH WIRE HARNESS
WB3K5281 WB3K5281 VLV KNOB WHT
WB01X1421 WB01X1421 WASHER
WB1X1399 WB1X1399 WASHER
WB1X1421D WB1X1421D WASHR-PKG 12
WB2K5409 WB2K5409 WB2K5409
WB32M1 WB32M1 WB32M1
