Model Image
Manufacturer

GE

Model Number

JGP633DET1CC

Description

Gas Range Or Dual Fuel

Interactive Exploded View

Parts List

Part Number Description
WB29K10024 WB29K10024 ASM BURNER CAP (12000)
WB29K10022 WB29K10022 ASM BURNER CAP (5000)
WB29K10023 WB29K10023 ASM BURNER CAP (9500)
WB64T10060 WB64T10060 BOTTOM BURN BOX
WB2K5328 WB2K5328 BRKT HOLD DN
WB16T10046 WB16T10046 BURNER 12K
WB16K10055 WB16K10055 BURNER MEDIUM (9500)
WB02K10362 WB02K10362 CKT BRACKET MDM LGE
WB02K10361 WB02K10361 CKT BRACKET MEDIUM
WB02K10360 WB02K10360 CKT BRACKET SMALL
WB6X93 WB6X93 CLAMP
WB02T10111 WB02T10111 CLEANER-SS
WB01K10112 WB01K10112 CLIP ELECTRODE
WB08T10015 WB08T10015 CORD RANGE
WB01K10037 WB01K10037 ECONOMIC NUT
WB13K10014 WB13K10014 ELECTRODE TOP
WB06T10009 WB06T10009 GASKET

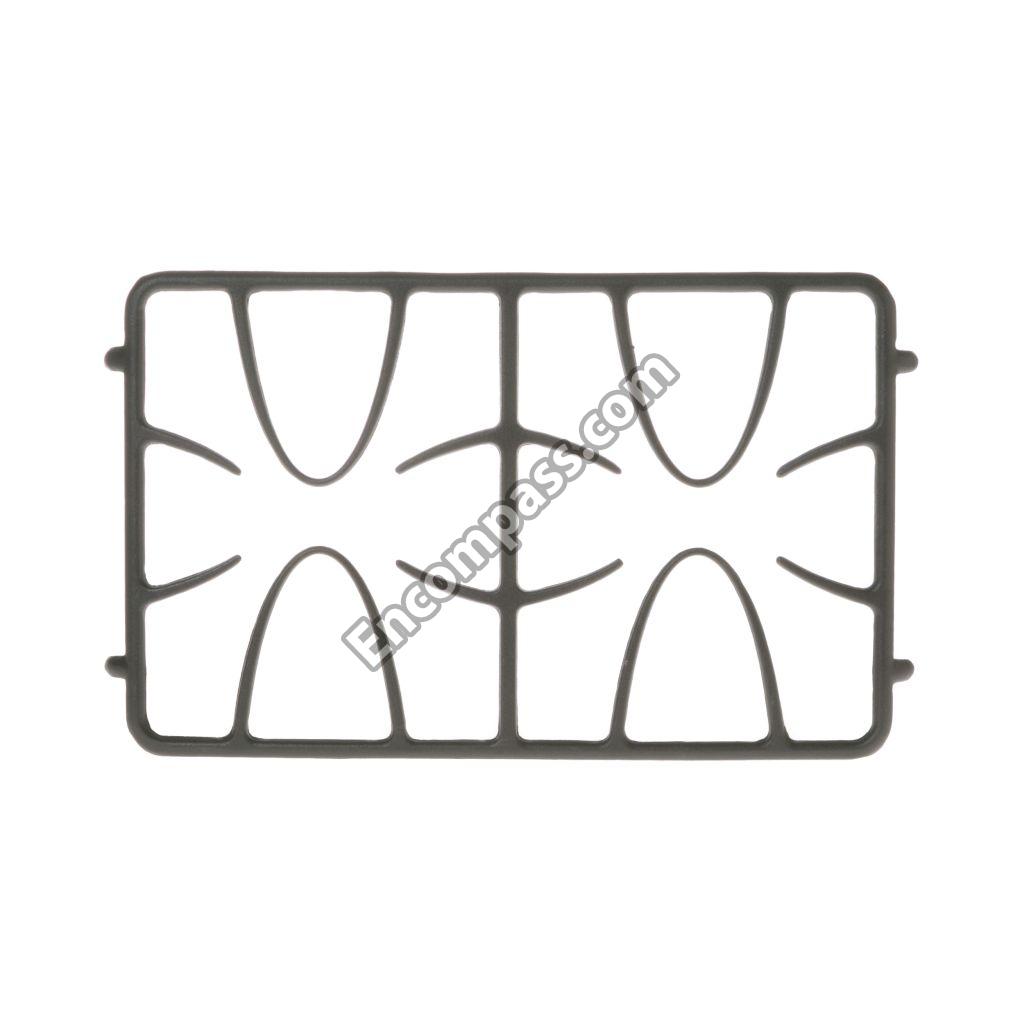

WB31T10105 WB31T10105 GRATE ASM
WB31T10109 WB31T10109 GRATE ASM
WB02T10461 WB02T10461 GRATE FOOT
WB18T10338 WB18T10338 HARNESS SWITCH
WB18X25698 WB18X25698 HARNESS WIRE BURNER
WB02K5328 WB02K5328 HOLD DOWN BRACKET
31-10612 31-10612 INSTRUCTIONS INSTALL
31-10600 31-10600 INSTRUCTIONS LP
WB35T10160 WB35T10160 INSULATION SIDE
WB28T10235 WB28T10235 KIT CONVERSION (BUTANE)
WB03T10324 WB03T10324 KNOB
WB03T10325 WB03T10325 KNOB
WB03T10322 WB03T10322 KNOB
WB03T10323 WB03T10323 KNOB
WB62T10369 WB62T10369 MAINTOP ASM
WB62T10368 WB62T10368 MAINTOP ASM
WB62T10371 WB62T10371 MAINTOP ASM
WB62T10370 WB62T10370 MAINTOP ASM (GE-SS)
WB28T10101 WB28T10101 MANIFOLD PIPE
31-14248 31-14248 MANUAL MINI & WD ASM
49-80587 49-80587 MANUAL USE & CARE
WB28K10215 WB28K10215 ORIFICE SPUD LP 86L
WB28K10214 WB28K10214 ORIFICE SPUD LP 88L
WB28K10031 WB28K10031 ORIFICE-LP 63MM
WB02T10244 WB02T10244 PAD FELT
WB19T10078 WB19T10078 REGULATOR CONVERT PRESS
WB01T10106 WB01T10106 SCR 6-32 CA OVT-15 5/8
WB01M0014 WB01M0014 SCREW
WB01X1137 WB01X1137 SCREW
WB1M1 WB1M1 SCREW
WB1X1261 WB1X1261 SCREW
WB1M14 WB1M14 SCREW
WH2X930 WH2X930 SCREW
WB01X1261 WB01X1261 SCREW GROUND
WB01K5150 WB01K5150 SCREW ST10-16 X 7/16""
WB1X1137 WB1X1137 SCREW-10AB
WB04T10042 WB04T10042 SEAL CNTL (BLK)
WB04T10041 WB04T10041 SEAL CNTL (BQT)
WB04T10040 WB04T10040 SEAL CNTL (WHT)
WB04T10023 WB04T10023 SEAL MANIFOLD
WB34T10103 WB34T10103 SHIELD BURN BOX BTM
WB16K10070 WB16K10070 SMALL BURNER V 5K
WB13X32509 WB13X32509 SPARK MODULE (0+6)
WB2K5275 WB2K5275 STRAIN RELEF
WB02K5275 WB02K5275 STRAIN RELIEF-RT ANGLE
WB28T10135 WB28T10135 TUBE ASM CTR
WB28T10134 WB28T10134 TUBE ASM LT FRT
WB28T10127 WB28T10127 TUBE ASM LT REAR
WB28T10133 WB28T10133 TUBE ASM RT FRT
WB28T10125 WB28T10125 TUBE ASM RT REAR
WB06X0093 WB06X0093 VALVE CLAMP
WB21X22040 WB21X22040 VALVE GAS LT
WB21X22046 WB21X22046 VALVE GAS RT FRT
WB21X22051 WB21X22051 VALVE GAS RT RR
WB21X22080 WB21X22080 VALVE KIT
