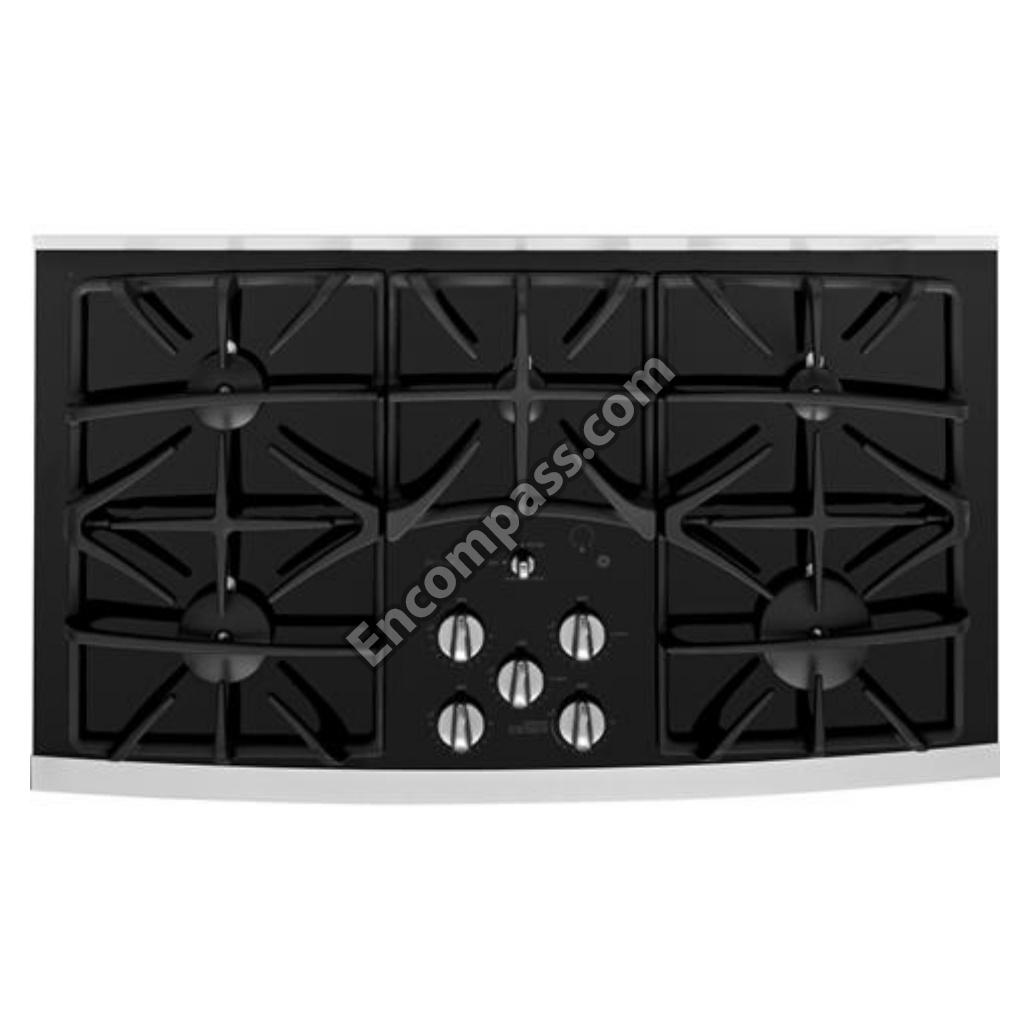

Model Image
Manufacturer

GE

Model Number

JGP636BEV3BB

Description

Gas Range Or Dual Fuel

Interactive Exploded View

Parts List

Part Number Description
WB64K5095 WB64K5095 BOTTOM BURN BOX
WB2K5377 WB2K5377 BOWL BRACKET
WB2K5378 WB2K5378 BOWL BRACKET
WB02K5377 WB02K5377 BOWL BRACKET-LARGE, MED.
WB02K5378 WB02K5378 BOWL BRACKET-SMALL
WB02K5409 WB02K5409 BRACKET
WB2K5409 WB2K5409 BRACKET
WB02K5327 WB02K5327 BRACKET RET
WB2K5328 WB2K5328 BRKT HOLD DN
WB16K10 WB16K10 BRNR HEAD LG
WB32M8 WB32M8 BUR BOWL SEA
WB35K5086 WB35K5086 BUR BOX BTTM-INSUL
WB32M0008 WB32M0008 BURNER BOWL SEAL-BLK
WB31K5077 WB31K5077 BURNER BOWL-BLK-MEDIUM
WB29K0047 WB29K0047 BURNER CAP-LARGE-BLK
WB29K0041 WB29K0041 BURNER CAP-SM-BLK
WB16K0010 WB16K0010 BURNER HEAD-LARGE
WB18K5465 WB18K5465 BURNER WIRE HARNESS
WB29K47 WB29K47 CAP BURNER
WB29K0044 WB29K0044 CAP BURNER MED (BK)
WB02X9106 WB02X9106 CLIP
WB2X9106 WB2X9106 CLIP
WB1K56 WB1K56 CLIP ELECTRD
WB32K5035 WB32K5035 CONTROL SEAL-BLACK
WB13K0018 WB13K0018 ELECTRODE
WB13K18 WB13K18 ELECTRODE
WB01K0056 WB01K0056 ELECTRODE CLIP
WB06K5042 WB06K5042 FOAM STRIP
WB6K5051 WB6K5051 FOAM TAPE
WB31K5082 WB31K5082 GAS ALMOND PORCELAIN BURNER BO
WB31K5083 WB31K5083 GAS ALMOND PORCELAIN BURNER BO
WB31K5084 WB31K5084 GAS ALMOND PORCELAIN BURNER BO
WB31K5076 WB31K5076 GAS BLACK PORCELAIN BURNER BOW
WB31K5078 WB31K5078 GAS BLACK PORCELAIN BURNER BOW

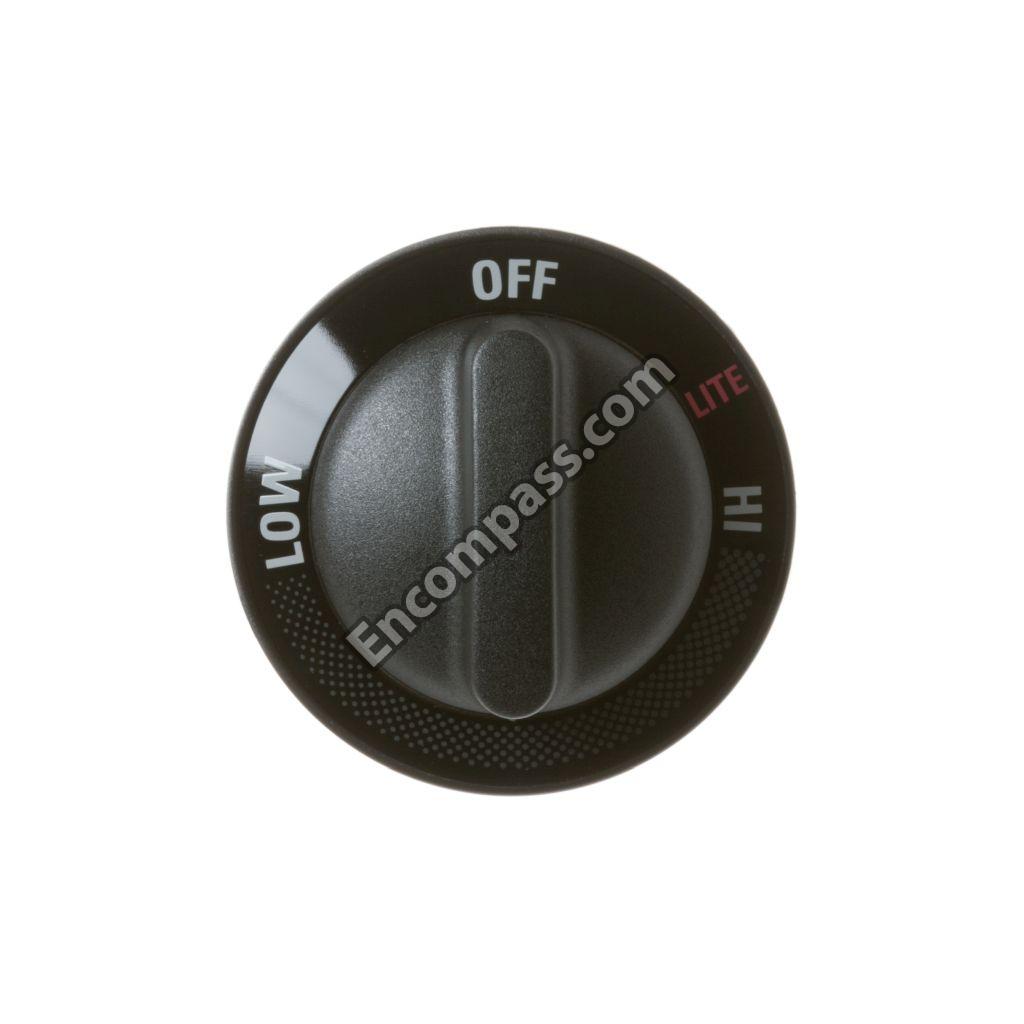

WB03K5310 WB03K5310 GAS VALVE KNOB-BLK
WB21K5032 WB21K5032 GAS VALVE-LT RR
WB21K5031 WB21K5031 GAS VALVE-RT FT LT FT
WB21K5030 WB21K5030 GAS VALVE-RT RR CENTER
WB02X9008 WB02X9008 GASKET (VIEW 838)
WB2X9008 WB2X9008 GASKET SCREW
WB2X9011 WB2X9011 GASKET-VLVE
WB61K5037 WB61K5037 GLASS MAIN TOP-ALMOND
WB61K5036 WB61K5036 GLASS MAIN TOP-BLACK
WB31T10008 WB31T10008 GRATE BURN (
WB31T10006 WB31T10006 GRATE BURN (BLK)
WB16K12 WB16K12 HEAD BURNER
WB16K11 WB16K11 HEAD BURNER
WB16K0011 WB16K0011 HEAD-BURNER MED
WB16K0012 WB16K0012 HEAD-BURNER SMALL
WB02K5328 WB02K5328 HOLD DOWN BRACKET
31-10169 31-10169 INSTALLATION INSTRUCTION
WB01X1399 WB01X1399 LOCKWASHER
WB18K5433 WB18K5433 MAIN WIRE HARNESS
WB28K5051 WB28K5051 MANIFOLD ASM
WB28K5058 WB28K5058 MANIFOLD TUBE ASSEMBLY
31-13233 31-13233 MINI MANUAL W/WIRE DIAG.
WB2K5370 WB2K5370 ORIF BRACKET
WB28K145 WB28K145 ORIF SPUD LP
WB28K146 WB28K146 ORIF SPUD LP
WB28K0145 WB28K0145 ORIF. SPUD (LP) .78LMM
WB28K0146 WB28K0146 ORIF. SPUD (LP) .90 LMM
WB02K5370 WB02K5370 ORIFICE BRACKET
WB28K141 WB28K141 ORIFICE SPUD
WB28K0141 WB28K0141 ORIFICE SPUD NG SM
WB28K5087 WB28K5087 ORIFICE SPUD-LP-SM
WB28K5096 WB28K5096 ORIFICE SPUD-NAT-LARGE
WB28K5095 WB28K5095 ORIFICE SPUD-NAT-MEDIUM
WB02K5379 WB02K5379 ORIFICE SUPPORT
WB2K5379 WB2K5379 ORIFICE SUPT
WB19T10078 WB19T10078 PRESSURE REGULATOR
WB08K5040 WB08K5040 RANGE CORD
WB8K5040 WB8K5040 RANGE CORD
WB2K5327 WB2K5327 RETAIN BRKT
WB01X1121 WB01X1121 SCREW
WB01X1127 WB01X1127 SCREW
WB01M0001 WB01M0001 SCREW
WZ04X0044 WZ04X0044 SCREW
WB01X1137 WB01X1137 SCREW
WB1K5062 WB1K5062 SCREW
WB1X1261 WB1X1261 SCREW
WB1M1 WB1M1 SCREW
WH2X930 WH2X930 SCREW 8-18 AB HXW 3/8
WB01X1261 WB01X1261 SCREW GROUND
WB1X5364 WB1X5364 SCREW MTG
WB01K5062 WB01K5062 SCREW ST8-18X.500TRBRNI
WB01X1424 WB01X1424 SCREW, TRANSFORMER
WB1X1137 WB1X1137 SCREW-10AB
WB1X1424D WB1X1424D SCREW-PKG 12
WZ4X44D WZ4X44D SCREW-PKG 12
WB1X1121 WB1X1121 SCREW-VLVE
WB13K5079 WB13K5079 SPARK MODULE
WB2K5275 WB2K5275 STRAIN RELEF
WB02K5275 WB02K5275 STRAIN RELIEF-RT ANGLE
WB06K5051 WB06K5051 TAPE FOAM
WB02X26088 WB02X26088 TAPE FOAM
WB16K13 WB16K13 TUBE AIR-MIX
WB16K14 WB16K14 TUBE AIR-MIX
WB16K0013 WB16K0013 TUBE AIR-MIXER
WB16K0014 WB16K0014 TUBE AIR-MIXER (SM)
WB28K5081 WB28K5081 TUBE ASSEMBLY LT FRT
WB28K5080 WB28K5080 TUBE ASSEMBLY RT FRT
WB28K5082 WB28K5082 TUBE ASSEMBLY RT RR
WB28K5084 WB28K5084 TUBE ASSEMBLY-CENTER
WB28K5083 WB28K5083 TUBE ASSEMBLY-LT REAR
49-8612 49-8612 USE & CARE MANUAL
WB02X9011 WB02X9011 VALVE GASKET
WB3K5310 WB3K5310 VALVE KNOB
WB24K5083 WB24K5083 VALVE SWITCH
WB24K5078 WB24K5078 VALVE SWITCH-FRONT
WB1X1399 WB1X1399 WASHER
WB1X681 WB1X681 WB01X0681
WB29K41 WB29K41 WB29K41
WB29K44 WB29K44 WB29K44
