Model Image
Manufacturer

GE

Model Number

JGP652EL1

Description

Gas Range Or Dual Fuel

Interactive Exploded View

Parts List

Part Number Description
WB02X9226 WB02X9226 *FASTENER-1/8TH TURN
WB01X1199 WB01X1199 *SCREW
WB01X1198 WB01X1198 *SCREW-M4 X 8
WB02X9242 WB02X9242 *SEAL-GLASS COOKTOP
WB2X9240 WB2X9240 BRNR CAP-RG
WB02X9239 WB02X9239 BURNER CAP-HI POWER
WB02X9240 WB02X9240 BURNER CAP-REGULAR
WB21X0480 WB21X0480 BURNER VALVE-HI POWER LP
WB21X0481 WB21X0481 BURNER VALVE-REGULAR-LP
WB28X0092 WB28X0092 BURNER-HI POWER-LP GAS
WB28X0093 WB28X0093 BURNER-REGULAR-LP GAS
WB02X9213 WB02X9213 CABLE CLAMP
WB02X9219 WB02X9219 CLAMP
WB2X9215 WB2X9215 CLIP
WB02X9234 WB02X9234 CLIP-PLUG-DRIP PAN
WB02X9228 WB02X9228 COVER
WB32X0096 WB32X0096 DRIP PAN-HI POWER
WB32X0097 WB32X0097 DRIP PAN-REGULAR BURNER
WB02X9220 WB02X9220 ELBOW
WB02X9245 WB02X9245 FLAME SPREADER-HI POWER
WB02X9246 WB02X9246 FRAME SPREADER
WB02X9221 WB02X9221 GAS TUBE-LEFT FRONT
WB02X9224 WB02X9224 GAS TUBE-LEFT REAR
WB02X9222 WB02X9222 GAS TUBE-RIGHT FRONT
WB02X9223 WB02X9223 GAS TUBE-RIGHT REAR
WB02X9231 WB02X9231 GASKET-BURNER-HI POWER
WB02X9232 WB02X9232 GASKET-BURNER-REGULAR
WB02X9230 WB02X9230 GASKET-DRIP PAN
WB32X0098 WB32X0098 GRATE-TOP BURNER
WB02X9227 WB02X9227 GROMMET
WB02X9217 WB02X9217 GROMMET
WB2X9217 WB2X9217 GROMMET **NLA*
WB02X9241 WB02X9241 GROMMET-VALVE ORIFICE
WB02X9206 WB02X9206 HEAT SHIELD
WB02X9210 WB02X9210 IGNITER-BURNER
WB2X9243 WB2X9243 INSTALL HDW
WB02X9243 WB02X9243 INSTALLATION HARDWARE PK
31-0696 31-0696 INSTALLATION INSTRUCTION

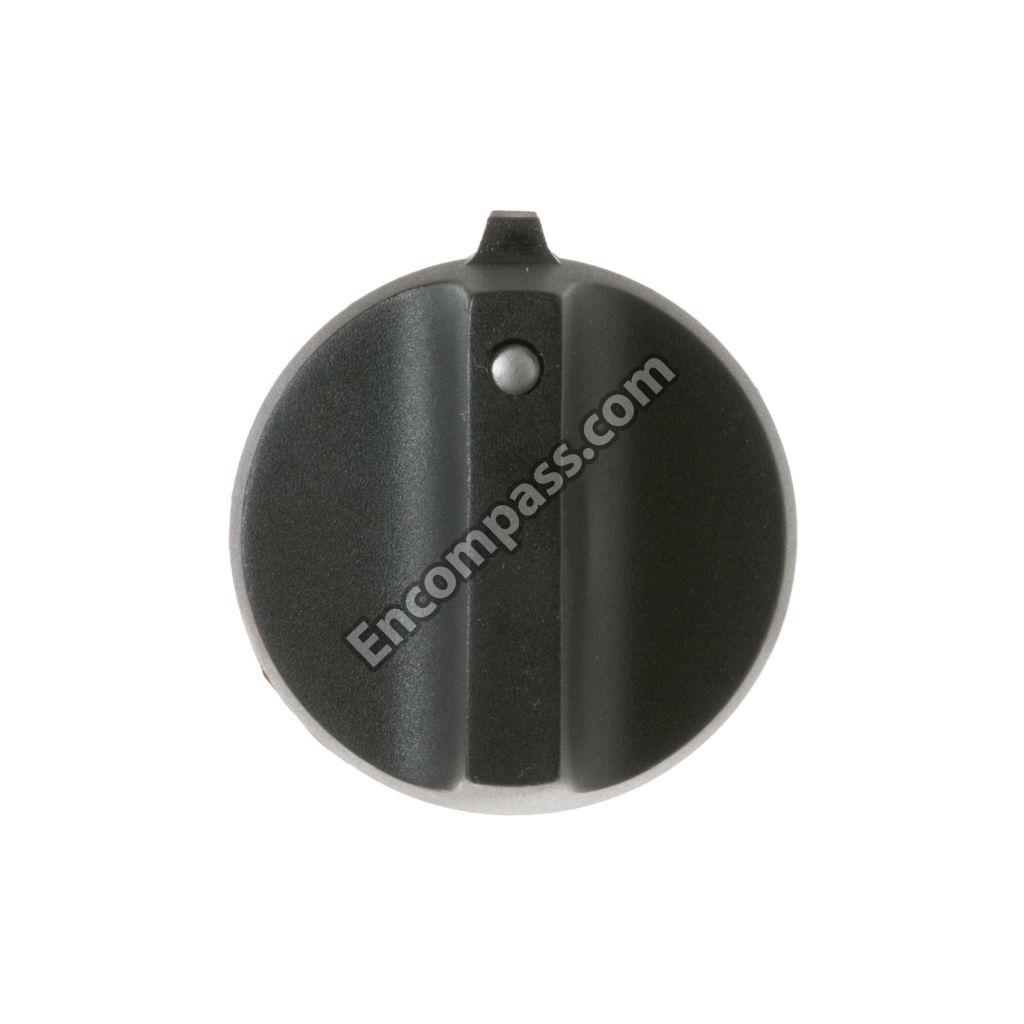

WB03X0763 WB03X0763 KNOB-TOP BURNER
WB18X0322 WB18X0322 LEAD WIRE-IGNITER
WB18X0321 WB18X0321 LEAD WIRE-IGNITER
WB02X9216 WB02X9216 MANIFOLD PIPE
WB17X208 WB17X208 N.L.A.TERMINAL BLK
WB24X417 WB24X417 N/L/A 01/16/03
WB2X9210 WB2X9210 N/L/A 05/07/02
WB62X1679 WB62X1679 N/L/A 08/20/02
WB2X9228 WB2X9228 NLA
WB01X1195 WB01X1195 NUT-M5
WB2X9218 WB2X9218 O RING
WB02X9218 WB02X9218 O RING SEAL
WB02X9249 WB02X9249 ORIFICE-HI POWER-LP GAS
WB02X9250 WB02X9250 ORIFICE-REGULAR-LP GAS
WB02X9233 WB02X9233 PLUG-DRIP PAN
WB18X0320 WB18X0320 POWER CORD SUPPLY
WB20X0111 WB20X0111 REGULATOR-LP GAS
WB02X9215 WB02X9215 RETAINING CLIP
WB1X1199 WB1X1199 SCREW
WB1X1162 WB1X1162 SCREW
WB1X1116 WB1X1116 SCREW
WB01X1193 WB01X1193 SCREW 8X32
WB01X1190 WB01X1190 SCREW M4 X 12
WB01X1189 WB01X1189 SCREW M4X8
WB01X1197 WB01X1197 SCREW-M4 X 18
WB01X1196 WB01X1196 SCREW-M5 X 8
WB01X1188 WB01X1188 SCREW-M5X20MM
WB2X9242 WB2X9242 SEAL-COOKTOP
WB02X9229 WB02X9229 SEAL-FRAME/GLASS
WB02X9208 WB02X9208 SHIELD-IGNITER WIRE
WB02X9225 WB02X9225 SHIELD-ISOLATION
WB02X9212 WB02X9212 SHIELD-SPARK MODULE
WB02X9214 WB02X9214 SHIELD-TERMINAL BLOCK
WB02X9207 WB02X9207 SPACER
WB20X0109 WB20X0109 SPARK MODULE
WB01X1187 WB01X1187 SPECIAL SCREW
WB02X9235 WB02X9235 SUPPORT-BURNER-HI POWER
WB02X9236 WB02X9236 SUPPORT-BURNER-REGULAR
WB2X9235 WB2X9235 SUPPORT-HI P **NLA*
WB24X0417 WB24X0417 SWITCH-BURNER IGNITER
WB17X0208 WB17X0208 TERMINAL BLOCK
WB31X0075 WB31X0075 TRIM RING-HI POWER
WB31X0076 WB31X0076 TRIM RING-REGULAR
49-4909 49-4909 USE AND CARE BOOK
WB21X481 WB21X481 VALVE-TOP RG
WB1K5046 WB1K5046 WASHER
WB01X1194 WB01X1194 WASHER-3/16 BSW
WB01X1191 WB01X1191 WASHER-6.5 X 40 X 1.2 MM
WB01X1192 WB01X1192 WASHER-M4
WB3K107 WB3K107 WB3K107
WB18X0234 WB18X0234 WIRE HARNESS
WB18X0233 WB18X0233 WIRE HARNESS ASSEMBLY
