Model Image
Manufacturer

GE

Model Number

JGP940BEK3BB

Description

Gas Range Or Dual Fuel

Interactive Exploded View
Exploded View

Parts List

Part Number Description
PM10X310 PM10X310 28 CERAMA BR
WB16T10033 WB16T10033 BASE BURNER LARGE
WB16T10025 WB16T10025 BASE BURNER LARGE
WB16T10030 WB16T10030 BASE BURNER MED
WB16T10032 WB16T10032 BASE BURNER RT FRT
WB64T10045 WB64T10045 BOTTOM BURN BOX
WB02T10254 WB02T10254 BRACKET
WB2K5328 WB2K5328 BRKT HOLD DN
WB16T10031 WB16T10031 BURNER BASE SMALL
WB04T10012 WB04T10012 BURNER GASKET LT RR
WB04T10011 WB04T10011 BURNER GASKET LT RR
WB16T10011 WB16T10011 BURNER GASKET RTR CENT
WB02T10095 WB02T10095 BURNER GROMMET-LGE
WB02T10096 WB02T10096 BURNER GROMMET-SM
WB28K10141 WB28K10141 BURNER HOLDER BKT SMALL
WB28T10092 WB28T10092 BURNER INJET ASM
WB28T10031 WB28T10031 BURNER INJET LEFT FRT
WB02T10108 WB02T10108 BURNER SUPT BRACKET

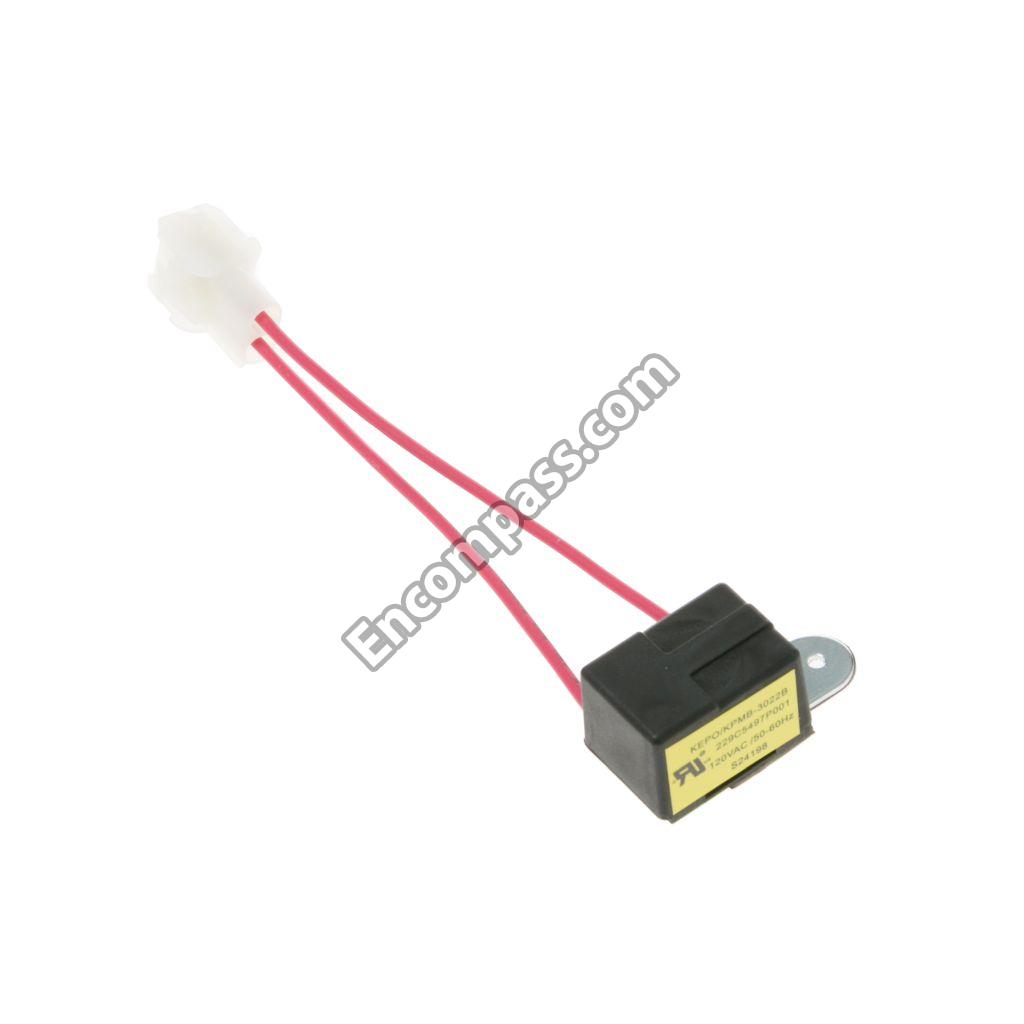

WB08T10039 WB08T10039 BUZZER (120V)

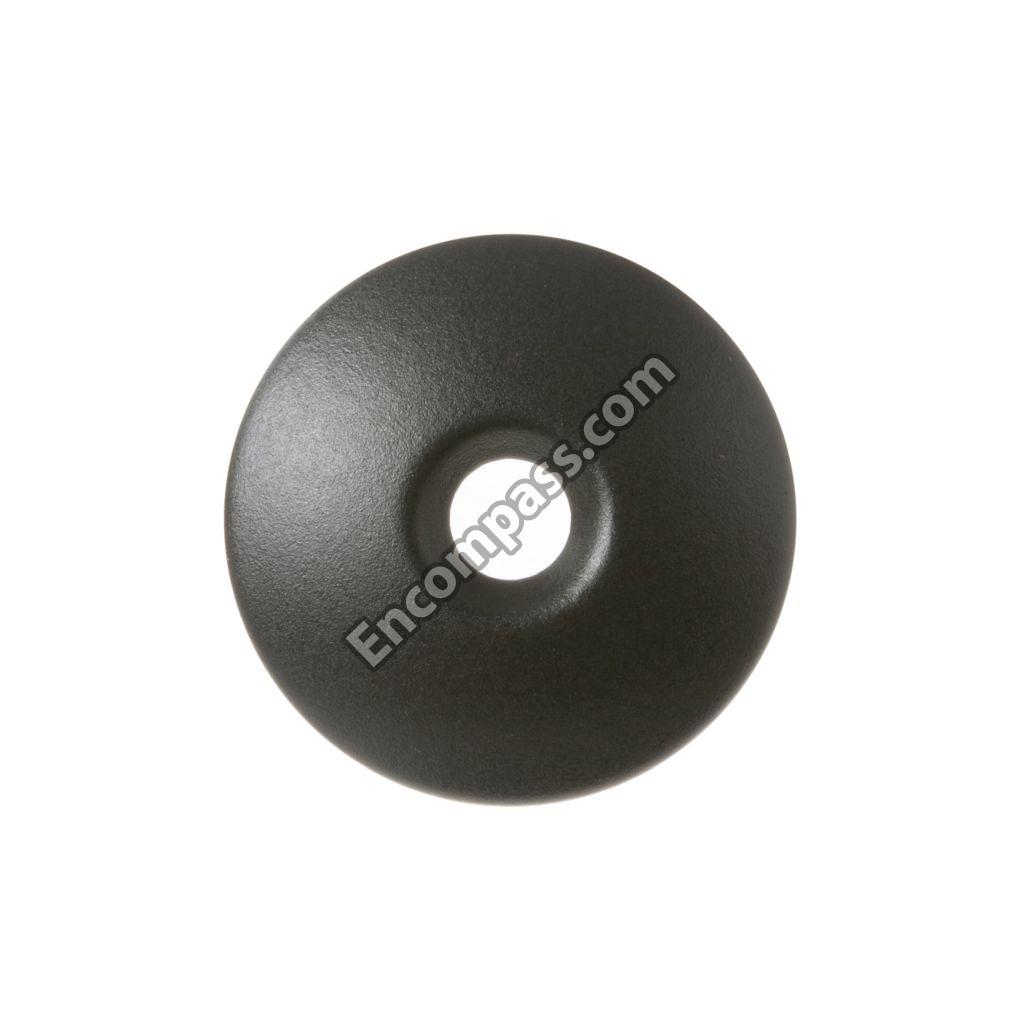

WB13T10061 WB13T10061 CAP BURNER B (BK)
WB13T10062 WB13T10062 CAP BURNER C (BK)
WB13T10063 WB13T10063 CAP BURNER D (BK)
WB13T10060 WB13T10060 CAP BURNER H (BK)
WB6X93 WB6X93 CLAMP
WB02T10304 WB02T10304 CLIP RING
WB04T10015 WB04T10015 CONTROL SEAL
WB08T10015 WB08T10015 CORD RANGE
WB01K10037 WB01K10037 ECONOMIC NUT
WB06K5042 WB06K5042 FOAM STRIP
WB64X0093 WB64X0093 GLASS CLEANER
WB62X25701 WB62X25701 GLASS MAINTOP 30 (BLACK)

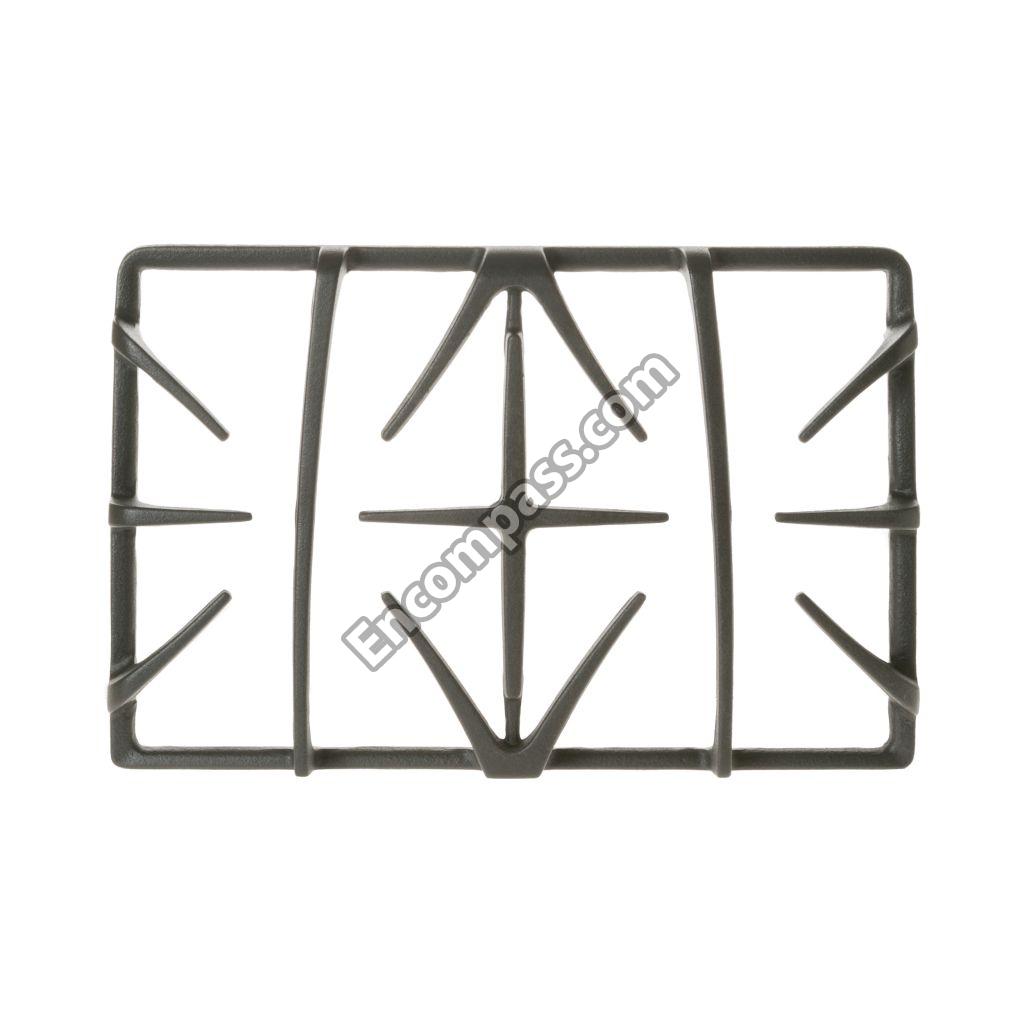

WB31T10084 WB31T10084 GRATE ASM
WB02T10461 WB02T10461 GRATE FOOT

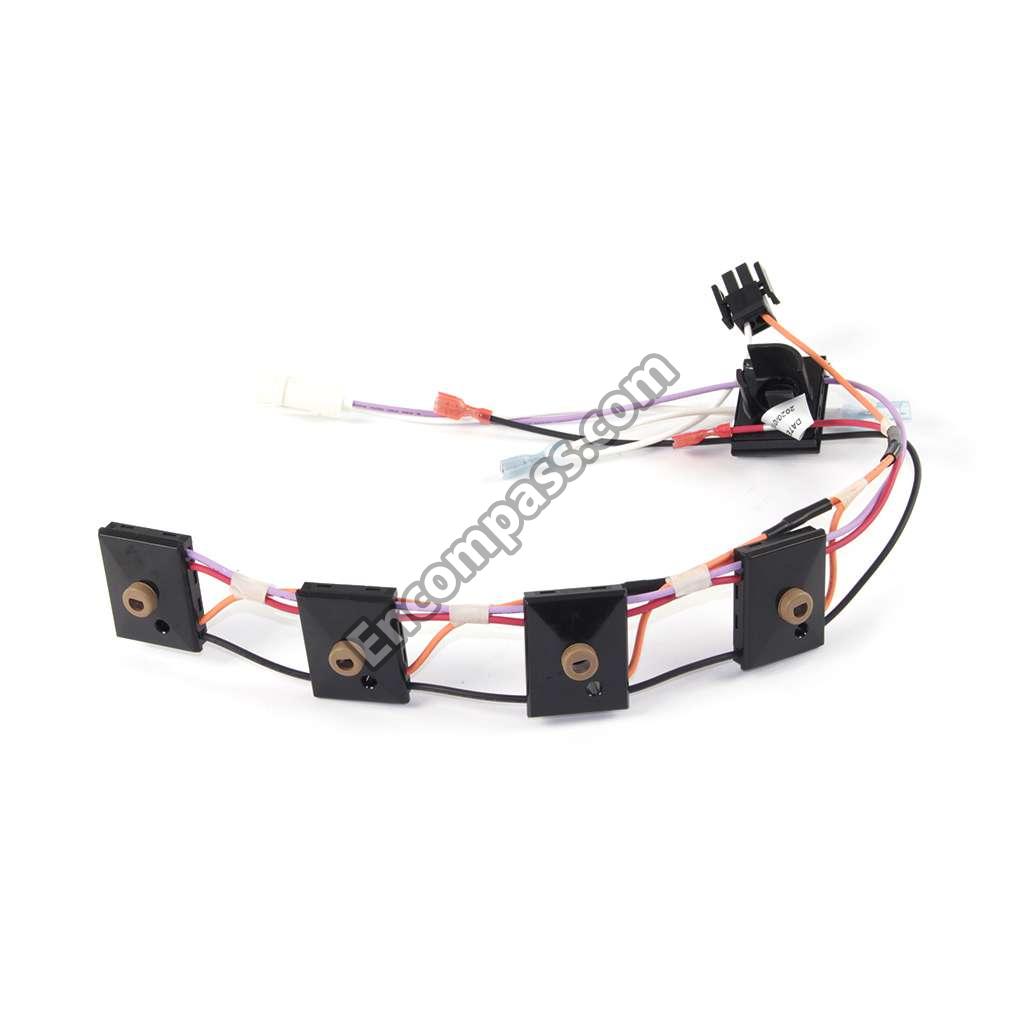

WB18T10452 WB18T10452 HARNESS SWITCH ASSEMBLY

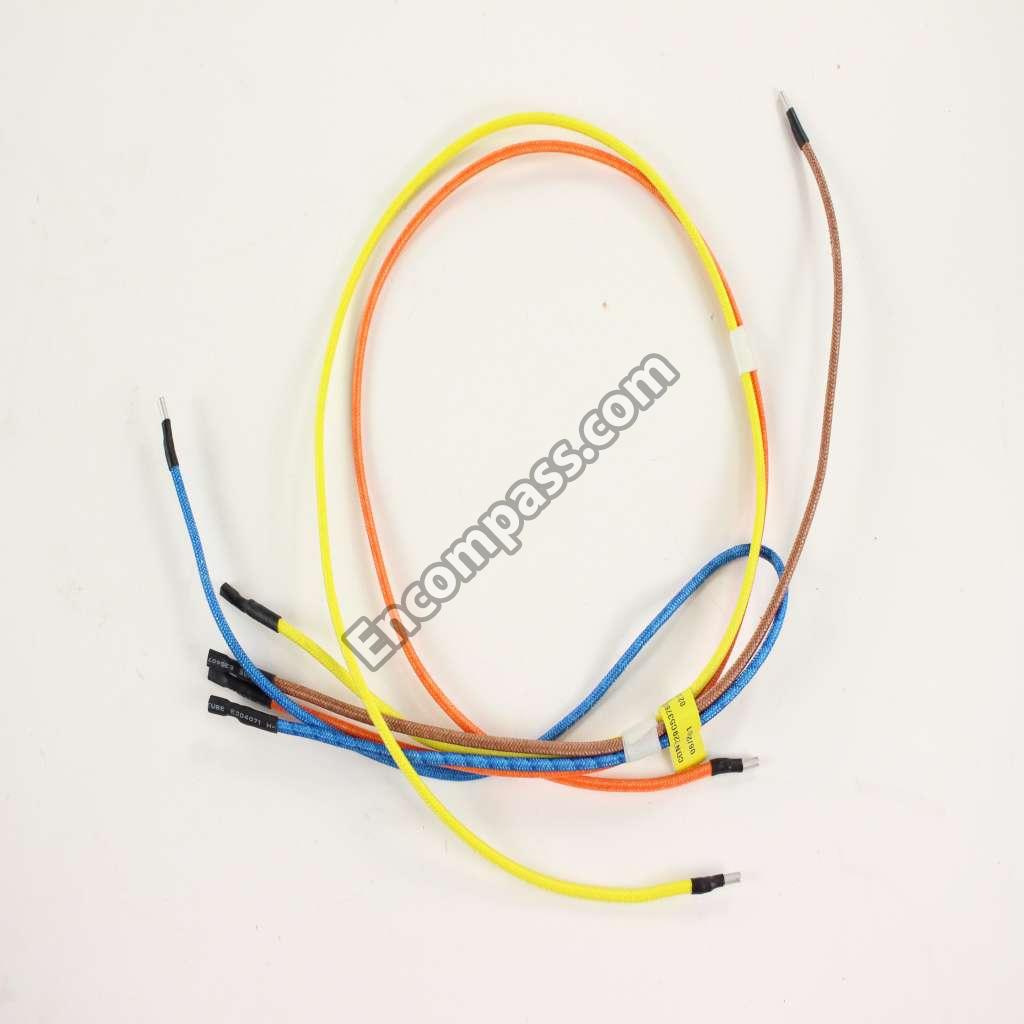

WB18T10407 WB18T10407 HARNESS WIRE BURNER
WB16T10035 WB16T10035 HEAD BURNER B
WB16T10036 WB16T10036 HEAD BURNER C
WB16T10037 WB16T10037 HEAD BURNER D
WB16T10034 WB16T10034 HEAD BURNER H
WB02K5328 WB02K5328 HOLD DOWN BRACKET
WB13T10073 WB13T10073 IGNITER
31-10714 31-10714 INSTRUCTION INSTALL
WB35T10189 WB35T10189 INSULATION
WB28T10228 WB28T10228 KIT CONVERSION (BUTANE)

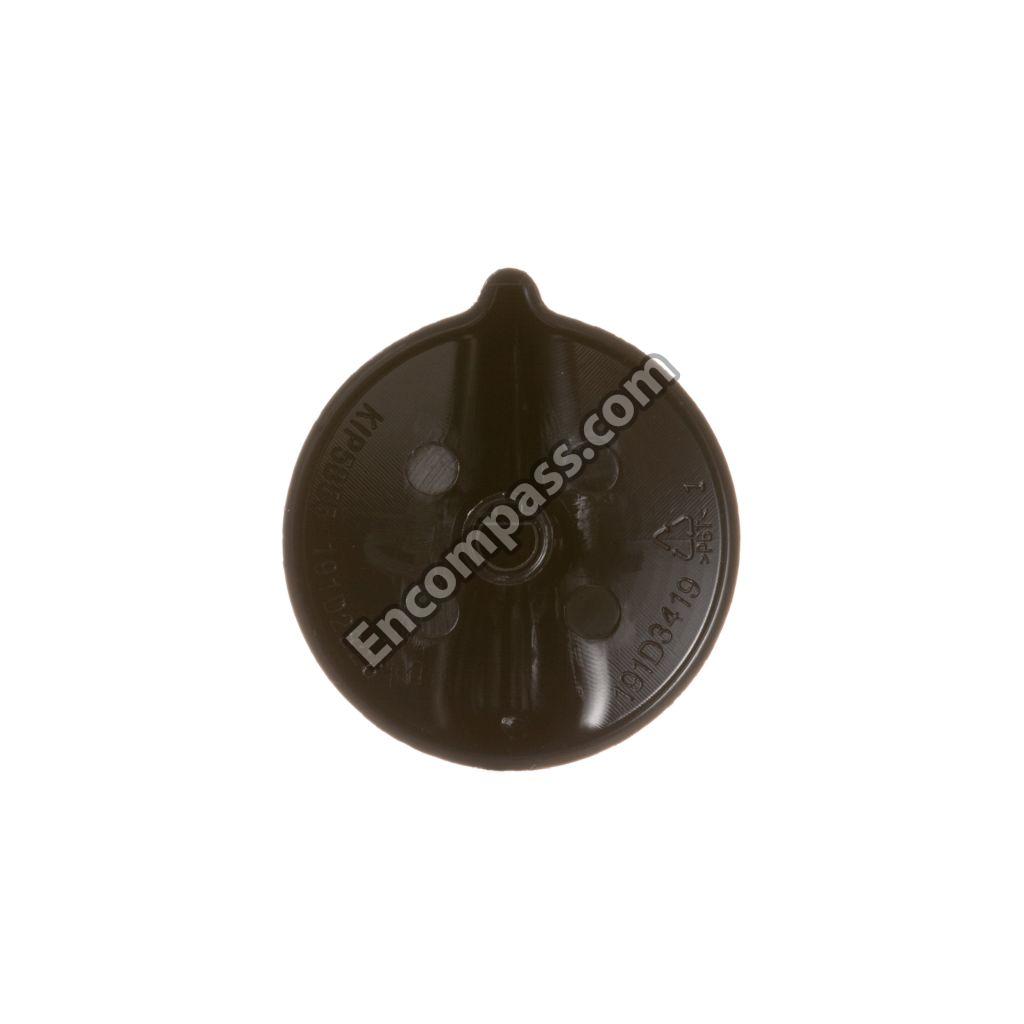

WB03T10236 WB03T10236 KNOB GAS VLV (PRF-BK)
WB03T10035 WB03T10035 KNOB SEL (BL
WB02T10102 WB02T10102 MAINTOP SUPPORT
31-14249 31-14249 MANUAL MINI & WD ASM
WB13X46909 WB13X46909 MODULE SPARK (4+0)
WB28K10143 WB28K10143 ORIFICE HOLDER BKT LARGE

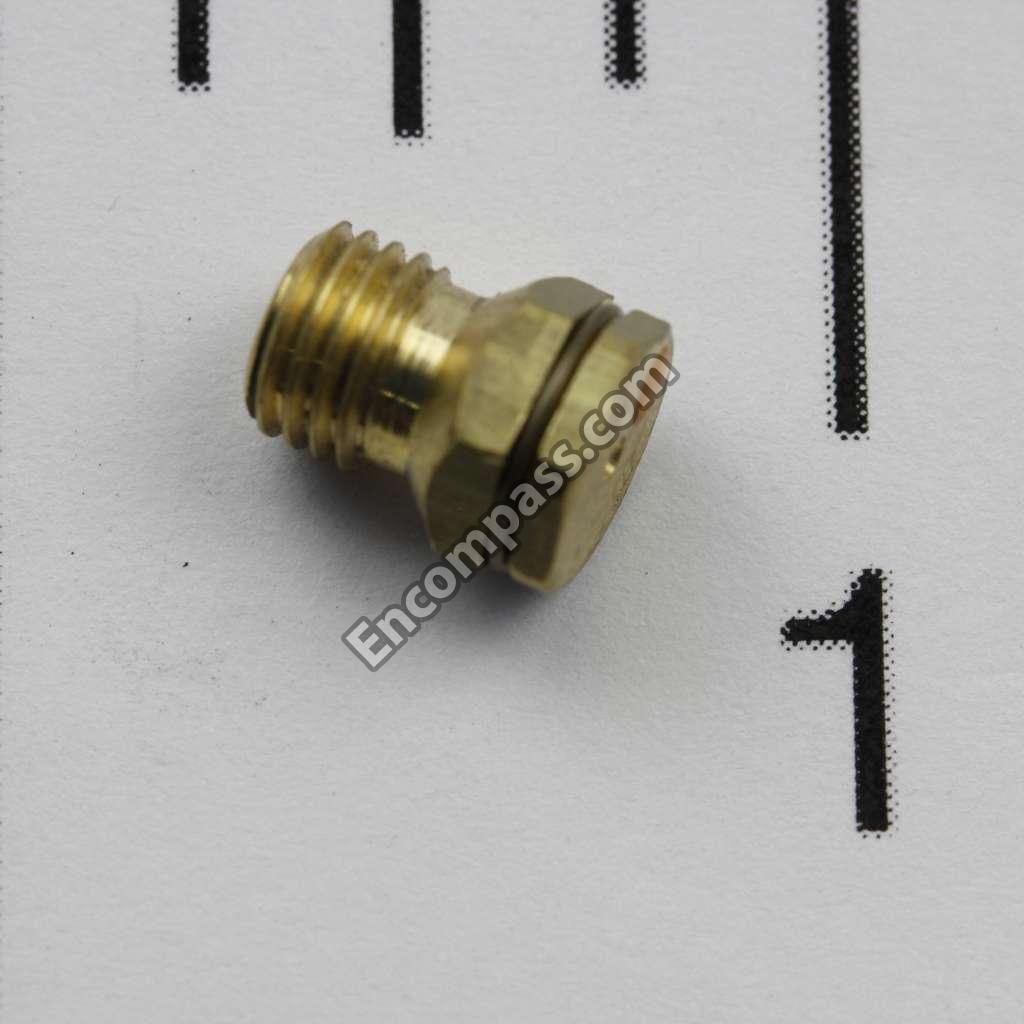

WB28T10028 WB28T10028 ORIFICE SPUD ASSEMBLY
WB28T10017 WB28T10017 ORIFICE SPUD ASSEMBLY-LP
WB28T10015 WB28T10015 ORIFICE SPUD ASSEMBLY-NAT
WB28T10151 WB28T10151 ORIFICE SPUD LP LR
WB28T10014 WB28T10014 ORIFICE SPUD LT FRT
WB28T10027 WB28T10027 ORIFICE SPUD RT FR-NG
WB28T10033 WB28T10033 ORIFICE SPUD RT FRT -LP
WB28T10106 WB28T10106 PIPE MANIFOLD
31-10860 31-10860 PM INSTALL INSTRUCTIONS
31-10833 31-10833 PM INSTALL INSTRUCTIONS
49-80660 49-80660 PM OWNERS MANUAL
WB19T10078 WB19T10078 REGULATOR CONVERT PRESS
WZ04X0217 WZ04X0217 SCR 6-20 B HXW 1/4 S
WB01X1428 WB01X1428 SCREW
WB01K5028 WB01K5028 SCREW
WH2X930 WH2X930 SCREW
WB1X536 WB1X536 SCREW
WB1X1261 WB1X1261 SCREW
WB1M1 WB1M1 SCREW
WB01T10049 WB01T10049 SCREW 6-32 MCH FHT15 984
WB01X1261 WB01X1261 SCREW GROUND
WB01K5150 WB01K5150 SCREW ST10-16 X 7/16""
WB1X1137 WB1X1137 SCREW-10AB
WB04T10044 WB04T10044 SEAL CONTROL (BK)
WB04T10043 WB04T10043 SEAL MANIFOLD
WB34T10102 WB34T10102 SHIELD BURN BOX BTM
WB09T10010 WB09T10010 SPRING
WB2K5275 WB2K5275 STRAIN RELEF
WB02K5275 WB02K5275 STRAIN RELIEF-RT ANGLE
WB02T10099 WB02T10099 SUPPORT BRACKET
WB02X26088 WB02X26088 TAPE FOAM
WB28T10104 WB28T10104 TUBE (7/16)
WB28T10105 WB28T10105 TUBE (7/16)
WB28T10102 WB28T10102 TUBE BURNER
WB28T10103 WB28T10103 TUBE BURNER
WB28T10226 WB28T10226 TUBE BURNER ASM
WB28T10150 WB28T10150 TUBE BURNER RR
WB06X0093 WB06X0093 VALVE CLAMP
WB21X22075 WB21X22075 VALVE GAS LF
WB21X22076 WB21X22076 VALVE GAS LR
WB19T10038 WB19T10038 VALVE GAS RF
WB19T10035 WB19T10035 VALVE GAS RR
WB19T10039 WB19T10039 VALVE LOCKOUT
