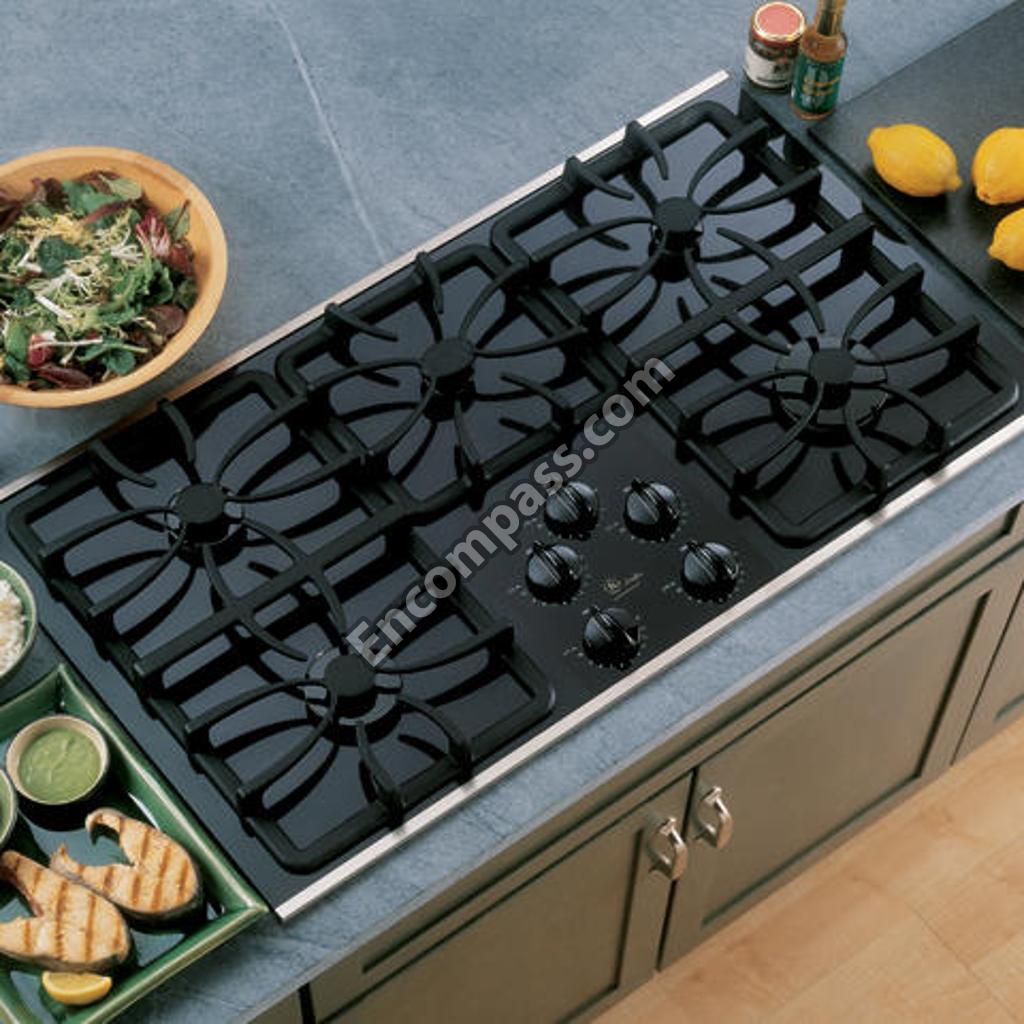

Model Image
Manufacturer

GE

Model Number

JGP962KED2CC

Description

Gas Range Or Dual Fuel

Interactive Exploded View

Parts List

Part Number Description
PM10X310 PM10X310 GE 28 CERAMA BR
WB16T10033 WB16T10033 GE BASE BURNER LARGE
WB16T10030 WB16T10030 GE BASE BURNER MED
WB16T10032 WB16T10032 GE BASE BURNER RT FRT
WB64T10034 WB64T10034 GE BOTTOM BURN BOX
WB2K5328 WB2K5328 GE BRKT HOLD DN
WB34T10026 WB34T10026 GE BURN BOX BOTTOM SHIELD
WB16T10031 WB16T10031 GE BURNER BASE SMALL
WB02T10098 WB02T10098 GE BURNER BRACKET SUPPORT
WB13T10021 WB13T10021 GE BURNER CAP B- SBK
WB13T10011 WB13T10011 GE BURNER CAP BLACK-RT FRT
WB13T10014 WB13T10014 GE BURNER CAP BQT-C
WB13T10015 WB13T10015 GE BURNER CAP BQT-MED
WB13T10013 WB13T10013 GE BURNER CAP BQT-RT FRT
WB13T10016 WB13T10016 GE BURNER CAP BQT-SMALL
WB13T10019 WB13T10019 GE BURNER CAP D-SBK
WB13T10007 WB13T10007 GE BURNER CAP GRAY
WB13T10018 WB13T10018 GE BURNER CAP GRAY-RT FRT
WB13T10017 WB13T10017 GE BURNER CAP GRAY-RT RR
WB13T10022 WB13T10022 GE BURNER CAP H-SBK
WB13T10006 WB13T10006 GE BURNER CAP LARGE (BLK)
WB13T10008 WB13T10008 GE BURNER CAP MED (BLK)
WB13T10020 WB13T10020 GE BURNER CAP SBK-LT RR
WB13T10012 WB13T10012 GE BURNER CAP SMALL (BLACK)
WB04T10014 WB04T10014 GE BURNER GASKET D
WB04T10012 WB04T10012 GE BURNER GASKET LT RR
WB04T10011 WB04T10011 GE BURNER GASKET LT RR
WB16T10011 WB16T10011 GE BURNER GASKET RTR CENT
WB31T10025 WB31T10025 GE BURNER GRATE (SINGLE)
WB31T10032 WB31T10032 GE BURNER GRATE DOUBLE
WB31T10033 WB31T10033 GE BURNER GRATE SINGLE
WB31T10031 WB31T10031 GE BURNER GRATE-SINGLE
WB02T10095 WB02T10095 GE BURNER GROMMET-LGE
WB02T10096 WB02T10096 GE BURNER GROMMET-SM
WB16T10024 WB16T10024 GE BURNER HEAD C
WB16T10013 WB16T10013 GE BURNER HEAD RT FT
WB16T10028 WB16T10028 GE BURNER HEAD-LT RR
WB16T10014 WB16T10014 GE BURNER HEAD-RT. RR.
WB28T10032 WB28T10032 GE BURNER INJET LT FRT
WB28T10031 WB28T10031 GE BURNER INJET LT FRT
WB28T10010 WB28T10010 GE BURNER INJET LTRR RT FT
WB02T10100 WB02T10100 GE BURNER SUPPORT BRACKET
WB6X93 WB6X93 GE CLAMP
WB01K10112 WB01K10112 GE CLIP-ELECTRODE
WB04T10016 WB04T10016 GE CONTROL SEAL
WB04T10015 WB04T10015 GE CONTROL SEAL
WB04T10017 WB04T10017 GE CONTROL SEAL
WB08T10015 WB08T10015 GE CORD RANGE
WB06K5042 WB06K5042 GE FOAM STRIP
WB21X31343 WB21X31343 GE GAS VALVE CENTER
WB64X0093 WB64X0093 GE GLASS CLEANER
WB62T10194 WB62T10194 GE GLASS MAINTOP (SCR)
WB62T10108 WB62T10108 GE GLASS MAINTOP ASSEMBLY
WB62T10106 WB62T10106 GE GLASS MAINTOP ASSEMBLY-BLACK
WB62T10238 WB62T10238 GE GLASS MAINTOP W/TRM ASM
WB31T10026 WB31T10026 GE GRATE ASSEMBLY- SINGLE
WB31T10024 WB31T10024 GE GRATE ASSEMBLY-DOUBLE
WB31T10027 WB31T10027 GE GRATE ASSEMBLY-DOUBLE
WB02T10461 WB02T10461 GE GRATE FOOT
WB16T10027 WB16T10027 GE HEAD BURNER RT FT
WB16T10020 WB16T10020 GE HEAD BURNER RT RR/CEN
WB02K5328 WB02K5328 GE HOLD DOWN BRACKET
WB13X27058 WB13X27058 GE IGNITER-TOP BURNERS
31-10502 31-10502 GE INSTRUCTIONS INSTALL
31-10494 31-10494 GE INSTRUCTIONS INSTALL
WB03T10170 WB03T10170 GE KNOB VLV GAS (PRF)
WB03T10176 WB03T10176 GE KNOB VLV GAS (PRF)
WB03T10172 WB03T10172 GE KNOB VLV GAS (PRF)
WB03T10171 WB03T10171 GE KNOB VLV GAS (PRF)
WB02T10104 WB02T10104 GE MAINTOP SUPPORT
WB02T10102 WB02T10102 GE MAINTOP SUPPORT
31-13968 31-13968 GE MANUAL MINI & WD ASM
49-80041 49-80041 GE MANUAL-USE & CARE
WB28T10011 WB28T10011 GE ORIFICE SPUD -LP
WB28T10028 WB28T10028 GE ORIFICE SPUD ASSEMBLY
WB28K10288 WB28K10288 GE ORIFICE SPUD ASSEMBLY-LP
WB28T10017 WB28T10017 GE ORIFICE SPUD ASSEMBLY-LP
WB28T10030 WB28T10030 GE ORIFICE SPUD ASSEMBLY-LT FRT
WB28T10014 WB28T10014 GE ORIFICE SPUD LT FRT
WB28T10027 WB28T10027 GE ORIFICE SPUD RT FR-NG
WB28T10033 WB28T10033 GE ORIFICE SPUD-LP RF
WB02T10244 WB02T10244 GE PAD FELT
WB28T10072 WB28T10072 GE PIPE MANIFOLD
WB19T10078 WB19T10078 GE PRESSURE REGULATOR
WB18T10338 WB18T10338 GE RANGE SPARK IGNITION SWITCH AND HARNESS
WB01M0014 WB01M0014 GE SCREW
WB01X1137 WB01X1137 GE SCREW
WB01K5162 WB01K5162 GE SCREW
WB1M14 WB1M14 GE SCREW
WB1M1 WB1M1 GE SCREW
WB1X1261 WB1X1261 GE SCREW
WH2X930 WH2X930 GE SCREW
WB01T10049 WB01T10049 GE SCREW 6-32 MCH FHT15 984
WB01X1261 WB01X1261 GE SCREW GROUND
WB01K5150 WB01K5150 GE SCREW ST10-16 X 7/16""
WB1X1137 WB1X1137 GE SCREW-10AB
WB1K5162 WB1K5162 GE SCREW-BLACK
WB04T10023 WB04T10023 GE SEAL MANIFOLD
WB13X32509 WB13X32509 GE SPARK MODULE KIT
WB2K5275 WB2K5275 GE STRAIN RELEF
WB02K5275 WB02K5275 GE STRAIN RELIEF-RT ANGLE
WB02T10099 WB02T10099 GE SUPPORT BRACKET
WB02X26088 WB02X26088 GE TAPE FOAM
WB28T10068 WB28T10068 GE TUBE BURNER CTR
WB28T10060 WB28T10060 GE TUBE BURNER LT FRT
WB28T10061 WB28T10061 GE TUBE BURNER LT RR
WB28T10058 WB28T10058 GE TUBE BURNER RT FRT
WB28T10059 WB28T10059 GE TUBE BURNER RT RR
WB06X0093 WB06X0093 GE VALVE CLAMP
WB21X22045 WB21X22045 GE VALVE GAS LT FRT
WB21X22022 WB21X22022 GE VALVE GAS LT RR
WB19T10029 WB19T10029 GE VALVE GAS RT FRT
WB19T10026 WB19T10026 GE VALVE GAS RT RR
WB31T10030 WB31T10030 GE WB31T10030
