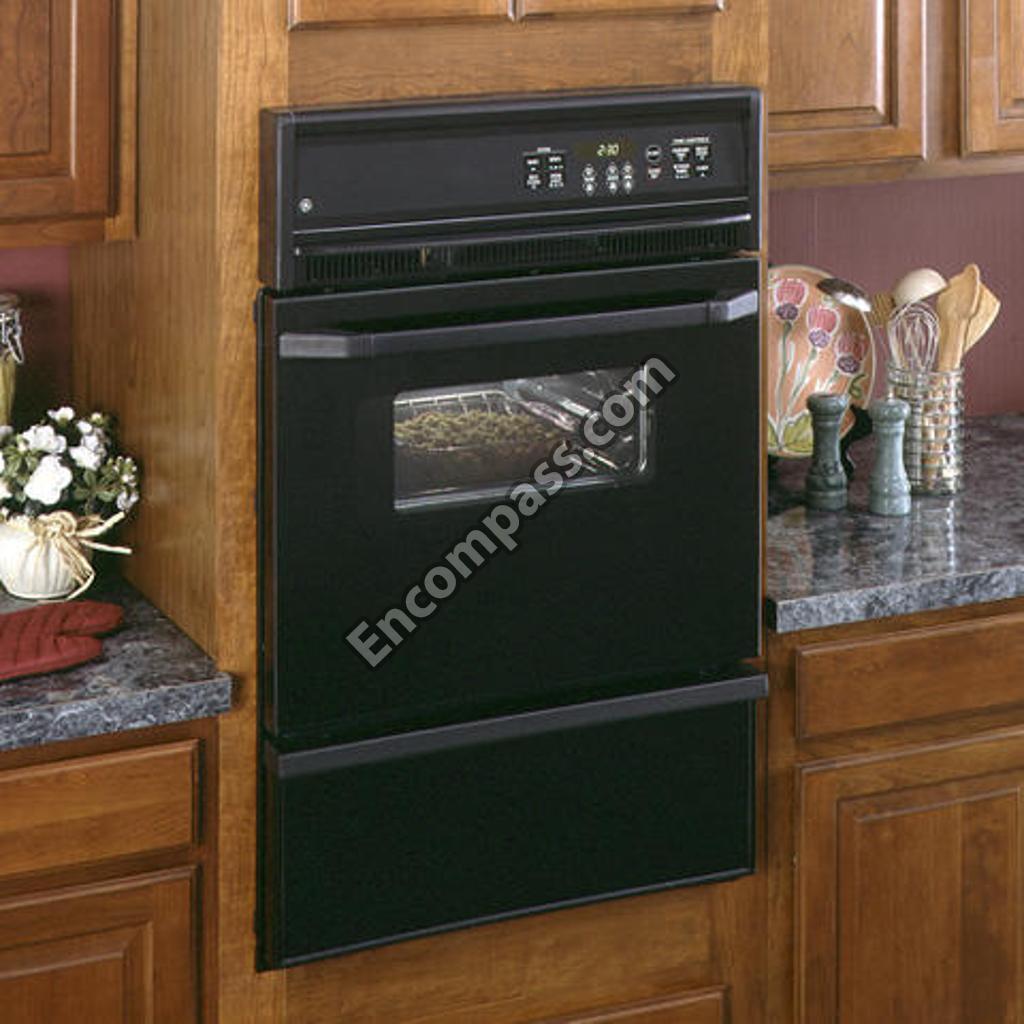

Model Image
Manufacturer

GE

Model Number

JGRP17BEW4BB

Description

Gas Range Or Dual Fuel

Interactive Exploded View

Parts List

Part Number Description
WB02X9014 WB02X9014 AIR SHUTTER
WB2X9014 WB2X9014 AIR SHUTTER
WB01X1124 WB01X1124 AIR SHUTTER SCREW
WB49X663 WB49X663 BAFFLE
WB2X7694 WB2X7694 BAIL
WB16K5062 WB16K5062 BAKE BURNER
WB38K5036 WB38K5036 BARRIER
WB63K5099 WB63K5099 BODY SIDE
WB64K5098 WB64K5098 BOTTOM BURNER BOX
WB02X9634 WB02X9634 BOTTOM CHANNEL
WB63T10038 WB63T10038 BOTTOM MAIN
WB2K5406 WB2K5406 BRACKET
WB49X0663 WB49X0663 BRO BURNER BAFFLE-UPPER
WB02X9646 WB02X9646 BROIL ORIFICE FITTING
WB16K5064 WB16K5064 BROILER BURNER
WB34K5256 WB34K5256 BROILER BURNER BAFFLE-LO
WB63K5198 WB63K5198 CABINET TOP
WB2X9634 WB2X9634 CHANNEL
WB06K5043 WB06K5043 CHIP COVER
WB6K5043 WB6K5043 CHIP COVER
WB02X9106 WB02X9106 CLIP
WB01K5209 WB01K5209 CLIP
WB1K5209 WB1K5209 CLIP
WB2X9106 WB2X9106 CLIP
WB34K5253 WB34K5253 COMPARTMENT SHIELD
WB35K5128 WB35K5128 COMPARTMENT SHIELD INSUL
WB20X126 WB20X126 CONTRL VALVE
WB37K5040 WB37K5040 CONTROL HOUSING TOP
WB02K5406 WB02K5406 CONTROL PANEL BRACKET
WB36K5699 WB36K5699 CONTROL PANEL HOUSING
WB20X0126 WB20X0126 CONTROL VALVE
WB02X9152 WB02X9152 COVER
WB2X9152 WB2X9152 COVER
WB02X9642 WB02X9642 COVER PLATE
WB2X9642 WB2X9642 COVER PLATE
WB34K5238 WB34K5238 COVER-BOTTOM INSULATION
WB02K5164 WB02K5164 CUP LIGHT SUPPORT
WB34K14 WB34K14 CVR IGNITOR
WB55K5075 WB55K5075 DOOR FRAME-BLACK
WB55K5078 WB55K5078 DOOR FRAME-WHITE
WB7X7183 WB7X7183 DOOR HANDLE END CAP
WB35K5054 WB35K5054 DOOR INSULATION
WB14X0115 WB14X0115 DOOR LATCH-BURNER BOX BOTTOM
WB34K5228 WB34K5228 DOOR LOCK PLAT
WB55T10009 WB55T10009 DOOR PLUG
WB18K5490 WB18K5490 DOOR SWITCH WIRE HARNESS
WB39M0003 WB39M0003 DRAWER GUIDE ASM-LT
WB39M0004 WB39M0004 DRAWER GUIDE ASM-RT
WB58T10002 WB58T10002 DRAWER STORAGE ASSEMBLY
WB39M4 WB39M4 DRWR GD ASM
WB39M3 WB39M3 DRWR GD ASM
WB36T10065 WB36T10065 END CAP LT-B
WB36T10068 WB36T10068 END CAP LT-W
WB36T10064 WB36T10064 END CAP RT-B
WB26X114 WB26X114 FAN ASM
WB26K5061 WB26K5061 FAN ASM -CONTROL-UPR
WB26X0114 WB26X0114 FAN ASM-TOP CABINET
WB35K5125 WB35K5125 FLUE BOX INSULATION
WB38T10003 WB38T10003 FLUE DEFLECT
WB04K5005 WB04K5005 FLUE GASKET
WB4K5005 WB4K5005 FLUE GASKET
WB07T10063 WB07T10063 FRAME FRT PNL LO (BLACK)
WB63T10017 WB63T10017 FRONT FRAME
WB36X0779 WB36X0779 GLASS DOOR-CENTER
WB2M1 WB2M1 GLASS RETNR
WB02K5147 WB02K5147 GLASS SPACER
WB36X779 WB36X779 GLASS-CENTER
WB57M0022 WB57M0022 GLASS-OVEN DOOR -INNER
WB57M22 WB57M22 GLS OV DR-IN
WB15K5087 WB15K5087 HANDLE ASSEMBLY (BLACK)
WB15K5088 WB15K5088 HANDLE ASSEMBLY (WHITE)
WB34X26884 WB34X26884 HEAT REFLECTOR
WB34K5249 WB34K5249 HEAT SHIELD
WB35K5129 WB35K5129 HEAT SHIELD INSULATION
WB14K5007 WB14K5007 HINGE OV DR LT
WB14K5006 WB14K5006 HINGE OV DR RT
WB07K5478 WB07K5478 I-BROW TRIM-BLK
WB7K5478 WB7K5478 I-BROW TRM-B
WB34K0014 WB34K0014 IGNITER COVER
WB02X9154 WB02X9154 IGNITER-BROIL/OVEN
WB34K5257 WB34K5257 IGNITOR WIRE COVER
WB2X9154 WB2X9154 IGNITR BR/OV
31-10298 31-10298 INSTRUCTION INSTALL
WB2K5390 WB2K5390 INSUL RETAIN
WB35K5059 WB35K5059 INSULATION TOP & SIDES
WB35K5124 WB35K5124 INSULATION WRAPPER-OUTER
WB35K5057 WB35K5057 INSULATION-BACK/BTM UPPER
WB35K5064 WB35K5064 INSULATION-BODY SIDE
WB01X1117 WB01X1117 INVERTED NUT 3/8""
WB24K5061 WB24K5061 JAMB SWITCH
WB36X192 WB36X192 LAMP COV ASM
WB14X115 WB14X115 LATCH
WB02X9635 WB02X9635 LEVELING LEG
WB2X9635 WB2X9635 LEVELING LEG
WB2K5164 WB2K5164 LGHT CUP SUP
WB02X7694 WB02X7694 LIGHT CAMERA LENS BAIL
WB24K5085 WB24K5085 LIMIT SWITCH
WB24K5041 WB24K5041 LIMIT SWITCH-FAN
WB24K5045 WB24K5045 LIMIT SWITCH-TO CAB TOP
WB07M0003 WB07M0003 LO FRAME TRIM-2 1/2""-BLK
WB15K5027 WB15K5027 LO FRT PANEL HANDLE-BLACK
WB15K5016 WB15K5016 LOCK LEVER ASM
WB49T10020 WB49T10020 LOCK MOTOR
WB56T10006 WB56T10006 LWR FRONT PANEL ASSEMBLY-BLACK
WB07T10062 WB07T10062 LWR FRT PNL TRIM (WHITE)
WB7M3 WB7M3 LWR FRT TRIM
WB55T10025 WB55T10025 LWR PNL LINER
WB63K5095 WB63K5095 MAIN BACK
WB18K5642 WB18K5642 MAIN WIRE HARNESS
31-13665 31-13665 MANUAL MINI & WD ASM
WB56K10049 WB56K10049 MULTIPLE SUPERCEDURES
WB2X9096 WB2X9096 N/L/A 07/22/05
WB02X9611 WB02X9611 NIPPLE
WB2X9611 WB2X9611 NIPPLE-3/8
WB1X1117 WB1X1117 NUT-INVERTED
WB2K5132 WB2K5132 ODR STIF ASM
WB2X9646 WB2X9646 ORIFICE FITT
WB02X9163 WB02X9163 ORIFICE FITTING PLATE
WB02X9159 WB02X9159 ORIFICE FITTING SHIELD
WB57K5277 WB57K5277 OUTER OVEN DR GLASS-WHITE
WB34K5095 WB34K5095 OV BOTTOM BAFFLE
WB02K5390 WB02K5390 OV BTM INSUL RETAINER
WB34K5077 WB34K5077 OV DR BAFFLE
WB02K5131 WB02K5131 OV DR GLASS RETAINER
WB02M0001 WB02M0001 OV DR GLASS RETAINER
WB02K5159 WB02K5159 OV DR INS RETAINER
WB57K5093 WB57K5093 OV DR INTERMEDIATE GLASS
WB02K5132 WB02K5132 OV DR LINING STIFFENER
WB57K5256 WB57K5256 OV DR OUTER GLASS-BLK
WB8X303 WB8X303 OV LAMP HLDR
WB08X0303 WB08X0303 OV LAMP HOLDER
WB2X7693 WB2X7693 OV LIGHT CUP
WB2K5266 WB2K5266 OV SD INSUL
WB02K5266 WB02K5266 OV SIDE INSUL RETAINER
WB2K5131 WB2K5131 OVDR GL RET
WB2K5159 WB2K5159 OVDR INS RET
WB63T10020 WB63T10020 OVEN BODY
WB63T10019 WB63T10019 OVEN BOTTOM
WB35K5056 WB35K5056 OVEN BTM INSULATION
WB32K5037 WB32K5037 OVEN DOOR GASKET
WB55T10011 WB55T10011 OVEN DOOR LI
WB09K5017 WB09K5017 OVEN DOOR SPRING
WB02X7693 WB02X7693 OVEN LIGHT CUP
WB48X0218 WB48X0218 OVEN RACK
WB56K10048 WB56K10048 OVERLAY PNL LWR (BLACK)
WB1X371D WB1X371D PACKAGE OF 12 CERAMIC WIRE NUT
WB36T10542 WB36T10542 PANEL CONTROL ASSEMBLY W/OLY BLACK
WB1K5071 WB1K5071 PLASTC RIVET
WB01K5071 WB01K5071 PLASTIC RIVET
WB2X9163 WB2X9163 PLATE
WB2K5395 WB2K5395 PLATE REINFO
WB35K5055 WB35K5055 PLUG INSULATION
WB19T10079 WB19T10079 PRESSURE REGULTR-CONVTBL
WB48T10094 WB48T10094 RACK OVEN
WB08K5039 WB08K5039 RANGE CORD
WB8K5039 WB8K5039 RANGE CORD
WB36X0389 WB36X0389 RANGE OVEN BULB COVER
WB34T10007 WB34T10007 REG COVER
WB2K5343 WB2K5343 REG SUPPORT
WB34T10021 WB34T10021 REGULATOR COVER PLATE
WB02K5343 WB02K5343 REGULATOR SUPPORT
WB02K5395 WB02K5395 REINFORCEMENT PLATE
WB02T10019 WB02T10019 RETAINER INSLN RR
WB01X1173 WB01X1173 RIVET
WB1X1173 WB1X1173 RIVET
WB02X9638 WB02X9638 ROLLER-DRAWER
WB01X1179 WB01X1179 SCREW
WB01X1141 WB01X1141 SCREW
WZ04X0044 WZ04X0044 SCREW
WB01X1137 WB01X1137 SCREW
WB01X1127 WB01X1127 SCREW
WB01X1131 WB01X1131 SCREW
WB01M0001 WB01M0001 SCREW
WB01K5028 WB01K5028 SCREW
WB01K5162 WB01K5162 SCREW
WB1X1334 WB1X1334 SCREW
WB1X1179 WB1X1179 SCREW
WB1K5213 WB1K5213 SCREW
WB1M1 WB1M1 SCREW
WB1X1261 WB1X1261 SCREW
WB1K5157 WB1K5157 SCREW
WB1X536 WB1X536 SCREW
WB1X1149 WB1X1149 SCREW 10-16 X 3/8-INCH
WB01K5213 WB01K5213 SCREW 10-32X5/32
WB1K60 WB1K60 SCREW 8-18
WB01K0060 WB01K0060 SCREW 8-18 (BK) 1/2 S
WH2X930 WH2X930 SCREW 8-18 AB HXW 3/8
WB1K5191 WB1K5191 SCREW FL ZNC 10-32
WB01K5191 WB01K5191 SCREW FLAT ZINC 10-32
WB01X1261 WB01X1261 SCREW GROUND
WB1K5173 WB1K5173 SCREW ST 8-18 X 3/4 BLK
WB1X1137 WB1X1137 SCREW-10AB
WB1X1131 WB1X1131 SCREW-6-32
WB1X1118 WB1X1118 SCREW-6-32T 6-20 X 3/8
WB1X1141 WB1X1141 SCREW-8-32
WB1X1124 WB1X1124 SCREW-ADJUST
WB01X1180 WB01X1180 SCREW-BLACK
WB1K5162 WB1K5162 SCREW-BLACK
WB1K5165 WB1K5165 SCREW-BLACK
WB01K5165 WB01K5165 SCREW-BLK
WZ4X44D WZ4X44D SCREW-PKG 12
WB2X9168 WB2X9168 SEAL
WB02X9168 WB02X9168 SEAL GLASS OV DR INNER
WB21X5301 WB21X5301 SENSOR ASSEMBLY
WB18K5600 WB18K5600 SENSOR WIRE HARNESS
WB2X9159 WB2X9159 SHIELD
WB34K5100 WB34K5100 SHIELD HEAT
WB01X1331 WB01X1331 SHOULDER RIVET
WB2K5147 WB2K5147 SPACER
WB2X9641 WB2X9641 SPACER
WB02X9641 WB02X9641 SPACER-FRONT TRIM
WB09T10007 WB09T10007 SPRING OVEN DR UPPER
WB2K5265 WB2K5265 TOP INS RET
WB02K5265 WB02K5265 TOP INSULATION RETAINER
WB07T10369 WB07T10369 TRIM FRT FRM LWR
WB1K5177 WB1K5177 TRIM SCREW 10-16 X 3/4 BLK
WB01K5177 WB01K5177 TRIM SCREW-BLACK
WB01K5173 WB01K5173 TRIM SCREW-BLK
WB07K5019 WB07K5019 TRIM-FRONT-LOWER-1-7/16""
WB28K5021 WB28K5021 TUBE ASM
WB28K5026 WB28K5026 TUBE ASM
WB48X10056 WB48X10056 TWO-PIECE PORCELAIN-COATED BROILER
49-8703 49-8703 USE CARE MANUAL
WB34K5212 WB34K5212 VALVE WIRE COVER
WB38T10010 WB38T10010 VENT BOX
WB7K5108 WB7K5108 VENT TRIM EX
WB07K5108 WB07K5108 VENT TRIM EXTENSION
WB7K5477 WB7K5477 VENT TRIM-BL
WB07K5477 WB07K5477 VENT TRIM-BLACK
WB7K5278 WB7K5278 VERT SD TRIM
WB07K5278 WB07K5278 VERTICAL SIDE TRIM-BLK
WB01X1254 WB01X1254 WASHER
WB01K5174 WB01K5174 WASHER
WB1X1256 WB1X1256 WASHER
WB1K5174 WB1K5174 WASHER
WB01X1256 WB01X1256 WASHER SPRING
WB1X119D WB1X119D WASHR-PKG 12
WB1X681 WB1X681 WB01X0681
WB27T10267 WB27T10267 WB27T10267
WB01X1181 WB01X1181 WIRE CONNECTOR
WB02X9665 WB02X9665 WIRE COVER
WB2X9665 WB2X9665 WIRE COVER
WB34K5263 WB34K5263 WIRE SHIELD
WB01X1413 WB01X1413 WOOD SCREW-BLK
