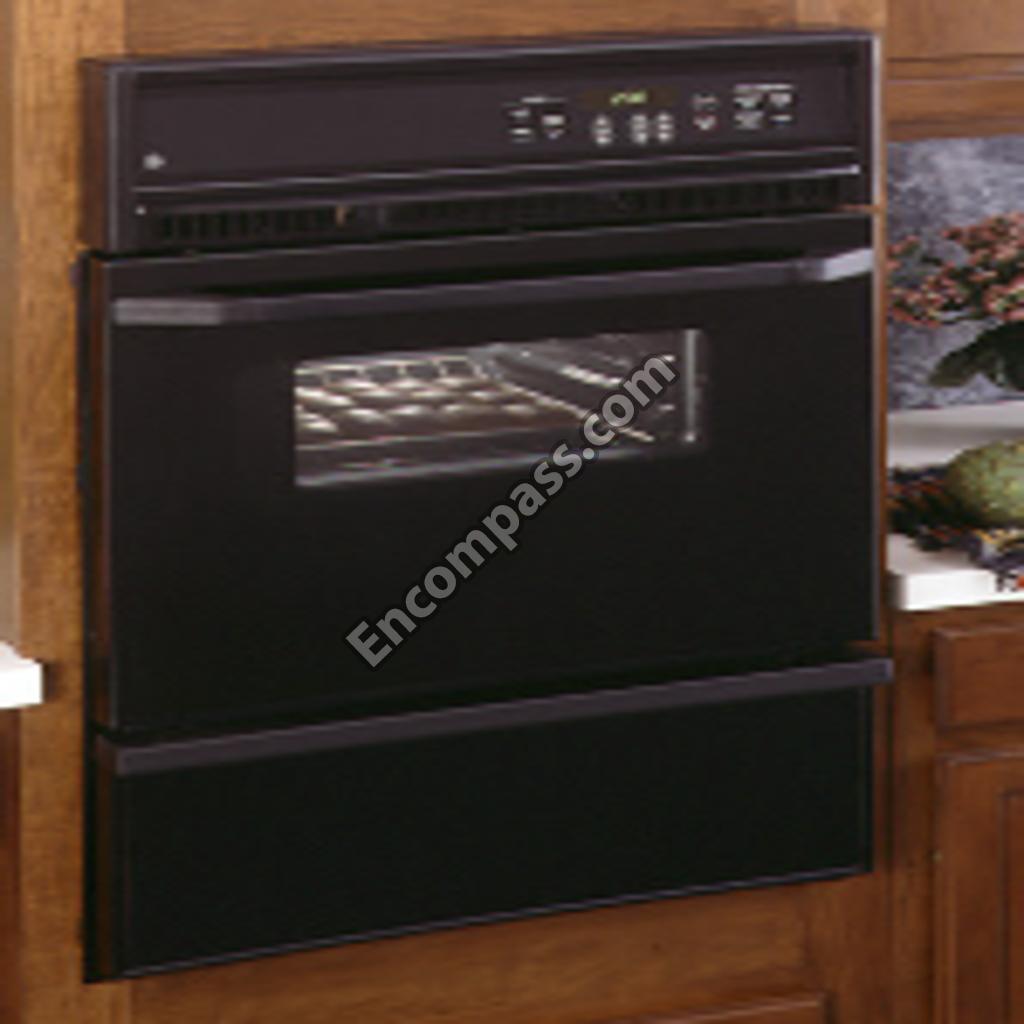

Model Image
Manufacturer

GE

Model Number

JGRS14BEW1BB

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
49-8702 49-8702 49-8702-1
WB02X9014 WB02X9014 AIR SHUTTER
WB2X9014 WB2X9014 AIR SHUTTER
WB01X1124 WB01X1124 AIR SHUTTER SCREW
WB38K5036 WB38K5036 BARRIER
WB63K5099 WB63K5099 BODY SIDE
WB1X1156 WB1X1156 BOLT
WB02X9634 WB02X9634 BOTTOM CHANNEL
WB49X625 WB49X625 BOTTOM DRWR
WB2K5406 WB2K5406 BRACKET
311689 311689 BRACKET-IGN
WB49X0625 WB49X0625 BRO DRAWER BOTTOM
WB09X0240 WB09X0240 BRO DRAWER SPRING
WB49X0619 WB49X0619 BRO PAN
WB49X0620 WB49X0620 BRO PAN GRID
WB55K5025 WB55K5025 BROILER DOOR LINING
WB58K5004 WB58K5004 BROILER DRAWER ASSEMBLY
WB14K5018 WB14K5018 BROILER DRAWER HINGE-LT
WB14K5019 WB14K5019 BROILER DRAWER HINGE-RT
WB49T10003 WB49T10003 BROILER PAN GRID
WB63K5198 WB63K5198 CABINET TOP
WB35K5066 WB35K5066 CABINET TOP INSULATIO
WB35K5130 WB35K5130 CABINET TOP INSULATION
WB2X9634 WB2X9634 CHANNEL
WB2X1422 WB2X1422 CLAMP
WB02X1422 WB02X1422 CLAMP HARNESS
WB02X9573 WB02X9573 CLIP
WB1K5209 WB1K5209 CLIP
WB2X9573 WB2X9573 CLIP
WB7X5016 WB7X5016 CON HSG SCRN
WB07X5016 WB07X5016 CONT HOUSING SCREEN
WB37K5041 WB37K5041 CONTROL HOUSING
WB37K5040 WB37K5040 CONTROL HOUSING TOP
WB02K5406 WB02K5406 CONTROL PANEL BRACKET
WB21K5009 WB21K5009 CONTROL VALVE
WB02X9152 WB02X9152 COVER
WB2X9152 WB2X9152 COVER
WB02X9642 WB02X9642 COVER PLATE
WB2X9642 WB2X9642 COVER PLATE
WB02K5164 WB02K5164 CUP LIGHT SUPPORT
WB55K5075 WB55K5075 DOOR FRAME-BLACK
WB7X7183 WB7X7183 DOOR HANDLE END CAP
WB35K5054 WB35K5054 DOOR INSULATION
WB14X0115 WB14X0115 DOOR LATCH-BURNER BOX BOTTOM
WB32K5050 WB32K5050 DOOR SEAL
WB39M0003 WB39M0003 DRAWER GUIDE ASM-LT
WB39M0004 WB39M0004 DRAWER GUIDE ASM-RT
WB39M3 WB39M3 DRWR GD ASM
WB39M4 WB39M4 DRWR GD ASM
WB36T10065 WB36T10065 END CAP LT-B
WB36T10064 WB36T10064 END CAP RT-B
WB36K5681 WB36K5681 END CAP, LT-BLK
WB36K5682 WB36K5682 END CAP, RT-BLK
WB38K5063 WB38K5063 FLUE DEFLECTOR ASSEMBLY
WB04K5005 WB04K5005 FLUE GASKET
WB4K5005 WB4K5005 FLUE GASKET
WB63K5164 WB63K5164 FRONT FRAME
WB36X0779 WB36X0779 GLASS DOOR-CENTER
WB02K5147 WB02K5147 GLASS SPACER
WB36X779 WB36X779 GLASS-CENTER
WB15K5087 WB15K5087 HANDLE ASSEMBLY (BLACK)
WB34K5249 WB34K5249 HEAT SHIELD
WB1X1153 WB1X1153 HEX NUT
WB14K5007 WB14K5007 HINGE OV DR LT
WB14K5006 WB14K5006 HINGE OV DR RT
WB07K5478 WB07K5478 I-BROW TRIM-BLK
WB7K5478 WB7K5478 I-BROW TRM-B
WB02X9162 WB02X9162 IGNITER BRACKET-BAKE
WB02X9154 WB02X9154 IGNITER-BROIL/OVEN
WB2X9154 WB2X9154 IGNITR BR/OV
WB2K5168 WB2K5168 INS SIDE RET
31-10156 31-10156 INSTALLATION INSTRUCTION
WB2K5167 WB2K5167 INSUL RET R
WB02X9032 WB02X9032 INSULATION
WB2X9430 WB2X9430 INSULATION
WB02K5167 WB02K5167 INSULATION RETAINER-REAR
WB02K5168 WB02K5168 INSULATION SIDE RETAINER
WB35K5059 WB35K5059 INSULATION TOP & SIDES
WB35K5065 WB35K5065 INSULATION-TOP/BACK
WB01X1117 WB01X1117 INVERTED NUT 3/8""
WB14X115 WB14X115 LATCH
WB02X9635 WB02X9635 LEVELING LEG
WB2X9635 WB2X9635 LEVELING LEG
WB2K5164 WB2K5164 LGHT CUP SUP
WB07M0003 WB07M0003 LO FRAME TRIM-2 1/2""-BLK
WB15K5027 WB15K5027 LO FRT PANEL HANDLE-BLACK
WB02K5364 WB02K5364 LOCK LEVER COVER
WB2K5364 WB2K5364 LOCK LVR CVR
WB56K5046 WB56K5046 LOWER FRONT PANEL
WB56K5118 WB56K5118 LOWER FRONT PANEL FRAME
WB7M3 WB7M3 LWR FRT TRIM
WB63K5095 WB63K5095 MAIN BACK
WB18K5632 WB18K5632 MAIN WIRE HARNESS
31-13314 31-13314 MINI MANUAL W/WIRE DIAG.
WB56K10049 WB56K10049 MULTIPLE SUPERCEDURES
WB2X9096 WB2X9096 N/L/A 07/22/05
WB01X1153 WB01X1153 NUT
WB1X1117 WB1X1117 NUT-INVERTED
WB2K5165 WB2K5165 ORIF FIT PLT
WB02K5165 WB02K5165 ORIFICE FITTING PLATE
WB02K5166 WB02K5166 OV BTM INSUL RETAINER
WB34X38846 WB34X38846 OV BURN BAFFLE-UPPER
WB64K5036 WB64K5036 OV BURN BOX SIDE-LT
WB64K5035 WB64K5035 OV BURN BOX SIDE-RT
WB55K5026 WB55K5026 OV DOOR LINING
WB02K5159 WB02K5159 OV DR INS RETAINER
WB57K5256 WB57K5256 OV DR OUTER GLASS-BLK
WB8X303 WB8X303 OV LAMP HLDR
WB08X0303 WB08X0303 OV LAMP HOLDER
WB2X7693 WB2X7693 OV LIGHT CUP
WB63K5106 WB63K5106 OV TOP COVER
WB2K5166 WB2K5166 OVBT INS RET
WB2K5159 WB2K5159 OVDR INS RET
WB9K5018 WB9K5018 OVDR SPRING
WB63K5097 WB63K5097 OVEN BOTTOM
WB16K5014 WB16K5014 OVEN BURNER ASSEMBLY
WB27T10268 WB27T10268 OVEN CONTROL ERC3B
WB09K5018 WB09K5018 OVEN DOOR SPRING
WB02X7693 WB02X7693 OVEN LIGHT CUP
WB48X0218 WB48X0218 OVEN RACK
WB56K10048 WB56K10048 OVERLAY PNL LWR (BLACK)
WB1X371D WB1X371D PACKAGE OF 12 CERAMIC WIRE NUT
WB49T10002 WB49T10002 PAN BRO

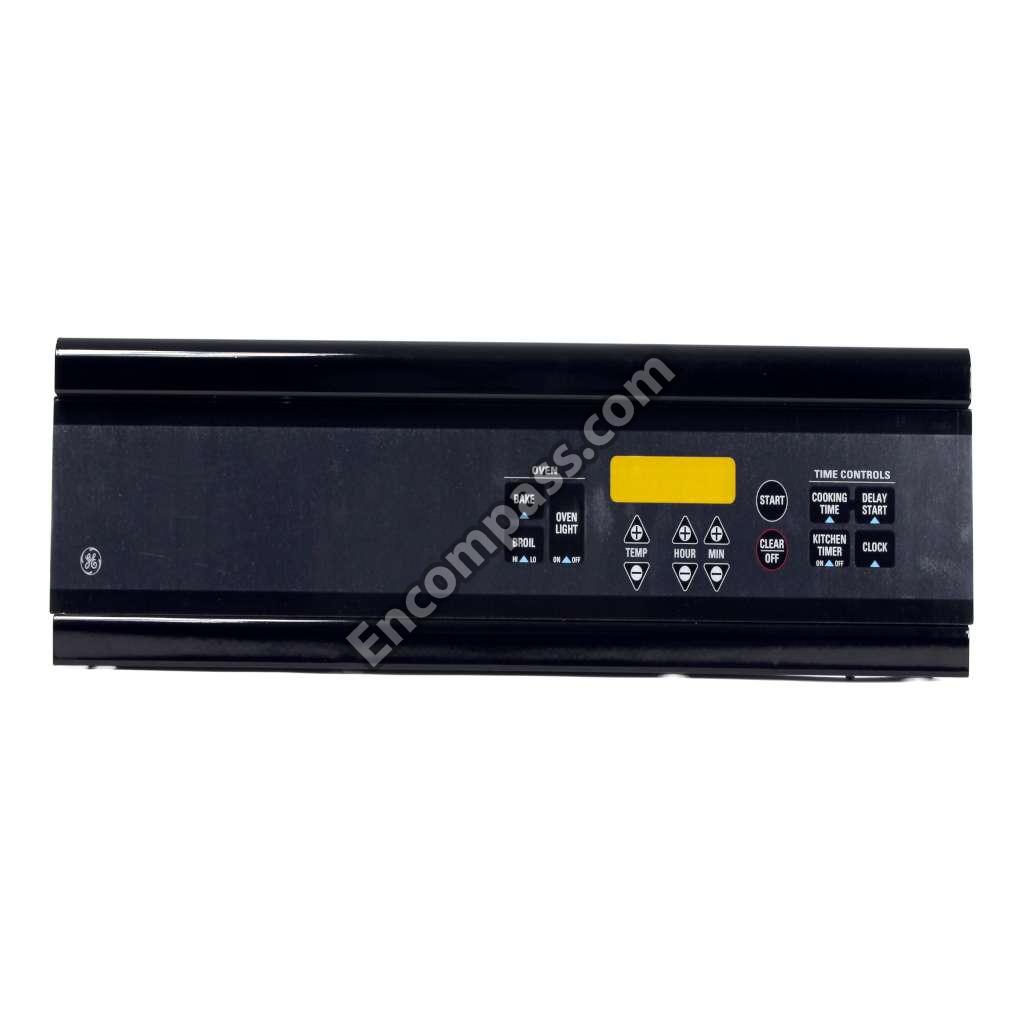

WB36T10544 WB36T10544 PANEL CONTROL ASSEMBLY W/OLY
WB1K5071 WB1K5071 PLASTC RIVET
WB01K5071 WB01K5071 PLASTIC RIVET
WB2K5395 WB2K5395 PLATE REINFO
WB2X9587 WB2X9587 PLUG
WB02X9587 WB02X9587 PLUG BUTTON-ROUND
WB19T10079 WB19T10079 PRESSURE REGULTR-CONVTBL
WB48T10094 WB48T10094 RACK OVEN
WB08K5039 WB08K5039 RANGE CORD
WB8K5039 WB8K5039 RANGE CORD
WB2K5343 WB2K5343 REG SUPPORT
WB34K5181 WB34K5181 REGULATOR COVER
WB02K5343 WB02K5343 REGULATOR SUPPORT
WB02K5395 WB02K5395 REINFORCEMENT PLATE
WB01X1173 WB01X1173 RIVET
WB1X1173 WB1X1173 RIVET
WB02X9638 WB02X9638 ROLLER-DRAWER
WB01X1179 WB01X1179 SCREW
WB01X1141 WB01X1141 SCREW
WB01X1116 WB01X1116 SCREW
WB01X1137 WB01X1137 SCREW
WB01K5116 WB01K5116 SCREW
WB01X1127 WB01X1127 SCREW
WB01K5162 WB01K5162 SCREW
WB01M0001 WB01M0001 SCREW
WB01K5029 WB01K5029 SCREW
WB01K5028 WB01K5028 SCREW
WB1X1179 WB1X1179 SCREW
WB1X1293 WB1X1293 SCREW
WB1K5116 WB1K5116 SCREW
WB1X1334 WB1X1334 SCREW
WB1K5029 WB1K5029 SCREW
WB1X1116 WB1X1116 SCREW
WB1M1 WB1M1 SCREW
WB1X1261 WB1X1261 SCREW
WB1K5157 WB1K5157 SCREW
WB1X536 WB1X536 SCREW
WB1K5191 WB1K5191 SCREW FL ZNC 10-32
WB01K5191 WB01K5191 SCREW FLAT ZINC 10-32
WB01X1261 WB01X1261 SCREW GROUND
WB01X1293 WB01X1293 SCREW TC10-32X.250HEXNI
WB01X1424 WB01X1424 SCREW, TRANSFORMER
WB1X1137 WB1X1137 SCREW-10AB
WB1X1141 WB1X1141 SCREW-8-32
WB1X1124 WB1X1124 SCREW-ADJUST
WB1K5162 WB1K5162 SCREW-BLACK
WB1X1424D WB1X1424D SCREW-PKG 12
WB21X5301 WB21X5301 SENSOR ASSEMBLY
WB01X1156 WB01X1156 SHOULDER BOLT
WB01X1331 WB01X1331 SHOULDER RIVET
WB2K5147 WB2K5147 SPACER
WB2X9641 WB2X9641 SPACER
WB02X9641 WB02X9641 SPACER-FRONT TRIM
WB9X240 WB9X240 SPRING
WB07T10369 WB07T10369 TRIM FRT FRM LWR
WB1K5177 WB1K5177 TRIM SCREW 10-16 X 3/4 BLK
WB01K5177 WB01K5177 TRIM SCREW-BLACK
WB07K5019 WB07K5019 TRIM-FRONT-LOWER-1-7/16""
WB28K5026 WB28K5026 TUBE ASM
WB01K5074 WB01K5074 U NUT
WB34K5096 WB34K5096 VALVE COVER
WB34K5212 WB34K5212 VALVE WIRE COVER
WB38K5064 WB38K5064 VENT BOX
WB7K5108 WB7K5108 VENT TRIM EX
WB07K5108 WB07K5108 VENT TRIM EXTENSION
WB7K5477 WB7K5477 VENT TRIM-BL
WB07K5477 WB07K5477 VENT TRIM-BLACK
WB7K5278 WB7K5278 VERT SD TRIM
WB07K5278 WB07K5278 VERTICAL SIDE TRIM-BLK
WB1X1256 WB1X1256 WASHER
WB01X1256 WB01X1256 WASHER SPRING
WB1X681 WB1X681 WB01X0681
WB63T10038 WB63T10038 WB63T10038
WB01X1181 WB01X1181 WIRE CONNECTOR
WB02X9665 WB02X9665 WIRE COVER
WB2X9665 WB2X9665 WIRE COVER
WB01X1413 WB01X1413 WOOD SCREW-BLK
WB63K5404 WB63K5404 WRAPPER OV CAV ASSEMBLY
