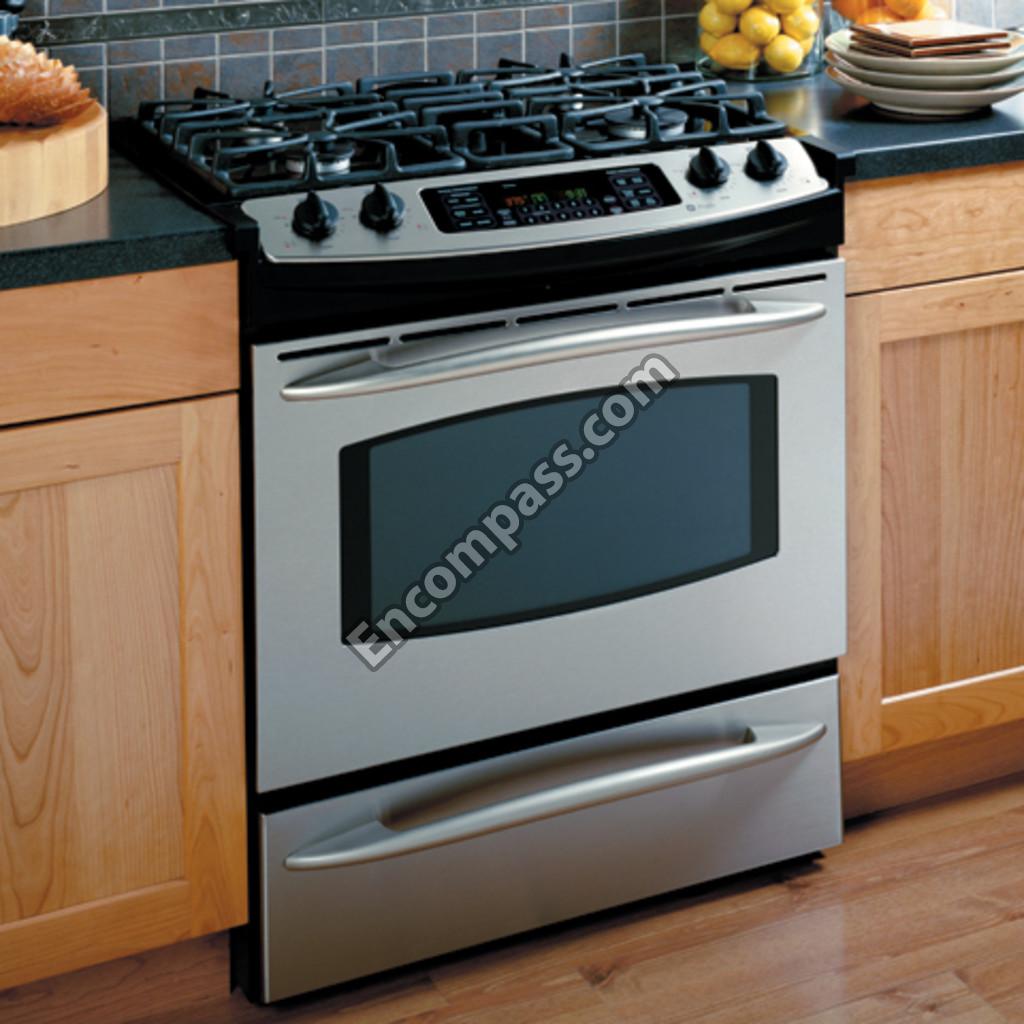

Model Image
Manufacturer

GE

Model Number

JGS968SH4SS

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
PM10X310 PM10X310 28 CERAMA BR
WB1K5200 WB1K5200 340531
WB02X9014 WB02X9014 AIR SHUTTER
WB2X9014 WB2X9014 AIR SHUTTER
WB01X1124 WB01X1124 AIR SHUTTER SCREW
WB02T10415 WB02T10415 ANTI TIP BKT
WB36K10239 WB36K10239 BACKSPLASH FILLER-BLACK
WB34T10078 WB34T10078 BAFFLE BRO BURN-UPPER
WB34T10077 WB34T10077 BAFFLE BURNER
WB34T10076 WB34T10076 BAFFLE BURNER
WB34T10073 WB34T10073 BAFFLE MANIFOLD
WB16T10033 WB16T10033 BASE BURNER LARGE
WB16T10030 WB16T10030 BASE BURNER MED
WB16T10032 WB16T10032 BASE BURNER RT FRT
WB39T10006 WB39T10006 BASE RIVET ASM
WB26T10039 WB26T10039 BLOWER ASSEMBLY
WB64T10039 WB64T10039 BOTTOM BURN BOX
WB63T10101 WB63T10101 BOTTOM FALSE
WB53T10006 WB53T10006 BOX OVN BURN
WB02T10182 WB02T10182 BRACKET INJET
WB02T10190 WB02T10190 BRACKET REGULATOR
WB02T10191 WB02T10191 BRACKET VNT
WB16T10031 WB16T10031 BURNER BASE SMALL
WB13T10021 WB13T10021 BURNER CAP B- SBK
WB13T10019 WB13T10019 BURNER CAP D-SBK
WB13T10022 WB13T10022 BURNER CAP H-SBK
WB13T10035 WB13T10035 BURNER CAP LT FRT -SBK
WB13T10020 WB13T10020 BURNER CAP SBK-LT RR
WB04T10012 WB04T10012 BURNER GASKET LT RR
WB04T10011 WB04T10011 BURNER GASKET LT RR
WB16T10011 WB16T10011 BURNER GASKET RTR CENT
WB31T10032 WB31T10032 BURNER GRATE DOUBLE
WB28K10141 WB28K10141 BURNER HOLDER BKT SMALL
WB28T10092 WB28T10092 BURNER INJET ASM
WB28T10031 WB28T10031 BURNER INJET LEFT FRT
WB16T10022 WB16T10022 BURNER OVN BAKE ASM
WB16T10021 WB16T10021 BURNER OVN BROIL ASM
WB6X93 WB6X93 CLAMP
WB24T10061 WB24T10061 CLEAN TCO
WB01K5209 WB01K5209 CLIP
WB1K5209 WB1K5209 CLIP
WB02T10304 WB02T10304 CLIP RING
WB02X10742 WB02X10742 CONTROL PANEL GASKET
WB02X9152 WB02X9152 COVER
WB2X9152 WB2X9152 COVER
WB02T10224 WB02T10224 COVER FAN (CONVEX) UPPER
WB34T10075 WB34T10075 COVER WIRE REAR
WB01T10022 WB01T10022 DOOR BUMPER
WB03T10156 WB03T10156 DOOR BUMPER
WB02X9037 WB02X9037 DOOR HANDLE SPACER-BLACK
WB56T10137 WB56T10137 DOOR OTR ASM 30 (SS)
WB55T10178 WB55T10178 DRAWER BODY ASSEMBLY MECH
WB48T10013 WB48T10013 DRAWER SUPPORT FRT
WB28T10091 WB28T10091 ELBOW
WB13K10012 WB13K10012 ELECTRODE TOP
WB07T10405 WB07T10405 EXTENSION REAR
WB07T10498 WB07T10498 EXTENSION SIDE LEFT
WB07K10135 WB07K10135 EXTENSION SIDE RT
WR02X10562 WR02X10562 FASTENER PUSH
WB02T10189 WB02T10189 FITTING BR ORIF
WB63T10083 WB63T10083 FRAME FRT LOWER
WB21X31343 WB21X31343 GAS VALVE CENTER
WB02T10320 WB02T10320 GASKET MAINTOP LH
WB02T10511 WB02T10511 GASKET MAINTOP OTR
WB02T10319 WB02T10319 GASKET MAINTOP RH
WB41T10003 WB41T10003 GASKET OVEN DR LOWER
WB04K10005 WB04K10005 GASKET TO COOKTOP SMALL
WB04T10030 WB04T10030 GASKET VENT
WB64X0093 WB64X0093 GLASS CLEANER
WB57T10233 WB57T10233 GLASS OVN DR INR
WB29T10024 WB29T10024 GLASS TOUCH ASSEMBLY
WB31T10073 WB31T10073 GRATE ASM (CTR)
WB15T10126 WB15T10126 HANDLE PROFILE SS
WB18T10343 WB18T10343 HARNESS SWITCH
WB18T10406 WB18T10406 HARNESS WIRE BURNER
WB16T10028 WB16T10028 HEAD BURNER B
WB16T10024 WB16T10024 HEAD BURNER LARGE
WB16T10027 WB16T10027 HEAD BURNER RT FT
WB16T10020 WB16T10020 HEAD BURNER RT RR/CEN
WB50T10076 WB50T10076 HINGE/RECEIVER KIT LF AND RT
WB02T10289 WB02T10289 HUB BLADE ASSEMBLY
WB13T10045 WB13T10045 IGNITER ASM
WB36T10661 WB36T10661 INSERT PNL CNTL
31-10552 31-10552 INSTRUCTION INSTALL
WB35T10090 WB35T10090 INSULATION BACK & BTM
WB35T10091 WB35T10091 INSULATION COMP SHLD
WB35K10025 WB35K10025 INSULATION OVEN DR SDE
WB35T10086 WB35T10086 INSULATION OVN DR SDE
WB35X30052 WB35X30052 INSULATION OVN DR TOP
WB35T10089 WB35T10089 INSULATION TOP & SDS OTR
WB35T10088 WB35T10088 INSULATION TOP AND SDS INR
WB08T10005 WB08T10005 JACK RECEPTACLE
WB03T10197 WB03T10197 KNOB GAS VLV (BLK)
WB25T10096 WB25T10096 LAMP HALOGEN ASM
WB49X29679 WB49X29679 LAMP HALOGEN UPPR 50W
WB14T10018 WB14T10018 LATCH OVN
WB02X10521 WB02X10521 LEG LEVELER
WB25T10027 WB25T10027 LENS OVEN LAMP
WB55T10147 WB55T10147 LINER OVN DR ASM
WB01K5046 WB01K5046 LOCKWASHER
WB02K5306 WB02K5306 LOWER OVN INSLN RETAINER
WB61T10137 WB61T10137 MAINTOP GLASS ASM (BK)
WB28T10084 WB28T10084 MANIFOLD PIPE
31-14261 31-14261 MANUAL MINI & WD ASM
31-14110N__ 31-14110N__ MANUAL MINI & WD ASM
49-80166 49-80166 MANUAL USE & CARE
WB13X46909 WB13X46909 MODULE SPARK (4+0)
WB57T10241 WB57T10241 MOTOR FAN
WB02T10017 WB02T10017 NUT
WB1X5572 WB1X5572 NUT
WB01X5572 WB01X5572 NUT MEAT PROBE
WB28K10143 WB28K10143 ORIFICE HOLDER BKT LARGE
WB28K10288 WB28K10288 ORIFICE SPUD
WB28T10011 WB28T10011 ORIFICE SPUD ASSEMBLY
WB28T10028 WB28T10028 ORIFICE SPUD ASSEMBLY
WB28T10017 WB28T10017 ORIFICE SPUD ASSEMBLY-LP
WB28T10015 WB28T10015 ORIFICE SPUD ASSEMBLY-NAT
WB28T10014 WB28T10014 ORIFICE SPUD LT FRT
WB28T10027 WB28T10027 ORIFICE SPUD RT FR-NG
WB28T10033 WB28T10033 ORIFICE SPUD RT FRT -LP
WB27T11252 WB27T11252 OVEN CONTROL ( CLOCK)
WB02K5310 WB02K5310 OVEN DOOR GLASS RETAINER
WB56T10105 WB56T10105 PACK WINDOW ASM
WB56X22160 WB56X22160 PACK WINDOW ASSEMBLY
WB36T10666 WB36T10666 PANEL CNTL ASM
WB56T10176 WB56T10176 PANEL DRAWER ASSEMBLY
WB02T10147 WB02T10147 PLATE REINFORCEMEMT
WB2X8309 WB2X8309 PR0BE COVER
WB20T10024 WB20T10024 PROBE
31-10579 31-10579 QUICK REFERENCE
WB48T10020 WB48T10020 RACK OVEN
WB08K5039 WB08K5039 RANGE CORD
WB8K5039 WB8K5039 RANGE CORD
WB02T10461 WB02T10461 RANGE GRATE FOOT
WB10T10053 WB10T10053 RECEIVER HINGE
WB19T10073 WB19T10073 REGULATOR CONVERT PRESS
WB02T10184 WB02T10184 RETAINER GLASS (BLK)
WB56T10373 WB56T10373 RETAINER GLASS OVEN DR
WB56T10136 WB56T10136 RETAINER INSLN BACK
WB02T10247 WB02T10247 RETAINER INSLN BTM
WB56T10147 WB56T10147 RETAINER INSLN OVN DR
WB02T10186 WB02T10186 RETAINER INSLN TOP
WB02T10172 WB02T10172 RETAINER OVN DR EXT
WB18T10331 WB18T10331 RIBBON CONNECTOR GLS TCH
WB48X5108 WB48X5108 ROAST RACK
WH02X0941 WH02X0941 SCR 8-15 A HXW 7/8 S
WB01X0500 WB01X0500 SCR 8-18 B HXW 1/4 S
WB01X1127 WB01X1127 SCREW
WB01X1178 WB01X1178 SCREW
WB01K5029 WB01K5029 SCREW
WB01K5200 WB01K5200 SCREW
WB01X1116 WB01X1116 SCREW
WB01X1428 WB01X1428 SCREW
WB01X1141 WB01X1141 SCREW
WB01K5028 WB01K5028 SCREW
WB01X1137 WB01X1137 SCREW
WB01M0001 WB01M0001 SCREW
WH2X930 WH2X930 SCREW
WB1X536 WB1X536 SCREW
WB1M1 WB1M1 SCREW
WB1X1116 WB1X1116 SCREW
WB1X1293 WB1X1293 SCREW
WB1X1178 WB1X1178 SCREW
WB1K5029 WB1K5029 SCREW
WB01X5364 WB01X5364 SCREW (CR)
WB01T10058 WB01T10058 SCREW 10-16 AB HXW 750 S N
WB01T10048 WB01T10048 SCREW 10-16 SHLDR TYPE A
WB01T10008 WB01T10008 SCREW 10-32 TR T
WB01T10049 WB01T10049 SCREW 6-32 MCH FHT15 984
WB01T10017 WB01T10017 SCREW 8-18 AB IHW 3/8 S NS
WB1X5364 WB1X5364 SCREW MTG
WB01K5150 WB01K5150 SCREW ST10-16 X 7/16""
WB01X1293 WB01X1293 SCREW TC10-32X.250HEXNI
WB1X1137 WB1X1137 SCREW-10AB
WB1X1118 WB1X1118 SCREW-6-32T 6-20 X 3/8
WB1X1141 WB1X1141 SCREW-8-32
WB01X1180 WB01X1180 SCREW-BLACK
WB1X500D WB1X500D SCREW-PKG 12
WH2X941D WH2X941D SCREW-PKG 12
WB2K5306 WB2K5306 SD INSUL RET
WB04K10004 WB04K10004 SEAL COOKTOP LARGE
WB21X22134 WB21X22134 SENSOR ASSEMBLY
WB34T10080 WB34T10080 SHIELD COMPRT
WB02T10188 WB02T10188 SHIELD ORIFICE
WB02T10034 WB02T10034 SIDE PANEL SUPPORT
WB2X9037 WB2X9037 SPACER-HNDL
WB09T10010 WB09T10010 SPRING
WB02T10192 WB02T10192 SUPPORT FALSE BTM
WB26T10015 WB26T10015 SUPPORT OVN CAV
WB02X33180 WB02X33180 SUPPORT REAR
WB2K5238 WB2K5238 SW BRACKET
WB02K5238 WB02K5238 SWITCH BRACKET
WB24T10065 WB24T10065 SWITCH LIGHT SPOT
WB01T10052 WB01T10052 TAPE FOAM
WB01T10055 WB01T10055 TAPE FOAM
WB07T10392 WB07T10392 TRIM VERT SDE LT
WB07T10391 WB07T10391 TRIM VERT SDE RT
WB07T10398 WB07T10398 TRIM VNT INR (BLK)
WB28T10094 WB28T10094 TUBE 3/8
WB28T10093 WB28T10093 TUBE 3/8
WB28T10095 WB28T10095 TUBE 3/8
WB28T10097 WB28T10097 TUBE 7/16
WB28T10085 WB28T10085 TUBE BURNER LT FT
WB28T10087 WB28T10087 TUBE BURNER LT RR
WB28T10086 WB28T10086 TUBE BURNER RT FT
WB28T10088 WB28T10088 TUBE BURNER RT RR
WB28T10096 WB28T10096 TUBE OVN VNT
WB48X10056 WB48X10056 UNIVERSAL RANGE BROILER PAN
WB06X0093 WB06X0093 VALVE CLAMP
WB21T10014 WB21T10014 VALVE CNTL
WB21X22072 WB21X22072 VALVE GAS LT RR
WB21X22073 WB21X22073 VALVE GAS RT FRT
WB21X22071 WB21X22071 VALVE KIT
WB38T10023 WB38T10023 VENT CAP
WB31T10077 WB31T10077 VENT CENTER (SS)
WB01X5573 WB01X5573 WASHER
WB1X5573 WB1X5573 WASHER
WB1K5046 WB1K5046 WASHER
WB1X681 WB1X681 WB01X0681
WB48T10068 WB48T10068 WEDGE DRAWER
WB63T10100 WB63T10100 WRAPPER OVN CAV ASM
