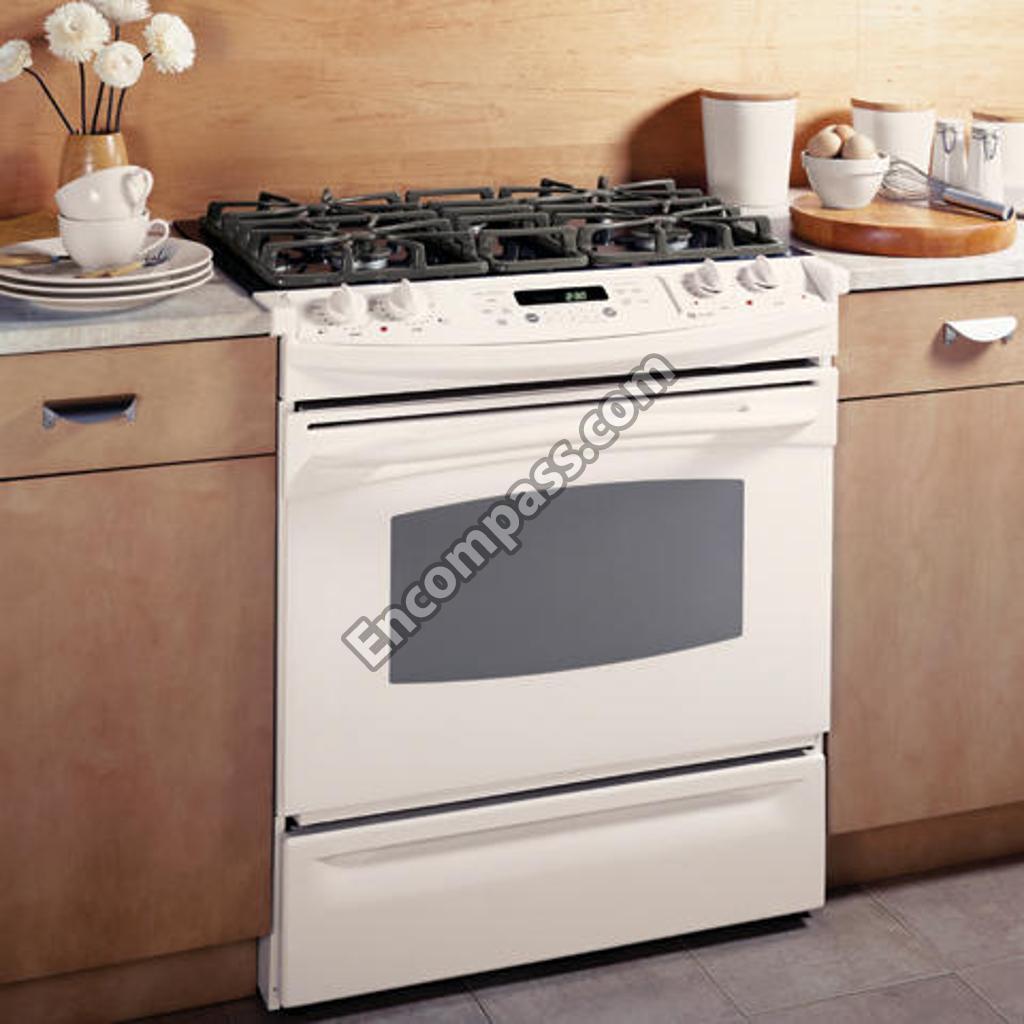

Model Image
Manufacturer

GE

Model Number

JGSP48CH6CC

Description

Gas Range Or Dual Fuel

Interactive Exploded View

Parts List

Part Number Description
PM10X310 PM10X310 28 CERAMA BR
WB1K5200 WB1K5200 340531
40A15 40A15 40WATT 15AMP INC AND ESCENT BULB
WB02X9014 WB02X9014 AIR SHUTTER
WB2X9014 WB2X9014 AIR SHUTTER
WB01X1124 WB01X1124 AIR SHUTTER SCREW
WB02T10415 WB02T10415 ANTI-TIP BRACKET
WB36K10239 WB36K10239 BACKSPLASH FILLER-BLK
WB34T10078 WB34T10078 BAFFLE BRO BURN-UPPER
WB34T10076 WB34T10076 BAFFLE BURNER
WB34T10077 WB34T10077 BAFFLE BURNER
WB34T10073 WB34T10073 BAFFLE MANIFOLD
WB16T10033 WB16T10033 BASE BURNER LARGE
WB16T10030 WB16T10030 BASE BURNER MED
WB39T10006 WB39T10006 BASE RIVET ASM
WB26T10039 WB26T10039 BLOWER ASSEMBLY
WB64T10039 WB64T10039 BOTTOM BURN BOX
WB63T10101 WB63T10101 BOTTOM FALSE
WB53T10006 WB53T10006 BOX OVN BURN
WB02T10182 WB02T10182 BRACKET INJET
WB02T10190 WB02T10190 BRACKET REGULATOR
WB02T10191 WB02T10191 BRACKET VNT
WB16T10031 WB16T10031 BURNER BASE SMALL
WB13T10023 WB13T10023 BURNER CAP BLK B MED
WB13T10014 WB13T10014 BURNER CAP BQT-C
WB13T10015 WB13T10015 BURNER CAP BQT-MED
WB13T10016 WB13T10016 BURNER CAP BQT-SMALL
WB13T10007 WB13T10007 BURNER CAP GRAY
WB13T10017 WB13T10017 BURNER CAP GRAY-RT RR
WB13T10006 WB13T10006 BURNER CAP LARGE (BLK)
WB13T10025 WB13T10025 BURNER CAP LT FRT
WB13T10008 WB13T10008 BURNER CAP MED (BLK)
WB13T10012 WB13T10012 BURNER CAP SMALL (BLACK)
WB13T10026 WB13T10026 BURNER CAP-GRAY- LR
WB04T10011 WB04T10011 BURNER GASKET LT RR
WB04T10012 WB04T10012 BURNER GASKET LT RR
WB16T10011 WB16T10011 BURNER GASKET RTR CENT
WB16T10022 WB16T10022 BURNER OVN BAKE ASM
WB16T10021 WB16T10021 BURNER OVN BROIL ASM
WB6X93 WB6X93 CLAMP
WB24T10061 WB24T10061 CLEAN TCO
WB01K5209 WB01K5209 CLIP
WB1K5209 WB1K5209 CLIP
WB02X10742 WB02X10742 CONTROL PANEL GASKET
WB02X9152 WB02X9152 COVER
WB02K5365 WB02K5365 COVER
WB2X9152 WB2X9152 COVER
WB2K5365 WB2K5365 COVER
WB34T10075 WB34T10075 COVER WIRE REAR
WB03T10156 WB03T10156 DOOR BUMPER
WB01T10022 WB01T10022 DOOR BUMPER
WB15K10051 WB15K10051 DOOR HANDLE (BISQ)
WB15K10050 WB15K10050 DOOR HANDLE (BLACK)
WB57T10261 WB57T10261 DOOR OTR ASSEMBLY 30 (BQT)
WB48T10068 WB48T10068 DRAWER GUIDE
WB15K10052 WB15K10052 DRAWER HANDLE WHITE
WB56T10270 WB56T10270 DRAWER PANEL-BISQUE
WB28T10091 WB28T10091 ELBOW
WB07T10405 WB07T10405 EXTENSION REAR
WB07T10498 WB07T10498 EXTENSION SIDE LEFT
WB07K10135 WB07K10135 EXTENSION SIDE RT
WB29T10028 WB29T10028 FACEPLATE (SCR-BLK)
WB29T10029 WB29T10029 FACEPLATE (SCR-BQT)
WB29T10030 WB29T10030 FACEPLATE (SCR-WHT)
WR02X10562 WR02X10562 FASTENER PUSH
WB02T10189 WB02T10189 FITTING BR ORIF
WB63T10083 WB63T10083 FRAME FRT LOWER
WB48T10013 WB48T10013 FRT DRAWER SUPPORT
WB21X31343 WB21X31343 GAS VALVE CENTER
WB02X10744 WB02X10744 GASKET FACEPLATE
WB02T10511 WB02T10511 GASKET MAINTOP
WB02T10320 WB02T10320 GASKET MAINTOP LH
WB02T10319 WB02T10319 GASKET MAINTOP RH
WB04T10021 WB04T10021 GASKET OVEN LIGHT
WB41T10003 WB41T10003 GASKET OVN DR
WB04K10005 WB04K10005 GASKET TO COOKTOP SMALL
WB04T10030 WB04T10030 GASKET VENT
WB64X0093 WB64X0093 GLASS CLEANER
WB31T10071 WB31T10071 GRATE ASM (CTR)
WB31T10072 WB31T10072 GRATE ASM (CTR)
WB31T10074 WB31T10074 GRATE ASM (CTR)
WB31T10030 WB31T10030 GRATE ASSEMBLY- DOUBLE
WB31T10024 WB31T10024 GRATE ASSEMBLY-DOUBLE
WB31T10027 WB31T10027 GRATE ASSEMBLY-DOUBLE
WB02T10461 WB02T10461 GRATE FOOT
WB18T10343 WB18T10343 HARNESS SWITCH
WB18T10406 WB18T10406 HARNESS WIRE BURNER
WB16T10028 WB16T10028 HEAD BURNER B
WB16T10024 WB16T10024 HEAD BURNER LARGE
WB16T10020 WB16T10020 HEAD BURNER RT RR/CEN
WB10T10082 WB10T10082 HINGE DOOR LT
WB10T10081 WB10T10081 HINGE DOOR RT
WB13T10073 WB13T10073 IGNITER
WB13T10045 WB13T10045 IGNITER ASM
WB36T10669 WB36T10669 INSERT PNL CNTL
31-10552 31-10552 INSTRUCTION INSTALL
31-10601 31-10601 INSTRUCTION LP
31-10514 31-10514 INSTRUCTION SHEET
WB35T10090 WB35T10090 INSULATION BACK & BTM
WB35T10091 WB35T10091 INSULATION COMP SHLD
WB35K10025 WB35K10025 INSULATION OVEN DR SDE
WB35X30052 WB35X30052 INSULATION OVN DR TOP
WB35T10089 WB35T10089 INSULATION TOP & SDS OTR
WB35T10088 WB35T10088 INSULATION TOP AND SDS INR

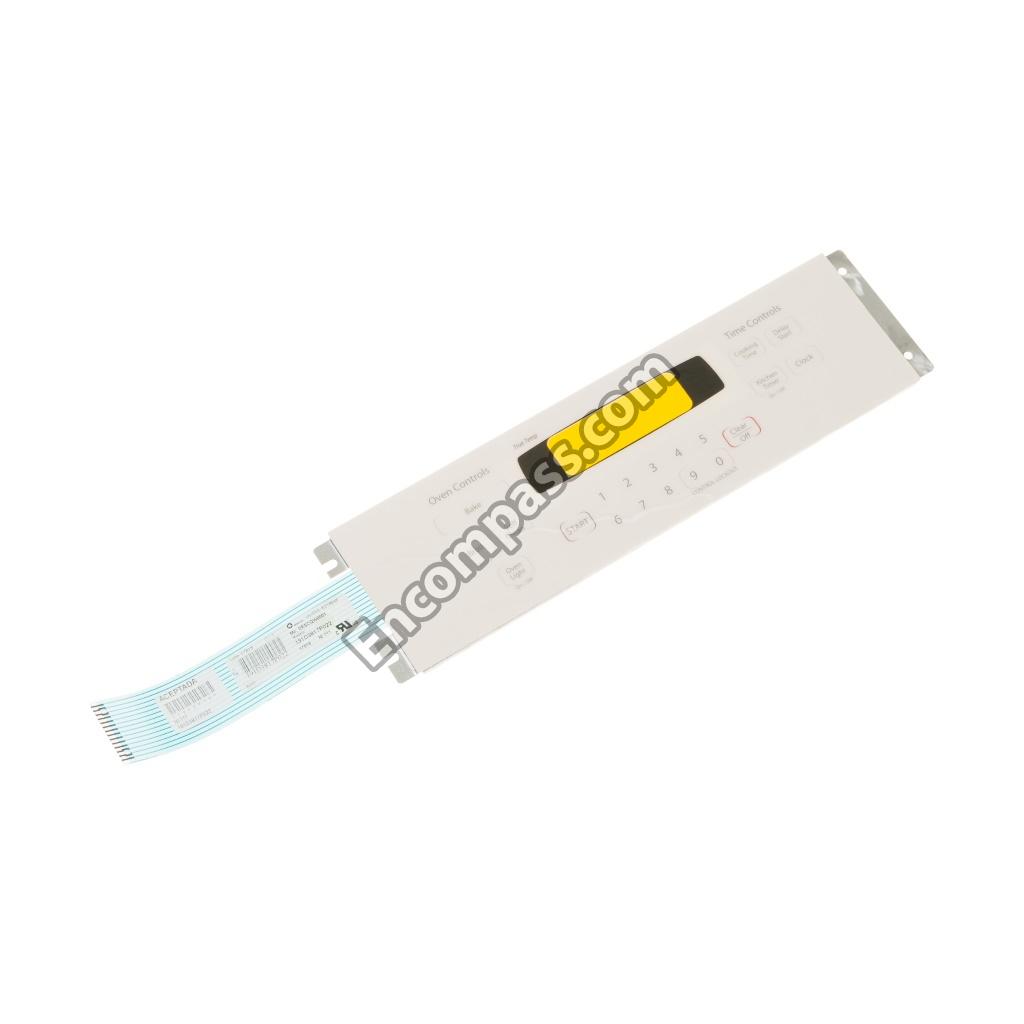

WB27T11077 WB27T11077 KEYPANEL SUPT ASSEMBLY (BQ)
WB03T10196 WB03T10196 KNOB GAS VLV (PRF)
WB03T10198 WB03T10198 KNOB GAS VLV (PRF)
WB03T10195 WB03T10195 KNOB GAS VLV (PRF)
WB14T10018 WB14T10018 LATCH OVN
WB02X10521 WB02X10521 LEG LEVELER
WB1M18 WB1M18 LEVEL SCREW
WB01M0018 WB01M0018 LEVELING SCREW
WB55T10147 WB55T10147 LINER OVN DR ASM
WB01K5046 WB01K5046 LOCKWASHER
WB02K5306 WB02K5306 LOWER OVN INSLN RETAINER
WB61T10131 WB61T10131 MAINTOP GLASS ASM (BK)
WB61T10132 WB61T10132 MAINTOP GLASS ASM (BQ)
WB61T10133 WB61T10133 MAINTOP GLASS ASM (WH)
WB28T10084 WB28T10084 MANIFOLD PIPE
31-14109 31-14109 MANUAL MINI & WD ASM
49-80166 49-80166 MANUAL USE & CARE
WB13T10046 WB13T10046 MODULE SPARK (4+0)
WB28T10011 WB28T10011 ORIFICE SPUD -LP
WB28T10028 WB28T10028 ORIFICE SPUD ASSEMBLY
WB28T10017 WB28T10017 ORIFICE SPUD ASSEMBLY-LP
WB28T10015 WB28T10015 ORIFICE SPUD ASSEMBLY-NAT
WB28T10014 WB28T10014 ORIFICE SPUD LT FRT
WB28K10288 WB28K10288 ORIFICE SPUD RT.RR.LP
WB57T10260 WB57T10260 OUTER DR ASSEMBLY LWR
WB25T10002 WB25T10002 OVEN BULB LENS
WB27T11251 WB27T11251 OVEN CONTROL (ERC3B)
WB08T10002 WB08T10002 OVEN LAMP HOLDER ASM
WB56T10105 WB56T10105 PACK WINDOW ASM
WB56X22160 WB56X22160 PACK WINDOW ASSEMBLY
WB36T10666 WB36T10666 PANEL CNTL ASM
WB36T10668 WB36T10668 PANEL CNTL ASM
WB36T10667 WB36T10667 PANEL CNTL ASM
WB02T10147 WB02T10147 PLATE REINFORCEMEMT
31-10579 31-10579 QUICK REFERENCE
WB48T10021 WB48T10021 RACK OVEN LWR
WB08K5039 WB08K5039 RANGE CORD
WB8K5039 WB8K5039 RANGE CORD
WB10T10083 WB10T10083 RECEIVER HINGE
WB19T10073 WB19T10073 REGULATOR CONVERT PRESS
WB02T10184 WB02T10184 RETAINER GLASS (BLK)
WB02T10185 WB02T10185 RETAINER GLASS (BQT)
WB02T10183 WB02T10183 RETAINER GLASS (WHT)
WB56T10136 WB56T10136 RETAINER INSLN BACK
WB02T10247 WB02T10247 RETAINER INSLN BTM
WB56T10147 WB56T10147 RETAINER INSLN OVN DR
WB02T10186 WB02T10186 RETAINER INSLN TOP
WH02X0941 WH02X0941 SCR 8-15 A HXW 7/8 S
WB01X0500 WB01X0500 SCR 8-18 B HXW 1/4 S
WB01X1127 WB01X1127 SCREW
WB01X1178 WB01X1178 SCREW
WB01K5200 WB01K5200 SCREW
WB01X1428 WB01X1428 SCREW
WB01X1141 WB01X1141 SCREW
WB01K5028 WB01K5028 SCREW
WB01X1137 WB01X1137 SCREW
WB01M0001 WB01M0001 SCREW
WB1X1293 WB1X1293 SCREW
WB1X1178 WB1X1178 SCREW
WB1M1 WB1M1 SCREW
WB1X536 WB1X536 SCREW
WH2X930 WH2X930 SCREW
WB01X5364 WB01X5364 SCREW (CR)
WB01T10048 WB01T10048 SCREW 10-16 SHLDR TYPE A
WB01T10066 WB01T10066 SCREW 10-16 X 1.000 HWH
WB01T10008 WB01T10008 SCREW 10-32 TR T
WB01T10049 WB01T10049 SCREW 6-32 MCH FHT15 984
WB01T10017 WB01T10017 SCREW 8-18 AB IHW 3/8 S NS
WB1K5062 WB1K5062 SCREW 8-18 AB TRP 500 BQT
WB01T10053 WB01T10053 SCREW 8-32 TPT FLR 270
WB1X5364 WB1X5364 SCREW MTG
WB01K5150 WB01K5150 SCREW ST10-16 X 7/16""
WB01K5062 WB01K5062 SCREW ST8-18X.500TRBRNI
WB01X1293 WB01X1293 SCREW TC10-32X.250HEXNI
WB1X1137 WB1X1137 SCREW-10AB
WB1X1118 WB1X1118 SCREW-6-32T 6-20 X 3/8
WB1X1141 WB1X1141 SCREW-8-32
WB1X1124 WB1X1124 SCREW-ADJUST
WB01X1180 WB01X1180 SCREW-BLACK
WB1K5157 WB1K5157 SCREW-BLK
WH2X941D WH2X941D SCREW-PKG 12
WB1X500D WB1X500D SCREW-PKG 12
WB2K5306 WB2K5306 SD INSUL RET
WB04K10004 WB04K10004 SEAL COOKTOP LARGE
WB21X22134 WB21X22134 SENSOR ASSEMBLY
WB34T10080 WB34T10080 SHIELD COMPRT
WB02T10188 WB02T10188 SHIELD ORIFICE
WB02T10034 WB02T10034 SIDE PANEL SUPPORT
WB55T10178 WB55T10178 STORAGE DRAWER LINING
WB02T10192 WB02T10192 SUPPORT FALSE BTM
WB26T10015 WB26T10015 SUPPORT OVN CAV
WB02X33180 WB02X33180 SUPPORT REAR
WB2K5238 WB2K5238 SW BRACKET
WB02K5238 WB02K5238 SWITCH BRACKET
WB24T10065 WB24T10065 SWITCH LIGHT SPOT
WB24T10111 WB24T10111 SWITCH SPDT HIGH AMP
WB01T10052 WB01T10052 TAPE FOAM
WB07T10394 WB07T10394 TRIM VERT SDE LEFT
WB07T10392 WB07T10392 TRIM VERT SDE LT
WB07T10391 WB07T10391 TRIM VERT SDE RT
WB07K10148 WB07K10148 TRIM VERT SDE RT BQT
WB07T10398 WB07T10398 TRIM VNT INR (BLK)
WB28T10095 WB28T10095 TUBE 3/8
WB28T10093 WB28T10093 TUBE 3/8
WB28T10094 WB28T10094 TUBE 3/8
WB28T10097 WB28T10097 TUBE 7/16
WB28T10085 WB28T10085 TUBE BURNER LT FT
WB28T10087 WB28T10087 TUBE BURNER LT RR
WB28T10086 WB28T10086 TUBE BURNER RT FT
WB28T10088 WB28T10088 TUBE BURNER RT RR
WB28T10096 WB28T10096 TUBE OVN VNT
WB48X10056 WB48X10056 UNIVERSAL RANGE BROILER PAN
WB06X0093 WB06X0093 VALVE CLAMP
WB21T10014 WB21T10014 VALVE CNTL
WB21X22072 WB21X22072 VALVE GAS LT RR
WB21X22071 WB21X22071 VALVE KIT
WB38T10023 WB38T10023 VENT CAP
WB31T10075 WB31T10075 VENT CENTER (BLK)
WB31T10076 WB31T10076 VENT CENTER (BQT)
WB31T10078 WB31T10078 VENT CENTER (WHT)
WB1K5046 WB1K5046 WASHER
WB1X681 WB1X681 WB01X0681
WB63T10102 WB63T10102 WRAPPER OVN CAV ASM
