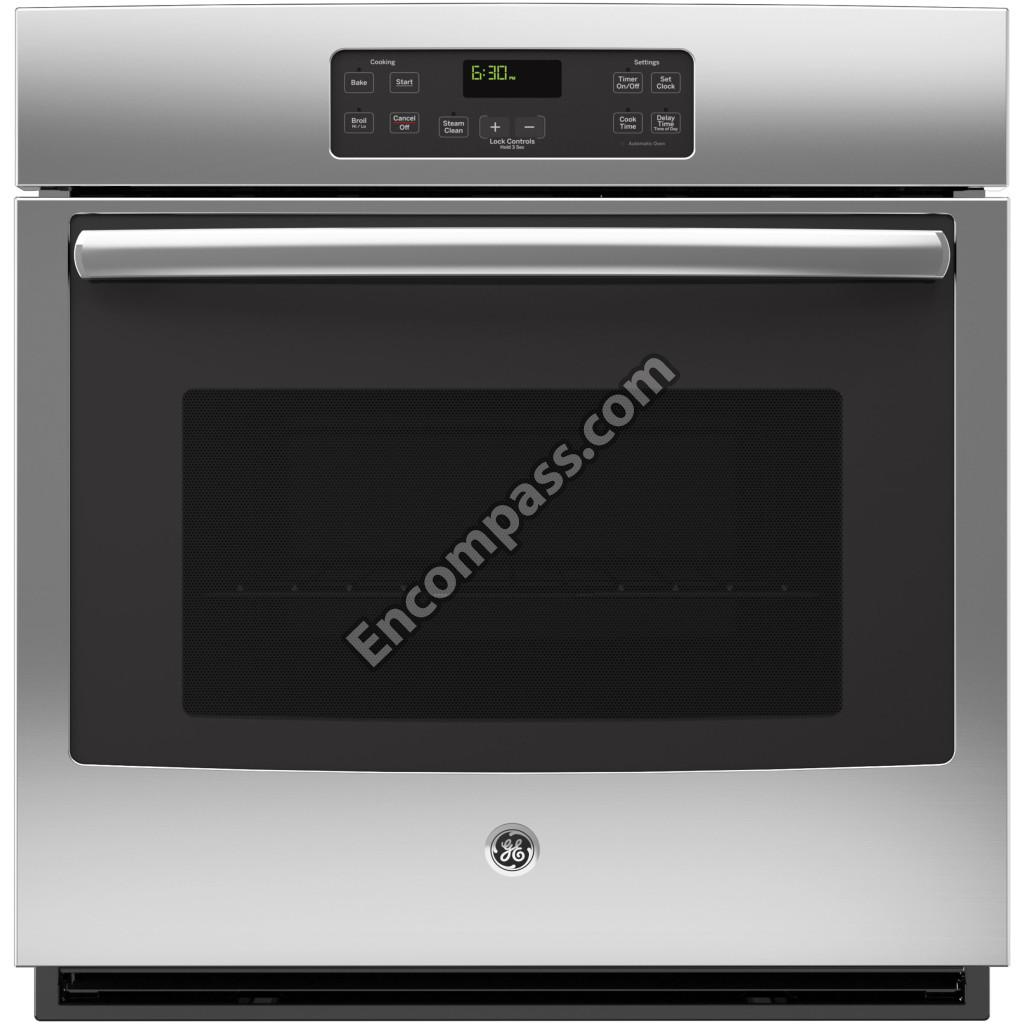

Model Image
Manufacturer

GE

Model Number

JK1000SF2SS

Description

Electric Wall Oven

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WB1K5200 WB1K5200 340531
40A15 40A15 40WATT 15AMP INC AND ESCENT BULB
WB02T10589 WB02T10589 BADGE GE
WB17K10001 WB17K10001 BLOCK TERMINAL
WB07T10751 WB07T10751 BRACE VERTICAL LEFT BLK
WB07T10750 WB07T10750 BRACE VERTICAL RIGHT BLK
WB37T10026 WB37T10026 BRACKET UPPER FAN MOUNT
WB03T10341 WB03T10341 BUMPER DOOR
WB34T10133 WB34T10133 CHANNEL AIR REAR LEFT
WB55X10971 WB55X10971 CHANNEL REAR
WB34T10150 WB34T10150 CHANNEL UPPER AIR VENT
WB18T10567 WB18T10567 CONDUIT WIRE ASSEMBLY
WB01X0119 WB01X0119 CONTOURED WASHER
WB27X23307 WB27X23307 CONTROL OVEN T09

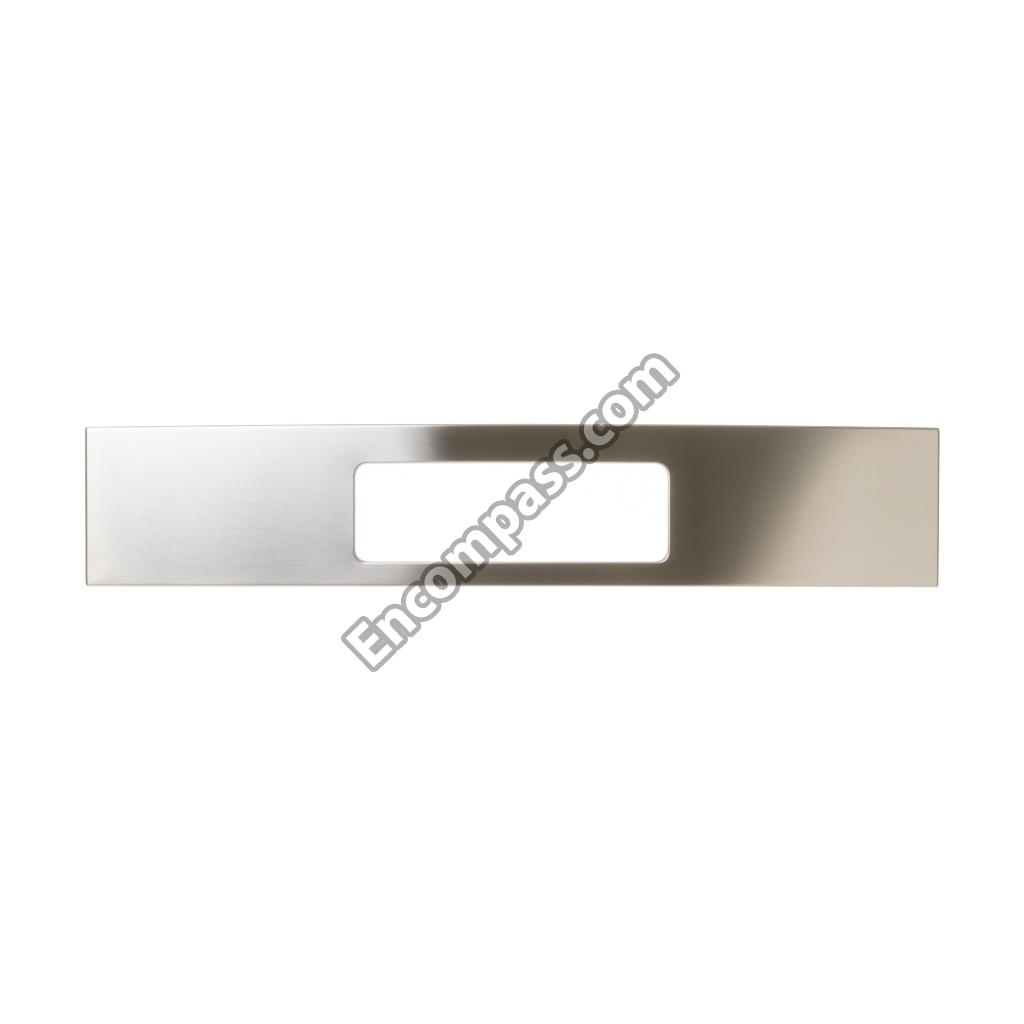

WB07T10734 WB07T10734 CONTROL PANEL STAINLESS
WB26T10066 WB26T10066 COOLING FAN
WB34T10135 WB34T10135 COVER - UPPER REAR DUCT
WB34T10155 WB34T10155 COVER BOTTOM AIR DUCT
WB55T10195 WB55T10195 COVER HIDDEN BAKE
WB34T10151 WB34T10151 COVER LOWER RT AIR DUCT
WB34T10153 WB34T10153 COVER TOP FRONT
WB44T10126 WB44T10126 COVER TOP LEFT EDGE
WB34T10154 WB34T10154 COVER TOP REAR
WB34T10164 WB34T10164 COVER TOP RIGHT EDGE
WB35T10271 WB35T10271 COVER WIRE REAR
WB34T10143 WB34T10143 DEFLECTOR OVEN DOOR 27
WB34T10134 WB34T10134 DIVIDER AIR CENTER
WB56X34820 WB56X34820 DOOR GLASS AND TRIM ASM
WB35X31513 WB35X31513 DOOR SIDE INSULATION
WB44X48680 WB44X48680 ELEMENT BROIL ASSEMBLY
WB35X21972 WB35X21972 GASKET BROIL ELEMENT
WB35X34867 WB35X34867 GASKET OVEN DOOR
WB04T10021 WB04T10021 GASKET OVEN LIGHT
WB56T10350 WB56T10350 GLASS OVEN WINDOW
WB01T10128 WB01T10128 GROMMET
WB15X27174 WB15X27174 HANDLE AND END CAPS
WB18T10569 WB18T10569 HARNESS WIRE MAIN
WB01X1259 WB01X1259 HEX NUT
WB1X1259 WB1X1259 HEX NUT
WB44X21668 WB44X21668 HIDDEN BAKE ELEMENT KIT
WB49X21652 WB49X21652 HINGE BRACKET ASSEMBLY KIT
WB10X35066 WB10X35066 HINGE DOOR LEFT
WB10X35065 WB10X35065 HINGE DOOR RT
31-10882 31-10882 INSTRUCTION INSTALL
WB35X34930 WB35X34930 INSULATION DR SIDE
WB35X33246 WB35X33246 INSULATION DR TOP
229C6155P001 229C6155P001 LABEL WIRE DIAGRAM
WB24T10175 WB24T10175 LIMIT SWITCH-BAKE (TCO)
WB63X32817 WB63X32817 LINER OVEN DOOR ASSEMBLY
WB34X46746 WB34X46746 LINER SUPPORT
WB01T10127 WB01T10127 LOCK NUT
49-80597 49-80597 MANUAL U&C TIP SHEET

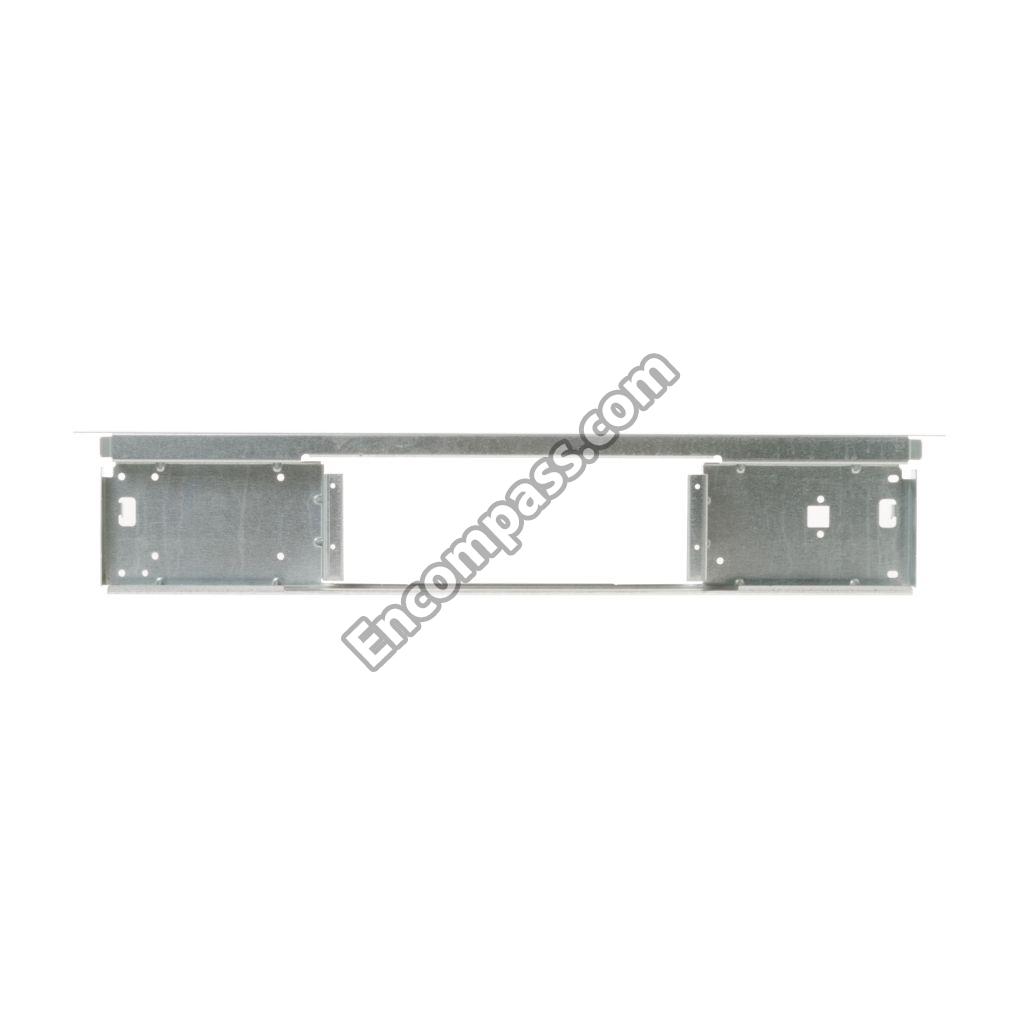

WB34X21720 WB34X21720 MOUNTING PANEL-CONTROL
WB18T10581 WB18T10581 OPTIONAL 6 FT CONDUIT
WB25T10002 WB25T10002 OVEN BULB LENS COVER-GLASS
WB27T11495 WB27T11495 OVERLAY
31-10662 31-10662 PM INSTALL INSTRUCTIONS
31-10856 31-10856 PM INSTRUCTIONS INSTALL
31-17117 31-17117 PM MANUAL MINI & WD ASM
49-80677 49-80677 PM MANUAL USE & CARE
WB48T10116 WB48T10116 RACK OVEN
WB08T10002 WB08T10002 RANGE OVEN LAMP ASSEMBLY
WB63T10168 WB63T10168 RETAINER INSLN BACK
WB34T10152 WB34T10152 RETAINER INSLN OVEN DOOR
WB01K5200 WB01K5200 SCREW
WB01K5072 WB01K5072 SCREW
WH2X930 WH2X930 SCREW
WB1X1261 WB1X1261 SCREW
WB1M1 WB1M1 SCREW
WB1K5072 WB1K5072 SCREW
WB01T10129 WB01T10129 SCREW 10-16 2 1/2 IN T20
WB01T10132 WB01T10132 SCREW 10-32 HEX 1 3/4 IN
WB01T10008 WB01T10008 SCREW 10-32 TR T
WB01T10130 WB01T10130 SCREW 7-19 1/4HEX 1/2IN
WB01X1261 WB01X1261 SCREW GROUND
WB01K5150 WB01K5150 SCREW ST10-16 X 7/16""
WB1K5165 WB1K5165 SCREW-BLACK
WB01K5165 WB01K5165 SCREW-BLK
WB21X10165 WB21X10165 SENSOR ASSEMBLY
WB37T10033 WB37T10033 SPACER OVEN WINDOW
WB02T10603 WB02T10603 SUPPORT H AND LE
WB24X46906 WB24X46906 SWITCH HIGH LIMIT
WB24T10179 WB24T10179 SWITCH LIGHT
WB07T10778 WB07T10778 TRIM BOTTOM CABINET
WB07T10807 WB07T10807 TRIM VENT LOWER BLACK
WB07X20239 WB07X20239 TRIM VENT UPR (BLACK)
WB07X11402 WB07X11402 TRIM VERT SIDE (BLACK)
WB02X32440 WB02X32440 WASHER CONTOURED
WB1X119D WB1X119D WASHR-PKG 12
