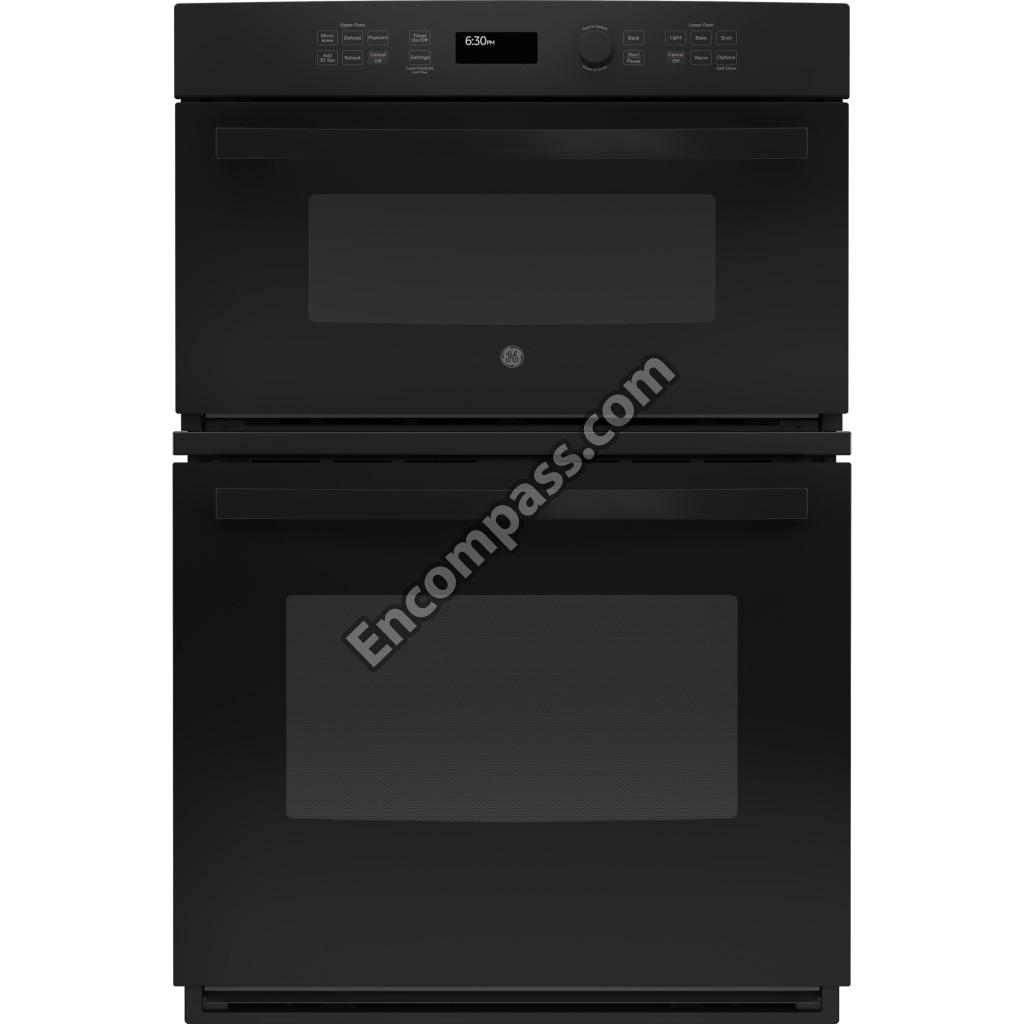

Model Image
Manufacturer

GE

Model Number

JK3800DH4BB

Description

Electric Range

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WB27X50146 WB27X50146 GE ADVANTIUM VF DISPLAY
WB34X32602 WB34X32602 GE AIR TUNNEL
WB63X22091 WB63X22091 GE BASE PLATE ASSEMBLY
WB17K10001 WB17K10001 GE BLOCK TERMINAL
WB27T11463 WB27T11463 GE BOARD FAN SENSOR
WB27X21904 WB27X21904 GE BOARD RJ45 CONNECTOR
WB02X32634 WB02X32634 GE BOARD SUPPORTER
WB07X21905 WB07X21905 GE BRACE VERT ASSEMBLY (RT)
WB07X21906 WB07X21906 GE BRACE VERT SIDE (LT)
WB02X32932 WB02X32932 GE BRACKET
WB02X32593 WB02X32593 GE BRACKET CAPACITOR
WB37T10026 WB37T10026 GE BRACKET UPPER FAN MOUNT
WB27X25692 WB27X25692 GE BRIDGE BOARD
WB03T10341 WB03T10341 GE BUMPER DOOR
WB06X10638 WB06X10638 GE CANOPY MICA
WB34X21910 WB34X21910 GE CHANNEL REAR LEFT
WB34X21912 WB34X21912 GE CHANNEL REAR RT
WB34T10150 WB34T10150 GE CHANNEL UPPER AIR VENT
WB18X32620 WB18X32620 GE COMM SIGNAL HARNESS
WB18X30613 WB18X30613 GE CONDUIT WIRE ASSEMBLY
WB01X0119 WB01X0119 GE CONTOURED WASHER
WB27X32624 WB27X32624 GE CONTROL BOARD
WB27X32633 WB27X32633 GE CONTROL BOARD
WB02X32630 WB02X32630 GE CONTROL BOARD BRACKET
WB56X32621 WB56X32621 GE CONTROL PANEL
WB26X24020 WB26X24020 GE COOLING FAN
WB34T10135 WB34T10135 GE COVER - UPPER REAR DUCT
WB56X32580 WB56X32580 GE COVER BACK
WB34T10155 WB34T10155 GE COVER BOTTOM AIR DUCT
WB55T10195 WB55T10195 GE COVER HIDDEN BAKE
WB34X21915 WB34X21915 GE COVER HOUSING REAR 27
WB34T10151 WB34T10151 GE COVER LOWER RT AIR DUCT
WB34X21917 WB34X21917 GE COVER WIRE TOP
WB34T10143 WB34T10143 GE DEFLECTOR OVEN DOOR 27
WD02X10129 WD02X10129 GE DISHWASHER 6-19X1/4 TORX PAN HEAD SCREW
WB02X32631 WB02X32631 GE DISPLAY HOLDER
WB34T10134 WB34T10134 GE DIVIDER AIR CENTER
WB56X32617 WB56X32617 GE DOOR ASSEMBLY AND REMOVAL TOOL
WB56X33230 WB56X33230 GE DOOR GLASS AND TRIM ASSEMBLY
WB10X30578 WB10X30578 GE DOOR HINGE LEFT
WB01X34910 WB01X34910 GE DOOR REMOVAL TOOL
WB35X31513 WB35X31513 GE DOOR SIDE INSULATION
WB34X32584 WB34X32584 GE DOOR SWITCH ACCESS COVER
WB44X48680 WB44X48680 GE ELEMENT BROIL ASSEMBLY
WB27X32632 WB27X32632 GE ENCODER BOARD
WB18X32616 WB18X32616 GE ENCODER SIGNAL HARNESS
WB02X21902 WB02X21902 GE FRAME BOARD RELAY
WB35X21972 WB35X21972 GE GASKET BROIL ELEMENT
WB35X34867 WB35X34867 GE GASKET OVEN DOOR
WB01T10128 WB01T10128 GE GROMMET
WB02X35488 WB02X35488 GE HALOGEN BULB 130V/50W
WB25X31221 WB25X31221 GE HALOGEN LAMP ASSEMBLY
WB15T10209 WB15T10209 GE HANDLE BLACK
WB18X32611 WB18X32611 GE HARNESS SINGLE
WB18X32603 WB18X32603 GE HARNESS WIRE
WB18X32610 WB18X32610 GE HARNESS WIRE
WB18X23185 WB18X23185 GE HARNESS WIRE COM
WB18X24075 WB18X24075 GE HARNESS WIRE MAIN
WB01X1259 WB01X1259 GE HEX NUT
WB1X1259 WB1X1259 GE HEX NUT
WB44X21668 WB44X21668 GE HIDDEN BAKE ELEMENT KIT
WB17X10030 WB17X10030 GE HIGH VOLTAGE TRANSFORMER
WB49X21652 WB49X21652 GE HINGE BRACKET ASSEMBLY KIT
WB10X30577 WB10X30577 GE HINGE DOOR RH
WB02X11233 WB02X11233 GE HOLDER WIRE
WB01X32574 WB01X32574 GE INSTALLATION HARDWARE
31-10882 31-10882 GE INSTRUCTION INSTALL
WB35X34930 WB35X34930 GE INSULATION DR SIDE
WB35X33246 WB35X33246 GE INSULATION DR TOP
WB03X32635 WB03X32635 GE KNOB
WB25T10102 WB25T10102 GE LAMP HALOGEN BULB G9
WB10X28391 WB10X28391 GE LATCH ASSEMBLY
WB34T10145 WB34T10145 GE LENS OVEN LIGHT
WB34X32583 WB34X32583 GE LIGHT COVER
WB63X32817 WB63X32817 GE LINER OVEN DOOR ASSEMBLY
WB34X46746 WB34X46746 GE LINER SUPPORT
WB01T10127 WB01T10127 GE LOCK NUT
WB27X25718 WB27X25718 GE MACHINE CONTROL BOARD
WB26X32629 WB26X32629 GE MAGNETRON
49-80597 49-80597 GE MANUAL U&C TIP SHEET
WB02X32590 WB02X32590 GE MICROWAVE BARRIER BRACKET
WB06X10570 WB06X10570 GE MICROWAVE BRACKET
WB02X11225 WB02X11225 GE MICROWAVE BRACKET
WB02X32591 WB02X32591 GE MICROWAVE BRACKET
WB27X11033 WB27X11033 GE MICROWAVE CAPACITOR
WB27X10037 WB27X10037 GE MICROWAVE DIODE CABLE
WB34X32607 WB34X32607 GE MICROWAVE DUCT ASSEMBLY
WB34X32594 WB34X32594 GE MICROWAVE DUCT ASSEMBLY
WB06X10646 WB06X10646 GE MICROWAVE HOLDER ASSEMBLY
WB10X32573 WB10X32573 GE MICROWAVE LATCH BODY - LEFT
WB10X32577 WB10X32577 GE MICROWAVE LATCH BODY - RT
WB02X32588 WB02X32588 GE MICROWAVE LEVER
WB27X10928 WB27X10928 GE MICROWAVE LINE FUSE
WB24X25397 WB24X25397 GE MICROWAVE MONITOR SWITCH
WB34X32592 WB34X32592 GE MICROWAVE PROTECTOR
WB02X22095 WB02X22095 GE MICROWAVE SUPPORTER
WB24X10047 WB24X10047 GE MICROWAVE SWITCH
WB26X10193 WB26X10193 GE MOTOR TURNTABLE
WB26X10182 WB26X10182 GE MOTOR(CIRC) CIRCULATION
WB34X32596 WB34X32596 GE MOUNT
WB02X32599 WB02X32599 GE MOUNT
WB02X35865 WB02X35865 GE NOISE FILTER BOARD
WB18T10574 WB18T10574 GE OPTIONAL CONDUIT WIRE ASSEMBLY
WB56X32578 WB56X32578 GE OUTER CASE
WB48X32180 WB48X32180 GE OVEN RACK
31-10957 31-10957 GE PM INSTALL INSTRUCTIONS
31-10965 31-10965 GE PM INSTALL INSTRUCTIONS
31-17239 31-17239 GE PM MANUAL MINI & WD ASM
49-80737 49-80737 GE PM OWNERS MANUAL
WB27X32626 WB27X32626 GE POWER BOARD
WB18X32615 WB18X32615 GE POWER BOARD HARNESS
WB26X31060 WB26X31060 GE RANGE COOLING FAN
WB27X32625 WB27X32625 GE RELAY BOARD
WB18X32619 WB18X32619 GE RELAY SIGNAL HARNESS
WB63T10168 WB63T10168 GE RETAINER INSLN BACK
WB34T10152 WB34T10152 GE RETAINER INSLN OVEN DOOR
WB34X21913 WB34X21913 GE RETAINER INSLN SDE
WB02X32600 WB02X32600 GE ROTATING RING ASSEMBLY
WB1X5904 WB1X5904 GE SCR 8-18 BA
WB01X5904 WB01X5904 GE SCR 8-18 BA POR 3/4 SN
WB01K5072 WB01K5072 GE SCREW
WH2X930 WH2X930 GE SCREW
WB01X21742 WB01X21742 GE SCREW
WB01X10121 WB01X10121 GE SCREW
WB1M1 WB1M1 GE SCREW
WB1K5072 WB1K5072 GE SCREW
WB02X10745 WB02X10745 GE SCREW - BINDING HEAD
WB01T10129 WB01T10129 GE SCREW 10-16 2 1/2 IN T20
WB01T10008 WB01T10008 GE SCREW 10-32 TR T
WB01T10130 WB01T10130 GE SCREW 7-19 1/4HEX 1/2IN
WB01T10135 WB01T10135 GE SCREW HANDLE SUPPORT
WB1K5173 WB1K5173 GE SCREW ST 8-18 X 3/4 BLK
WB01K5150 WB01K5150 GE SCREW ST10-16 X 7/16""
WB02X32576 WB02X32576 GE SEAL TAPE
WB27X10857 WB27X10857 GE SENSOR ASSEMBLY
WB21X10165 WB21X10165 GE SENSOR ASSEMBLY
WB06X10693 WB06X10693 GE SHAFT ASSEMBLY
WB02T10093 WB02T10093 GE ST AND OFF PCB
WB02T10603 WB02T10603 GE SUPPORT H AND LE
WB34X21920 WB34X21920 GE SUPPORT MIDDLE LEFT MWO 27
WB34X21914 WB34X21914 GE SUPPORT MIDDLE RT MWO 27
WB34X21916 WB34X21916 GE SUPPORT SLIDE 27 LH
WB34X21918 WB34X21918 GE SUPPORT SLIDE 27 RH
WB24X46906 WB24X46906 GE SWITCH HIGH LIMIT
WB21X10149 WB21X10149 GE THERMOSTAT
WB20X10048 WB20X10048 GE THERMOSTAT
WB18X32614 WB18X32614 GE TOUCH SIGNAL HARNESS
WB27X43590 WB27X43590 GE TRAY GLASS
WB07T10778 WB07T10778 GE TRIM BOTTOM CABINET
WB07X32586 WB07X32586 GE TRIM LH
WB07X21919 WB07X21919 GE TRIM MIDDLE 27 (BLACK)
WB07X32585 WB07X32585 GE TRIM RH
WB01K5173 WB01K5173 GE TRIM SCREW-BLK
WB07T10807 WB07T10807 GE TRIM VENT LOWER BLACK
WB07X21911 WB07X21911 GE TRIM VENT UPR
WB07X11402 WB07X11402 GE TRIM VERT SIDE (BLACK)
WB27X44086 WB27X44086 GE VF DISPLAY
WB18X32613 WB18X32613 GE VFD SIGNAL HARNESS
WB02X32440 WB02X32440 GE WASHER CONTOURED
WB1X119D WB1X119D GE WASHR-PKG 12
WB56X27502 WB56X27502 GE WINDOW PACK ASSEMBLY
